  1. CSEE W4140Networking Laboratory Lecture 7: TCP flow control and congestion control Jong Yul Kim 03.22.2010

  2. Short review of TCP from last time • Characteristics of the IP network • Delivers packets from host to host • May lose packets (discarded by routers) • Doesn’t care about packet order • TCP is a • reliable, • in-order, • byte-stream service • (delivers data from application to application)

  3. Short review of TCP from last time • TCP is a reliable, in-order, byte-stream service • The beauty of TCP is that it works without explicit support from the network • Each end of the connection cooperate to make sure packets are delivered reliably and in order • Techniques used by TCP • Sequence numbers • Acknowledgements (and numbers) • Retransmissions • Timer

  4. Today’s lecture • TCP Flow Control • Throttling the rate of sender so that the receiver’s buffer does not overflow • TCP Congestion Control • Throttling the rate of sender in the face of network congestion

  5. TCP Flow Control (Receive Window) • When a connection is established, the receiver allocates a receive buffer. • Incoming packets are stored in the buffer so that the application can read data from the buffer.

  6. TCP Flow Control (Receiver behavior) • The receiver lets the sender know: • how much space is left in the buffer= RcvWindow • by placing that value in the window size field • in every segment that it sends to the sender

  7. TCP Flow Control (Sender behavior) • Sender can fill up the spare room in the receiver’s buffer by sending more data • Sender maintains the size of data that has already been sent but unacknowledged = bytes_unACKed • Makes sure that • bytes_unACKed ≤ RcvWindow

  8. Network Congestion • Why does congestion occur? • Too many senders sending at high rate • Routers dropping packets due to overflowing buffers • What are the symptoms? • Packet loss • Packet queuing delay • More retransmission  more packet loss • Link bandwidth wasted on retransmissions

  9. TCP Congestion Control • Remember: TCP has no support from the network about congestions • Need to use end-to-end congestion control • TCP relies on perceived network congestion and throttles the sending rate accordingly

  10. How does TCP know there is congestion in the network? • Answer: packet loss • Timeout • Three duplicate ACKs shown in diagram on right

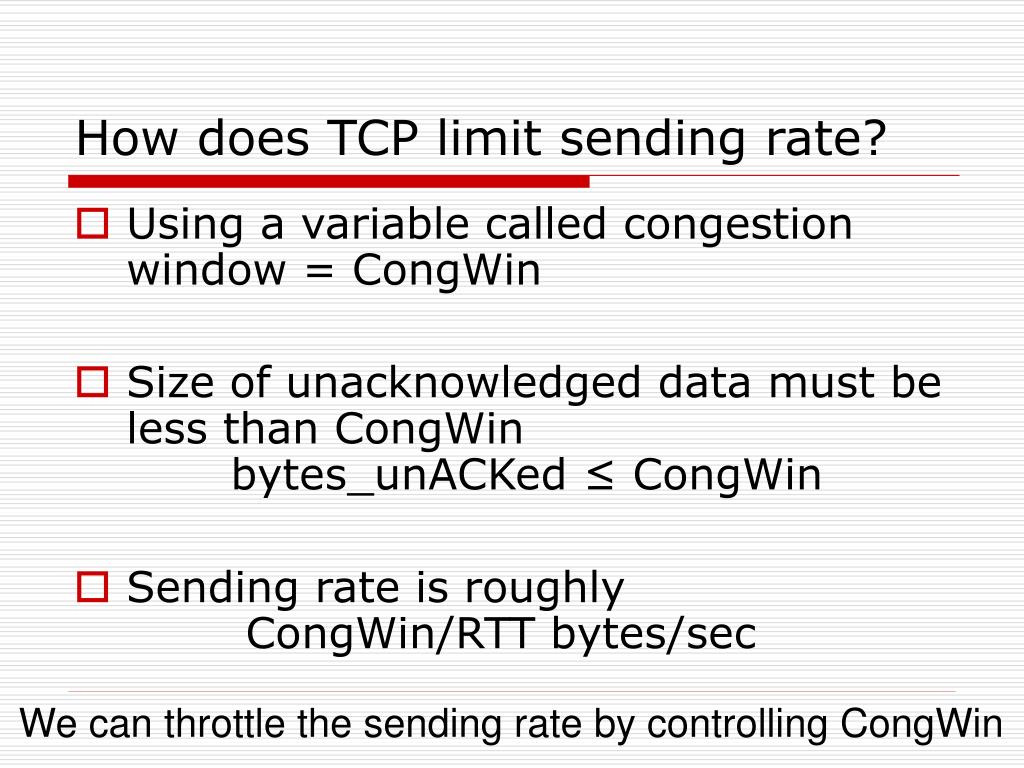

  11. How does TCP limit sending rate? • Using a variable called congestion window = CongWin • Size of unacknowledged data must be less than CongWin bytes_unACKed ≤ CongWin • Sending rate is roughly CongWin/RTT bytes/sec We can throttle the sending rate by controlling CongWin

  12. TCP Congestion Control Algorithm • Is an algorithm that controls CongWin • Simply stated: • Packet loss (=congestion)  decrease CongWin • All is well  increase CongWin • Three main parts • Additive-Increase, Multiplicative Decrease • Slow Start • Reaction to timeout events

  13. Additive Increase, Multiplicative Decrease (AIMD) • Additive Increase • Increase CongWin by 1 MSS every RTT while there is no packet loss • Multiplicative Decrease • Decrease CongWin by half when packet is lost

  14. Additive Increase, Multiplicative Decrease (AIMD) Congestion Avoidance phase

  15. Slow Start (SS) • When connection is established • CongWin is set to 1 MSS • Increase CongWin by 1 MSS every ACK • Different from Additive Increase (+1 MSS every RTT) • Until a loss occurs • Result is an exponentially fast growth in sending rate

  16. Slow Start (SS)

  17. Example of Slow Start/Congestion Avoidance Assume that ssthresh = 8 ssthresh Cwnd (in segments) Roundtrip times

  18. Reaction to Timeouts • We already discussed that TCP perceives congestion through packet loss • Packet is considered lost when: • Timeout occurs • Three duplicate ACKs are received • But timeouts and three duplicate ACKs are different. • What do they tell about the severity of congestion?

  19. Reaction to Timeouts • Let’s do something different for timeout. • Reset CongWin to 1 MSS • Begin again from Slow Start • Slow start (exponential increase) until when? • New variable called Threshold • Threshold is set to ½ CongWin • After Threshold, do AIMD instead of SS

  20. Lab 5 part 2 in the lab manual

  21. Lab 5 part 2 – our version • Use Table 5.3 and Table 5.4 to configure PC1, PC2, Router1, and Router2. • Do parts 5(B), 6(A), 6(C), and 8. • For part 8, configure PC1 and PC2 so that all packets travel along PC1 – R1 – R2 – PC2 path.

  22. Main Points of Lab 5 Parts 5~8 • More about TCP • Interactive applications over TCP • Data transfer applications over TCP • Congestion Control

  23. Prelab and lab reports • Prelab 6 is due this Friday. • Lab report 5.1 is due this week before your labs. • Lab report 5.2 + BGP lab is due next week before your labs.
