Networking, Java threads and synchronization

1. Networking, Java threads and synchronization PRIS lecture 4 Fredrik Kilander

2. OSI TCP/IP Application Application Presentation Session Transport Transport Network Internet Data link Host-to-network Physical A. S. Tanenbaum, Computer Networks, 3rd Ed.

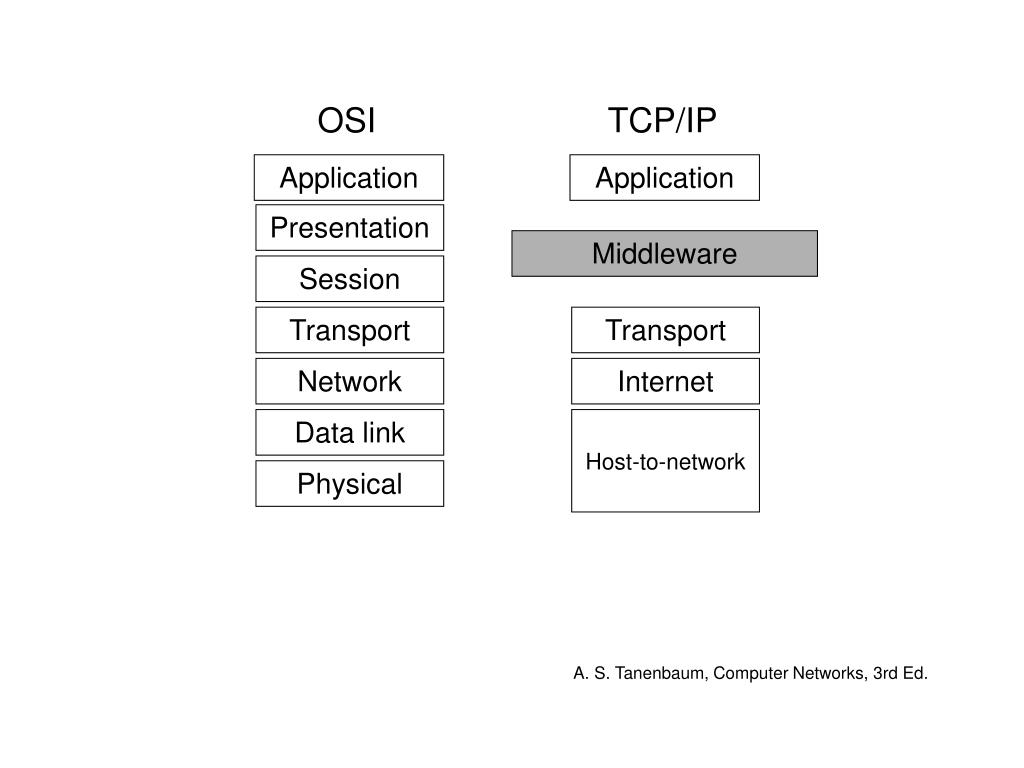

3. OSI TCP/IP Application Application Presentation Middleware Session Transport Transport Network Internet Data link Host-to-network Physical A. S. Tanenbaum, Computer Networks, 3rd Ed.

4. HTTP BitTorrent SMTP DNS Application SSH Protocols TCP UDP Transport IP Network Data link + physical 3G PPP WAN MAN LAN WiFi Networks Adapted from A. S. Tanenbaum, Computer Networks, 3rd Ed.

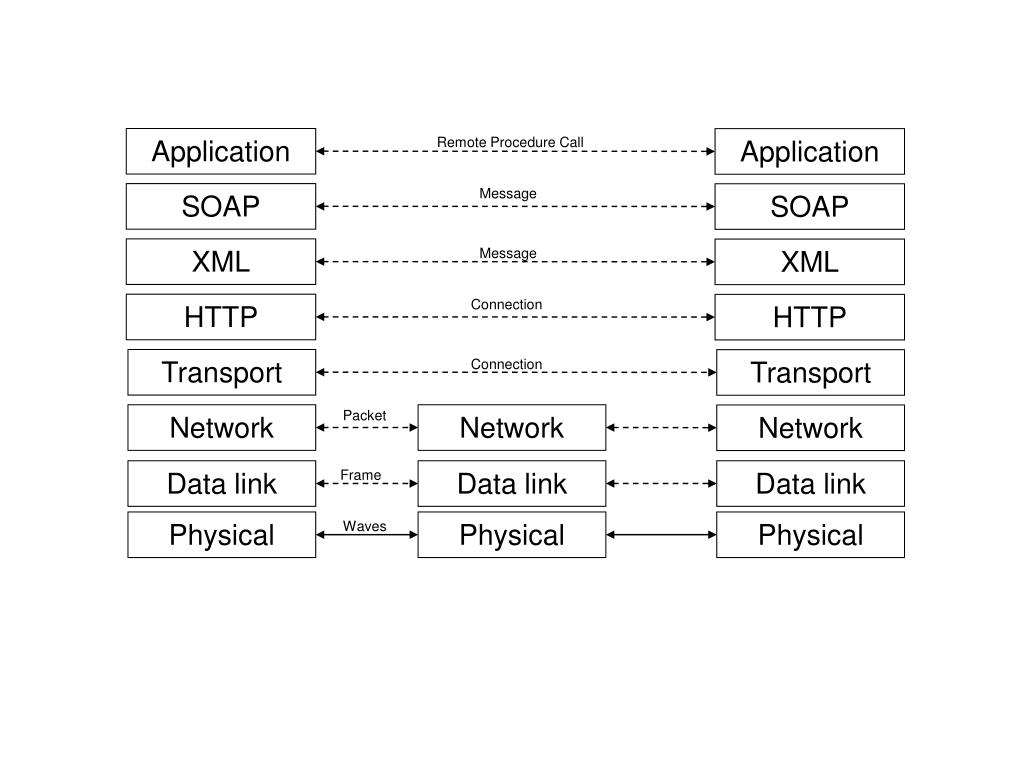

5. Remote Procedure Call Application Application Message SOAP SOAP XML Message XML Connection HTTP HTTP Transport Transport Connection Packet Network Network Network Data link Frame Data link Data link Physical Waves Physical Physical

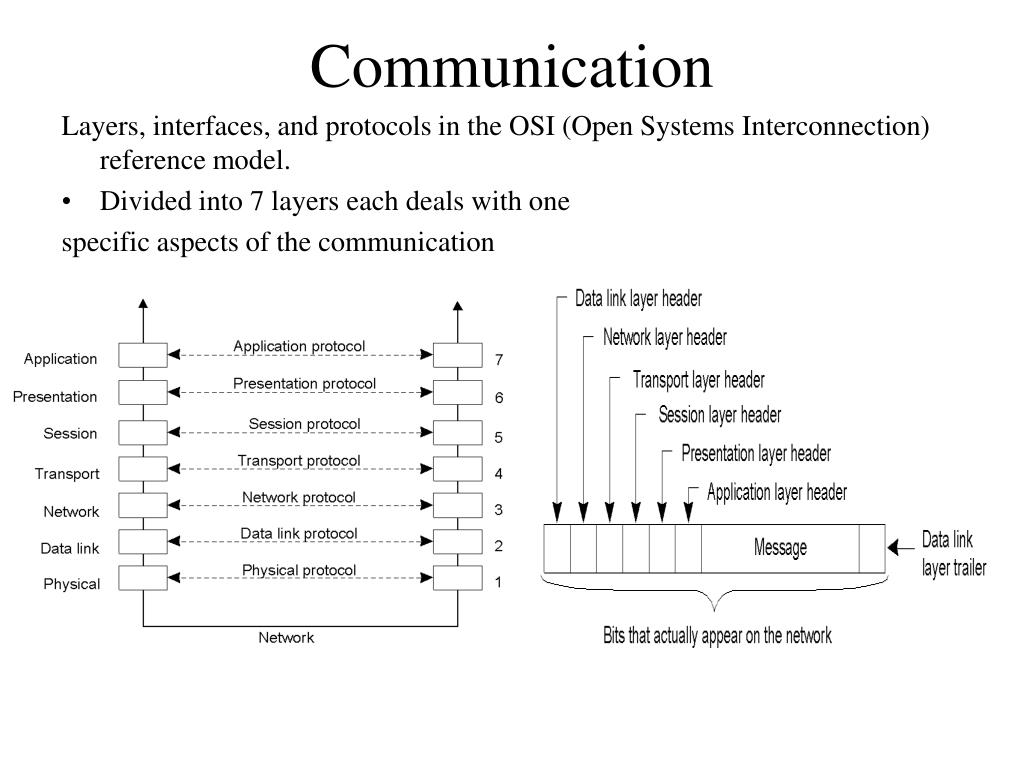

6. Communication Layers, interfaces, and protocols in the OSI (Open Systems Interconnection) reference model. • Divided into 7 layers each deals with one specific aspects of the communication

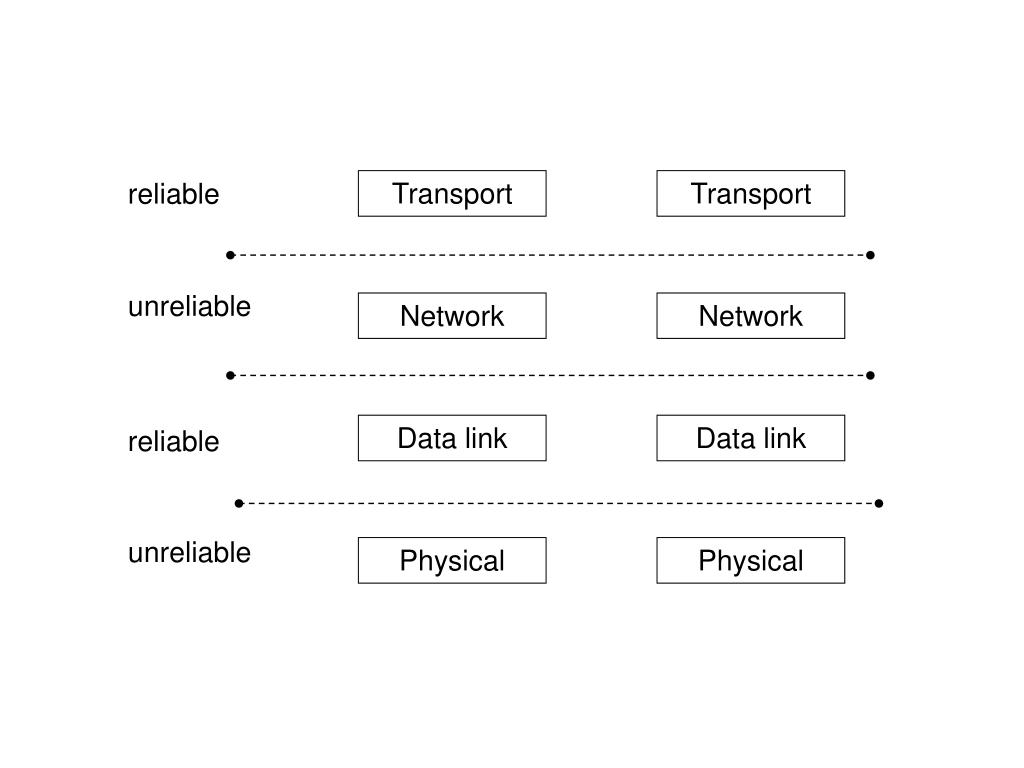

7. reliable Transport Transport unreliable Network Network Data link Data link reliable unreliable Physical Physical

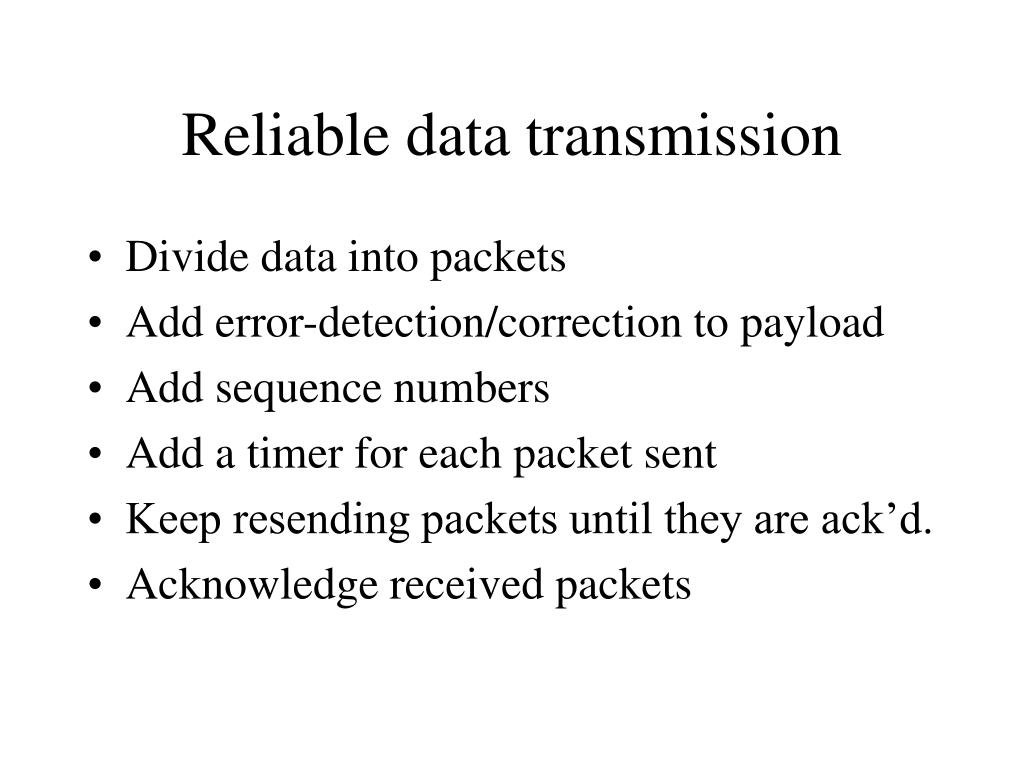

8. Reliable data transmission • Divide data into packets • Add error-detection/correction to payload • Add sequence numbers • Add a timer for each packet sent • Keep resending packets until they are ack’d. • Acknowledge received packets

9. Point-to-point connection Transport Transport Network Network Data link Data link Physical Physical Wire or EM beam

10. Common media, no longer point-to-point Transport Transport Transport Network Network Network Data link Data link Data link Physical Physical Physical Coaxial cable or radio channel (wave propagation medium)

11. Medium ACcess Layer OSI Application Presentation Session Transport Network Data link MAC Physical

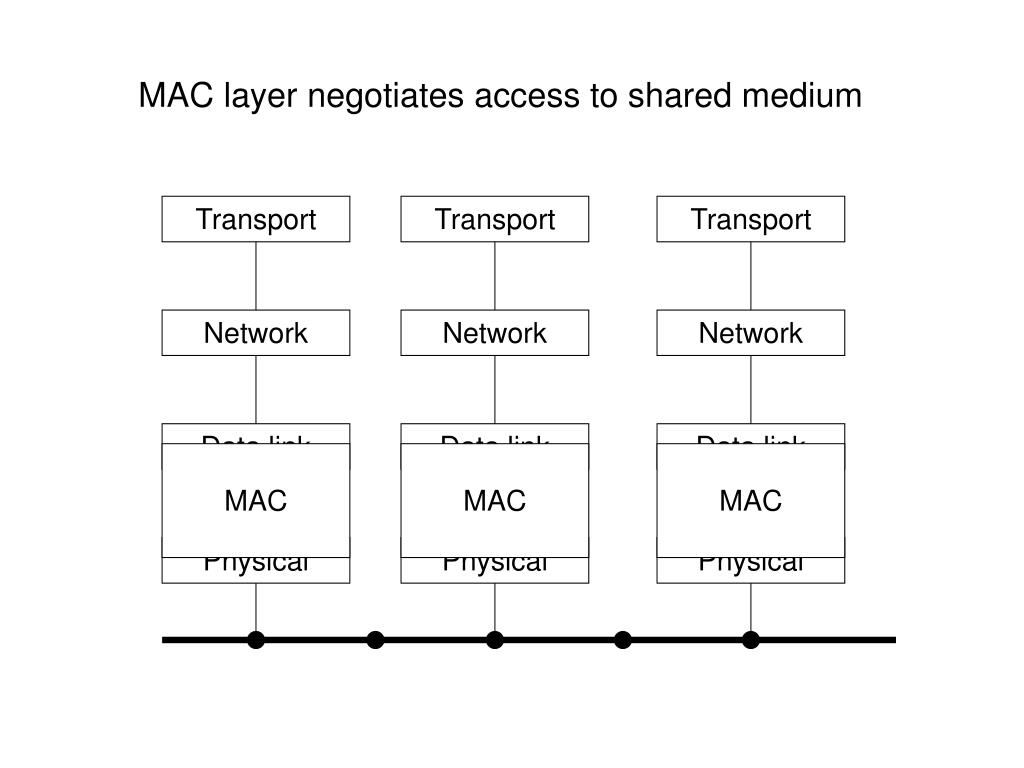

12. MAC layer negotiates access to shared medium Transport Transport Transport Network Network Network Data link Data link Data link MAC MAC MAC Physical Physical Physical

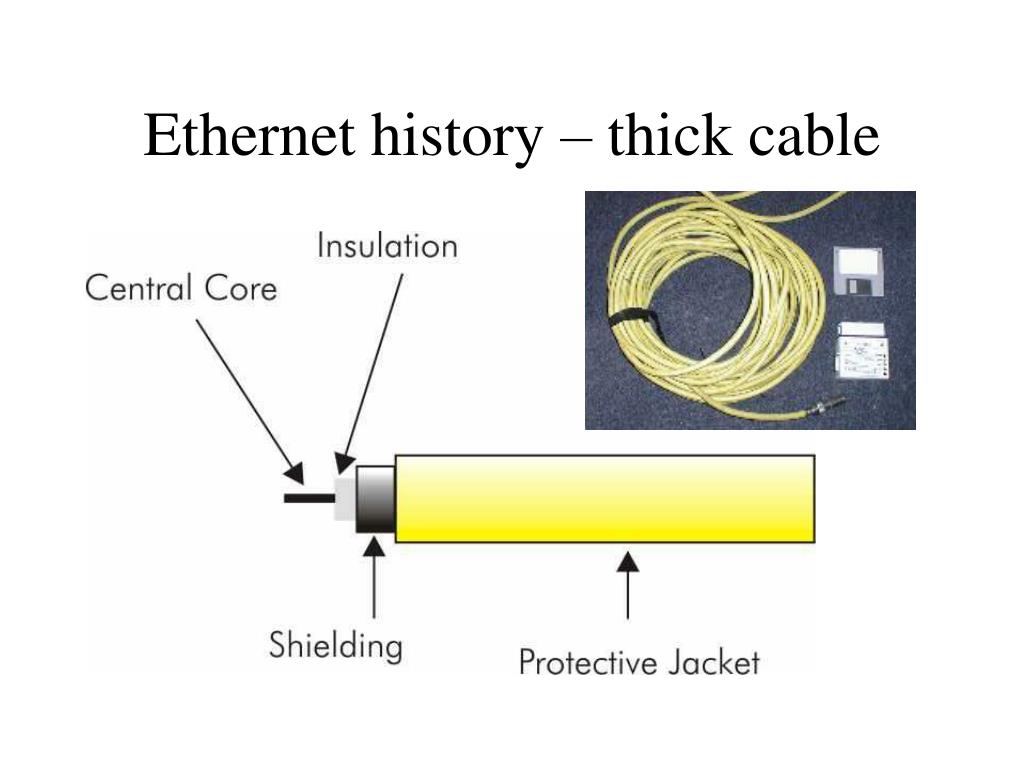

13. Ethernet history – thick cable

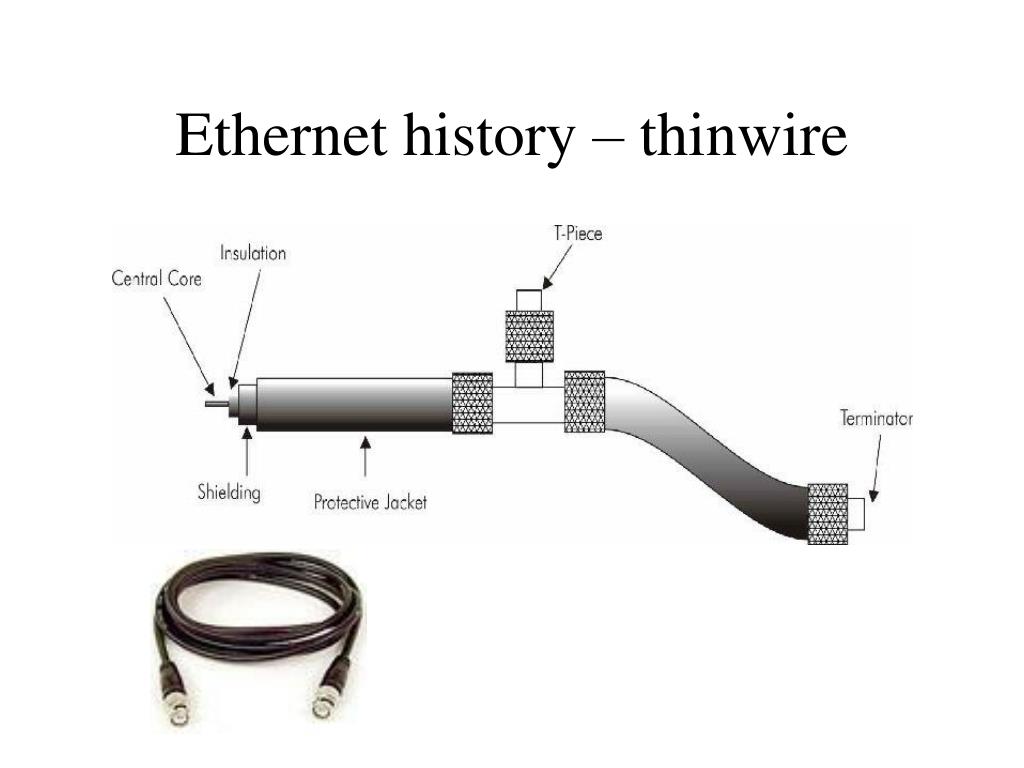

14. Ethernet history – thinwire

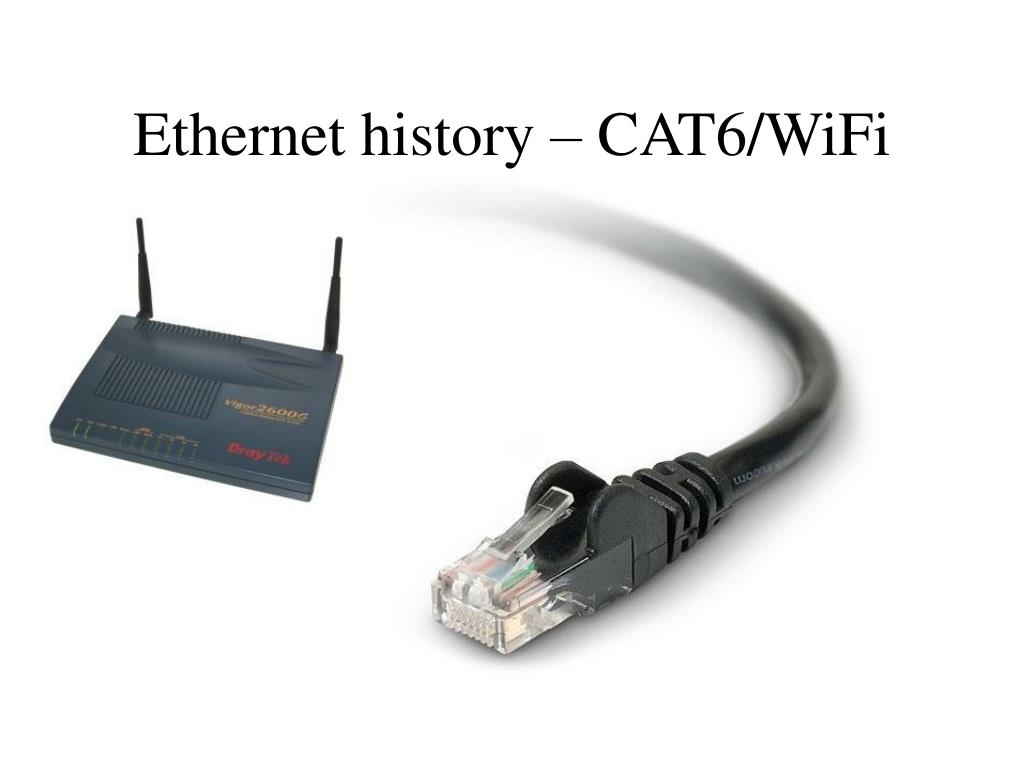

15. Ethernet history – CAT6/WiFi

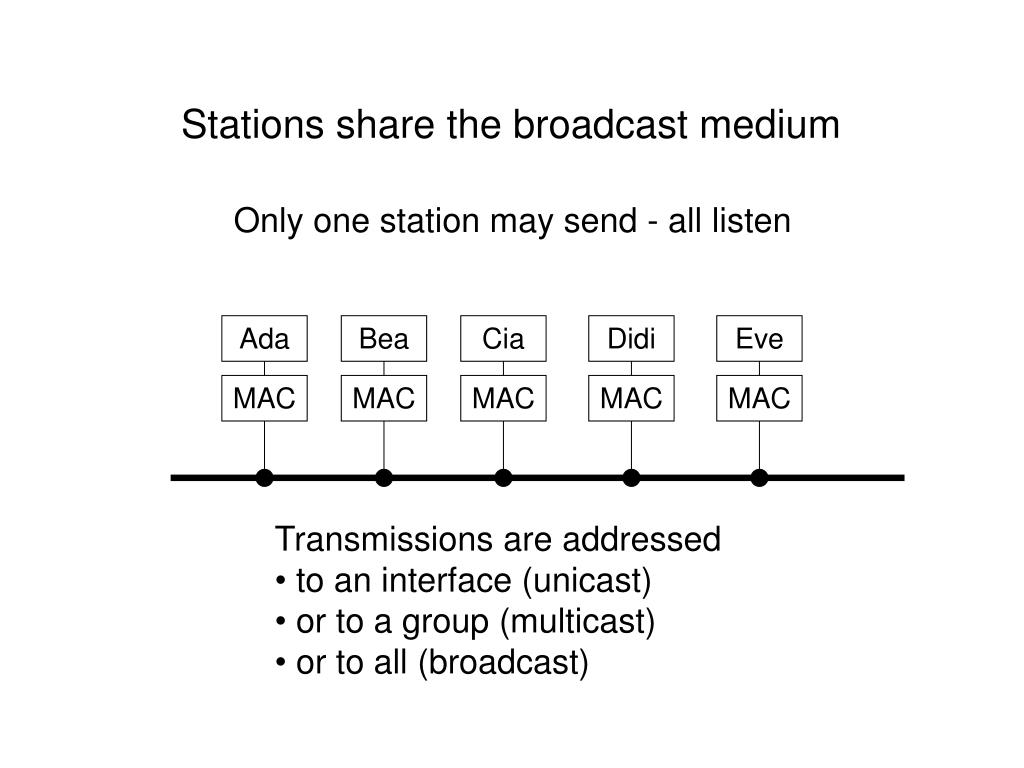

16. Stations share the broadcast medium Only one station may send - all listen Ada Bea Cia Didi Eve MAC MAC MAC MAC MAC • Transmissions are addressed • to an interface (unicast) • or to a group (multicast) • or to all (broadcast)

17. Stations share the broadcast medium The MAC-address depends on the medium 00:1F:3B:BF:CA:35 Ada Bea Cia Didi Eve MAC MAC MAC MAC MAC Ethernet 48 bits vv:vv:vv:ss:ss:ss BlueTooth 48 bits NAP(16)UAP(8)LAP(24) NAP:Non-significant address portion LAP:Lower address portion UAP:Upper address portion

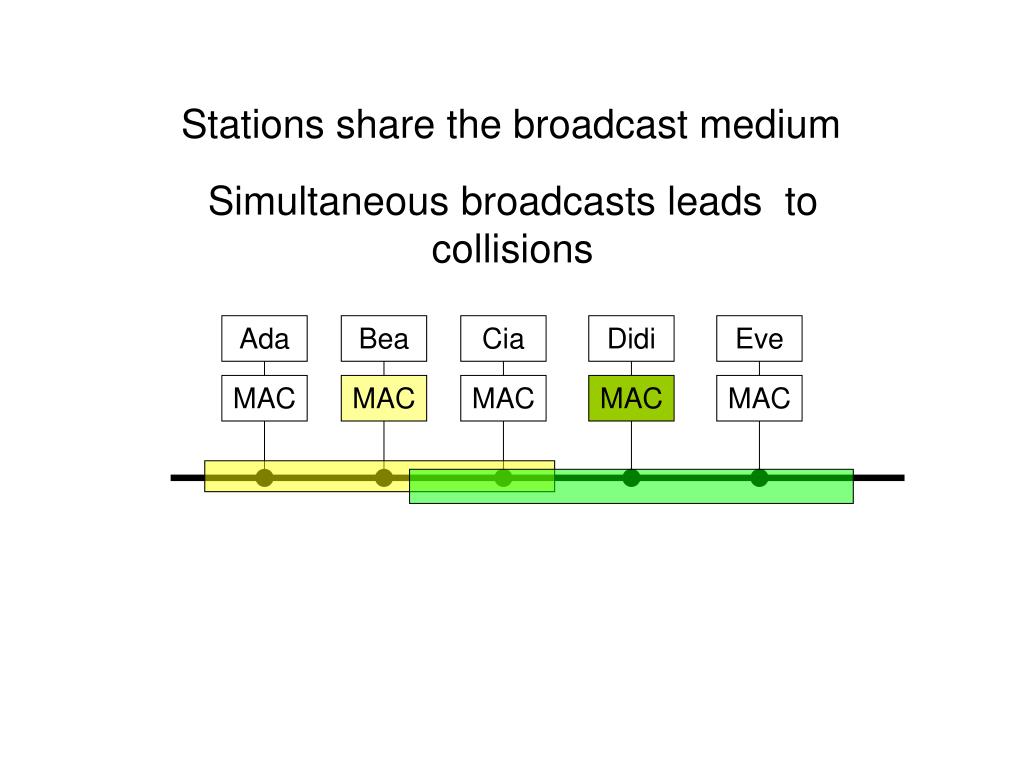

18. Stations share the broadcast medium Simultaneous broadcasts leads to collisions Ada Bea Cia Didi Eve MAC MAC MAC MAC MAC

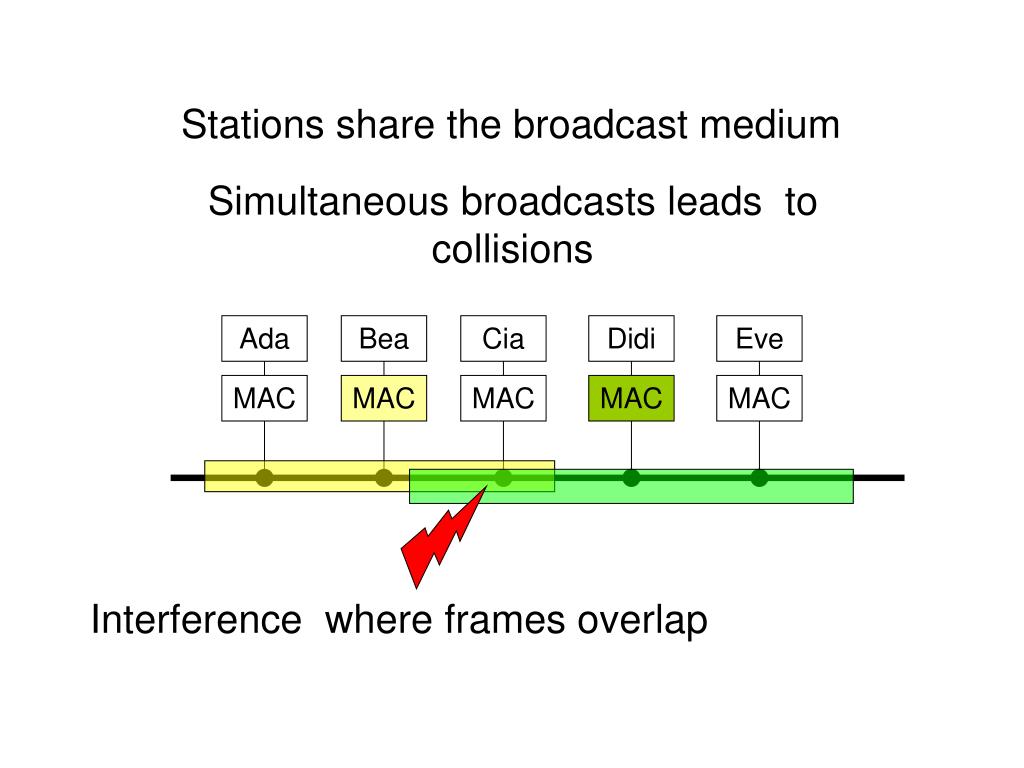

19. Stations share the broadcast medium Simultaneous broadcasts leads to collisions Ada Bea Cia Didi Eve MAC MAC MAC MAC MAC Interference where frames overlap

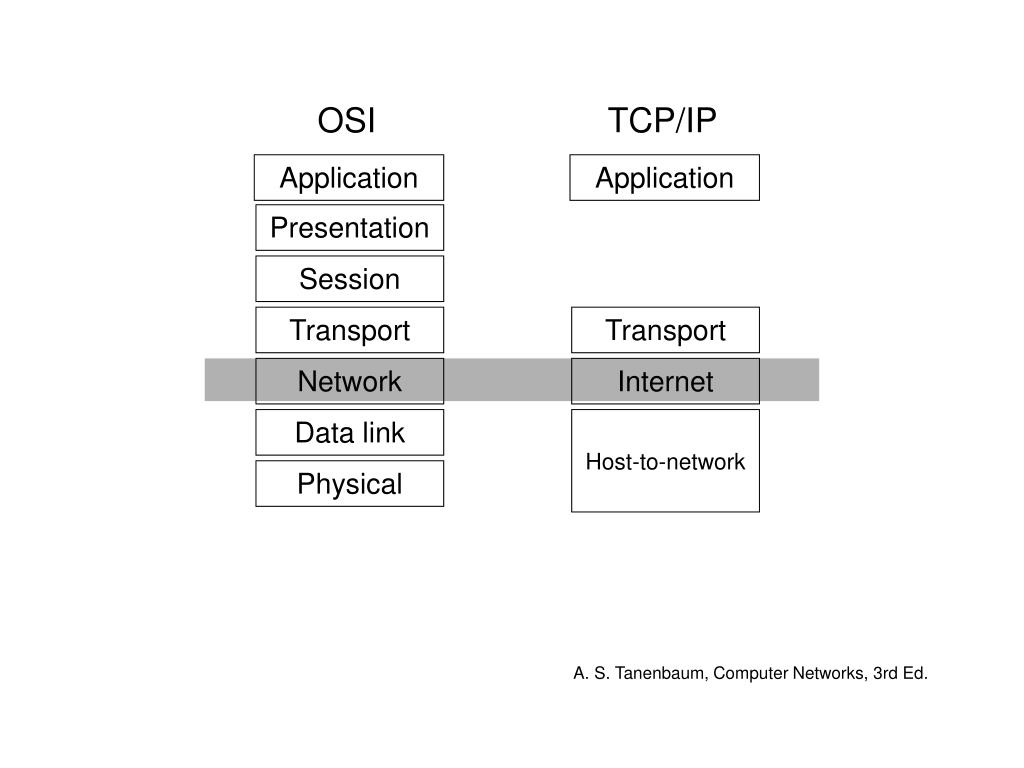

20. OSI TCP/IP Application Application Presentation Session Transport Transport Network Internet Data link Host-to-network Physical A. S. Tanenbaum, Computer Networks, 3rd Ed.

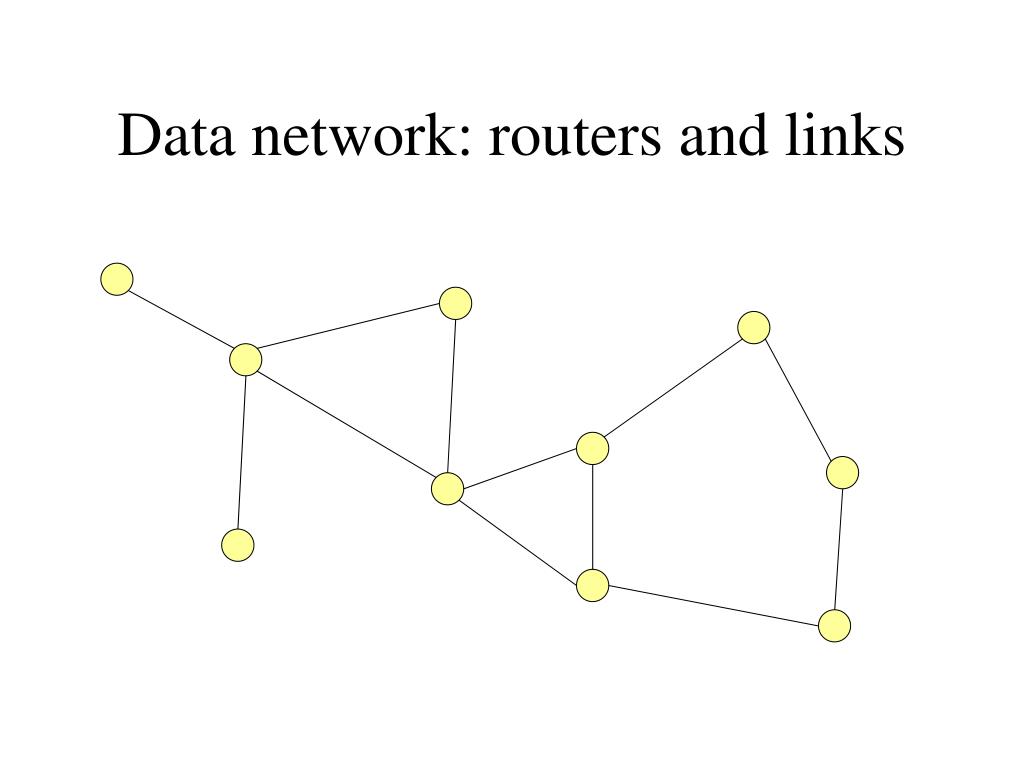

21. Data network: routers and links

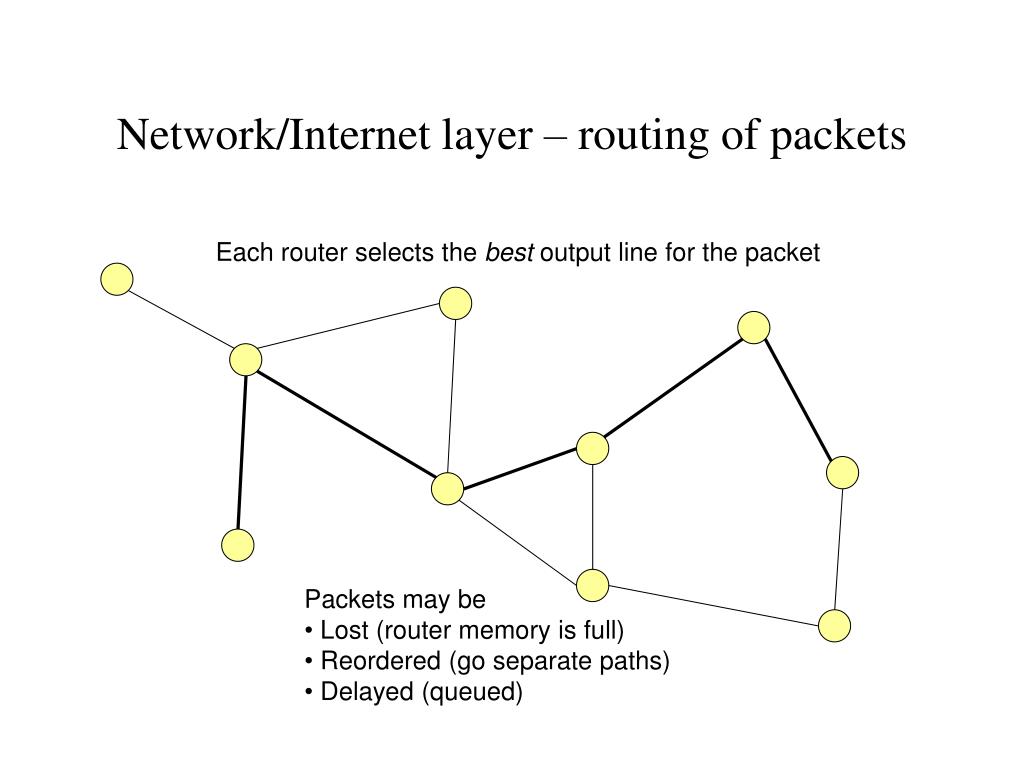

22. Network/Internet layer – routing of packets Each router selects the best output line for the packet • Packets may be • Lost (router memory is full) • Reordered (go separate paths) • Delayed (queued)

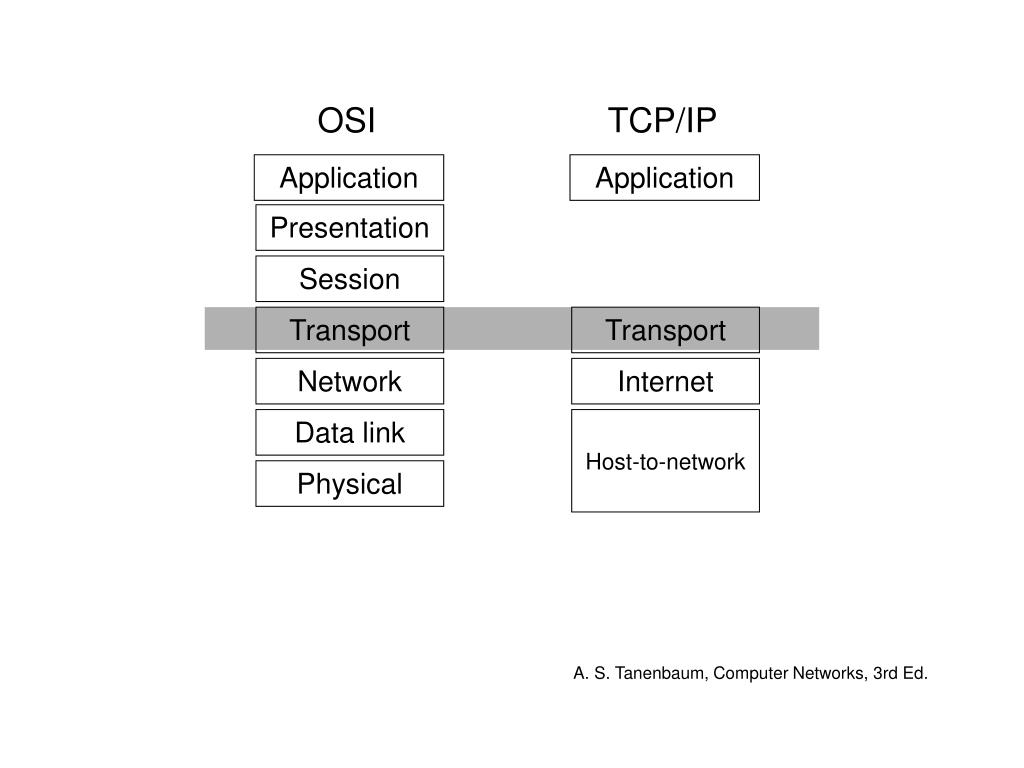

23. OSI TCP/IP Application Application Presentation Session Transport Transport Network Internet Data link Host-to-network Physical A. S. Tanenbaum, Computer Networks, 3rd Ed.

24. Transport layer – virtual connection Endpoints simulate a continuous stream of bytes TCP: packet sizes depend on delay Fixes lost and reordered packets

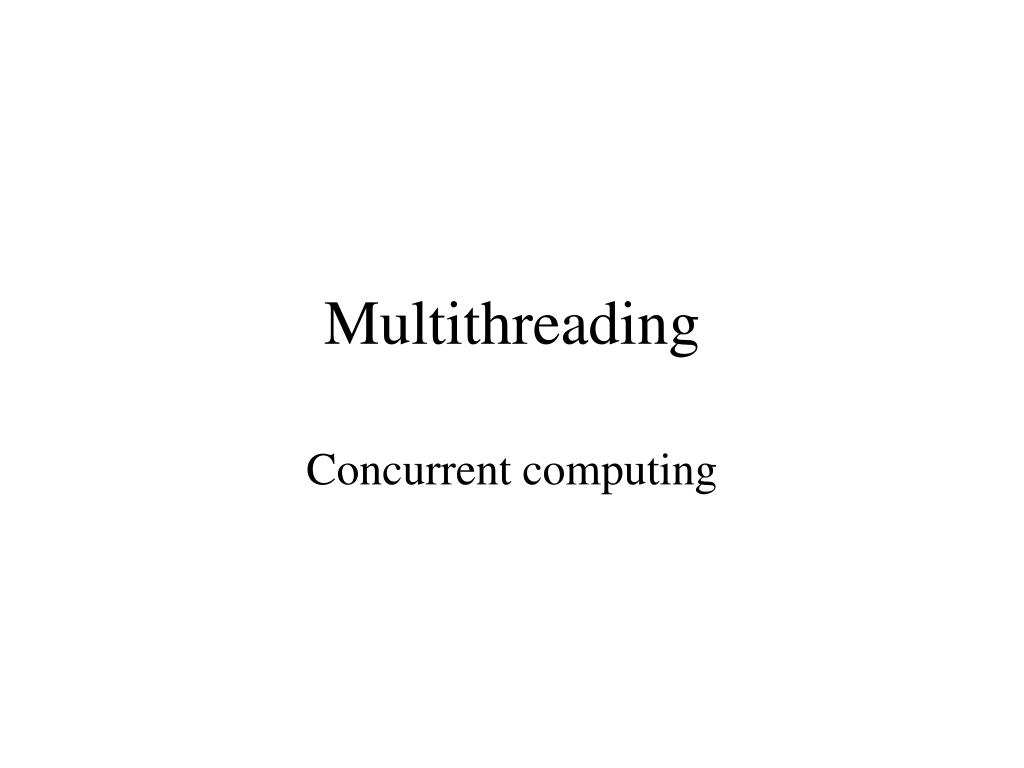

25. Multithreading Concurrent computing

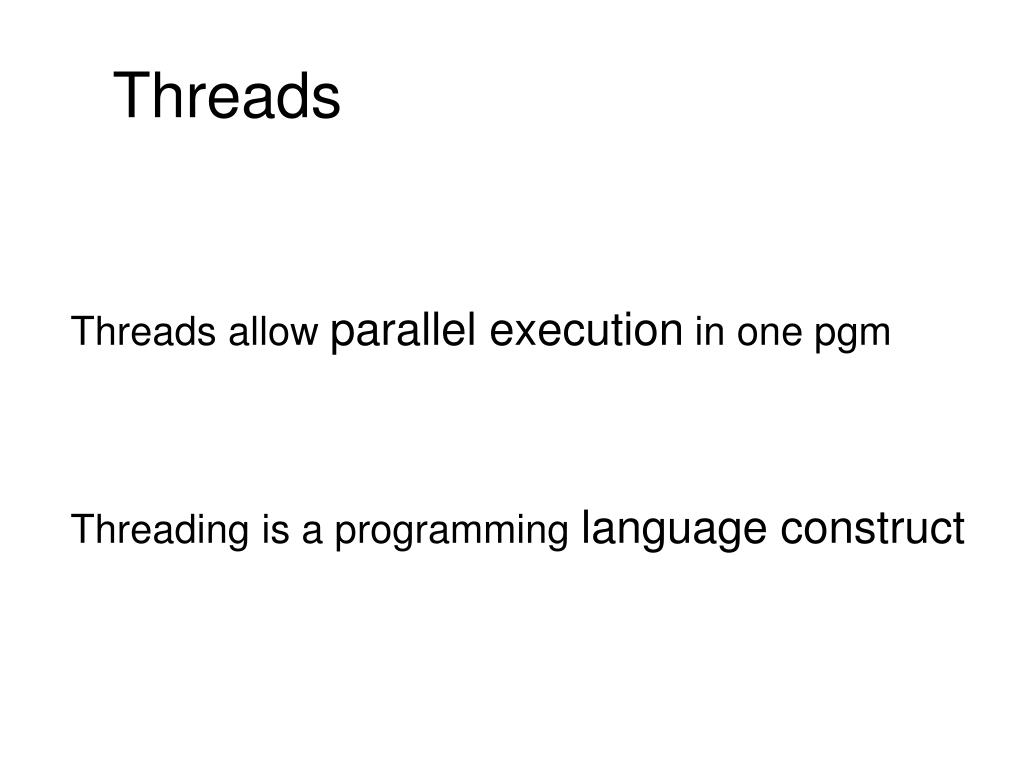

26. Threads Threads allow parallel execution in one pgm Threading is a programming language construct

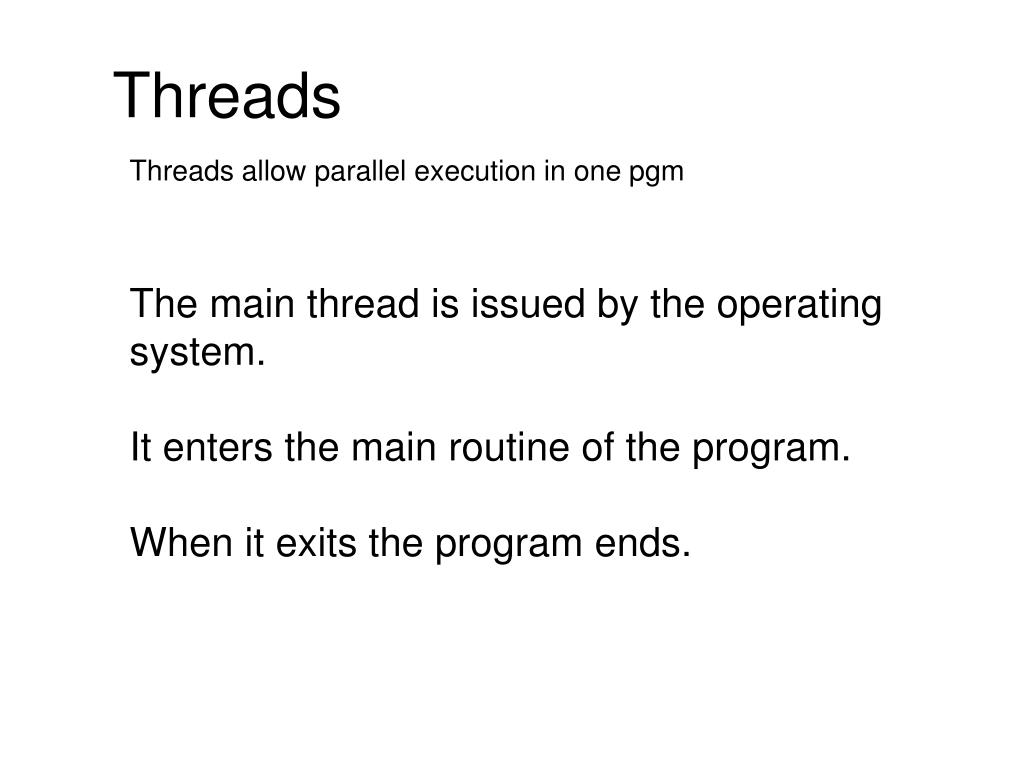

27. Threads Threads allow parallel execution in one pgm The main thread is issued by the operating system. It enters the main routine of the program. When it exits the program ends.

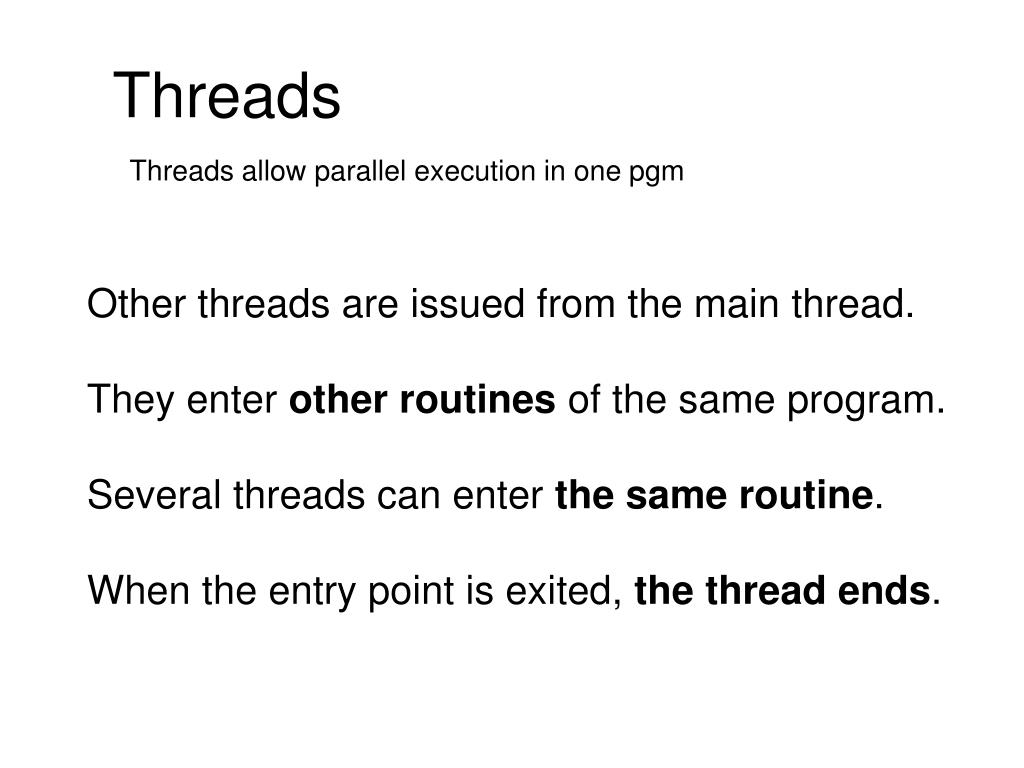

28. Threads Threads allow parallel execution in one pgm Other threads are issued from the main thread. They enter other routines of the same program. Several threads can enter the same routine. When the entry point is exited, the thread ends.

29. Threads Threads allow parallel execution in one pgm The main thread always enters the main program. int foo() { a = b; c = d; ... } void bar (int x) { x = u * b; ... } void main (String argv[]) { boolean o; double p; ... } Other threads execute with other routines as their main programs.

30. Threads Threads allow parallel execution in one pgm All threads share global variables. int a = 0; boolean b; void foo() { int a; ... } void bar (int x) { float y; ... } void main (String argv[]) { a = 42; ... } Threads can be implemented in several ways: Virtual threads by interpreter Parallel processes from OS Threads supported by OS Threads do not share local vari-ables because each thread has its own stack.

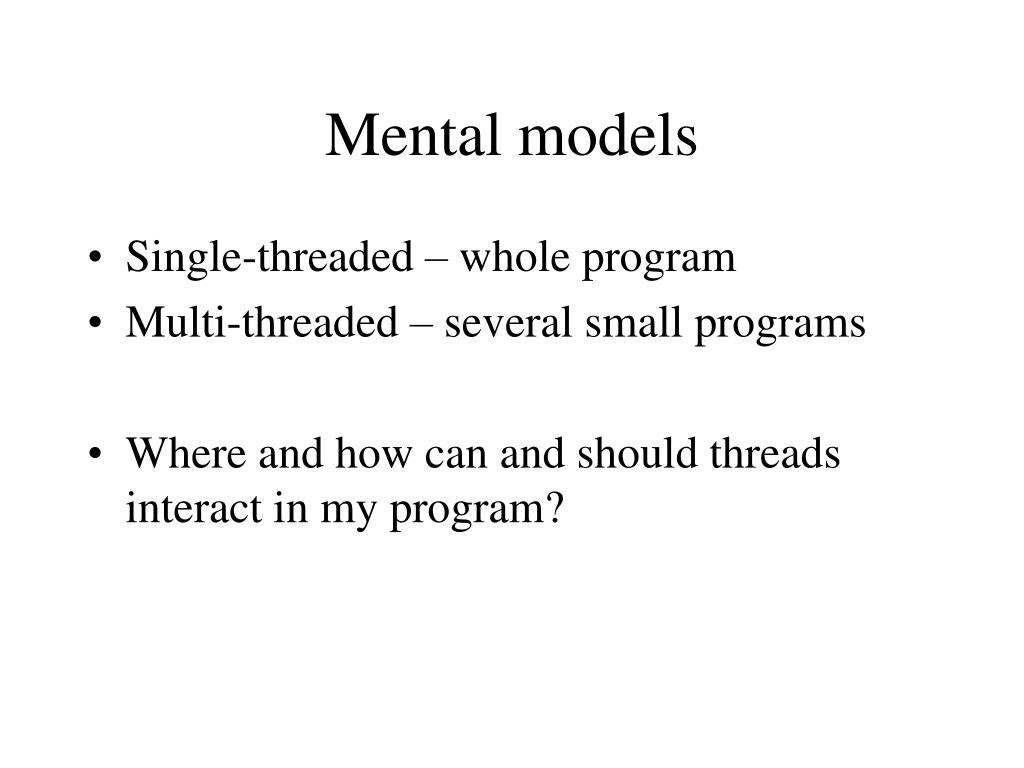

31. Mental models • Single-threaded – whole program • Multi-threaded – several small programs • Where and how can and should threads interact in my program?

32. Surreptious multi-threading: • Callback APIs • GUI events • Messaging systems • Discovery systems • Timers • RPC server

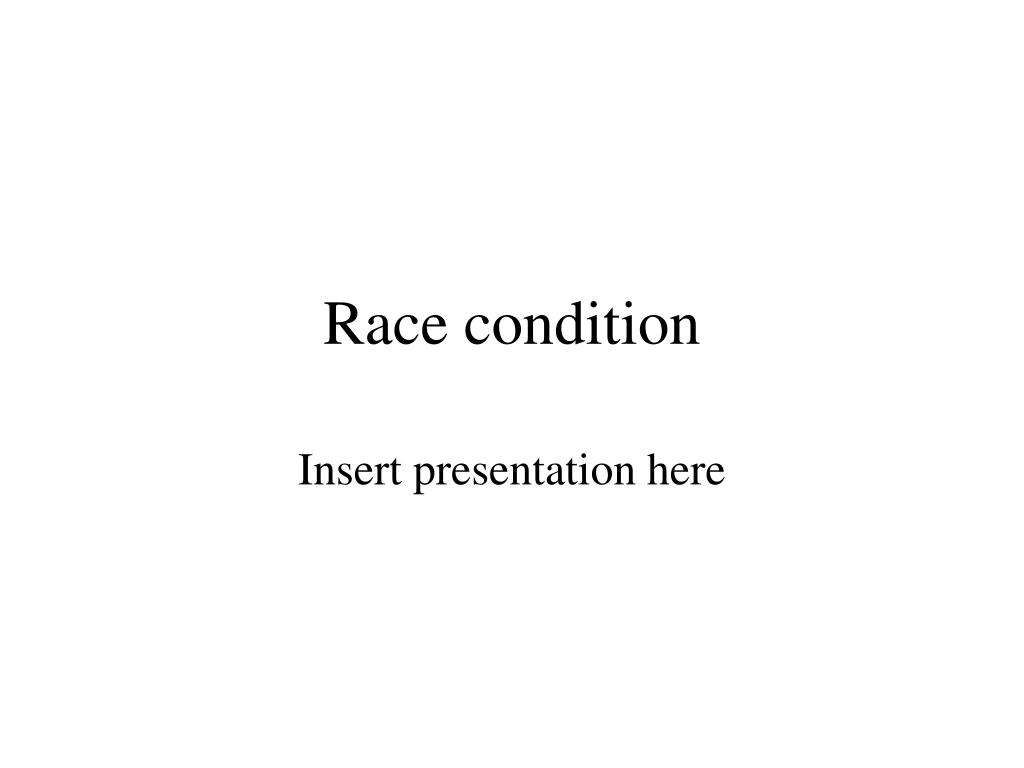

33. Race condition Insert presentation here

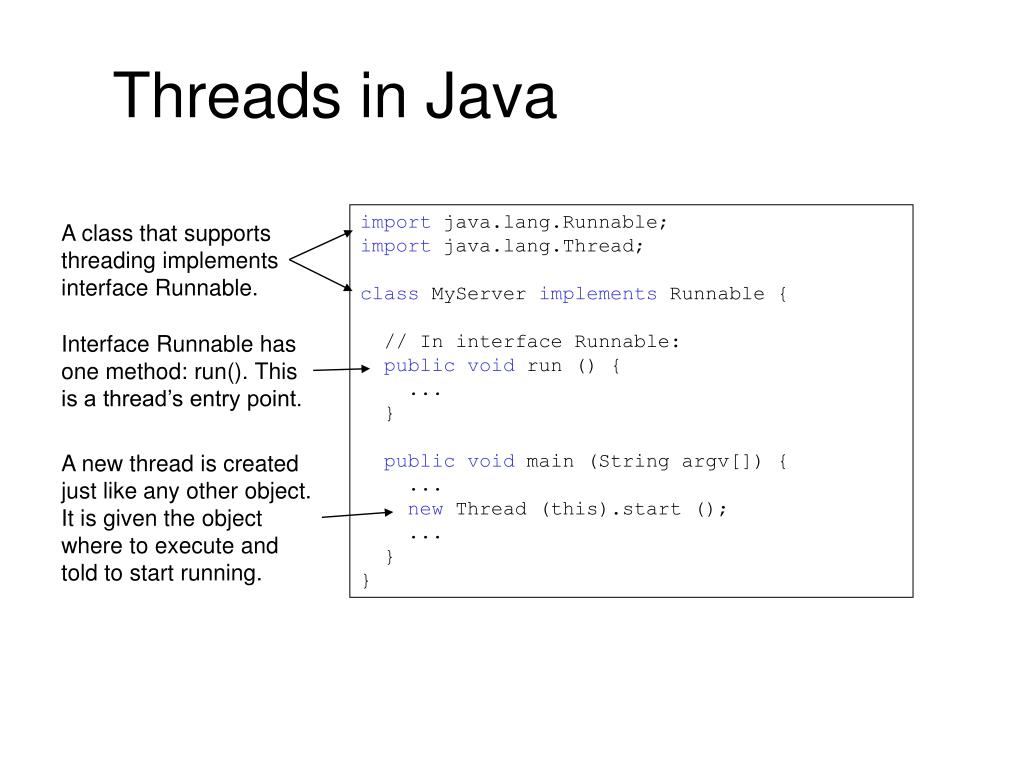

34. Threads in Java import java.lang.Runnable; import java.lang.Thread; class MyServer implements Runnable { // In interface Runnable: public void run () { ... } publicvoid main (String argv[]) { ... new Thread (this).start (); ... } } A class that supports threading implements interface Runnable. Interface Runnable has one method: run(). This is a thread’s entry point. A new thread is created just like any other object. It is given the object where to execute and told to start running.

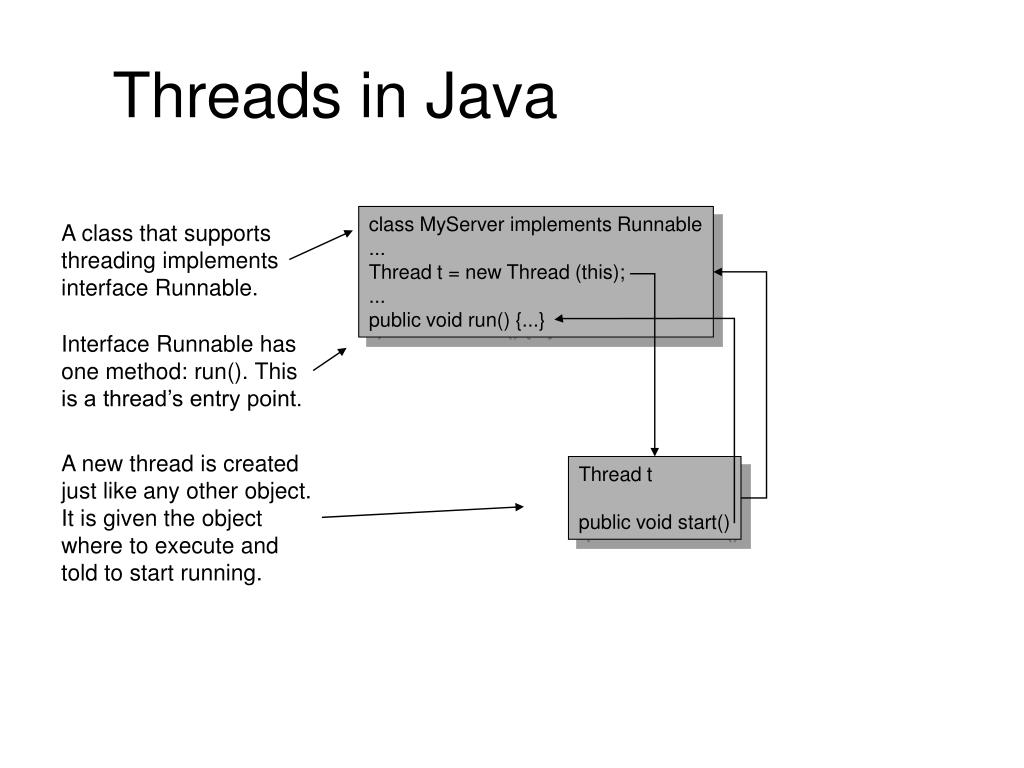

35. Threads in Java class MyServer implements Runnable ... Thread t = new Thread (this); ... public void run() {...} A class that supports threading implements interface Runnable. Interface Runnable has one method: run(). This is a thread’s entry point. A new thread is created just like any other object. It is given the object where to execute and told to start running. Thread t public void start()

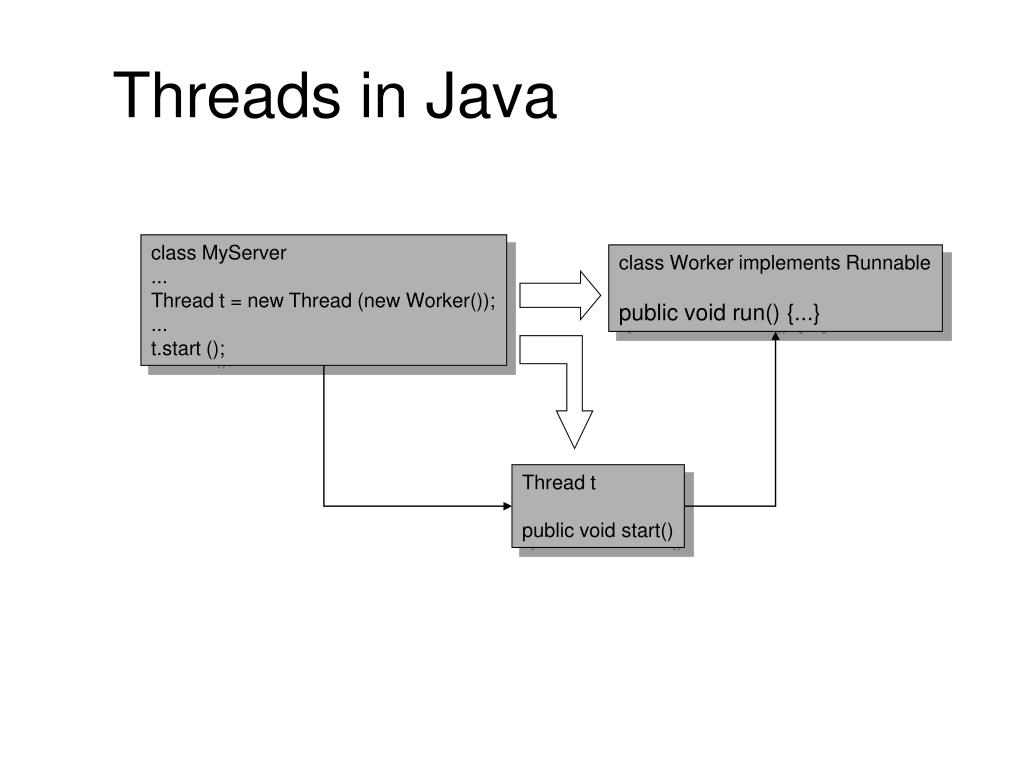

36. Threads in Java class MyServer ... Thread t = new Thread (new Worker()); ... t.start (); class Worker implements Runnable public void run() {...} Thread t public void start()

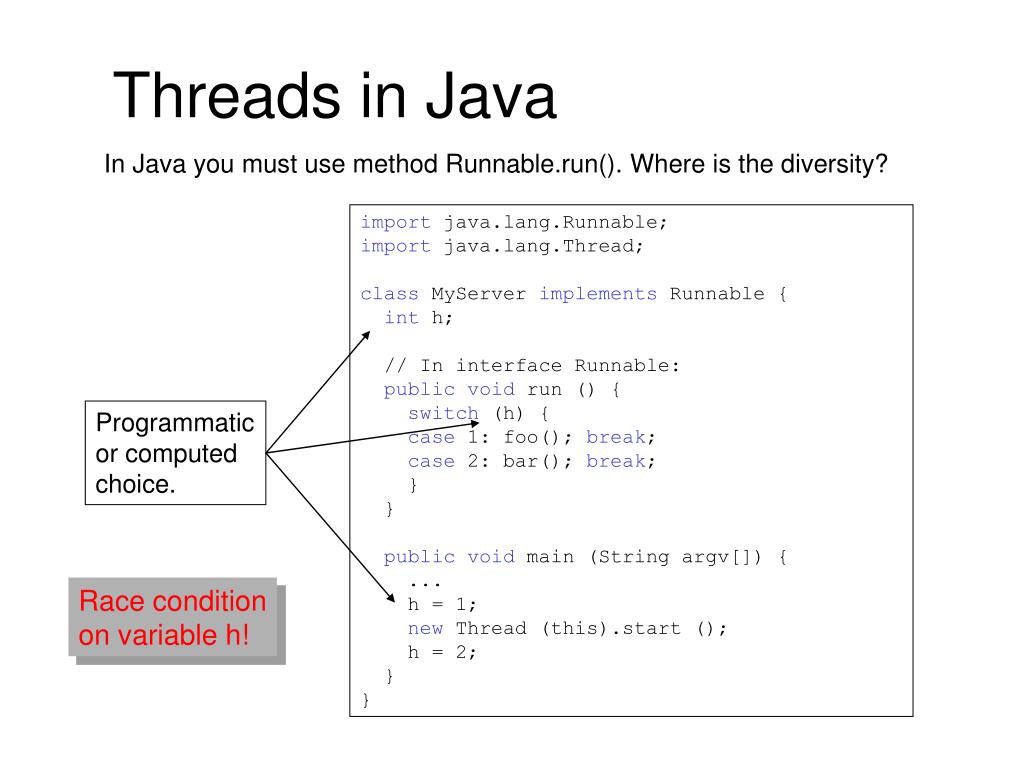

37. Threads in Java In Java you must use method Runnable.run(). Where is the diversity? import java.lang.Runnable; import java.lang.Thread; class MyServer implements Runnable { int h; // In interface Runnable: public void run () { switch (h) { case 1: foo(); break; case 2: bar(); break; } } publicvoid main (String argv[]) { ... h = 1; new Thread (this).start (); h = 2; } } Programmatic or computed choice. Race condition on variable h!

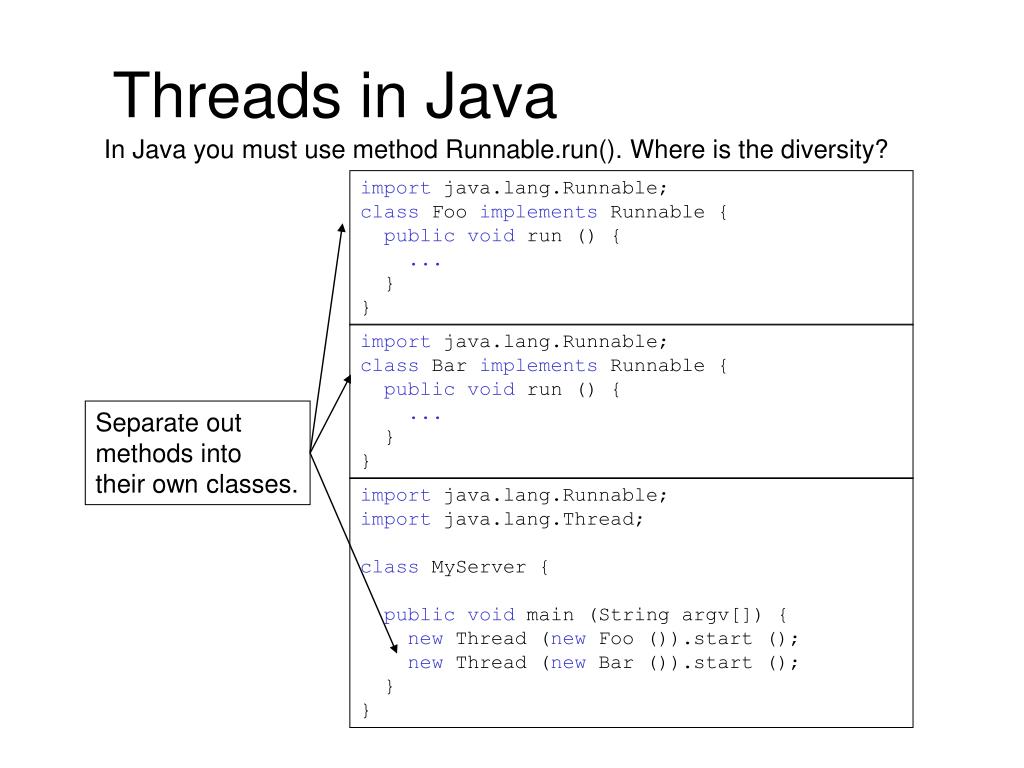

38. Threads in Java In Java you must use method Runnable.run(). Where is the diversity? import java.lang.Runnable; class Foo implements Runnable { public void run () { ... } } import java.lang.Runnable; class Bar implements Runnable { public void run () { ... } } Separate out methods into their own classes. import java.lang.Runnable; import java.lang.Thread; class MyServer { public void main (String argv[]) { new Thread (new Foo ()).start (); new Thread (new Bar ()).start (); } }

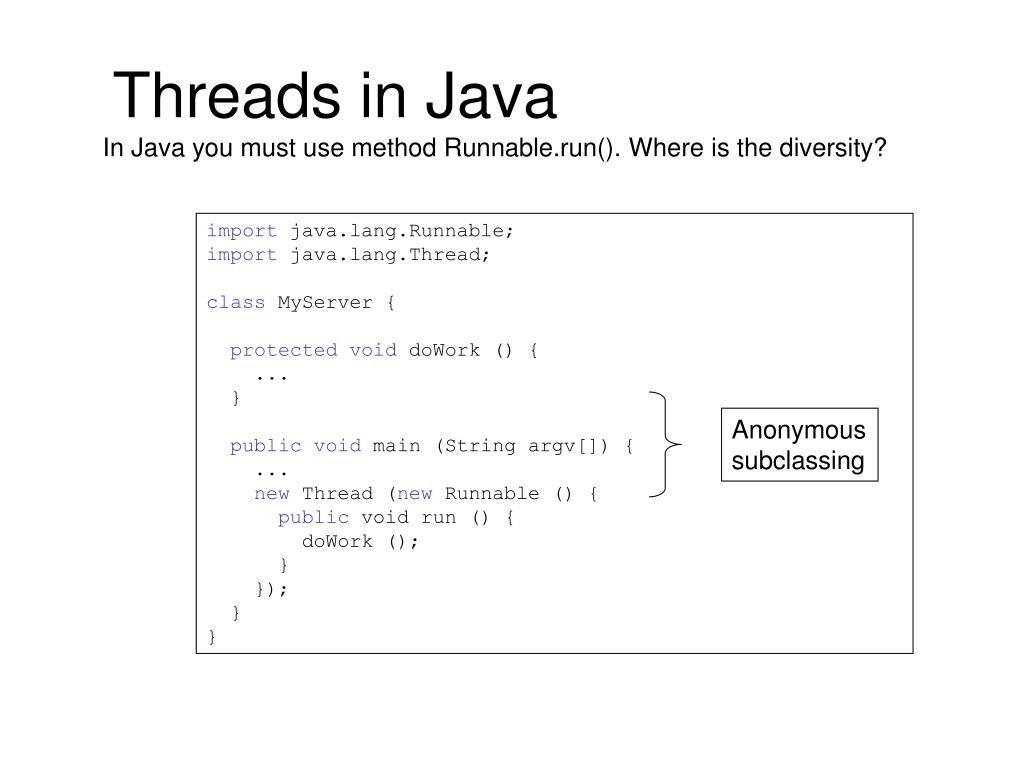

39. Threads in Java In Java you must use method Runnable.run(). Where is the diversity? import java.lang.Runnable; import java.lang.Thread; class MyServer { protected void doWork () { ... } public void main (String argv[]) { ... new Thread (new Runnable () { public void run () { doWork (); } }); } } Anonymous subclassing

40. Threads in Java Wait for a thread to die: Thread.join() import java.lang.Runnable; import java.lang.Thread; class MyServer { public void main (String argv[]) { ... // Create thread t. Thread t = new Thread (new Foo ()).start (); ... // Main thread waits for t to die. t.join (); ... } }

41. Threads in Java Thread control • sleep (long ms) – suspend caller for at least ms milliseconds • join (Thread t) – suspend caller until other thread t has exited • wait() – suspend until notified (in a synchronized block) • notify() – release a wait()ing thread (in a synchronized block)

42. Synchronization in Java Threads that access common variables together can seriously mess up the state of the program. Synchronization is achieved by monitors. A monitor is a non-sharable entity associated with a Java object (choosen by the programmer). Synchronized code is locked by the object. A thread must have the monitor to be able to execute the synchronized code.

43. Synchronization in Java When a method is declared as synchronized the monitor is retrieved from the method’s object. Potential inefficiency. public synchronized void enqueue() {...} When a block of code is synchronized, any object’s monitor can be used: synchronized (myQueue) { ... }

44. Synchronization in Java A thread that attempts to enter a synchronized method or block must wait in a queue for the monitor. When the monitor is released the thread continues to execute. While the thread is inside the synchronized section it can release the monitor and wait(). synchronized (myQueue) { ... wait (); // Nothing to do ...} When some other thread has the monitor it can notify the waiting thread, giving back the monitor and allowing it to continue: synchronized (myQueue) { ... notify (); // Work is ready for you ...}

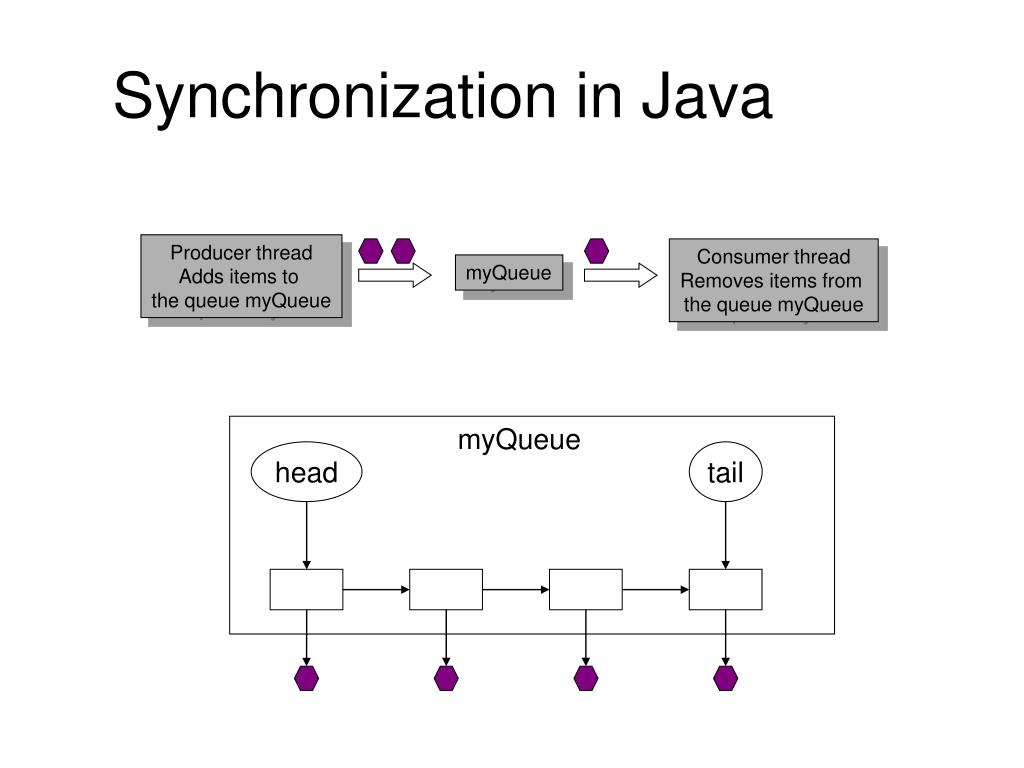

45. myQueue head tail Synchronization in Java Producer thread Adds items to the queue myQueue Consumer thread Removes items from the queue myQueue myQueue

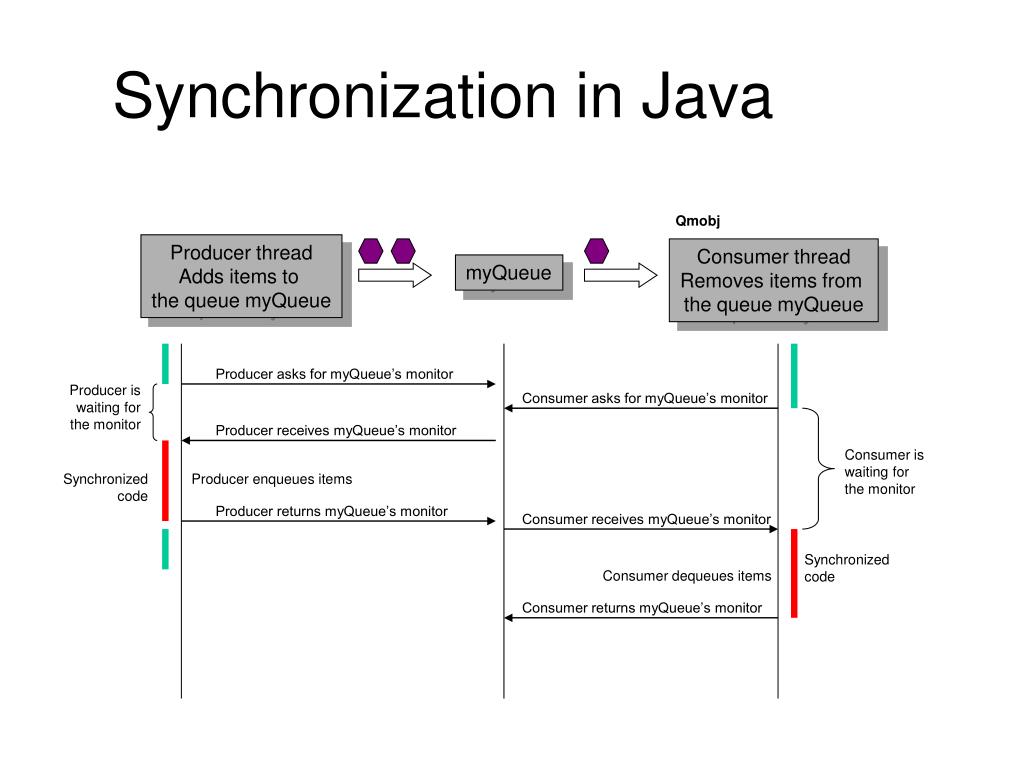

46. Synchronization in Java Qmobj Producer thread Adds items to the queue myQueue Consumer thread Removes items from the queue myQueue myQueue Producer asks for myQueue’s monitor Producer is waiting for the monitor Consumer asks for myQueue’s monitor Producer receives myQueue’s monitor Consumer is waiting for the monitor Synchronized code Producer enqueues items Producer returns myQueue’s monitor Consumer receives myQueue’s monitor Synchronized code Consumer dequeues items Consumer returns myQueue’s monitor

47. Synchronization in Java Qmobj Producer thread Adds items to the queue myQueue Consumer thread Removes items from the queue myQueue myQueue Producer asks for myQueue’s monitor Producer is waiting for the monitor Consumer asks for myQueue’s monitor Producer receives myQueue’s monitor Consumer is waiting for the monitor Synchronized code Producer enqueues items Both threads are waiting for the monitor: The winner selection is undefined Producer returns myQueue’s monitor Consumer receives myQueue’s monitor Synchronized code Consumer dequeues items Consumer returns myQueue’s monitor

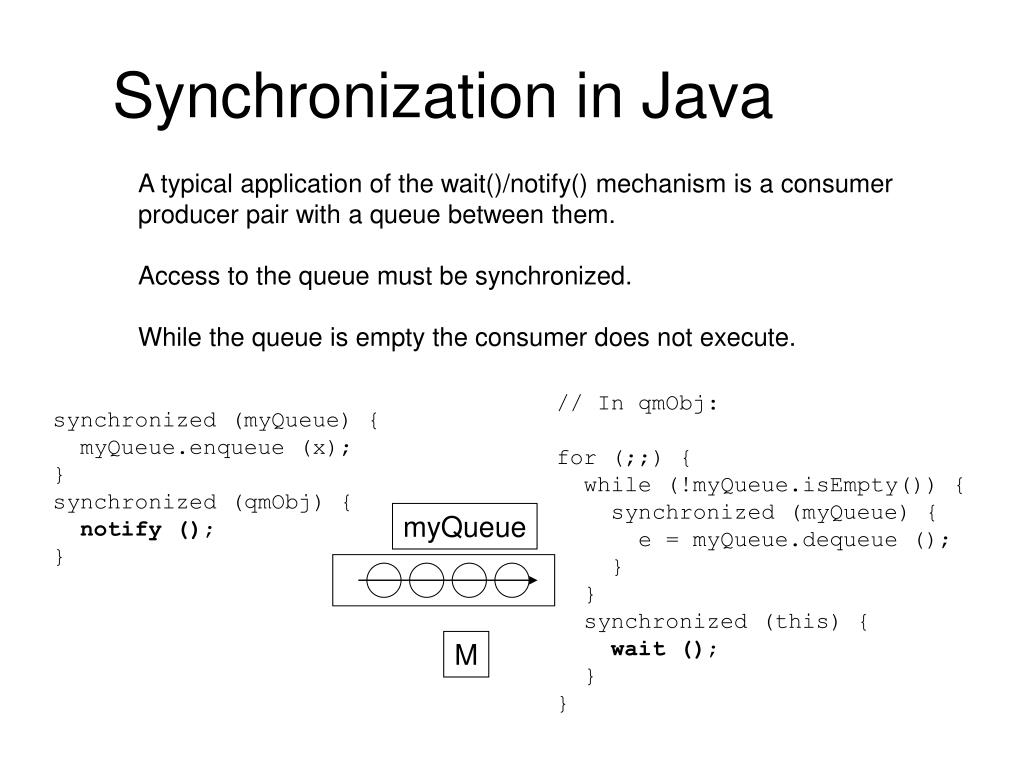

48. myQueue M Synchronization in Java A typical application of the wait()/notify() mechanism is a consumer producer pair with a queue between them. Access to the queue must be synchronized. While the queue is empty the consumer does not execute. // In qmObj: for (;;) { while (!myQueue.isEmpty()) { synchronized (myQueue) { e = myQueue.dequeue (); } } synchronized (this) { wait (); } } synchronized (myQueue) { myQueue.enqueue (x); } synchronized (qmObj) { notify (); }

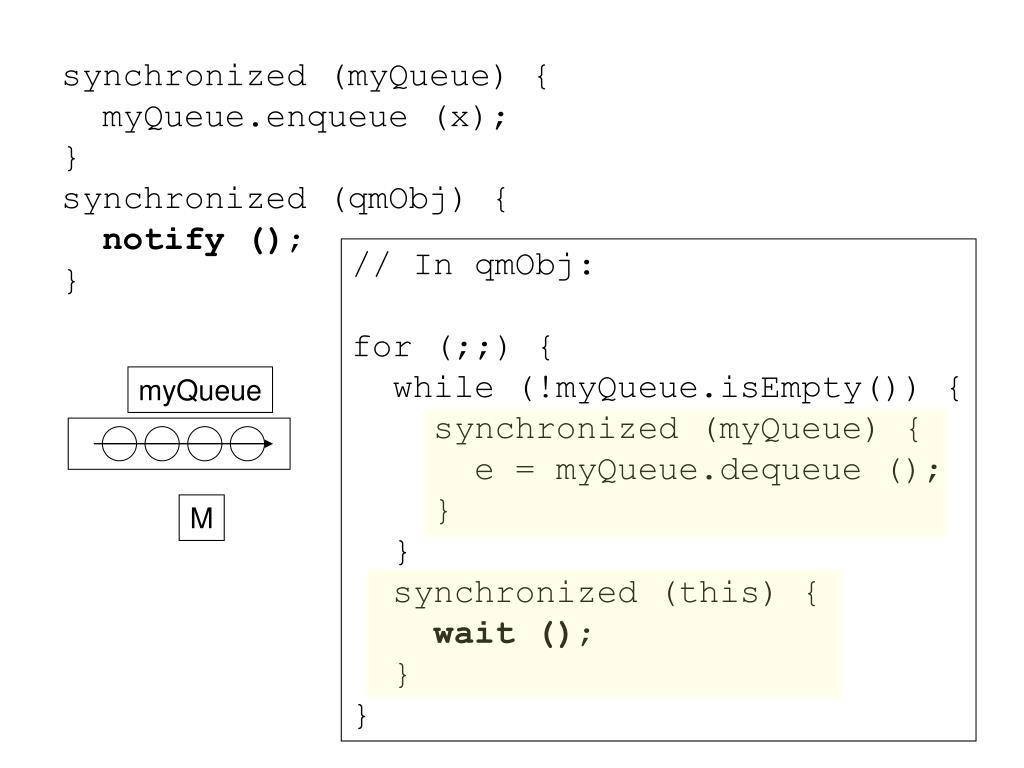

49. myQueue M synchronized (myQueue) { myQueue.enqueue (x); } synchronized (qmObj) { notify (); } // In qmObj: for (;;) { while (!myQueue.isEmpty()) { synchronized (myQueue) { e = myQueue.dequeue (); } } synchronized (this) { wait (); } }

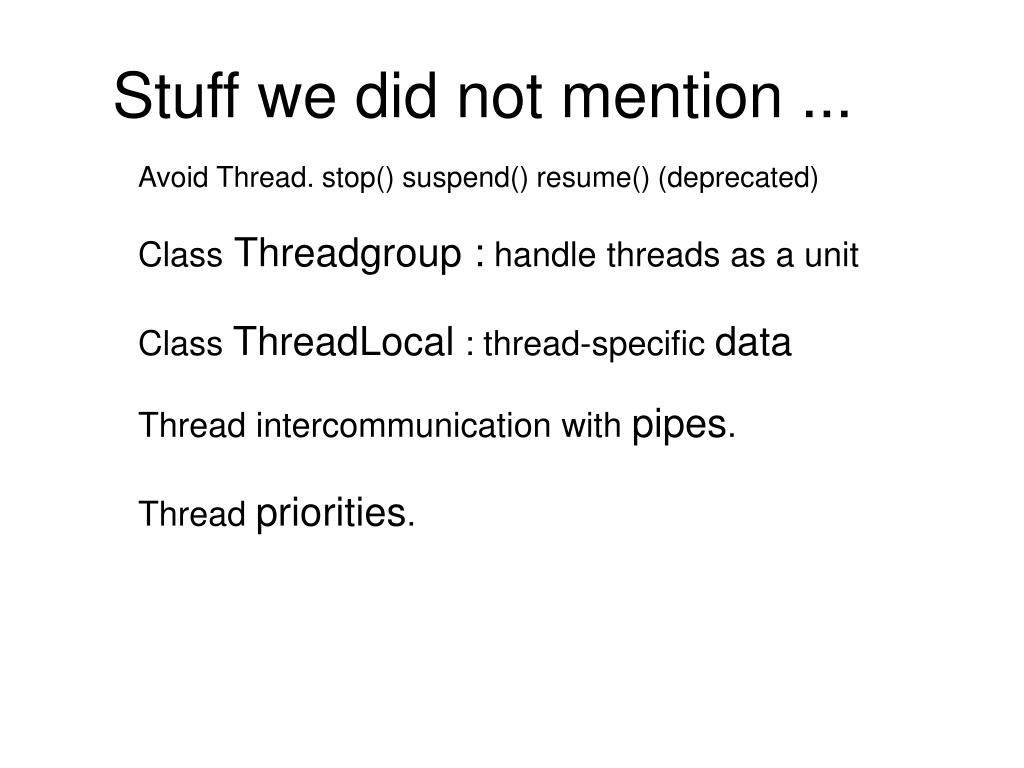

50. Stuff we did not mention ... Avoid Thread. stop() suspend() resume() (deprecated) Class Threadgroup : handle threads as a unit Class ThreadLocal : thread-specific data Thread intercommunication with pipes. Thread priorities.
