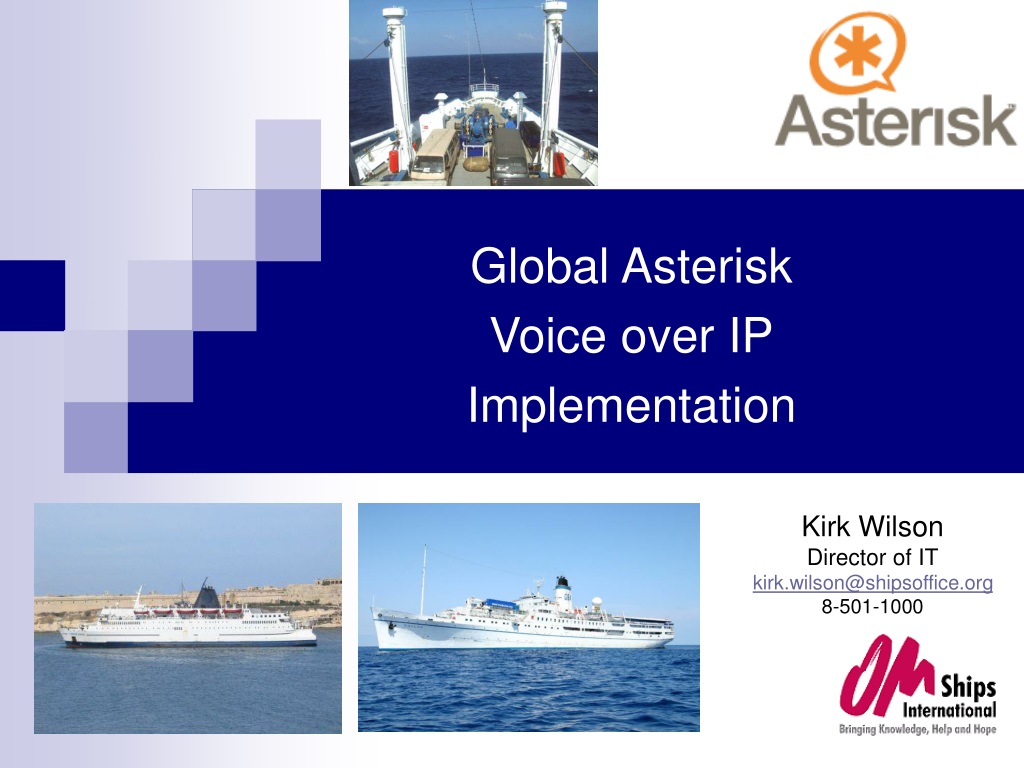

Global Asterisk Voice over IP Implementation. Kirk Wilson Director of IT kirk.wilson@shipsoffice.org 8-501-1000. Goals. Connect existing telephone infrastructure Cut down on long distance cost Improve internal communications Provide easy remote access with soft phones

nolivares
Télécharger la présentation

Global Asterisk Voice over IP Implementation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Global Asterisk Voice over IP Implementation Kirk Wilson Director of IT kirk.wilson@shipsoffice.org 8-501-1000

  2. Goals • Connect existing telephone infrastructure • Cut down on long distance cost • Improve internal communications • Provide easy remote access with soft phones • Controlled bandwidth use of VoIP services • Flexibility in providing future telephone services • Build a globally scalable configuration

  3. Why not Skype? • Controlled/configured by end-user, not IT • Every user needs computer • Only talks to other Skype clients or through Skype out at a fee • Not terribly bandwidth conservative • Uses all available bandwidth to provide best call clarity by default • Will quickly saturate a 256k satellite link, especially with multiple users • Can not trunk multiple calls

  4. Codec Bandwidth Comparison • Skype • 24k – 128k bps (may double with "station" mode) • In super node mode it may saturate up to 100Mb/s • G.711 (uLaw) 66 kb/s per call (+16 kb/s overhead) • G.729 9.6 kb/s per call (+20 kb/s overhead) • GSM 14.7 kb/s per call (+20 kb/s overhead) • LPC10 6.1 kb/s per call (+16 kb/s overhead) • SPEEX 17.4 kb/s per call (+20 kb/s overhead)

  5. Asterisk Overview • Premier open source PBX software • Developed to run on Linux • Can interconnect most existing VoIP/Digital/Analog technologies • Seamless Protocol/Codec translation • Can be deployed around existing PBX systems • Supports IAX which requires only a single port • Scalable from small to large systems

  6. Global Design Issues • Numbering Plan • Office Interconnects System designed to scale beyond OM Ships to all of OM

  7. Numbering Plan Requirements • Easy to remember • Integrate with existing varied PBX’s • Simplify call routing/interconnects

  8. Numbering Plan 8-YYY-XXXX • 8 – Asterisk access code • “Dial 8 for an asterisk line” • YYY – Office code • Can handle up to 999 OM offices • XXXX – Local extension • Can handle up to 9,999 extensions per office

  9. Numbering Plan This plan allows for easy integration into the already established telephone systems deployed at our existing offices and ships • 8-500-XXXX Mosbach HQ Office • 8-501-XXXX Carlisle Office • 8-502-XXXX Doulos • 8-503-XXXX Logos Hope

  10. Office Interconnects Requirements • Simple, easy to maintain • Scalable • Secure • Bandwidth efficient

  11. Office interconnects ENUM w/ RSA – Global Directory • Interoffice link configuration stored in one standard DNS zone. (enum.om.org) • Only one DNS record per office. • Office code assignments and DNS can be centrally managed. (ICT?) • New office: one new NAPTR record.

  12. Office interconnects ENUM w/ RSA – Local Server • Local extensions locally managed • Local changes affect only the local server • Single, unchanging, globally reusable context for each: • Inbound VoIP calls • Outbound VoIP calls • New office: No changes necessary

  13. Office interconnects ENUM w/ RSA – Connections • No traffic until a call is made • Calls are authenticated using a single “om-enum” RSA keypair

  14. .enum.om.org DNS Server Internet ENUM Result: 0.0.0.1.0.0.5.enum.om.org. IN NAPTR 100 10 “u” “E2U+IAX2” “!^\\+(.*)$!iax2:om-enum@voip.mosbach.omships.org/\\1!” Mosbach Asterisk strips office code Dials extension: 1000 Mosbach Asterisk sees inbound call to: 500-1000 ENUM Lookup: NAPTR 0.0.0.1.0.0.5.enum.om.org. Asterisk matches: _8XXXXXXX PBX passes call to Asterisk Call Completed DNS Server Matches: NAPTR 0.0.0.1.0.0.5.enum.om.org. to wildcard record NAPTR *.0.0.5.enum.om.org. User dials: 8-500-1000 Asterisk Dial: Dial(IAX2/om-enum@voip.mosbach.omships.org/5001000) RSA Public/Private Key Authentication An example ENUM Call

  15. Satellite Considerations • Problem: Severe bandwidth constraints • 256kbit up/down limit • Easily overloaded and render useless • Solution: Route all calls via Carlisle • Translate all calls to G.729 • Limit total number of inbound/outbound calls • Trunk calls for significant bandwidth savings

  16. Additional Features • Asterisk-less offices • Trogir • Date/time announcements • Time zone enumeration • Interactive voice menus • Voicemail

  17. Future possibilities • Faxing • Conferences • Worldwide VoIP to local PSTN gateways • Doulos -> South Africa PSTN phone • Only the cost of a local call • Call following and Call groups • Non-OM user soft phone access • OM Standard Asterisk Server (?)

  18. Ongoing Issues/Problems • Faxing • Can’t fax over a lossy voice codec • No support for T.31 • spandsp helps, but isn’t perfect • Authentication • Single RSA keypair for every office • Encryption • Asterisk current can not encrypt RSA authenticated channels

  19. Questions?
