  1. The Art of Debugging Shlomy Gantz 02/13/01 MDCFUG

  2. Introduction - Famous Last words • “…if debugging is defined as the art of taking bugs out of a program , programming must be putting them in…” • “..It’s not a bug, It’s a feature “ (Microsoft)

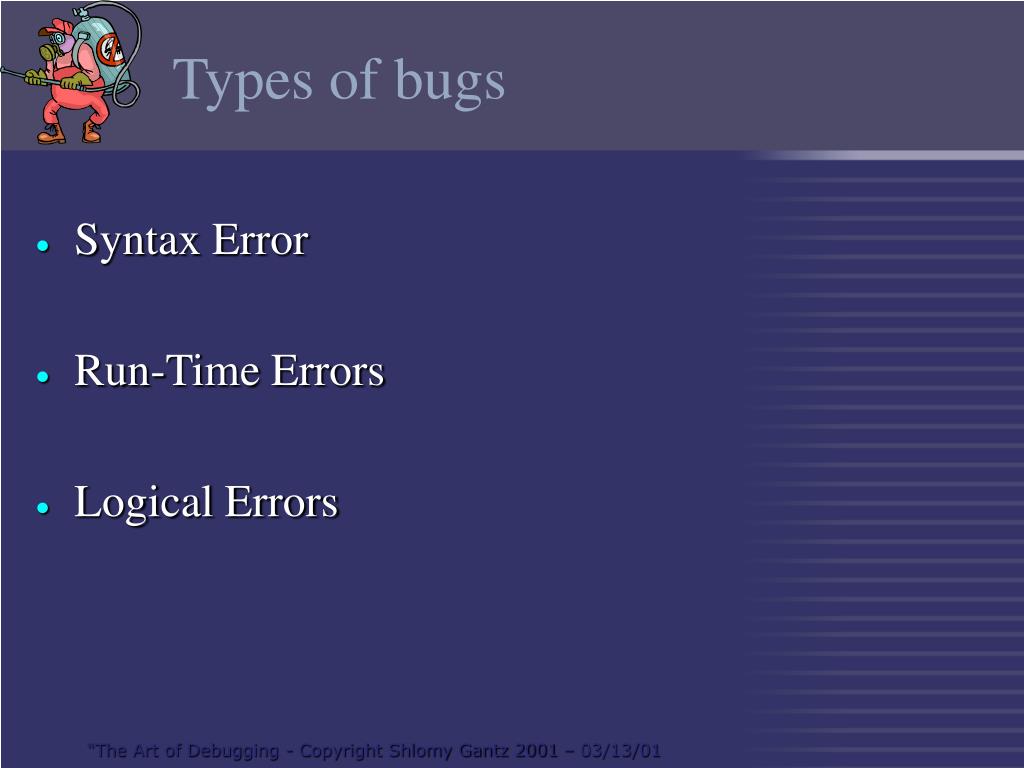

  3. Types of bugs • Syntax Error • Run-Time Errors • Logical Errors

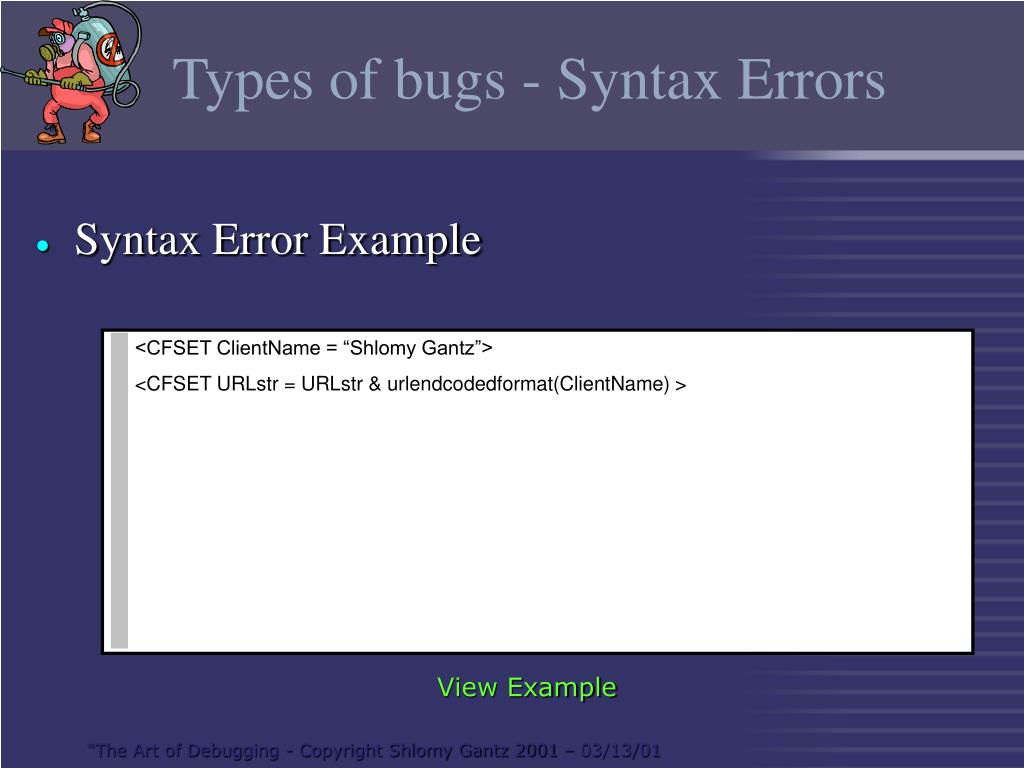

  4. Types of bugs - Syntax Errors • Syntax Error Example <CFSET ClientName = “Shlomy Gantz”> <CFSET URLstr = URLstr & urlendcodedformat(ClientName) > View Example

  5. Types of bugs - Run-Time Errors • Run-Time Error Example <CFQUERY NAME=“GetOverPaidEmp” Datasource=“Payroll”> SELECT SUM(Salary) AS TotalSalary, COUNT(Emp_ID) as NumOfEmployees FROM AnnualSalary WHERE SALARY > 100000 </CFQUERY> <CFSET AVGSalary = GetOverPaidEmp.TotalSalary / GetOverPaidEmp.NumOfEmployees > <CFOUTPUT>#AVGSalary#</CFOUTPUT> View Example

  6. Types of bugs - Logical Errors • Logical Error example <CFSET MyList=“Shlomy,Michael,Emily,Abraham”> <CFSET ShlomyExists_YN = listfind(MyList,”shlomy”)> <CFOUTPUT>#YesNoFormat(ShlomyExists_YN)#</CFOUTPUT> View Example

  7. Other things that can go wrong • Database connection (ODBC,MDAC …) • Cold Fusion server • Web Server • OS • Hardware

  8. Debugging Steps • Plan • Back-up • Isolate • Find The error • Fix - Don’t patch • Look for similar • Document

  9. “Debugger’s Block” • If all else fails • … and if that doesn’t work

  10. Cold Fusion Administrator

  11. Enable Performance Monitoring View Example

  12. Enable CFML stack trace • CF tracks what tags have run during page process. • Can be used either through CFTRY/CFCATCH or the Studio Debugger

  13. Show Variables • Show all variables processed by ColdFusion: • FORM • URL • CGI • Cookie

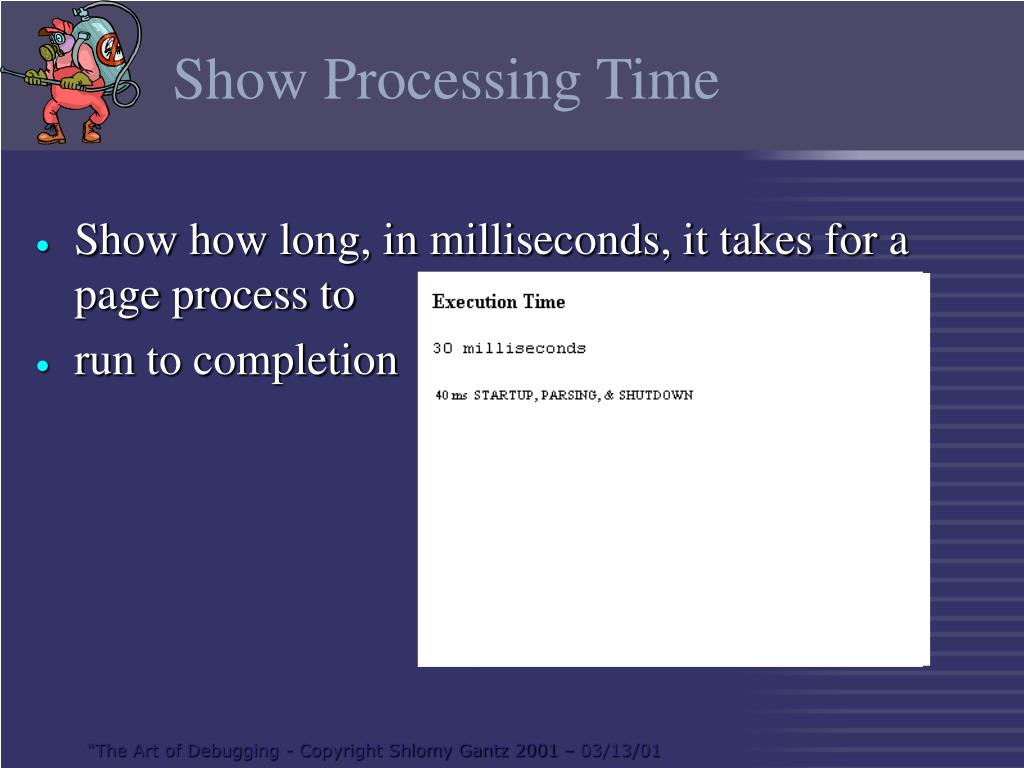

  14. Show Processing Time • Show how long, in milliseconds, it takes for a page process to • run to completion

  15. Detail View • Breakdown of all templates run during a page process. • Proccessing time for each template

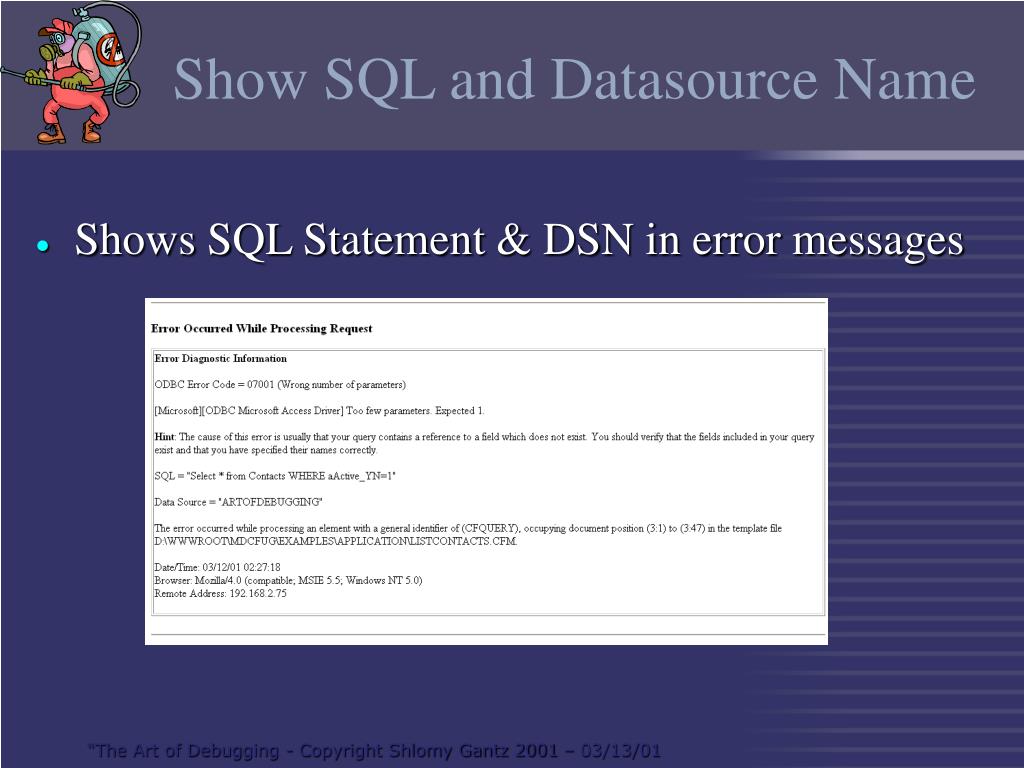

  16. Show SQL and Datasource Name • Shows SQL Statement & DSN in error messages

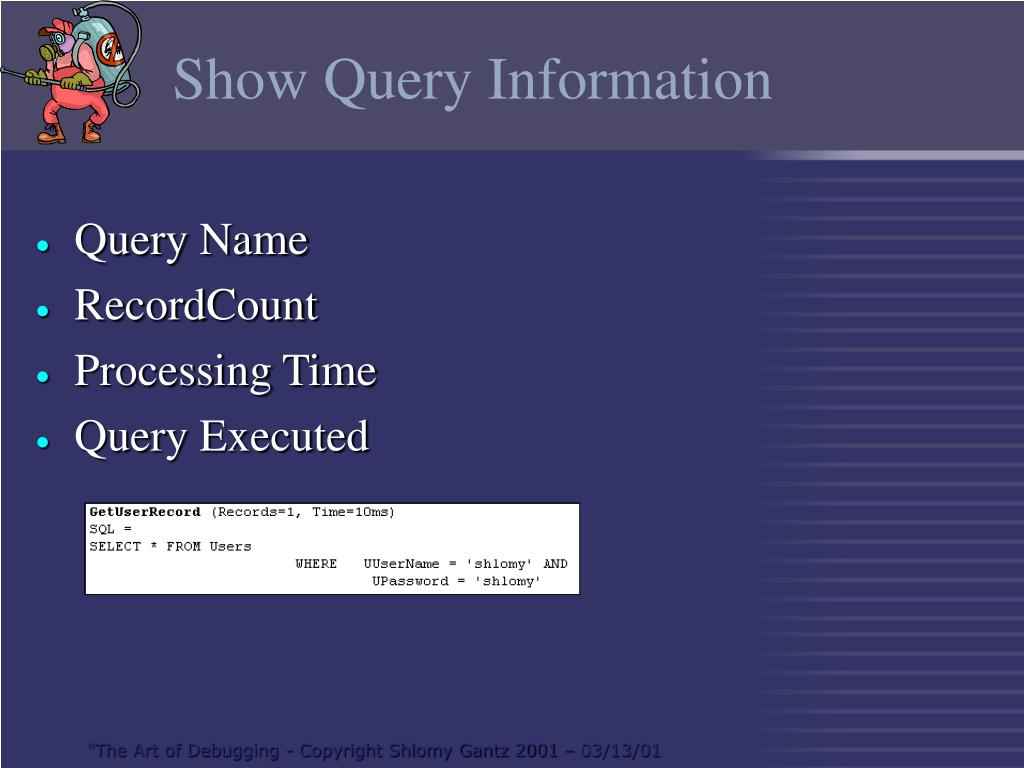

  17. Show Query Information • Query Name • RecordCount • Processing Time • Query Executed

  18. Display Template Path in Error Msg • Show the name of the actual template in which with the error occurred

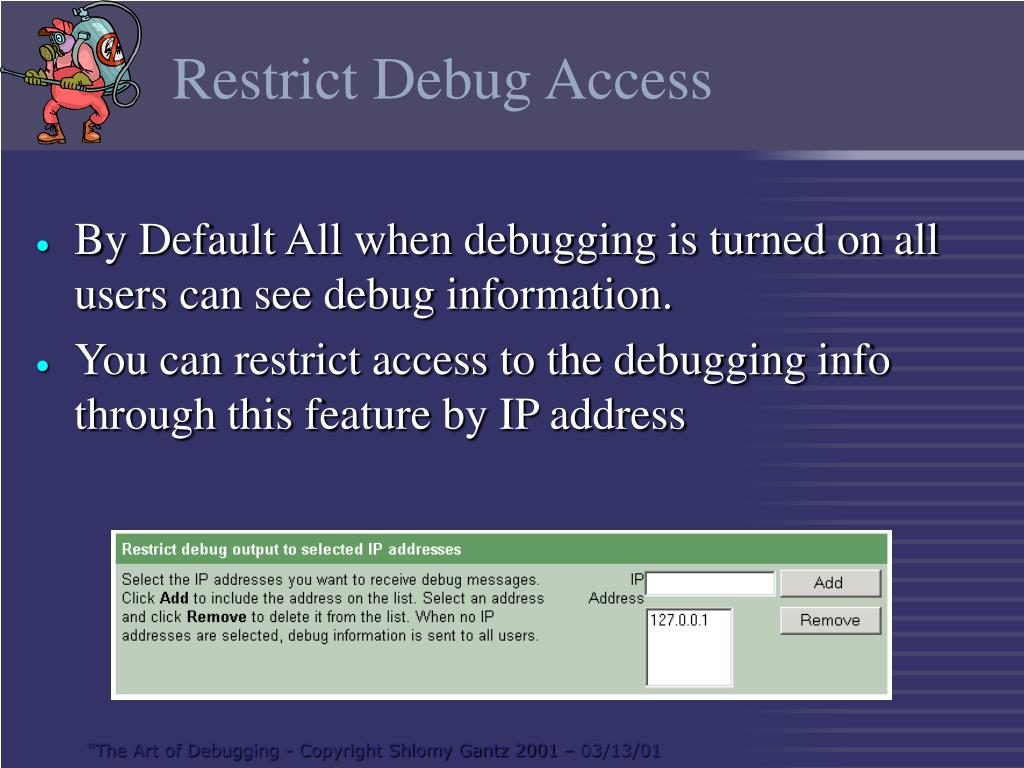

  19. Restrict Debug Access • By Default All when debugging is turned on all users can see debug information. • You can restrict access to the debugging info through this feature by IP address

  20. Debugging with studio • Setting up Development Mapping.

  21. Using the interactive debugger

  22. Debugging CF applications • Show your variables (not only once) • Create breakpoints and Follow the flow • Use Exception handling • Look at your application logs • CF_ObjectDump

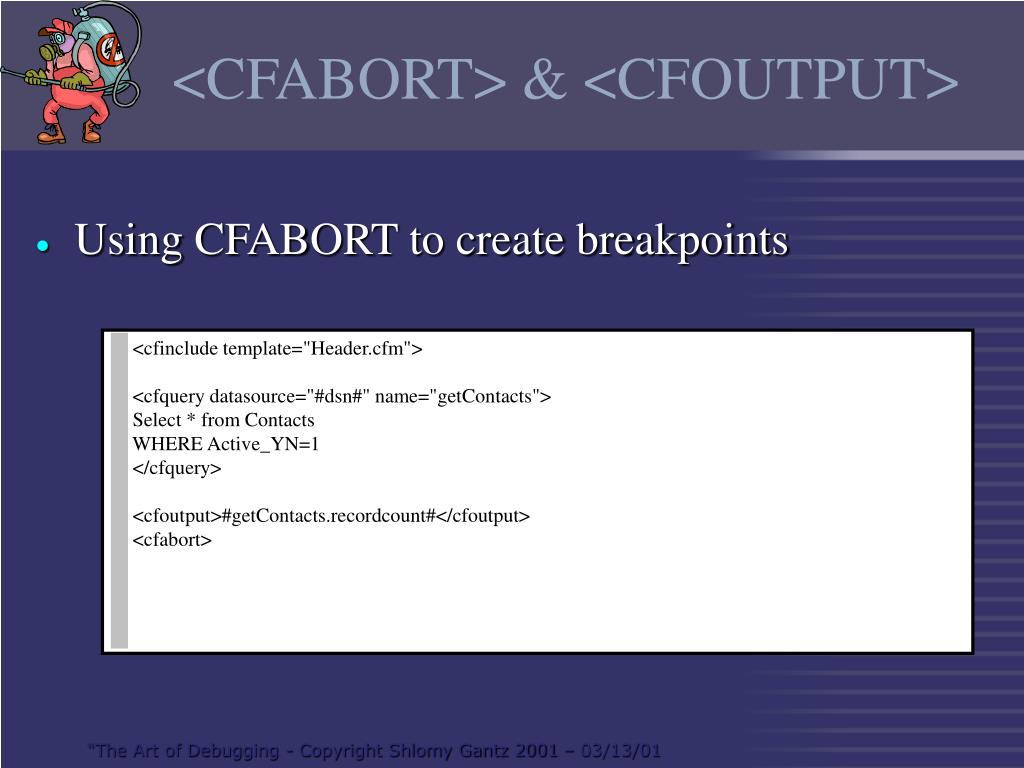

  23. <CFABORT> & <CFOUTPUT> • Using CFABORT to create breakpoints <cfinclude template="Header.cfm"> <cfquery datasource="#dsn#" name="getContacts"> Select * from Contacts WHERE Active_YN=1 </cfquery> <cfoutput>#getContacts.recordcount#</cfoutput> <cfabort>

  24. <CFABORT> & <CFOUTPUT> • Following the flow <CFIF …………> Step 1 <CFIF ………………..> Step 1.1 <CFELSE> Step 1.2 </CFIF> <CFELSE> Step 2 </CFIF> View Example

  25. Debugging in CFML • <cfquery debug> • <cfstoredproc debug=“yes|no”> • <cfsetting showdebug output=“yes/no”> View Example View Example

  26. Debugging CF applications • <CFERROR> • <CFTHROW> • <CFRETHROW> • <CFCATCH><CFTRY>

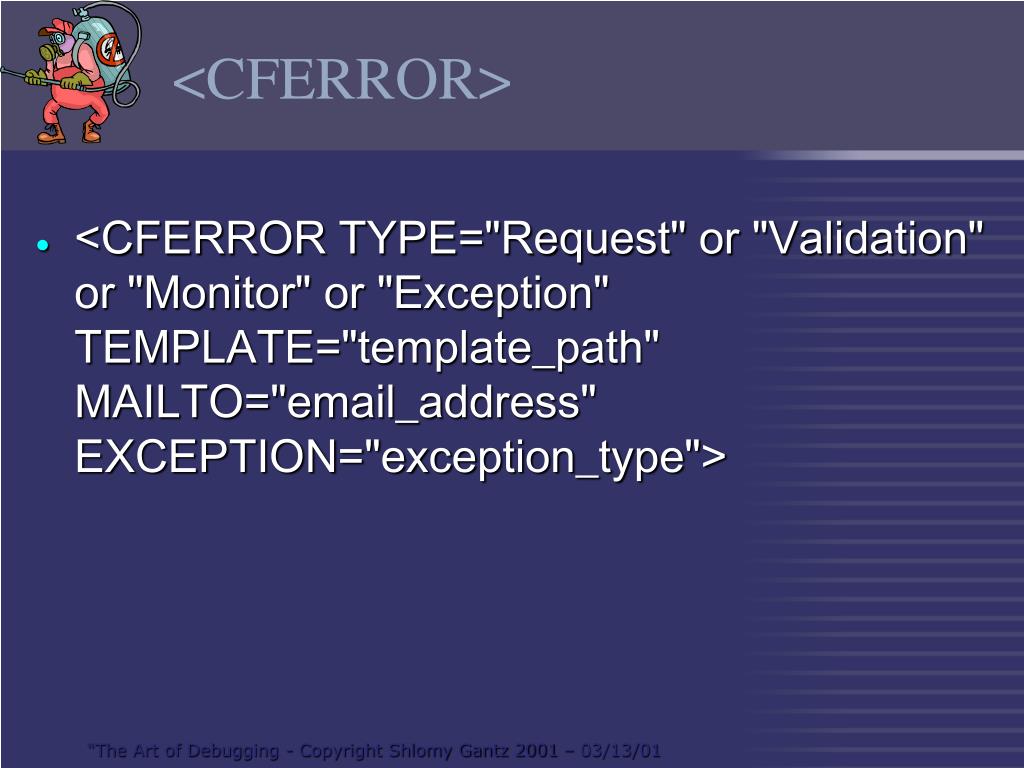

  27. <CFERROR> • <CFERROR TYPE="Request" or "Validation" or "Monitor" or "Exception" TEMPLATE="template_path" MAILTO="email_address" EXCEPTION="exception_type">

  28. <CFTRY><CFCATCH> • <CFTRY> • ... Add code here • <CFCATCH TYPE="exceptiontype"> • ... Add exception processing code here </CFCATCH> • ... Additional CFCATCH blocks go here </CFTRY>

  29. <CFTHROW><CFRETHROW> • <CFTHROW TYPE="exception_type" MESSAGE="message" DETAIL="detail_description" ERRORCODE="error_code" EXTENDEDINFO="additional_information">

  30. Application Logs • Read your application logs regularly Error","TID=199","07/27/00","13:32:35","127.0.0.1","Mozilla/4.0 (compatible; MSIE 4.01; Windows NT)","An error has occurred. HTTP/1.0 404 Object Not Found" "Error","TID=199","07/27/00","13:32:45","127.0.0.1","Mozilla/4.0 (compatible; MSIE 4.01; Windows NT)","Error resolving parameter SLOT_IDColdFusion was unable to determine the value of the parameter. This problem is very likely due to the fact that either: You have misspelled the parameter name, or You have not specified a QUERY attribute for a CFOUTPUT, CFMAIL, or CFTABLE tag.The error occurred while evaluating the expression: #slot_id# The error occurred while processing an element with a general identifier of (#slot_id#), occupying document position (4:12) to (4:20) in the template file D:\wwwroot\cfun2000\Examples\JS\JSexample1_CFMW\edit_def.cfmThe specific sequence of files included or processed is:D:\WWWROOT\CFUN2000\EXAMPLES\JS\JSEXAMPLE1_CFMW\EDIT_DEF.CFM &nbsp;&nbsp;&nbsp;&nbsp; .Date/Time: 07/27/00 13:32:45Browser: Mozilla/4.0 (compatible; MSIE 4.01; Windows NT)Remote Address: 127.0.0.1HTTP Referer: http://127.0.0.1/cfun2000/Examples/JS/JSexample1_CFMW/EDIT.HTMLTemplate: D:\wwwroot\cfun2000\Examples\JS\JSexample1_CFMW\edit_def.cfm" "Warning","TID=152","07/27/00","15:07:21","In a CF_TagName construct custom tag file 'C:\CFUSION\CustomTags\Pages.cfm' will occlude custom tag file 'C:\CFUSION\CustomTags\cf_pages\Pages.cfm'." "Warning","TID=152","07/27/00","15:07:21","In a CF_TagName construct custom tag file 'C:\CFUSION\CustomTags\Pages.cfm' will occlude custom tag file 'C:\CFUSION\CustomTags\cf_pages\images\Pages.cfm'." View Example

  31. CF_Objectdump • Read your application logs regularly <CF_ObjectDump Object="#Object#" Deserialize="yes|no" > View Example

  32. Debugging Databases • SQL query analyzer

  33. Debugging JavaScript • “Microsoft Script debugger”/“Netscape JavaScript Debugger” • Using alert() and return false;

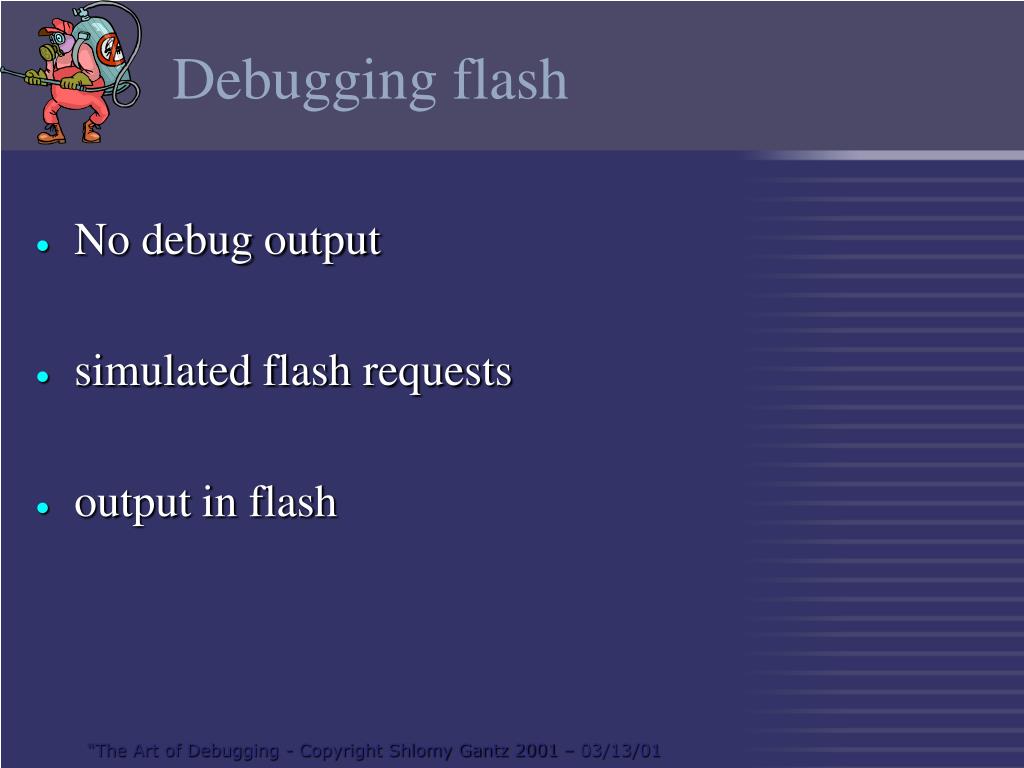

  34. Debugging flash • No debug output • simulated flash requests • output in flash

  35. Tools • http://www.secretagents.com/ • BugTraq • http://www.logviewer.com/ • Automatic Code Generation Tools • CodeSaver / CodeCharge / CommerceBlocks

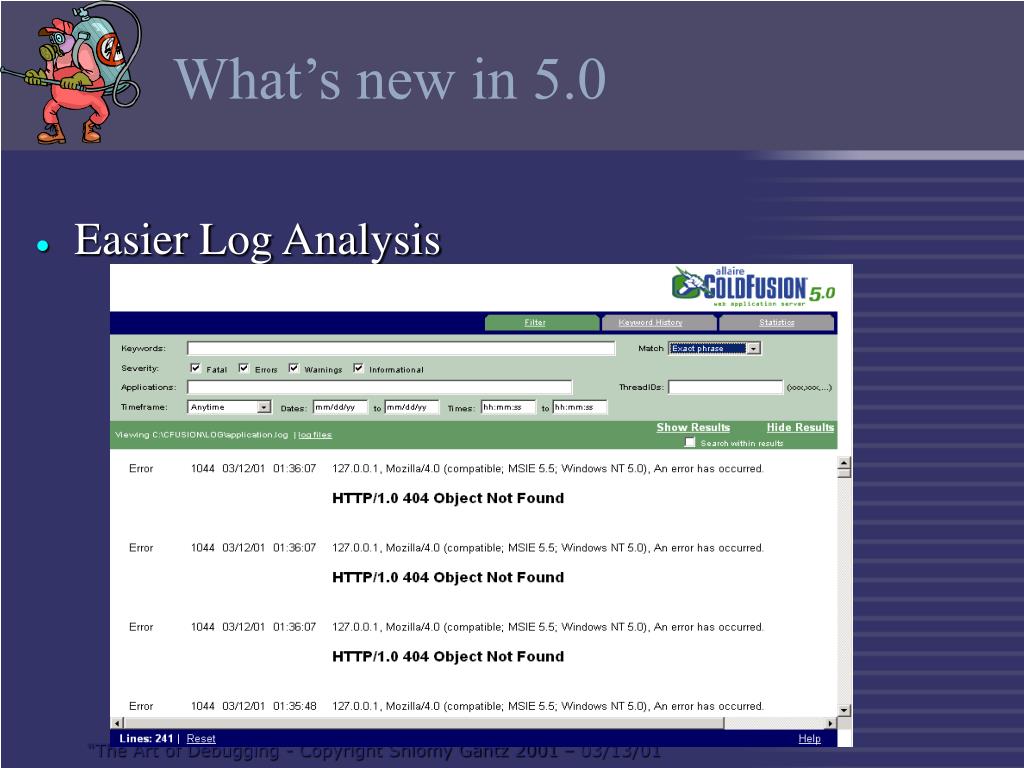

  36. What’s new in 5.0 • Easier Log Analysis

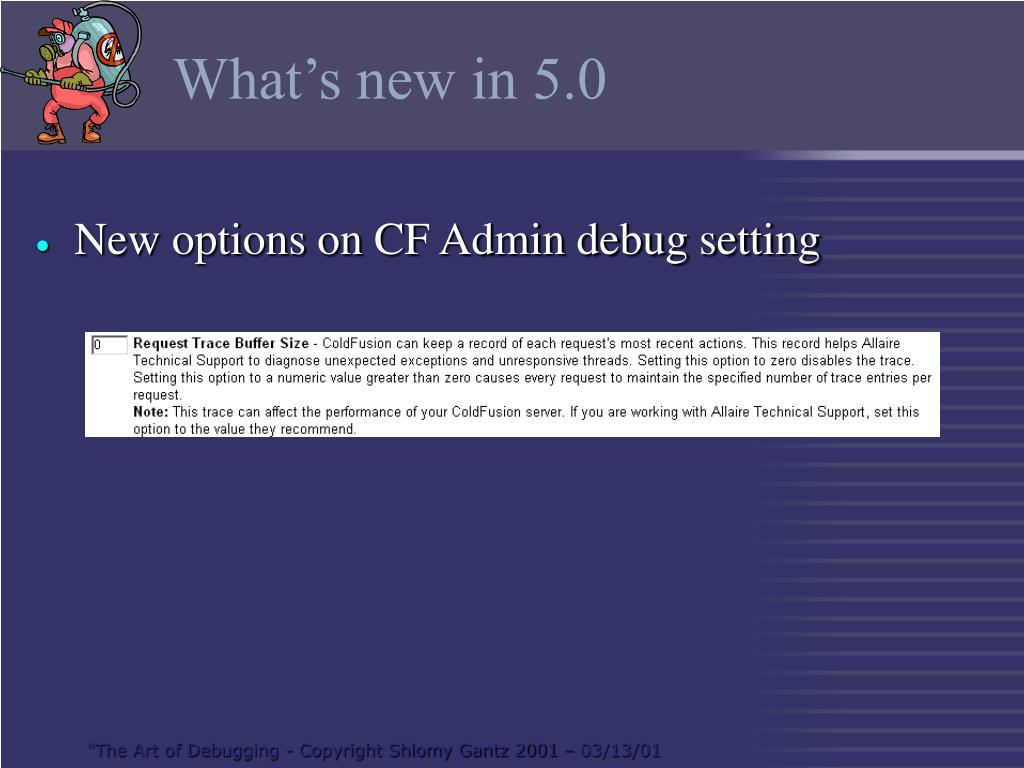

  37. What’s new in 5.0 • New options on CF Admin debug setting

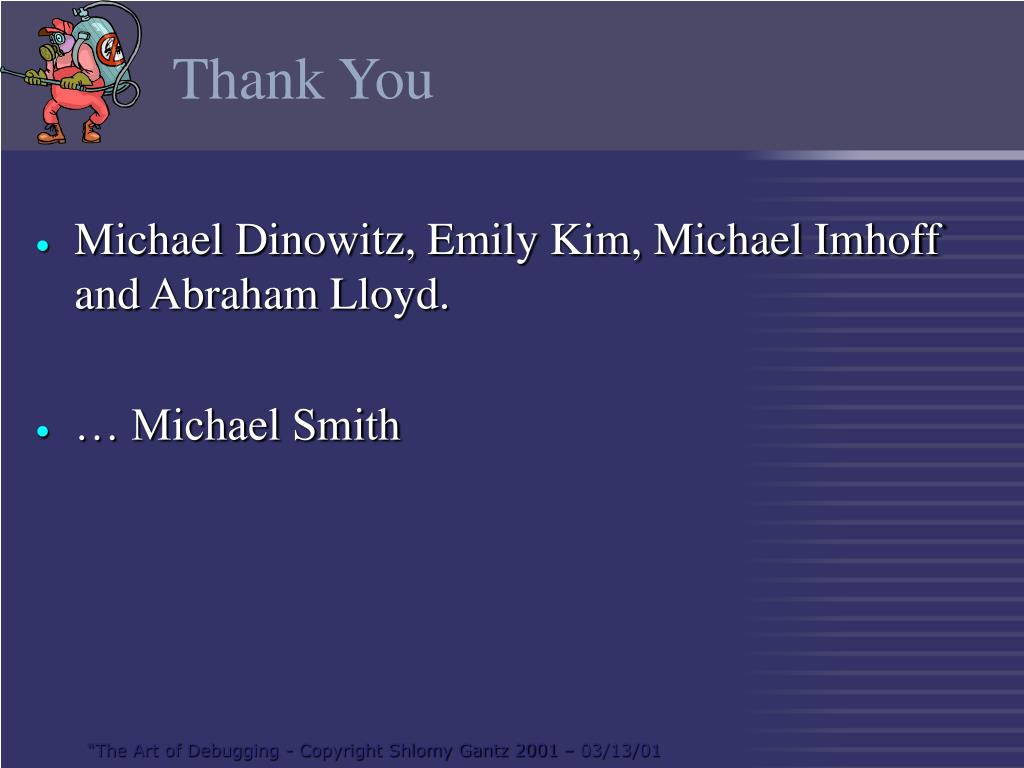

  38. Thank You • Michael Dinowitz, Emily Kim, Michael Imhoff and Abraham Lloyd. • … Michael Smith

  39. QA • Shlomy Gantz shlomygantz@hotmail.com http://www.shlomygantz.com
