  1. 802.11n Wireless Broadband Router WNRT-617 / WNRT-627 WNRT-627 WNRT-617 Icon3 Icon4 Icon5

  2. WNRT-617 WNRT-627 Presentation Outline • Product Position • Product Overview • Product Features • Applications • Web UI • Comparison – Internal • Comparison – External • Appendix

  3. WNRT-625 WNRT-632 WNRT-627 WNRT-617 WNRT-626 WRT-416 Product Position • PLANET Wireless Broadband Router Product Map New 11n 300Mbps New 11n150Mbps Low  Performance  High 11g 54Mbps Low  Cost  High

  4. WNRT-627 WNRT-617 WNRT-627 WNRT-617 Product Overview • Front Panel • Dimensions: 174 x 110 x 23 mm (W x D x H) • Weight: 200g • Power: 9V DC, 0.6A

  5. WNRT-627 5dBi Fixed Antenna x2 WNRT-617 5dBi Fixed Antenna x1 Product Overview • Rear Panel

  6. Product Overview • Quickly Review 150Mbps 300Mbps

  7. Product Features • Industrial Compliant Wireless LAN & LAN • Compliant with IEEE 802.11n wireless technology • Data rate up to 150/300Mbps for WNRT-617/627 • Backward compatible with 802.11b/g standard • LAN/WAN: 10/100Mbps, Auto MDI/MDI-X supported 11n/2T2R WNRT-627 11n/1T1R WNRT-617 802.11g 802.11b

  8. Fixed-network Broadband Router WAN types: Dynamic IP Static IP PPPoE Telstra Big Pond L2TP PPTP Russia Dual-Access Supports Static Routing, UPnP, Dynamic DNS Product Features 8 / 25

  9. Secure Network Connection Support Wi-Fi Protected Setup (WPS) Advanced security: 64/128/152-bit WEP WPA/WPA2 WPA-PSK/WPA2-PSK(TKIP/AES encryption) 802.1x Support NAT firewall features, with SPI function to protect against DoS attacks Support IP / Protocol-based access control and MAC Filtering Product Features 9 / 25

  10. Product Features – WPS Easy Setup WPS (Wi-Fi Protected Setup) – Quick and Easy Wireless Connection • STEP.1 • In the Wireless Client, click the WPS Software Button from the Web UI • STEP.2 • In the AP, push the WPS Hardware Button from the front panel within 2 minutes • STEP.3 • Wait for the connection being establish

  11. Multiple Wireless Network Technologies for Greater Access Multiple Operation Modes: AP Client WDS (Bridge) WDS+AP WISP 5dBi high gain antenna provides better RF coverage and reduce the dead-spot indoor Product Features 11 / 25

  12. Product Features • 5dBi High Gain Antenna – Wide Wireless Coverage Range – Reduce Dead-spot 5dBi Antenna Common Wireless N Router WNRT-617WNRT-627

  13. Advanced Networking function for Specific Application Supports multiple sessions IPSec, L2TP and PPTP VPN pass-through Supports Virtual Server, ALG, DMZ and UPnP for various networking applications Supports DHCP Server Easy Installation & Management Web-based UI for and Quick setup for easy configuration Remote Management allows configuration from a remote site System status monitoring includes DHCP Client, System Log Product Features 13 / 25

  14. DSL / Cable Modem 11n Wireless Router WNRT-617 / WNRT-627 Applications • Typical Application

  15. PC 11n Wireless Router WNRT-617 / WNRT-627 Operation Mode • Wireless Access Point • Acts as a central hub for wired / wireless LAN and connect to Internet AP Mode

  16. IP Camera RJ-45 11n Wireless Router WNRT-617 / WNRT-627 AP Client Mode Operation Mode • AP Client • Acts as a wireless client connecting with the remote AP AP Mode

  17. WNRT-617 / WNRT-627 WNRT-617 / WNRT-627 PC PC Operation Mode • WDS Bridge – Point to Point Mode • Two APs in two remote locations connect to each other wirelessly Bridge PtP Mode Bridge PtP Mode

  18. LAN LAN LAN LAN Operation Mode • WDS Bridge – Point to Multiple Point Mode • Wirelessly connects multiple locations together allowing them to share the same network resources. WNRT-617/627 Bridge PtMP Mode Bridge PtMP Mode Bridge PtMP Mode Bridge PtMP Mode

  19. Operation Mode WDS Repeater (WDS + AP) Mode Bridge two APs and provides access for wireless clients at the same time WNRT-617WNRT-627 WDS+AP mode WDS+AP mode 19 / 25

  20. Operation Mode • Universal Repeater Mode • Extends the coverage of AP, even if your AP/Router doesn't have WDS function AP Mode Universal Repeater Mode WNRT-617 / WNRT-627 Wireless AP / Router

  21. Applications WISP Mode Acts as a Wireless client to connect to an existing network via an Access Point. IP sharing function is enabled so the clients can share the WISP connection without the need for extra router. WISP mode WISP Provider / outdoor AP WNRT-617/627 21 / 25

  22. Web UI - Main Clear & Concise System Status Easy to understand On-line Help

  23. Web UI - WAN Full Range of WAN Type

  24. Web UI - Wireless Easy to set Wireless Function 24 / 25

  25. WNRT-617 Web UI – WPS • 2 types of WPS: PBC(S/W & H/W Button) and PIN Code. Type2: as Registrar, enter the PIN code from wireless client; As Enrollee, use Self PinCode fill in wireless client’s, then click. WPS PIN Code WPS PBC H/W Button WPS PBC S/W Button Type1: Press PBC button from AP (S/W or H/W) and wireless client in 2 minutes

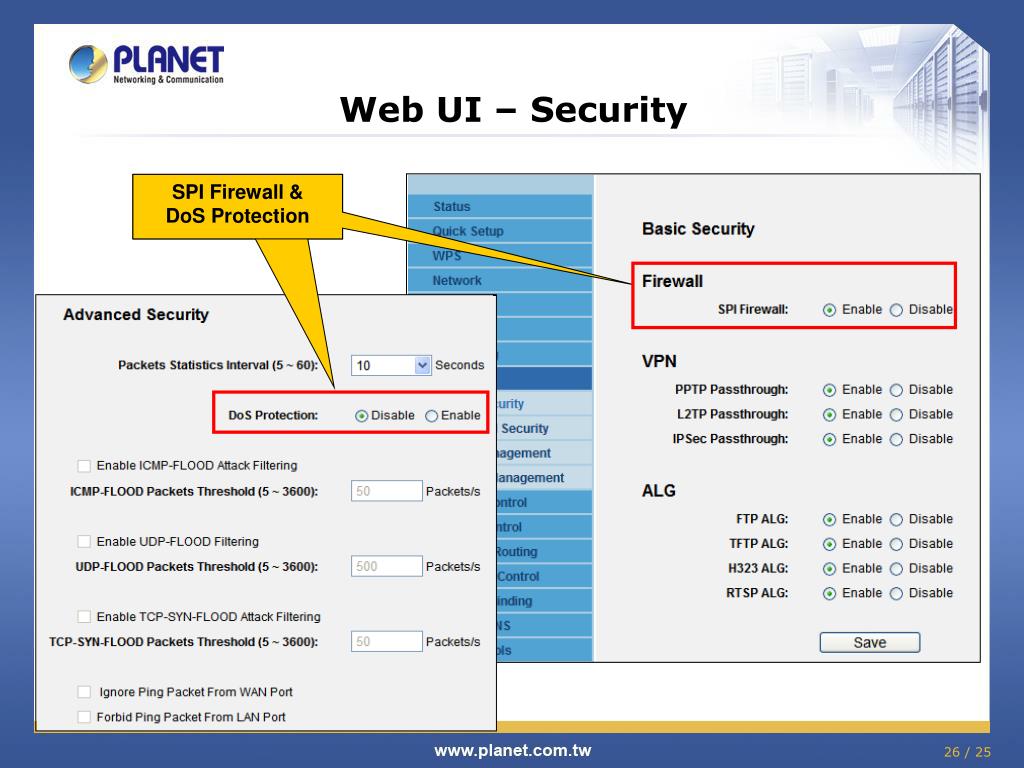

  26. Web UI – Security SPI Firewall & DoS Protection

  27. Web UI – Different Control Bandwidth Control Access Control Parental Control

  28. Web UI – Port Forwarding

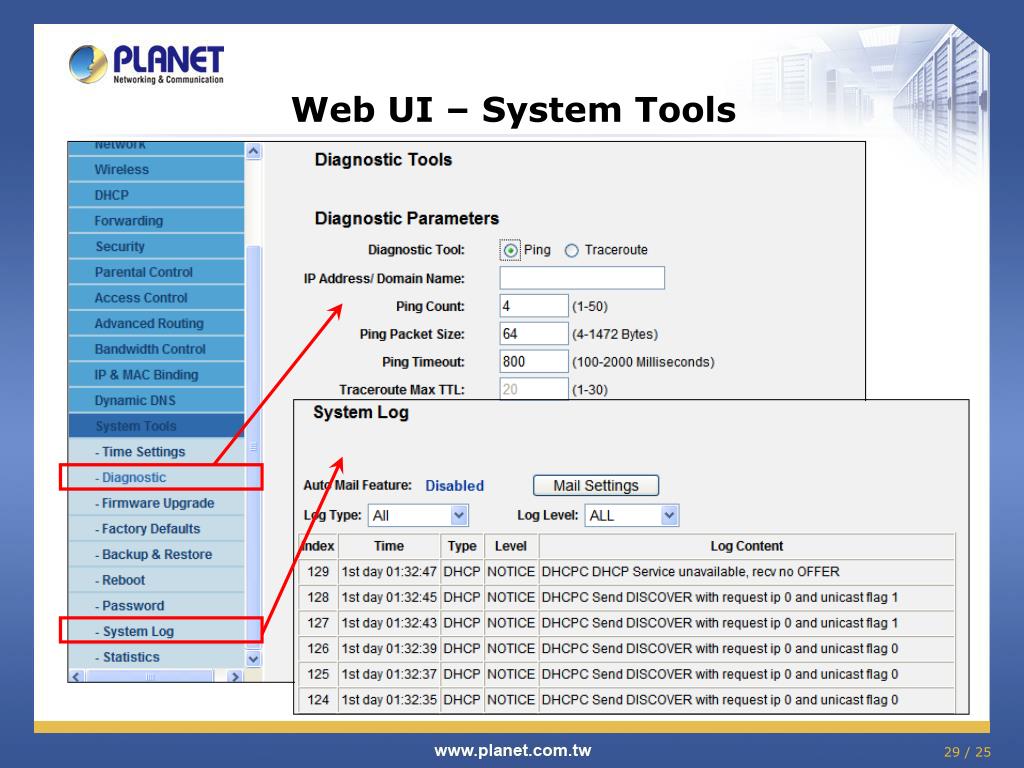

  29. Web UI – System Tools 29 / 25

  30. Web UI – Smart Setup! RJ-45 / UTP Smart Setup! CD Easy & Quick Smart Setup Utility

  31. Comparison - Internal

  32. Comparison - External

  33. Appendix • Related Products • WNL-U554 150Mbps 11n Wireless USB Adapter • WNL-U554A 150Mbps 11n Wireless USB Adapter with 3dBi Antenna • WNL-U554M 150Mbps Micro 11n Wireless USB Adapter • WNL-9501 802.11n Wireless PCI Express Adapter WNL-9501 WNL-U554 WNL-U554A WNL-U554M
