  1. Chapter 16 – Solutions Mr.Yeung

  2. Objectives – Lesson 2 • Cold and hot packs • Reaction types – • endothermic and exothermic • Mmmm yummy • Salt on ice • Freezing point and boiling point elevation THINK AT THE MOLECULAR LEVEL!

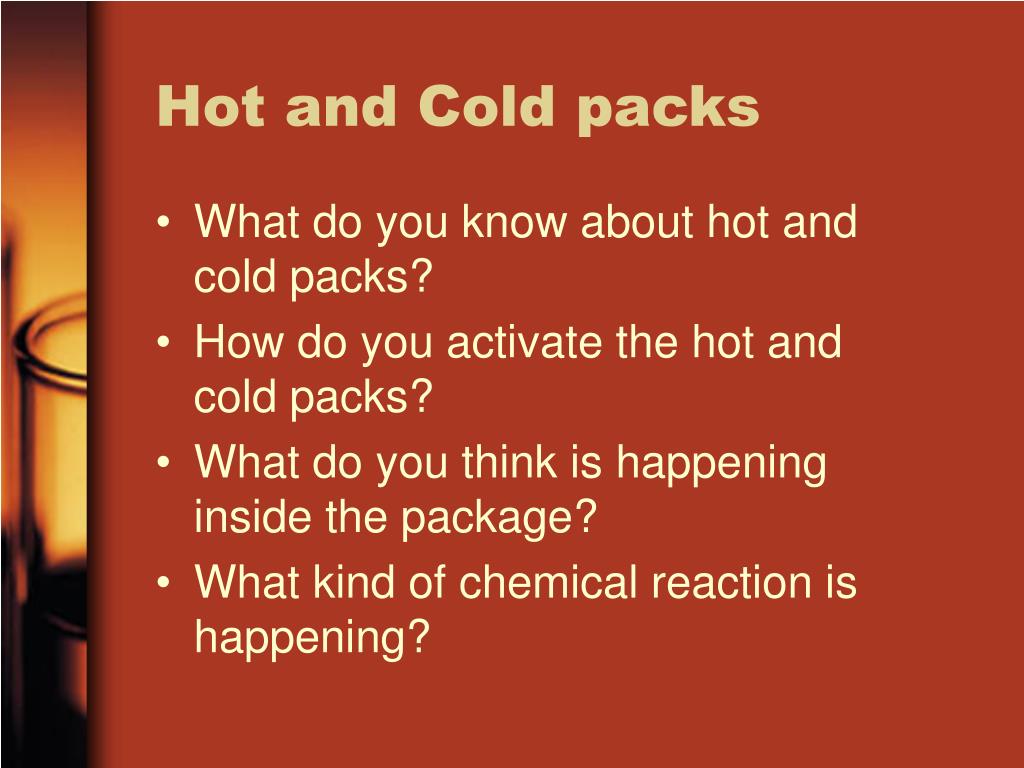

  3. Hot and Cold packs • What do you know about hot and cold packs? • How do you activate the hot and cold packs? • What do you think is happening inside the package? • What kind of chemical reaction is happening?

  4. Reaction types • Exothermic process • Is one that release heat to its surroundings • Ex. When you touch something cold, you release your heat to the object • Endothermic process • Is one that gains heat as the surroundings cool down • Ex. When you touch something cold, the cold object gains the heat from your hands.

  5. Explanation of hot and cold packs • When you break open the hot or cold packs…a chemical reaction occurs.

  6. Salty science demo • 3 de-icers • One is ‘rated’ for -30C • One is ‘rated’ for -15C • One is just regular table salt • Which one do you think will melt the most ice? • Which one do you think will cause the most ‘heat’? • If I put some milk with the ice and the de-icer, which one do you think will ‘freeze’ the milk?

  7. Salty Science demo • What happened? • 2 processes • 1. Melting of the ice • 2. Freezing of the milk

  8. Melting of the ice • When salt is put on to the ice, the NaCl are broken apart into Na+ and Cl- • The salt upsets the equilibrium of the solid ice and mixes with the water molecules • The melted portion creates this brine solution (or salty water) • The salt creates more disorder (lots of disturbances or a big party!) which makes it harder to re-form back to the solid phase • So a lower freezing point is established (or it requires the temperature to be lower to refreeze the liquid back into solid

  9. Results • Extreme De-icer lowered the temperature the most • Medium de-icer was (as expected) medium  • Table salt lowered the temperature the least

  10. So… why? • Let’s take a look at the molecules • Extreme De-icer was MgCl2 • Medium de-icer was CaCl2 • Table salt was NaCl

  11. When the molecules… • When the molecules comes in contact with the ice… • They break apart • Which of the 3 molecules would break apart and cause the most disturbance? • MgCl2 or CaCl2 • Because there are 3 atoms\ • So why did MgCl2 have a lower temperature than CaCl2? • Look at the size of the elements • Mg is a lot smaller than Ca so there would be more molecules in the mixture causing more disorder or disturbance

  12. Freezing of the ice cream • Well now we know that the extreme de-icer would cause the coldest temperatures WHILE melting the ice… • How does it actually freeze the milk?

  13. How does the freezing occur? • The melting of the ice was due to the endothermic process where heat was absorbed from its surroundings • Like a person in a well heated house, the person absorbs the heat in the house. • This results in the lost of heat in the surroundings causing colder surrounding temperatures • When you come into the same well heated house from -30C temperatures, you are cold, but you gain the heat from the house causing the house to become colder. • The heat or energy from the liquid milk was absorbed by the melting of the ice, making it colder than before, thus freezing!

  14. Summary • Endothermic reaction • Forming bonds where it takes in or absorbs heat or energy from its surroundings • Exothermic reaction • Breaking bonds that results in the release of heat or energy • Making ice-cream • 2 processes • Melting ice-cream • Due to the dissociation or breaking of the molecules • Freezing ice-cream • Endothermic process where heat is absorbed from the milk causing it to freeze • Hot and cold packs • Same principle as making ice cream • Chemical reaction that either released heat or absorbed heat from the surroundings.

  15. Journal Questions • How did the liquid milk freeze in the bag? • Explain the entire chemical process that occurs when you put fresh ice in a glass of coke. • How come salt trucks are not used when the temperature dips below • -10C during the winter time?
