Test comparison of standard flood lights with LED flood lights.

Test comparison of standard flood lights with LED flood lights. You could power 10 LED flood lights before you equal the current draw of a single string of 100 incandescent Christmas lights Press F5 to see full screen slide show mode. By: Jeff Ostroff LauderdaleChristmas.com

norm
Télécharger la présentation

Test comparison of standard flood lights with LED flood lights.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Test comparison of standard flood lights with LED flood lights. You could power 10 LED flood lights before you equal the current draw of a single string of 100 incandescent Christmas lightsPress F5 to see full screen slide show mode By: Jeff Ostroff LauderdaleChristmas.com Version 1.2 November 6, 2007

  2. Advantages of LED flood lights: • Same form factor as a standard flood lamps • They draw almost no current, < .03 A.  Won’t register on Watts Up meter! • LED floods I bought rated at 110 VOLT, 0.025 AMPS. • They don’t heat up at all.  A half hour later they are still cool to the touch • Conventional flood lamps will burn your hand • Much longer life than incandescent bulbs • LED flood lamps do not flicker • LED flood lamp has 50-70 LEDs. If one burns out, the others will stay lit • No paint to wear off glass, the LED is the color.  They look clear, but when energized, will shine in their intended color • Disadvantages of conventional floodlights: • Waste lots of power, 100W, gulp from .9A to over 1 amp! • They get real hot, you can seriously burn yourself • Colored floodlights are painted on and wear off quickly • Once colored paint wears down, you get hot whitish spots in the colored light

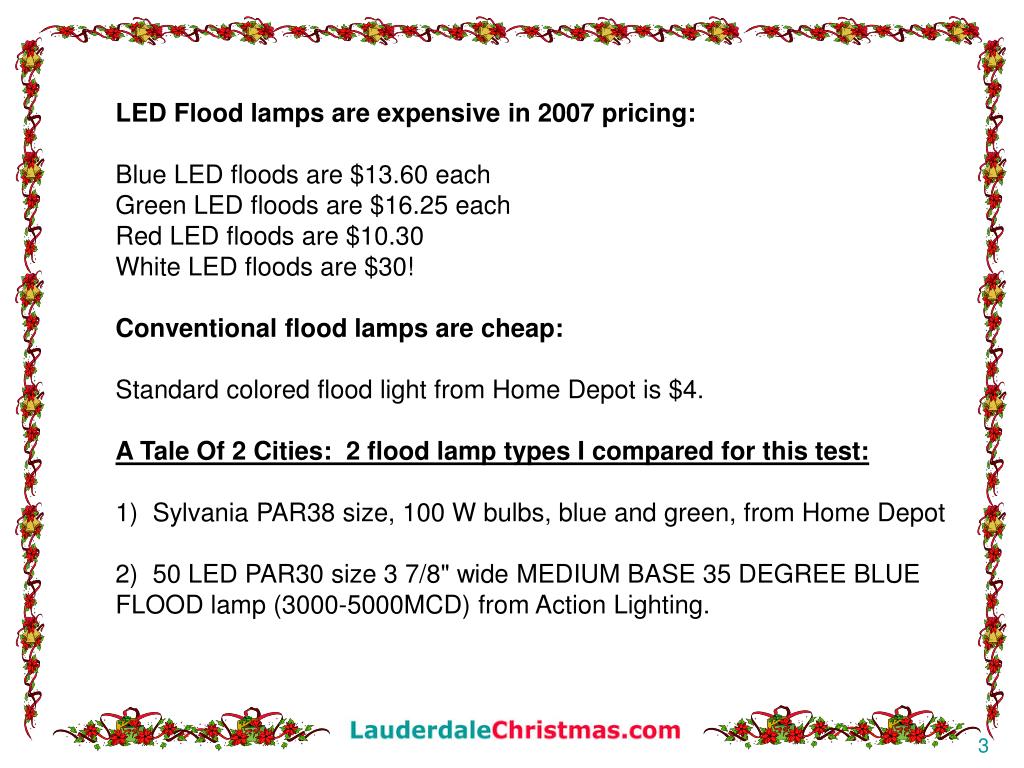

  3. LED Flood lamps are expensive in 2007 pricing: Blue LED floods are $13.60 each Green LED floods are $16.25 each Red LED floods are $10.30 White LED floods are $30! Conventional flood lamps are cheap: Standard colored flood light from Home Depot is $4. A Tale Of 2Cities:  2 flood lamp types I compared for this test:1)  Sylvania PAR38 size, 100 W bulbs, blue and green, from Home Depot2)  50 LED PAR30 size 3 7/8" wide MEDIUM BASE 35 DEGREE BLUE FLOOD lamp (3000-5000MCD) from Action Lighting.

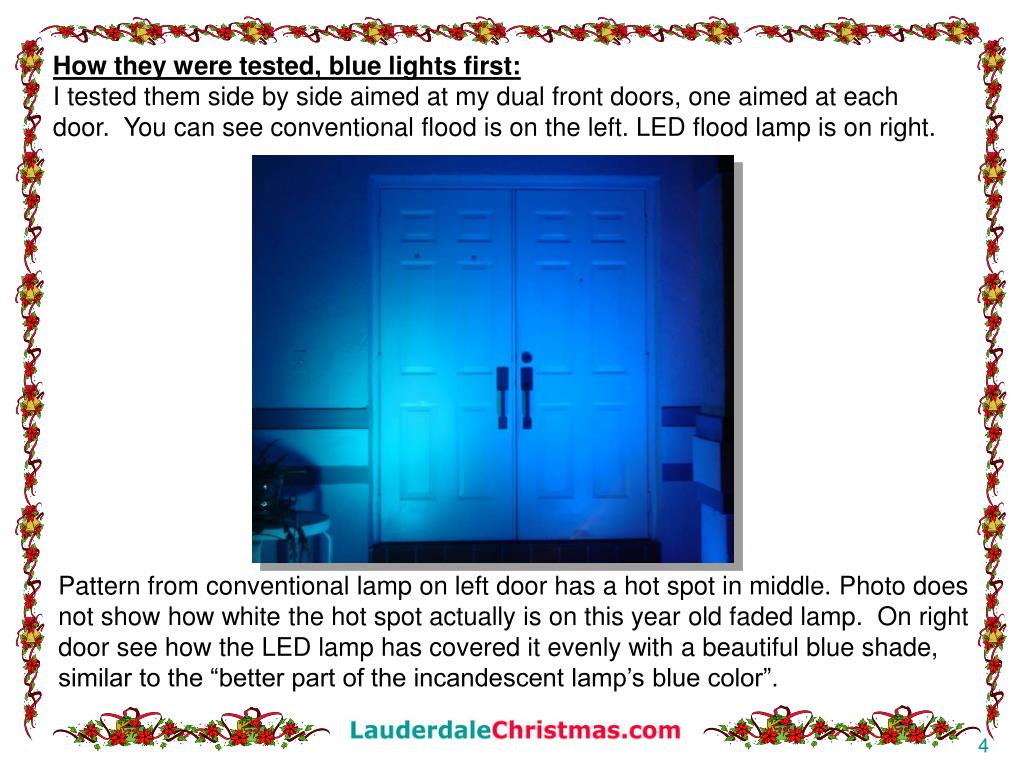

  4. How they were tested, blue lights first:I tested them side by side aimed at my dual front doors, one aimed at each door.  You can see conventional flood is on the left. LED flood lamp is on right. Pattern from conventional lamp on left door has a hot spot in middle. Photo does not show how white the hot spot actually is on this year old faded lamp.  On right door see how the LED lamp has covered it evenly with a beautiful blue shade, similar to the “better part of the incandescent lamp’s blue color”.

  5. Blue LED flood lamp by itself, aimed at right front door.  Beautiful and even blue color looks great.

  6. Same phenomenon, worn down colors on the Sylvania green flood lamp leave a whitish hot spot in the middle.  The green LED is much more evenly lit across the right door than the conventional Sylvania lamp on the left door.

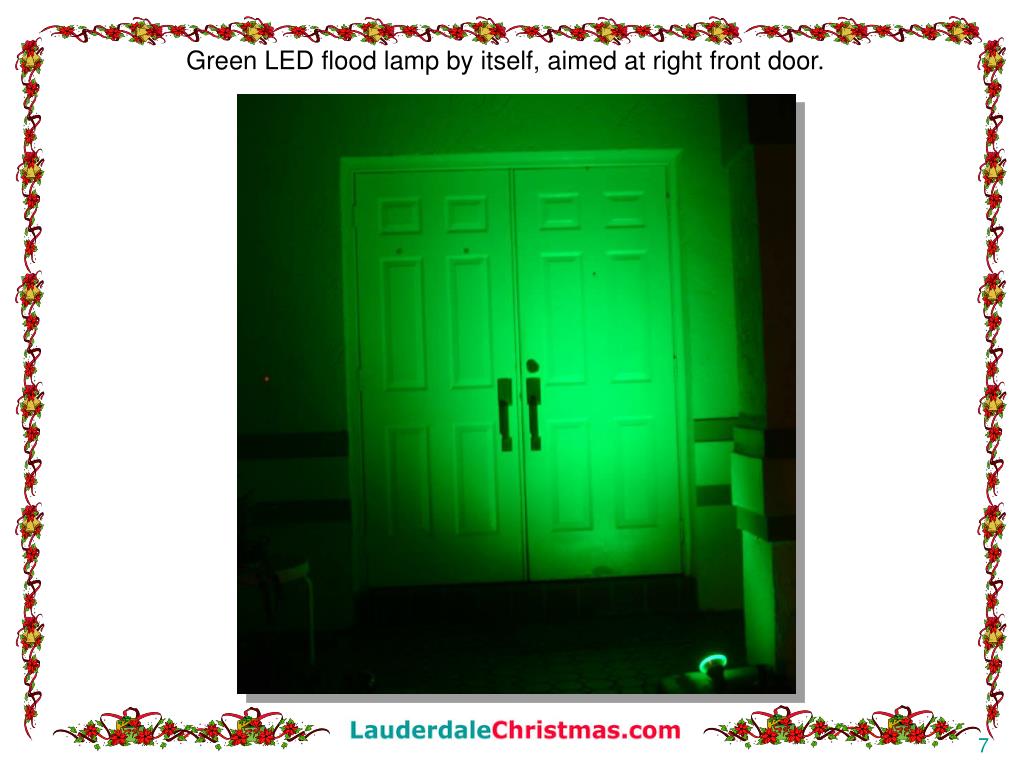

  7. Green LED flood lamp by itself, aimed at right front door.

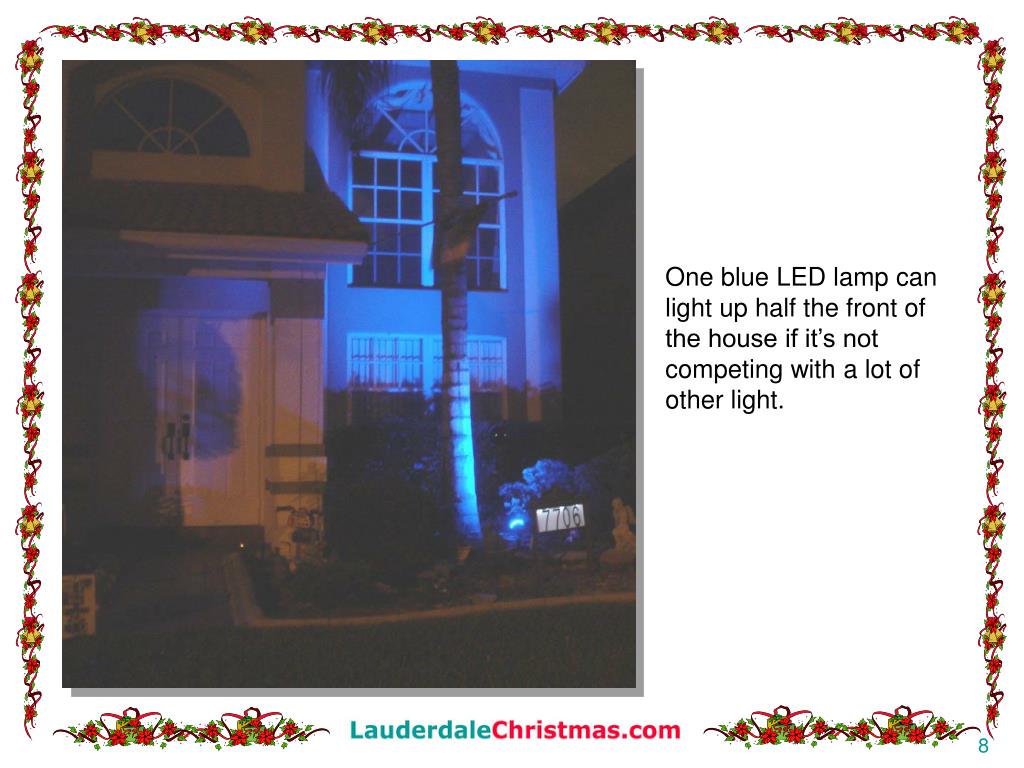

  8. One blue LED lamp can light up half the front of the house if it’s not competing with a lot of other light.

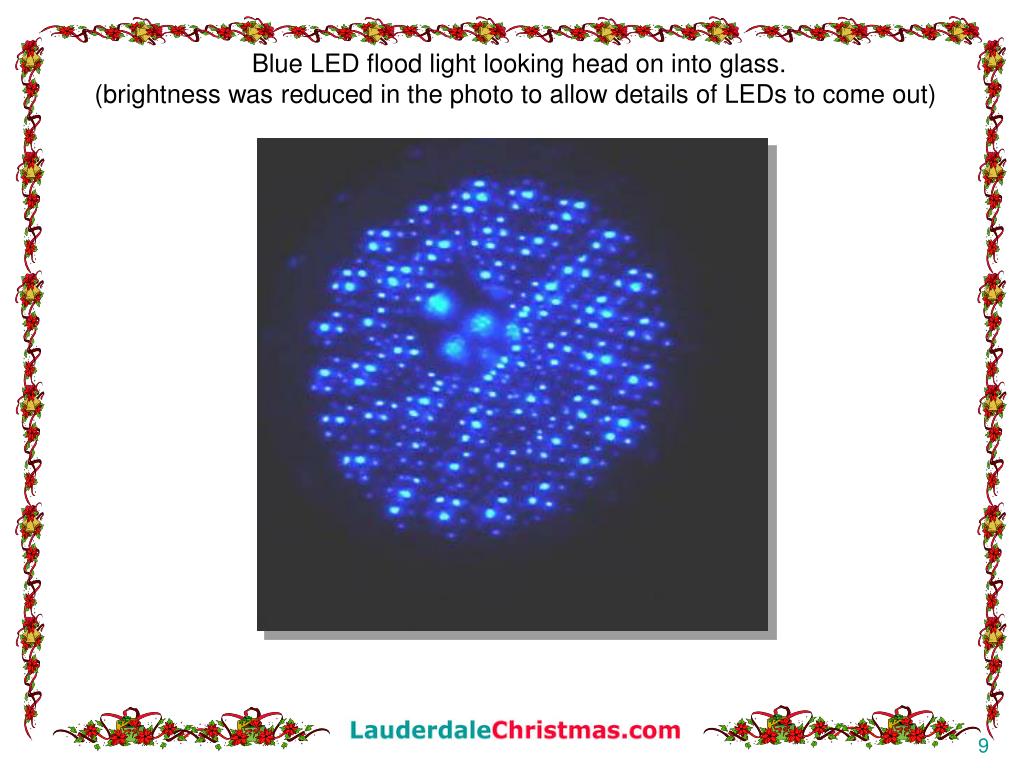

  9. Blue LED flood light looking head on into glass.(brightness was reduced in the photo to allow details of LEDs to come out)

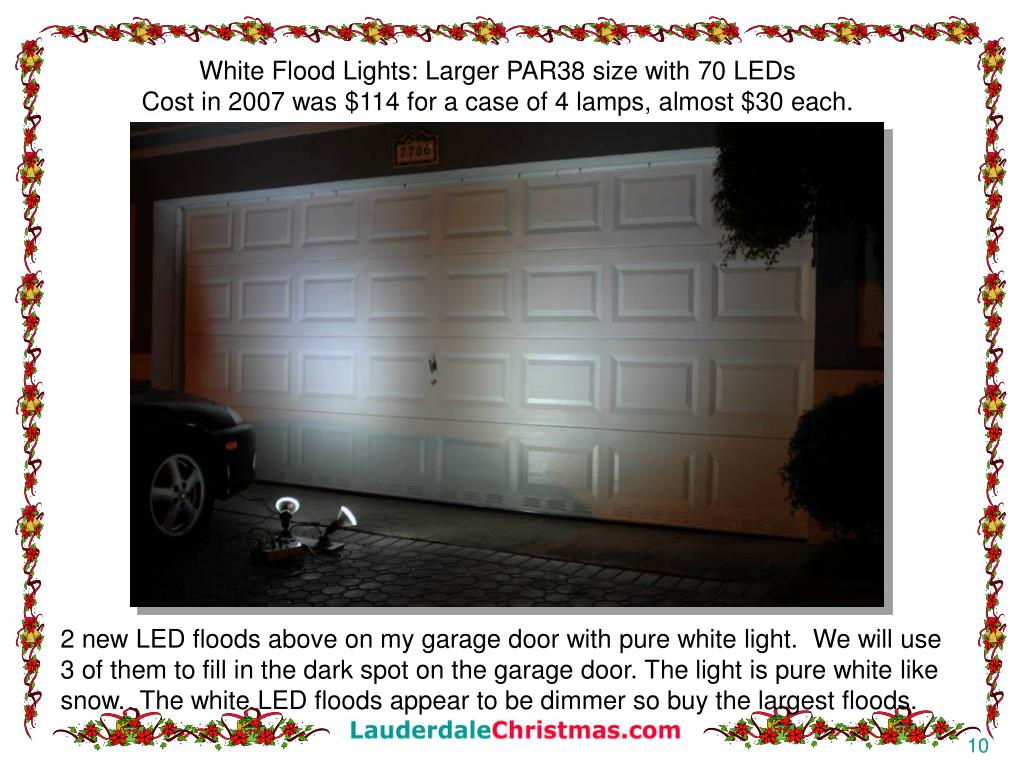

  10. White Flood Lights: Larger PAR38 size with 70 LEDs Cost in 2007 was $114 for a case of 4 lamps, almost $30 each. 2 new LED floods above on my garage door with pure white light.  We will use 3 of them to fill in the dark spot on the garage door. The light is pure white like snow.  The white LED floods appear to be dimmer so buy the largest floods.

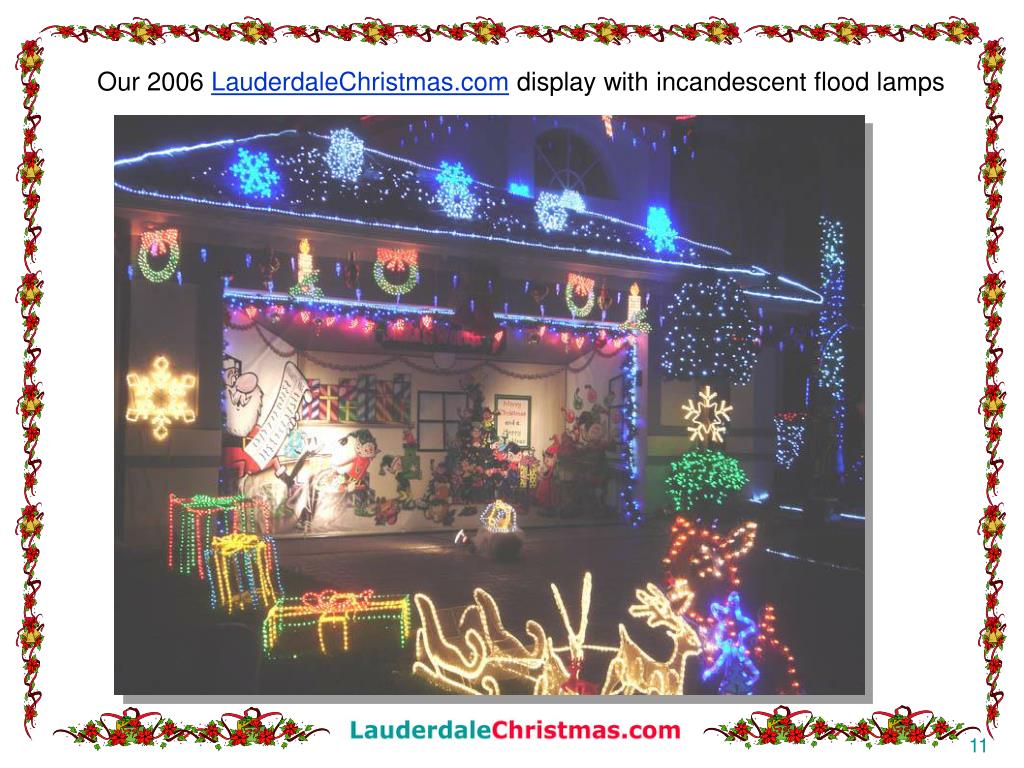

  11. Our 2006 LauderdaleChristmas.com display with incandescent flood lamps
