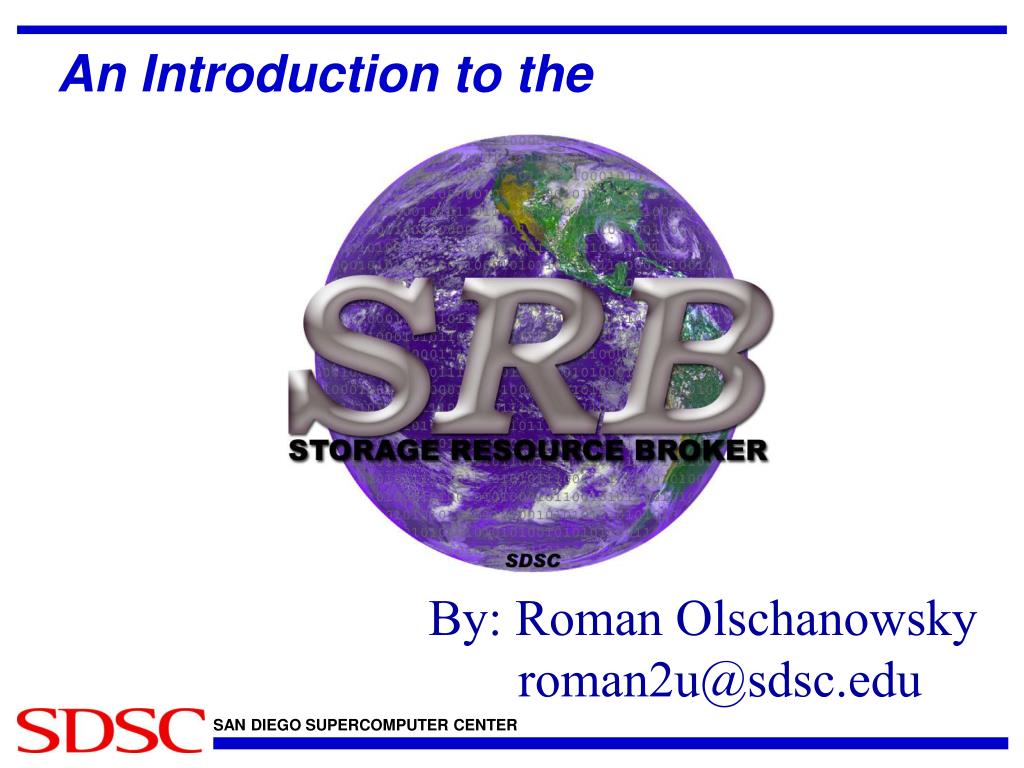

  1. An Introduction to the By: Roman Olschanowsky roman2u@sdsc.edu

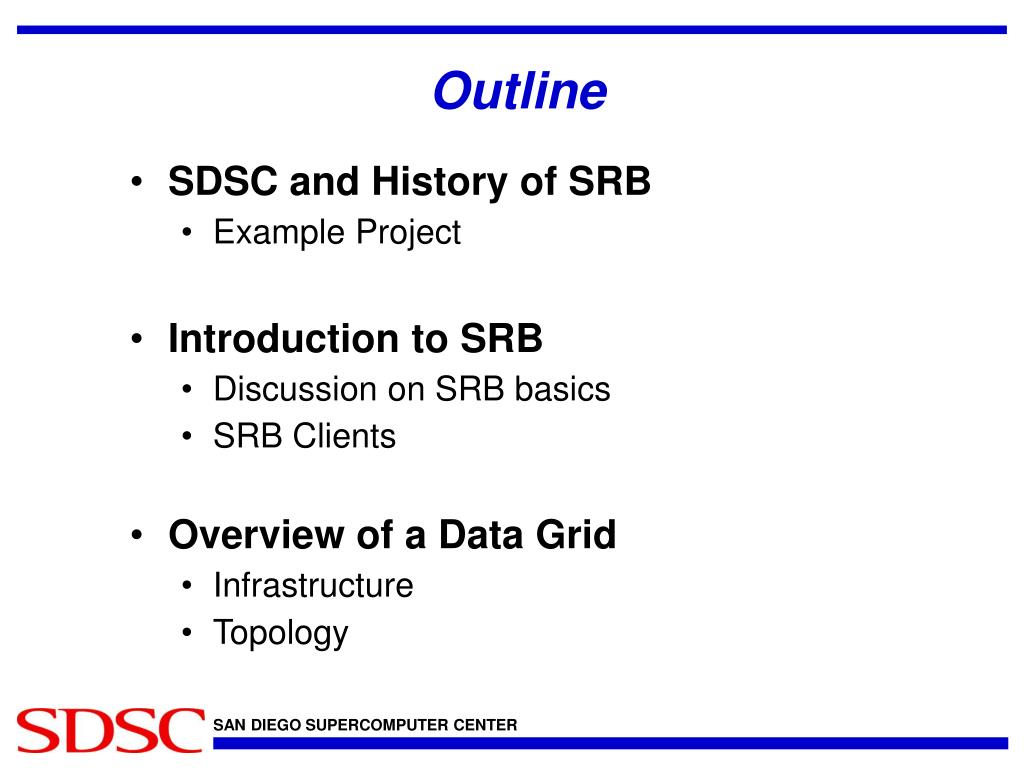

  2. Outline • SDSC and History of SRB • Example Project • Introduction to SRB • Discussion on SRB basics • SRB Clients • Overview of a Data Grid • Infrastructure • Topology

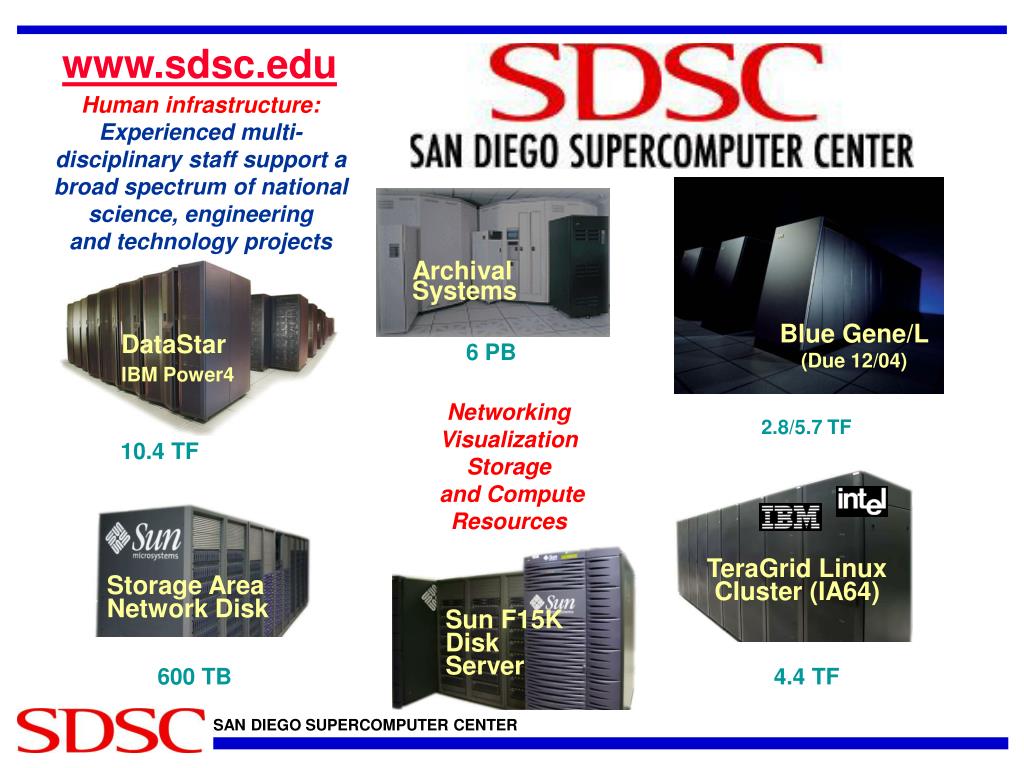

  3. TeraGrid Linux Cluster (IA64) 4.4 TF Sun F15K Disk Server Storage Area Network Disk 600 TB www.sdsc.edu Human infrastructure:Experienced multi-disciplinary staff support a broad spectrum of national science, engineeringand technology projects Archival Systems Blue Gene/L (Due 12/04) DataStar IBM Power4 6 PB Networking Visualization Storage and Compute Resources 2.8/5.7 TF 10.4 TF

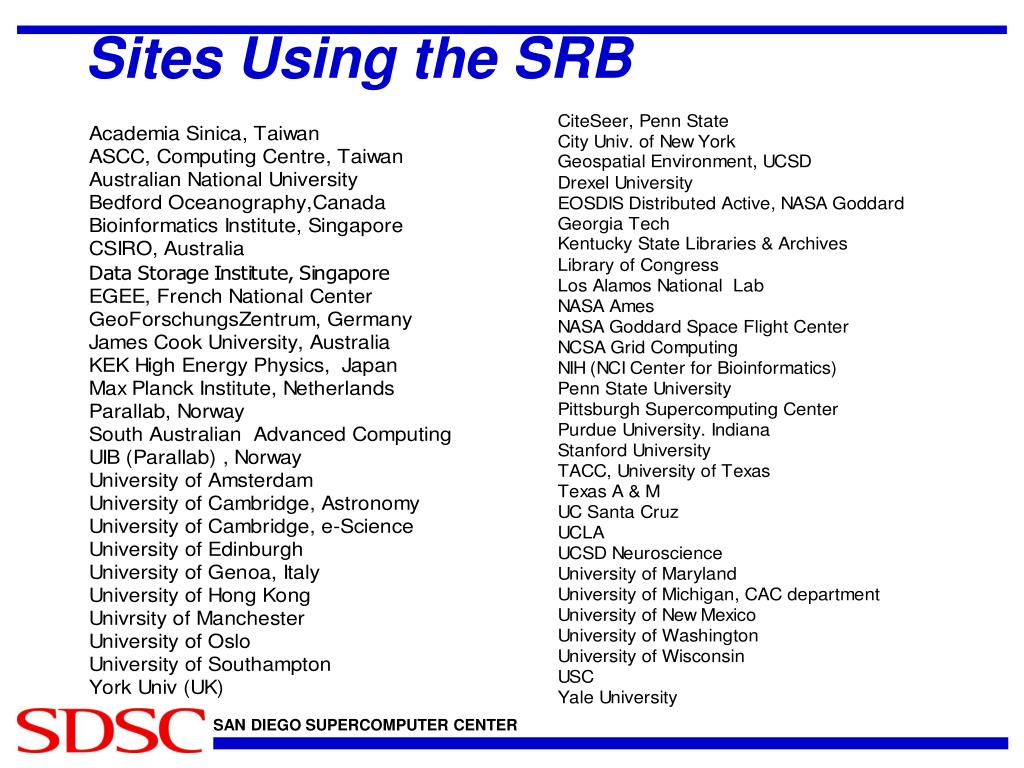

  4. Sites Using the SRB

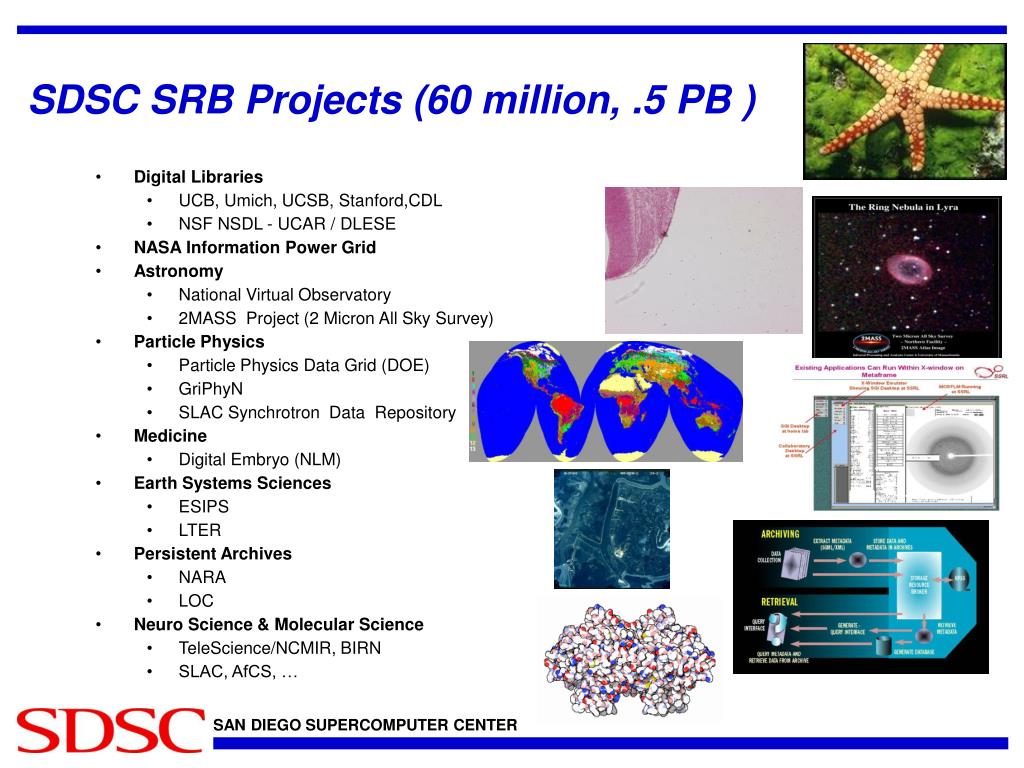

  5. SDSC SRB Projects (60 million, .5 PB ) • Digital Libraries • UCB, Umich, UCSB, Stanford,CDL • NSF NSDL - UCAR / DLESE • NASA Information Power Grid • Astronomy • National Virtual Observatory • 2MASS Project (2 Micron All Sky Survey) • Particle Physics • Particle Physics Data Grid (DOE) • GriPhyN • SLAC Synchrotron Data Repository • Medicine • Digital Embryo (NLM) • Earth Systems Sciences • ESIPS • LTER • Persistent Archives • NARA • LOC • Neuro Science & Molecular Science • TeleScience/NCMIR, BIRN • SLAC, AfCS, …

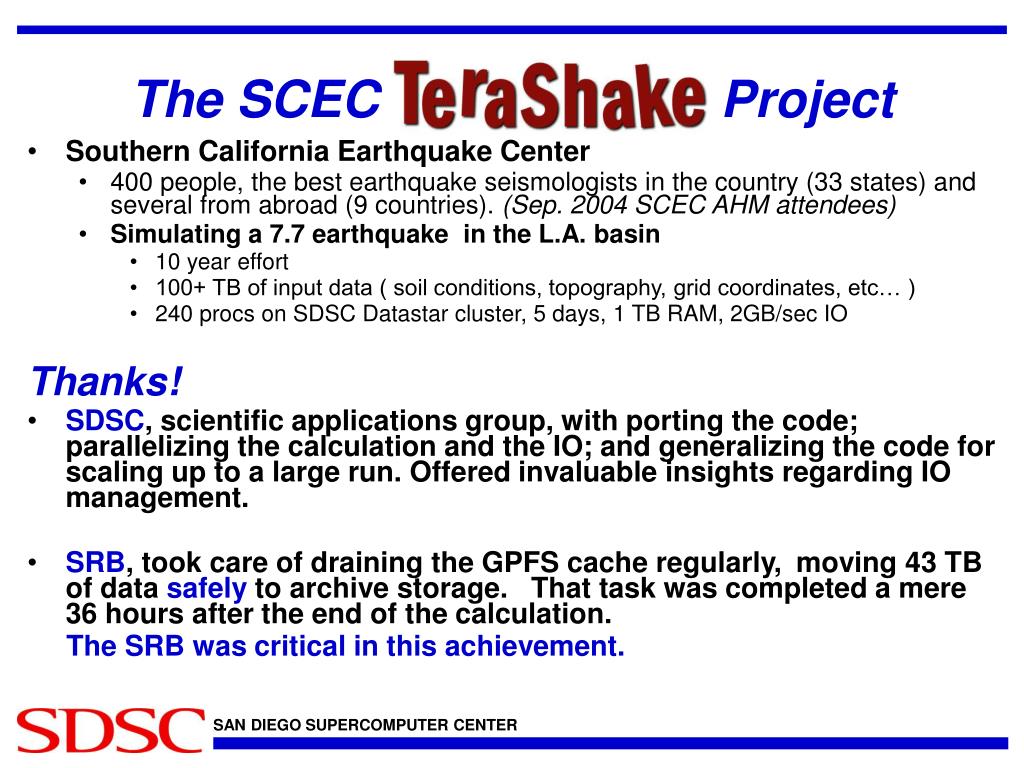

  6. The SCEC Project • Southern California Earthquake Center • 400 people, the best earthquake seismologists in the country (33 states) and several from abroad (9 countries). (Sep. 2004 SCEC AHM attendees) • Simulating a 7.7 earthquakein the L.A. basin • 10 year effort • 100+ TB of input data ( soil conditions, topography, grid coordinates, etc… ) • 240 procs on SDSC Datastar cluster, 5 days, 1 TB RAM, 2GB/sec IO Thanks! • SDSC, scientific applications group, with porting the code; parallelizing the calculation and the IO; and generalizing the code for scaling up to a large run. Offered invaluable insights regarding IO management.  • SRB, took care of draining the GPFS cache regularly,  moving 43 TB of data safely to archive storage.   That task was completed a mere 36 hours after the end of the calculation. The SRB was critical in this achievement.

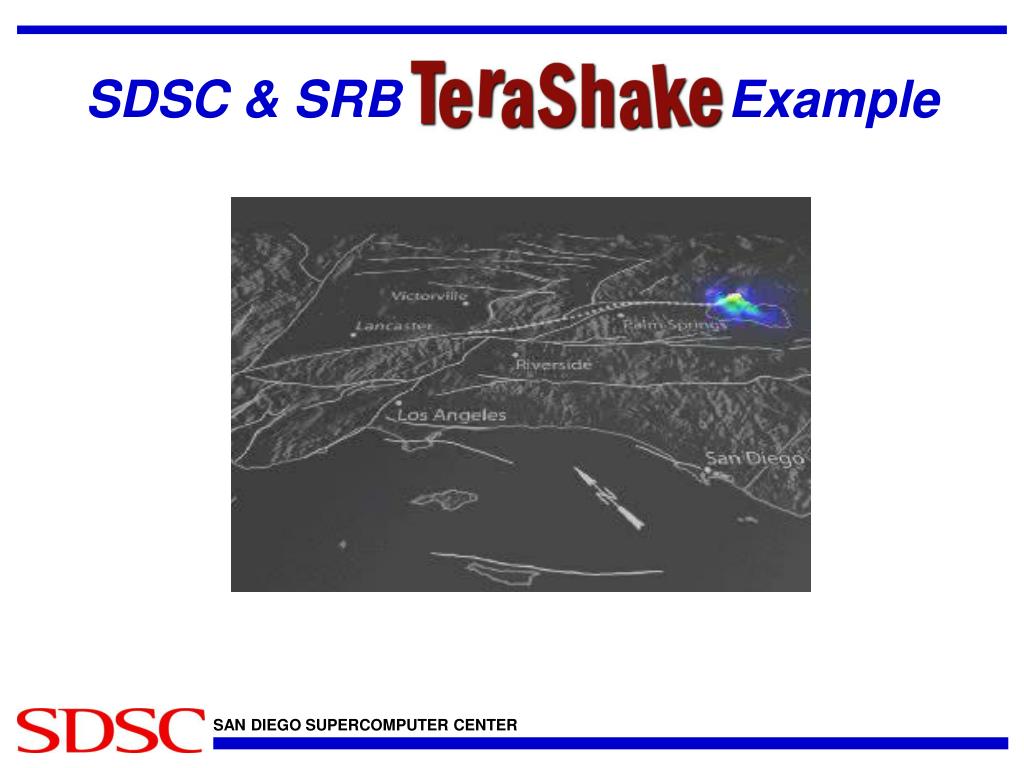

  7. SDSC & SRB Example

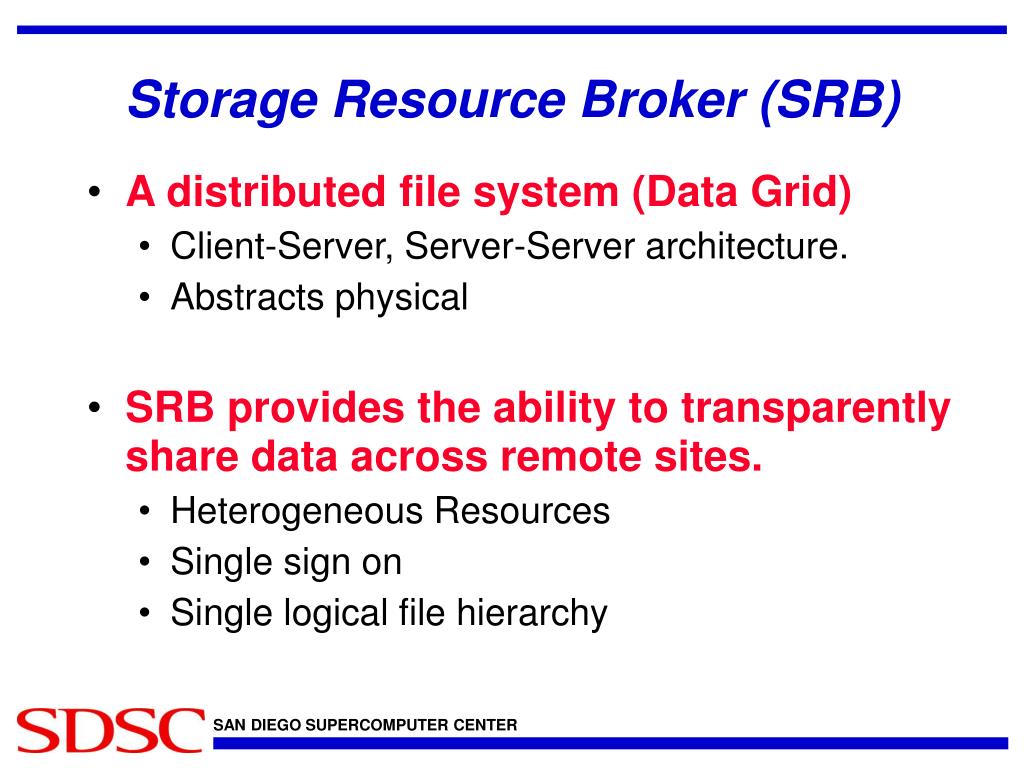

  8. Storage Resource Broker (SRB) • A distributed file system (Data Grid) • Client-Server, Server-Server architecture. • Abstracts physical • SRB provides the ability to transparently share data across remote sites. • Heterogeneous Resources • Single sign on • Single logical file hierarchy

  9. What we are familiar with

  10. What we are not familiar with, yet

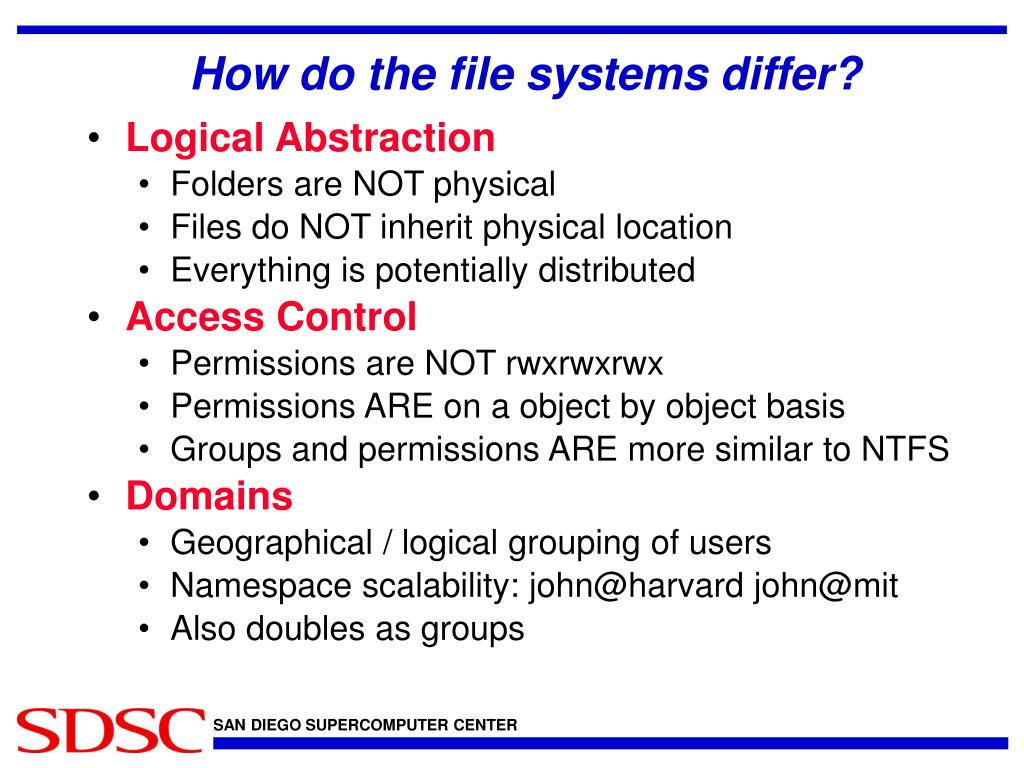

  11. How do the file systems differ? • Logical Abstraction • Folders are NOT physical • Files do NOT inherit physical location • Everything is potentially distributed • Access Control • Permissions are NOT rwxrwxrwx • Permissions ARE on a object by object basis • Groups and permissions ARE more similar to NTFS • Domains • Geographical / logical grouping of users • Namespace scalability: john@harvard john@mit • Also doubles as groups

  12. Interfaces to theStorage Resource Broker • inQ – Windows Client • Scommands – UNIX, DOS Command line Client • Jargon – Java API and GUI components • mySRB – Web Client • Matrix – WSDL, Data Grid Workflows • C, C++ – C and C++ API • Python – Python API • Perl – Perl API

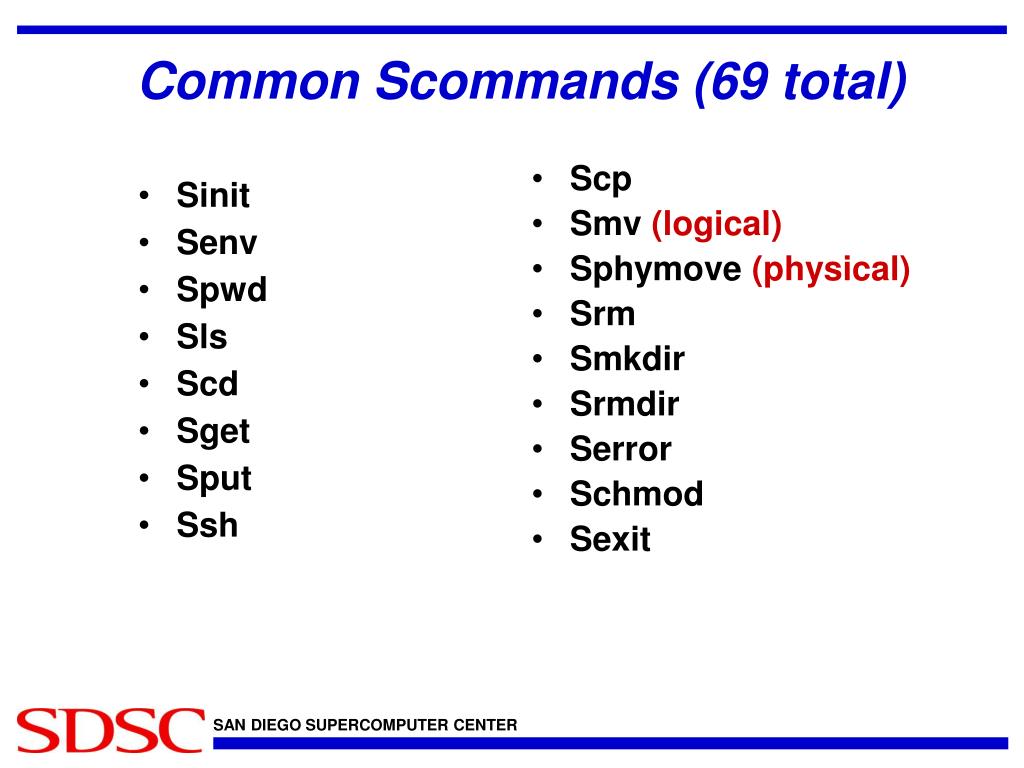

  13. Sinit Senv Spwd Sls Scd Sget Sput Ssh Scp Smv (logical) Sphymove (physical) Srm Smkdir Srmdir Serror Schmod Sexit Common Scommands (69 total)

  14. mySRB

  15. BIRN Portal (perl based)

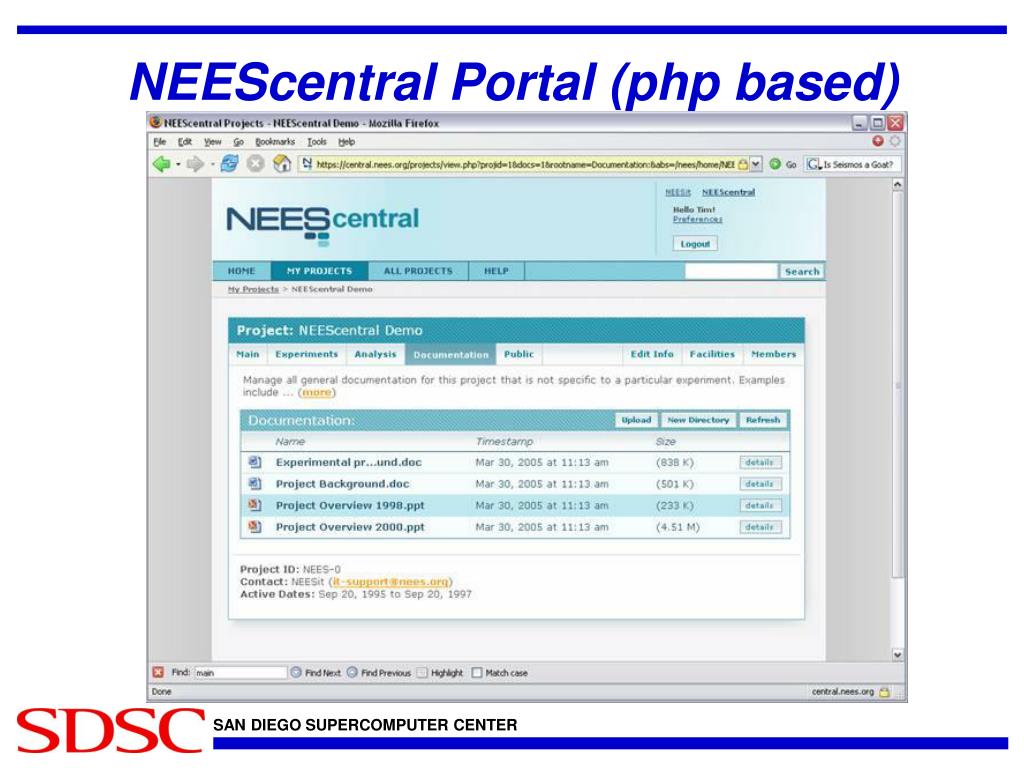

  16. NEEScentral Portal (php based)

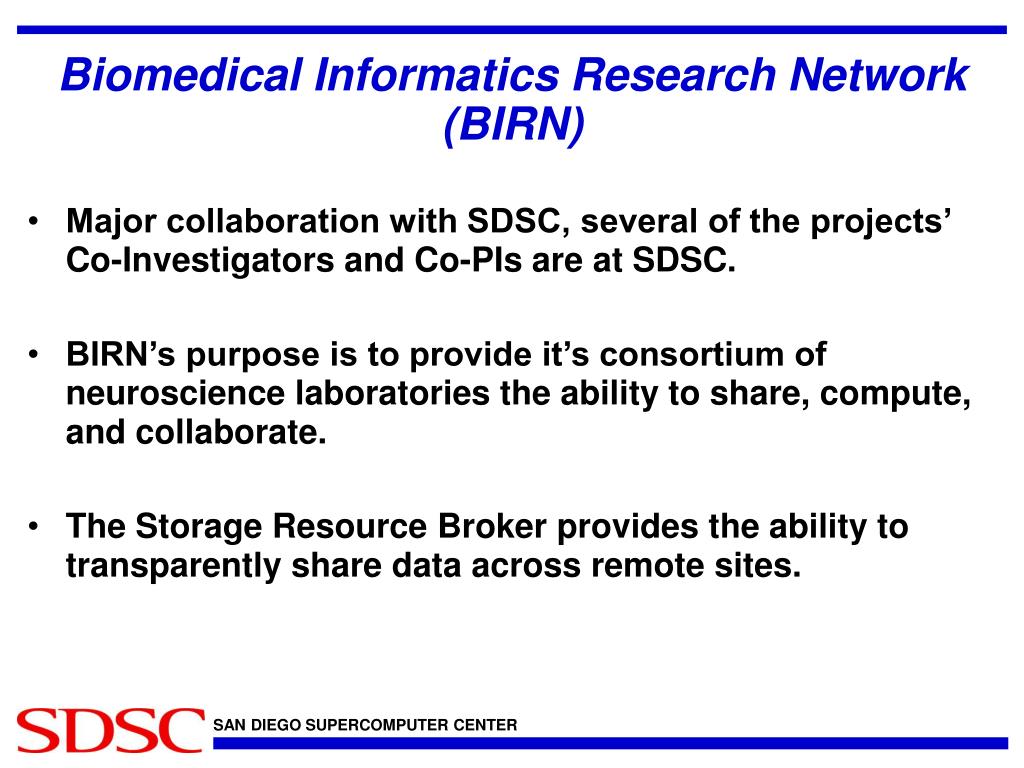

  17. Biomedical Informatics Research Network (BIRN) • Major collaboration with SDSC, several of the projects’ Co-Investigators and Co-PIs are at SDSC. • BIRN’s purpose is to provide it’s consortium of neuroscience laboratories the ability to share, compute, and collaborate. • The Storage Resource Broker provides the ability to transparently share data across remote sites.

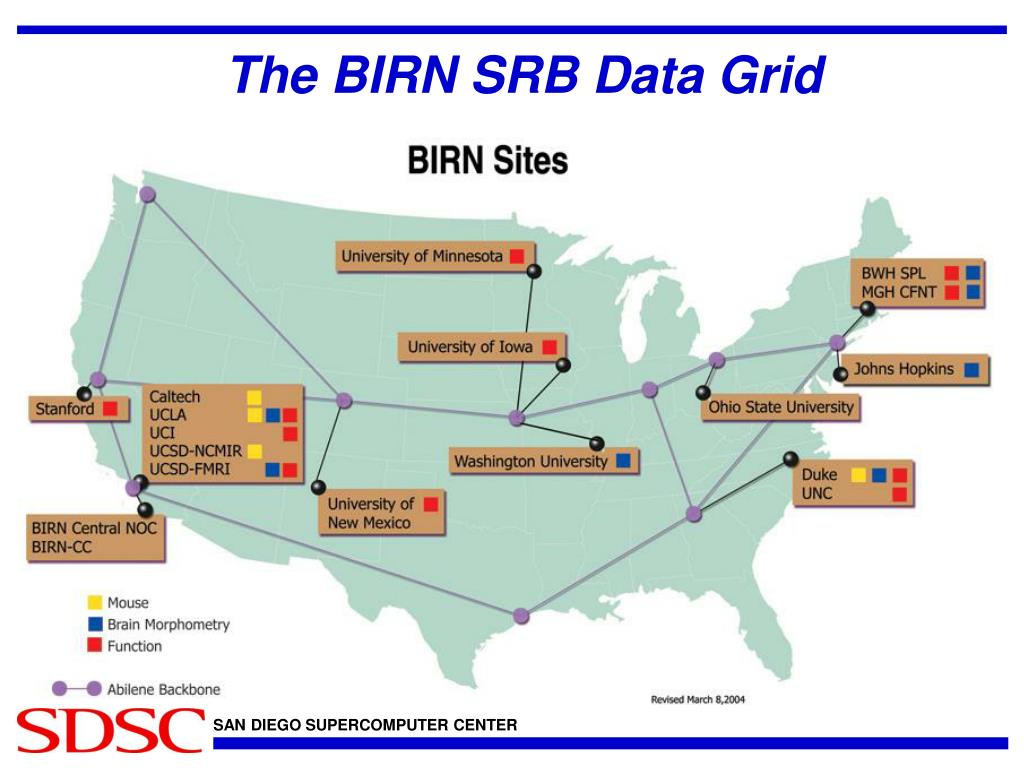

  18. The BIRN SRB Data Grid

  19. Doing this “Manually”

  20. The BIRN Data Grid

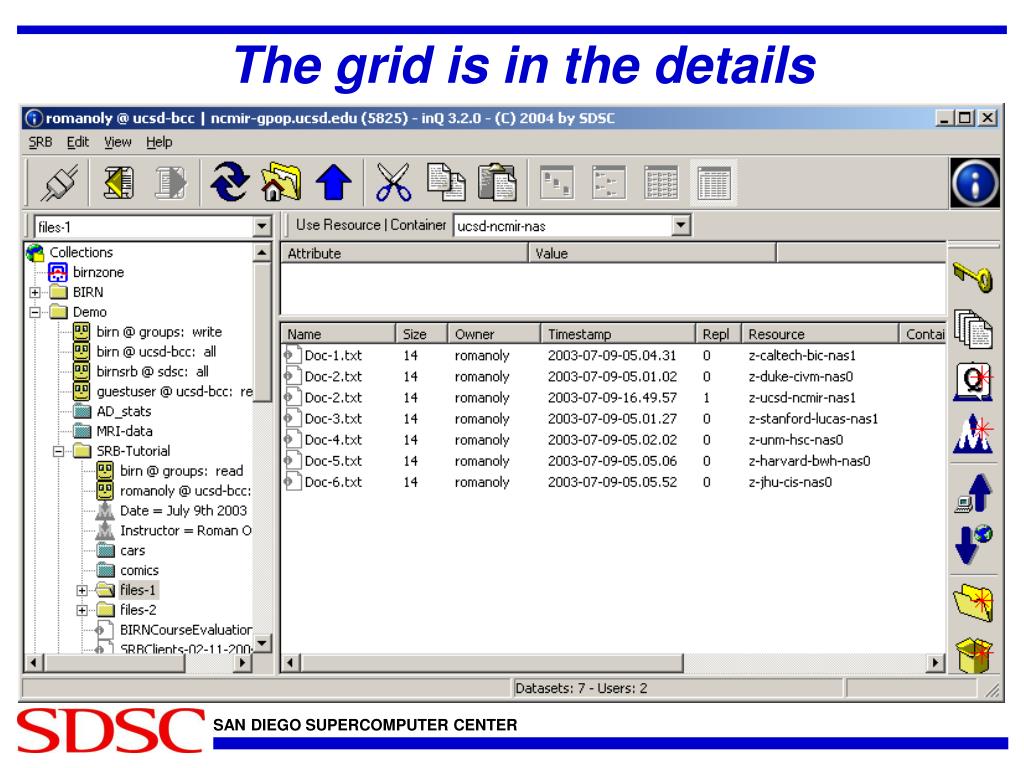

  21. The grid is in the details

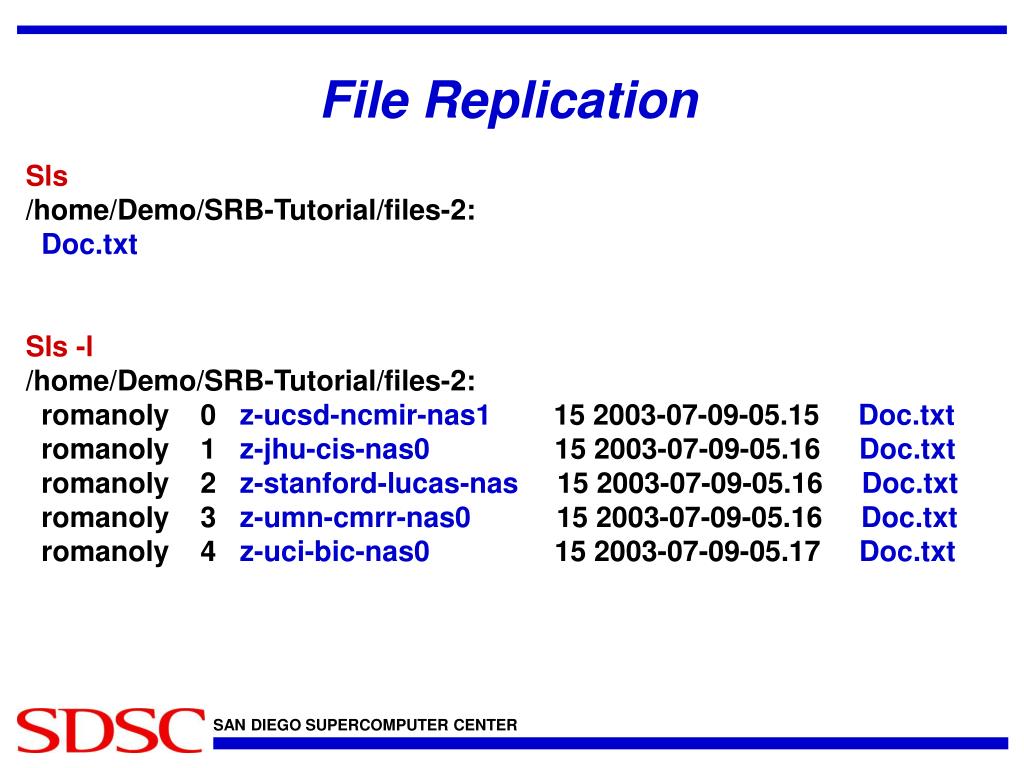

  22. File Replication Sls /home/Demo/SRB-Tutorial/files-2: Doc.txt Sls -l /home/Demo/SRB-Tutorial/files-2: romanoly 0 z-ucsd-ncmir-nas1 15 2003-07-09-05.15 Doc.txt romanoly 1 z-jhu-cis-nas0 15 2003-07-09-05.16 Doc.txt romanoly 2 z-stanford-lucas-nas 15 2003-07-09-05.16 Doc.txt romanoly 3 z-umn-cmrr-nas0 15 2003-07-09-05.16 Doc.txt romanoly 4 z-uci-bic-nas0 15 2003-07-09-05.17 Doc.txt

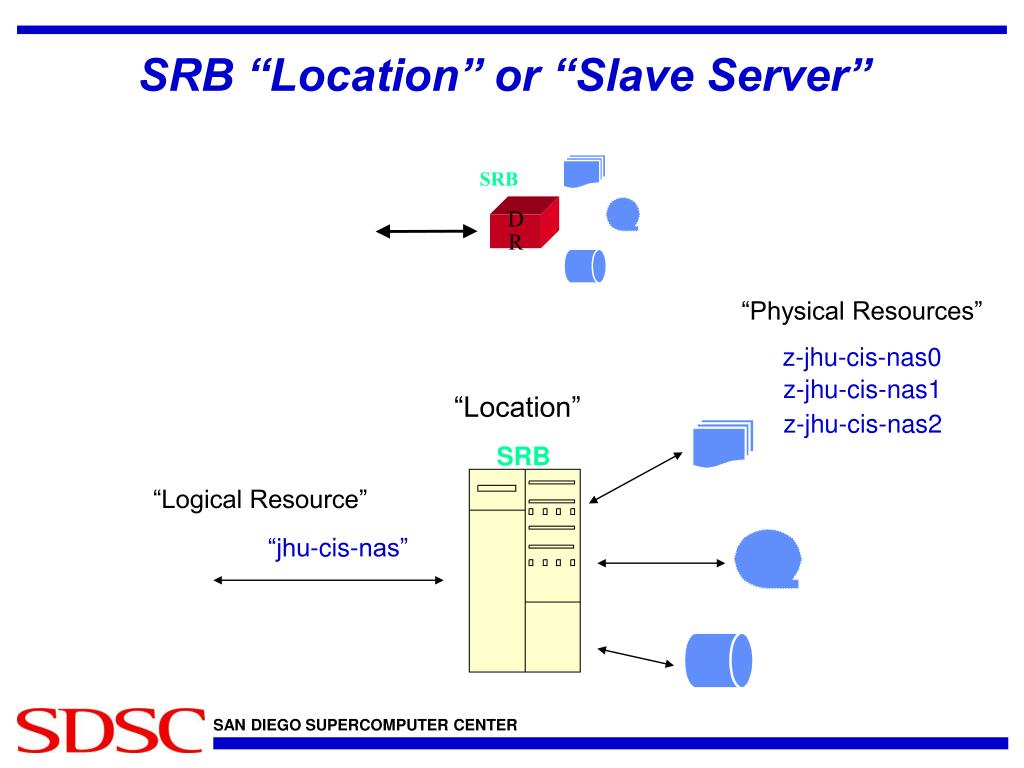

  23. DR SRB “Location” or “Slave Server” SRB “Physical Resources” z-jhu-cis-nas0 z-jhu-cis-nas1 “Location” z-jhu-cis-nas2 SRB “Logical Resource” “jhu-cis-nas”

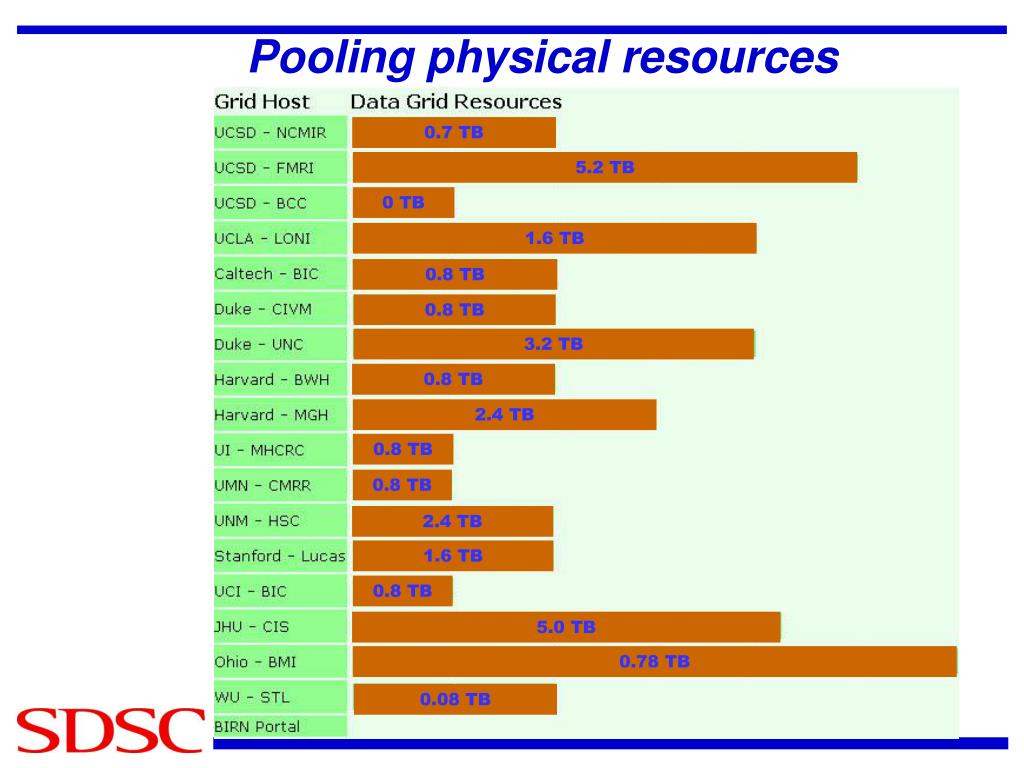

  24. 0.7 TB 5.2 TB 0 TB 1.6 TB 0.8 TB 0.8 TB 3.2 TB 0.8 TB 2.4 TB 0.8 TB 0.8 TB 2.4 TB 1.6 TB 0.8 TB 5.0 TB 0.78 TB 0.08 TB Pooling physical resources

  25. Logical / Compound Resources SRB “instant replication” “fast archival” “resource pooling” “My-Resource” SRB

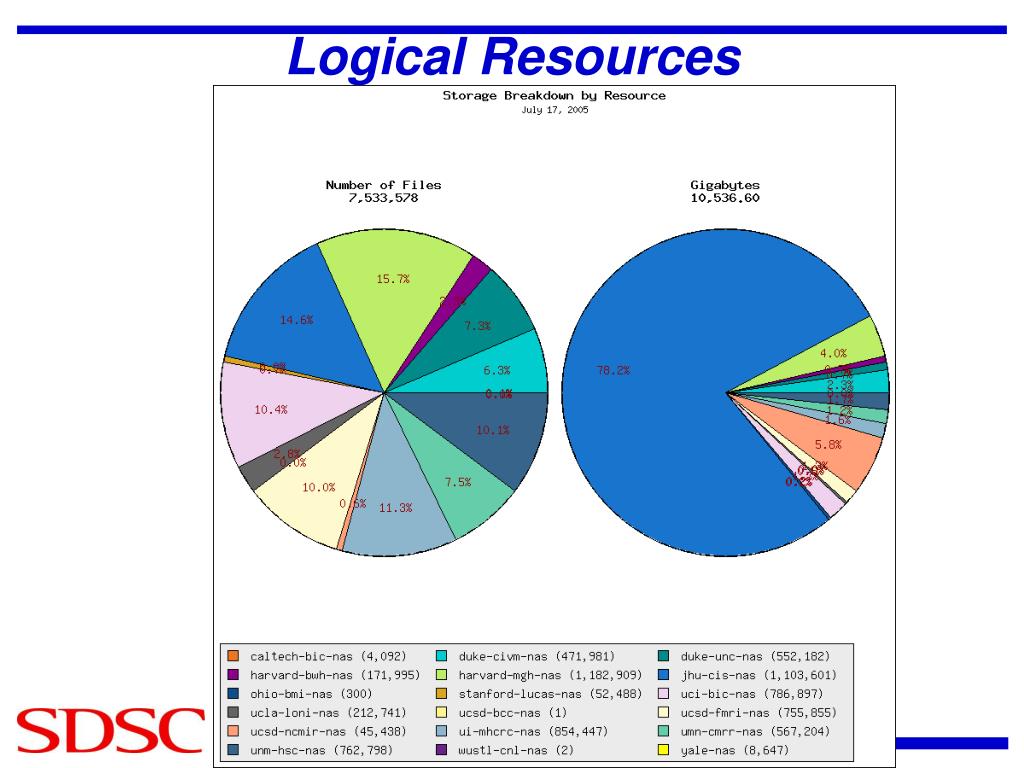

  26. Logical Resources

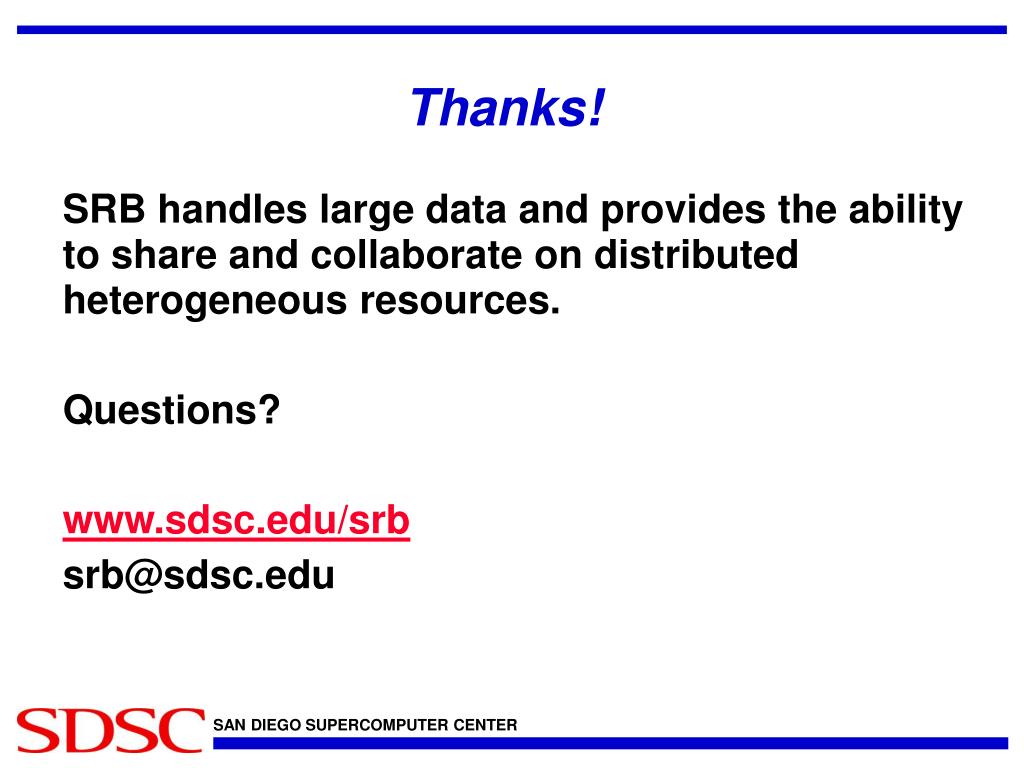

  27. Thanks! SRB handles large data and provides the ability to share and collaborate on distributed heterogeneous resources. Questions? www.sdsc.edu/srb srb@sdsc.edu
