  1. Chocolate or lollypop Paul Cantellow

  2. Pick a make of car VW Peugeot Vauxhall Ford Lexus BMW Mercedes Lotus Bentley TVR MG Fiat Nissan Volvo Saab Renault

  3. Ok

  4. Wrong

  5. Turbo charger Time to Choose

  6. How Is the Turbo Charger Driven ? • Chain or belt • Exhaust gases • Gear driven

  7. A typical turbo chargerwill increase the poweroutput of an engine by10% 40% 98%

  8. Time to Choose

  9. Rear Wheel Drive CarsHave tracking set? • Toe out • Toe in • Must be fixed neutral

  10. A car going round a bend travel’s out further than is intended, this is called • Understeer • Oversteer • Overtake • Undertaker

  11. Time to Choose

  12. Why do spark plugs have ceramic insulation • To let the spark plug run cold • Only there for show • To prevent the high tension current jumping to earth

  13. Explain what is meant by the term Hot and cold spark plugs

  14. Time to Choose

  15. What If Anything Can Be Added to Brake Fluid ? • Special hydraulic sulphate • Two parts water for every one part brake fluid • Absolutely nothing else must be added

  16. Explain the mainprinciple that allows any hydraulic system to work

  17. Time to Choose

  18. The Oil Level in an EngineShould Be? • Just above the max mark on the dip stick • Between the min and max marks on the dip stick • Must not be higher than the min mark

  19. Explain in your own words what is meant by the viscosity of oil

  20. Time to Choose

  21. In a diesel engine what is drawn into the combustion chamber via the inlet manifold • Air only • Diesel fuel only • Air and diesel fuel only

  22. Explain in your own words howthe four stroke cycle of adiesel engine differs from a that of a petrol engine

  23. Time to Choose

  24. Why do we fit shock absorbersto motor vehicles • It quietens down the road noise • They prevent the brakes locking on load • They prevent the car from bouncing when travelling over bumps

  25. Explain in your own words the function of springs and shockabsorbers in relation to a vehicles suspension

  26. Time to Choose

  27. A conventional car battery will produce approximately ? • Ten volts • Twelve volts • Twelve amps

  28. Explain in your own wordswhat are the main itemsthat make up a conventional car battery

  29. Time to Choose

  30. A Solenoid on a Starter Motor Is Used to? • Prevent the windings from overheating • Uses an electro magnet to engage the pinion drive with the flywheel • Used as a safety cut out device

  31. Explain how a pre-engagedstarter motor operates

  32. Time to Choose

  33. What Two Methods Are Used to Advance the Timing on a Conventional Contact Breaker Points Ignition System • Gravity and air • Vacuum and bob weights • Twin cam lobe advance system

  34. Explain What Dwell Angle Is in Relation to Contact Breaker Points

  35. Time to Choose

  36. In a Conventional Manual Driven Car the Clutch Unit Is Bolted to? • The crankshaft • The lay shaft • The flywheel

  37. Explain the Two Methods used to Engage the Clutch Giving One Disadvantage of Each Method

  38. Time to Choose

  39. A Tyre That Has Been Driven Under Inflated Will Show Wear ? • On both outer edges • Only in the middle section • On the inner edge only

  40. Give an Explanation on Why We Need to Periodically Adjust Tracking and state the Difference Between Toe in and Toe Out

  41. Time to Choose

  42. Name the two types of circuits that can be used on a lighting circuit • Independent & series • Series & parallel • Cam & volt

  43. Name four factors That determinehow much current can flow through a wire

  44. Time to Choose

  45. The springs fitted to brake shoesperform the following function • Keep the brake shoe pressed against the back plate • Gives gradual braking under heavy load • Pulls the brake shoe away from the brake drum when pressure is released

  46. Explain what is meant by ‘leading’ and ‘trailing’ shoesin a brake drum

  47. Time to Choose

  48. When a Vehicle Is Going Round a Bend the Wheels Will ? • The inner wheel will turn faster • The outer wheel will turn faster • Both wheels turn at the same speed

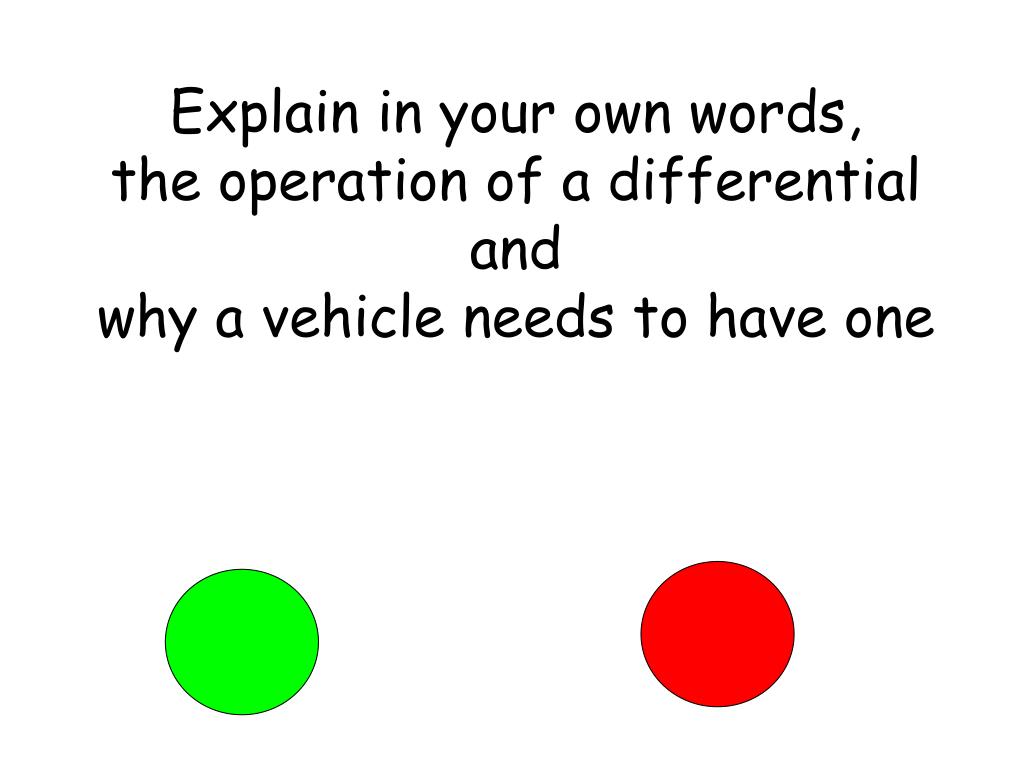

  49. Explain in your own words,the operation of a differential and why a vehicle needs to have one

  50. Time to Choose
