  1. Interfaces Joel Kastner

  2. Interfaces • Widespread consensus exists within the SOFIA Project about the need for cooperation between the DCS, FSI teams, and other important players (e.g. Sterling Software) • DCS design process has benefited tremendously from this atmosphere of cooperation • For its part, the DCS is proactive in building and maintaining close ties with all parties

  3. Interfaces • Close ties with FSI teams fostered via on-site visits, interface workshops, telecons, & document exchanges • Close contact between DCS and FSI teams facilitates rapid development of DCS instrument commanding and data pipelining • Preliminary observing mode descriptions and commanding scenarios for FORCAST & HAWC received & reviewed; we are iterating with all 4 FSI teams on these designs • Pipeline prototypes are already being developed by DCS w/ considerable assistance from FSI teams

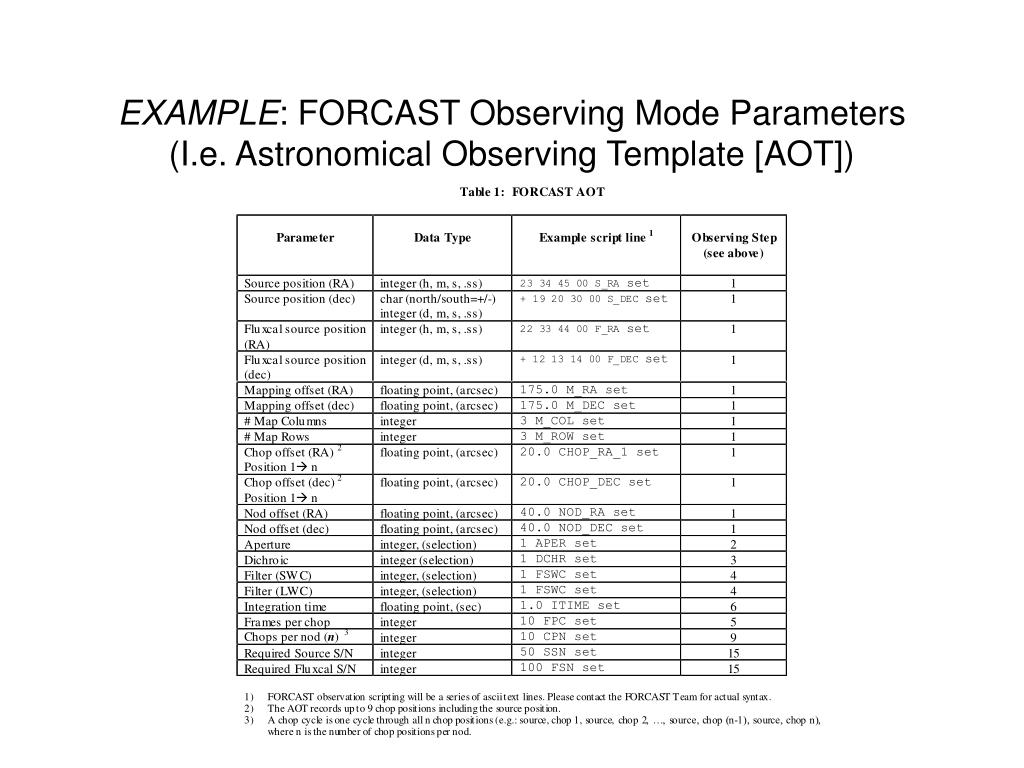

  4. EXAMPLE: FORCAST Observing Mode Parameters (I.e. Astronomical Observing Template [AOT])

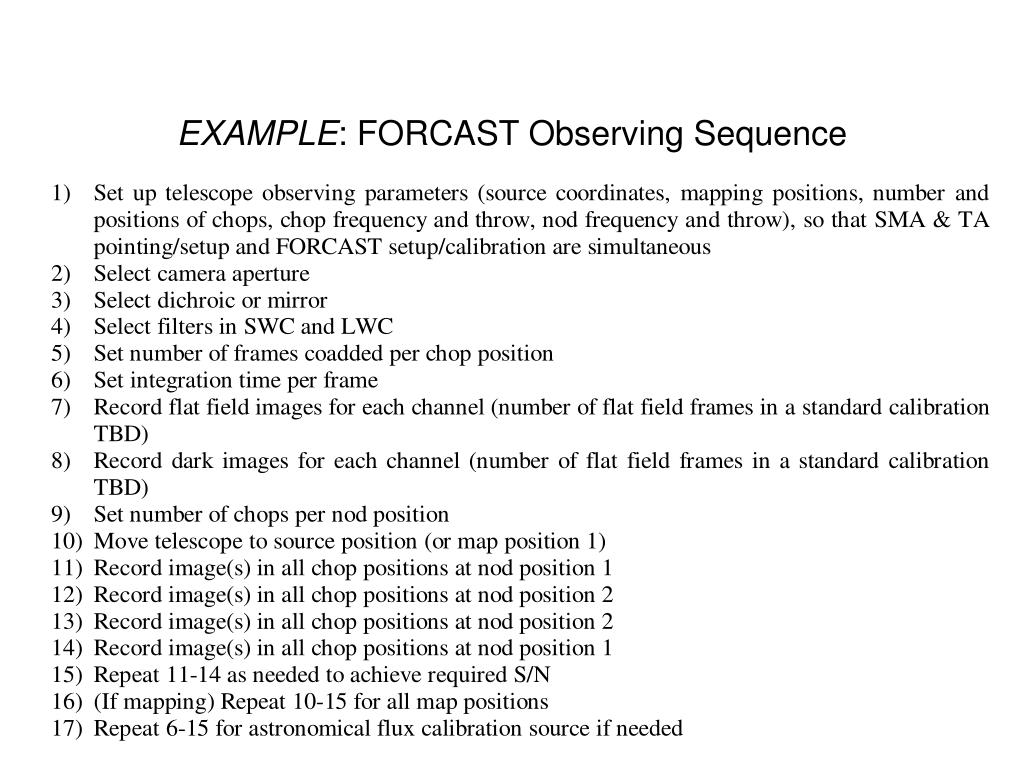

  5. EXAMPLE: FORCAST Observing Sequence

  6. EXAMPLE: HAWC Pipeline Requirements • Generate elemental difference images (chop-rate image data) from demodulated sample-rate (ADC rate) data • Process individual elemental difference images to assess noise and remove detector artifacts • Co-add elemental difference images • Integrate coadded difference images for each telescope pointing in a “stare & nod” sequence • Combine dithered image series into a mosaic • Calibrate final, combined image intensities & establish image coordinate system • Merge/correlate image data with contemporaneous ancillary (HK, telescope, observatory) data • Produce archive-quality products at each major processing step

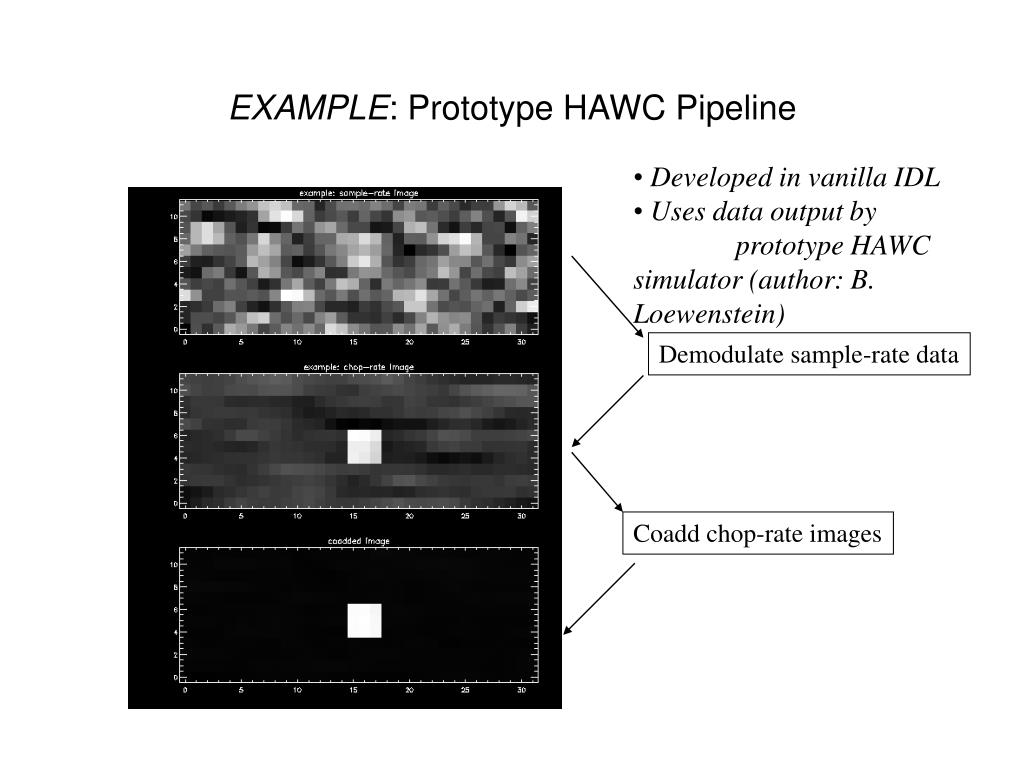

  7. EXAMPLE: Prototype HAWC Pipeline • Developed in vanilla IDL • Uses data output by prototype HAWC simulator (author: B. Loewenstein) Demodulate sample-rate data Coadd chop-rate images

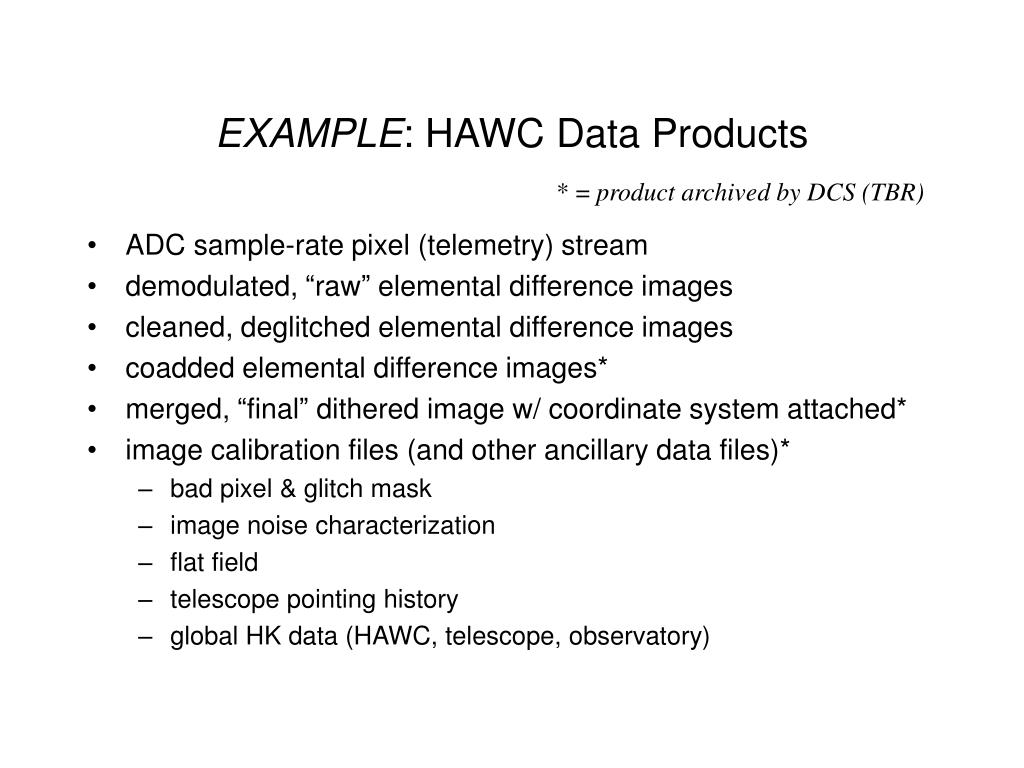

  8. EXAMPLE: HAWC Data Products * = product archived by DCS (TBR) • ADC sample-rate pixel (telemetry) stream • demodulated, “raw” elemental difference images • cleaned, deglitched elemental difference images • coadded elemental difference images* • merged, “final” dithered image w/ coordinate system attached* • image calibration files (and other ancillary data files)* • bad pixel & glitch mask • image noise characterization • flat field • telescope pointing history • global HK data (HAWC, telescope, observatory)
