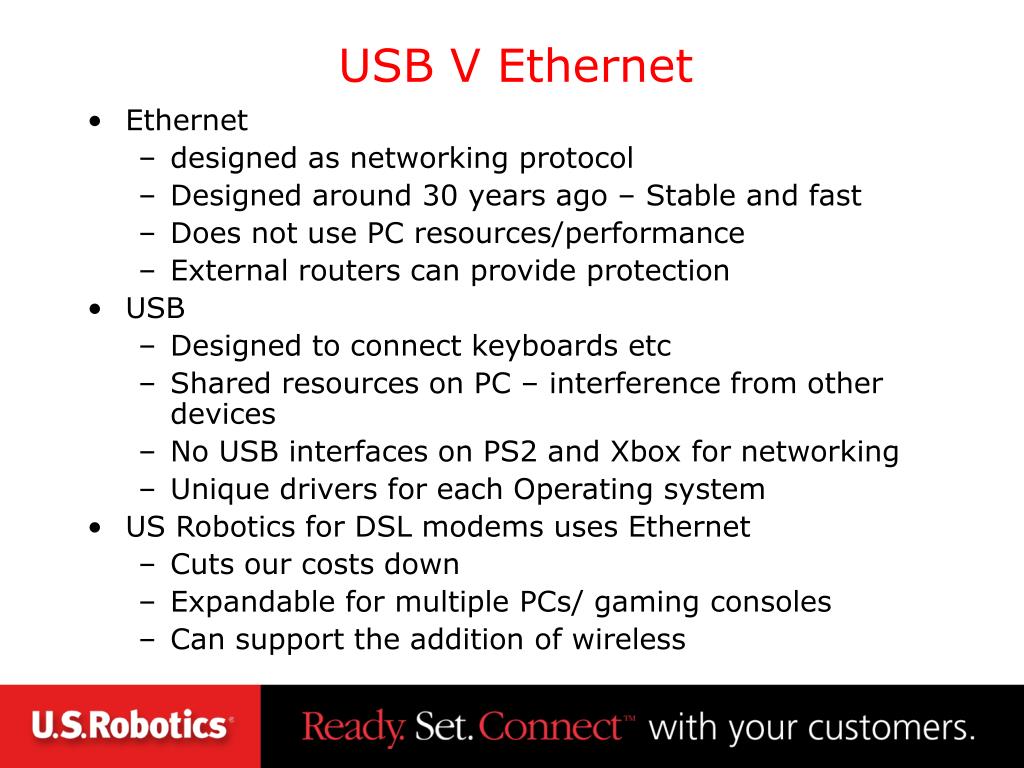

  1. USB V Ethernet • Ethernet • designed as networking protocol • Designed around 30 years ago – Stable and fast • Does not use PC resources/performance • External routers can provide protection • USB • Designed to connect keyboards etc • Shared resources on PC – interference from other devices • No USB interfaces on PS2 and Xbox for networking • Unique drivers for each Operating system • US Robotics for DSL modems uses Ethernet • Cuts our costs down • Expandable for multiple PCs/ gaming consoles • Can support the addition of wireless

  2. U.S. RoboticsADSL Product Positioning USR9106 4 Port Wireless Gateway USR9105 4 Port Router Wireless Multi-user Residential and SOHO Router With Firewall All deployments Wired Multi-user Residential, SOHO Router With Firewall

  3. USR9106 ADSL 4-Port Wireless Gateway • 3rd generation of ADSL products by U.S. Robotics • 4 Port Router designed for easy self-installation • Optimal feature/price package for Residential, SOHO, and teleworker • Service Provider and consumer friendly features • Integrated Wireless 802.11g Access Point

  4. USR9105 ADSL 4-Port Router • 3rd generation of ADSL products by U.S. Robotics • 4 Port Router products designed for easy self-installation • Optimal feature/price package for Residential, SOHO, and teleworker • Service Provider and consumer friendly features

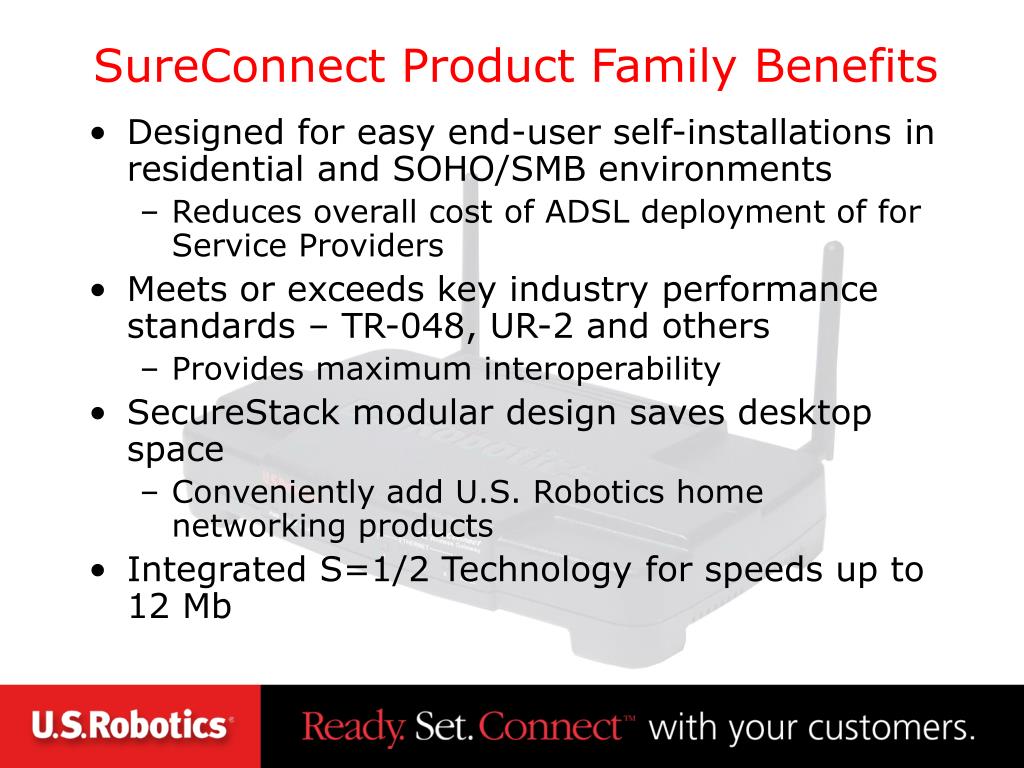

  5. SureConnect Product Family Benefits • Designed for easy end-user self-installations in residential and SOHO/SMB environments • Reduces overall cost of ADSL deployment of for Service Providers • Meets or exceeds key industry performance standards – TR-048, UR-2 and others • Provides maximum interoperability • SecureStack modular design saves desktop space • Conveniently add U.S. Robotics home networking products • Integrated S=1/2 Technology for speeds up to 12 Mb

  6. 9106 & 9105 WAN features • Supports popular WAN Services • RFC 2684 (formerly 1483) Ethernet over ATM • VCMUX and LLC encapsulation • RFC 2516 PPP over Ethernet • Includes S/W Client • RFC 2364 PPP over ATM • VCMUX and LLC encapsulation • IPoA • IP over RFC 2684 over ATM (not RFC2225 classical IP & ARP over ATM) • ADSL Multi-Mode (auto detection) • ITU G.992.1 (G.DMT), ITU G.992.2 (G.Lite), ANSI T1.413, ITU G.994.1 (G.hs), 12 Mbps Connectivity • G.992.1 with S=1/2 technology allows for speeds up to 12Meg (4Meg faster then regular ADSL)

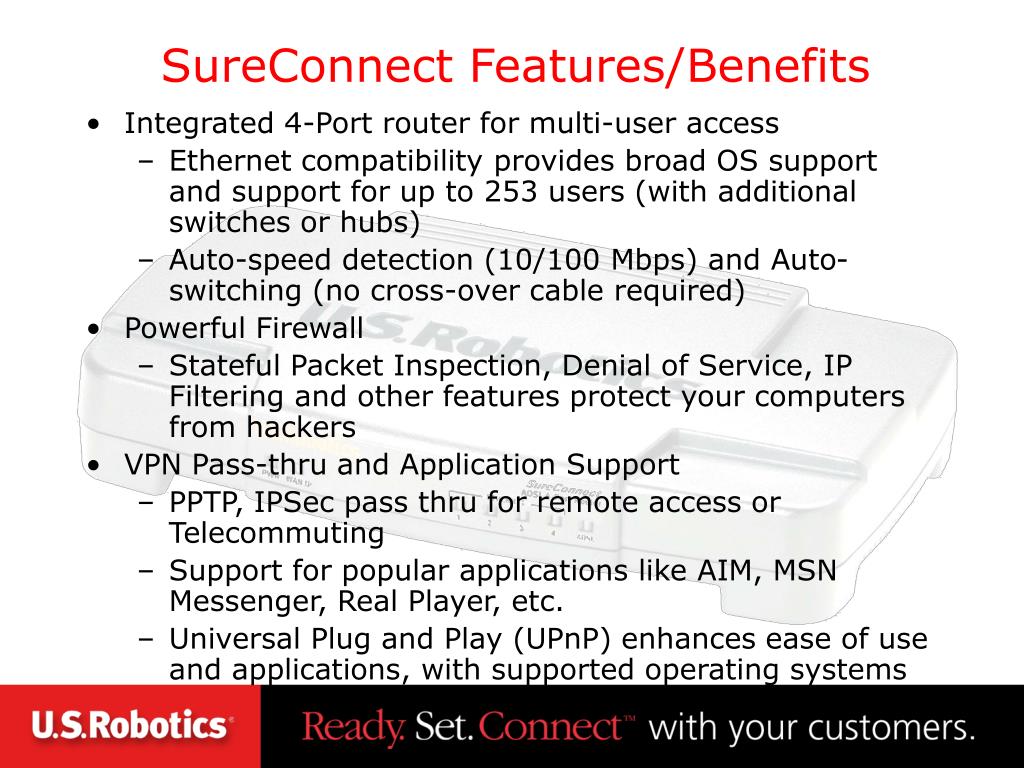

  7. SureConnect Features/Benefits • Integrated 4-Port router for multi-user access • Ethernet compatibility provides broad OS support and support for up to 253 users (with additional switches or hubs) • Auto-speed detection (10/100 Mbps) and Auto-switching (no cross-over cable required) • Powerful Firewall • Stateful Packet Inspection, Denial of Service, IP Filtering and other features protect your computers from hackers • VPN Pass-thru and Application Support • PPTP, IPSec pass thru for remote access or Telecommuting • Support for popular applications like AIM, MSN Messenger, Real Player, etc. • Universal Plug and Play (UPnP) enhances ease of use and applications, with supported operating systems

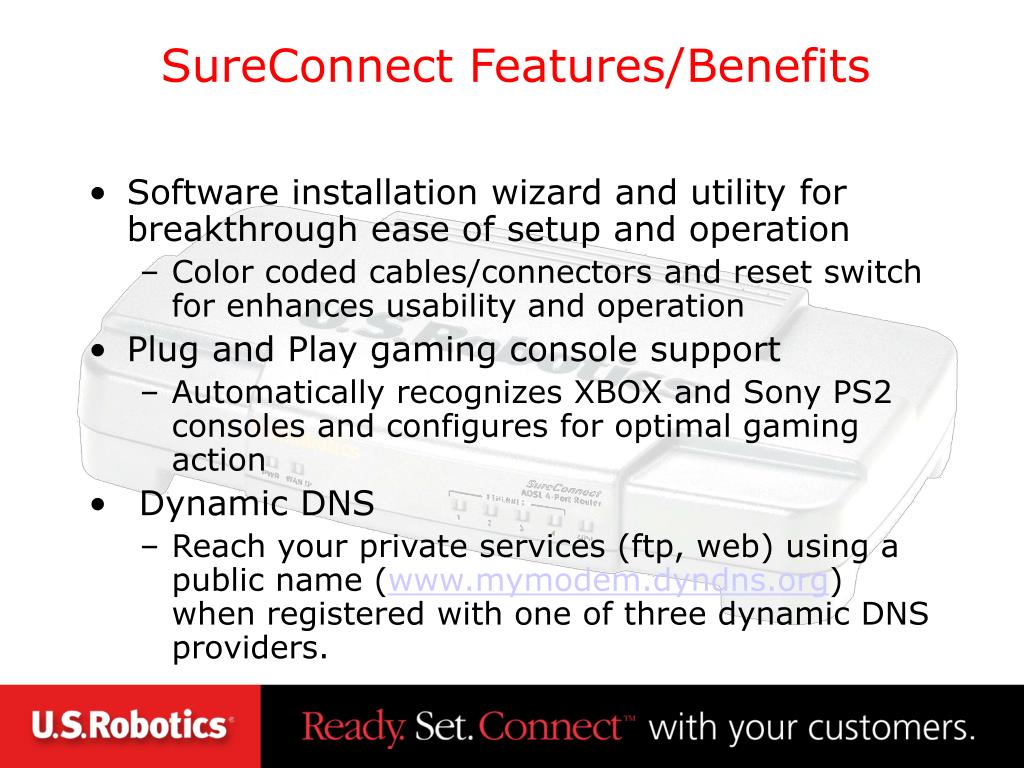

  8. SureConnect Features/Benefits • Software installation wizard and utility for breakthrough ease of setup and operation • Color coded cables/connectors and reset switch for enhances usability and operation • Plug and Play gaming console support • Automatically recognizes XBOX and Sony PS2 consoles and configures for optimal gaming action • Dynamic DNS • Reach your private services (ftp, web) using a public name (www.mymodem.dyndns.org) when registered with one of three dynamic DNS providers.

  9. SureConnect Features/Benefits • Outstanding Performance • Meets DSL Forum TR-048 and UR-2 performance requirements • G.992.1 with S=1/2 technology allows for speeds up to 12Meg (4Meg faster then regular ADSL) • Remote Management • Allows technical support to quickly access the Gateway and troubleshoot the configuration • Telnet Support • For users that prefer to script configure the Gateway a command line Telnet interface is supported

  10. SureConnectModel 9106 only Features/Benefits • Integrated Wireless Access Point • Supports 801.11g and 802.11b clients • Support up to 35 concurrent wireless clients • Mac address Filtering • Channel Selection • Speeds up to 54Mbps • Dual Antenna(s) • Connector SMA Straight Plug/ Reverse • Return Loss <=9.5dB(2.4Ghz~2.5Ghz • Gain <=2dBi • Purely a 802.11g Standards based product

  11. Why SureConnectTM?

  12. SureConnect™ Software • SureConnect™ Installation Wizard (Windows only) • Pre-qualifies PC to make sure it meets the necessary requirements (NIC is installed, computer has memory/HDD space, etc.) • Graphically walks users through hardware installation • Localizations for Spanish, French, Portuguese, German, Italian

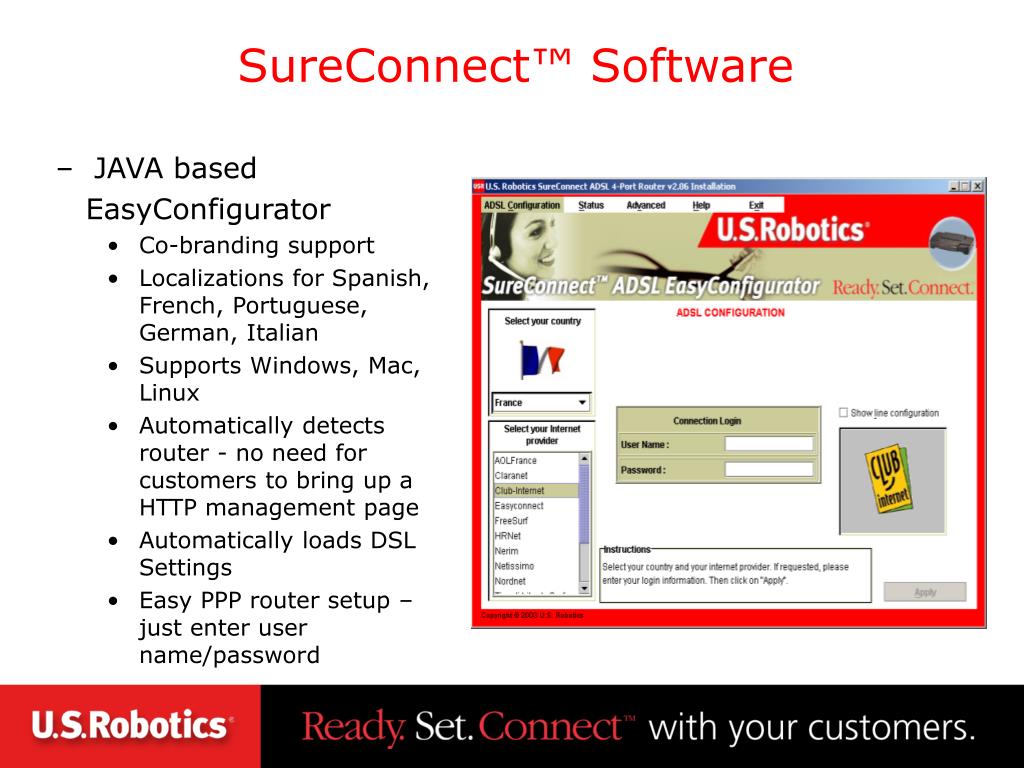

  13. SureConnect™ Software • JAVA based • EasyConfigurator • Co-branding support • Localizations for Spanish, French, Portuguese, German, Italian • Supports Windows, Mac, Linux • Automatically detects router - no need for customers to bring up a HTTP management page • Automatically loads DSL Settings • Easy PPP router setup – just enter user name/password

  14. Supported ALG(s) code release 2.12L.01

  15. Applications with NAT

  16. Applications with NAT

  17. More about the firewall • The USR9106 and USR9105 router provide stateful packet inspection of all incoming packets for intrusion detection. The router keeps track of all packets originating from the LAN and creates a table entry for these connections. All packet received from the WAN must have a matching connection in the SPI table otherwise it is dropped or rejected. • By default ICMP (ping) are allowed to go (LAN) out but not in (WAN). • SYN packets, unless requested from a LAN device are dropped and help to prevent SYN Floods (Denial of Service) • Checking for same source and destination address prevents Land Attacks that cause LAN machine to go into a never-ending loop.

  18. Roadmap Features – April 2004 • ADSL2 upgradeable & to be released • 20Mbps • Extended reach • Bridging WAN to LAN • Public IP on LAN side • Configuration file • Remotely downloadable • IP QOS • Voice over IP
