Lateral Area, Surface Area, and Volume Notes

Lateral Area, Surface Area, and Volume Notes. Jan 3, 2013. Lateral Area. Lateral area – these are the flat sides of prisms, cones, and cylinders lateral face. There are 4 lateral faces on this shape and 2 bases. Definitions.

nyoko
Télécharger la présentation

Lateral Area, Surface Area, and Volume Notes

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lateral Area, Surface Area, and Volume Notes Jan 3, 2013

  2. Lateral Area Lateral area – these are the flat sides of prisms, cones, and cylinders lateral face There are 4 lateral faces on this shape and 2 bases

  3. Definitions Lateral area – for prisms, cylinders and cones – the area of the figure not including the bases Surface Area – the sum of the area of all of the faces (sides and both bases) Volume – a measure of the amount of space contained in the interior of a solid

  4. Prisms To find Lateral Area: perimeter times height or LA = ph 6 10 4

  5. Lateral Area Identify the two bases. Find the perimeter of one base (add all the sides) Multiply the perimeter by the height 6 4 10 P = 4 + 4 + 6 + 6 = 20 20 (10) = 200

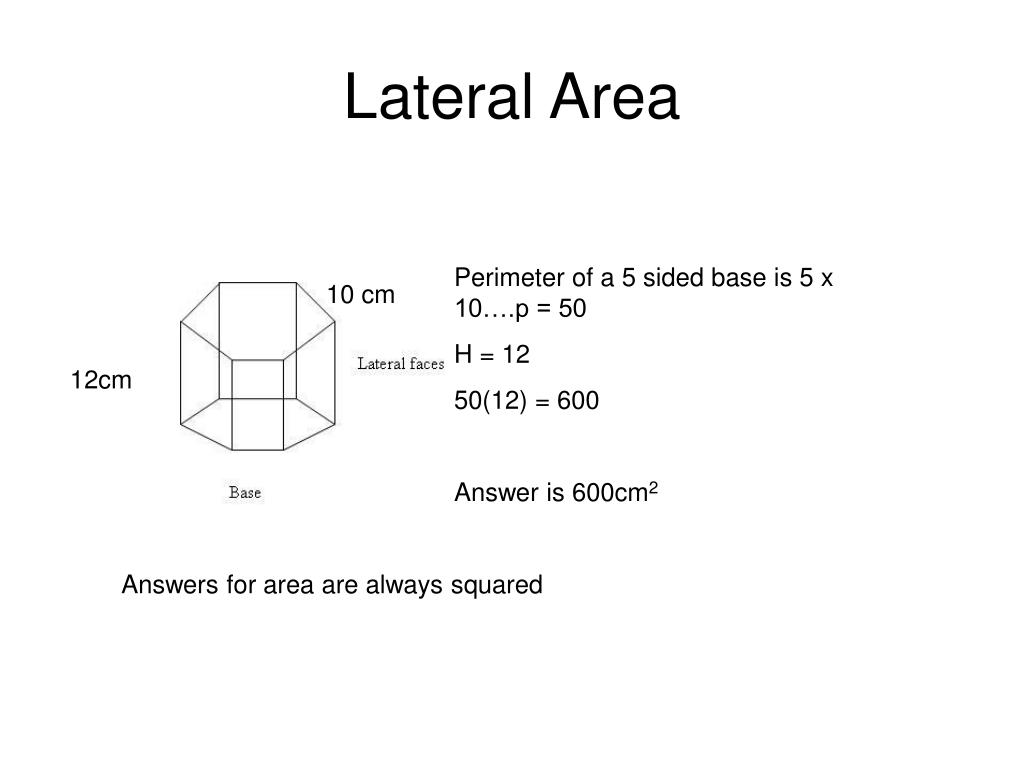

  6. Lateral Area Perimeter of a 5 sided base is 5 x 10….p = 50 H = 12 50(12) = 600 Answer is 600cm2 10 cm 12cm Answers for area are always squared

  7. Surface Area SA = LA + area of the 2 bases You need to remember the formulas for finding area and perimeter of solids! Steps: • Find p and h • Find LA • Find base area • Add 2 base areas and the LA to get SA • Final answer will be in units 2

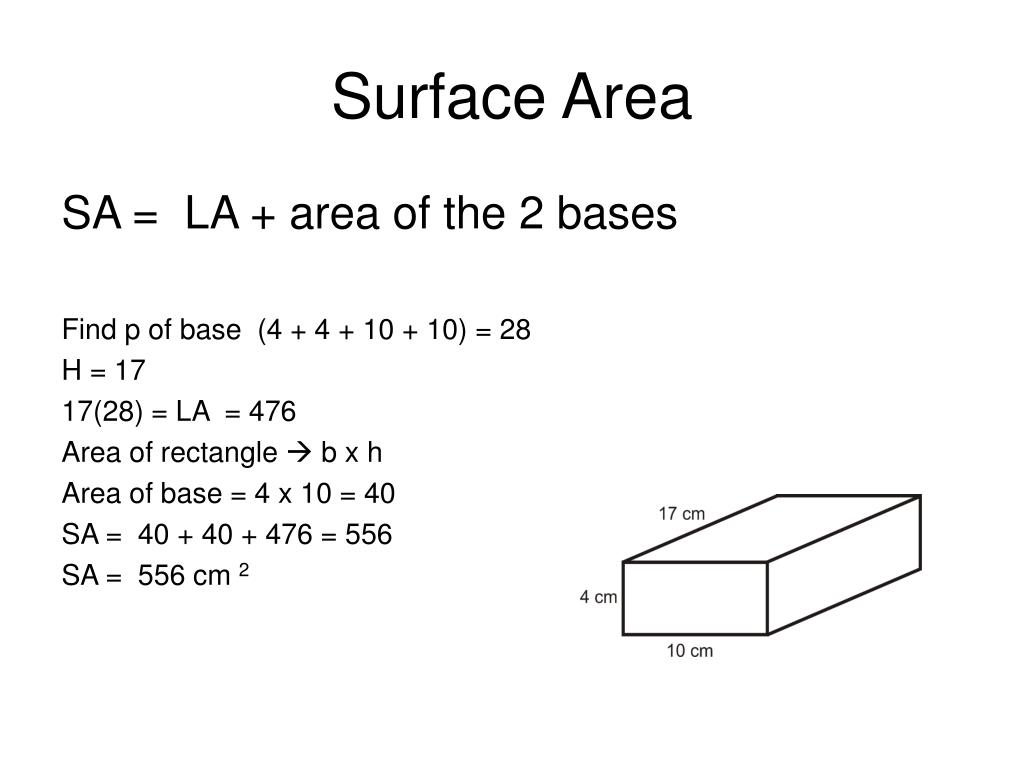

  8. Surface Area SA = LA + area of the 2 bases Find p of base (4 + 4 + 10 + 10) = 28 H = 17 17(28) = LA = 476 Area of rectangle  b x h Area of base = 4 x 10 = 40 SA = 40 + 40 + 476 = 556 SA = 556 cm 2

  9. Surface Area SA = LA + area of the 2 bases The base is a parallelogram! P = 5 + 5 + 3 + 3 = 16 H = 2 2(16) = 32 = LA A = b (3) h (5) A = 15 SA = 32 + 15 + 15 = 62m2 5m 3m 2m

  10. Volume Volume is the space contained within a shape. To find volume, find the area of the base and multiply it with the height ***Remember the perimeter of a circle is circumference (2πr) and area is πr2

  11. Volume Volume = b x h Area of a triangle is ½ (b x h) ½ (3 x 2 ) = 3 3 x 4 = 12 Answer = 12cm3 2cm 4cm 3cm
