Material : PBT+30GF -> BASF PBT B4300G6 BK Q716 Shrinkage suggestion: 0.6% Cavities : LH+RH Housing base + LH+RH Housing kex Cyl. as change kit. 932L-210_housing_key_cylinder Part. 932L-209_housing_base Part. Checked by: Weber Harald, 14.06.2010. No Draft. Cavity. Core. Lifter.

nyx
Télécharger la présentation

Customer comments

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Material : PBT+30GF -> BASF PBT B4300G6 BK Q716 Shrinkage suggestion: 0.6% Cavities : LH+RH Housing base + LH+RH Housing kex Cyl. as change kit 932L-210_housing_key_cylinder Part 932L-209_housing_base Part Checked by: Weber Harald, 14.06.2010 No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  2. Housing Base & key cyl PL CAVI CORE O.K No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

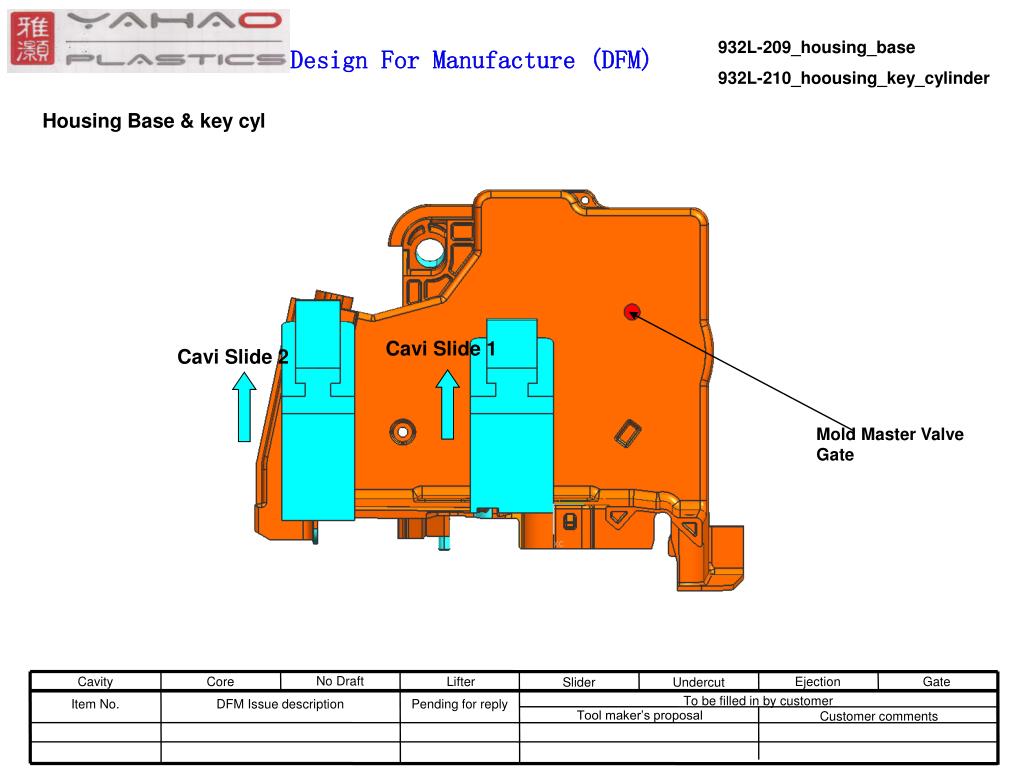

  3. Housing Base & key cyl Cavi Slide 1 Cavi Slide 2 Mold Master Valve Gate No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  4. Housing Base & key cylSlide Cavi Slide 1 Cavi Slide 2 Core Slide 1 O.K Core Slide 2 No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  5. Housing Base & key cylSlide key cyl Inssert (1) Interchangeable inserts. Show(1) and (2) add Chamfers according housing base Housing Base Insert (2) Core Slide 1 No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  6. Housing Base & key cylSlide B A O.K Suggest to remove radius to avoid undercut Suggest to remove 2 radius to avoid undercut A A No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  7. Housing Base & key cylLift Core Lift 3 Core Lift 1 Core Lift 2 O.K No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  8. Housing Base & key cylLift The radius on the lifter here have to make flat (1) A A O.K 更改的斜顶 原始斜顶 No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  9. Housing Base & key cyl (cavi insert) key cyl Insert (1) Interchangeable insert (1) & (2) O.K Housing Base Insert (2) No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  10. Housing Base & key cyl (cavi insert) There is undercut area on red surface, propose modify to release angle A A No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  11. Housing Base & key cyl (Core insert and Core pin ) Inserts Core insert Core pin A Core insert A Inserts B Core pin B Core pin No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  12. Housing Base & key cyl (Ejector Pin ) Ejector Sleeve Dim.4.5mm(2X) Ejector Sleeve Dim.6mm(1X) Ejector Pin Dim.4.0mm(9X) Ejector Pin Dim.3.0mm(20X) Ejector Sleeve Dim.6.5mm(1X) Ejector Pin Dim.2.5mm(8X) Ejector Pin Dim.2.0mm(6X) Ejector Sleeve Dim.5mm(5X) O.K No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  13. Housing Base & key cyl Undercut propose modify to release angle A A Global 2010-06-17: The new data still show undercut please confirm. No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  14. There is undercut area propose modify according to B Housing Base & key cyl Original 3D A A Propose modified below A Global 2010-06-17: Please confirm. B No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  15. Fill time No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  16. The V/P pressure is 54.86 MPa. • The injection pressure is small. It is suitable for molding. No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  17. Weld lines Propose to minimize by injection process No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments

  18. Air traps Propose to minimize air traps by inserts or ejector pins venting and injection process No Draft Cavity Core Lifter Ejection Gate Slider Undercut To be filled in by customer Item No. DFM Issue description Pending for reply Tool maker’s proposal Customer comments
