Transcription de la présentation

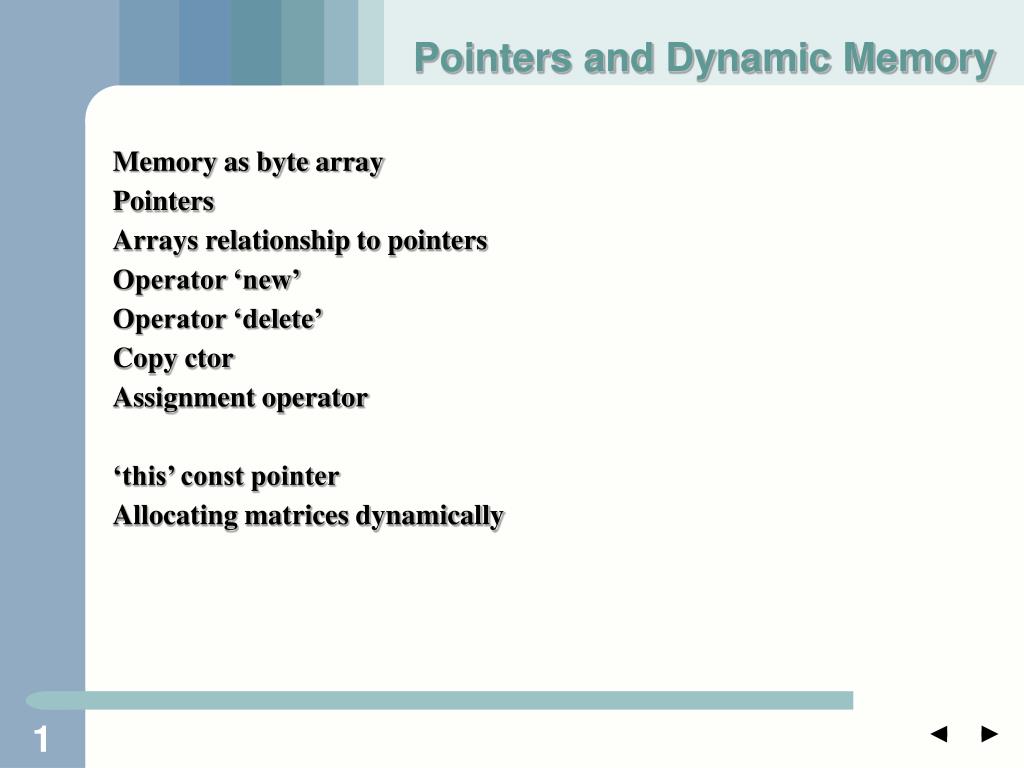

  1. Pointers and Dynamic Memory • Memory as byte array • Pointers • Arrays relationship to pointers • Operator ‘new’ • Operator ‘delete’ • Copy ctor • Assignment operator • ‘this’ const pointer • Allocating matrices dynamically

  2. Data Addresses in Memory int myInt; // &myInt == 5000 char myChar; // &myChar == 5004

  3. Type* ptr; int* intPtr = NULL; Fish* fishPtr; Pointer Variables • Declare a pointer • Pointer ptr is variable that can hold an address of an object of type Type

  4. Pointer Manipulations int m = 10; // Make intPtr point to (reference) m int* intPtr = &m; // *intPtr and m are aliases now string* sPtr; // No automatic init. sPtr = new string ("cool"); // Ctor call cout << *sPtr << " has " << sPtr->size () << " chars" ; // Delete what you “new”! delete sPtr;

  5. Accessing Data with Pointers int x = 50, y = 100; int* px = &x; int* py = &y; y += *px; *py = 20; px = py;

  6. arr [0] arr [1] arr [2] arr [3] arr [4] arr [5] arr [6] 6028 6000 6004 6008 6012 6016 6020 6024 arr arr +1 arr +2 arr +5 arr +7 Arrays and Pointers Array name is const pointer to first element, i.e., arr == &arr[0]

  7. Operator ‘new’ • Use ptrs. and ‘new’ when • object lifetime must extend beyond block in which it’s declared; • you need to allocate memory at run time and can’t avoid it. • Time24* p = new Time24 (); • // *p is 00:00 (midnight) • Time24* q = new Time24 (8, 15); • // *q is 8:15 AM • cout << p->getHour (); • cout << (*q).getMinutes (); • p->advance (2, 15); • ... • delete p; delete q;

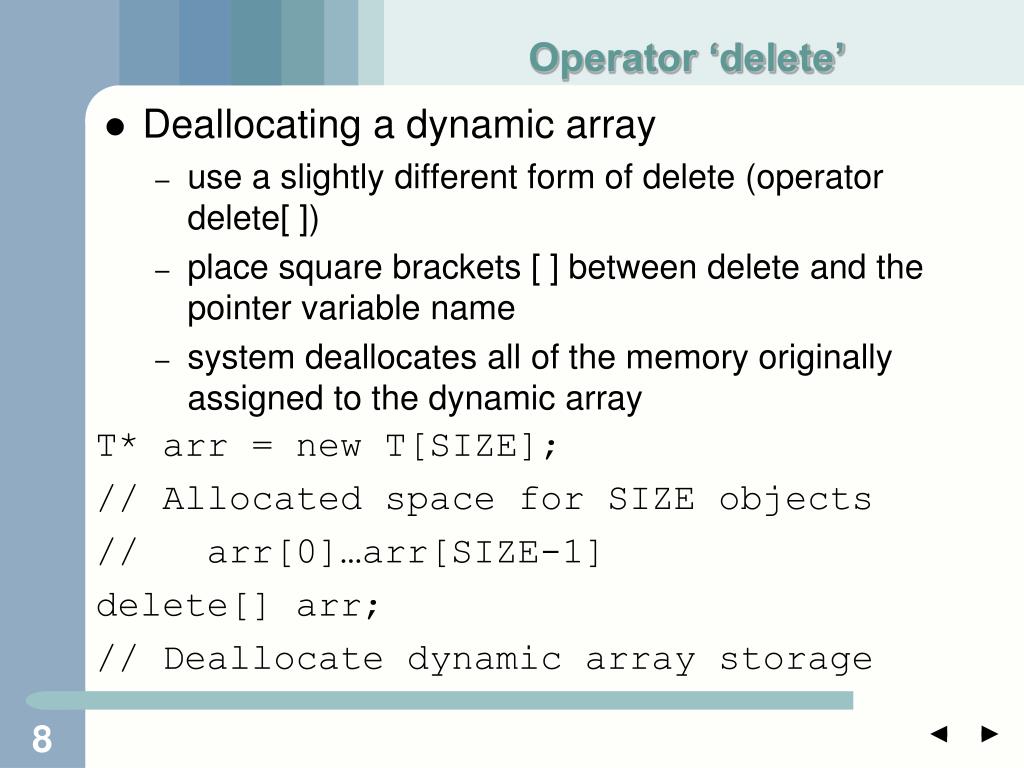

  8. Operator ‘delete’ • Deallocating a dynamic array • use a slightly different form of delete (operator delete[ ]) • place square brackets [ ] between delete and the pointer variable name • system deallocates all of the memory originally assigned to the dynamic array T* arr = new T[SIZE]; // Allocated space for SIZE objects // arr[0]…arr[SIZE-1] delete[] arr; // Deallocate dynamic array storage

  9. Classes with Pointer Members • Recipe for classes that allocate memory dynamically • Destructor: ~C (); • Copy constructor: C (const C& cObject); • Operator=: C& operator= (const C& cObject); • Default member-wise copy usually not appropriate

  10. Copy Constructor / Overloaded Assignment Operator Time24 t1 (5, 30); // Invokes copy ctor Time24 t2 = t1; // or Time24 t2 (t1); // Default copy ctor will do // (For each field f) // init t2.f with t1.f // Invoke operator= t2 = t1; // Default will do // (For each field f) // t2.f = t1.f

  11. A Dynamic Class (Uses ‘new’) class C { public: C (int x, int y) : m1 (x), m2 (new int (y)) { } ~C () { delete m2; } C (const C& co) // Must be const & : m1 (co.m1), m2 (new int (*(co.m2)) { } C& operator= (const C& co) { // new? if (this != &co) { m1 = co.m1; *m2 = *(co.m2); } return (*this); } private: int m1; int* m2; };

  12. Copy Constructor C objB (objA);

  13. “this” pointer • Every non-static member function has a pointer to the invoking object • thispoints to invoking object • If had to declare: (const) MyClass*const this; • *thisis the invoking object • operator= returns *this, so can do • x = y = z;
