  1. 10.3 Systems of Linear Equations: Matrices

  2. A matrix is defined as a rectangular array of numbers, Column j Column n Column 1 Column 2 Row 1 Row 2 Row 3 Row 4

  3. Augmented Matrix:

  4. Row Operations on an Augmented Matrix 1. Interchange any two rows. 2. Replace a row by a nonzero multiple of that row. 3. Replace a row by the sum of that row and a constant multiple of some other row.

  5. Echelon Form of an Augmented Matrix

  6. Solve Find the augmented matrix: Find the echelon form. R2=-2 R1+R2

  7. R2 =R2/3 R3 =-4R2+R3

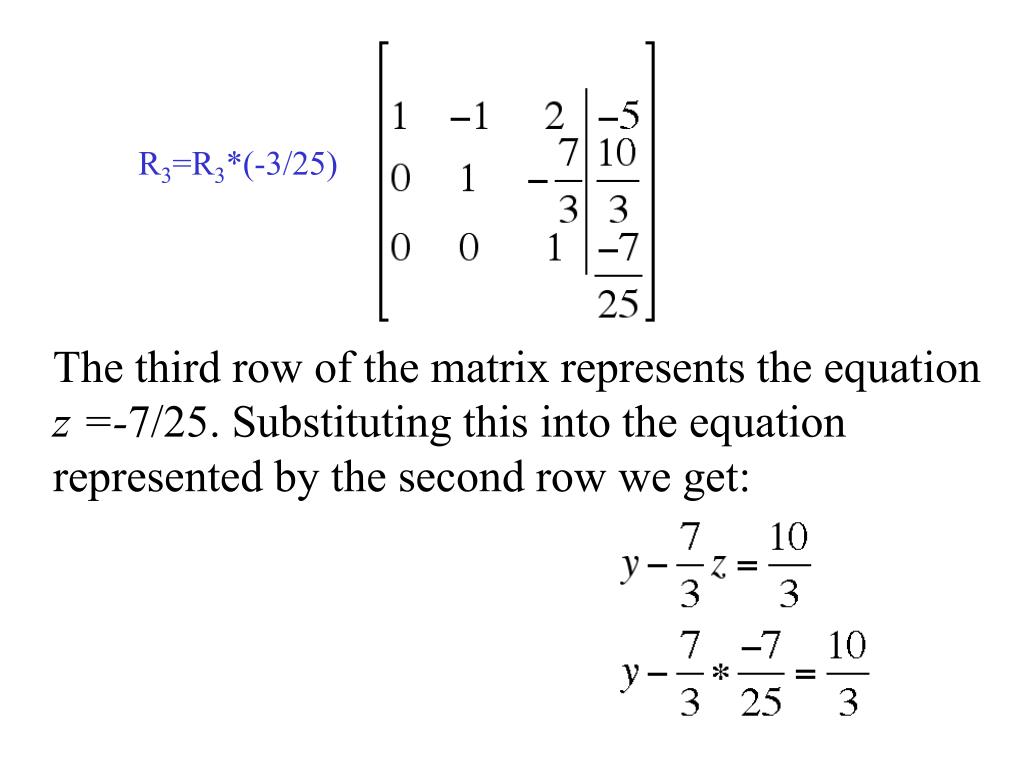

  8. R3=R3*(-3/25) The third row of the matrix represents the equation z =-7/25. Substituting this into the equation represented by the second row we get:

  9. Let z =-7/25, y =-44/25 in the first: Solution is:

  10. Solve using a graphing utility.

  11. Substitute z = 5 into the second. Substitute z=5, y =-2 into the first.

  12. Solution is (x, y, z) = (1, -2, 5).

  13. Solve using a graphing utility: Using rref(.) function we get: Dependent system: Infinitely many solutions.

  14. Solve for y from the second: Solve for x from the first: Solution is (x, y, z) = (18/5 - (7/5)z, 7/5 + (2/5)z, z)
