  1. Variables in ProStructures SS6Configuration May 2013

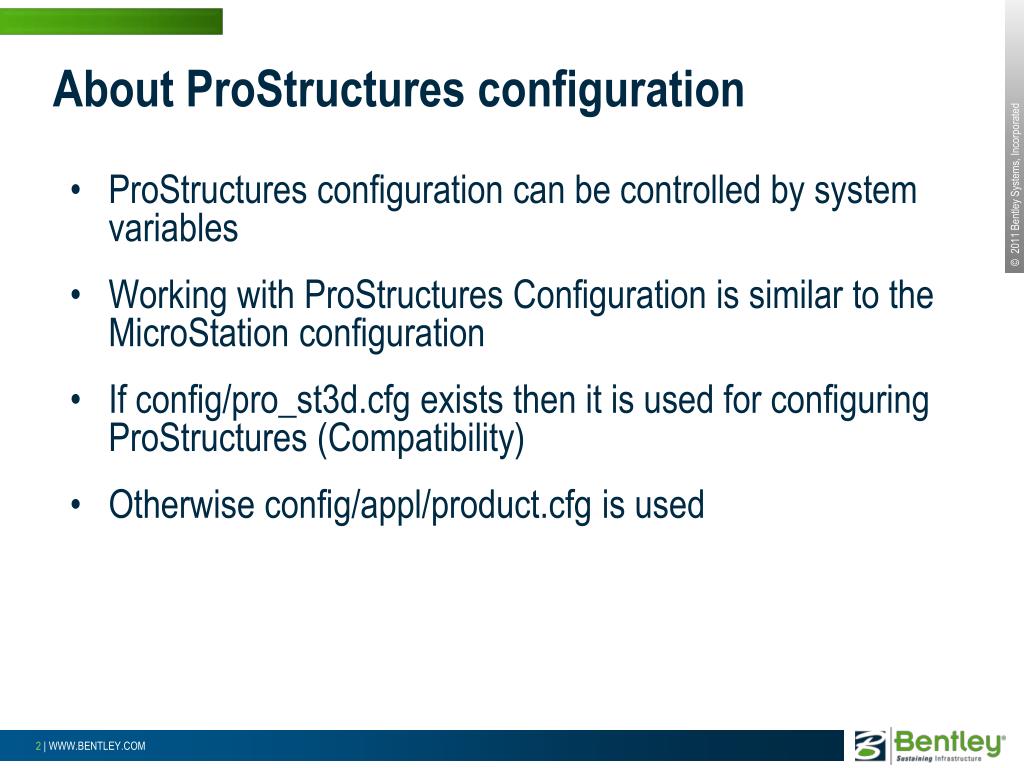

  2. About ProStructures configuration • ProStructures configurationcanbecontrolledbysystem variables • Working with ProStructures Configurationissimilartothe MicroStation configuration • Ifconfig/pro_st3d.cfg existsthenitisused for configuring ProStructures (Compatibility) • Otherwiseconfig/appl/product.cfg isused

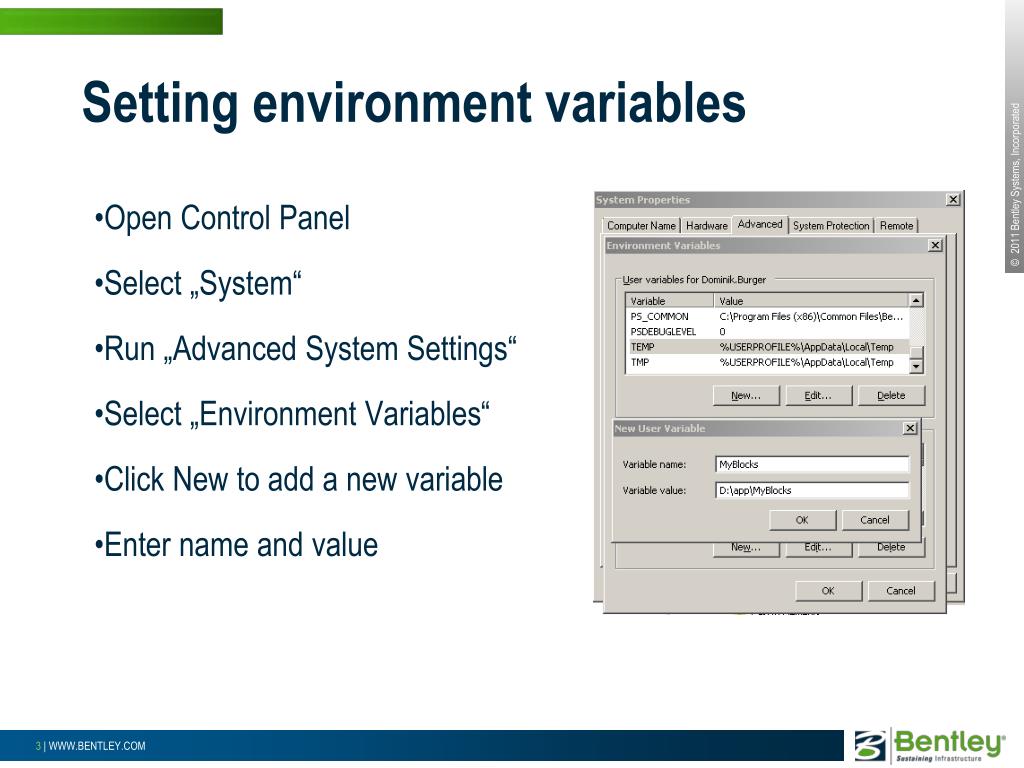

  3. Setting environment variables Open Control Panel Select „System“ Run „Advanced System Settings“ Select „Environment Variables“ Click New toadd a new variable Enter nameandvalue

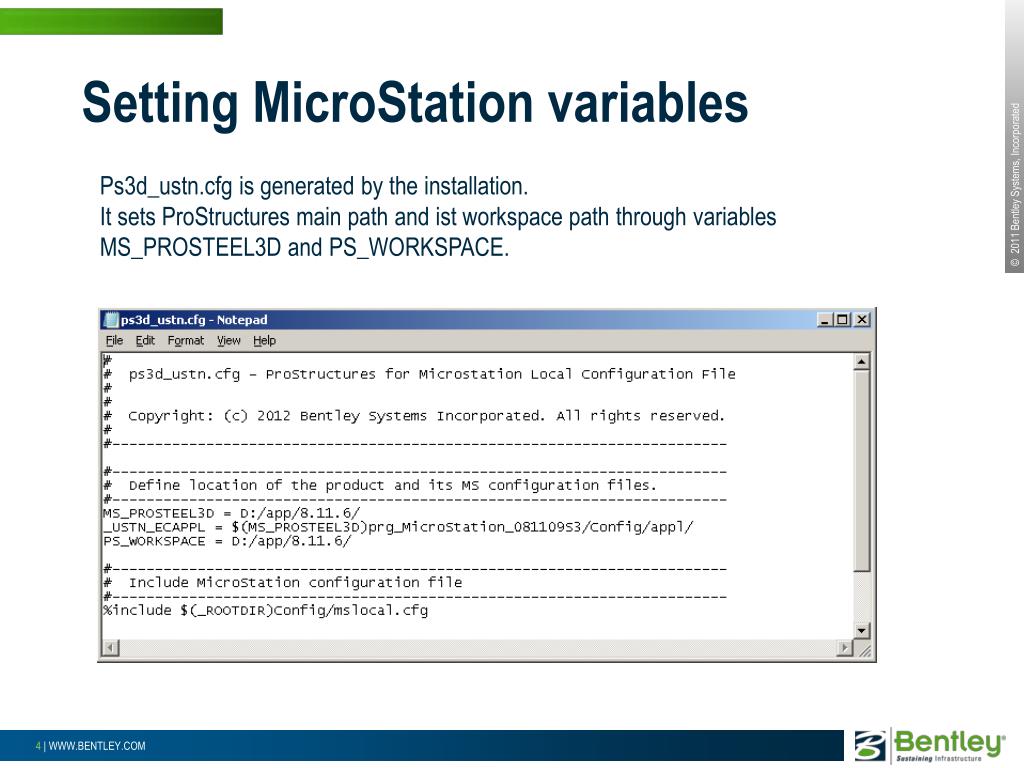

  4. Ps3d_ustn.cfg isgeneratedbytheinstallation. Itsets ProStructures mainpathand ist workspacepaththrough variables MS_PROSTEEL3D and PS_WORKSPACE. Setting MicroStation variables

  5. Usingenvironment variables • Go intothe ProStructures config/applfolder • Edit product.cfg

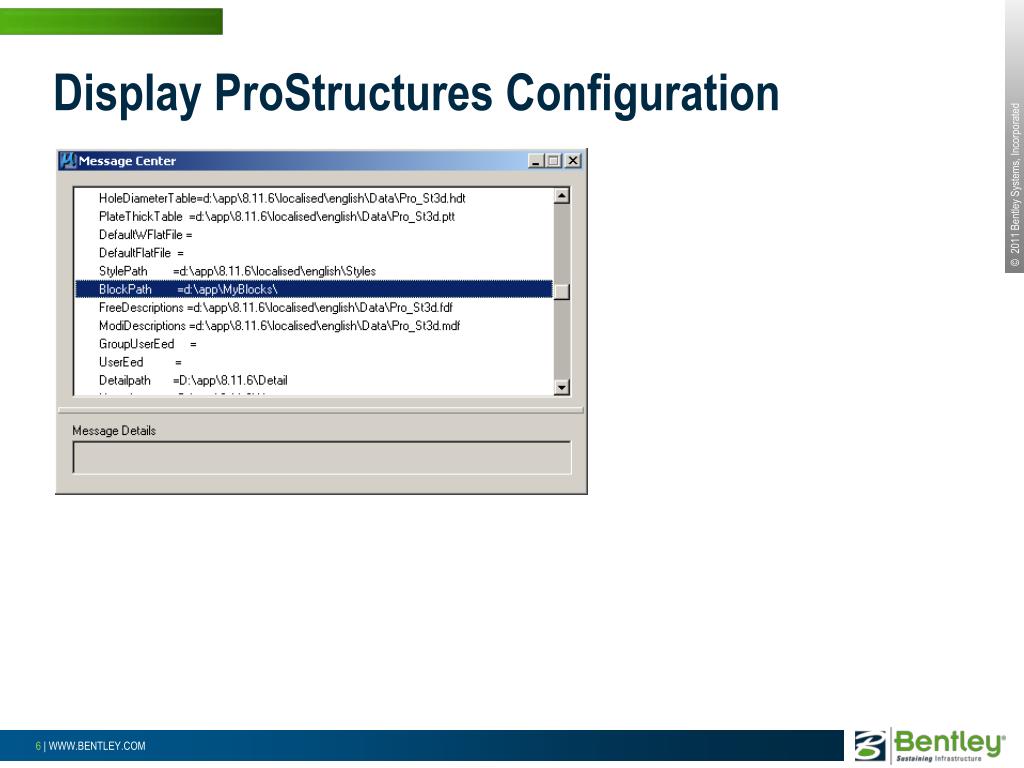

  6. Display ProStructures Configuration

  7. Displaying MicroStation Configuration

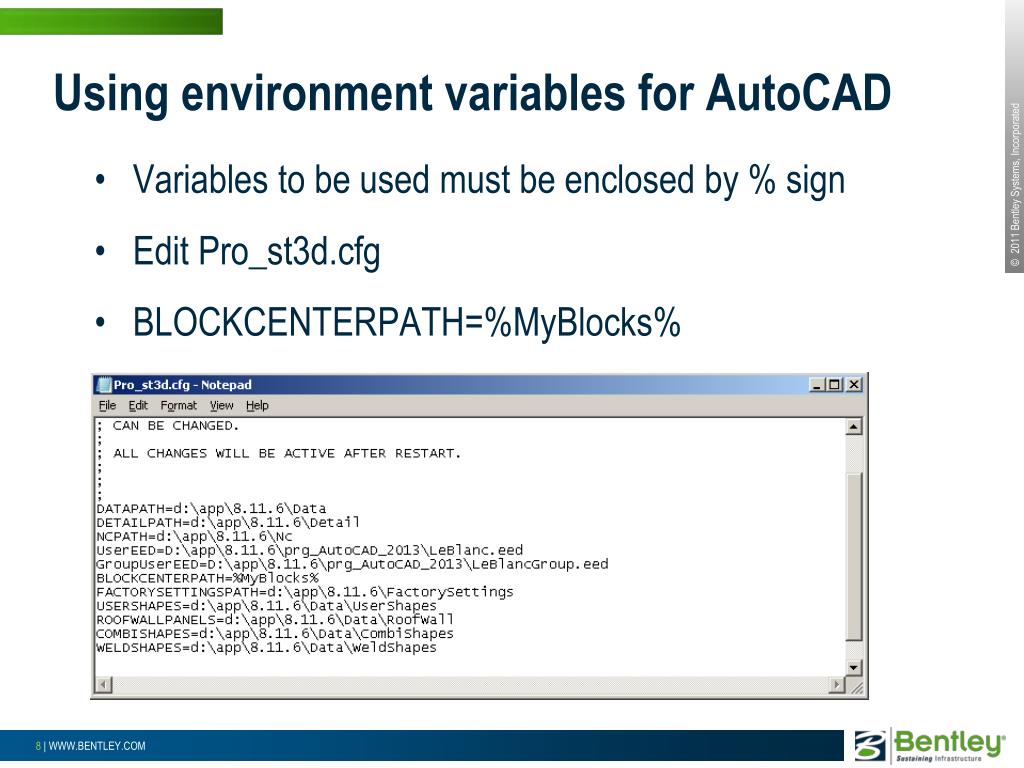

  8. Usingenvironment variables for AutoCAD • Variables tobeused must beenclosedby % sign • Edit Pro_st3d.cfg • BLOCKCENTERPATH=%MyBlocks%

  9. Questions
