  1. Development and Implementation of Teaching Aids to enhance the Understanding of Control Systems Dr MahmoudAbdulwahed Prof ZoltanK Nagy and Dr Adam R Crawford Loughborough University

  2. Background • Control systems is a multidisciplinary subject which is taught in many engineering degrees • The general aim was to enhance the learning experience and offer tools for revision and reflection • Resources consist of a virtual labs, computer simulations and video tutorials • The resources were piloted with 50 control systems undergraduates at Loughborough University • These educational resources are freely available for use by other lecturers and students

  3. Rationale • Engineers tend to have experiential, visual and kinesthetic learning styles • Control systems depends on mathematics to a large extent, making it less suitable to some engineers’ preferred learning style • Computer simulations and interactive media may help in making control systems more appealing and accessible • Builds on previous research work (PhD thesis) at Loughborough University between 2007 and 2010

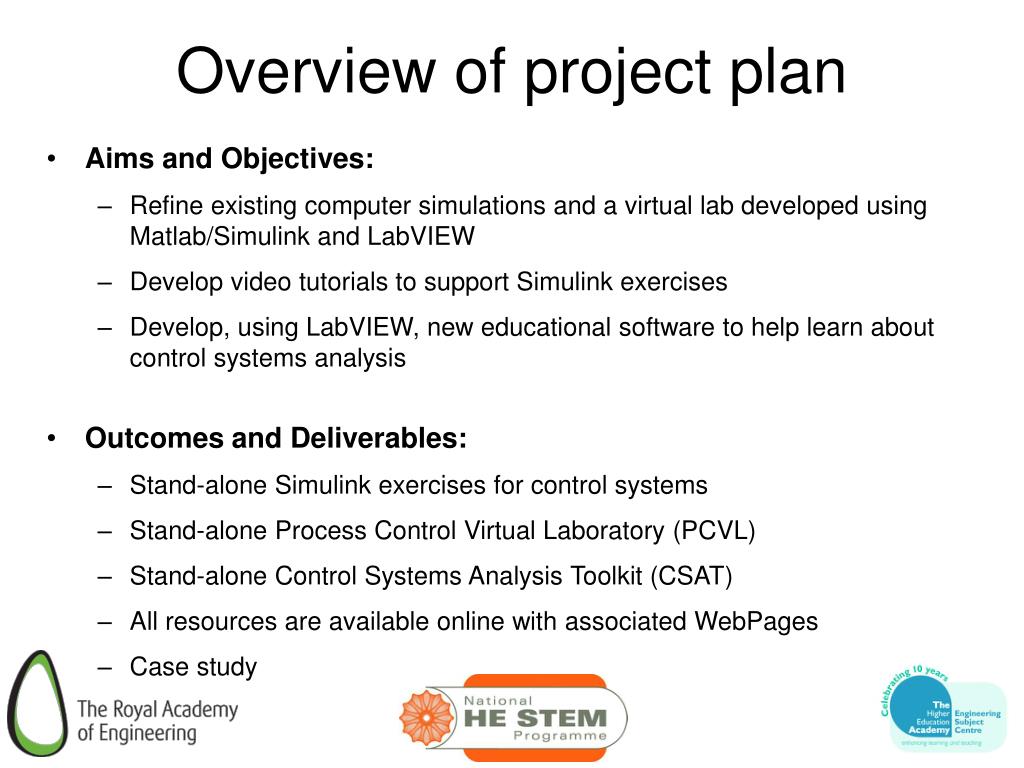

  4. Overview of project plan • Aims and Objectives: • Refine existing computer simulations and a virtual lab developed using Matlab/Simulink and LabVIEW • Develop video tutorials to support Simulink exercises • Develop, using LabVIEW, new educational software to help learn about control systems analysis • Outcomes and Deliverables: • Stand-alone Simulink exercises for control systems • Stand-alone Process Control Virtual Laboratory (PCVL) • Stand-alone Control Systems Analysis Toolkit (CSAT) • All resources are available online with associated WebPages • Case study

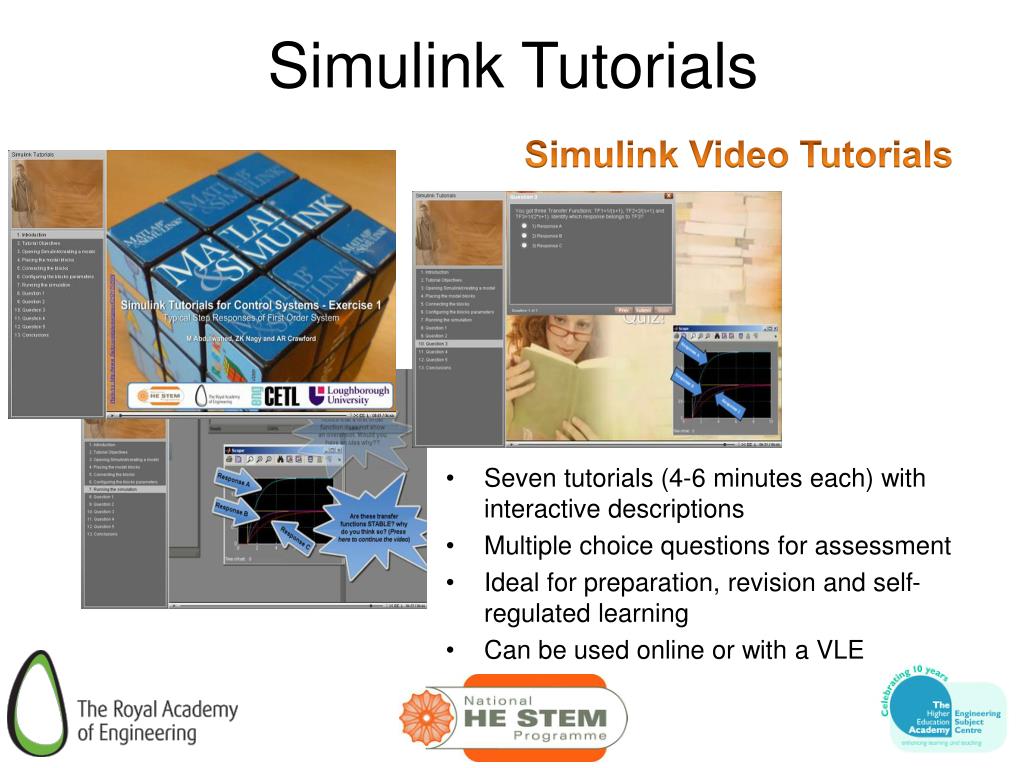

  5. Simulink Tutorials Simulink Video Tutorials • Seven tutorials (4-6 minutes each) with interactive descriptions • Multiple choice questions for assessment • Ideal for preparation, revision and self-regulated learning • Can be used online or with a VLE

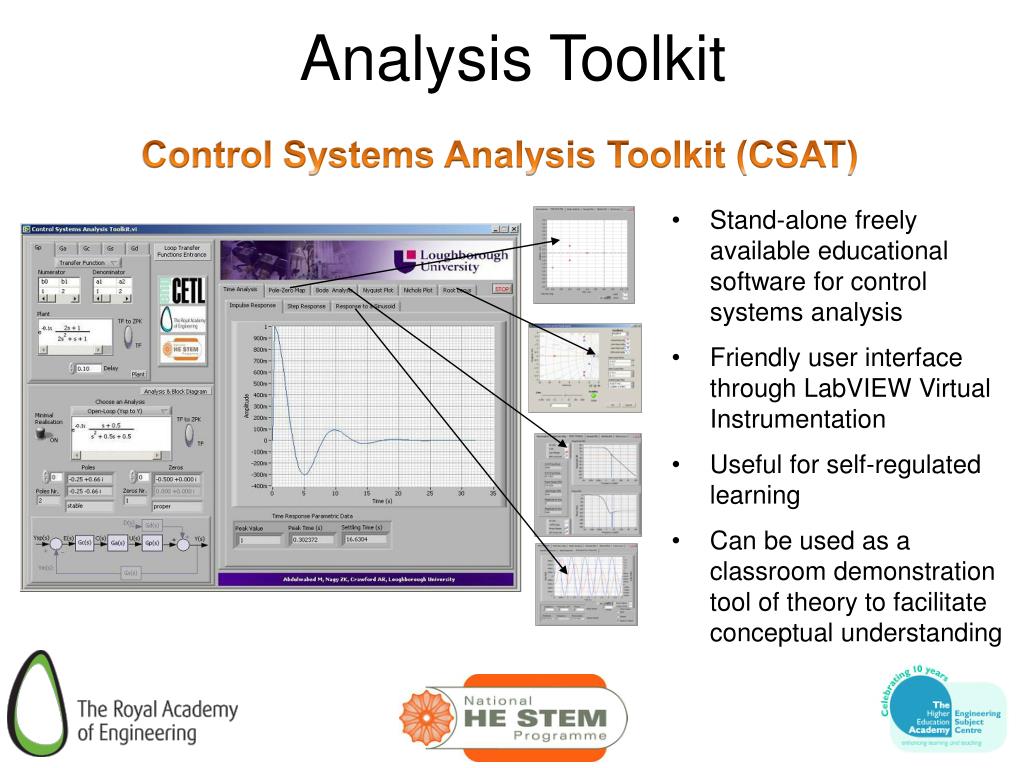

  6. Analysis Toolkit Control Systems Analysis Toolkit (CSAT) • Stand-alone freely available educational software for control systems analysis • Friendly user interface through LabVIEW Virtual Instrumentation • Useful for self-regulated learning • Can be used as a classroom demonstration tool of theory to facilitate conceptual understanding

  7. Virtual Laboratory Process Control Virtual Laboratory (PCVL) • Stand-alone freely available virtual laboratory • Standard undergraduate control systems demonstration (Tank level control) • Comes with a hands-on laboratory manual

  8. Dissemination • Simulink activity manual and assignment • Virtual laboratory (PCVL) manual • CSAT manual and control systems analysis exercises • Associated WebPages on www.ilough-lab.com Manuals and Web Dissemination

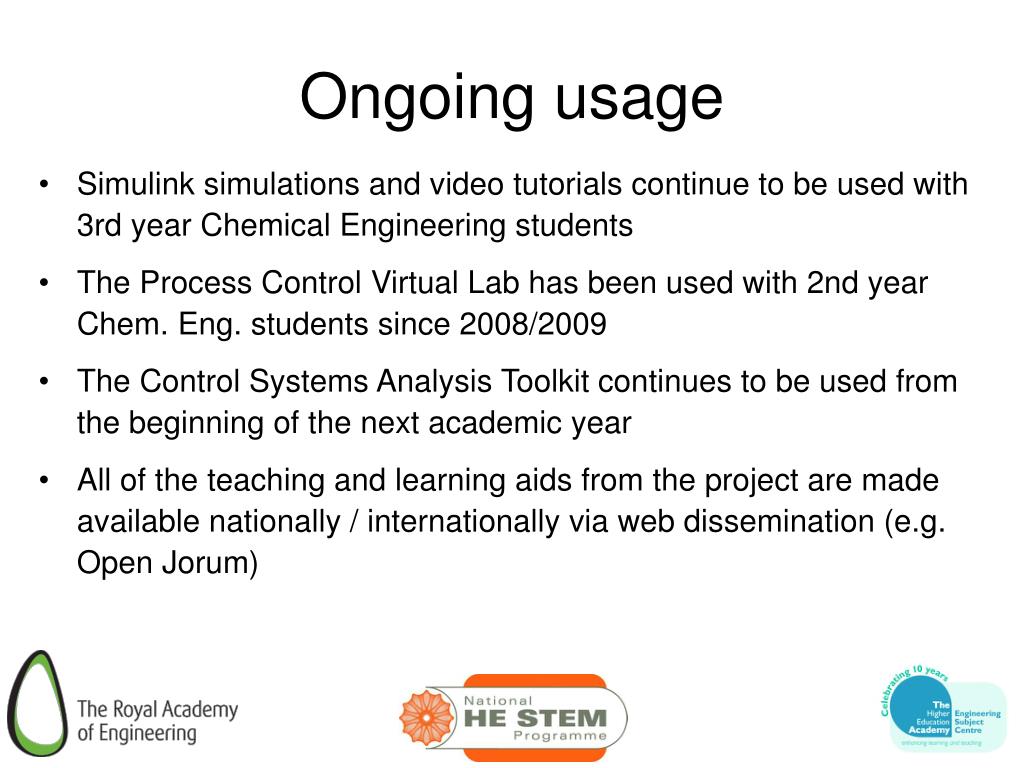

  9. Ongoing usage • Simulink simulations and video tutorials continue to be used with 3rd year Chemical Engineering students • The Process Control Virtual Lab has been used with 2nd year Chem. Eng. students since 2008/2009 • The Control Systems Analysis Toolkit continues to be used from the beginning of the next academic year • All of the teaching and learning aids from the project are made available nationally / internationally via web dissemination (e.g. Open Jorum)

  10. Evaluation • Final course questionnaire, used to measure the students’ perceptions: • Videos were helpful in preparation, revision, etc; • Simulations helpful for conceptual understanding, motivating towards theory, making math less abstract, etc. • Students asked for more resources! • Comprehensive evaluation of the impact of virtual labs was conducted from 2007 to 2010 indicating significant enhanced learning outcomes. For further details, see (Abdulwahed and Nagy, 2008; 2009; & 2011)

  11. Concluding remarks • Computer simulations and interactive media are suitable for engineering students learning styles • Software to develop video tutorials e.g. Camtasia, wereeasy to use and liked by students • LabVIEW offers a platform with great potential for developing engineering education software applications • Free open education resources can have pedagogical impact and avoid reinventing the wheel • To download and use the resources: www.ilough-lab.com
