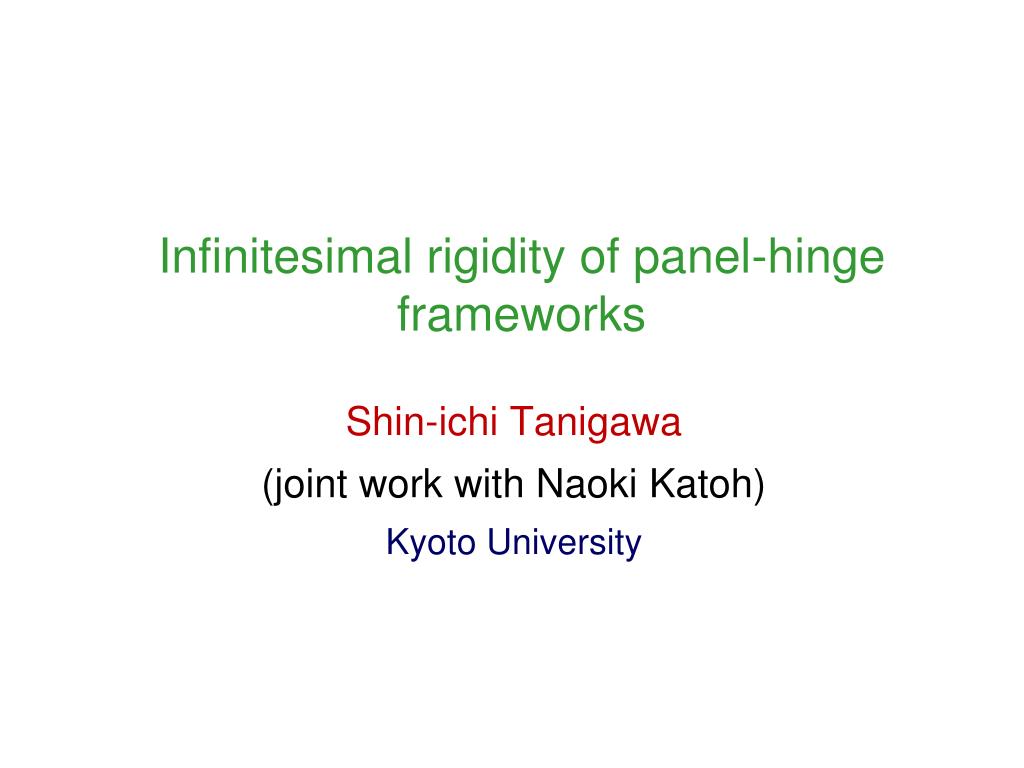

Infinitesimal rigidity of panel-hinge frameworks. Shin- ichi Tanigawa (joint work with Naoki Katoh) Kyoto University. Theorem A graph can be realized as an infinitesimally rigid body-hinge framework in R 3 if and only if it can be realized as a panel-hinge framework in R 3

odin
Télécharger la présentation

Infinitesimal rigidity of panel-hinge frameworks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Infinitesimal rigidity of panel-hinge frameworks Shin-ichiTanigawa (joint work with Naoki Katoh) Kyoto University

  2. Theorem • A graph can be realized as an infinitesimally rigid body-hinge framework in R3 if and only if it can be realized as a panel-hinge framework in R3 • Originally, posed by Tay and Whiteley in 1984, and called the Molecular conjecture. • Implying a combinatorial characterization of generic rigidity of molecular frameworks [Tay&Whiteley84, Whiteley99,04, Jackson&Jordán08]

  3. 3-dimensional body-hinge framework(G,p): • G = (V,E): a graph, • pis a mapping, (called a hinge-configuration), • e ∊ E↦ a line p(e) inR3 • a vertex　⇔　a 3-d body • an edge　⇔　a hinge (=a line)

  4. Tay-Whiteley’s theorem (Whiteley 88, Tay 89, 91) • For a generic hinge-configuration p, (G,p) is rigid in R3if and only if 5G contains six edge-disjoint spanning trees. G 5G

  5. Tay-Whiteley’s theorem (Whiteley 88, Tay 89, 91) • For a generic hinge-configuration p, (G,p) is rigid in R3if and only if 5G contains six edge-disjoint spanning trees. • It cannot be applied to “special” hinge configurations

  6. Infinitesimal motion of a rigid body • a combination of six independent isometric motions • three translations + three rotations • ⇒ The set of all infinitesimal motionsforms a 6-dimensional vector space. • each rotation (transformation) can be coordinatized by a so-called 2-extensor (Plűcker coordinate) of the axis-line.

  7. Hinge constraints [Crapo and Whiteley 82] • Two bodies 1 and 2 are connected by a hingeA. • Si: a 6-vector assigned to the bodyi, (representing an infinitesimal motion). • SA: a 2-extensor (that is, a 6-vector) of the lineA. • The constraint by the hingeA: S1 – S 2= t SAfor somet ∈R • ⇔ ri・( S1 – S2 ) = 0, i=1,...,5 • {r1,r2,...,r5}: a basis of the orthogonal complement of the 1-dimensional vector space spanned bySA.

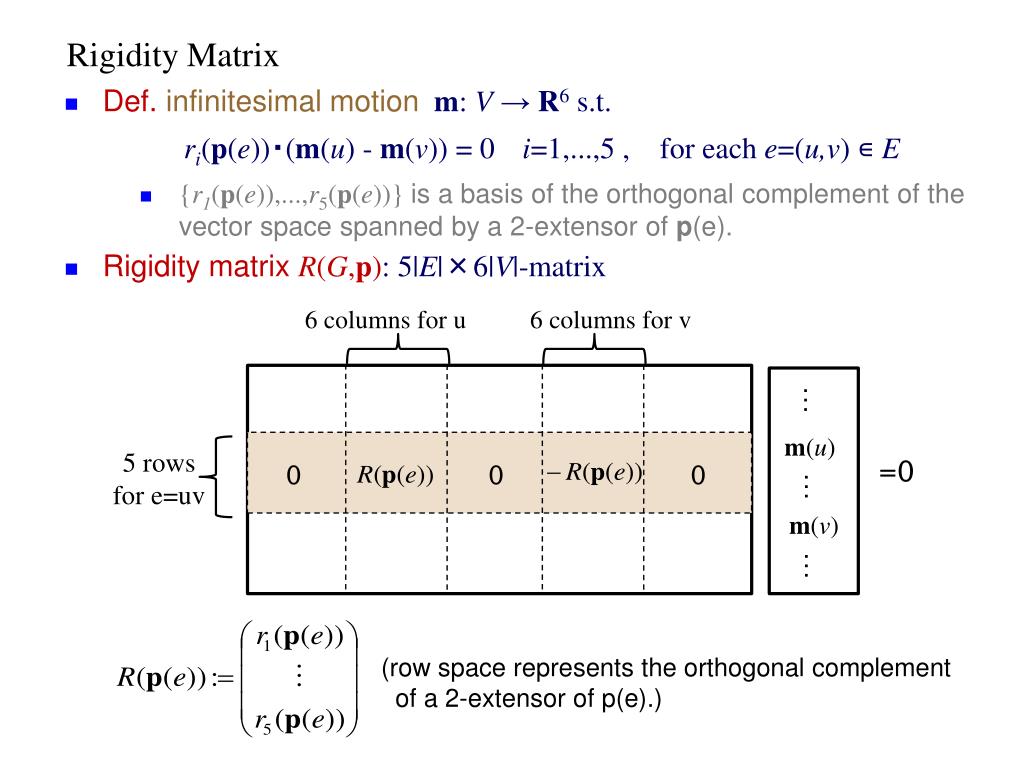

  8. Rigidity Matrix • Def.infinitesimal motionm: V→R6s.t. ri(p(e))・(m(u)- m(v)) = 0 i=1,...,5 , for each e=(u,v) ∊ E • {r1(p(e)),...,r5(p(e))}is a basis of the orthogonal complement of the vector space spanned by a 2-extensor of p(e). • Rigidity matrix R(G,p): 5|E|×6|V|-matrix 6 columns for u 6 columns for v … m(u) 5 rows for e=uv =0 0 0 0 … m(v) (row space represents the orthogonal complement of a 2-extensor of p(e).) …

  9. Def. (G,p)is infinitesimal rigid⇔rank R(G,p)=6|V|-6 • dim kerR(G,p)≧6 • the dimension of the space of all trivial motions is 6 • three transformations + three rotations • Def.G can be realized as an inf. rigid framework ⇔　∃ps.t. (G,p) is infinitesimal rigid 6 columns for u 6 columns for v … m(u) 5 rows for e=uv =0 0 0 0 … m(v) …

  10. [Jackson and Jordán09] • deficiency of G, def(G):= maxP 6(|P|-1) - 5d(P ) • P :partition of V • d(P): the number edges connecting different components ofP • def(G)≧0 (since P ={V}) • There exist 6 edge-disjoint spanning trees in5G ⇔ def(G)=0 (by Tutte’s tree packing theorem) • Theorem(Jackson and Jordán09)The followings are equivalent for G=(V,E): • For a generic hinge-configurationp，(G,p) has k d.o.f. (i.e., rank R(G,p)=6(|V|-1)-k) • def(G)=k • The rank of matroidG6(5G)is equal to 6(|V|-1)-k

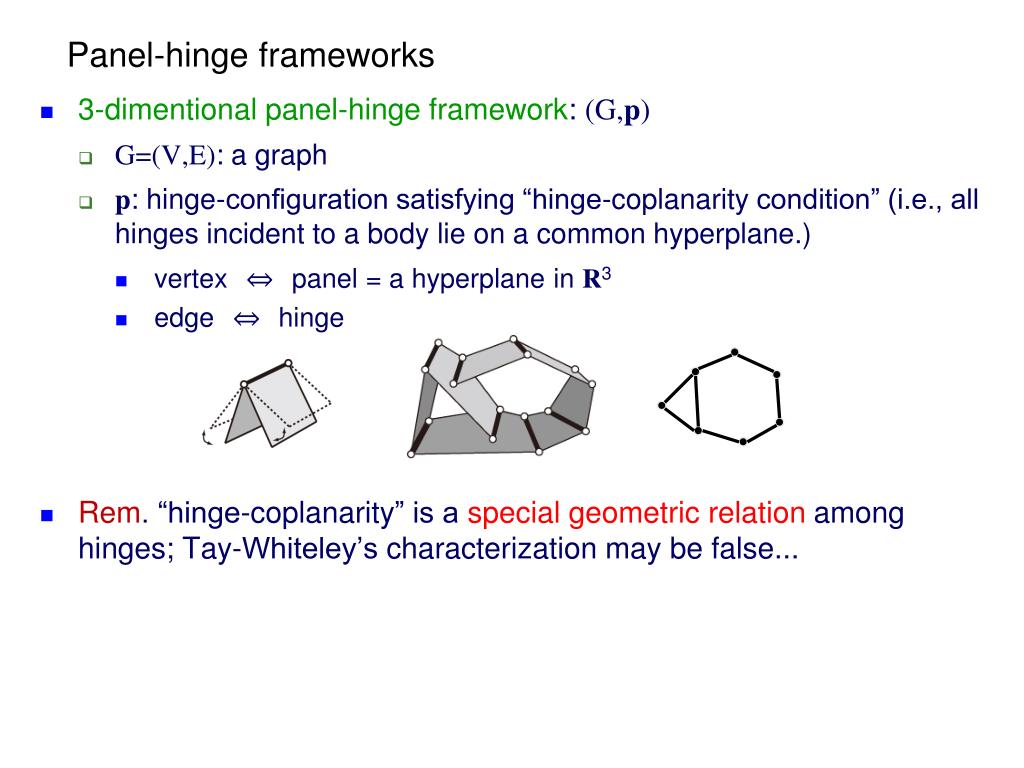

  11. Panel-hinge frameworks • 3-dimentional panel-hinge framework: (G,p) • G=(V,E): a graph • p: hinge-configuration satisfying “hinge-coplanarity condition” (i.e., all hinges incident to a body lie on a common hyperplane.) • vertex　⇔　panel= a hyperplane in R3 • edge　⇔　hinge • Rem. “hinge-coplanarity” is a special geometric relation among hinges; Tay-Whiteley’s characterization may be false...

  12. Theorem • G can be realized as an infinitesimally rigid panel-hinge framework if and only if 5G contains six-edge-disjoint spanning trees • Def. G is a k-graph if def(G)=k; it is a minimal k-graph if def(G)=k and removal of any edge results in a non k-graph. • Theorem: If G is a minimal k-graph, then it can be realized as a panel-hinge framework with k degree of freedom. • (Outline) • combinatorial part： propose an inductive construction of minimal k-graphs w.r.t. # vertices. • algebraic part：provide an explicit construction of a k-dof panel-hinge framework (G,p) following the inductive construction given in combinatorial part.

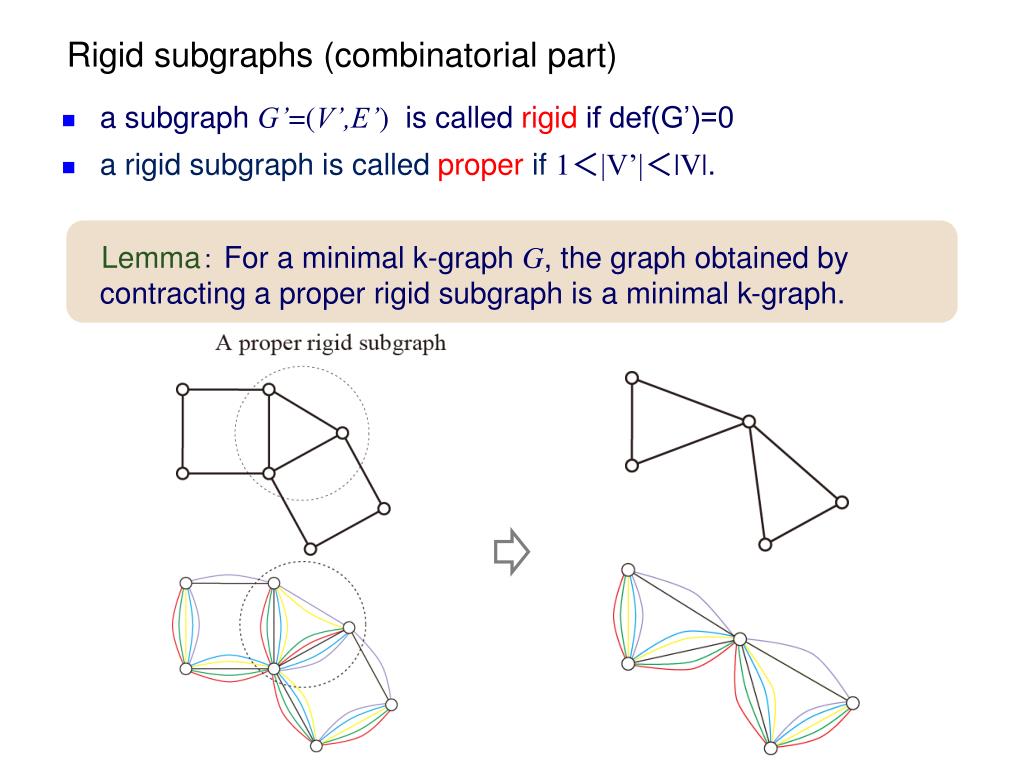

  13. Rigid subgraphs (combinatorial part) • a subgraph G’=(V’,E’) is called rigidif def(G’)=0 • a rigid subgraph is called properif1＜|V’|＜|V|. Lemma： For a minimal k-graph G, the graph obtained by contracting a proper rigid subgraph is a minimal k-graph.

  14. Splitting-off operation • A splitting-off at a vertex of degree two: • Lemma：Let G be a k-graph with a vertex v of degree 2. Then the graph Gvab obtained by splitting off at v is a k-graph or a (k-1)-graph. • Even though G is minimal, Gvab may not be minimal. v a b a b v a b b a

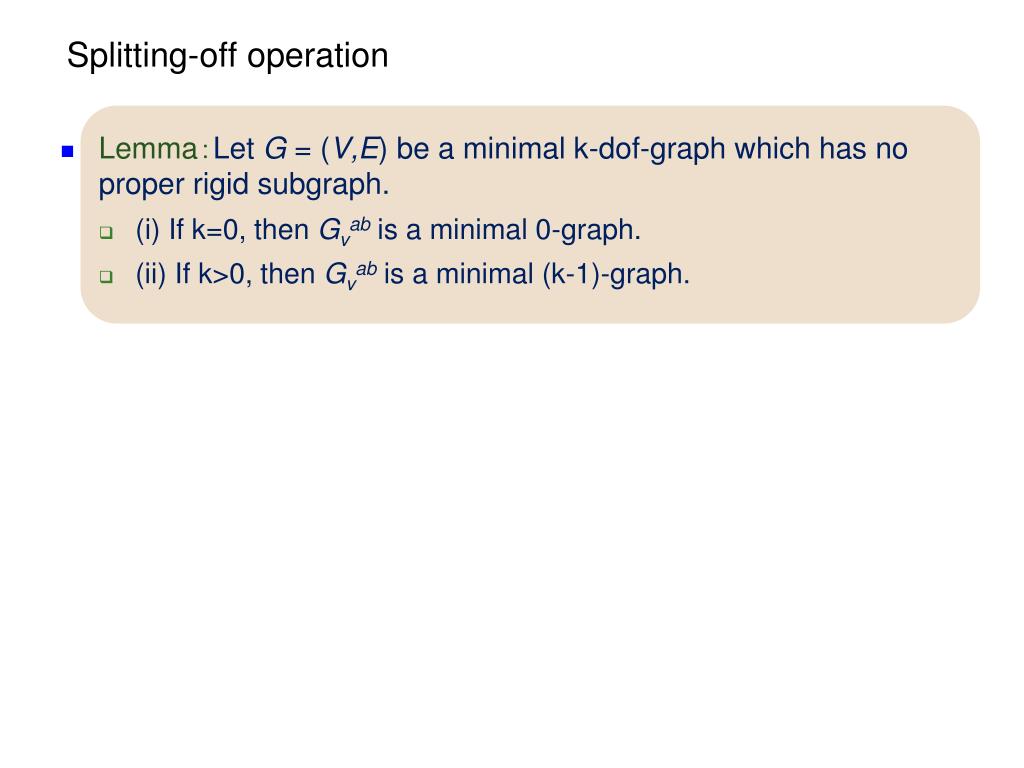

  15. Splitting-off operation • Lemma：Let G = (V,E) be a minimal k-dof-graph which has no proper rigid subgraph. • (i) If k=0, then Gvab is a minimal 0-graph. • (ii) If k>0, then Gvab is a minimal (k-1)-graph.

  16. Small degree vertices • Lemma：Let G = (V,E)be a minimal k-graph which has no proper rigid subgraph. Then, G has two consecutive vertices of degree two. • (sketch of the existence of a degree two vertex) • If no proper rigid subgraph exists, there is a basis of G6(5G) that contains 5(E-e) for any edge e • ⇒ 5|E-e|≦6(|V|-1) ⇒ 5|E|≦6|V| • ⇒ (average degree) = 2|E|/|V| ≦ 2.4 • ⇒ there exists a vertex of degree two

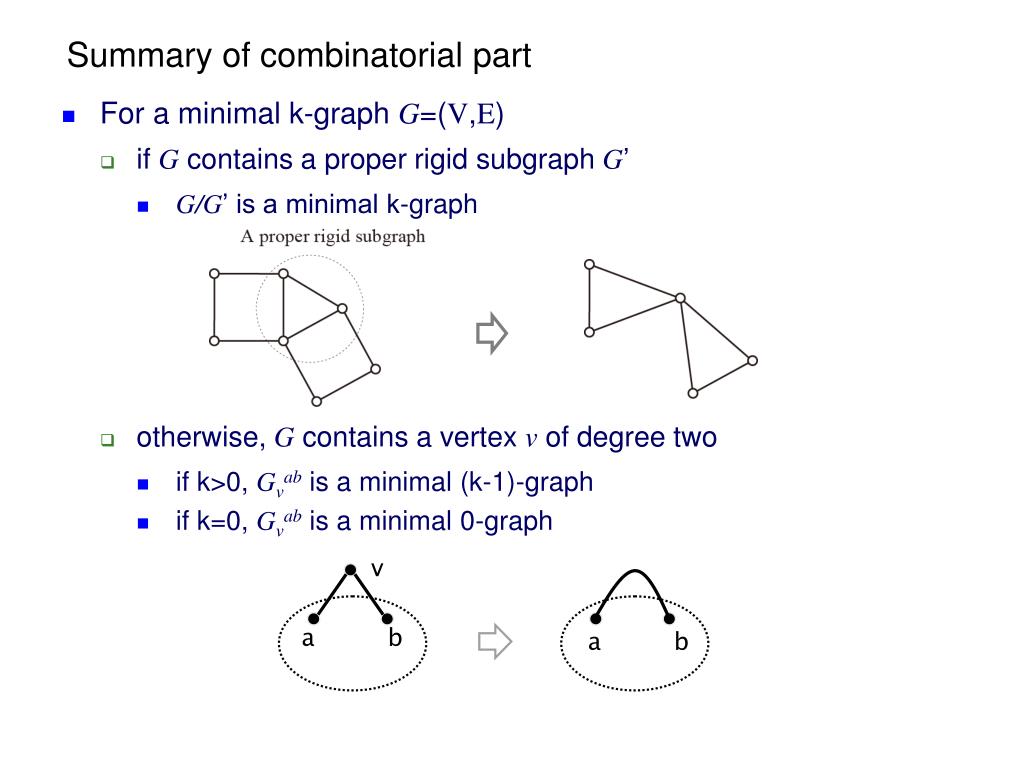

  17. Summary of combinatorial part • For a minimal k-graph G=(V,E) • if G contains a proper rigid subgraph G’ • G/G’ is a minimal k-graph • otherwise, G contains a vertex v of degree two • if k>0, Gvab is a minimal (k-1)-graph • if k=0, Gvab is a minimal 0-graph v a b a b

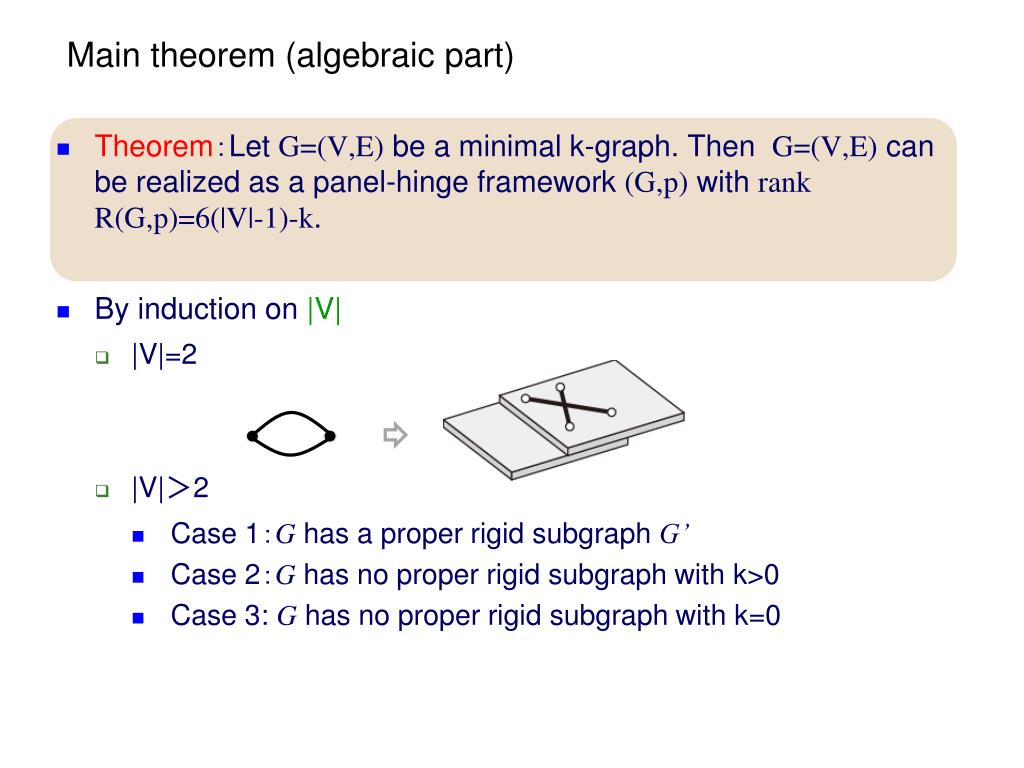

  18. Maintheorem (algebraic part) • Theorem：Let G=(V,E) be a minimal k-graph. Then G=(V,E) can be realized as a panel-hinge framework (G,p) with rank R(G,p)=6(|V|-1)-k. • By induction on |V| • |V|=2 • |V|＞2 • Case 1：G has a proper rigid subgraph G’ • Case 2：G has no proper rigid subgraph with k>0 • Case 3: G has no proper rigid subgraph with k=0

  19. Case 1: G has a proper rigid subgarphG’=(V’,E’) • G/G’is a minimal k-graph (by Lemma) (Also, G’is minimal 0-graph.) • By induction, we have panel-hinge realizations (G’,p1) and (G/G’,p2) s.t. (G’,p1) is rigid and (G/G’,p2) has k-d.o.f. • Let v* be the vertex obtained by the contraction. • Idea: • We can consider the rigid framework (G’,p1) as a rigid body. Hence, replacing the panel associated with v*in (G/G’,p2) by a rigid body (G’,p1), the resulting framework has the desired property. v* G’ G G/G’

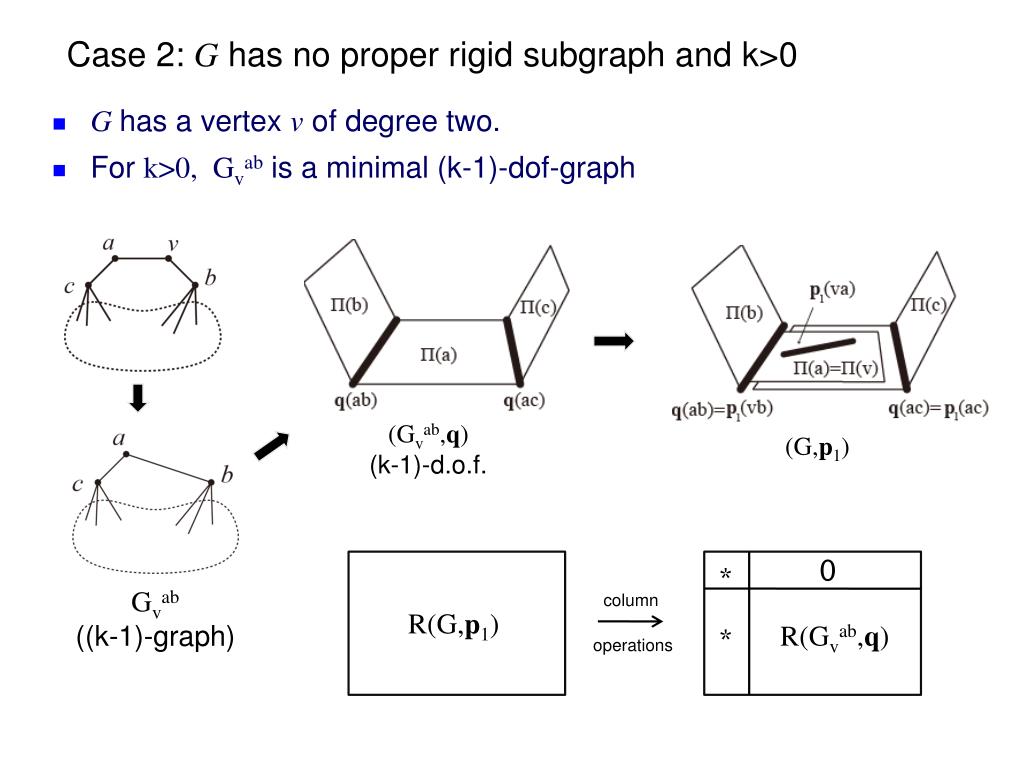

  20. Case 2: G has no proper rigid subgraph and k>0 • G has a vertex v of degree two. • For k>0, Gvab is a minimal (k-1)-dof-graph (Gvab,q) (k-1)-d.o.f. (G,p1) 0 * Gvab ((k-1)-graph) column R(G,p1) R(Gvab,q) * operations

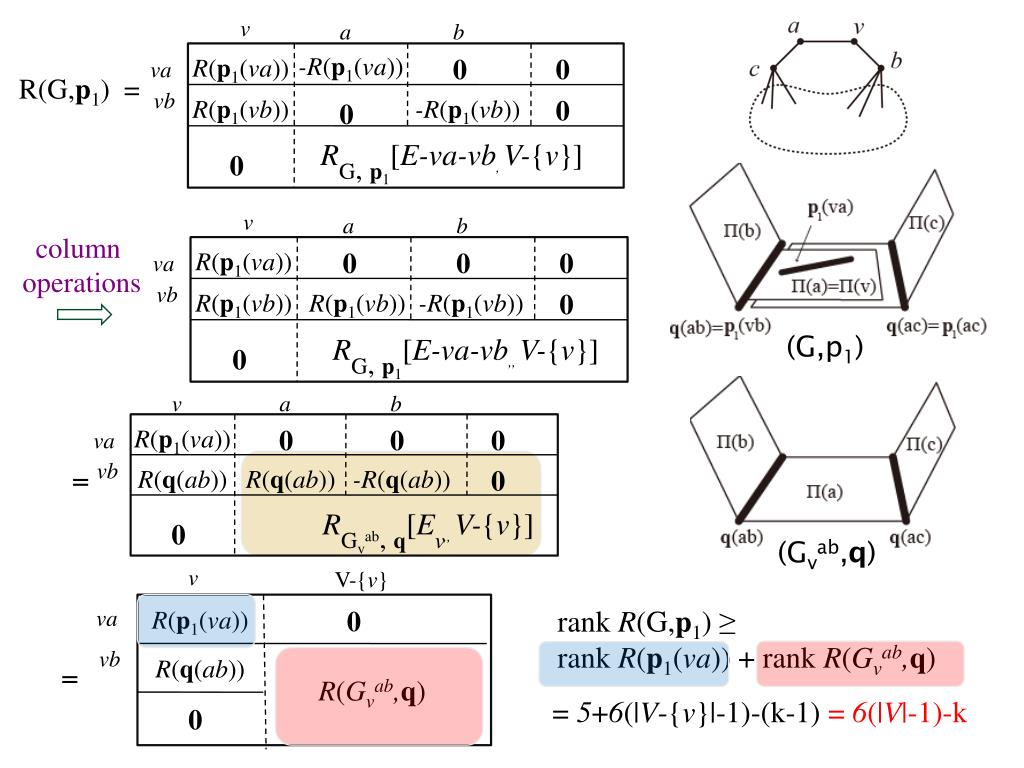

  21. v a b R(p1(va)) v 0 0 0 va a b R(G,p1) = vb -R(p1(va)) R(p1(va)) 0 0 va R(q(ab)) R(q(ab)) -R(q(ab)) 0 vb R(p1(vb)) -R(p1(vb)) 0 0 RGvab,q[Ev,, V-{v}] 0 RG,p1[E-va-vb, V-{v}] 0 column operations v V-{v} (G,p1) va R(p1(va)) 0 v vb a b R(q(ab)) R(Gvab,q) R(p1(va)) 0 0 0 va 0 vb R(p1(vb)) R(p1(vb)) -R(p1(vb)) 0 = = RG,p1[E-va-vb,, V-{v}] 0 (Gvab,q) rank R(G,p1) ≥ rank R(p1(va)) + rank R(Gvab,q) = 5+6(|V-{v}|-1)-(k-1) = 6(|V|-1)-k

  22. Case 3: G has no proper rigid subgraph (k=0) • G has two vertices v and a of degree two which are adjacent to each other • Gvabis a minimal 0-graph (G,p1) (Gvab,q) isomorphism identical (G,p2) ’ ’ (Gavc,q’) (G,p3) *** Show that at least one of (G,p1), (G,p2), and (G,p3) is rigid ***

  23. V-{v} v va R(p1(va)) 0 vb R(G,p1)= R(p1(vb)) R(Gvab,q) 0 (G,p1) R(Gvab,q) rank R(G,p1) ≥ rank R(p1(va)) + rank = 5+6(|V-{v}|-1)=6(|V|-1)-1 We need to show rank R(G,p1)≥6(|V|-1)

  24. Claim: there exists a redundant row in R(Gvab,q)among those associated withab. • (Sketch) • From a combinatorial argument, there exists a redundant edge among 5ab in the combinatorial matroid G6(5Gvab) • This redundancy also happen in the rigidity matrix by induction At most 4 edges are used among 5ab v a b a b

  25. Analysis of R(G,p1) v V-{v} va R(p1(va)) 0 q(ab) in (Gvab, q) = p1(vb) in (G,p1) (vb)1* 0 R(Gvab,q) - (the row (ab)1) * v V-{v} redundant row, say (ab)1 va R(p1(va)) 0 R(G,p1)= vb R(q(ab)) R(Gvab,q) 0 row operations a linear comb. of rows of R(q(ab)), denoted r1. r1 If is non-singular, we are done!! Note: r1 is nonzero and is determined by R(Gvab,q)

  26. Analysis of R(G,p2) v V-{v} vb R(p2(vb)) 0 each row of ab in R(Gvab, q) 　⇔ each row of va in R(G,p2) (va)1* 0 R(Gvab,q) - (the row (ab)1) * v V-{v} the redundant row(ab)1 R(G,p2)= vb R(p2(vb)) 0 va R(q(ab)) R(Gvab,q) 0 row operations a linear comb. of rows of R(q(ab)), which is equal to r1. r1 If is non-singular, we are done!!

  27. Analyzing R(G,p3) q(ab) in R(Gvab, q) = p3(vb) in R(G,p2) q(ac) in R(Gvab, q) = p3(va) in R(G,p2) c b v V-{v,a,b,c} a a V-{a} 0 -p3(ac) ac ac R(p3(ac)) p3(ac) 0 0 q(ab) -q(ab)) 0 vb R(G,p3)= 0 0 -q(ac) 0 0 R(Gvab,q) va va R(q(ac)) q(ac) *** 0 add columns ofa to those of c 0 the redundant row(ab)1 vb 0

  28. Analyzing R(G,p3) v V-{v} ac R(p3(ac)) 0 (vb)1* q(ab) in R(Gvab, q) = p3(vb) in R(G,p2) q(ac) in R(Gvab, q) = p3(va) in R(G,p2) 0 R(Gvab,q) - (the row (ab)1) * a V-{a} the redundant row(ab)1 0 R(p3(ac)) ac 0 R(G,p2)= vb R(Gvab,q) va R(q(ac)) 0 a linear comb. of rows of R(q(ac)), denoted by r3. row operations r3

  29. a b c • Claim: r1 + r3=0 • (intuition): • r1 can be considered as a force applied to the panel Π(a) in (Gvab, q) through the hinge q(ab) • r3 can be considered as a force applied to the panel Π(a) in (Gvab,q) through the hinge q(ac) • Since the panel Π(a) is incident to only q(ab) and q(ac), these two forces must be in sign-inverse. -R(q(ab)) R(q(ab)) 0 0 ab ac R(q(ac)) -R(q(ac)) 0 0 0 R(Gvab,q) = ***

  30. v v v Summary of matrix-transformations V-{v} V-{v} V-{v} R(p2(vb)) R(p1(va)) R(p3(ac)) 0 0 0 • If at least one of is non-singular, we are done. 0 0 0 R(Gvab,q) - (the row (ab)1) R(Gvab,q) - (the row (ab)1) R(Gvab,q) - (the row (ab)1) * * * r1 r1 r3=-r1

  31. Last step • Suppose is singular. Then, r1 is orthogonal to a 2-exntesor of p1(va). • Suppose is singular for any choice of p1(va) on Π(a). Then, r1 is orthogonal to every 2-extensors of a line on Π(a). (Similar for the other two matrices.) • Suppose all of are singular for every choice of p1(va), p2(vb), p3(ac). Then, r1 is orthogonal to 2-extensors of all lines on Π(a), Π(b), or Π(c). ⇒ These 2-extensors span 6-dimentional space. • ⇒r1=0, a contradiction. R(p1(va)) R(p3(ac)) R(p2(vb)) r1 r3=-r1 r1

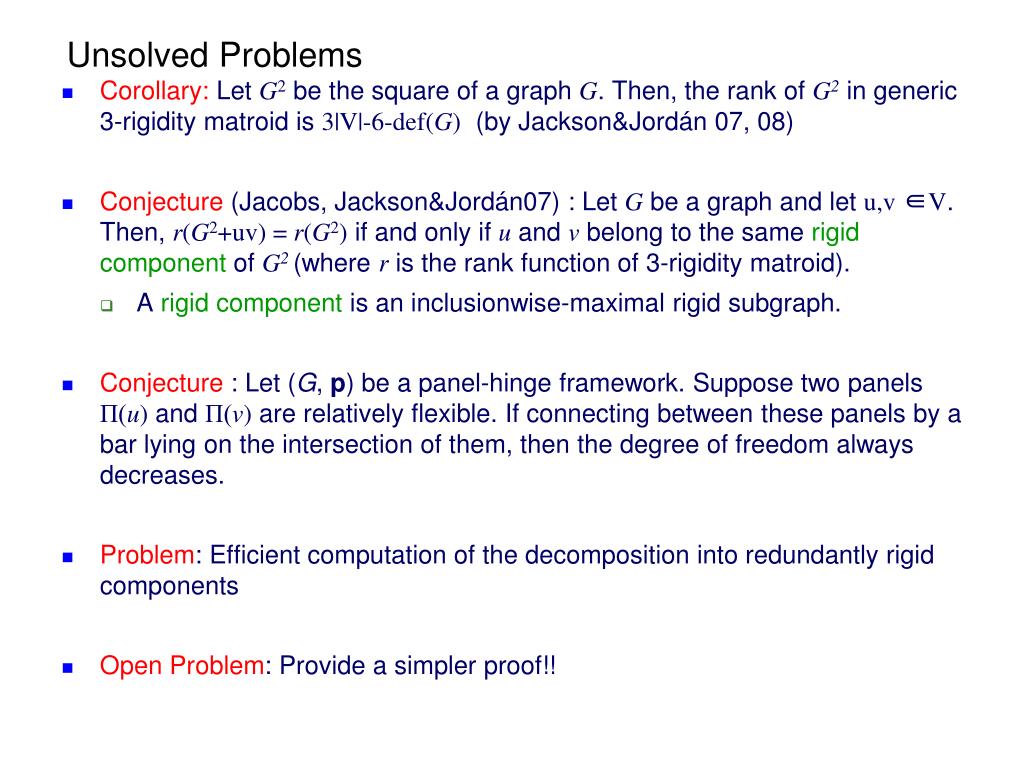

  32. Unsolved Problems • Corollary: Let G2 be the square of a graph G. Then, the rank of G2 in generic 3-rigidity matroid is 3|V|-6-def(G) (by Jackson&Jordán 07, 08) • Conjecture (Jacobs, Jackson&Jordán07) : Let G be a graphand let u,v∈V. Then, r(G2+uv) = r(G2) if and only if u and v belong to the same rigid component of G2 (where r is the rank function of 3-rigidity matroid). • A rigid component is an inclusionwise-maximal rigid subgraph. • Conjecture : Let (G, p) be a panel-hinge framework. Suppose two panels Π(u) and Π(v) are relatively flexible. If connecting between these panels by a bar lying on the intersection of them, then the degree of freedom always decreases. • Problem: Efficient computation of the decomposition into redundantly rigid components • Open Problem: Provide a simpler proof!!
