  1. Hannah Jones presents Big Data & Hadoop

  2. Agenda • What is BigData? • What is Hadoop? • Hadoop vs. Traditional Database • Who uses Hadoop? • Brief History • How does Hadoop work? • Storage • Processing • Other Projects • Presentation Layer

  3. What is Big Data? • Collections of large and complex data sets • Difficult to process • Challenges to capture, store, search, share, transfer, analyze and visualization • Volume, Velocity, Variety

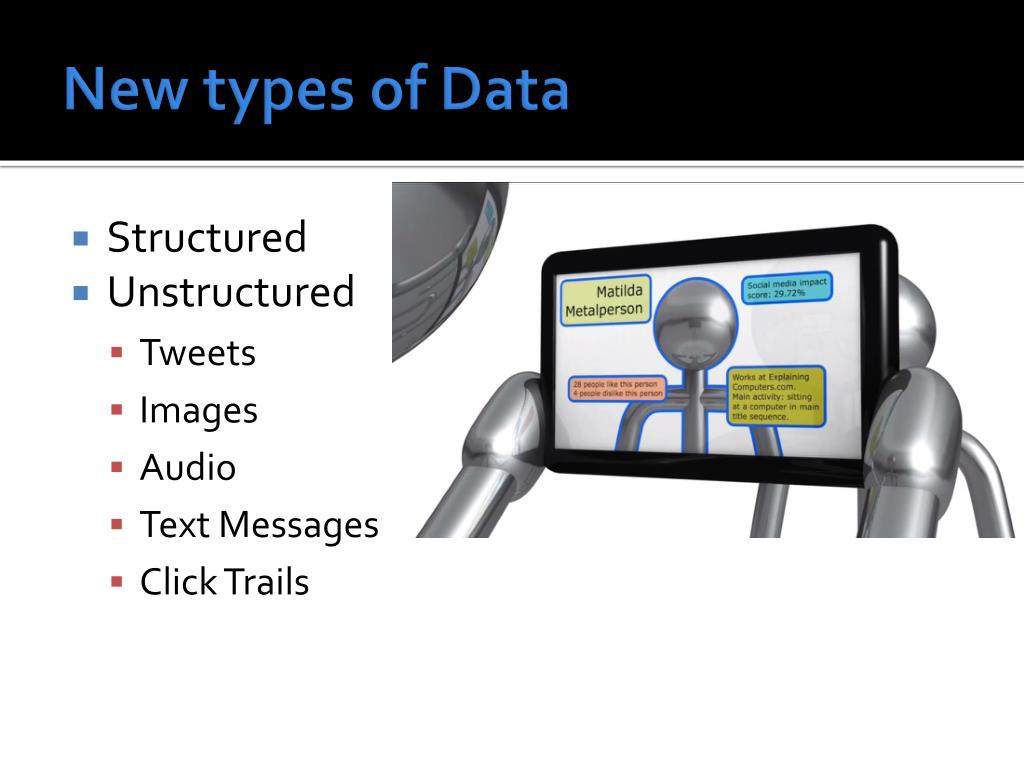

  4. New types of Data • Structured • Unstructured • Tweets • Images • Audio • Text Messages • Click Trails

  5. Big Data = Big ROI • Healthcare: 20% decrease in patient mortality by analyzing streaming patient data • Telco: 92% decrease in processing time by analyzing networking and call data • Utilities: 99% improved accuracy in placing power generation resources by analyzing 2.8 petabytes of untapped data

  6. Software Available • Amazon DynamoDB • Couchbase 2.0 • Apache Cassandra • Apache Hadoop

  7. Hadoop

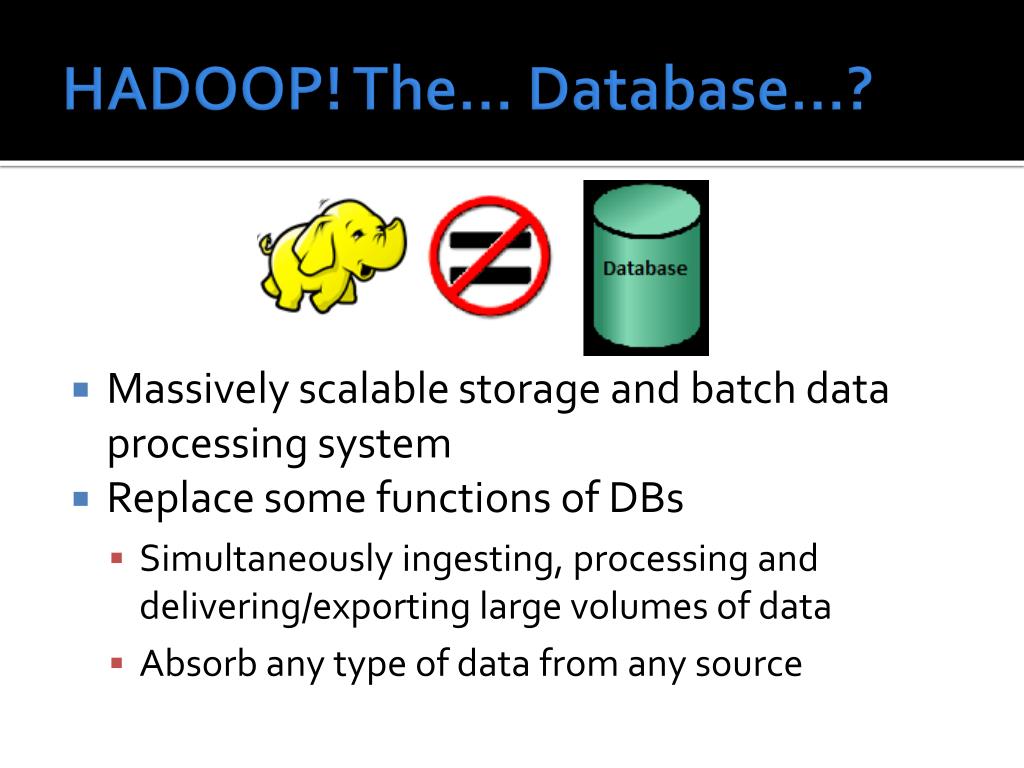

  8. HADOOP! The… Database…? • Massively scalable storage and batch data processing system • Replace some functions of DBs • Simultaneously ingesting, processing and delivering/exporting large volumes of data • Absorb any type of data from any source

  9. Traditional DB • Databases (MySQL, SQL Server, Oracle, etc..) • Transactional systems, reporting, and archiving • Reads & Writes for “reasonable” data sets (< 1B rows) • Real time or batch processing

  10. Hadoop • Overcomes the traditional limitations of storage and computing • Provides linear scalability from 1 to 4000 servers • Low cost, open source software • Leverage inexpensive, commodity hardware as platform

  11. Hadoop • Analysis of highly granular data • Structured and Unstructured data • Fast integration of multiple data sources • Responds well to rapidly changing business requirements

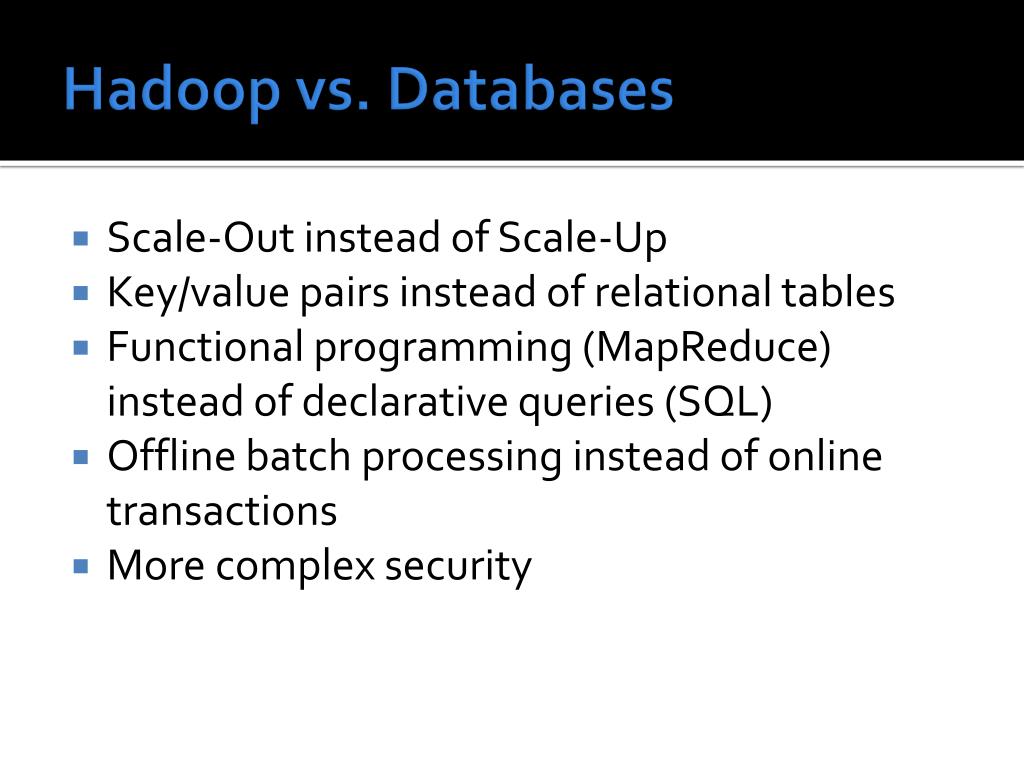

  12. Hadoop vs. Databases • Scale-Out instead of Scale-Up • Key/value pairs instead of relational tables • Functional programming (MapReduce) instead of declarative queries (SQL)  • Offline batch processing instead of online transactions • More complex security

  13. Who uses Hadoop?

  14. History

  15. Hadoop in Detail • 2 Main pieces • HDFS • Storage • Files and directories • Provides high bandwidth access to the data • MapReduce • Processing – Manages Jobs

  16. Hadoop in Detail • 2 Main pieces • HDFS • Storage • Files and directories • Provides high bandwidth access to the data • MapReduce • Processing – Manages Jobs

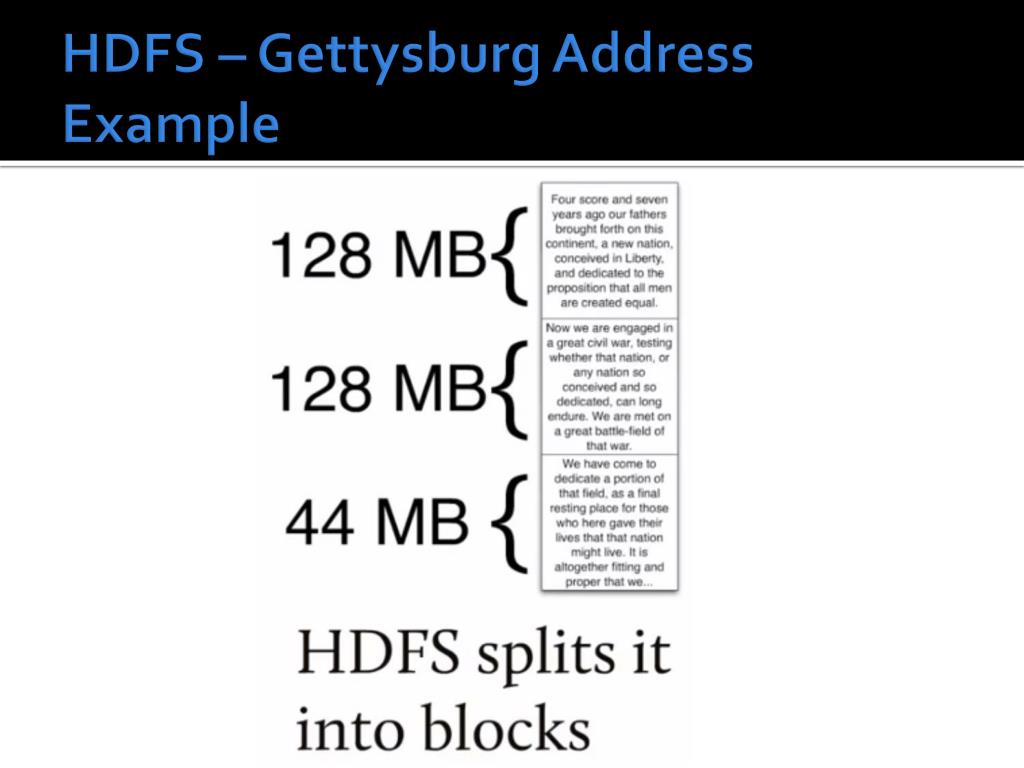

  17. HDFS – Gettysburg Address Example

  18. HDFS – Gettysburg Address Example

  19. HDFS – Gettysburg Address Example

  20. HDFS – Gettysburg Address Example

  21. HDFS – Gettysburg Address Example

  22. HDFS – Gettysburg Address Example

  23. NameNode Disabilities • Loose all 3 machines => Lose all of the data • Very Rare • Single Point of Failure • Doesn’t fail very often • Secondary NameNode • A backup • Not automatic

  24. Hadoop in Detail • 2 Main pieces • HDFS • Storage • Files and directories • Provides high bandwidth access to the data • MapReduce • Processing – Manages Jobs

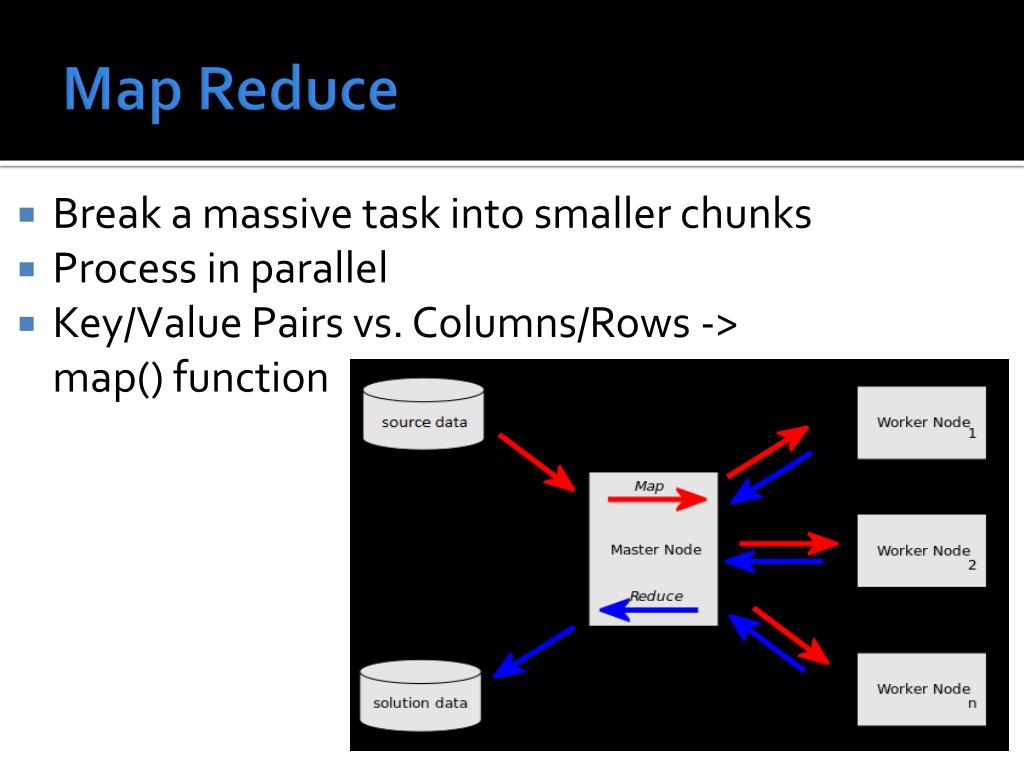

  25. Map Reduce • Break a massive task into smaller chunks • Process in parallel • Key/Value Pairs vs. Columns/Rows -> map() function

  26. Steps to understanding MapReduce • Think in terms of keys and values • Write a Mapper • Write a Reducer

  27. Job and Task Trackers • Job Tracker • MapReduce Coordinator • 1 JobTracker for an entire cluster • Accepts user’s jobs • Divides it into tasks • Assign to individual TaskTracker • TaskTracker reports statuses as it runs • Notice if a TaskTrackerdisappears if failure • Assign the things running on that Tasktrackerto another task tracker

  28. MapReduce– Gettysburg Address Example • Hello World :: Regular Programming • Word Count :: Map Reduce Programming

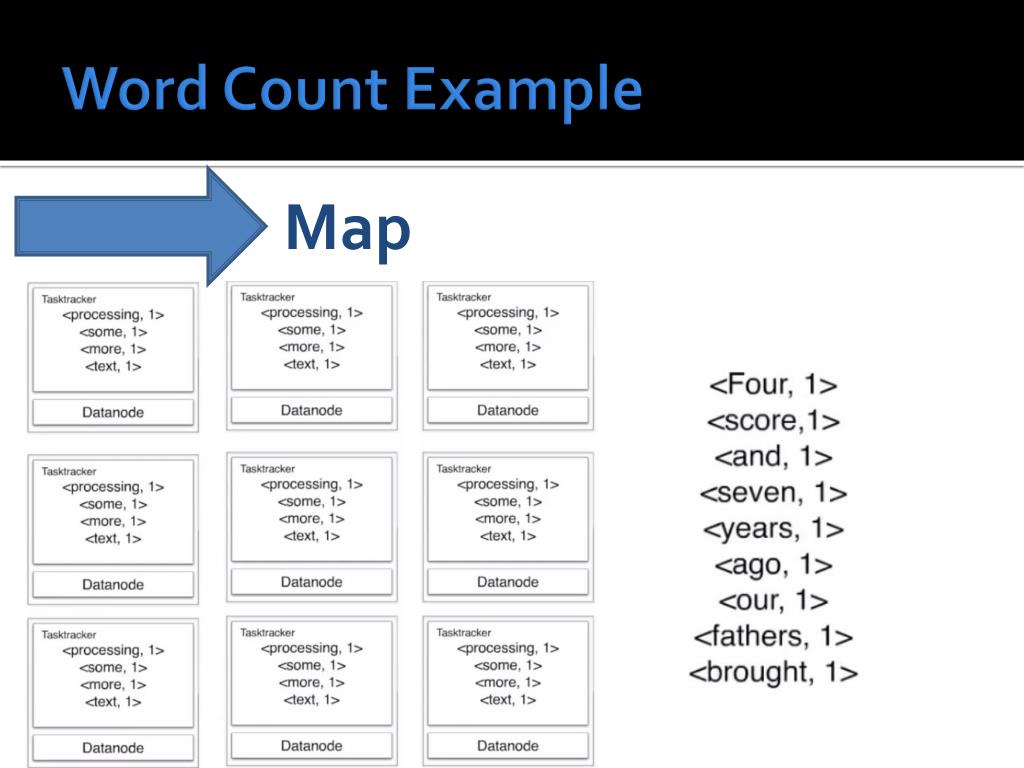

  29. Word Count Example Map

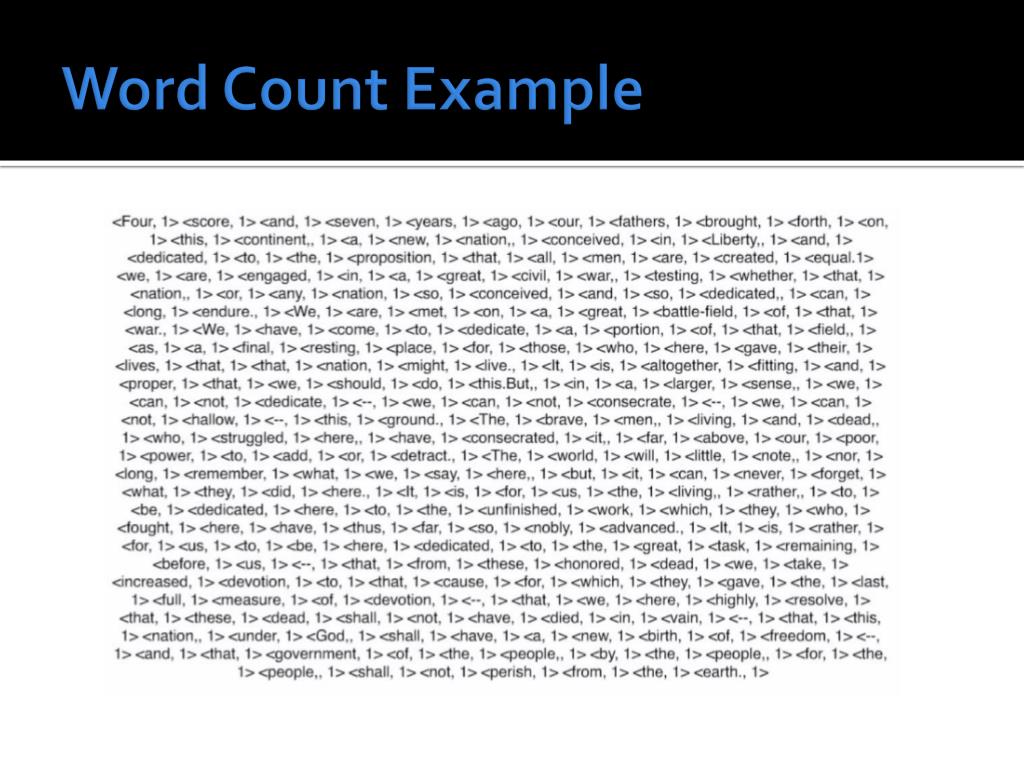

  30. Word Count Example

  31. Word Count Example Shuffle <Four, [1, 1]> <Score, [1, 1, 1]> <and, [1, 1, 1, 1, 1, 1, 1]> <seven, [1, 1, 1, 1]> <years, [1]> <ago, [1, 1, 1]> <our, [1, 1, 1, 1, 1]> <fathers, [1]> <brought, [1]>

  32. Word Count Example Reduce <Four, 2> <Score, 3> <and, 7> <seven, 4> <years, 1> <ago, 3> <our, 5> <fathers, 1> <brought, 1>

  33. MapReduce jobs can be tedious to write…

  34. MapReduce jobs can be tedious to write…

  35. But wait… there’s more

  36. Zoo Keeper

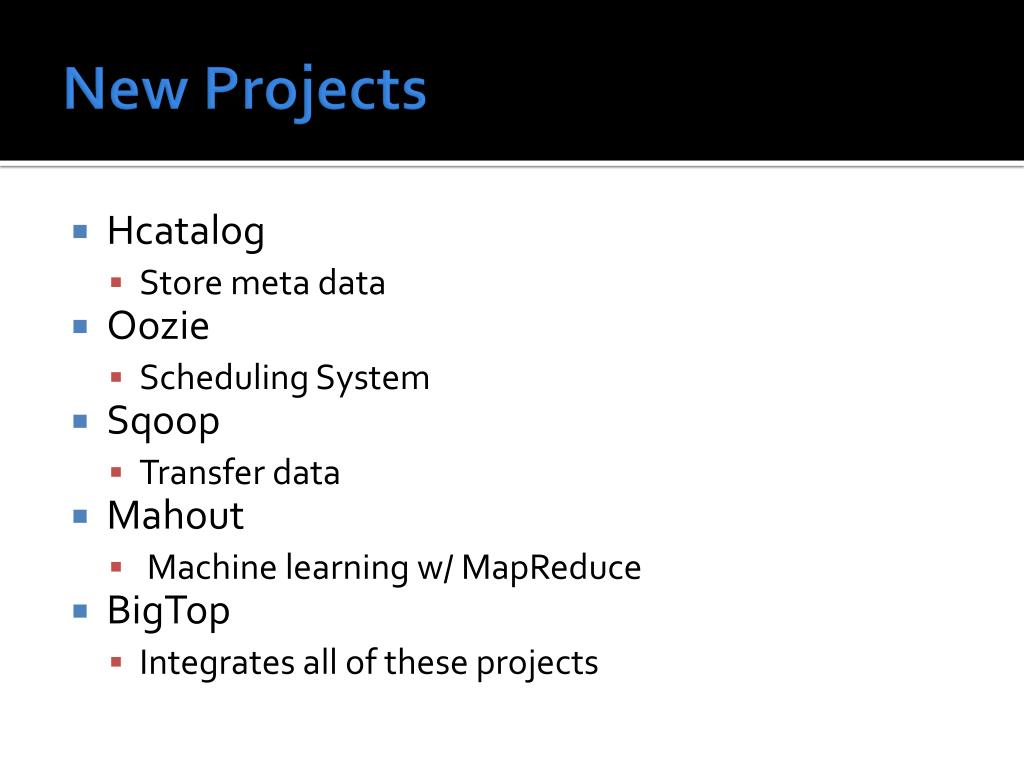

  37. New Projects • Hcatalog • Store meta data • Oozie • Scheduling System • Sqoop • Transfer data • Mahout • Machine learning w/ MapReduce • BigTop • Integrates all of these projects

  38. Getting Data Out • Databases • Datameer • Tableau

  39. Summary • BigData is the new trend in businesses • Hadoop is a way to store and process the data • Made up of many projects • Presentation tools are a great way to visualize the data
