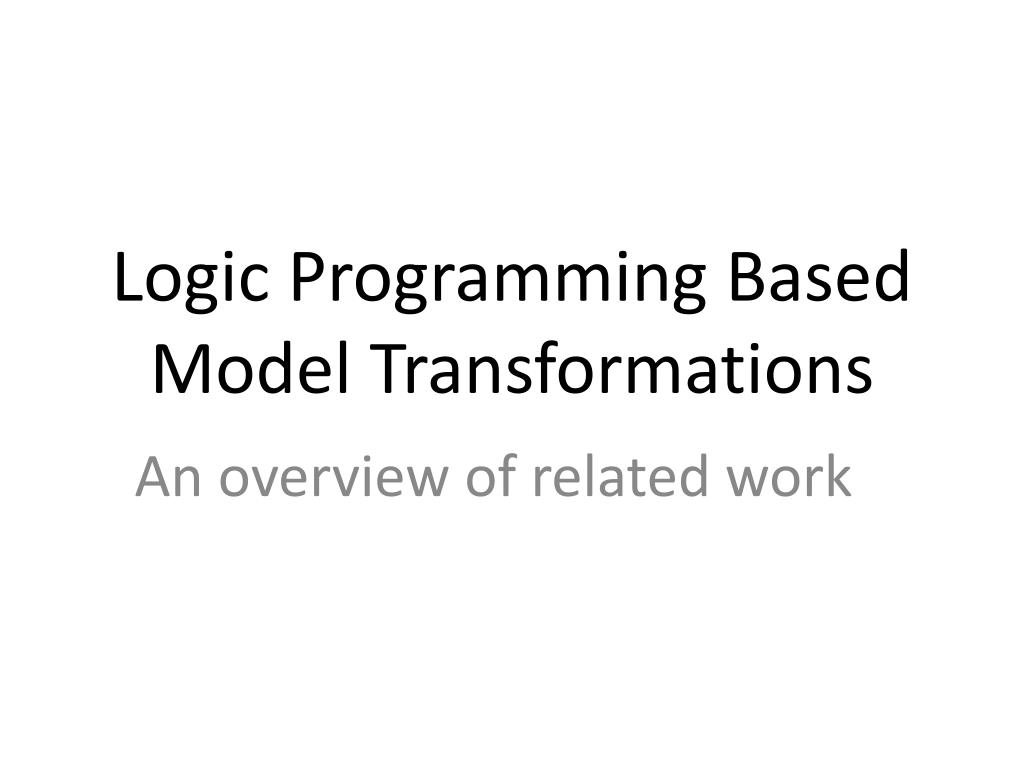

  1. Logic Programming BasedModel Transformations An overview of related work

  2. GOAL – WHY? • Exploring the reasoning techniques for querying the inconsistencies in Models and model transformations • State of the art, challenges, gaps and how we can contribute • Simplify transformations between ISO and CCOM

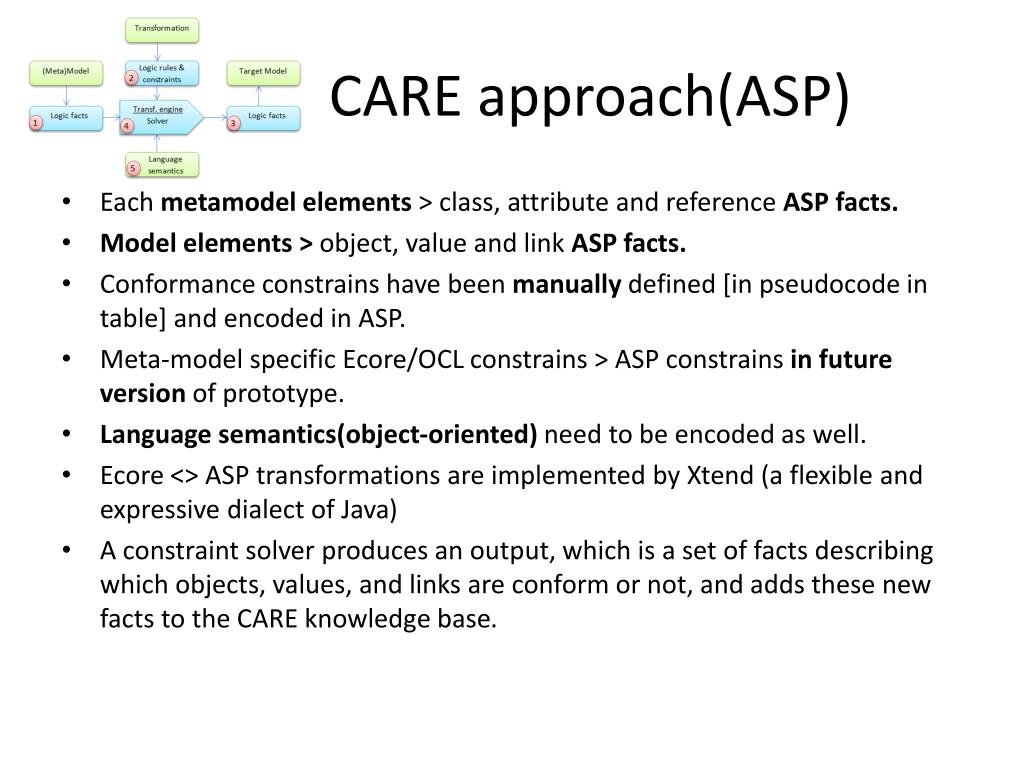

  3. CARE approach(ASP) • Each metamodel elements > class, attribute and reference ASP facts. • Model elements > object, value and link ASP facts. • Conformance constrains have been manually defined [in pseudocode in table] and encoded in ASP. • Meta-model specific Ecore/OCL constrains > ASP constrains in future version of prototype. • Language semantics(object-oriented) need to be encoded as well. • Ecore <> ASP transformations are implemented by Xtend (a flexible and expressive dialect of Java) • A constraint solver produces an output, which is a set of facts describing which objects, values, and links are conform or not, and adds these new facts to the CARE knowledge base.

  4. JTL approach(ASP) • Modeled as Graphs composed of nodes, edges and properties – logic assertions • (1)Each (meta)model elements > metanode, metaedge, and metaprop predicate symbols • (1)Each model element > node, edge, property • (2)JTL(QVT-R like syntax) > ASP relation and constrains by means of ATL transformation • (4)Transformation (JTL) engine is based on ASP bidirectional transformation program executed by DLV solver(find stable models) Transformation process steps:1. the execution engine induces all the possible solution candidates according to the specified relations; 2. the set of candidates is refined by means of constraints (ASP rules). (3)Target model is deducted based on ASP rules from candidate solutions.

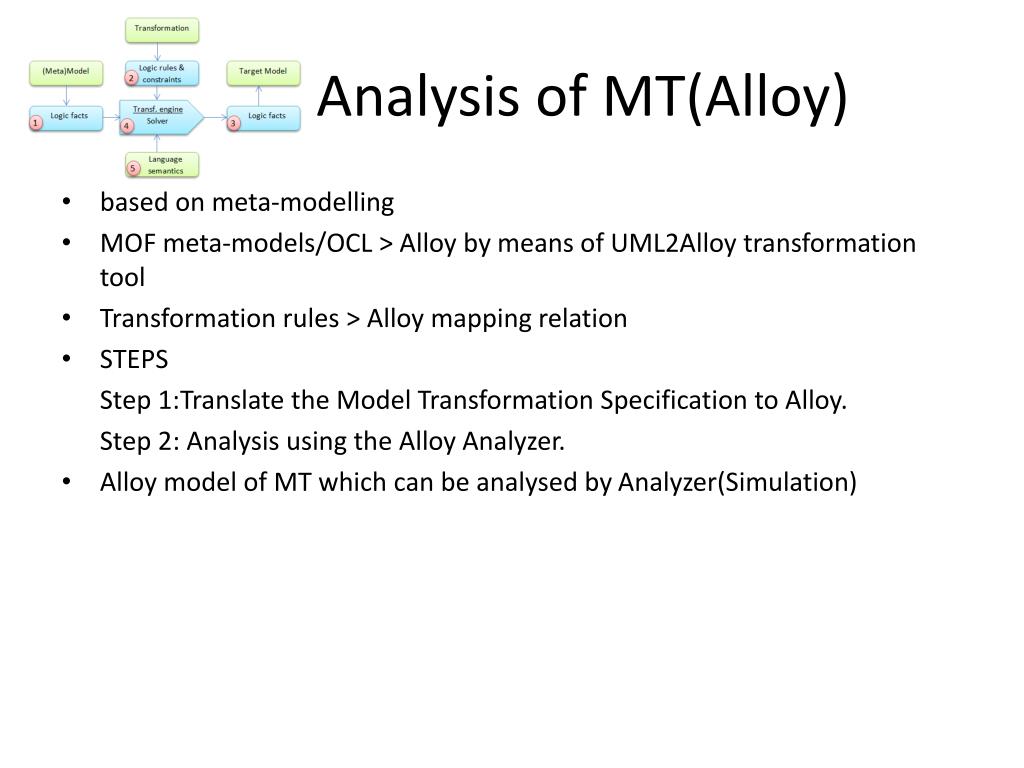

  5. Analysis of MT(Alloy) • based on meta-modelling • MOF meta-models/OCL > Alloy by means of UML2Alloy transformation tool • Transformation rules > Alloy mapping relation • STEPS Step 1:Translate the Model Transformation Specification to Alloy. Step 2: Analysis using the Alloy Analyzer. • Alloy model of MT which can be analysed by Analyzer(Simulation)

  6. QVT-R Bidirectional (Alloy) • UML(annotated with OCL) + QVT-R > Alloy • principle of least change restores consistency by simply returning target models that are at a minimal distance from the original -> the“check-before-enforce” policy (QVT-R) is satisfied. • Classes and associations (including attributes) > signatures and relations in Alloy. Inheritance relationship in Alloy. • For each relation R > Alloy predicates to specify Rforwardand Rbackward • Predicates are used to specify the when and where clauses, and the domain patterns of each relation • checkonly mode - check the consistency predicate for a pair of models

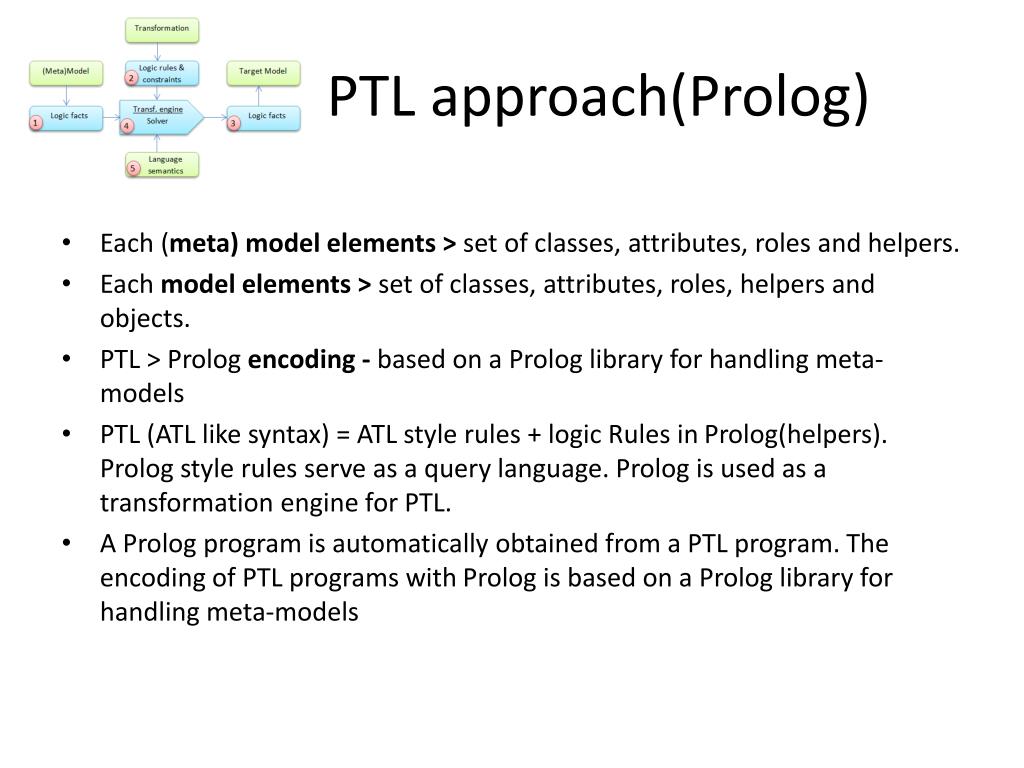

  7. PTL approach(Prolog) • Each (meta) model elements > set of classes, attributes, roles and helpers. • Each model elements > set of classes, attributes, roles, helpers and objects. • PTL > Prologencoding - based on a Prolog library for handling meta-models • PTL (ATL like syntax) = ATL style rules + logic Rules in Prolog(helpers). Prolog style rules serve as a query language. Prolog is used as a transformation engine for PTL. • A Prolog program is automatically obtained from a PTL program. The encoding of PTL programs with Prolog is based on a Prolog library for handling meta-models

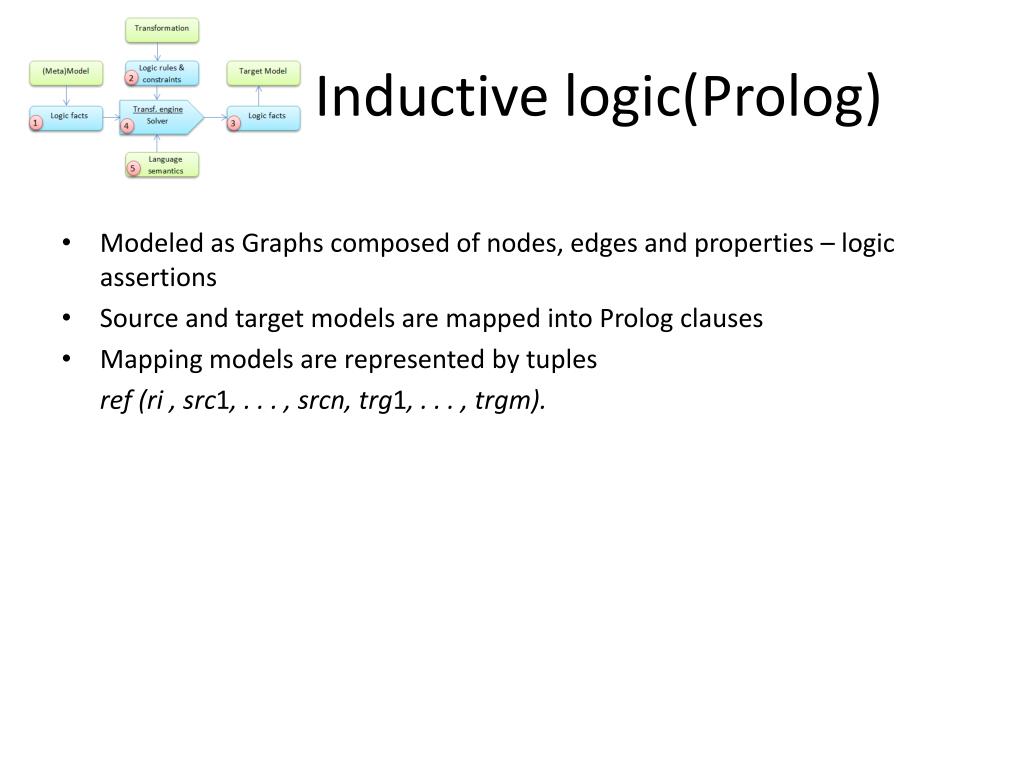

  8. Inductive logic(Prolog) • Modeled as Graphs composed of nodes, edges and properties – logic assertions • Source and target models are mapped into Prolog clauses • Mapping models are represented by tuples ref (ri , src1, . . . , srcn, trg1, . . . , trgm).

  9. Conclusions • Logic clause, fact, assertion = represents models and meta-models • Logic rule = used to encode model transformation and constraints on models • taking advantage of model finding(SAT-solver) abilities • Being solver-based, the main drawback is performance - incremental solving techniques- mechanisms to infer which parts of target model can be fixed in design time • Model & transformation > logic programming is manual, except in JTL approach
