1 / 68

Visual FoxPro 6.0 Seminar

Visual FoxPro 6.0 Seminar. Presented by Jim Booth Email: jbooth@jamesbooth.com In cooperation with Rainer Becker and the German FoxPro User’s Group (dFPUG). General Issues Related to Development. Understanding the costs Lowering the costs The Value of Conventions and Standards

oihane
Télécharger la présentation

Visual FoxPro 6.0 Seminar

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Visual FoxPro 6.0Seminar Presented by Jim Booth Email: jbooth@jamesbooth.com In cooperation with Rainer Becker and the German FoxPro User’s Group (dFPUG)

  2. General Issues Related to Development • Understanding the costs • Lowering the costs • The Value of Conventions and Standards • The Value of Object Oriented Design • The Development Cycle • Managing Risks

  3. Database Design • Characteristics of a “Relational Database Management System” • Normalization of Data Design

  4. Normalization

  5. Why bother with Normalization • Reduce the possibility of data inconsistencies • Reduce the space required for storing data • Reduce possible update and delete anomalies • Increase the stability of the data design

  6. First Normal Form Reduce entities to firstnormal form (1NF) by removing repeating or multi-valued attributes to another, child, entity.

  7. First Customer Pass Customers Customer # Company Name Address Contact 1 Contact 2 Phone 1 Phone 2

  8. Removing the Repeating Groups Contacts Customers Customer # Contact # Customer # Name Address Phone Code Company Name Address Contact 1 Contact 2 Phone 1 Phone 2 Phones Customer # Phone Code Area Code Phone Number

  9. 2nd Normal Form Reduce 1NF entities to secondnormal form (2NF) by removing attributes that are not dependent on thewholeprimary key.

  10. Invoice Line Item File Invoice Number Line Number Customer ID Product ID

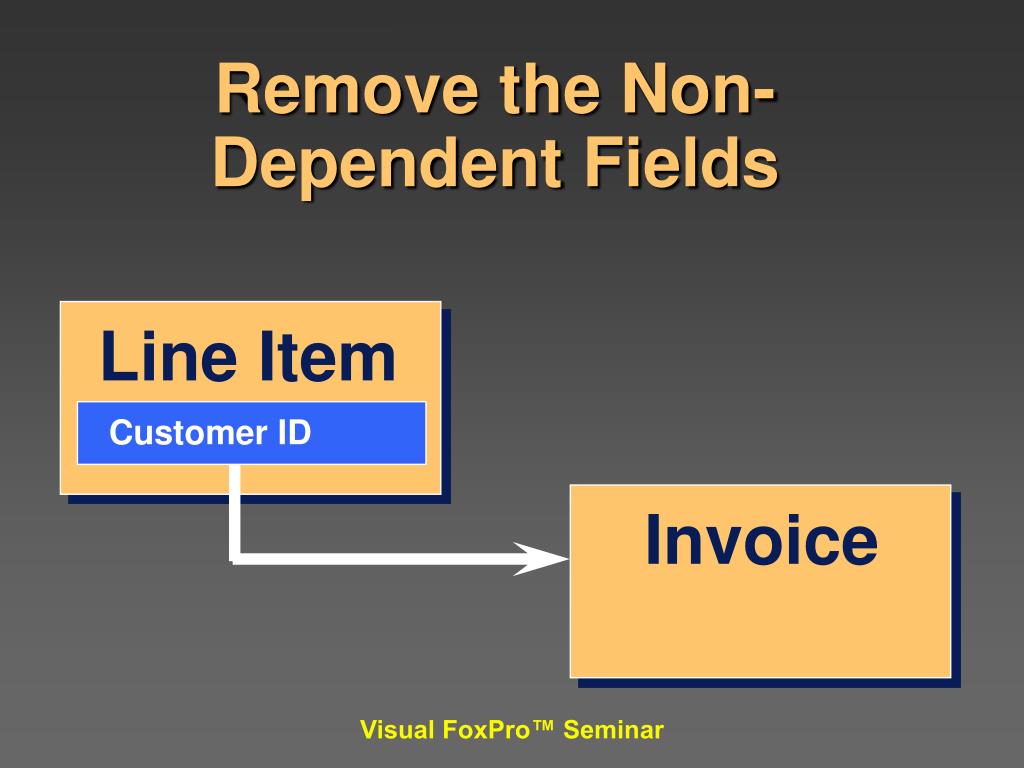

  11. Remove the Non-Dependent Fields Line Item Customer ID Invoice

  12. 3rd Normal Form Reduce 2NF entities to thirdnormal form (3NF) by removing attributes that depend on other, non-key attributes (other than alternate keys).

  13. Purchase Order Order Number Vendor ID Vendor City

  14. Remove Fields Depending on Non-key attributes Purchase Order Vendor City Vendor

  15. Boyce/Codd Normal Form Reduce 3NF entities to Boyce/Codd normal form (BCNF) by ensuring that they are in 3NF for any feasible choice of candidate key as primary key.

  16. EmpId Employee Number Clock Number An Employee Table

  17. EmpId Employee Number Clock Number An Employee Table

  18. EmpId Employee Number Clock Number An Employee Table

  19. Fourth Normal Form Reduce BCNF entities toFourthnormal form (4NF) by removing any independently multi-valued components of the primary key to two new parent entities.

  20. Employee - Skill - Objective Table Name Skill - Name Objective - Text Jones accounting more money Jones accounting prestige Jones public speaking more money Jones public speaking prestige

  21. Fourth Normal Form Employee - Skill Name Skill - Name Employee - Objective Name Objective - Text

  22. Fifth Normal Form Reduce 4NF entities to fifthnormal form (5NF) by removing pair-wise cyclic dependencies (appearing within composite primary keys with three or more component attributes) to three or more new parent entities.

  23. Retail Store Buyers Mary Jordache Jeans Mary Jordache Sneakers Sally Jordache Jeans Mary Liz Claiborne Blouses Sally Liz Claiborne Blouses Buying Suppose Liz Claiborne adds jeans to their list of products. We need to add two updates to our table because both Mary and Sally buy jeans and buy from Liz Claiborne. Buyer Vendor Product

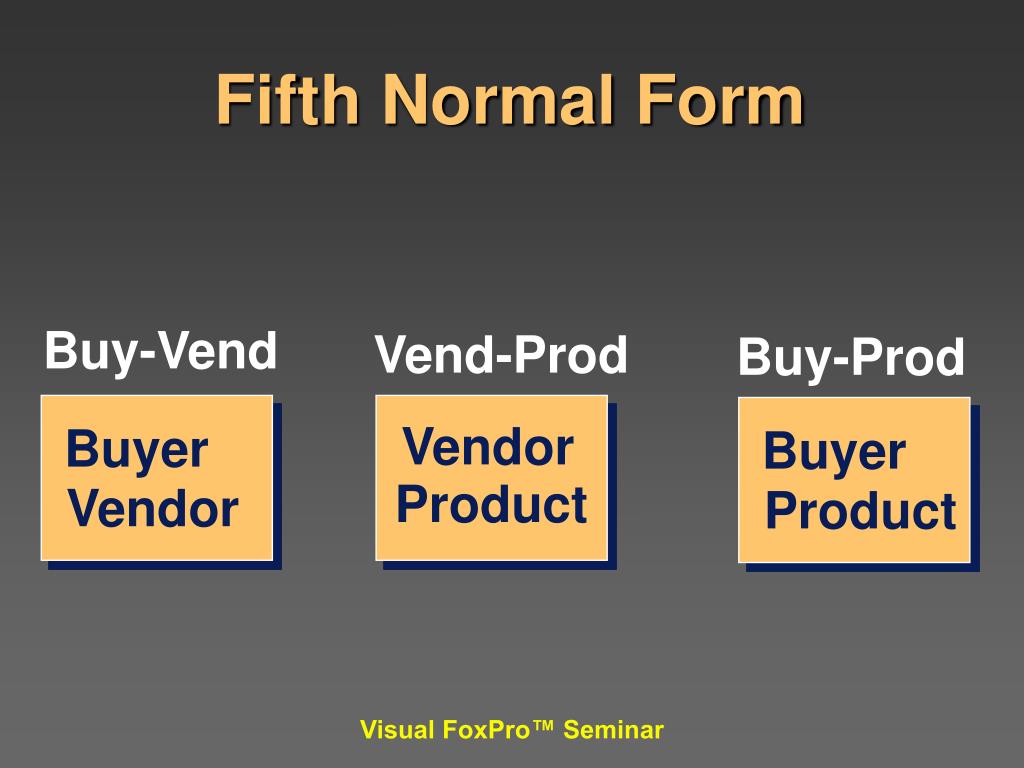

  24. Fifth Normal Form Buy-Vend Vend-Prod Buy-Prod Vendor Buyer Buyer Product Vendor Product

  25. Denormalization Normalized Name Postal Code Postal Code City Address Country Postal Code Denormalized Name Address City Country Postal Code

  26. Relational Database Selected Writings C. J. Date Addison-Wesley Publishing Company ISBN: 0-201-14196-5 Handbook of Relational Database Design Candace C. Fleming and Barbara von Halle Addison-WesleyPublishing Company ISBN: 0-201-11434-8 Want to read more?

  27. Visual FoxPro Database Container • Data dictionary • Relationships • Field level domains (Field Rule) • Table level domains (Table Rule) • Referential Integrity • Stored Procedures • DbGetProp() and DbSetProp()

  28. View Designer • Updateable • The Update Tab in the view designer • Joins • Inner • Outer • Left, Right, and Full • Top N

  29. Using SQL in the Visual FoxPro Language • Why use SQL at all? • The SQL Commands in Visual FoxPro • SELECT • UPDATE • DELETE • CREATE • INSERT INTO

  30. Designing User Interfaces

  31. The User Is In Control Principle 1

  32. Follow The Object-Action Paradigm Principle 2

  33. Be Consistent Principle 3

  34. Make ThingsSelf Evident Principle 4

  35. Pay Attention To Aesthetics Principle 5

  36. Give The User Feedback Principle 6

  37. Be Forgiving Principle 7

  38. Object Oriented Development

  39. OO Terminology • Class • Object • Abstraction • Polymorphism • Inheritance • Messaging • Containership

  40. Analysis and Design in an OO world • The Iterative Approach • Inception • Elaboration • Construction • Analysis, Design, Coding, Testing, Implementation, Training, Maintenance/Evolution • Transition

  41. Analysis and Design in an OO world There is a constant looping back in this OO development cycle. New requirements discovered during coding or implementation feed back into the design phase. New functional requirements discovered alter future iterations

  42. The Visual FoxPro Class Designer • Save As Class menu option • Adding properties and methods to a class • Specifying an Include file for a class • Creating subclasses • Adding controls to the form designer’s toolbar from your Classes

  43. The Application Framework • What is a framework? • The overview of the architecture of the framework • Strategies for maximizing maintainability

  44. The Framework In Detail • The Application Manager • The form class • The startup program • Building an application using the framework • The form • The Menu • Enhancing your framework

  45. Form and Class Design • Coding methods in a reusable way • Using THISFORM, THIS, and the Parent property • Using WITH/ENDWITH • Using collections to address the contents of a container

  46. Simple Base Classes Label, Textbox, EditBox, CheckBox, Option Button, Option Group Command Button, Command Group Spinner, Image, Line, Shape, Timer Container, and Separator

  47. Complex Base Classes ComboBox, ListBox, and Grids PageFrames Custom, Container, and Control Form, Formset, and Toolbar

  48. Using Builders • The Visual Foxpro Builders • Make it easier to setup the complex controls • Building your own builders • Builder.dbf and Builder.app • ASELOBJ() • Using the special Builder property of a class

  49. OLE Base Classes • OLEBoundControl • Bound to a General Field in a DBF file • OLEControl • Predefined contents at design time.

  50. ActiveX Automation • Structure of ActiveX • Direct Manipulation of an ActiveX server • Automation of an Object Inside of an OLEControl
