Rock Type

Rock Type . Modulus of Elasticity. - . (MPa x 1000). Limestone . 3-27. Dolomite . 7-15. Limestone (very hard) . 70. Sandstone . 10-20. Quartz-sandstone . 60-120. Greywacke . 10-14. Siltstone . 3-14. Gneiss - fine . 9-13. Gneiss - coarse . 13-23. Schist - Micaceous . 21.

oksana
Télécharger la présentation

Rock Type

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

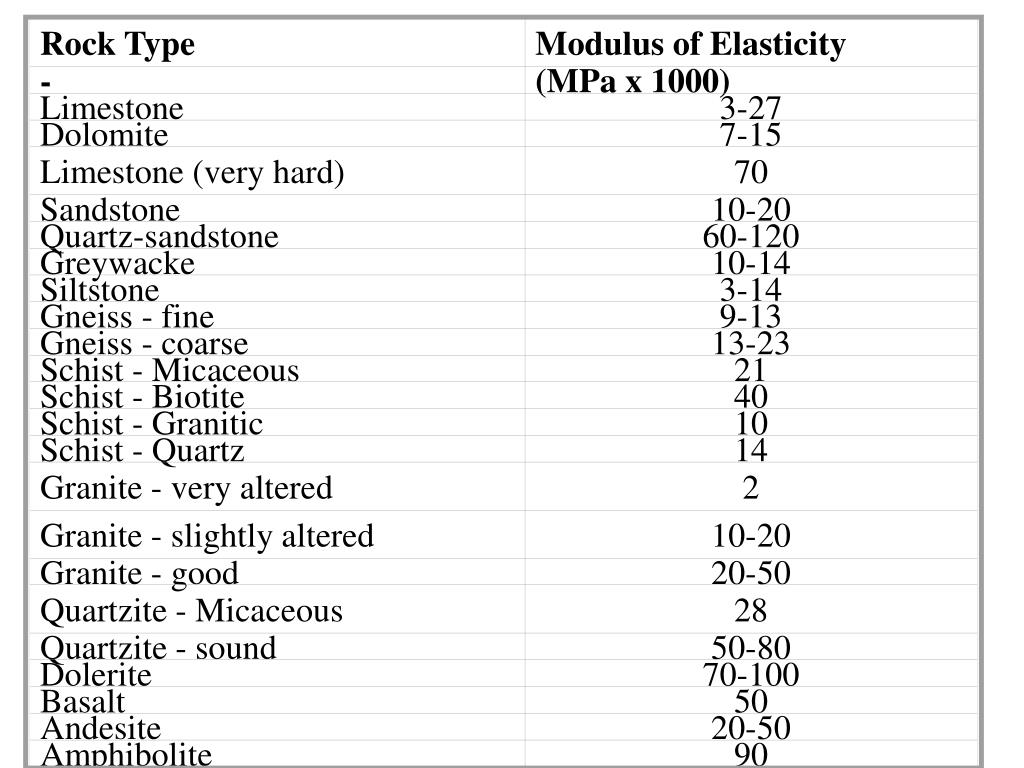

  1. Rock Type Modulus of Elasticity - (MPa x 1000) Limestone 3-27 Dolomite 7-15 Limestone (very hard) 70 Sandstone 10-20 Quartz-sandstone 60-120 Greywacke 10-14 Siltstone 3-14 Gneiss - fine 9-13 Gneiss - coarse 13-23 Schist - Micaceous 21 Schist - Biotite 40 Schist - Granitic 10 Schist - Quartz 14 Granite - very altered 2 Granite - slightly altered 10-20 Granite - good 20-50 Quartzite - Micaceous 28 Quartzite - sound 50-80 Dolerite 70-100 Basalt 50 Andesite 20-50 Amphibolite 90

  2. Table 1: Viscosity of Selected Fluids and Materials VISCOSITY VALUES Fluid/Material Temperature (C) Viscosity (Pa-s;Pascal-seconds =Newton-seconds/m2)* Air 20 1.8  10-5 Water 20 1.0  10-3 Honey 20 1.6 Flowing hot lava(Hawaiian volcano) ~ 1150 ~ 80 Glass ~ 20 ~ 1012 Ice 0 ~ 1012 Rock Salt 20 ~ 1014 Shallow mantle ~ 1000 ~ 1023-1024 Asthenosphere ~ 1300 ~ 1019-1020 Deep mantle > 1500 ~ 1021-1022 *Viscosity is often given in units of Poise; 10 Poise = 1 Pa-s.
