  1. Evaluating, Combining and Generalizing Recommendations with Prerequisites AdityaParameswaran Stanford University (with Profs. Hector Garcia-Molina and Jeffrey D. Ullman)

  2. Statistics (at Stanford): >10,000 registered users 37,000 listed courses 160,000 evaluations Overall 172 universities 100,000 users

  3. Course Recommendations • Instead of a traditional ranked list … • Recommend a good package satisfying • Prerequisites (e.g., algebra  calculus) • Requirements (e.g., > 3 math courses) • Planning constraints (e.g., no two in same slot) • Recent work on recommending packages • Yahoo! Travel Plans [De Choudhury et. al. WWW 10] Yahoo! Composite items [Roy et. al. SIGMOD 10] • Minimizing Cost [Xie et. al. RecSys 10] Prior Work

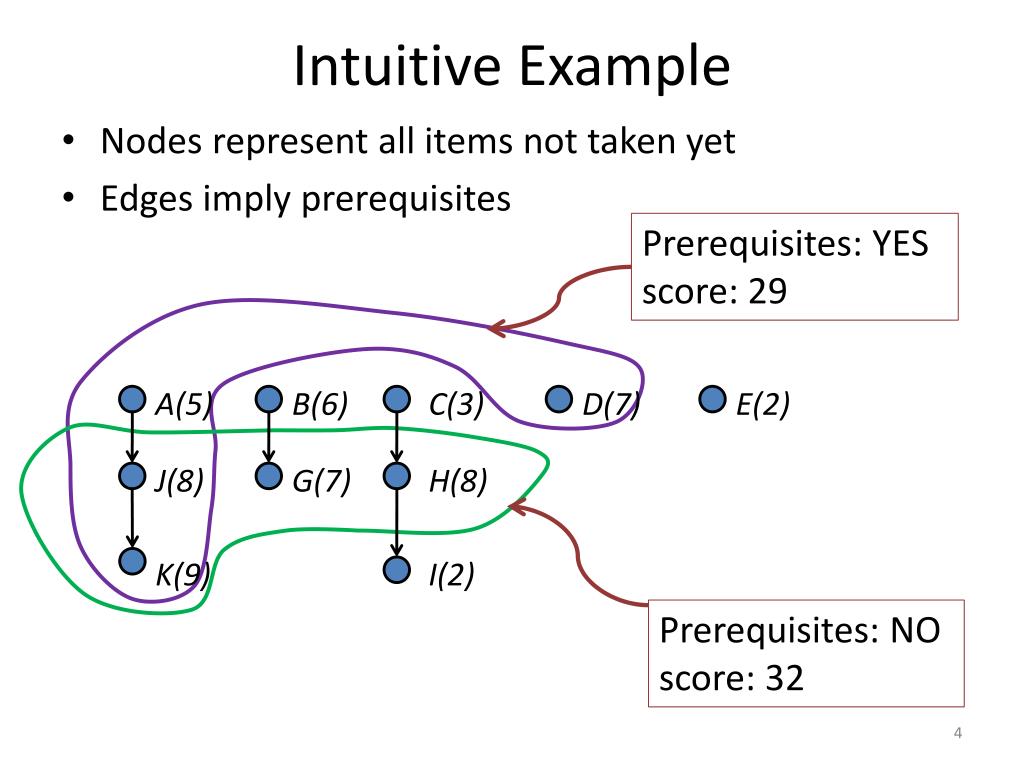

  4. Intuitive Example • Nodes represent all items not taken yet • Edges imply prerequisites Prerequisites: YES score: 29 A(5) B(6) E(2) C(3) D(7) J(8) G(7) H(8) K(9) I(2) Prerequisites: NO score: 32

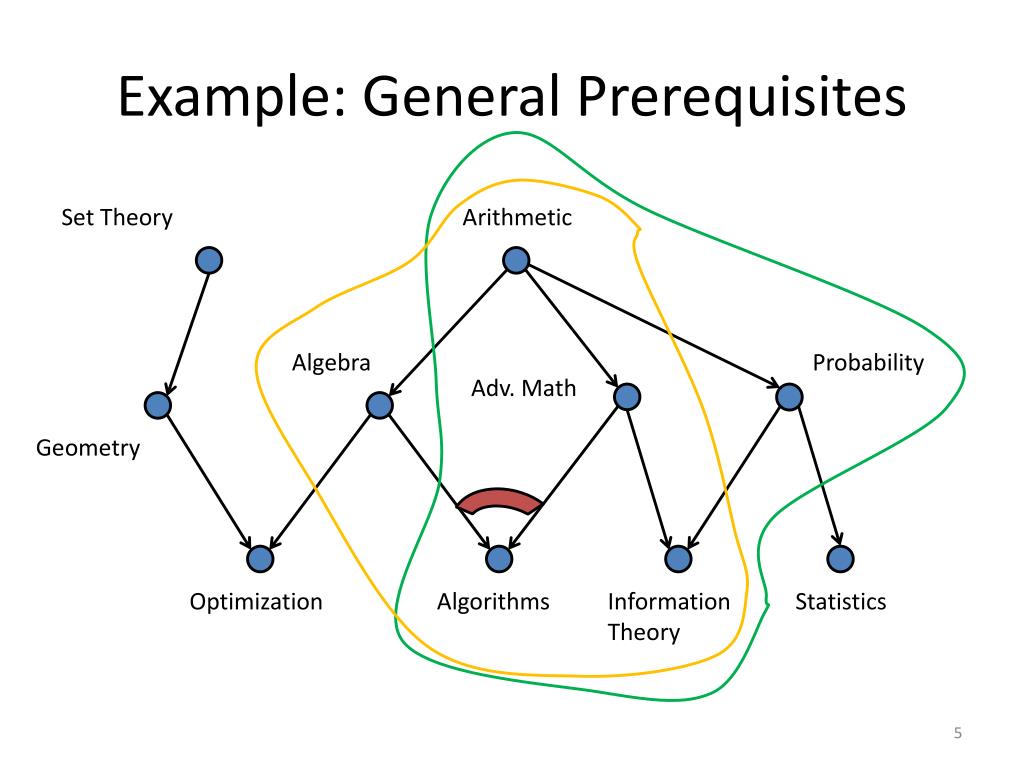

  5. Example: General Prerequisites Set Theory Arithmetic Algebra Probability Adv. Math Geometry Optimization Algorithms Information Theory Statistics

  6. Formal Problem • Directed acyclic graph G(V, E) • with some nodes Labeled AND or OR • Every node x has a score(x) • Recommend k = |A| courses such that • score(a) is maximized {a ϵ A} • Prerequisites of all nodes are met Chain Graphs AND Graphs OR Graphs AND-OR Graphs 6

  7. Outline of Work Chain Graphs • Complexity • Chain Graphs: PTIME DP • AND / OR / AND-OR: NP-Hard • Adaptable Approx Algorithms • Breadth First • Greedy • Top Down • Worst case per structure • Complexity: DP > Greedy > Top Down > BF • Merge Algorithm • Experiments • Extensions to Fuzzy Prerequisites AND Graphs OR Graphs AND-OR Graphs For Chain Graphs Sample

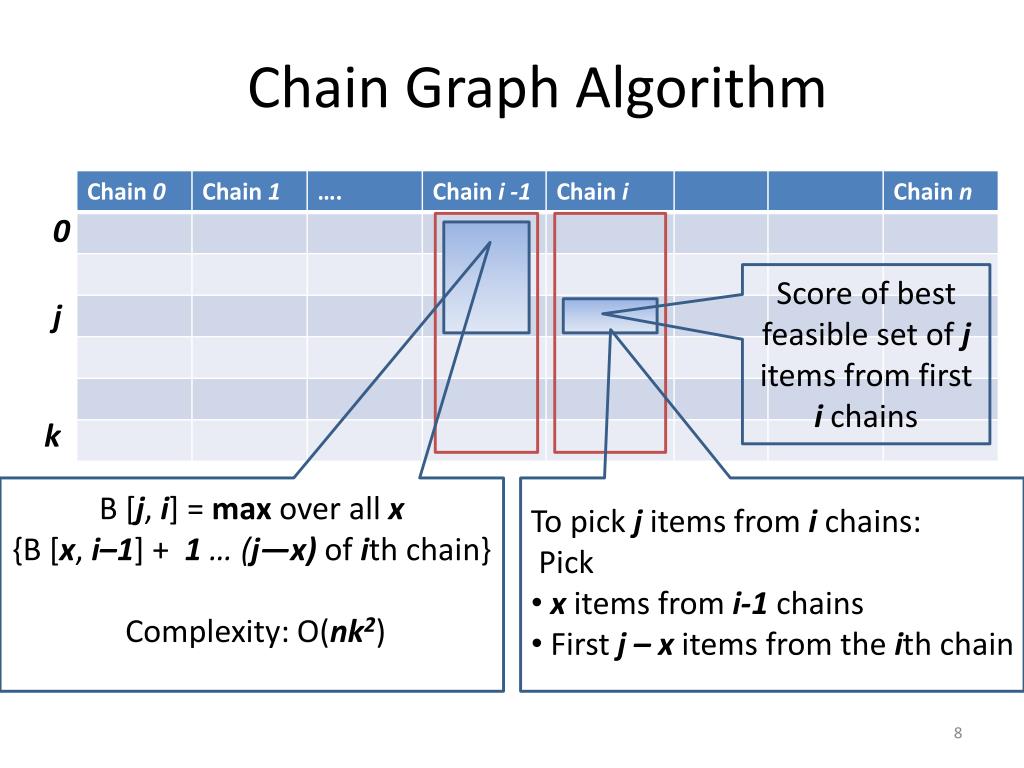

  8. Chain Graph Algorithm 0 Score of best feasible set of j items from first i chains j k B [j, i] = max over all x {B [x, i–1] + 1 … (j—x)of ith chain} Complexity: O(nk2) • To pick j items from i chains: • Pick • x items from i-1 chains • First j – x items from the ith chain

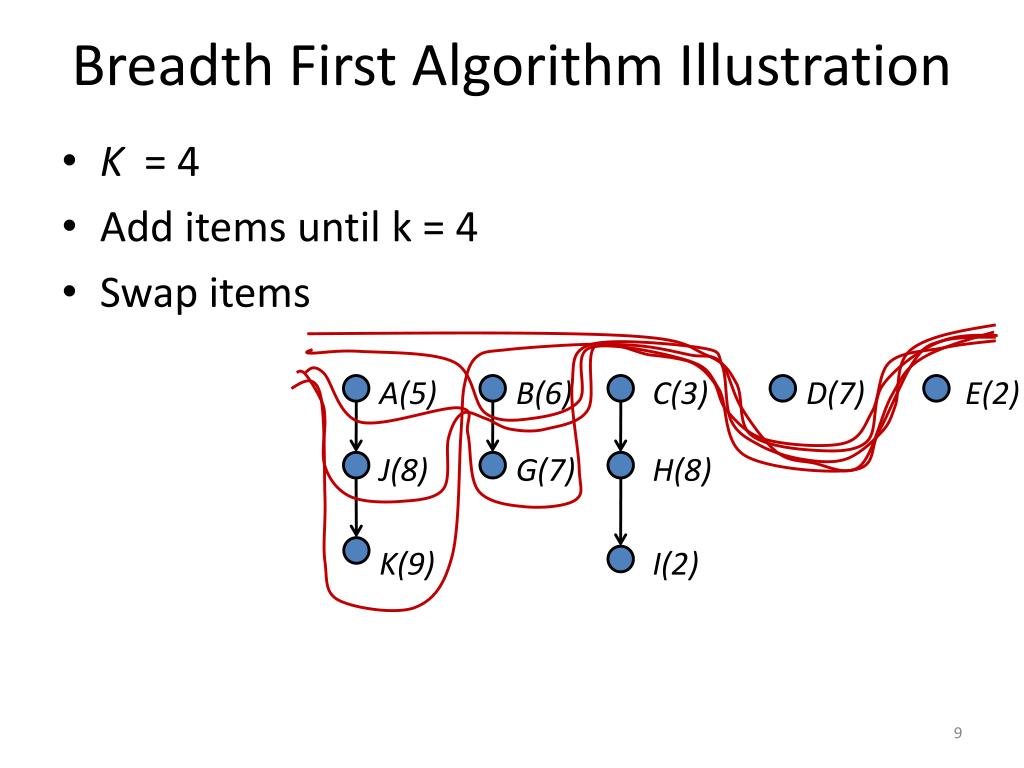

  9. Breadth First Algorithm Illustration • K = 4 • Add items until k = 4 • Swap items A(5) B(6) C(3) D(7) E(2) J(8) G(7) H(8) K(9) I(2)

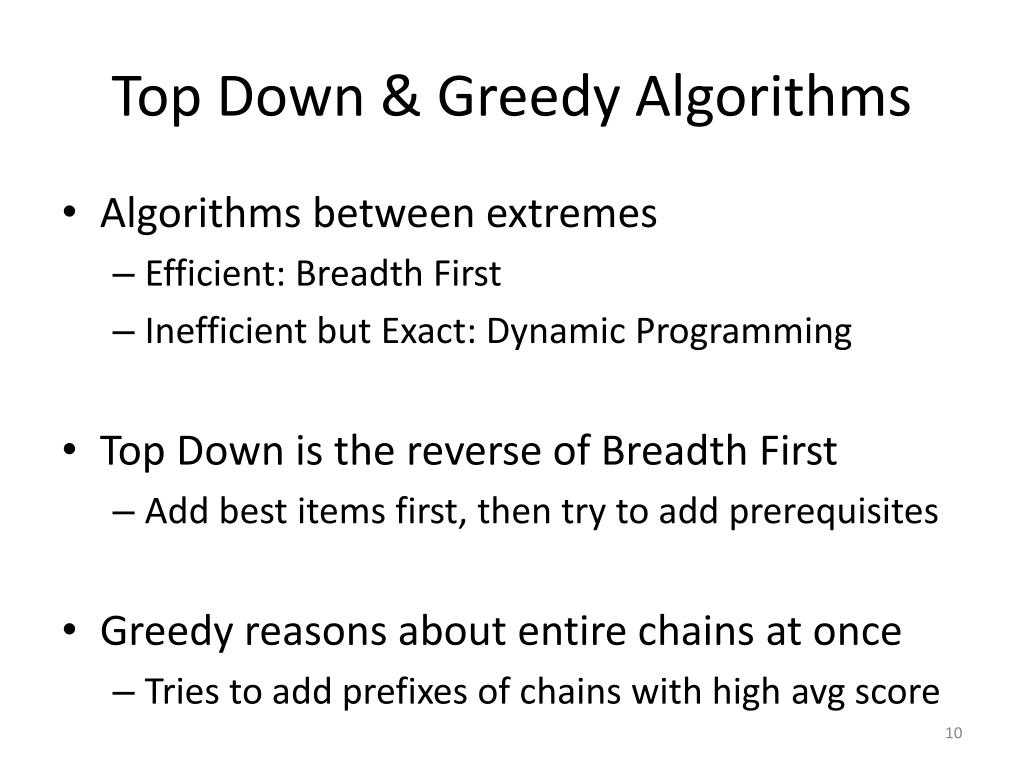

  10. Top Down & Greedy Algorithms • Algorithms between extremes • Efficient: Breadth First • Inefficient but Exact: Dynamic Programming • Top Down is the reverse of Breadth First • Add best items first, then try to add prerequisites • Greedy reasons about entire chains at once • Tries to add prefixes of chains with high avg score

  11. Outline of Work Chain Graphs • Complexity • Chain Graphs: PTIME DP • AND / OR / AND-OR: NP-Hard • Adaptable Approx Algorithms • Breadth First • Greedy • Top Down • Worst case per structure • Complexity: DP > Greedy > Top Down > BF • Merge Algorithm • Experiments • Extensions to Fuzzy Prerequisites AND Graphs OR Graphs AND-OR Graphs For Chain Graphs Sample

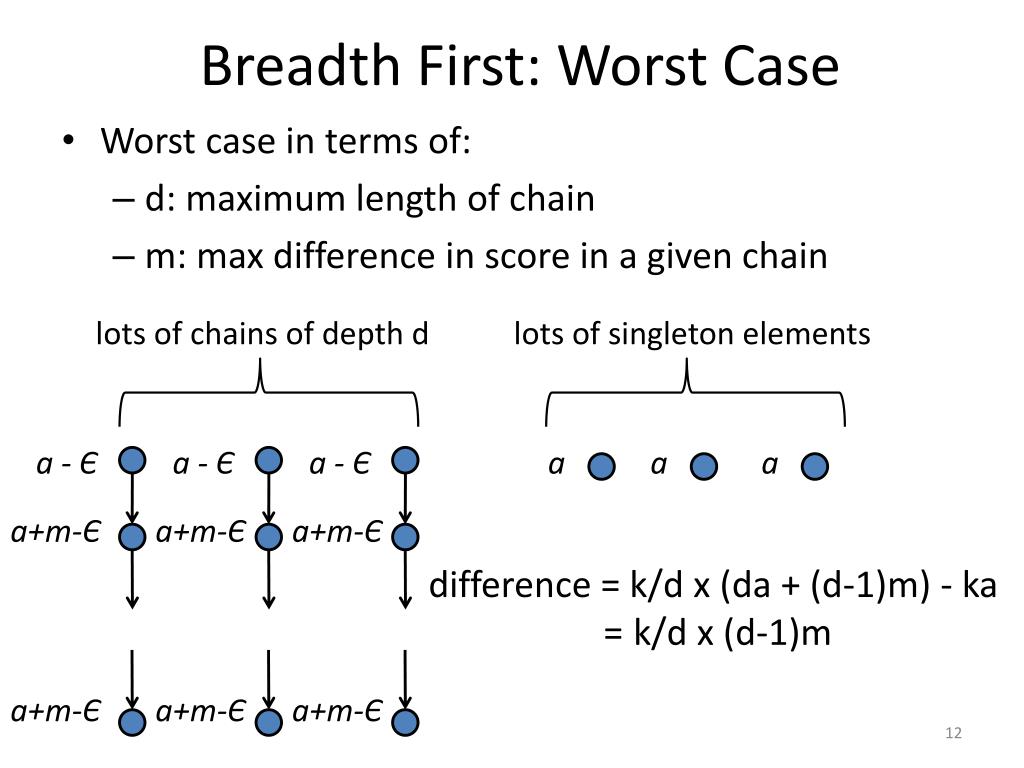

  12. Breadth First: Worst Case • Worst case in terms of: • d: maximum length of chain • m: max difference in score in a given chain lots of chains of depth d lots of singleton elements a - Є a - Є a - Є a a a a+m-Є a+m-Є a+m-Є difference = k/d x (da + (d-1)m) - ka = k/d x (d-1)m a+m-Є a+m-Є a+m-Є

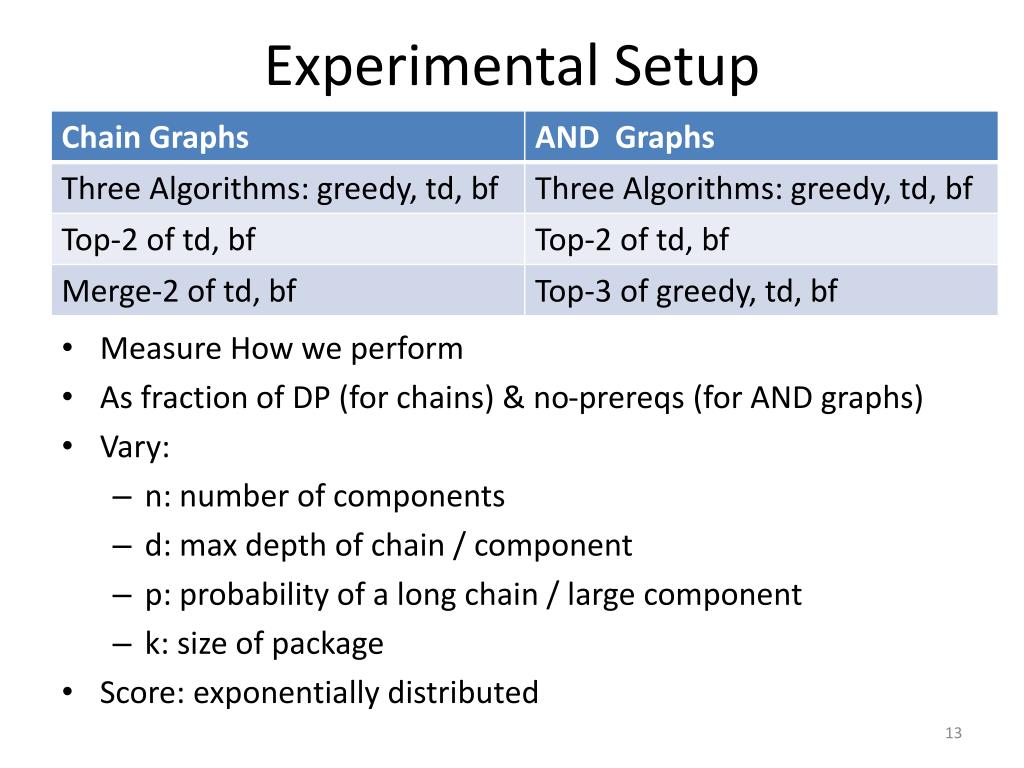

  13. Experimental Setup • Measure How we perform • As fraction of DP (for chains) & no-prereqs (for AND graphs) • Vary: • n: number of components • d: max depth of chain / component • p: probability of a long chain / large component • k: size of package • Score: exponentially distributed

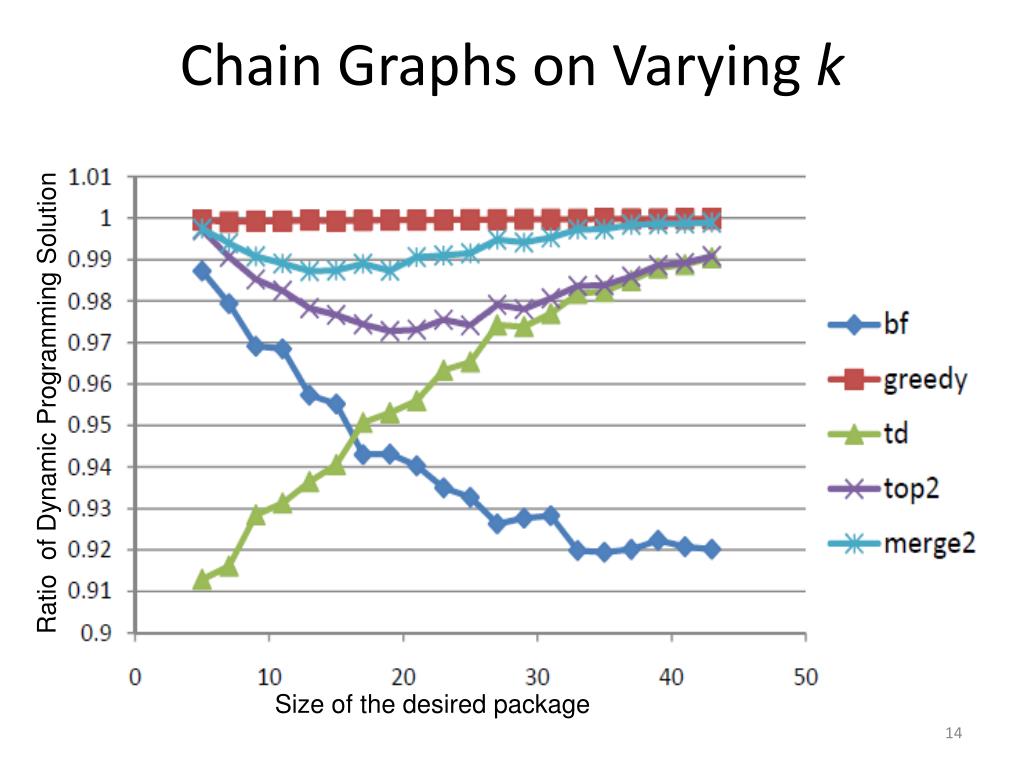

  14. Chain Graphs on Varying k Ratio of Dynamic Programming Solution Size of the desired package

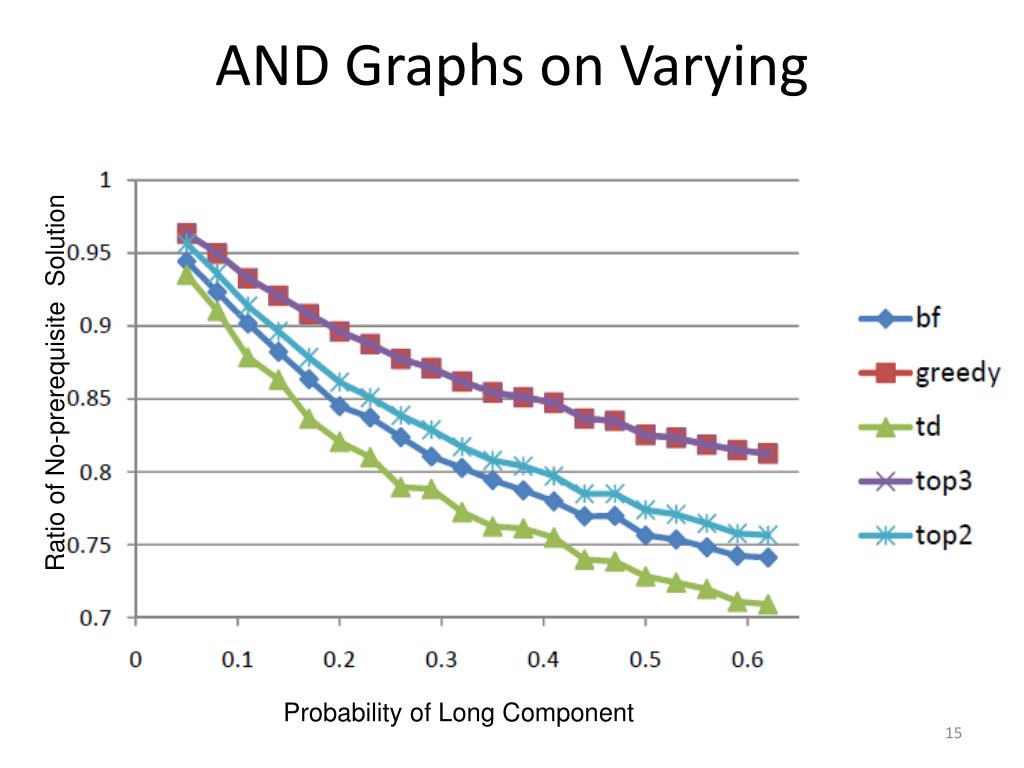

  15. AND Graphs on Varying Ratio of No-prerequisite Solution Probability of Long Component

  16. Conclusions • Dynamic Programming Algorithm • Only for Chain Graphs • Guaranteed best recommendations • Greedy Value Algorithm • Adaptable to any structure • Almost as good recommendations as DP • With less complexity • Top Down and Breadth First • Even better complexity • Not as good recommendations as Greedy • Can be improved using Merge algorithm

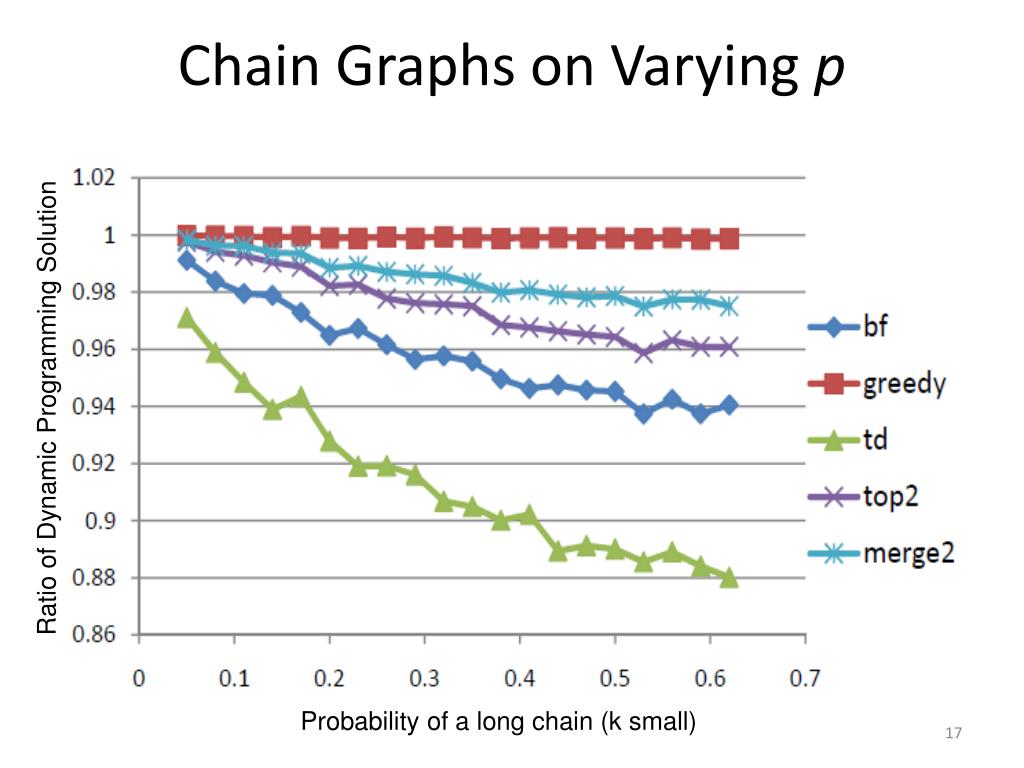

  17. Chain Graphs on Varying p Ratio of Dynamic Programming Solution Probability of a long chain (k small)
