  1. Reverse Engineering Building a model of an existing part.

  2. Concept • Obtain the 3D coordinates of points on the object. • Create a mesh from the point data. • Create surface patches.

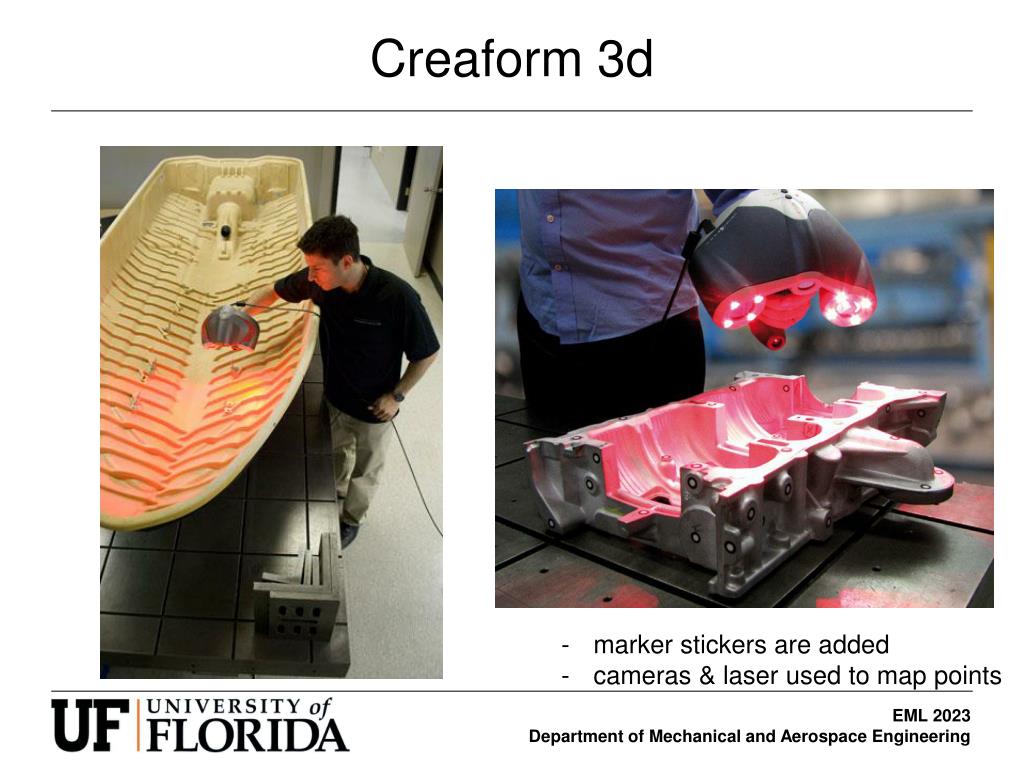

  3. Creaform 3d • marker stickers are added • cameras & laser used to map points

  4. Creaform 3d

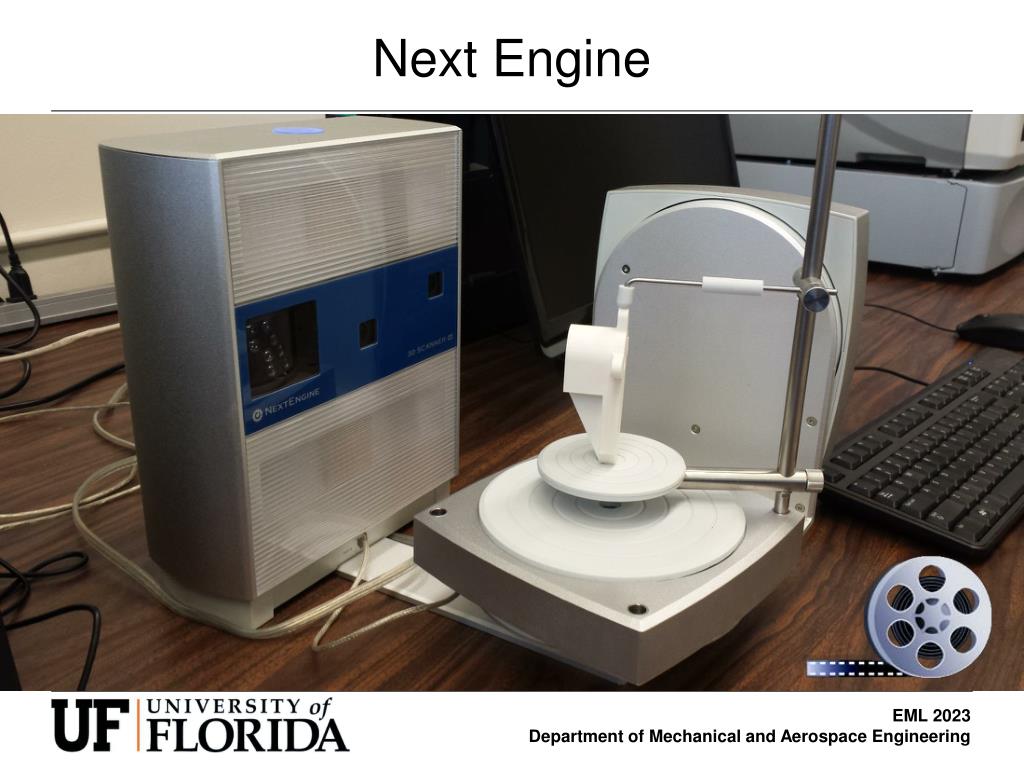

  5. Next Engine

  6. Next Engine

  7. 10 Images Fused

  8. Regenerated

  9. Imported into Rapid Works

  10. Auto Surface

  11. Imported into SolidWorks
