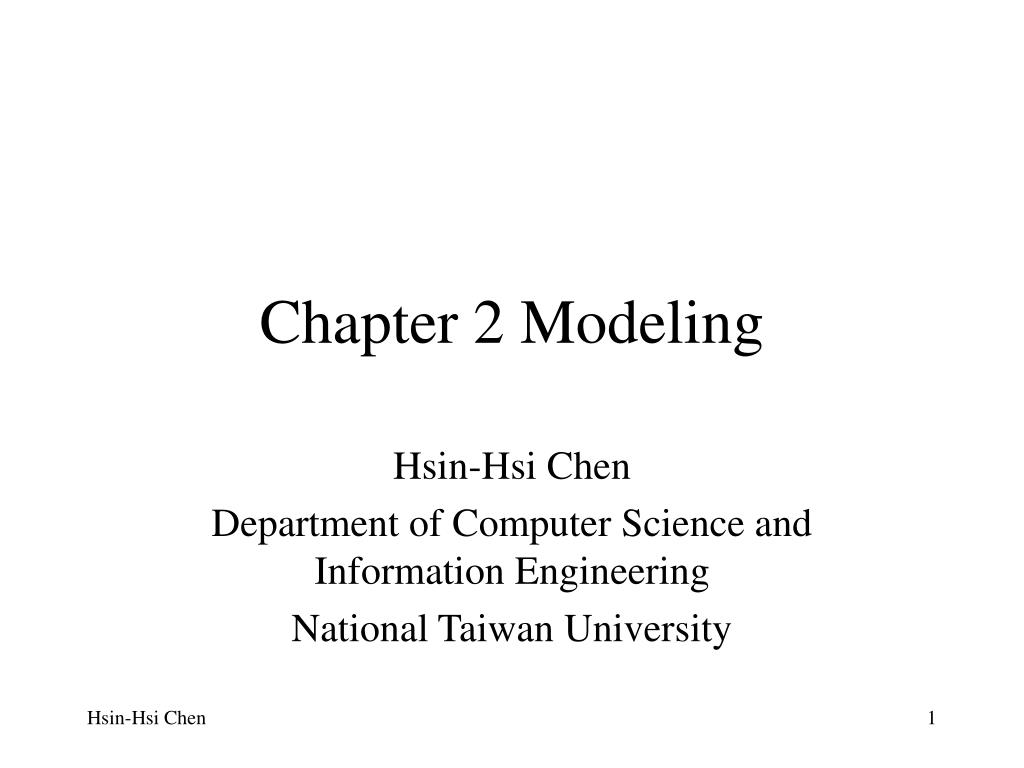

  1. Chapter 2 Modeling Hsin-Hsi Chen Department of Computer Science and Information Engineering National Taiwan University

  2. Indexing

  3. Indexing • indexing: assignidentifiers to text items. • assign: manual vs. automatic indexing • identifiers: • objective vs. nonobjective text identifiers cataloging rules define, e.g., author names, publisher names, dates of publications, … • controlled vs. uncontrolled vocabulariesinstruction manuals, terminological schedules, … • single-term vs. term phrase

  4. Two Issues • Issue 1: indexing exhaustivity • exhaustive: assign a large number of terms • nonexhaustive • Issue 2: term specificity • broad terms (generic)cannot distinguish relevant from nonrelevant items • narrow terms (specific)retrieve relatively fewer items, but most of them are relevant

  5. Parameters of retrieval effectiveness • Recall • Precision • Goal high recall and high precision

  6. Retrieved Part b a Nonrelevant Items Relevant Items d c

  7. A Joint Measure • F-score •  is a parameter that encode the importance of recall and procedure. • =1: equal weight • >1: precision is more important • <1: recall is more important

  8. Choices of Recall and Precision • Both recall and precision vary from 0 to 1. • In principle, the average user wants to achieve both high recall and high precision. • In practice, a compromise must be reached because simultaneously optimizing recall and precision is not normally achievable.

  9. Choices of Recall and Precision (Continued) • Particular choices of indexing and search policies have produced variations in performance ranging from 0.8 precision and 0.2 recall to 0.1 precision and 0.8 recall. • In many circumstance, both the recall and the precision varying between 0.5 and 0.6 are more satisfactory for the average users.

  10. Term-Frequency Consideration • Function words • for example, "and", "or", "of", "but", … • the frequencies of these words are high in all texts • Content words • words that actually relate to document content • varying frequencies in the different texts of a collect • indicate term importance for content

  11. A Frequency-Based Indexing Method • Eliminate common function words from the document texts by consulting a special dictionary, or stop list, containing a list of high frequency function words. • Compute the term frequencytfij for all remaining terms Tj in each document Di, specifying the number of occurrences of Tj in Di. • Choose a threshold frequencyT, and assign to each document Di all term Tj for which tfij > T.

  12. Discussions • high-frequency termsfavor recall • high precisionthe ability to distinguish individual documents from each other • high-frequency termsgood for precision when its term frequency is not equally high in all documents.

  13. Inverse Document Frequency • Inverse Document Frequency (IDF) for term Tjwhere dfj (document frequency of term Tj) is number of documents in which Tj occurs. • fulfil both the recall and the precision • occur frequently in individual documents but rarely in the remainder of the collection

  14. New Term Importance Indicator • weight wij of a term Tj in a document ti • Eliminating common function words • Computing the value of wij for each term Tj in each document Di • Assigning to the documents of a collection all terms with sufficiently high (tfxidf) factors

  15. Term-discrimination Value • Useful index termsdistinguish the documents of a collection from each other • Document Space • two documents are assigned very similar term sets, when the corresponding points in document configuration appear close together • when a high-frequency term without discrimination is assigned, it will increase the document space density

  16. A Virtual Document Space After Assignment of good discriminator After Assignment of poor discriminator Original State

  17. Good Term Assignment • When a term is assigned to the documents of a collection, the few items to which the term is assigned will be distinguished from the rest of the collection. • This should increase the average distance between the items in the collection and hence produce a document space less dense than before.

  18. Poor Term Assignment • A high frequency term is assigned that does not discriminate between the items of a collection. • Its assignment will render the document more similar. • This is reflected in an increase in document space density.

  19. Term Discrimination Value • definitiondvj = Q - Qjwhere Q and Qj are space densities before and after the assignments of term Tj. • dvj>0, Tj is a good term; dvj<0, Tj is a poor term.

  20. Variations of Term-Discrimination Value with Document Frequency Phrase transformation Thesaurus transformation Document Frequency N Low frequency dvj=0 Medium frequency dvj>0 High frequency dvj<0

  21. Another Term Weighting • wij = tfijx dvj • compared with • : decrease steadily with increasing document frequency • dvj: increase from zero to positive as the document frequency of the term increase, decrease shapely as the document frequency becomes still larger.

  22. Term Relationships in Indexing • Single-term indexing • Single terms are often ambiguous. • Many single terms are either too specific or too broad to be useful. • Complex text identifiers • subject experts and trained indexers • linguistic analysis algorithms, e.g., NP chunker • term-grouping or term clustering methods

  23. Term Classification (Clustering)

  24. Term Classification (Clustering) • Column partGroup terms whose corresponding column representation reveal similar assignments to the documents of the collection. • Row partGroup documents that exhibit sufficiently similar term assignment.

  25. Linguistic Methodologies • Indexing phrases:nominal constructions including adjectives and nouns • Assign syntactic class indicators (i.e., part of speech) to the words occurring in document texts. • Construct word phrases from sequences of words exhibiting certain allowed syntactic markers (noun-noun and adjective-noun sequences).

  26. Term-Phrase Formation • Term Phrasea sequence of related text words carry a more specific meaning than the single termse.g., “computer science” vs. computer; Phrase transformation Thesaurus transformation Document Frequency N Low frequency dvj=0 Medium frequency dvj>0 High frequency dvj<0

  27. Simple Phrase-Formation Process • the principal phrase component (phrase head)a term with a document frequency exceeding a stated threshold, or exhibiting a negative discriminator value • the other components of the phrasemedium- or low- frequency terms with stated co-occurrence relationships with the phrase head • common function wordsnot used in the phrase-formation process

  28. An Example • Effective retrieval systems are essential for people in need of information. • “are”, “for”, “in” and “of”:common function words • “system”, “people”, and “information”:phrase heads

  29. The Formatted Term-Phrases effective retrieval systems essential people need information 2/5 5/12 *: phrases assumed to be useful for content identification

  30. The Problems • A phrase-formation process controlled only by word co-occurrences and the document frequencies of certain words in not likely to generate a large number of high-quality phrases. • Additional syntactic criteria for phrase heads and phrase components may provide further control in phrase formation.

  31. Additional Term-Phrase Formation Steps • Syntactic class indicator are assigned to the terms, and phrase formation is limited to sequences of specified syntactic markers, such as adjective-noun and noun-noun sequences.Adverb-adjective adverb-noun  • The phrase elements are all chosen from within the same syntactic unit, such as subject phrase, object phrase, and verb phrase.

  32. Consider Syntactic Unit • effective retrieval systemsare essential for people in the need of information • subject phrase • effective retrieval systems • verb phrase • are essential • object phrase • people in need of information

  33. Phrases within Syntactic Components [subjeffective retrieval systems][vp are essential] for [obj people need information] • Adjacent phrase heads and components within syntactic components • retrieval systems* • people need • need information* • Phrase heads and components co-occur within syntactic components • effective systems 2/3

  34. Problems • More stringent phrase formation criteria produce fewer phrases, both good and bad, than less stringent methodologies. • Prepositional phrase attachment, e.g., The man saw the girl with the telescope. • Anaphora resolutionHe dropped the plate on his foot and broke it.

  35. Problems (Continued) • Any phrase matching system must be able to deal with the problems of • synonym recognition • differing word orders • intervening extraneous word • Example • retrieval of information vs. information retrieval

  36. Equivalent Phrase Formulation • Base form: text analysis system • Variants: • system analyzes the text • text is analyzed by the system • system carries out text analysis • text is subjected to system analysis • Related term substitution • text: documents, information items • analysis: processing, transformation, manipulation • system: program, process

  37. Thesaurus-Group Generation • Thesaurus transformation • broadens index terms whose scope is too narrow to be useful in retrieval • a thesaurus must assemble groups of related specific terms under more general, higher-level class indicators Phrase transformation Thesaurus transformation Document Frequency N Low frequency dvj=0 Medium frequency dvj>0 High frequency dvj<0

  38. Sample Classes of Roget’s Thesaurus

  39. The Indexing Prescription (1) • Identify the individual words in the document collection. • Use a stop list to delete from the texts the function words. • Use an suffix-stripping routine to reduce each remaining word to word-stem form. • For each remaining word stem Tj in document Di, compute wij. • Represent each document Di byDi=(T1, wi1; T2, wi2; …, Tt, wit)

  40. Word Stemming • effectiveness --> effective --> effect • picnicking --> picnic • king -\-> k

  41. Some Morphological Rules • Restore a silent e after suffix removal from certain words to produce “hope” from “hoping” rather than “hop” • Delete certain doubled consonants after suffix removal, so as to generate “hop” from “hopping” rather than “hopp”. • Use a final y for an I in forms such as “easier”, so as to generate “easy” instead of “easi”.

  42. The Indexing Prescription (2) • Identify individual text words. • Use stop list to delete common function words. • Use automatic suffix stripping to produce word stems. • Compute term-discrimination value for all word stems. • Use thesaurus class replacement for all low-frequency terms with discrimination values near zero. • Use phrase-formation process for all high-frequency terms with negative discrimination values. • Compute weighting factors for complex indexing units. • Assign to each document single term weights, term phrases, and thesaurus classes with weights.

  43. Query vs. Document • Differences • Query texts are short. • Fewer terms are assigned to queries. • The occurrence of query terms rarely exceeds 1. Q=(wq1, wq2, …, wqt) where wqj: inverse document frequency Di=(di1, di2, …, dit) where dij: term frequency*inverse document frequency

  44. Query vs. Document • When non-normalized documents are used, the longer documents with more assigned terms have a greater chance of matching particular query terms than do the shorter document vectors. or

  45. Relevance Feedback • Terms present in previously retrieved documents that have been identified as relevant to the user’s query are added to the original formulations. • The weights of the original query terms are altered by replacing the inverse document frequency portion of the weights with term-relevance weights obtained by using the occurrence characteristics of the terms in the previous retrieved relevant and nonrelevant documents of the collection.

  46. Relevance Feedback • Q = (wq1, wq2, ..., wqt) • Di = (di1, di2, ..., dit) • New query may be the following formQ’ = a{wq1, wq2, ..., wqt}+b{w’qt+1, w’qt+2, ..., w’qt+m} • The weights of the newly added terms Tt+1 to Tt+m may consist of a combined term-frequency and term-relevance weight.

  47. Final Indexing • Identify individual text words. • Use a stop list to delete common words. • Use suffix stripping to produce word stems. • Replace low-frequency terms with thesaurus classes. • Replace high-frequency terms with phrases. • Compute term weights for all single terms, phrases, and thesaurus classes. • Compare query statements with document vectors. • Identify some retrieved documents as relevant and some as nonrelevant to the query.

  48. Final Indexing • Compute term-relevance factors based on available relevance assessments. • Construct new queries with added terms from relevant documents and term weights based on combined frequency and term-relevance weight. • Return to step (7).Compare query statements with document vectors ……..

  49. Summary of expected effectiveness of automatic indexing • Basic single-term automatic indexing - • Use of thesaurus to group related terms in the given topic area +10% to +20% • Use of automatically derived term associations obtained from joint term assignments found in sample document collections 0% to -10% • Use of automatically derived term phrases obtained by using co-occurring terms found in the texts of sample collections +5% to +10% • Use of one iteration of relevant feedback to add new query terms extracted from previously retrieved relevant documents +30% to +60%

  50. Models
