1. Home Automation & Security Update Xiao Luo Software Architecture Consultant Siemens Ltd. China

2. PC Phone A/V Home Automation & SecurityThe Vision User friendly control of all Home Controls and Appliances via existing interfaces of Home Entertainment and Information technology components.

3. Home Automation & SecurityExecutive Summary The Home Automation & Security working committee has defined DCPs for these application areas. • HVAC UPnP DCP Standard • Lighting UPnP DCP Standard • Digital (Security) Camera 45-day review done • Blinds / Shutter / Motor Control Sample implementations • Power System Sample implementations • Security System Sample implementations

4. HVAC • Approved as standard DCP • Complete set of standards for heating system: • Temperature sensors • Temperature setpoints • Valve & fan control • Operation modes • Schedule setup Device(s) HVAC_System HVAC_ZoneThermostat Service(s) HVAC_UserOperatingMode HVAC_FanOperatingMode FanSpeed TemperatureSensor HVAC_SetpointSchedule ControlValve TemperatureSetpoint

5. Lighting • Approved as standard DCP • Binary Light • Simple switch (on/off) • Dimmable Light • Switch and • Dimming (value, up/down, rampTo,...) Device(s) BinaryLight DimmableLight Service(s) SwitchPower Dimming

6. Digital (Security) Camera Next steps: • SC approval, then approved as standard • Settings • Saturation, Brightness, WhiteBlance, Rotation • Still Image • GetURL and specify encodings, compression, resolution • Motion Image • Still Image + framerate and bandwidth settings Device(s) DigitalSecurityCamera Service(s) DigitalSecurityCameraSettings DigitalSecurityCameraStillImage DigitalSecurityCameraMotionImage

7. Shutter / Blind / Motor Control • Template design complete • Two-Way-Motion-Motor • TurnCW, TurnCCW • Aliases: Open, Close, Up, Down, Left, Right • Get/SetPosition, Stop, Lock • Looking now for Sample Implementers! Device(s) SolarProtectionBlind Service(s) TwoWayMotionMotor

8. Power System • Template design complete • Sample implementation was pending becauseUPnP Security services are required for Power System devices and services (e.g. PowerMeter). • Looking now for Sample Implementers! Device(s) PowerSystem PowerSource PowerSink PowerConverter PowerStorage UPS Device Service(s) PowerMeter ProgrammableTimer GenericPowerStorage GenericPowerConverter BasicPowerSummary PredictivePowerSummary PowerFlow PowerSocket Battery Charger

9. Security and Access Control System • Template design complete • Sample implementation was pending becauseUPnP Security services are required. • Looking now for sample implementers! Device(s) SecurityAccessControl Service(s) Relay EventLog Display Partition BooleanSensor PINPad Reader

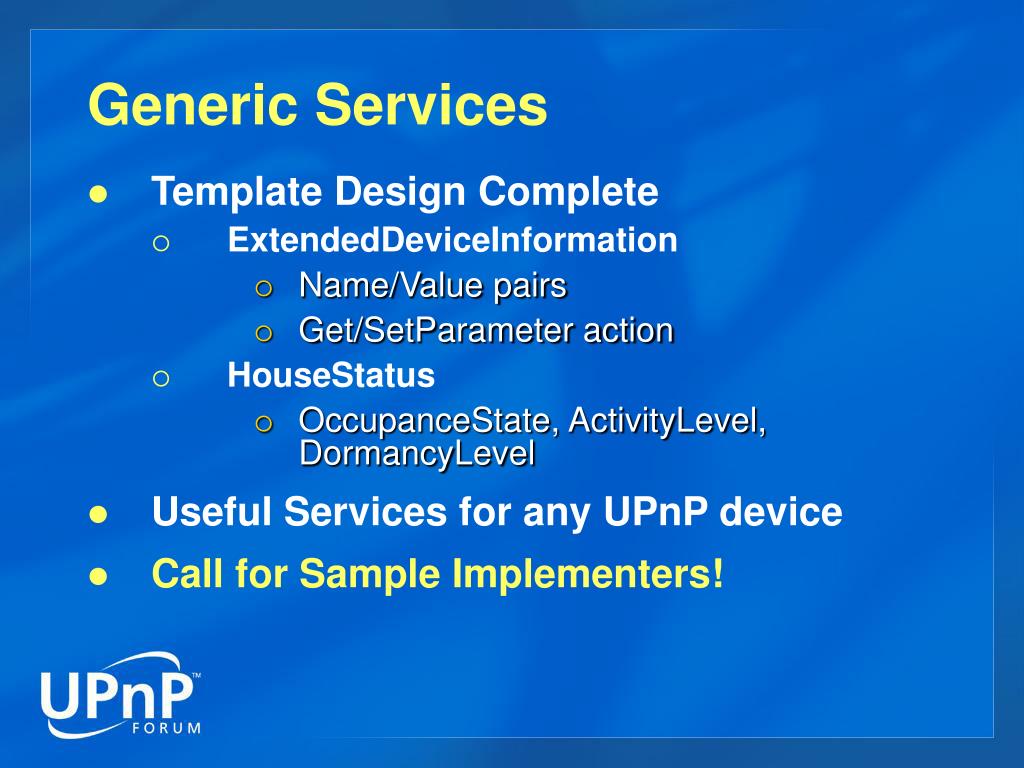

10. Generic Services • Template Design Complete • ExtendedDeviceInformation • Name/Value pairs • Get/SetParameter action • HouseStatus • OccupanceState, ActivityLevel, DormancyLevel • Useful Services for any UPnP device • Call for Sample Implementers!

11. Next steps • Digital (Security) Camera • SC vote • Blinds, Motor Control / Security System / Power System • Follow standardization process (sample implementations, test tool pass, 45-day review, SC vote)
