  1. Revealing Module Pattern

  2. But First… the Module Pattern • Established in 2003 by Richard Cornford • Made popular by Douglas Crockford • Based on IIFEs (Immediate Invoking Function Expression)aka Self Executing Anonymous Function varsomeModule = (function() { … })(); Function Expression Immediate Invoking

  3. The Build-Up function foo() { // Function Declaration … } varfoo = function() { // Function Expression (classy) … } varfoo = function() { // IIFE … }(); varfoo =(function() { // IIFE also … })();

  4. IIFEs are not Closures var person = (function() { })(); // Immediately Invoked varfoo = function(x) { var y = 0; var bar = function bar() { return x; } return bar; // Closure };

  5. IIFEs are not Closures var person = (function() { })(); // Immediately Invoked varfoo = function(x) { var y = 0; var bar = function bar() { return x; } return bar; // Closure }; varsomething = foo(5); // something is a reference to the bar() function

  6. IIFEs are not Closures var person = (function() { })(); // Immediately Invoked varfoo = function(x) { var y = 0; var bar = function bar() { return x; } return bar; // Closure }; varsomething = foo(5); // something is a reference to the bar() function alert(something()); // Alerts 5. This is because bar() is still “alive” within foo and remembers what foo’s X is

  7. varsomeModule = (function() { })(); So, back to the Module Pattern

  8. varsomeModule = (function() { var x = 5; })();

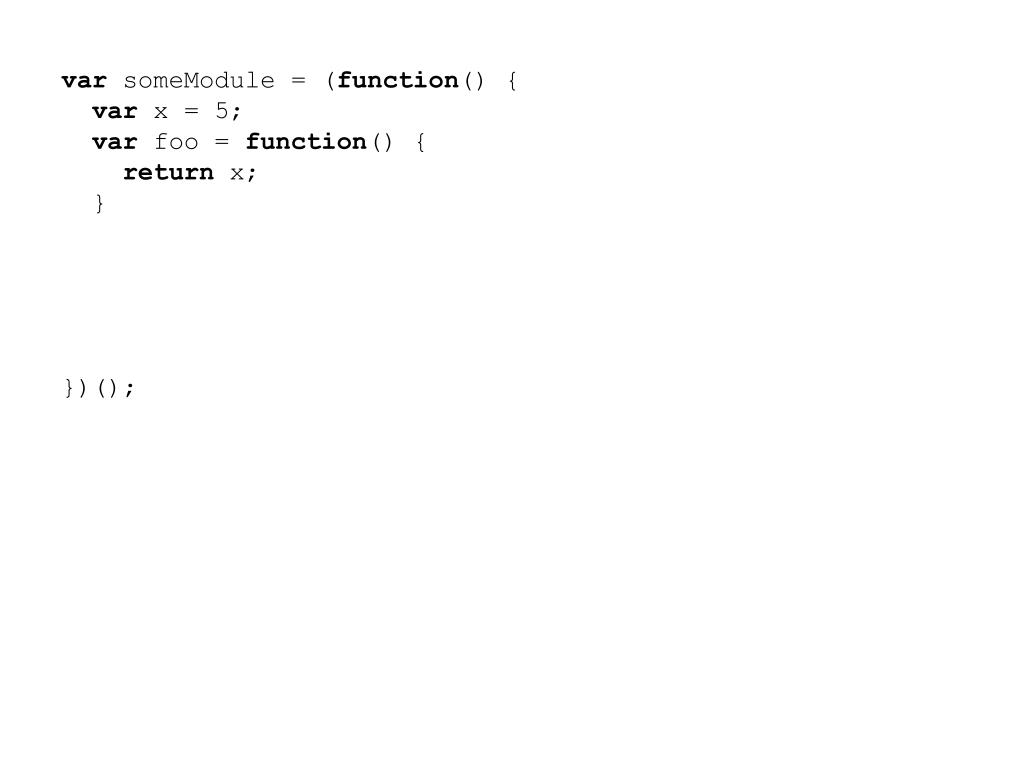

  9. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } })();

  10. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return {} // Return Object Literal (JSON) })();

  11. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return {} // Return Object Literal (JSON) })(); {my_num: 3, a: true, thing: ‘some string’} key: value

  12. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return {} // Return Object Literal (JSON) })(); { my_num: 3, a: true, thing: ‘some string’ }

  13. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return {} // Return Object Literal (JSON) })(); { my_num: 3, a: true, thing: ‘some string’, sub_json: {a: 1, b: 23} }

  14. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return {} // Return Object Literal (JSON) })(); { my_num: 3, a: true, thing: ‘some string’, some_function: function() { … } }

  15. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return { } })();

  16. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return { bar: function() { return foo(); } } })();

  17. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return { bar: function() { return foo(); } } })(); alert(someModule.x); // Undefined Private (ish)

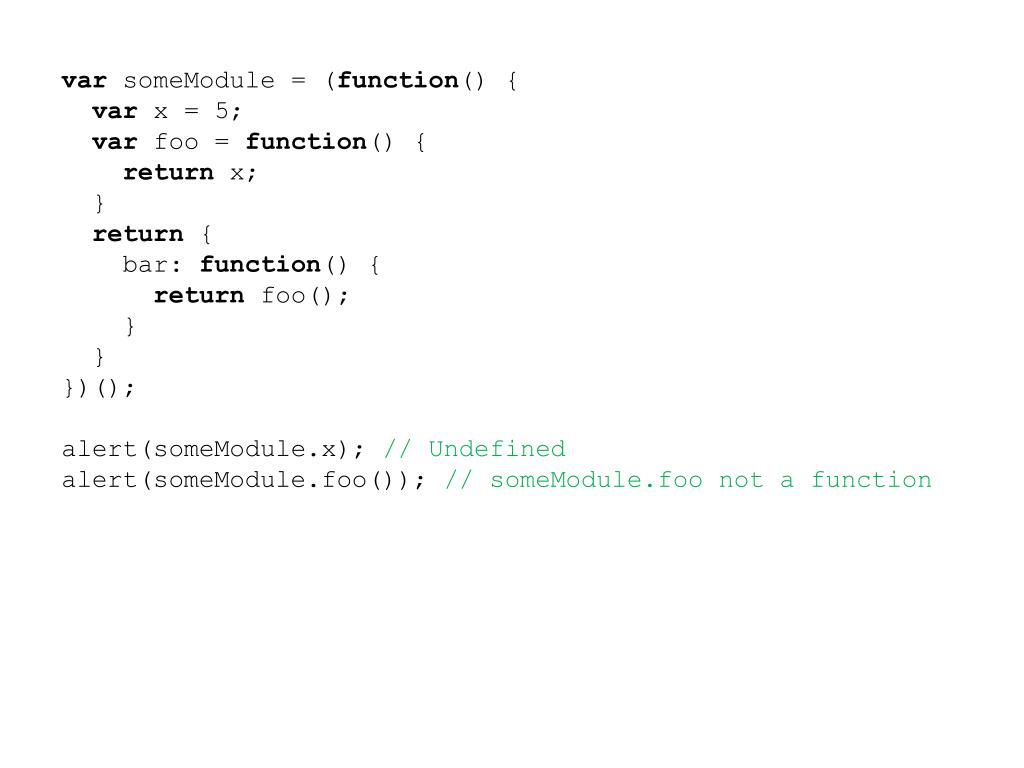

  18. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return { bar: function() { return foo(); } } })(); alert(someModule.x); // Undefined alert(someModule.foo()); // someModule.foo not a function

  19. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return{ bar: function() { return foo(); } } })(); alert(someModule.x); // Undefined alert(someModule.foo()); // someModule.foo not a function Public (API)

  20. varsomeModule = (function() { var x = 5; varfoo = function() { return x; } return { bar: function() { return foo(); } } })(); alert(someModule.x); // Undefined alert(someModule.foo()); // someModule.foo not a function alert(someModule.bar()); // Alerts 5 // When we call someModule, it’s actually the object literal (JSON) that’s being returned. Since that Object literal still has access to the local variables of someModule, it can give us access to the stuff it wants to and essentially deny us from other stuff

  21. Why Module Pattern • Good for namespacing • Pseudo Encapsulation (Private and Public) The term “Module” in this case just means an isolated container of code.

  22. Module Local Scope varsomeModule = (function() { var x = 5; // Belongs to the local scope of someModule return { show: function() { alert(x); } } })(); alert(x) // Undefined someModule.show(); // Alerts 5

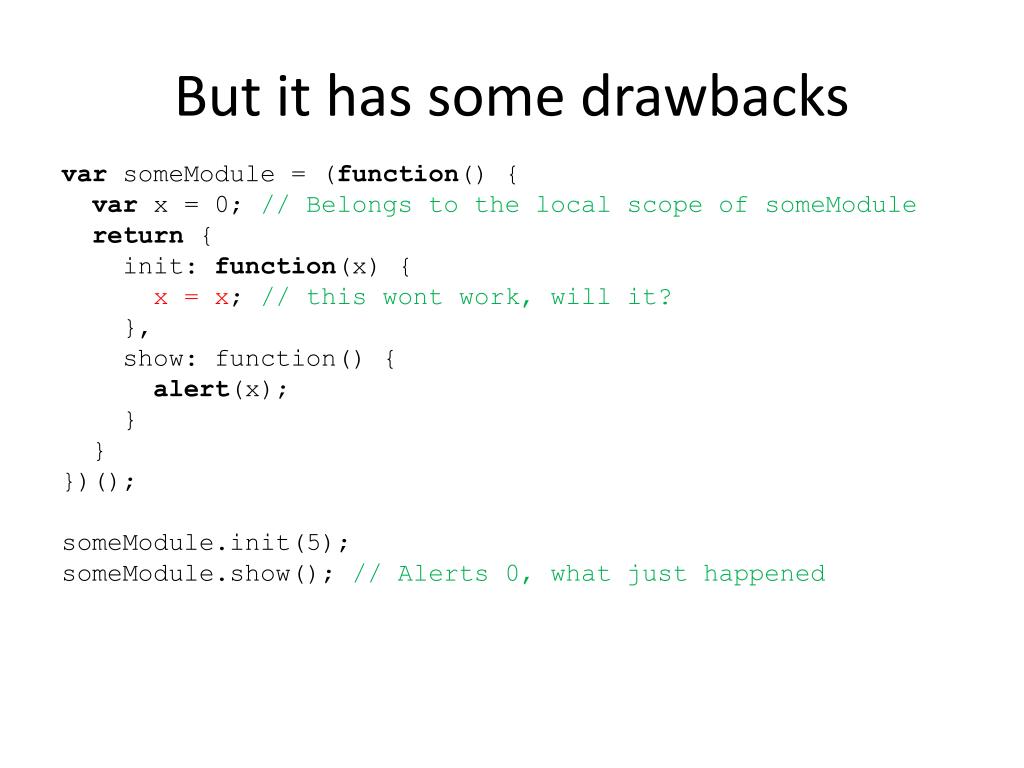

  23. But it has some drawbacks varsomeModule = (function() { var x = 0; // Belongs to the local scope of someModule return { init: function(x) { x = x; // this wont work, will it? }, show: function() { alert(x); } } })(); someModule.init(5); someModule.show(); // Alerts 0, what just happened

  24. But it has some drawbacks varsomeModule = (function() { var x = 0; // Belongs to the local scope of someModule return { init: function(x) { x = x; // this wont work, will it? }, show: function() { alert(x); } } })(); someModule.init(5); someModule.show(); // Alerts 0, what just happened

  25. But it has some drawbacks varsomeModule = (function() { var x = 0; // Belongs to the local scope of someModule return { init: function(x) { this.x = x; // what if we use “this” }, show: function() { alert(x); } } })(); someModule.init(5); someModule.show(); // Alerts 0, what just happened

  26. But it has some drawbacks varsomeModule = (function() { var x = 0; // Belongs to the local scope of someModule return { x: 5, init: function(x) { this.x = x; // what if we use “this” }, show: function() { alert(x); } } })(); someModule.init(5); someModule.show(); // Alerts 0, what just happened

  27. But it has some drawbacks So that sucks, but moving on…

  28. But it has some drawbacks • Private and Public methods accessed differently which sucks too

  29. But it has some drawbacks varsomeModule = (function() { var x = 2; varfoo = function() { return x } // Private Method return { init: function(x) { alert(foo() + bar() + x); }, bar: function() { return 3; } } })(); someModule.init(5) // bar() not defined

  30. But it has some drawbacks varsomeModule = (function() { var x = 2; varfoo = function() { return x } // Private Method return { init: function(x) { alert(foo() + bar() + x); }, bar: function() { return 3; } } })(); someModule.init(5) // bar() not defined

  31. But it has some drawbacks varsomeModule = (function() { var x = 2; varfoo = function() { return x } // Private Method return { init: function(x) { alert(foo() + this.bar() + x); }, bar: function() { return 3; } } })(); someModule.init(5) // Alerts 10

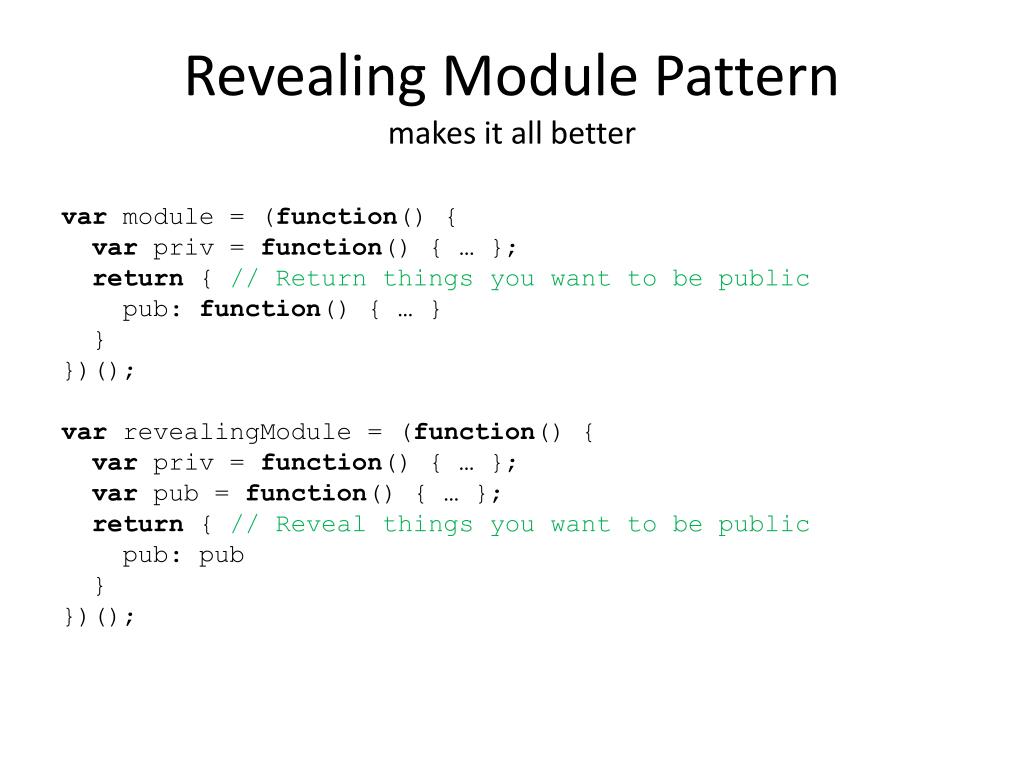

  32. Revealing Module Patternmakes it all better var module = (function() { varpriv = function() { … }; return { // Return things you want to be public pub: function() { … } } })(); varrevealingModule = (function() { varpriv = function() { … }; var pub = function() { … }; return { // Reveal things you want to be public pub: pub } })();

  33. Revealing Module Pattern varsomeModule = (function() { var x = 2; varfoo = function() { return x } // Private Method var init = function(x) alert(foo() + bar() + x); } var bar = function() { return 3; } return { init: init, bar: bar } })(); someModule.init(5) // Alerts 10
