  1. Firewall Ercan Sancar & Caner Sahin

  2. Index • History of Firewall • Why Do You Need A Firewall • Working Principle Of Firewalls • Can a Firewall Really Protect Me? • Multiple Firewalls • Firewall Functions in Windows • Choosing a Firewall that Meets

  3. History Of Firewall Firewall technology emerged in the late 1980s...

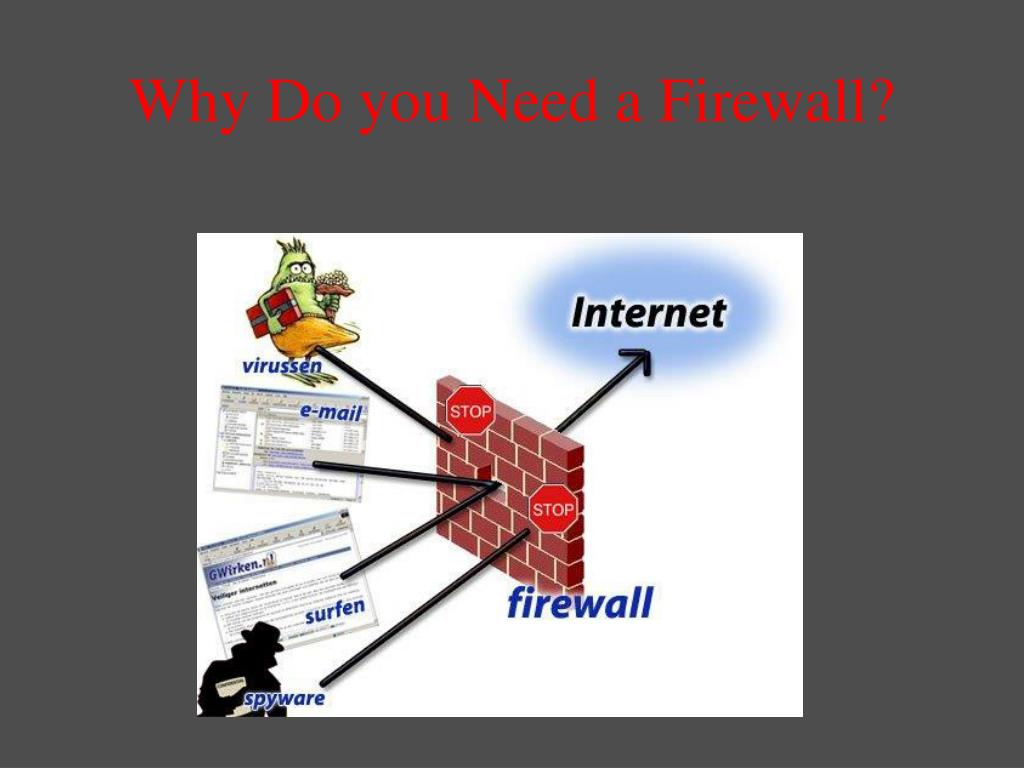

  4. Why Do you Need a Firewall?

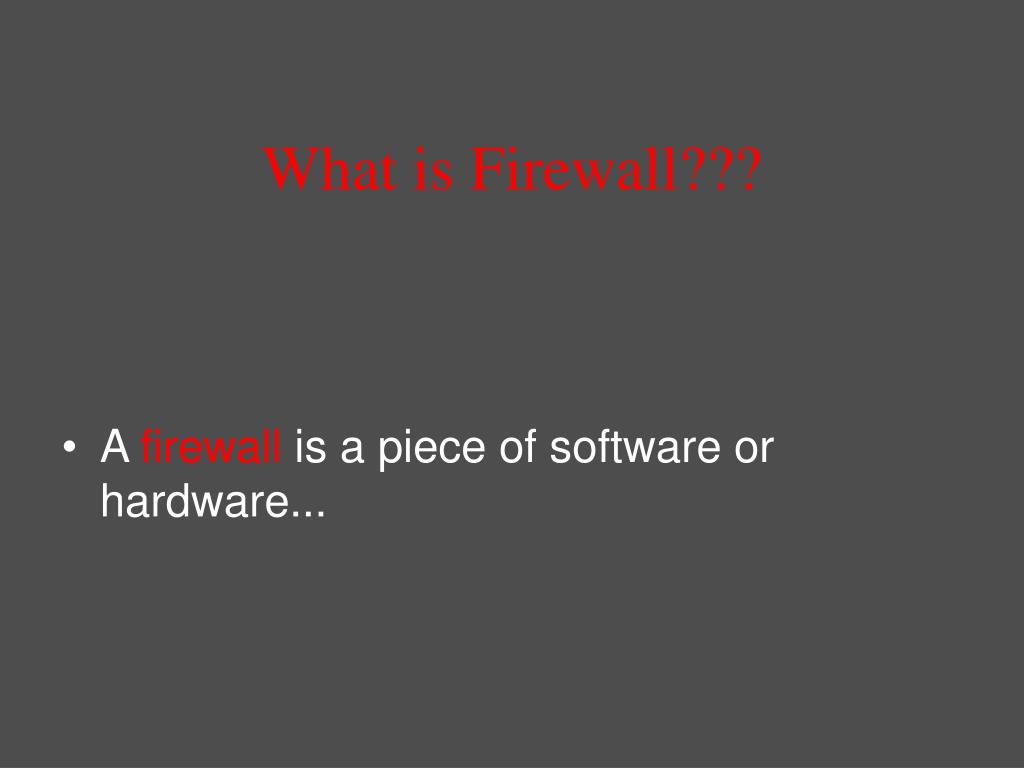

  5. What is Firewall??? • A firewallis a piece of software or hardware...

  6. What Firewall Do??? • Block incoming network traffic based on source or destination. • Block outgoing network traffic based on source or destination. • Block incoming network traffic based on content. • Make internal resources available. • Allow connections to internal network. • Report on network traffic and firewall activities.

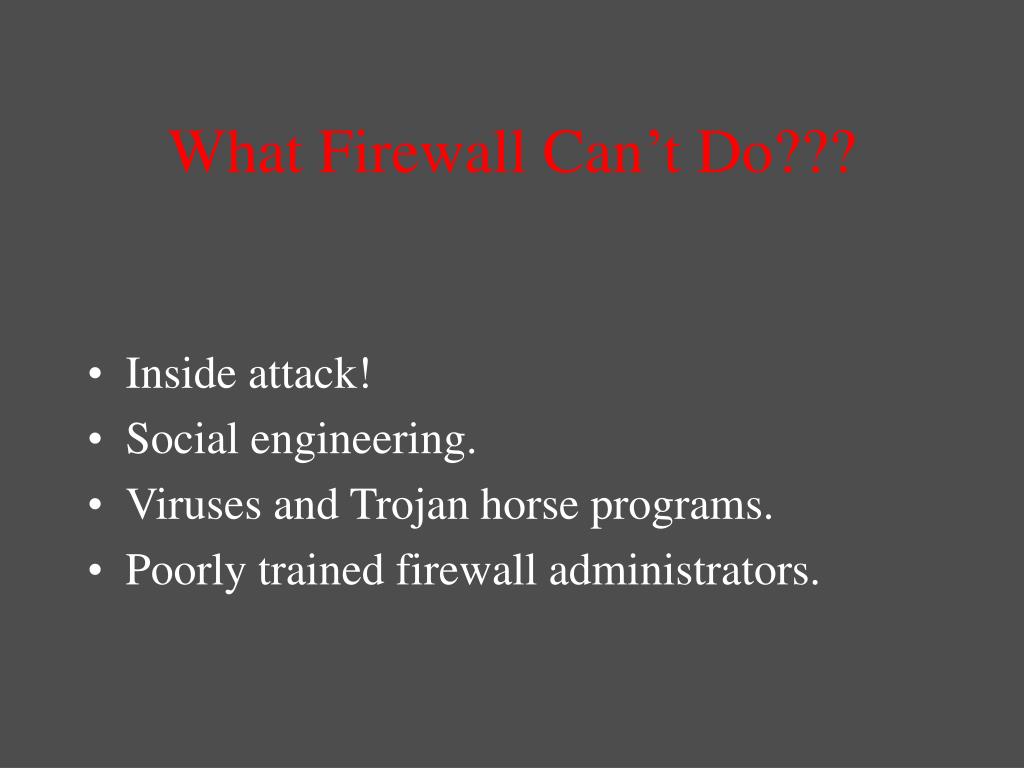

  7. What Firewall Can’t Do??? • Inside attack! • Social engineering. • Viruses and Trojan horse programs. • Poorly trained firewall administrators.

  8. A Firewall That Fits • Personal Firewall • Departmental or small organiztion Firewall • Enterprise Firewall

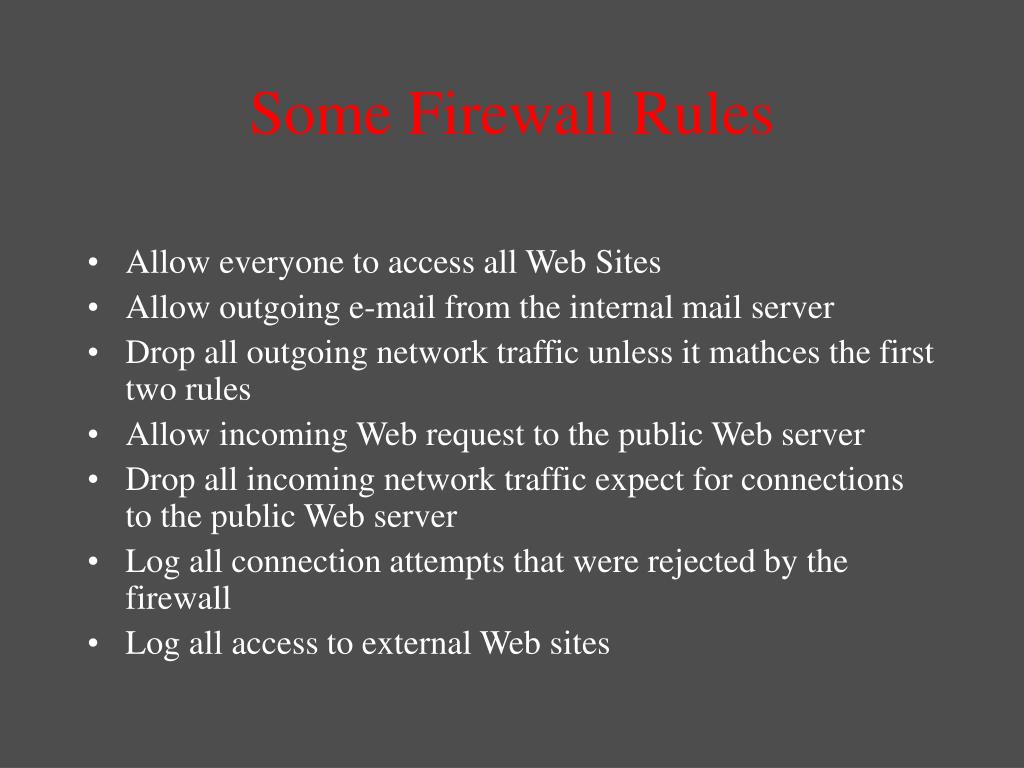

  9. Some Firewall Rules • Allow everyone to access all Web Sites • Allow outgoing e-mail from the internal mail server • Drop all outgoing network traffic unless it mathces the first two rules • Allow incoming Web request to the public Web server • Drop all incoming network traffic expect for connections to the public Web server • Log all connection attempts that were rejected by the firewall • Log all access to external Web sites

  10. Basic Function of Firewall • Packet filtering • Network Address Translation(NAT) • Application Proxy

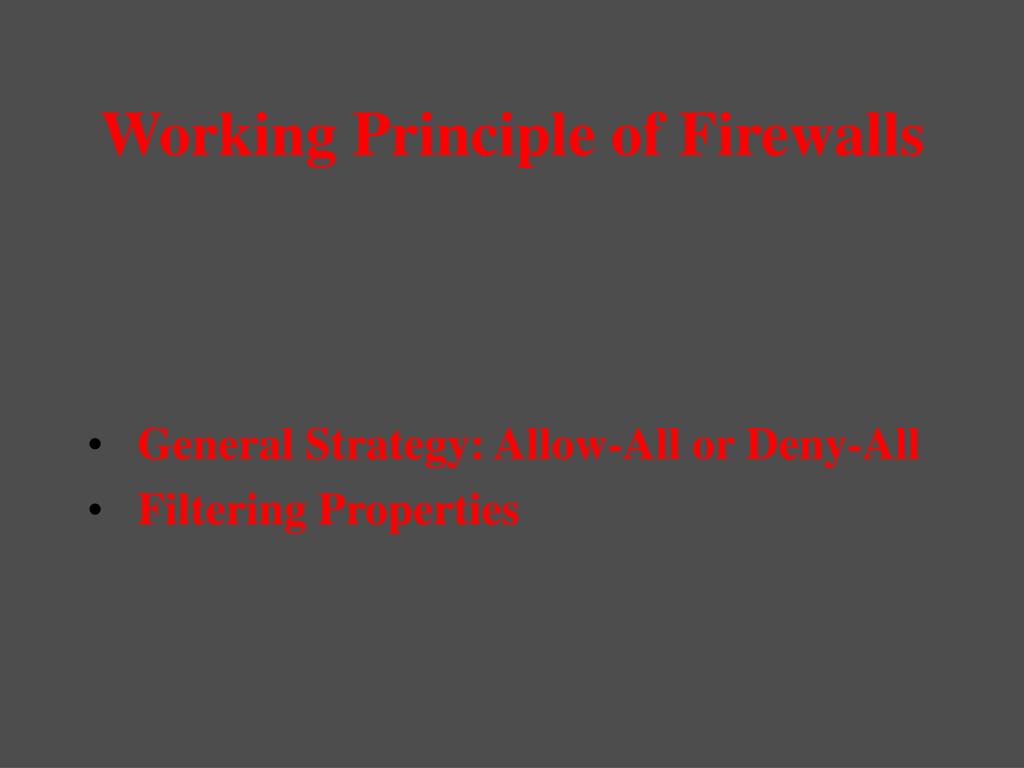

  11. Working Principle of Firewalls • General Strategy: Allow-All or Deny-All • Filtering Properties

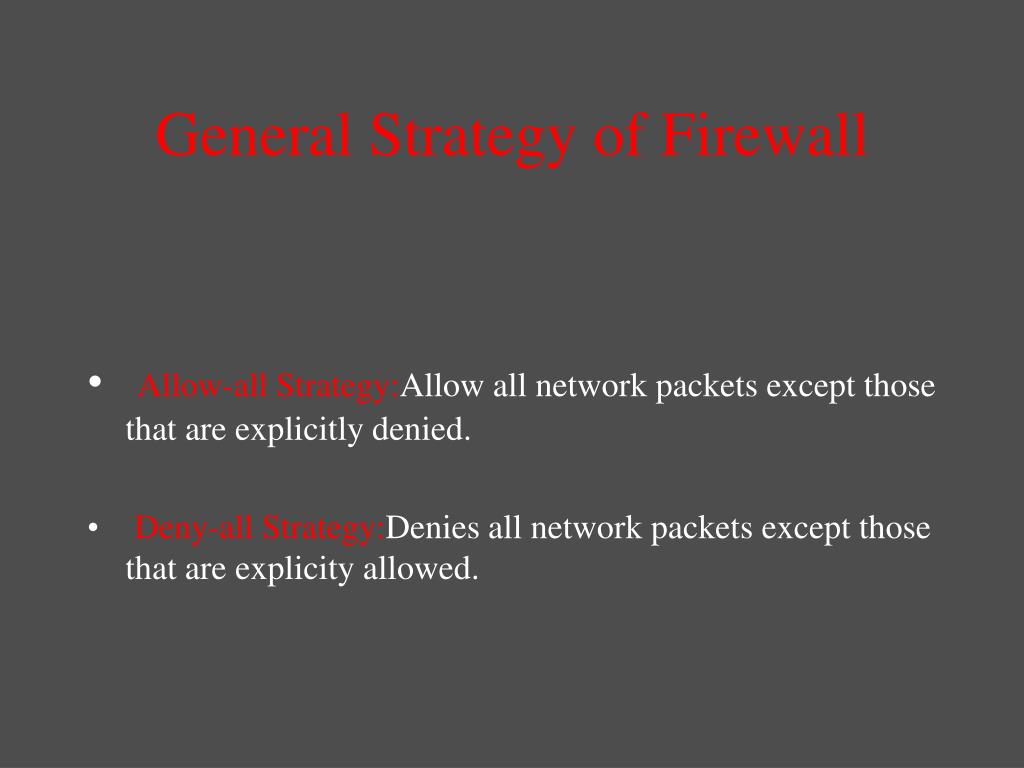

  12. General Strategy of Firewall • Allow-all Strategy:Allow all network packets except those that are explicitly denied. • Deny-all Strategy:Denies all network packets except those that are explicity allowed.

  13. Example Firewall Rules

  14. Filetering Properties • Packet Filtering • Network Address Translation(NAT) • Application Proxy

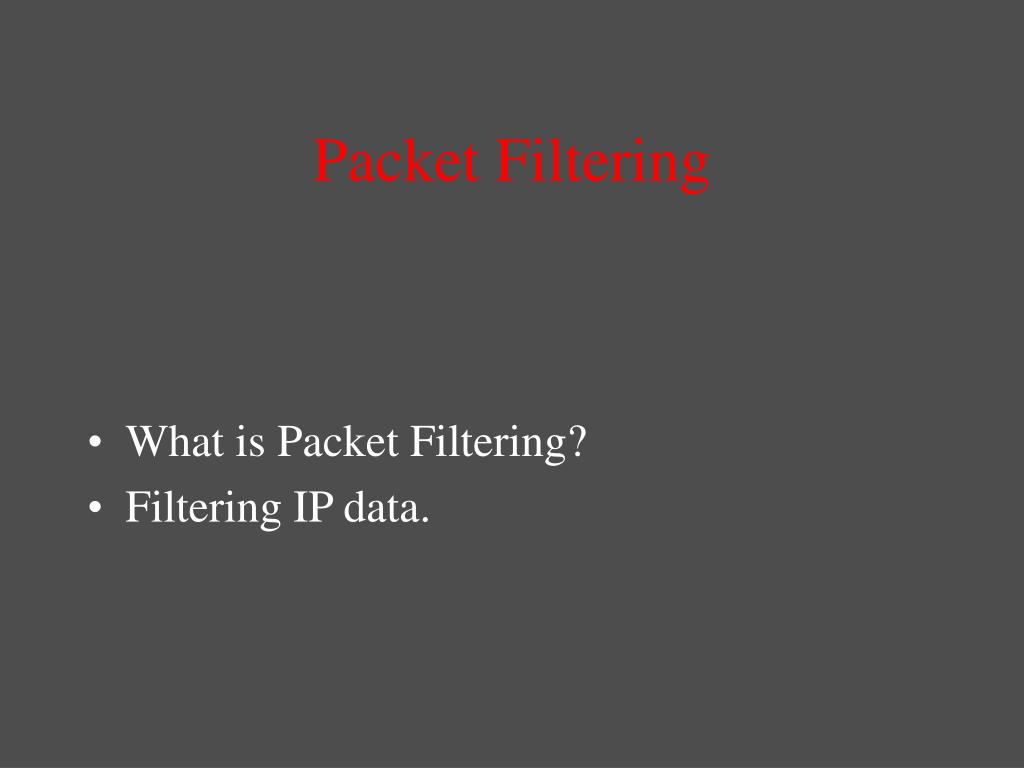

  15. Packet Filtering • What is Packet Filtering? • Filtering IP data.

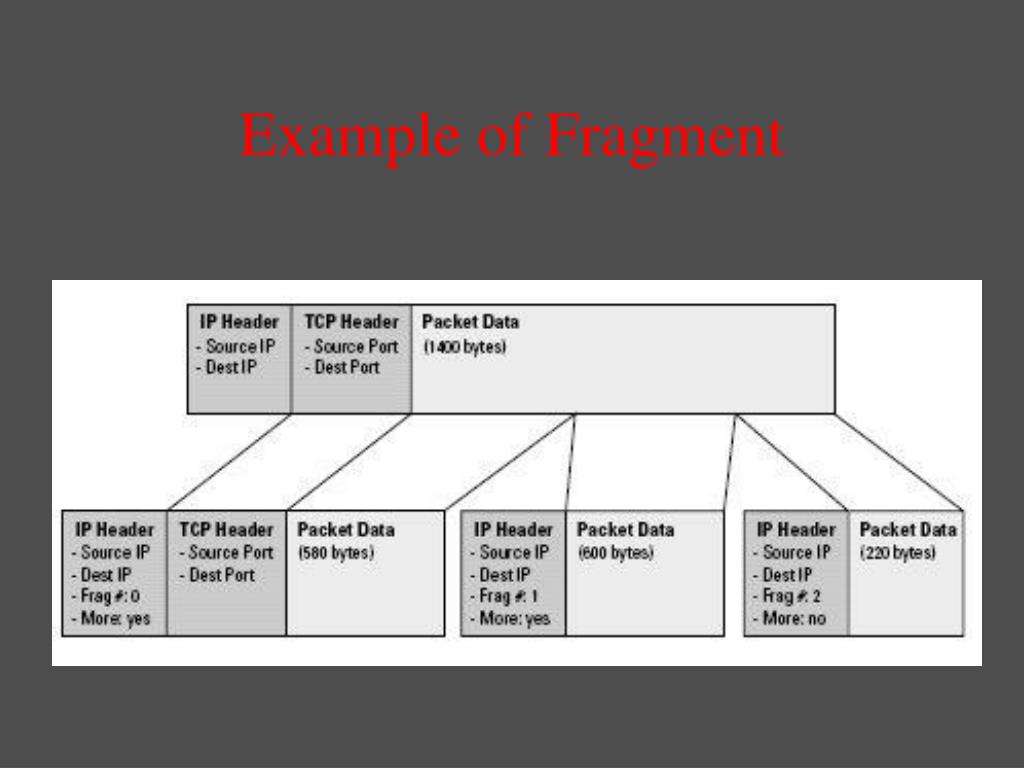

  16. Example of Fragment

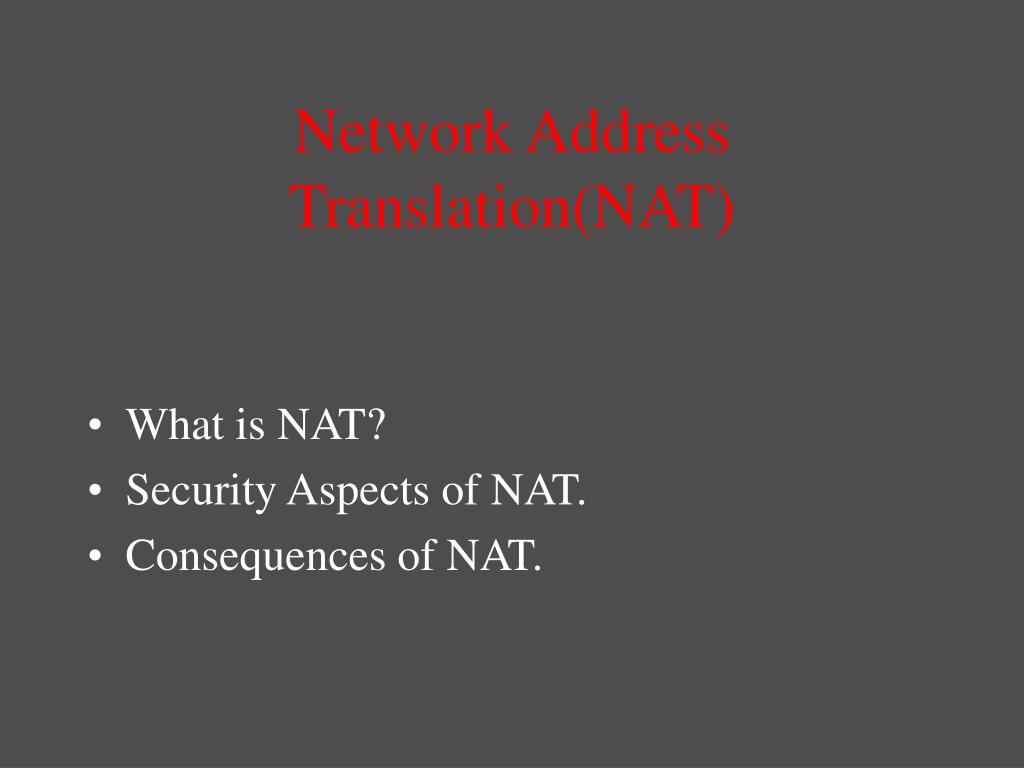

  17. Network Address Translation(NAT) • What is NAT? • Security Aspects of NAT. • Consequences of NAT.

  18. Application Proxy • What is Application Proxy • Differnce between Application Proxy and Packet Filtering • Advantages of Application Proxy • Drawbacks of Application Proxy

  19. Network and Transport layer Not concerns with contents Users don’t need any settings Every program uses the same Application Layer Interface with the content Users need to setup the settings Differnt programs can use differnt proxies Comparison of NAT & Proxy NAT Proxy

  20. Can a Firewall Really Protect Me? A firewall is indeed a very effective method of protection against many of these threats, but...

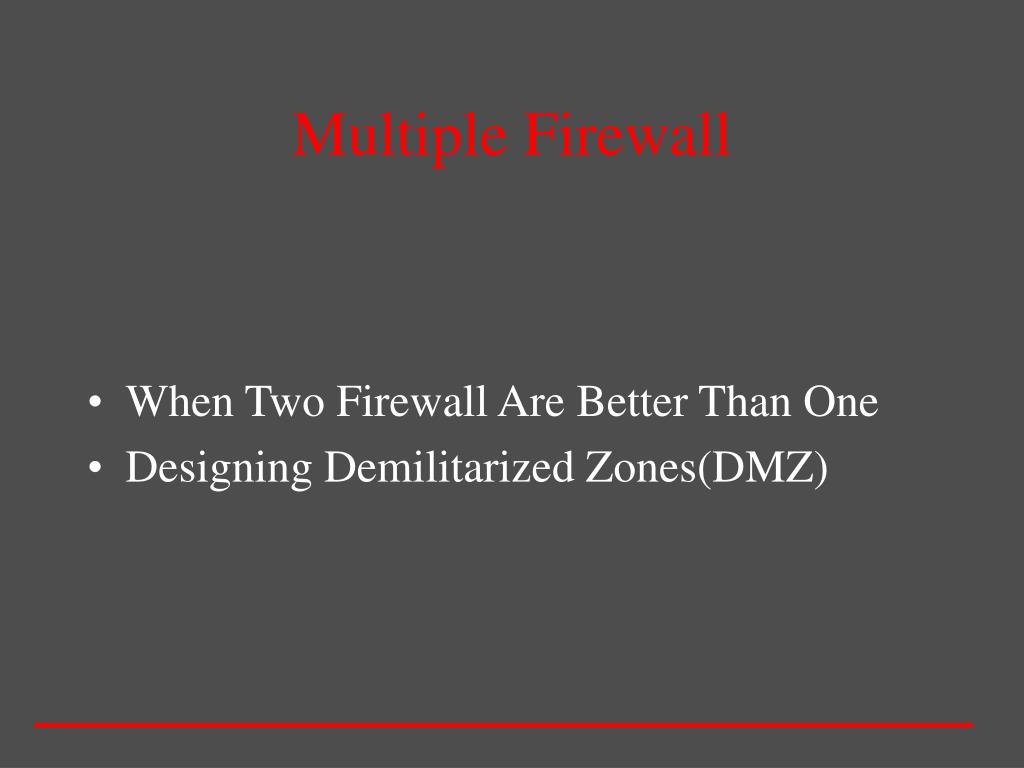

  21. Multiple Firewall • When Two Firewall Are Better Than One • Designing Demilitarized Zones(DMZ)

  22. Designing Demilitarized Zones

  23. Advantages of DMZ with Two Firewall • Clear Definition of The DMZ • Increased Security • Reduce Network Loads on the Two Firewalls

  24. Disadvantages of DMZ with Two Firewall • Increased Cost • Extra Training Required • Multiple Firewall Rule Listing Must be Maintained • Configuration Complexity When more Than Two Firewall are Deployed

  25. Firewall Functions in Windows • Packet Filtering • Network Address Translation(NAT/ICS) • Encrypted Tunnel

  26. Firewall Functions Which is not provide in Windows • No application Proxies • No (or less-than-ideal)monitoring and logging • No data caching

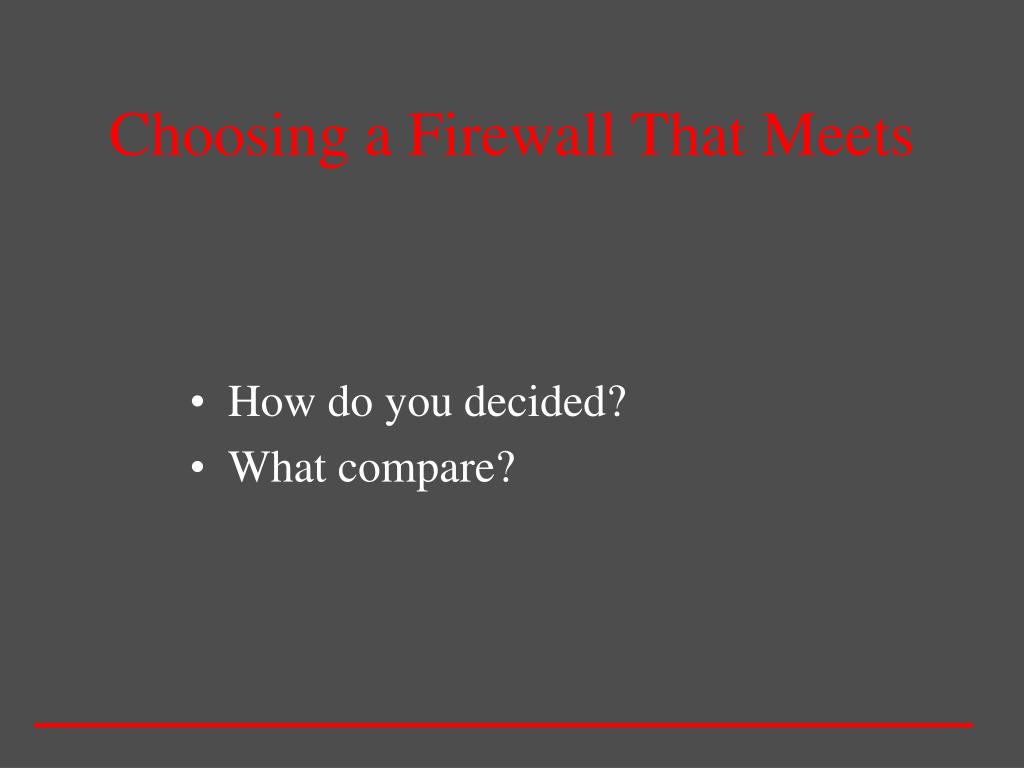

  27. Choosing a Firewall That Meets • How do you decided? • What compare?

  28. Thank you For Listening
