Presentation Transcript

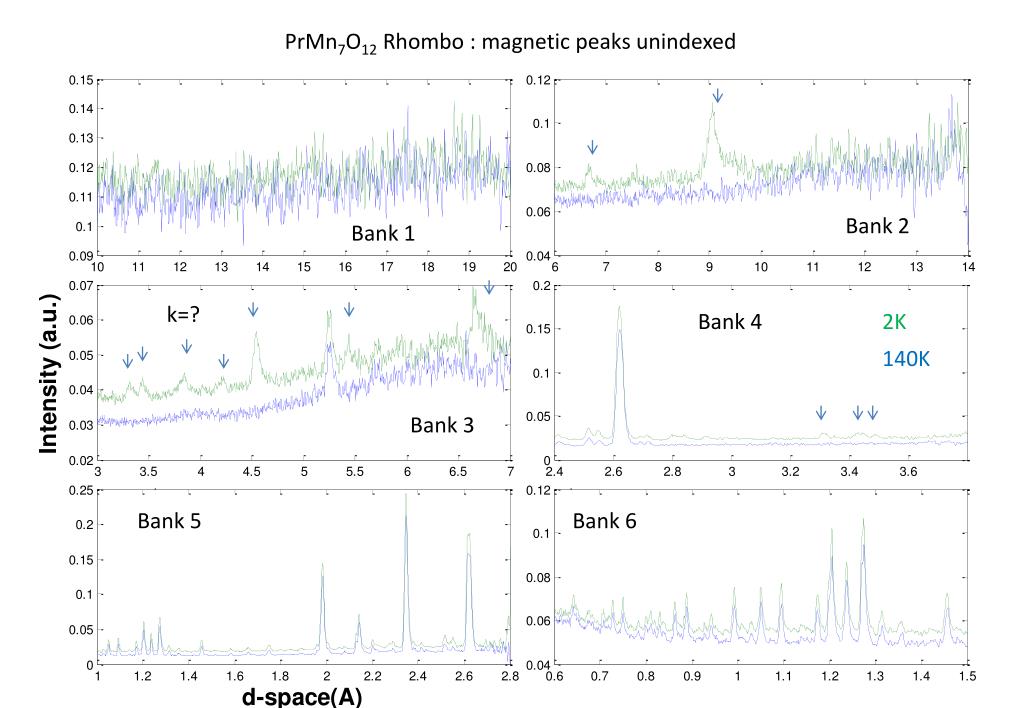

  1. PrMn7O12 Rhombo : magnetic peaks unindexed Bank 2 Bank 1 k=? Bank 4 2K 140K Bank 3 Bank 5 Bank 6

  2. PrMn7O12 Rhombo at 140K showing quite a few impurity peaks

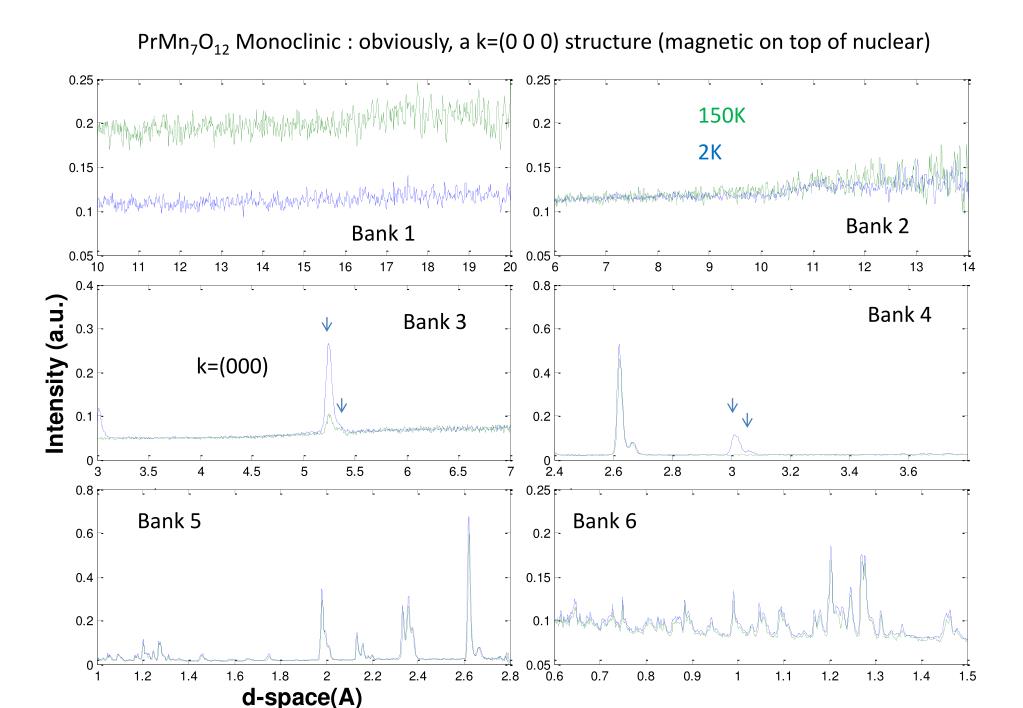

  3. PrMn7O12 Monoclinic : obviously, a k=(0 0 0) structure (magnetic on top of nuclear) 150K 2K Bank 2 Bank 1 Bank 4 Bank 3 k=(000) Bank 5 Bank 6

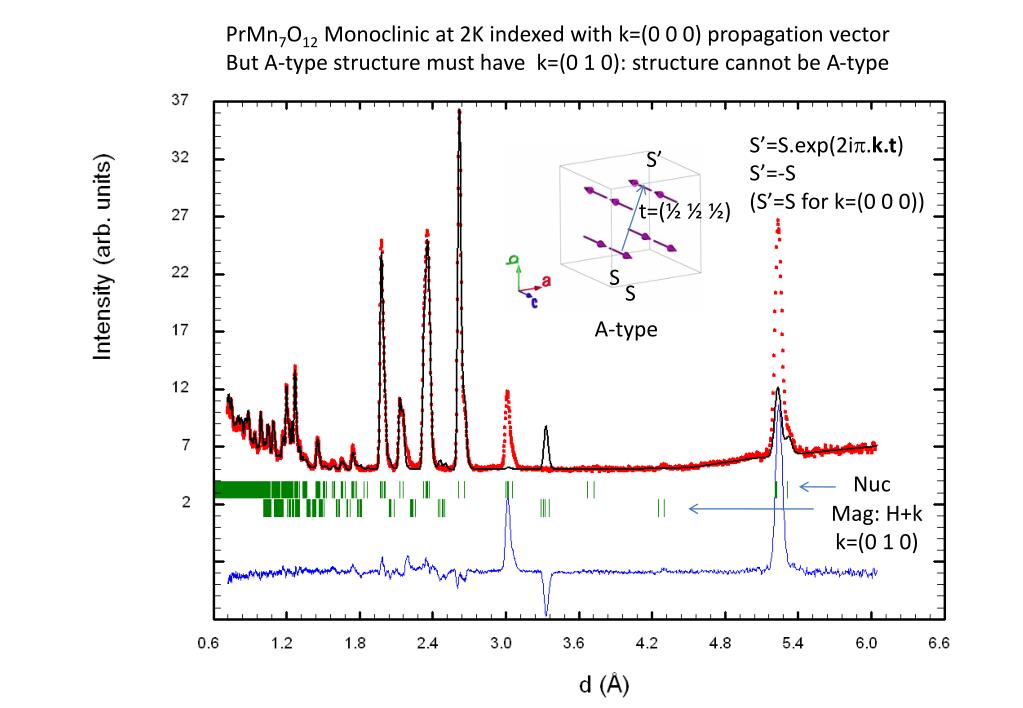

  4. PrMn7O12 Monoclinic at 2K indexed with k=(0 0 0) propagation vector But A-type structure must have k=(0 1 0): structure cannot be A-type S’=S.exp(2ip.k.t) S’=-S (S’=S for k=(0 0 0)) S’ t=(½ ½ ½) S S A-type Nuc Mag: H+k k=(0 1 0)

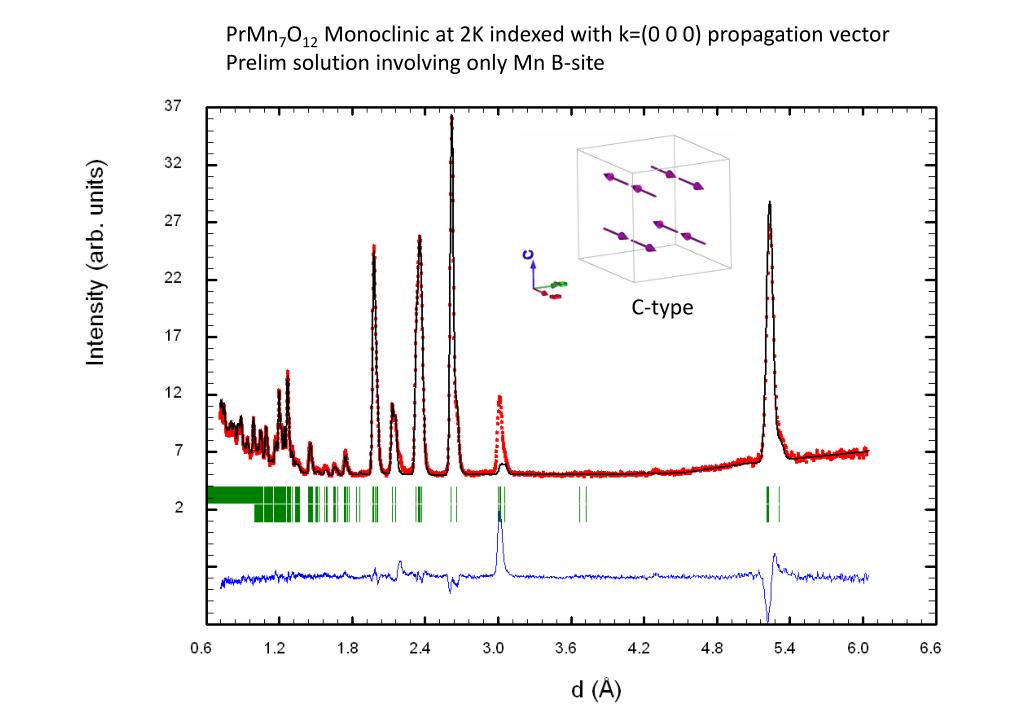

  5. PrMn7O12 Monoclinic at 2K indexed with k=(0 0 0) propagation vector Prelim solution involving only Mn B-site C-type

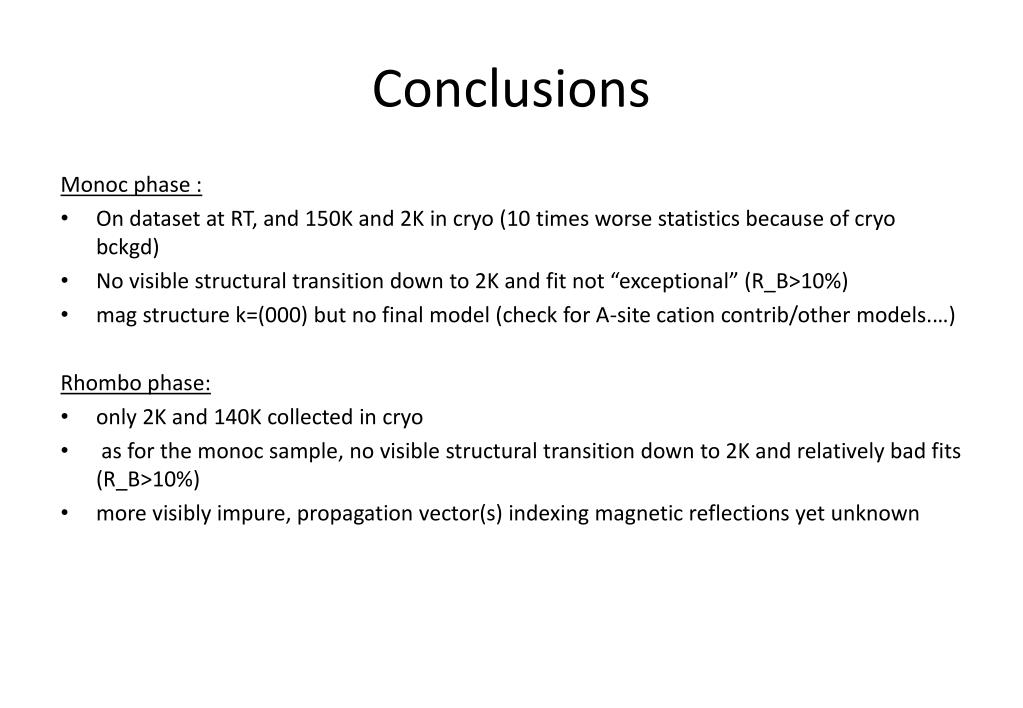

  6. Conclusions Monoc phase : • On dataset at RT, and 150K and 2K in cryo (10 times worse statistics because of cryo bckgd) • No visible structural transition down to 2K and fit not “exceptional” (R_B>10%) • mag structure k=(000) but no final model (check for A-site cation contrib/other models.…) Rhombo phase: • only 2K and 140K collected in cryo • as for the monoc sample, no visible structural transition down to 2K and relatively bad fits (R_B>10%) • more visibly impure, propagation vector(s) indexing magnetic reflections yet unknown
