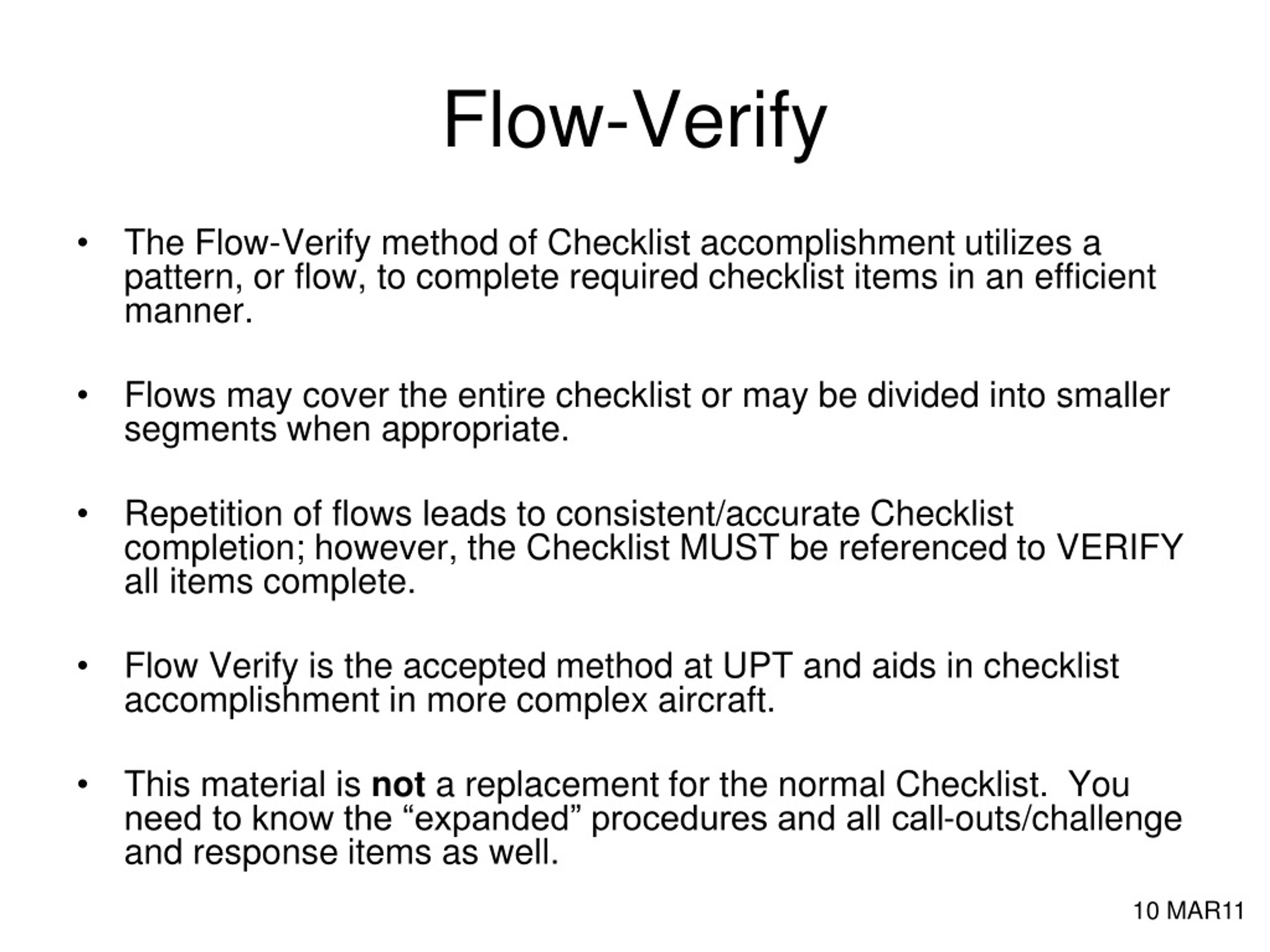

  1. Flow-Verify • The Flow-Verify method of Checklist accomplishment utilizes a pattern, or flow, to complete required checklist items in an efficient manner. • Flows may cover the entire checklist or may be divided into smaller segments when appropriate. • Repetition of flows leads to consistent/accurate Checklist completion; however, the Checklist MUST be referenced to VERIFY all items complete. • Flow Verify is the accepted method at UPT and aids in checklist accomplishment in more complex aircraft. • This material is not a replacement for the normal Checklist. You need to know the “expanded” procedures and all call-outs/challenge and response items as well.

  2. Pre-flight Cabin Inspection, Part 1 1. Canopy 6. Survival Kit & ELT 5. Aircraft Flight Manual 8. Structural Temp 2. Aircraft Forms 7. TAC 4. Registration & Airworthiness Cert 3. Keys

  3. Pre-flight Cabin Inspection, Part 2 22. Trim 24. Canopy & Gen Warning Lights 23. Start Warning Light 26. Fuel Quantity Gauge 25. Circuit Breakers 21. (Night Only) Taxi & Position Lights 28. CO Detector 20. Strobe & Landing Lights 31. Gen/Bat Master Switch 29. Flaps 27. Ammeter & Voltmeter 19. (Night Only) Inst & Map Lights 30. Flaps 18. Gen/Bat Master Switch 16. Floor/Defrost Lever 17. Fuel Shutoff Valve 15. Cabin Heat 11. Parking Brake 14. Alternate Air 10. Flight Controls 13. Throttle 12. Mixture 9. Flight Control Lock

  4. Before Engine Start 5. Canopy 6. Canopy Warning Light 8. (Night only) Inst & Map Lights 9. (Day only) Strobe Lights 10. (Night only) Position Lights 4. GEN/BAT Master Switch 7. Ignition Switch 11. Sliding Window, Yell 3. Parking Brake 1. Rudder Pedals 2. Safety Belts

  5. Engine Start, Part 1 4. Fuel Prime 3. Fuel Pump 1. Throttle 2. Mixture 5. Throttle

  6. Engine Start, Part 2 9. GEN Warning Light 8. START Warning Light 1000 RPM 11. Oil Pressure 10. Ammeter & Voltmeter 6. Ignition Switch 7. Throttle

  7. Before Taxi 4. Avionics & Navigation Equipment 5. Flight Instruments 3. ATIS 2. Transponder 6. (Night Only) Taxi Light 1. Avionics Master Switch 7. Parking Brake
