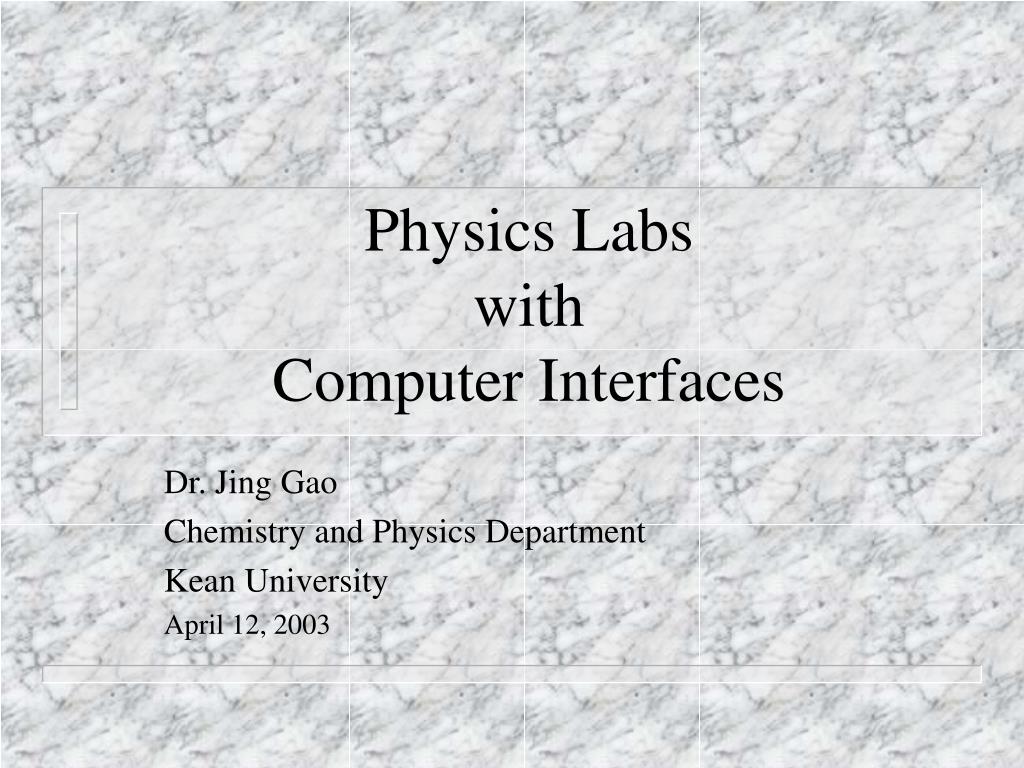

  1. Physics Labs with Computer Interfaces Dr. Jing Gao Chemistry and Physics Department Kean University April 12, 2003

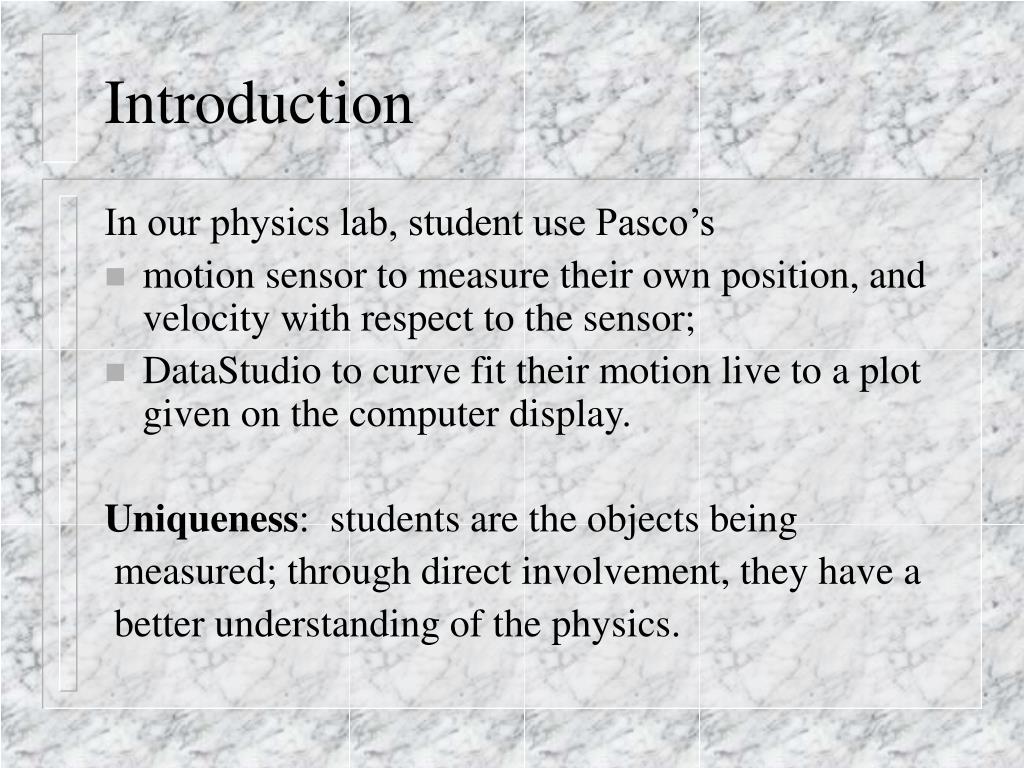

  2. Introduction In our physics lab, student use Pasco’s • motion sensor to measure their own position, and velocity with respect to the sensor; • DataStudio to curve fit their motion live to a plot given on the computer display. Uniqueness: students are the objects being measured; through direct involvement, they have a better understanding of the physics.

  3. Equipments • Hardware: Science workshop interface 750 (Motion Sensor II) • Software: DataStudio

  4. Motion Sensor II • Ultrasound pulses are sent out and their echoes reflected from an object are detected measuring range: 0.15m<x<8m • Changing in position of an object is measured many times each second. Trigger rate: 5Hz<f<120 Hz • Use the feedback from the ‘cursor’ to locate the best starting position Delay time: t=3s

  5. Understand Motion 1: Position and Time To Interface Motion Sensor

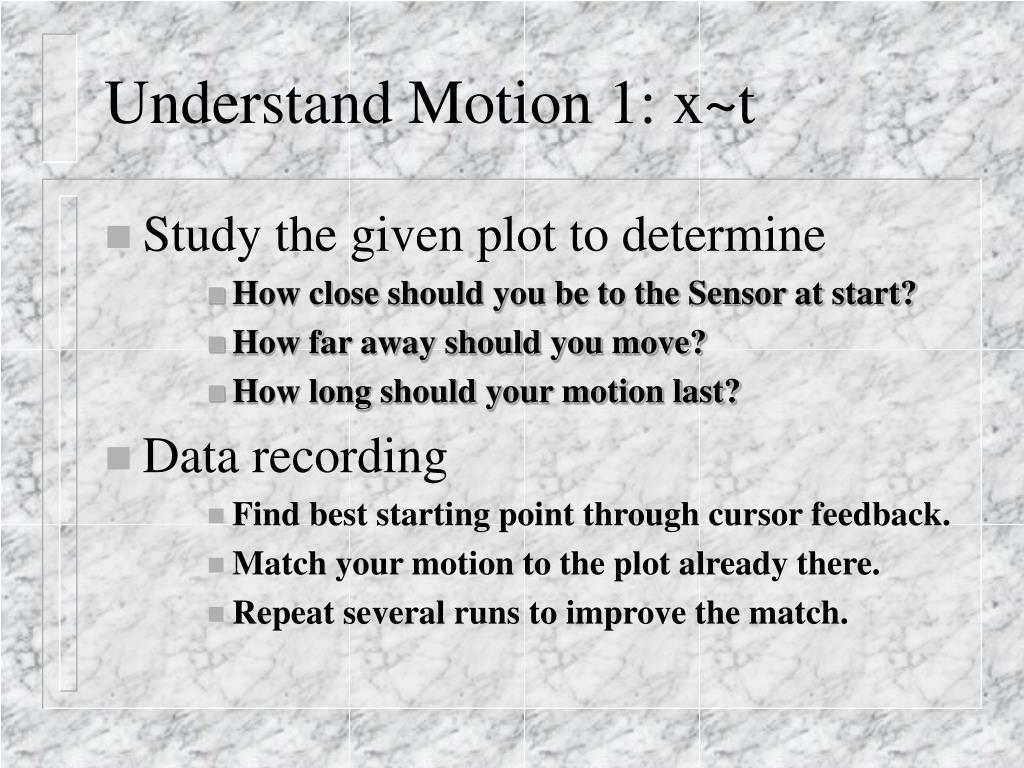

  6. Understand Motion 1: x~t • Study the given plot to determine • How close should you be to the Sensor at start? • How far away should you move? • How long should your motion last? • Data recording • Find best starting point through cursor feedback. • Match your motion to the plot already there. • Repeat several runs to improve the match.

  7. x(m) 4 2 t(s) 0 6 4 2 8 -2 -4 Fig.1 Position as a function of time Given Plot

  8. Motion descriptions: x~t • Starting at 1m from the sensor, • first 2s no motion, • with 1m/s speed away from sensor 3s, • no motion for another 2s, • with 4m/s speed towards sensor for 1s.

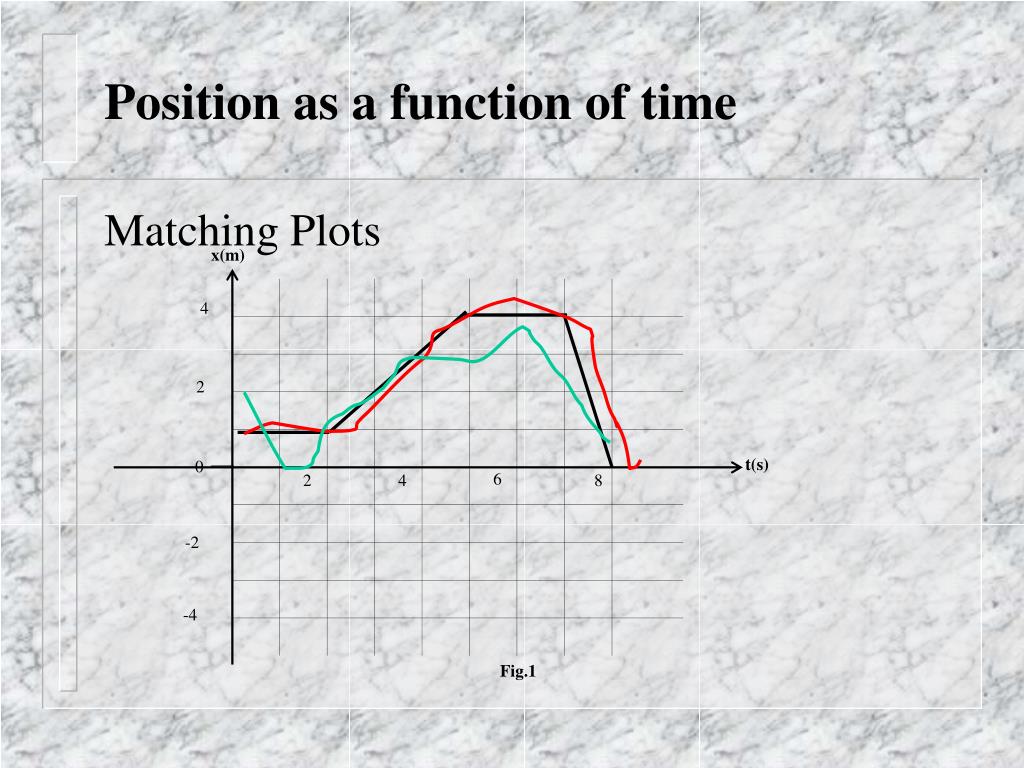

  9. x(m) 4 2 t(s) 0 6 4 2 8 -2 -4 Fig.1 Position as a function of time Matching Plots

  10. Understand Motion 2: Velocity and Time To Interface Motion Sensor

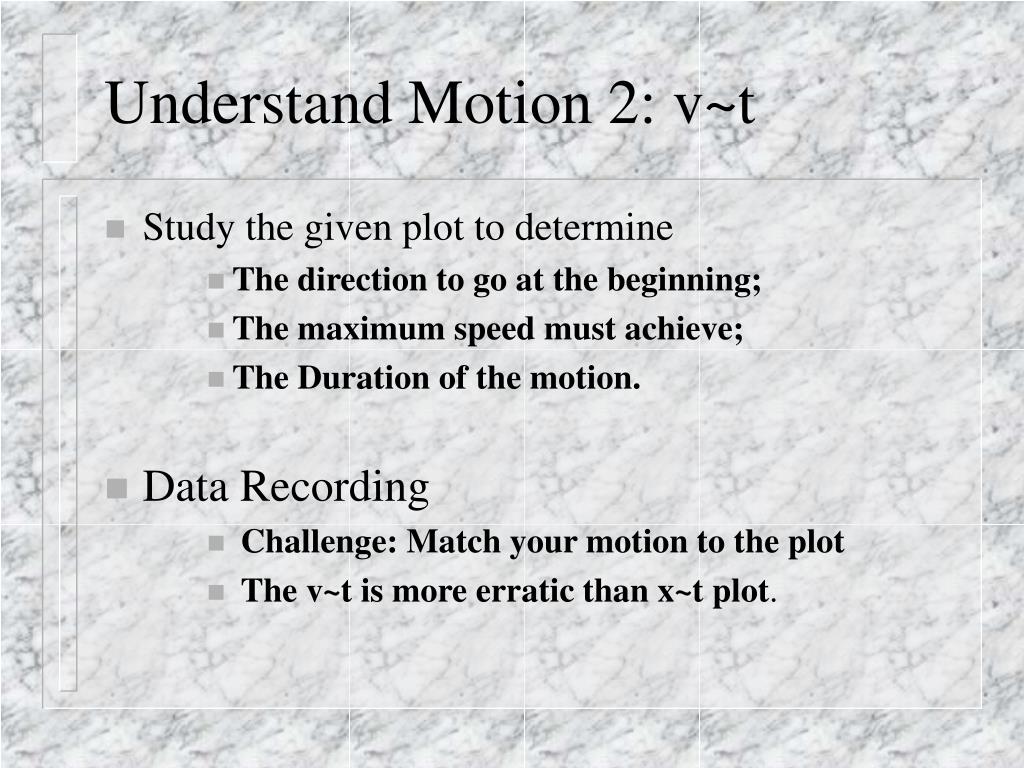

  11. Understand Motion 2: v~t • Study the given plot to determine • The direction to go at the beginning; • The maximum speed must achieve; • The Duration of the motion. • Data Recording • Challenge: Match your motion to the plot • The v~t is more erratic than x~t plot.

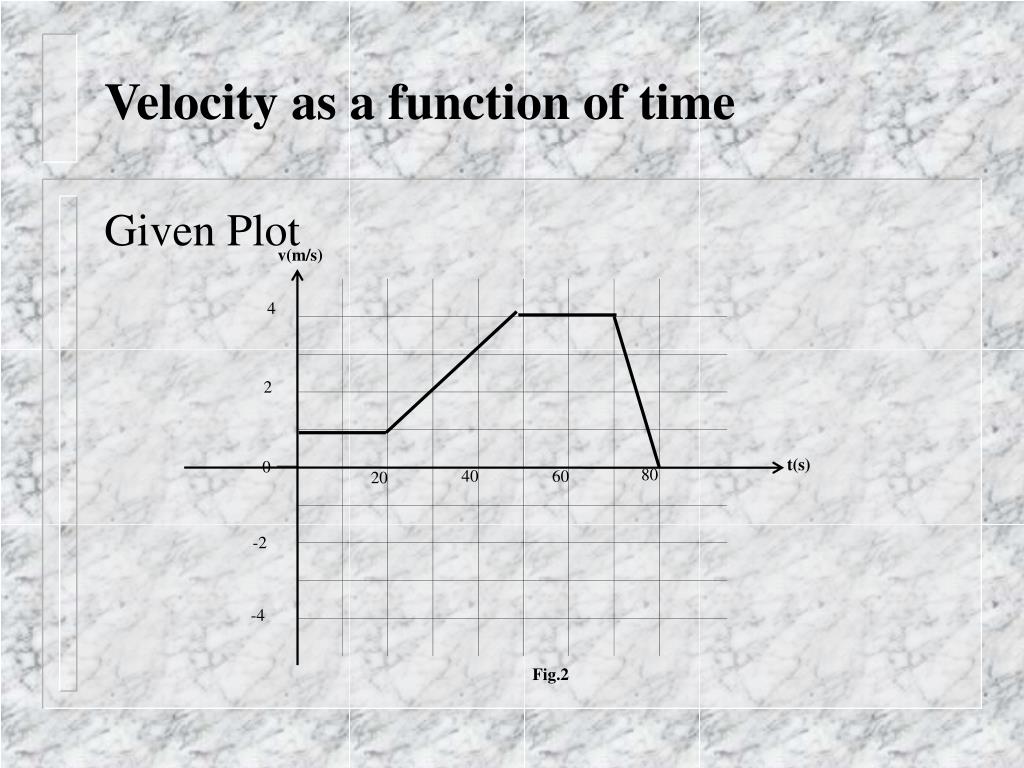

  12. v(m/s) 4 2 t(s) 0 80 40 60 20 -2 -4 Fig.2 Velocity as a function of time Given Plot

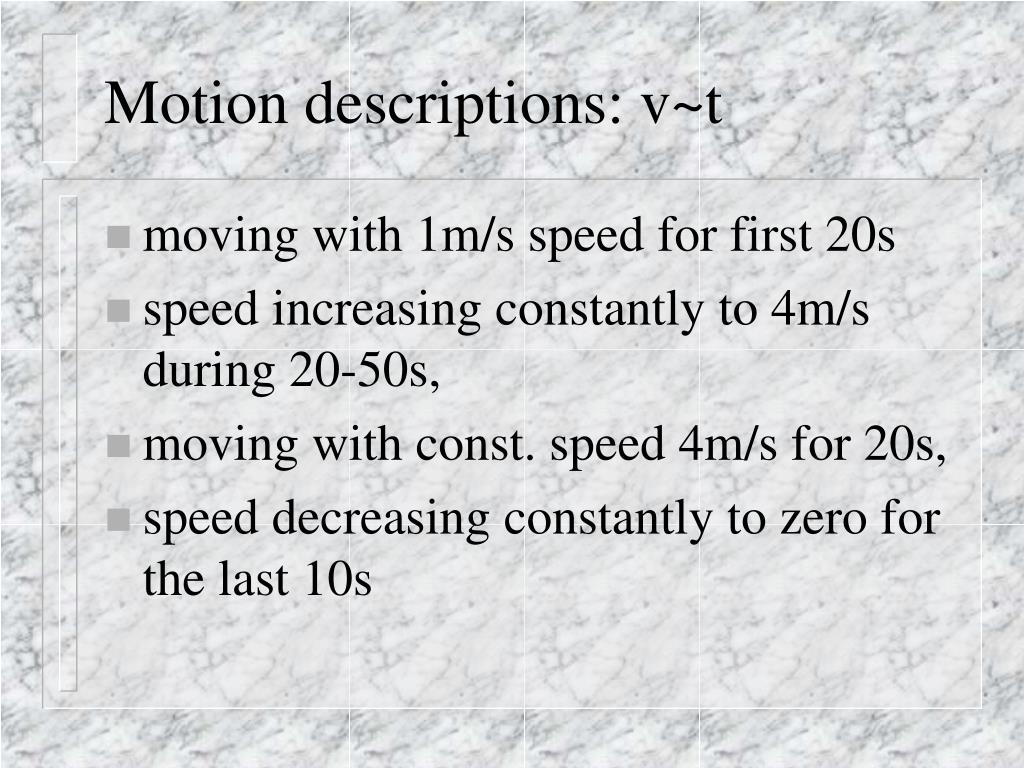

  13. Motion descriptions: v~t • moving with 1m/s speed for first 20s • speed increasing constantly to 4m/s during 20-50s, • moving with const. speed 4m/s for 20s, • speed decreasing constantly to zero for the last 10s

  14. v(m/s) 4 2 t(s) 0 80 40 60 20 -2 -4 Fig.2 Velocity as a function of time Matching Plots

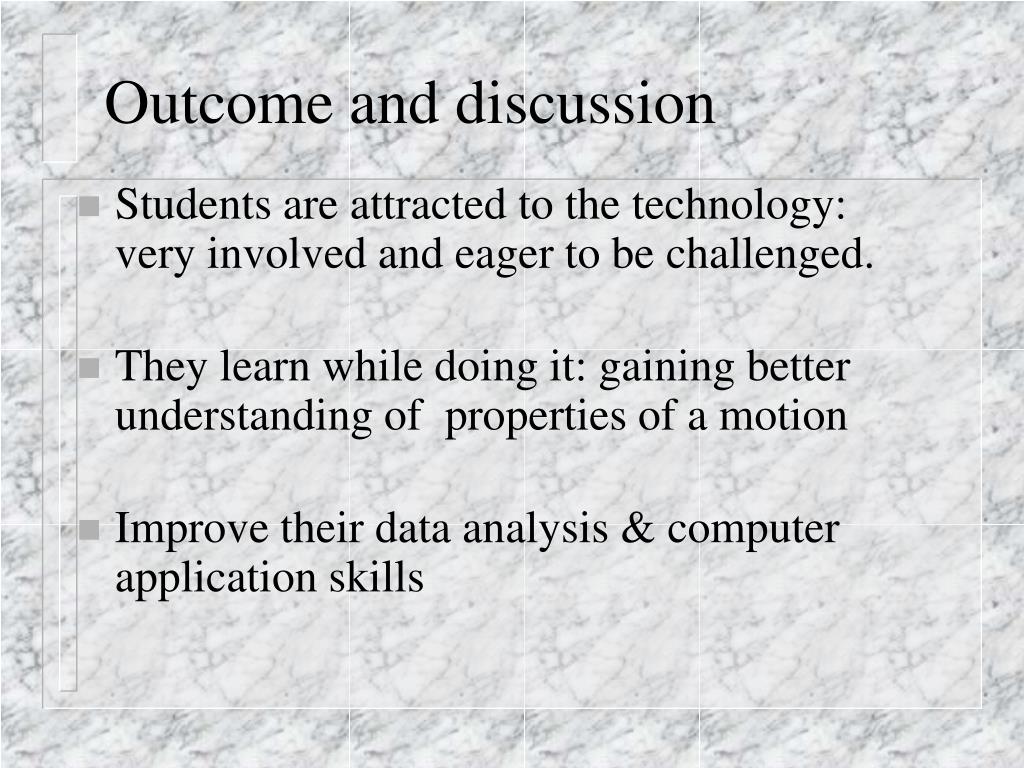

  15. Outcome and discussion • Students are attracted to the technology: very involved and eager to be challenged. • They learn while doing it: gaining better understanding of properties of a motion • Improve their data analysis & computer application skills

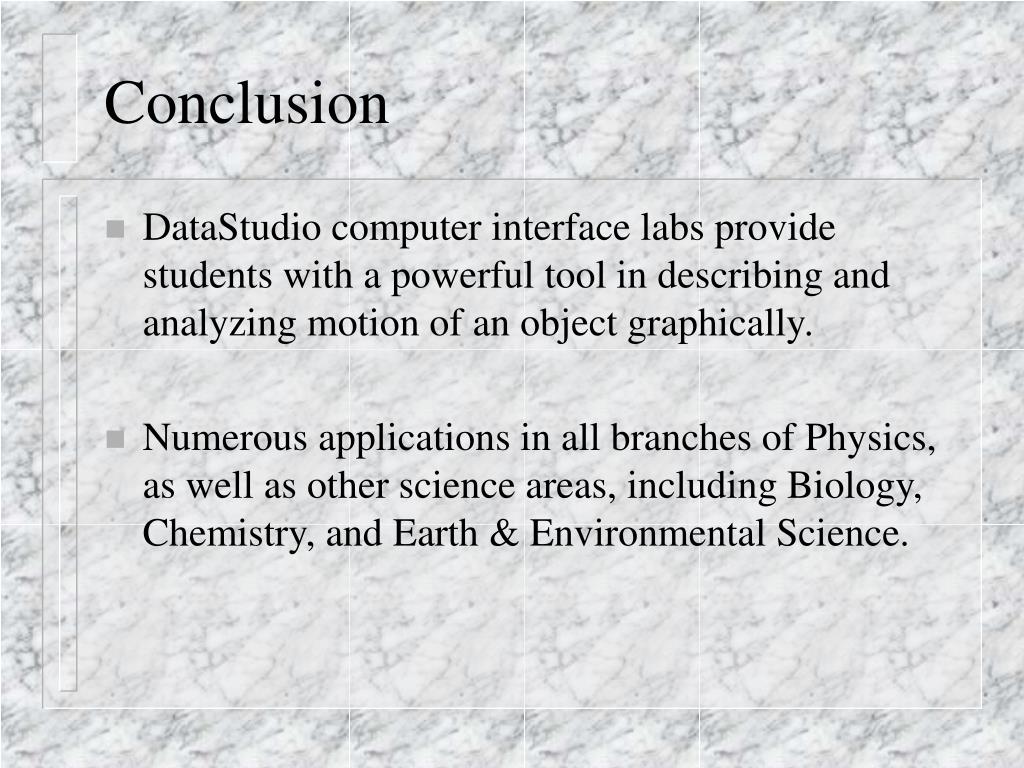

  16. Conclusion • DataStudio computer interface labs provide students with a powerful tool in describing and analyzing motion of an object graphically. • Numerous applications in all branches of Physics, as well as other science areas, including Biology, Chemistry, and Earth & Environmental Science.
