Brachial plexus

We’ll be talking about: Spinal cord and spinal nerves Brachial plexus. It can be your worst nightmares unless you follow up your lectures a day by day Doctors love to ask a bout it in the exams Medical important … you’ll know it by yourself . Brachial plexus.

ora
Télécharger la présentation

Brachial plexus

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

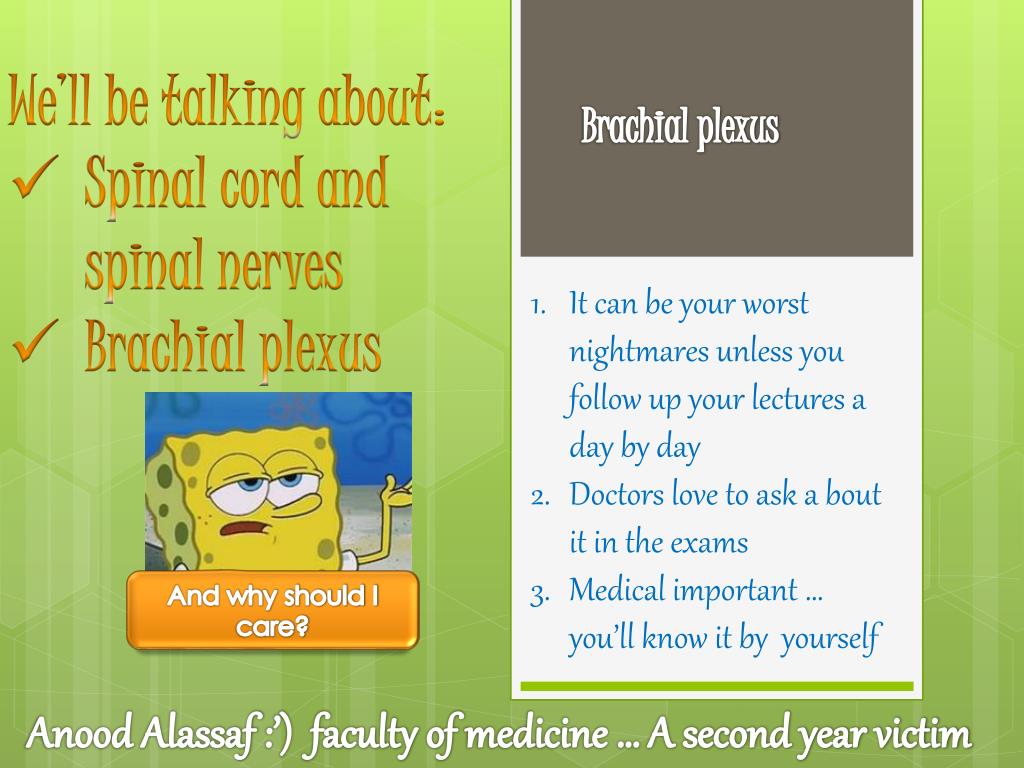

  1. We’ll be talking about: • Spinal cord and spinal nerves • Brachial plexus It can be your worst nightmares unless you follow up your lectures a day by day Doctors love to ask a bout it in the exams Medical important … you’ll know it by yourself Brachial plexus AnoodAlassaf :’) faculty of medicine … A second year victim And why should I care?

  2. Vertebral column: 33 vertebrae 26 bone • 5 of them fuse to make the sacrum • = considered 1 bone • 4 fuse to form the coccyx • = considered 1 bone

  3. Divided into 31 segment Base of the brain At each segment From each sides there is a spinal nerve Between L1 and L2

  4. Here it’s different • 31 segments • 8 cervical • 12 thoracic • 5 lumbar • 5 sacral • 1 coccygeal In the thoracic part: Each spinal nerve arises from its corresponding segment belowthe corresponding vertebra

  5. Then each spinal nerve divides into: Anterior ramus and posterior ramus

  6. Brachial plexus • Is a network of nerve fibers (anterior rami) running from the spinal cord, formed by the lower four cervical and first thoracic (C5 T1 ) • Proceeds through the neck, axilla, into the arm • Gives off many nerves that supply the shoulder, chest, and arms

  7. trunks divisions

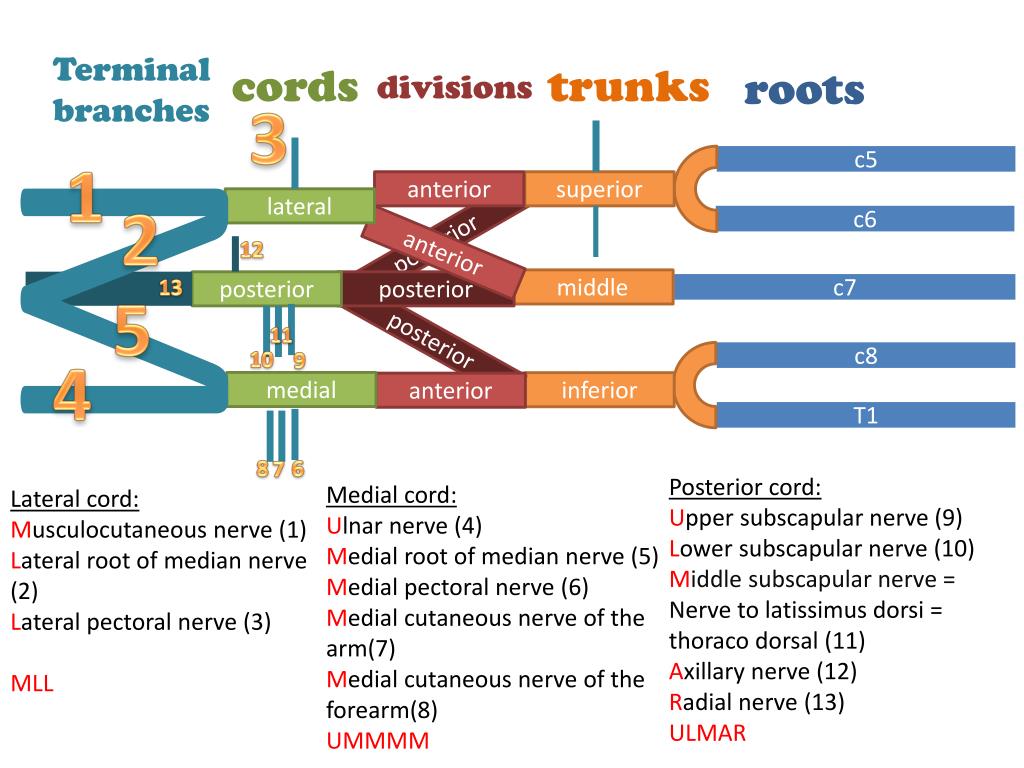

  8. M Terminal branches cords trunks roots divisions 3 1 c5 anterior superior 2 lateral c6 posterior 12 anterior 13 middle posterior posterior c7 5 11 posterior 10 9 4 c8 medial inferior anterior T1 8 7 6 Posterior cord: Upper subscapular nerve (9) Lower subscapular nerve (10) Middle subscapular nerve = Nerve to latissimusdorsi = thoraco dorsal (11) Axillary nerve (12) Radial nerve (13) ULMAR Medial cord: Ulnar nerve (4) Medial root of median nerve (5) Medial pectoral nerve (6) Medial cutaneous nerve of the arm(7) Medial cutaneous nerve of the forearm(8) UMMMM Lateral cord: Musculocutaneous nerve (1) Lateral root of median nerve (2) Lateral pectoral nerve (3) MLL
