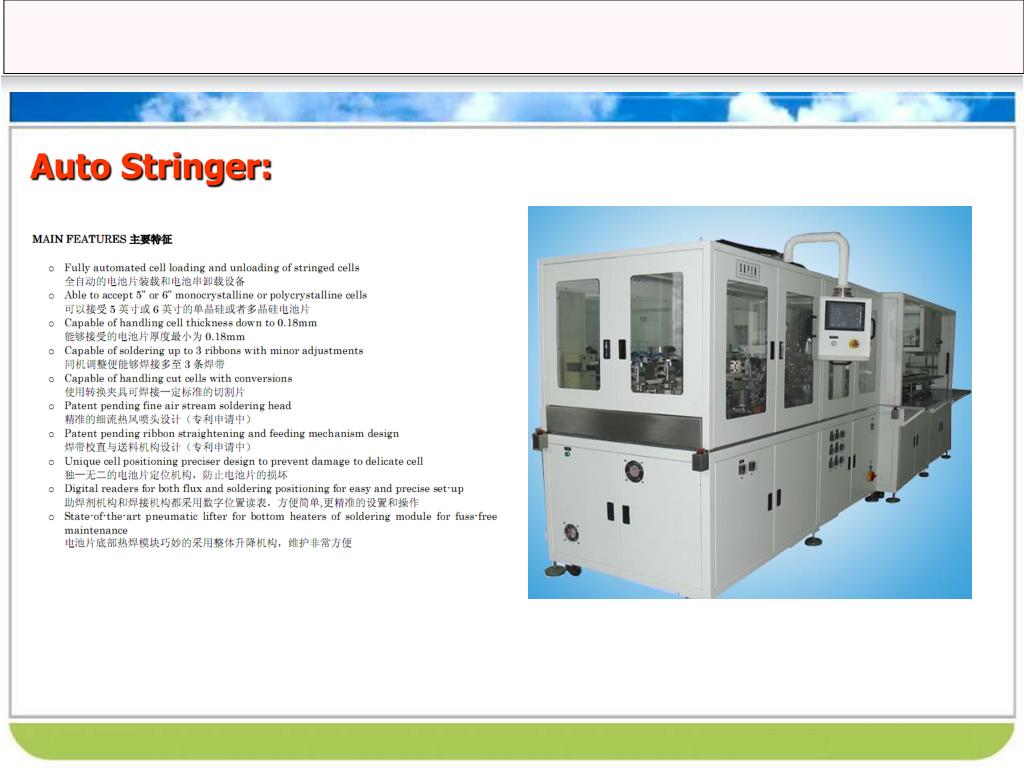

  1. Auto Stringer:

  2. Lamination Machine:

  3. Lamination Machine:

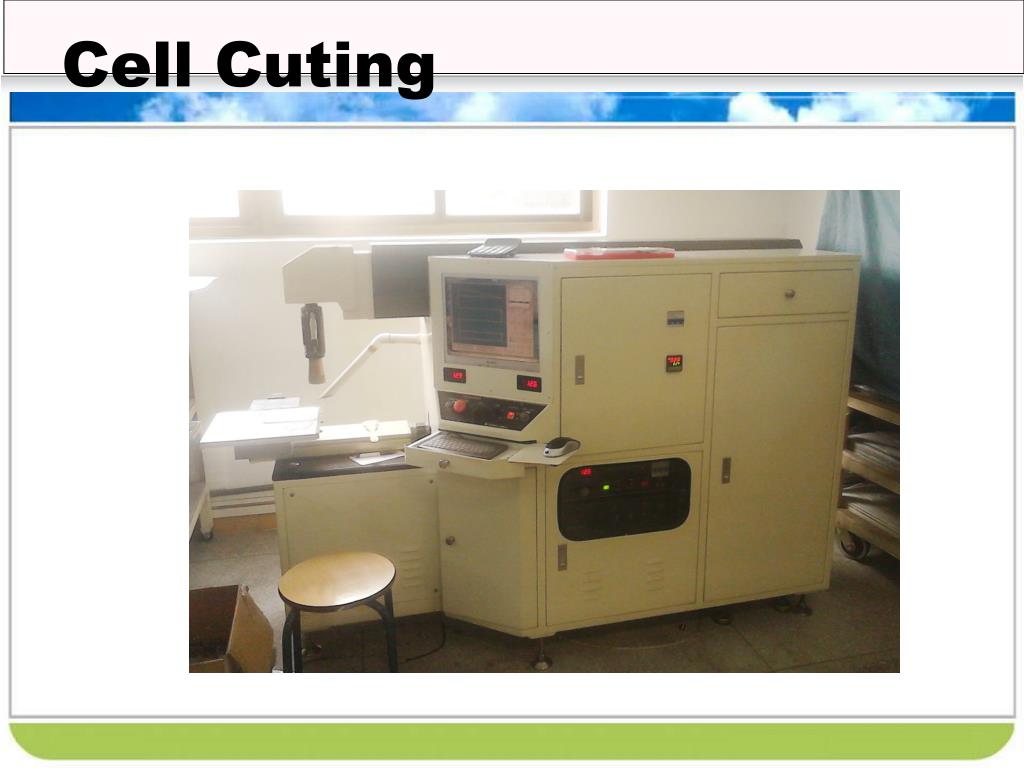

  4. Cell Cuting

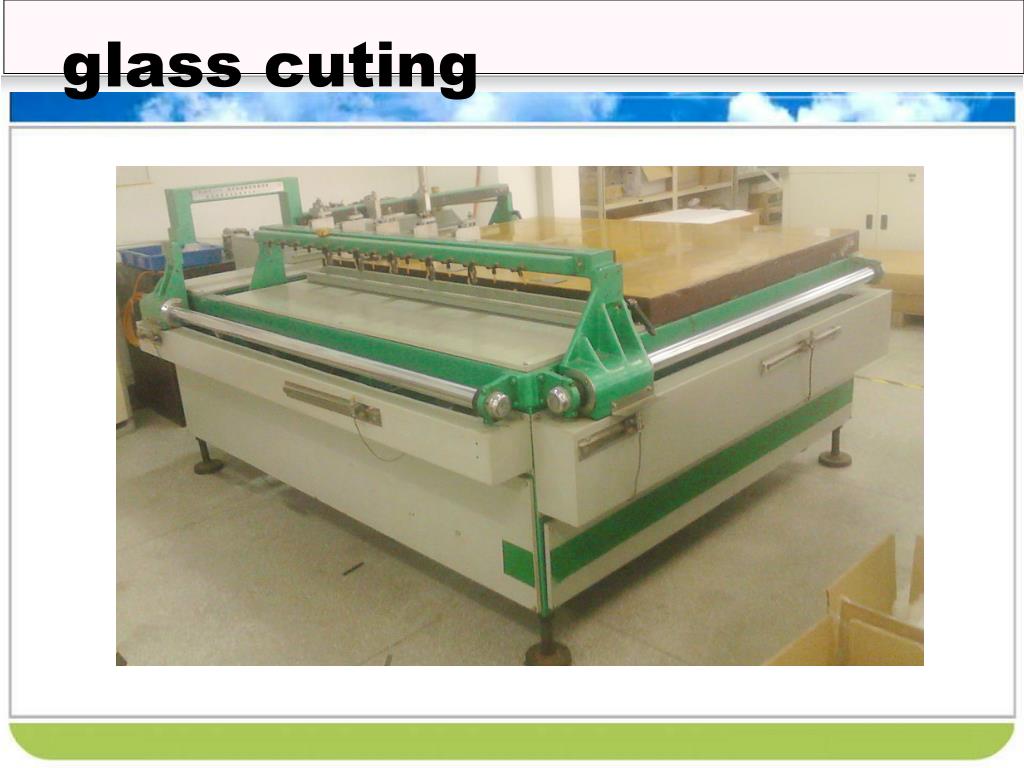

  5. glass cuting

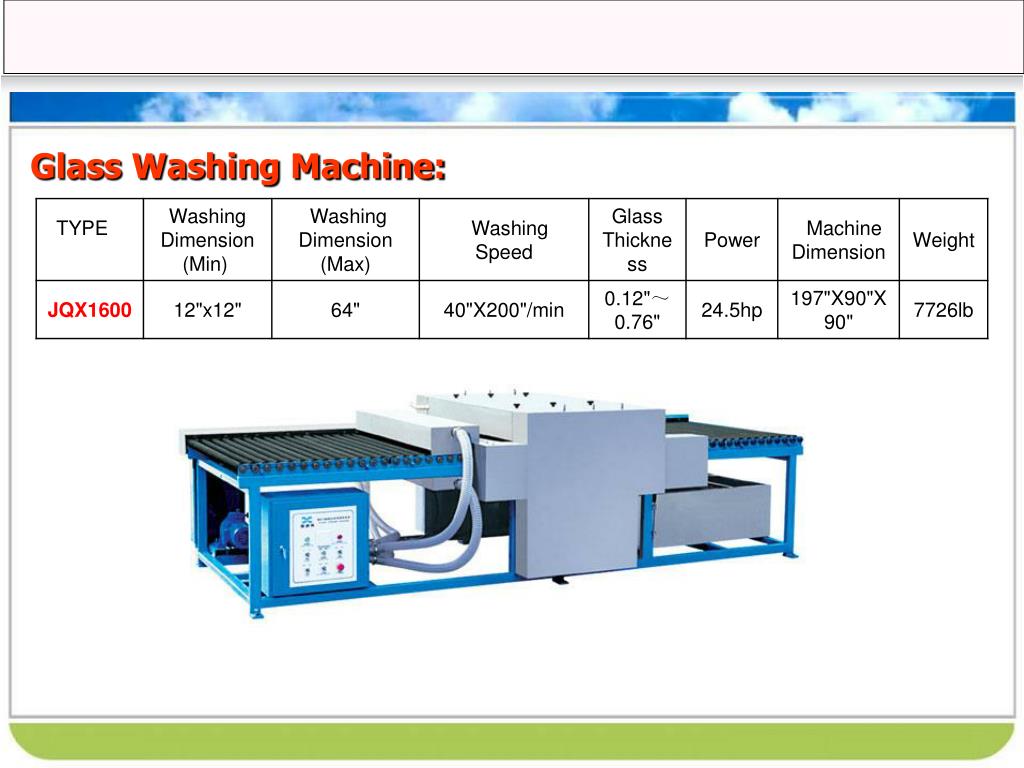

  6. Glass Washing Machine:

  7. Framing Machine: • ZK-2M Main specifications BACK

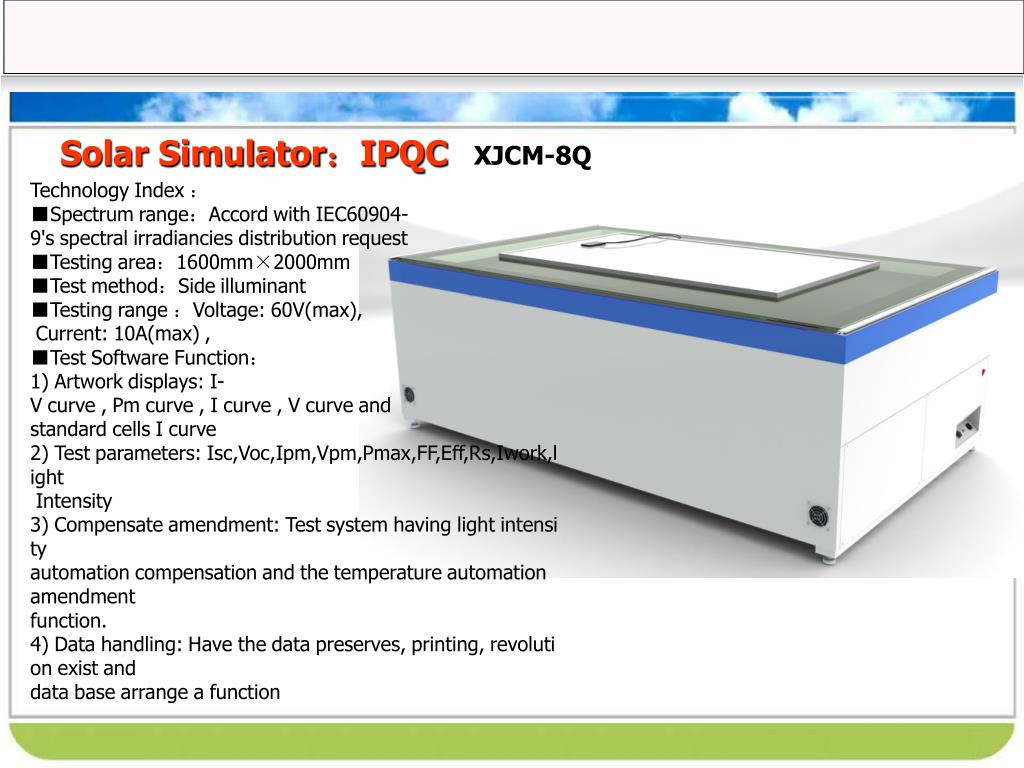

  8. Solar Simulator：IPQC XJCM-8Q TechnologyIndex：■Spectrumrange：AccordwithIEC60904-9'sspectralirradianciesdistributionrequest ■Testingarea：1600mm×2000mm■Testmethod：Sideilluminant■Testingrange：Voltage:60V(max), Current:10A(max),■TestSoftwareFunction：1)Artworkdisplays:I-Vcurve,Pmcurve,Icurve,VcurveandstandardcellsIcurve2)Testparameters:Isc,Voc,Ipm,Vpm,Pmax,FF,Eff,Rs,Iwork,lightIntensity3)Compensateamendment:Testsystemhavinglightintensityautomationcompensationandthetemperatureautomationamendmentfunction.4)Datahandling:Havethedatapreserves,printing,revolutionexistanddatabasearrangeafunction

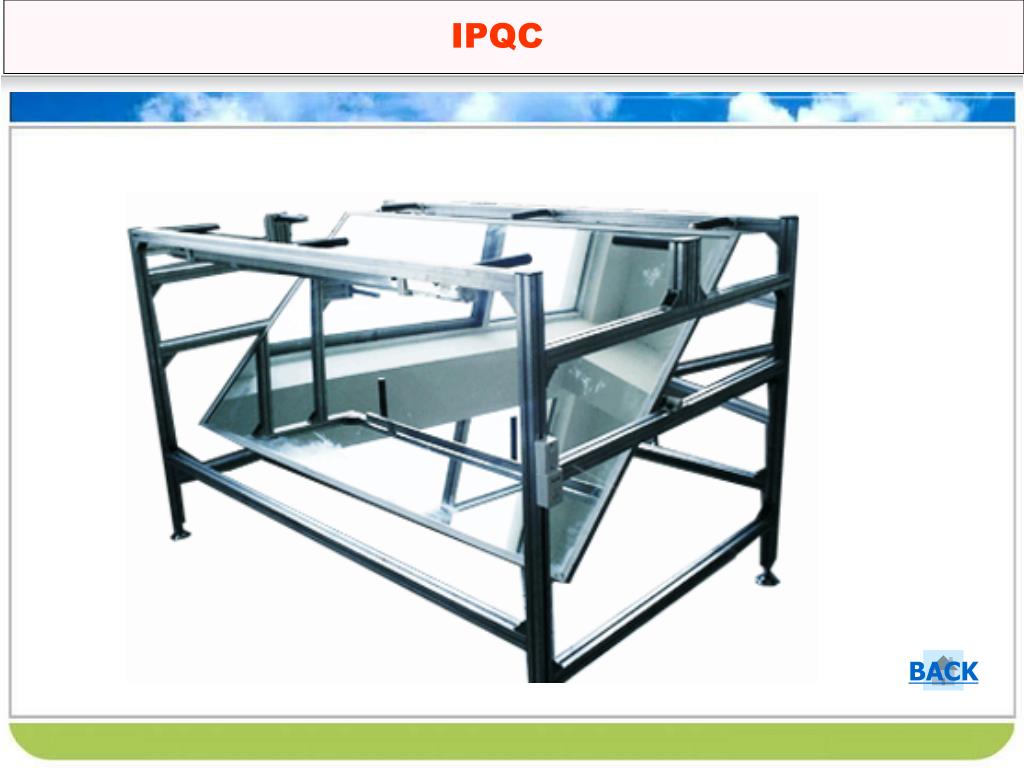

  9. IPQC BACK

  10. Soldering/String Line: LxWxH:7300*1900*850㎜

  11. EVA/TPT Cutting Machine: BACK

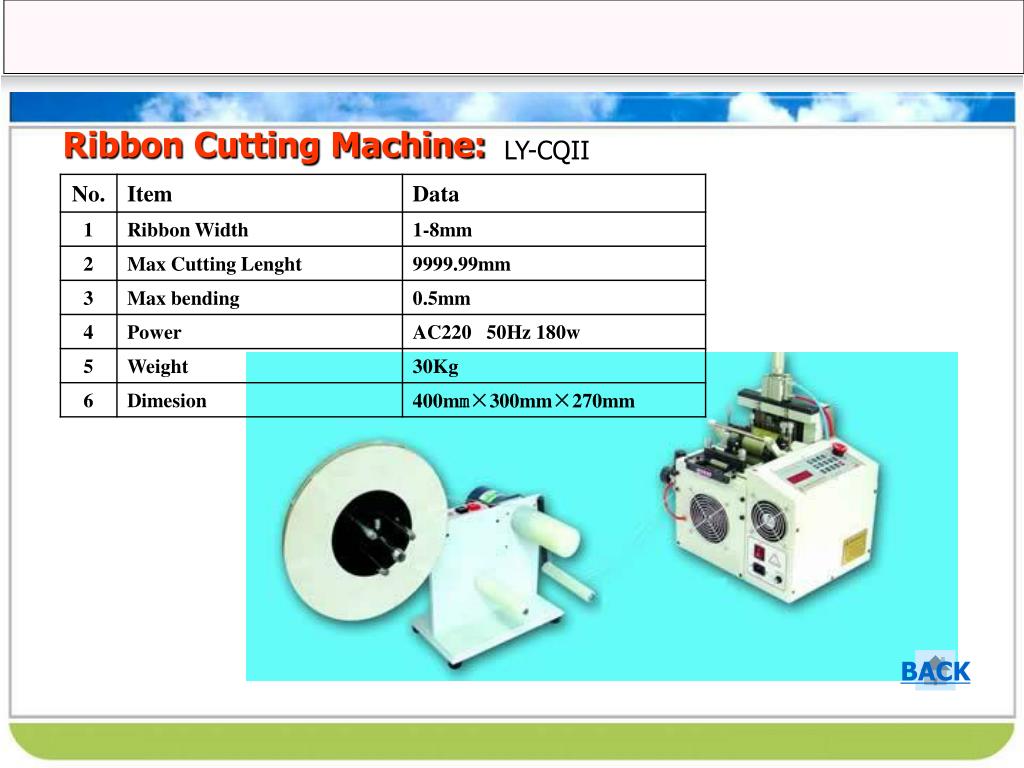

  12. Ribbon Cutting Machine: LY-CQII BACK

  13. LayUp/Bussing Table: L2000×W1200×H800mm

  14. Lamination Buffer Transfer: L1110*W980*H1380

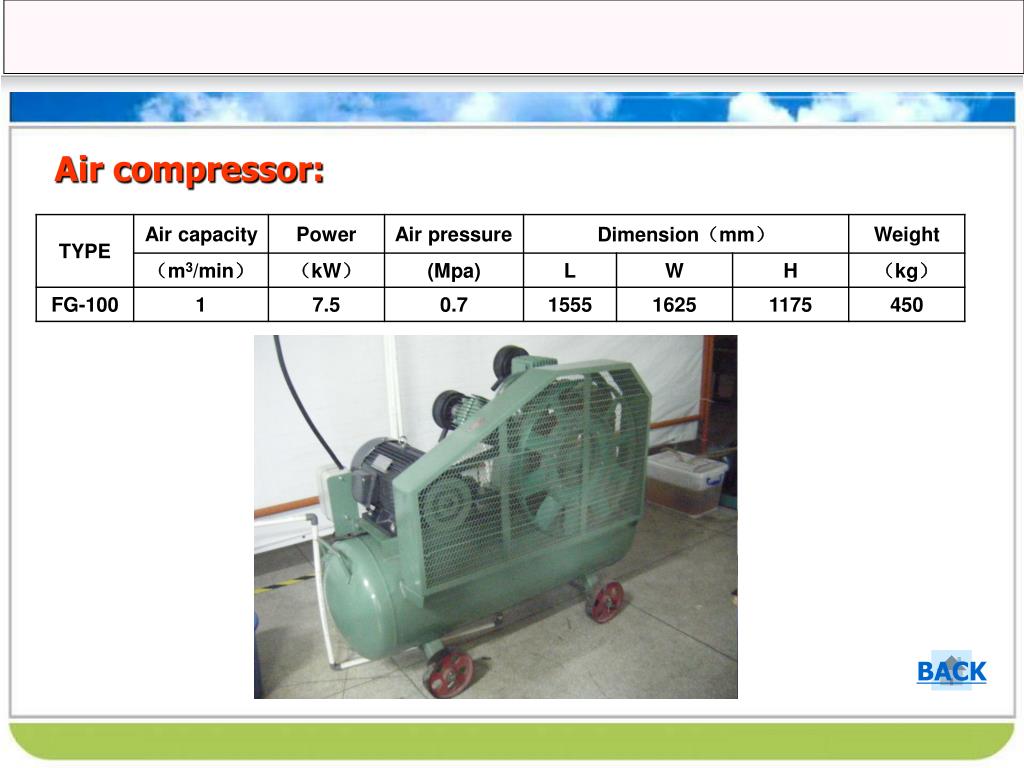

  15. Air compressor: BACK

  16. InsulationTester:

  17. IPQC Testing: EVA Gel Testing
