For example for analysis of the SIP package

For example for analysis of the SIP package. The analysis model. The design model import from CDS. Port2 Signal. Port5 Signal. Port3 Signal. Port4 Signal. Port1 Power supply pin. Reflect. Power noise coupling factor. Insertion Loss. Cross talk.

oriana
Télécharger la présentation

For example for analysis of the SIP package

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

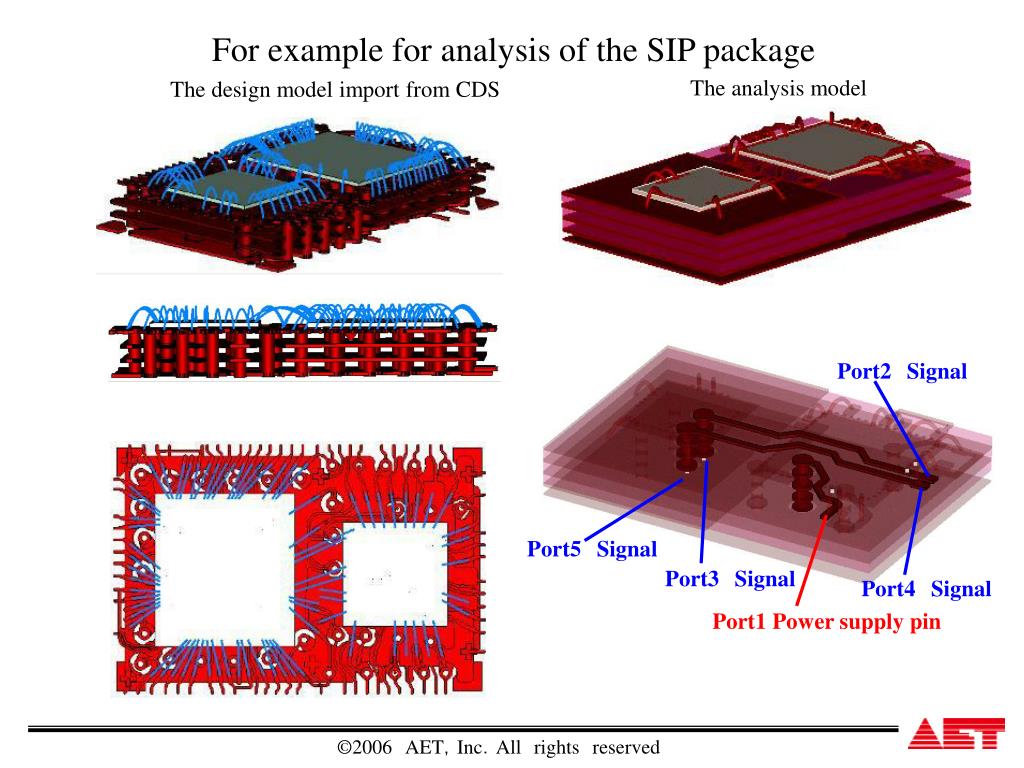

  1. For example for analysis of the SIP package The analysis model The design model import from CDS Port2Signal Port5Signal Port3Signal Port4Signal Port1 Power supply pin

  2. Reflect Power noise coupling factor Insertion Loss Cross talk S-Parameter full 5 port Sparameter It is resonating by 10.29GHz only in case of SIP P3 P2 Signal line P5 P4 Signal line P１ Power supply line The coupling factor is about -8dB at 10GHz

  3. -(8/20) The coupling factor at 10GHz≒10 ≒0.4 The signal amplitude is 1V to the noise amplitude is 0.4V Electric field distribution and pulse wave transmission analysis. Only SIP Input P110GHz CW Input P1 15GHz CW Port1（power pin）→ Input noise source at 10GHｚ（CW） Port1（power pin）→ Input noise source at 15GHｚ（CW） Port2（3GHz Input pulse) Port2（3GHz Input pulse) →Port3（3GHz Output Pulse) →Port3（3GHz Output Pulse)

  4. The resonance characteristic at the time of board mounting . By mounting to a board, resonance frequency turned into plurality finely and shifted to low-frequency. Port1 （The power PIN) S11 50mm 50mm SIP 6×9 3m far field electric distribution(dBuV/m)
