  1. Automation - End User Solutions TSX C USB FIP USB Fipway offer, installation and configuration Quality & Customer

  2. TSX C USB FIP Communication AdapterOffer Description • A TSXCUSBFIP adapter with its USB connection • An installation guide But to use the adapter the following items are required : • A TSXFPCG010 or TSXFPCG030 • To be ordered separately. • A Fipway driver. • Included in the CD driver (ref : TLXCDDRV20M V2.5 or higher). you can download it from the Telemecanique web site (www.telemecanique.com)

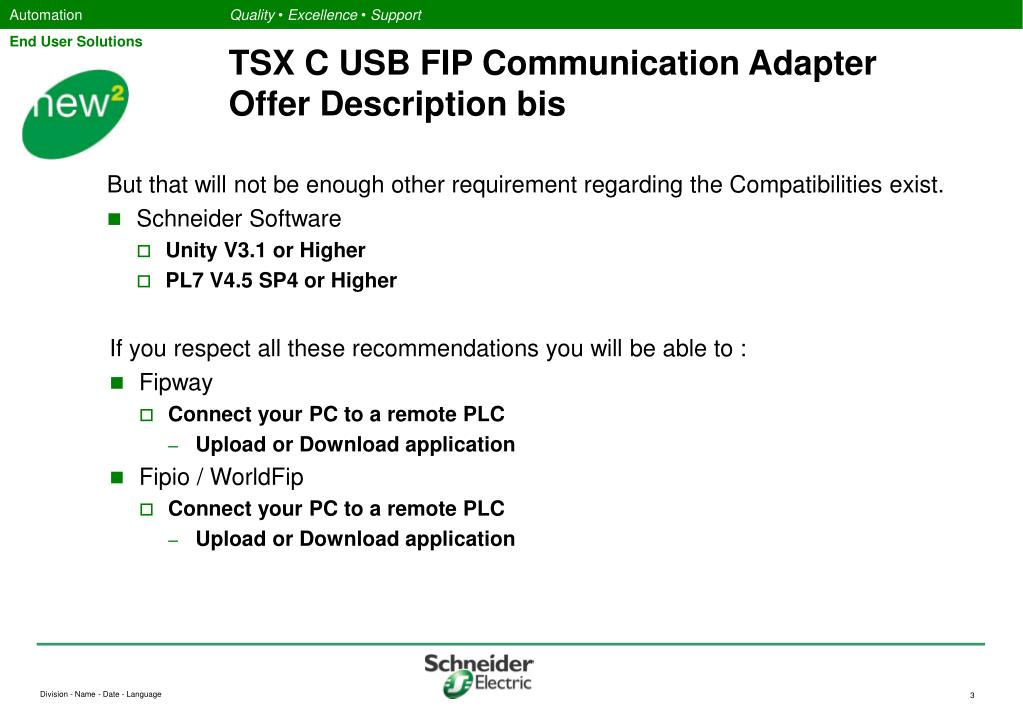

  3. TSX C USB FIP Communication AdapterOffer Description bis But that will not be enough other requirement regarding the Compatibilities exist. • Schneider Software • Unity V3.1 or Higher • PL7 V4.5 SP4 or Higher If you respect all these recommendations you will be able to : • Fipway • Connect your PC to a remote PLC • Upload or Download application • Fipio / WorldFip • Connect your PC to a remote PLC • Upload or Download application

  4. TSX C USB FIP Communication AdapterHow to install it • Install the Fipway driver. (The driver must be install before connecting the adapter) • Insert the USB cable from the adapter into the USB port on your PC • The USB and ERR LEDs will light • Messages will pop up “Found New Hardware” “Welcome to theFound New Hardware Wizard” window will open.Select “No, Not this time” and click Next Select Install the software automatically and click Next Click Finish If this is the first time the adapter has been plugged into the system; the “Found New Hardward” message will pop up again and you will have to repeat all steps above. The last message should be “New Hardware is ready to use” .

  5. TSX C USB FIP Communication AdapterHow to configure it • Open Schneider Drivers Manager • Select the USB-FIP Driver • Configure the Fipway or Fipio Networks Parameters (We can configure two adapters on one PC, UFP01 / UFP02)
