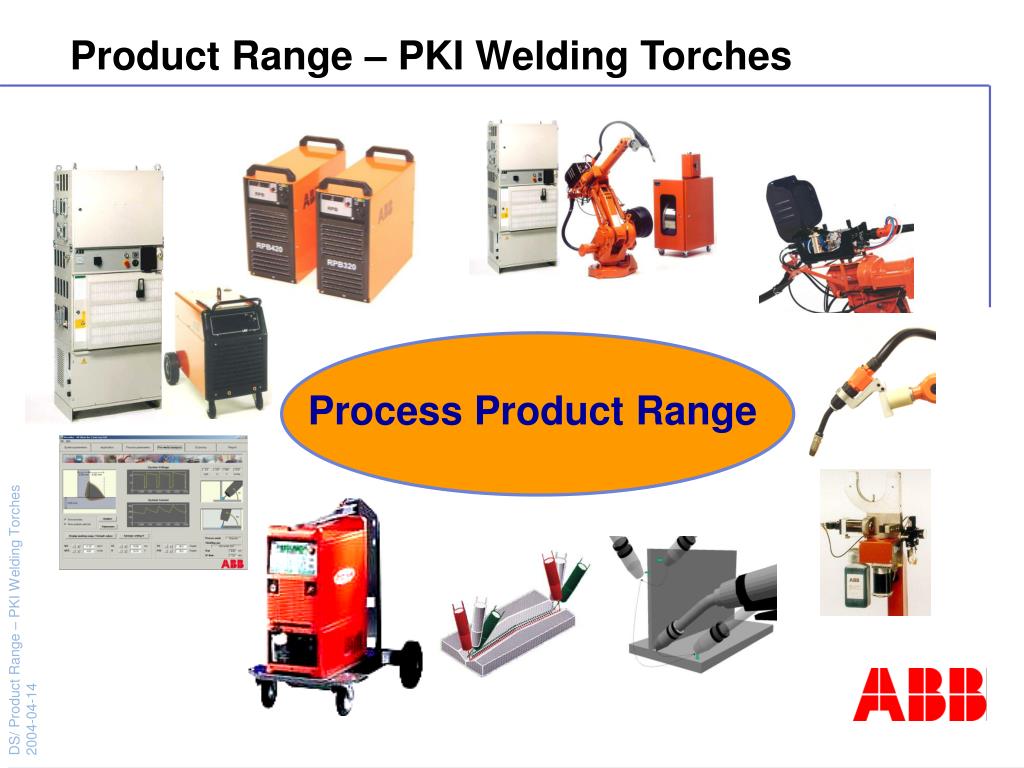

  1. Product Range – PKI Welding Torches Process Product Range

  2. ABB MIG/MAG torches – Changes & Benefits Robot Collision detect replaces Mechanical Collision Sensor Fixed Position Bracket Assembly ‘Quick Release’ Hose Bundle at torch body New Hose Bundle Outer Cover Extensive Range of ‘Quick Release’ Torch Necks

  3. ABB MIG/MAG torches – Changes & Benefits Fixed bracket gives a secure torch position Torch location will be maintained when changing hose bundle Short hose bundle exchange time now less than five minutes including Bulls Eye quick check, if the PKI-D version is used.

  4. Limited Movement Swivels ABB MIG/MAG torches – Changes & Benefits The new Hose Bundle outer cover with swivels at torch body and wire feeder connections Improved MTBF: Current Hose Bundle: 17,000 Cycles New Hose Bundle: 65,000 Cycles

  5. TCP with 0 mmElectrode Extension 96 mm 343 mm ABB MIG/MAG torches – TCP Dim. “Old” version “Old” Standard PKI version “Old” Standard PKI version 72 mm

  6. TCP with 0 mmElectrode Extension 114 mm 382 mm ABB MIG/MAG torches – TCP Dim. “New” version “New” Standard PKI-S version 72 mm

  7. This bracket can be quoted onrequest TCP with 0 mmElectrode Extension 88 mm 72 mm Giving almost the same TCP as “old” version 346 mm ABB MIG/MAG torches – Optional bracket “New” Standard PKI-S version, with optional bracket

  8. Hose bundle for the PKI-S Version 1400 mm Hose bundle for the PKI-D Version 1400 mm ABB MIG/MAG torches – Hose bundle versions

  9. Two PKI-S 500 Welding Torches in production
