  1. William Stallings Computer Organization and Architecture6th Edition Chapter 10 Instruction Sets: Characteristics and Functions SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

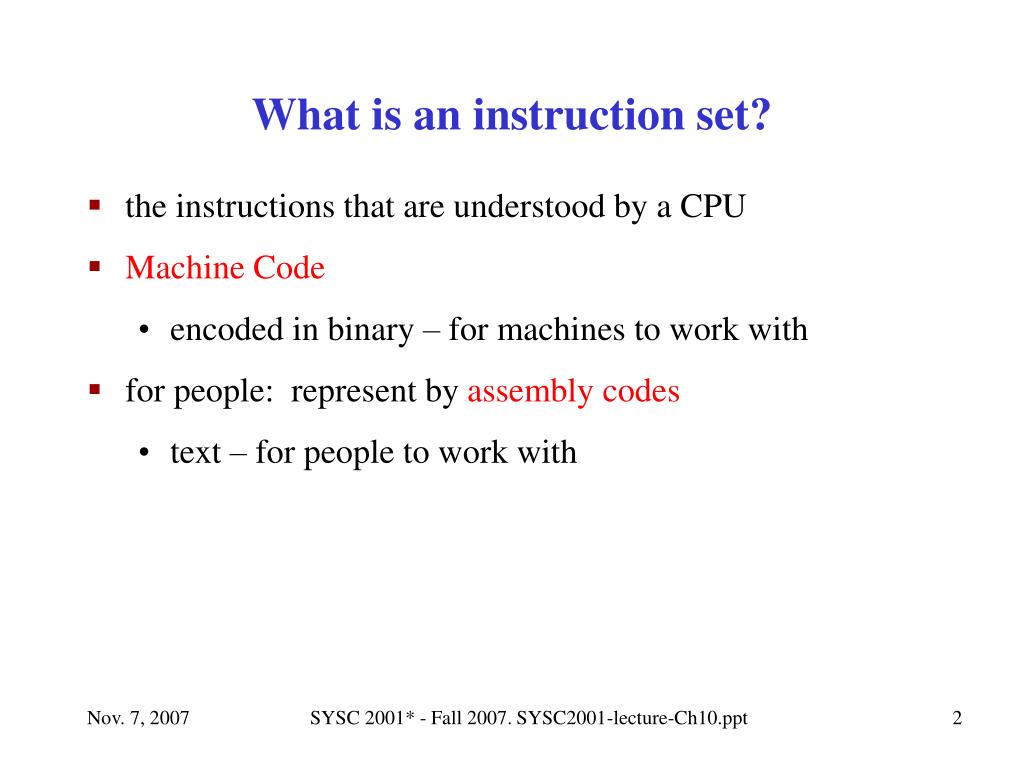

  2. What is an instruction set? • the instructions that are understood by a CPU • Machine Code • encoded in binary – for machines to work with • for people: represent by assembly codes • text – for people to work with SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

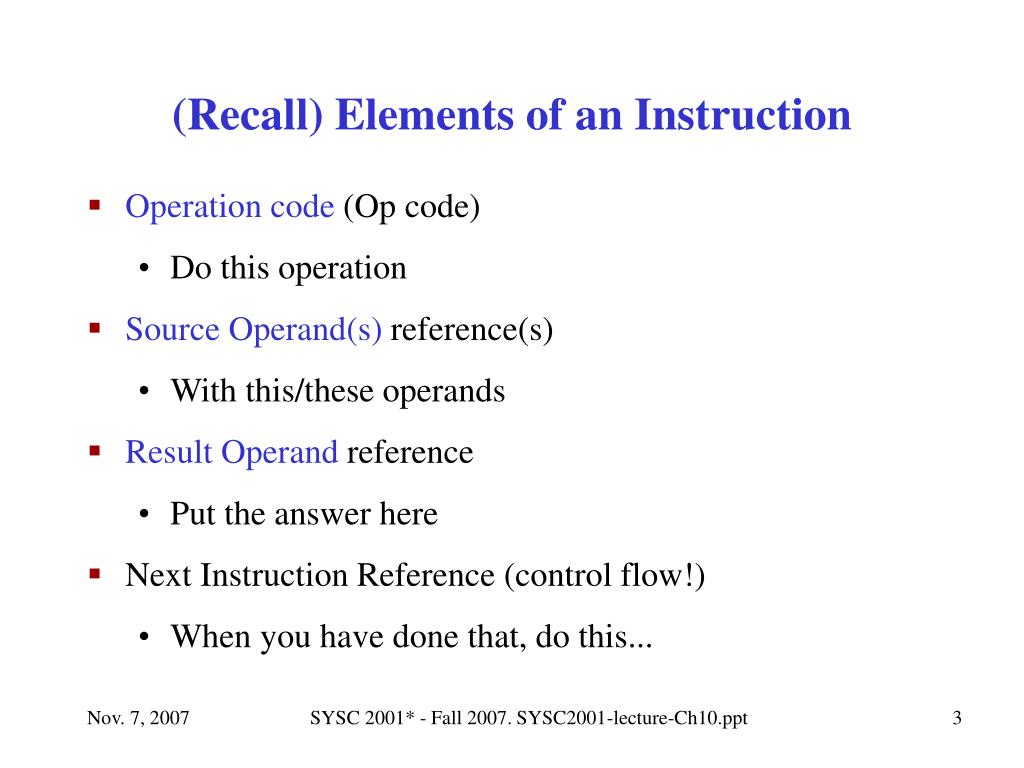

  3. (Recall) Elements of an Instruction • Operation code (Op code) • Do this operation • Source Operand(s) reference(s) • With this/these operands • Result Operand reference • Put the answer here • Next Instruction Reference (control flow!) • When you have done that, do this... SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

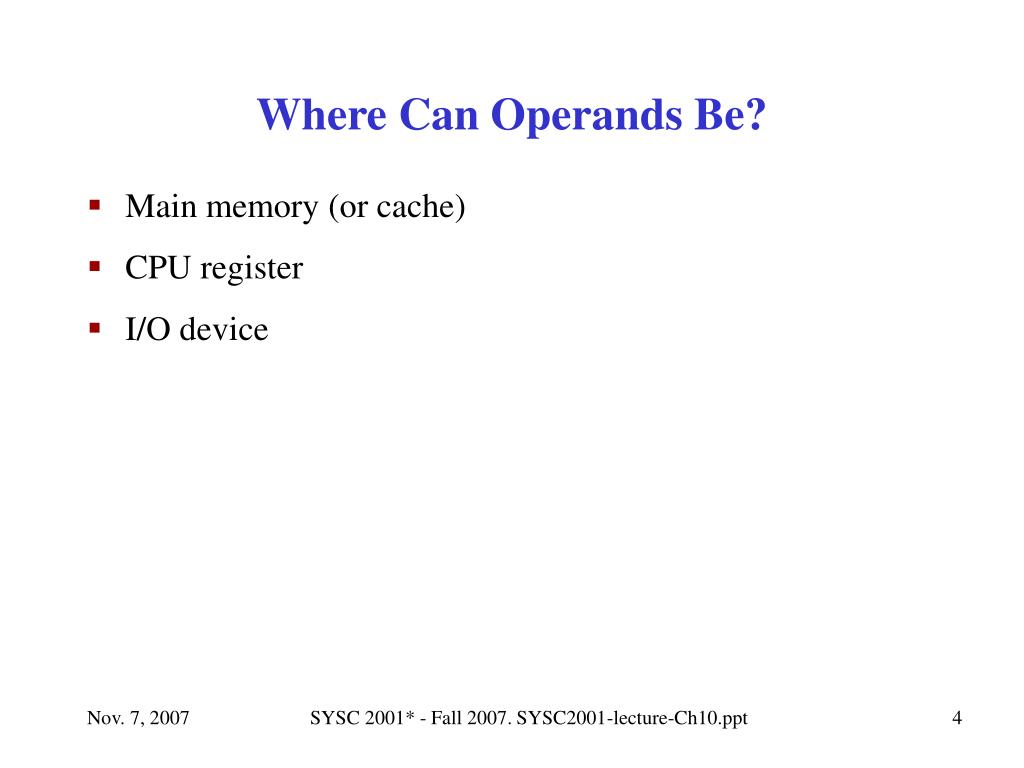

  4. Where Can Operands Be? • Main memory (or cache) • CPU register • I/O device SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

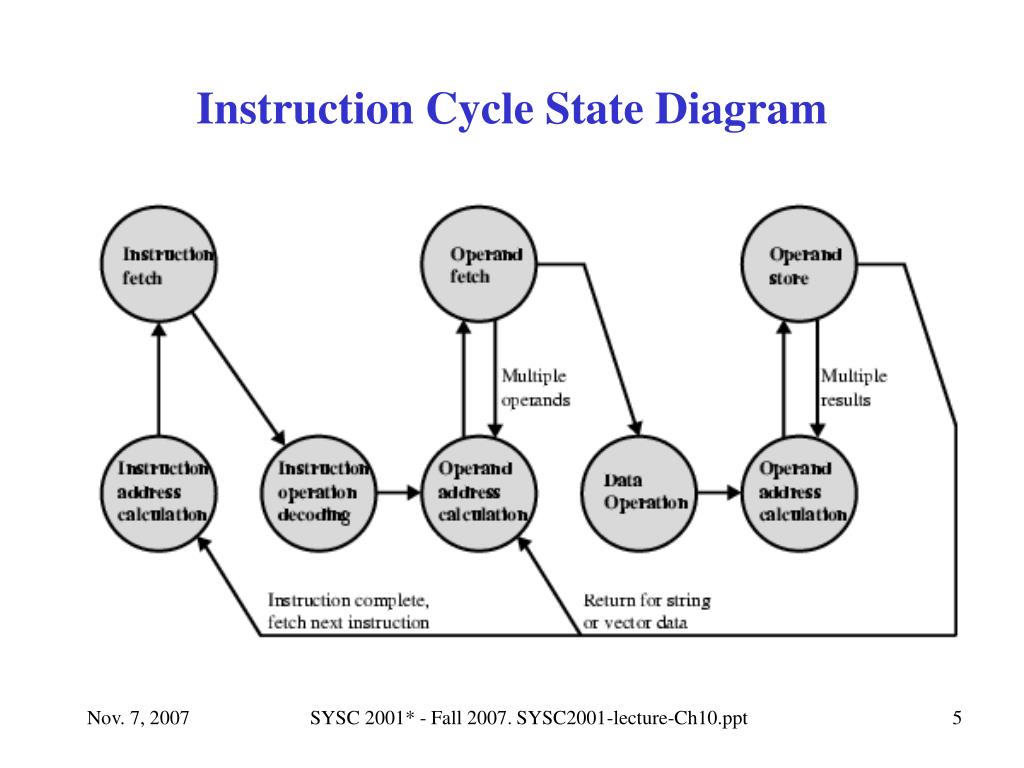

  5. Instruction Cycle State Diagram SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  6. Instruction Representation • In machine code each instruction has a unique bit pattern • For human consumption (well, programmers anyway) a symbolic representation is used • e.g. ADD, SUB, LOAD • Operands can also be represented symbolically • e.g. ADD A,B SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

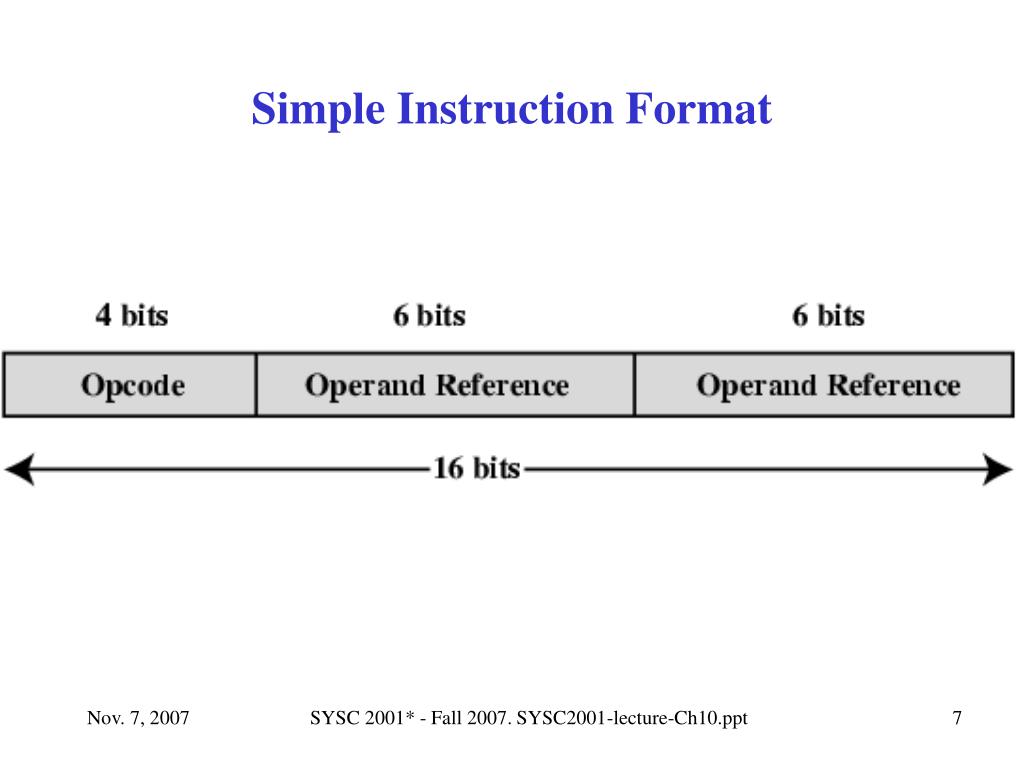

  7. Simple Instruction Format SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

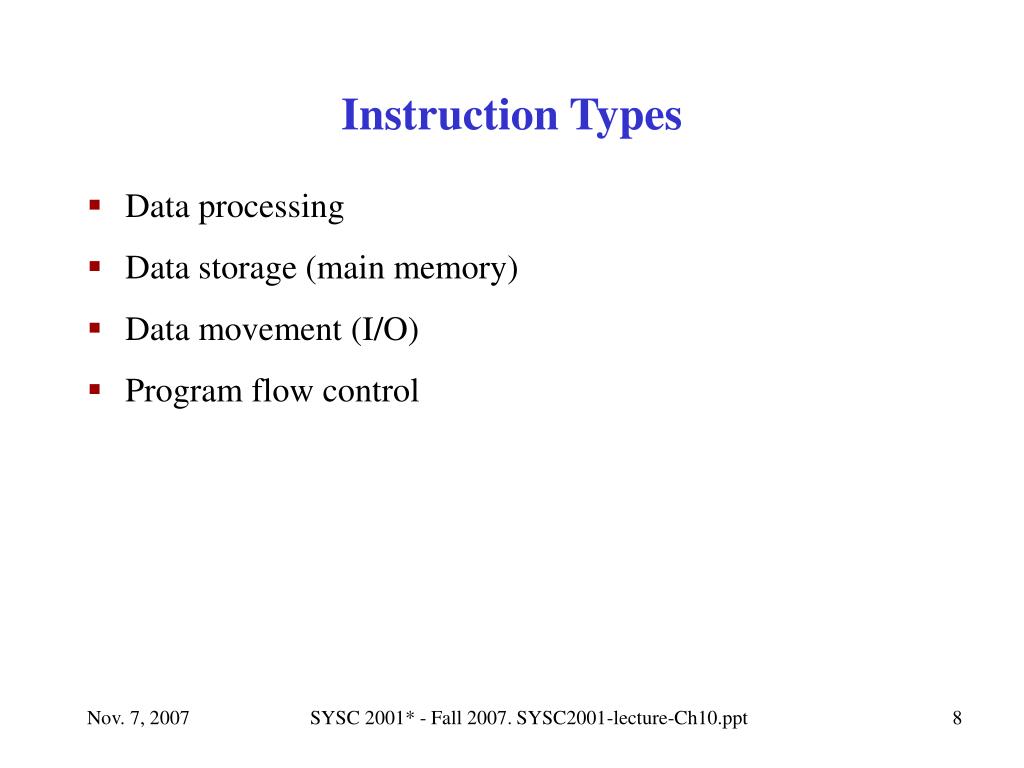

  8. Instruction Types • Data processing • Data storage (main memory) • Data movement (I/O) • Program flow control SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  9. Number of Addresses (a) • 3 addresses • Operand 1, Operand 2, Result • a = b + c; • May be a fourth - next instruction (usually implicit) • Not common • Needs very long words to hold everything Aside: a recent architecture trend (mid-90’s) is to have a Very Long Instruction Word (Search web for “VLIW”) SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  10. Number of Addresses (b) • 2 addresses • One address doubles as operand and result • a = a + b (in C: a += b ) • Reduces length of instruction • Requires some extra work • Temporary storage to hold some results SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  11. Number of Addresses (c) • 1 address • Implicit second address • Usually a register (accumulator) • Common in early machines • e.g. ADD 10  adds 10 (explicit) to accumulator (implicit) SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  12. Number of Addresses (d) • 0 (zero) addresses • operations use implicit stack • e.g. push a • push b • add ( c = a + b ) • pop c what is a “stack”? (later!) also see Appendix 10.A Java Virtual Machine is stack-based like this! SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

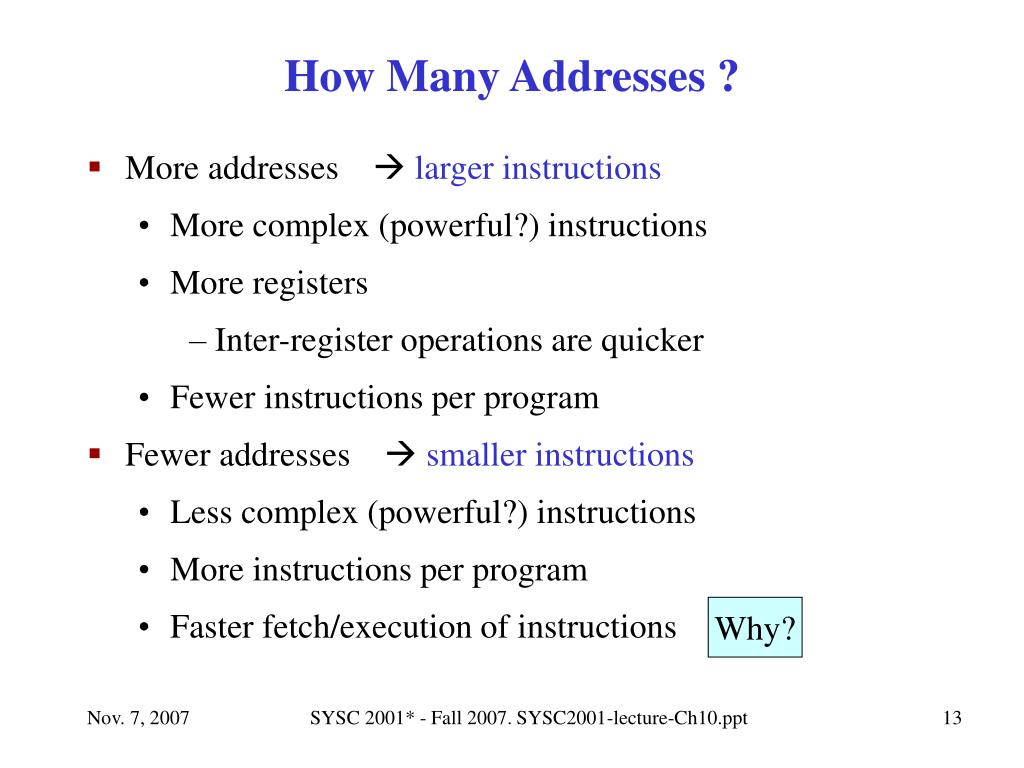

  13. How Many Addresses ? • More addresses larger instructions • More complex (powerful?) instructions • More registers • Inter-register operations are quicker • Fewer instructions per program • Fewer addresses  smaller instructions • Less complex (powerful?) instructions • More instructions per program • Faster fetch/execution of instructions Why? SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  14. Design Decisions (1) • Operation repertoire • How many ops? • What can they do? • How complex are they? • Built-In Data types supported • Instruction formats – how to encode as binary values • Length of op code field • Number of addresses SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  15. Design Decisions (2) • Registers • Number of CPU registers available • Which operations can be performed on which registers? • Addressing modes ( very important! later … Ch. 11) • RISC v CISC • Reduced Instruction Set Computer • Complex Instruction Set Computer SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

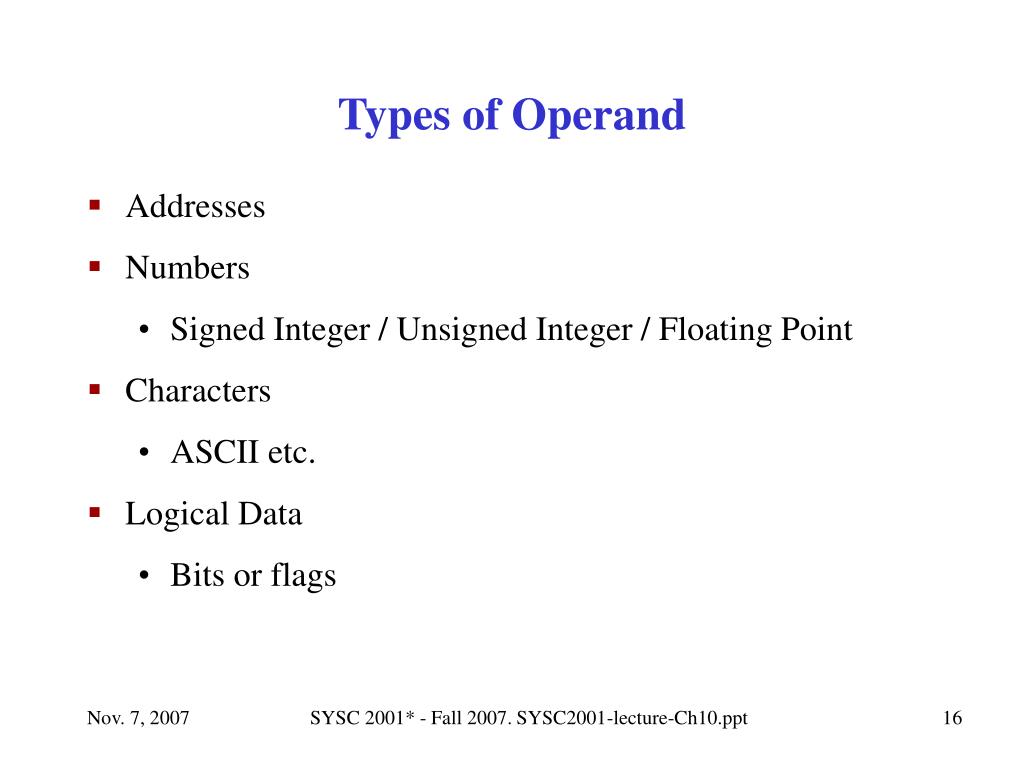

  16. Types of Operand • Addresses • Numbers • Signed Integer / Unsigned Integer / Floating Point • Characters • ASCII etc. • Logical Data • Bits or flags SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  17. Pentium Data Types • 8 bit Byte • 16 bit word • 32 bit double word • 64 bit quad word • Addressing is by 8 bit unit (byte) • A 32 bit double word is read at addresses divisible by 4 N.B. not just any address ! SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

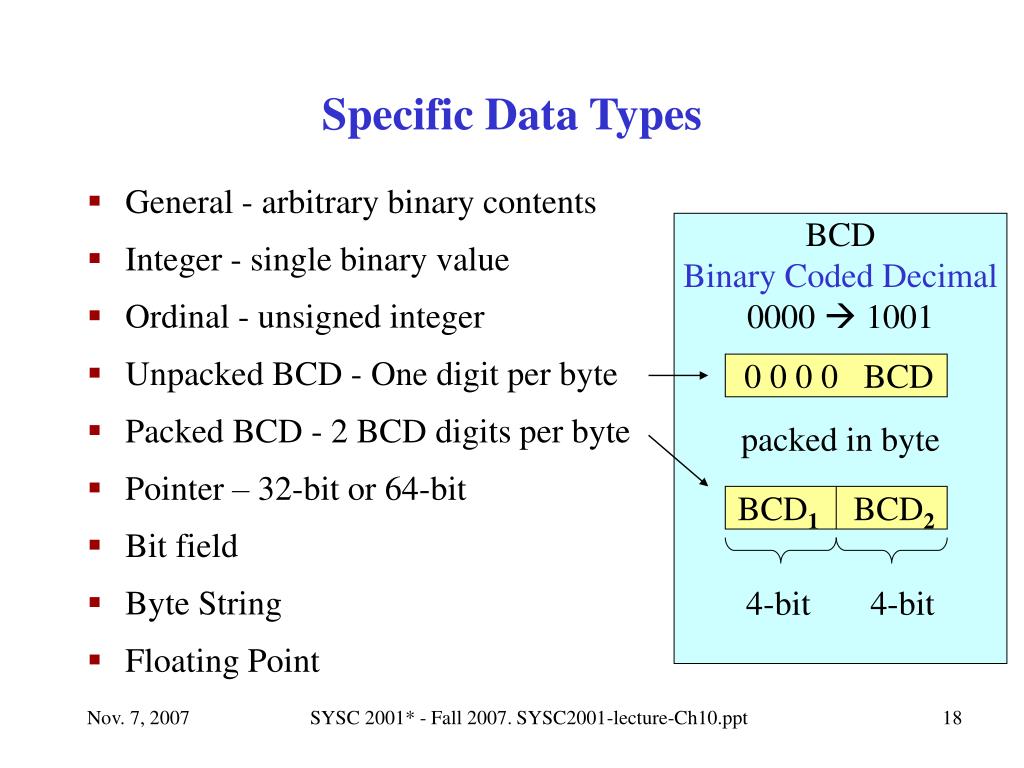

  18. Specific Data Types • General - arbitrary binary contents • Integer - single binary value • Ordinal - unsigned integer • Unpacked BCD - One digit per byte • Packed BCD - 2 BCD digits per byte • Pointer – 32-bit or 64-bit • Bit field • Byte String • Floating Point BCD Binary Coded Decimal 0000  1001 packed in byte 4-bit 4-bit 0 0 0 0 BCD BCD1 BCD2 SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  19. Pentium Integer & FP Data Types 80-bit! 10 bytes (8087 legacy) SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

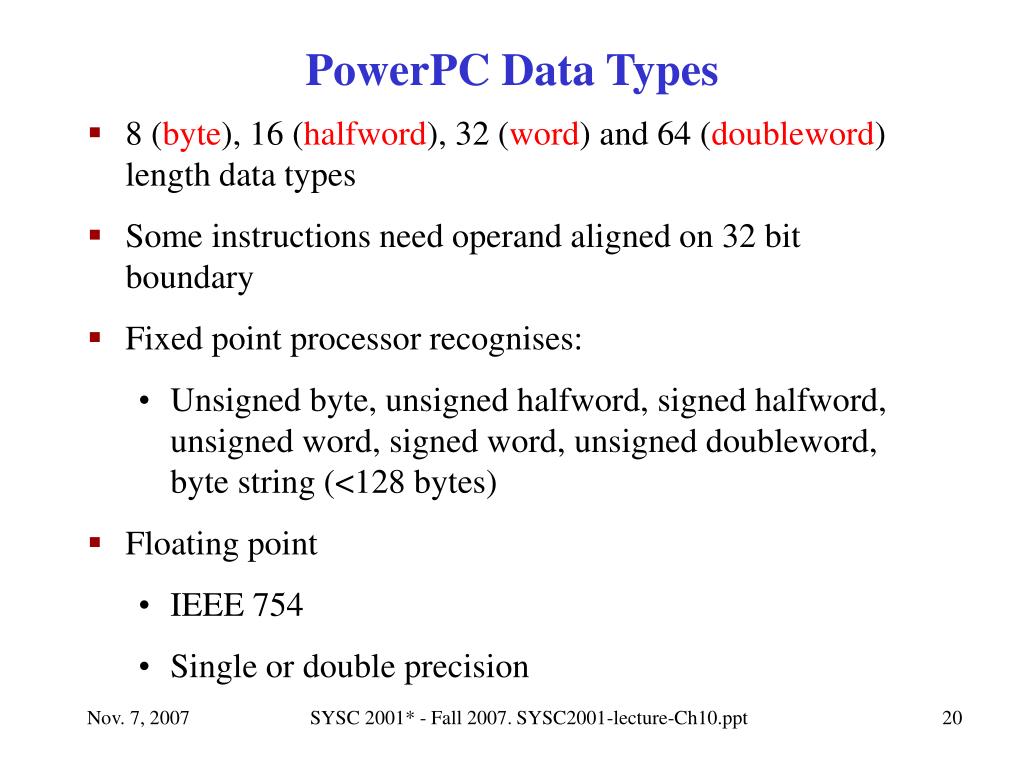

  20. PowerPC Data Types • 8 (byte), 16 (halfword), 32 (word) and 64 (doubleword) length data types • Some instructions need operand aligned on 32 bit boundary • Fixed point processor recognises: • Unsigned byte, unsigned halfword, signed halfword, unsigned word, signed word, unsigned doubleword, byte string (<128 bytes) • Floating point • IEEE 754 • Single or double precision SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

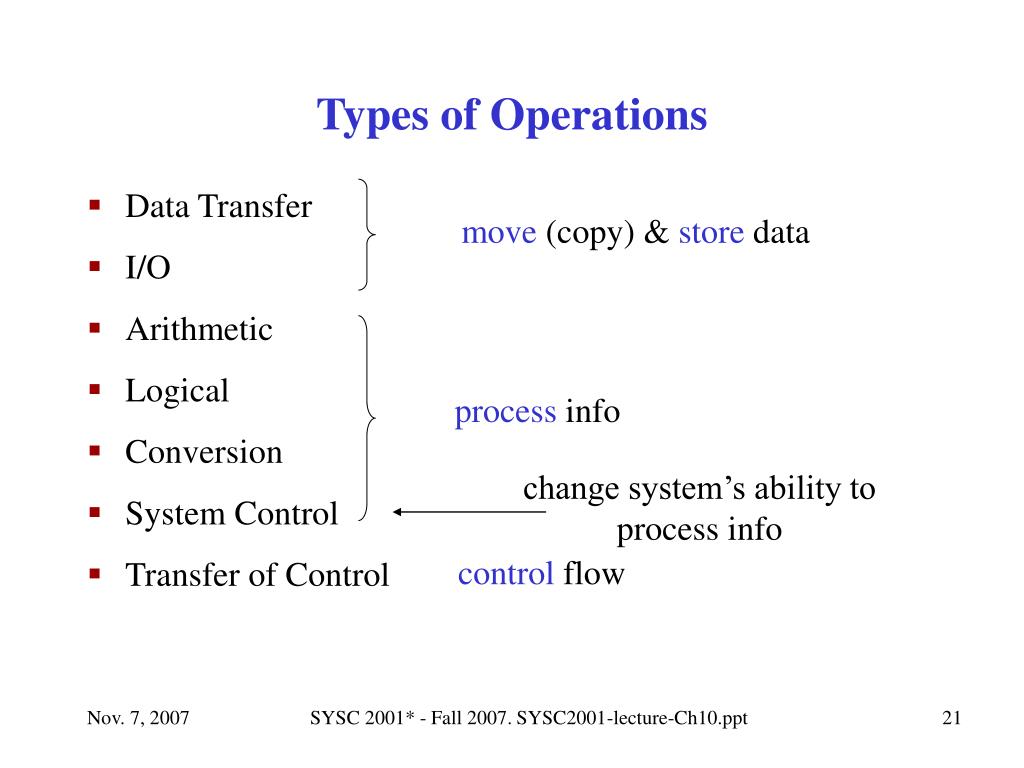

  21. Types of Operations • Data Transfer • I/O • Arithmetic • Logical • Conversion • System Control • Transfer of Control move (copy) & store data process info change system’s ability to process info control flow SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  22. Data Transfer • Specify • Source (src) • Destination (dest) • Size of data • E.G. MOVB dest, src operands size: B = byte operation SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

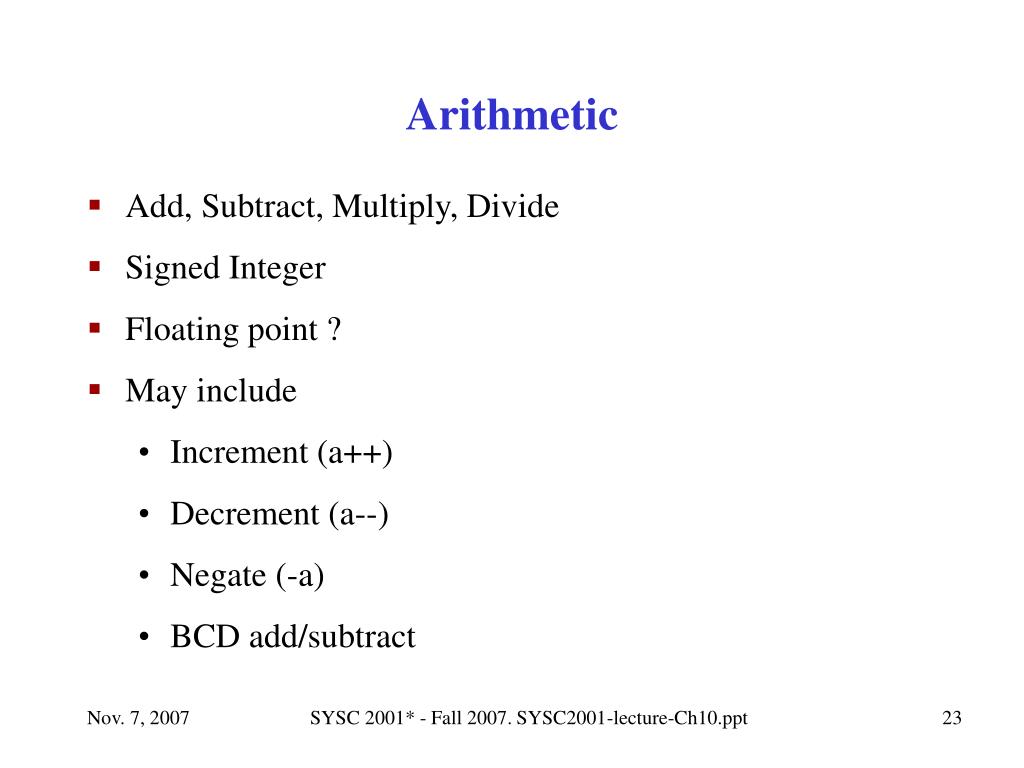

  23. Arithmetic • Add, Subtract, Multiply, Divide • Signed Integer • Floating point ? • May include • Increment (a++) • Decrement (a--) • Negate (-a) • BCD add/subtract SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

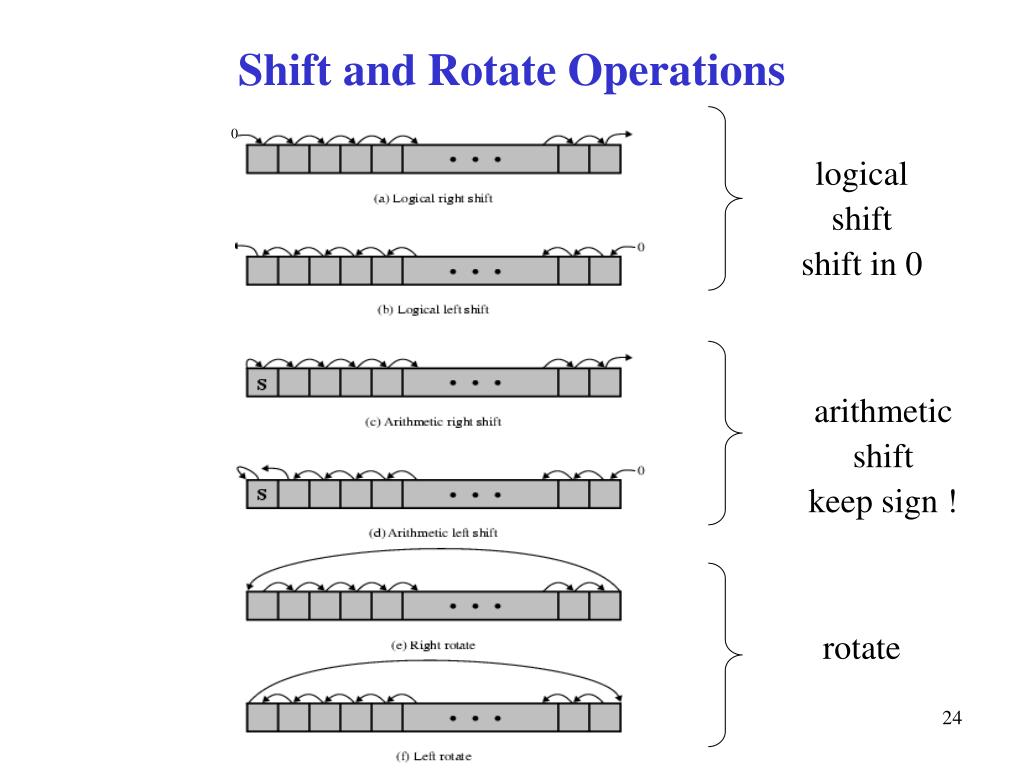

  24. Shift and Rotate Operations 0 logical shift shift in 0 arithmetic shift keep sign ! rotate SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

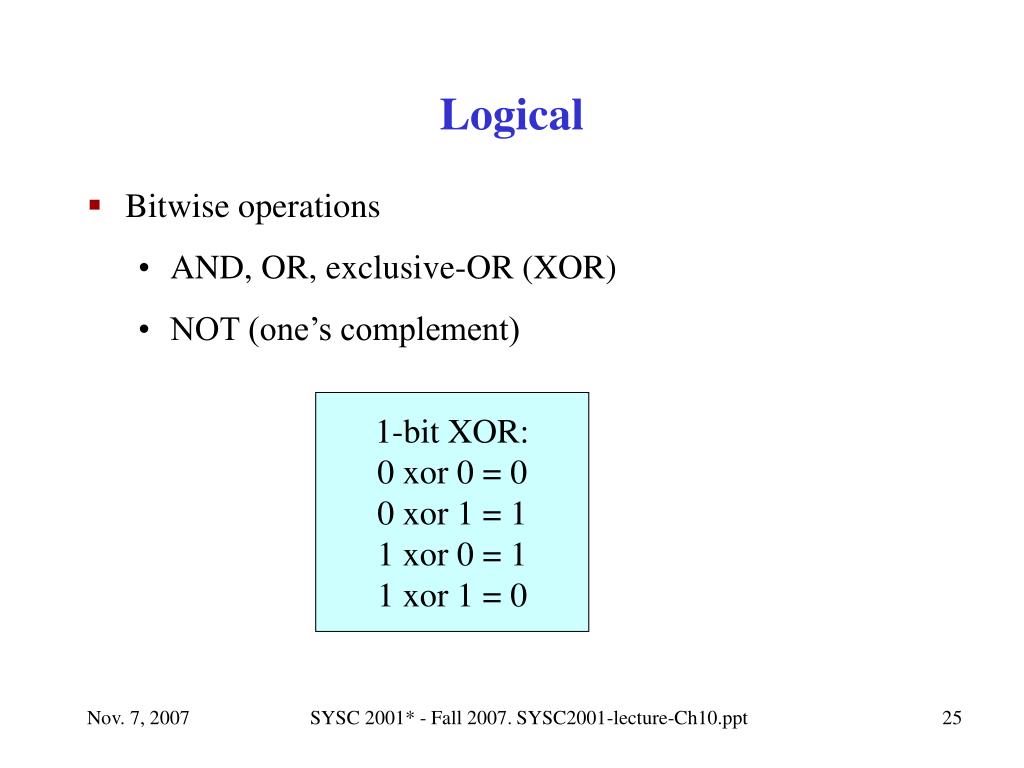

  25. Logical • Bitwise operations • AND, OR, exclusive-OR (XOR) • NOT (one’s complement) 1-bit XOR: 0 xor 0 = 0 0 xor 1 = 1 1 xor 0 = 1 1 xor 1 = 0 SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  26. Conversion • size conversion: • e.g. byte to word – sign extend? • E.G. Binary to BCD • binary 00001111 (1510) to • packed BCD 0001 0101 • integer to floating BCD 1 BCD 5 SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

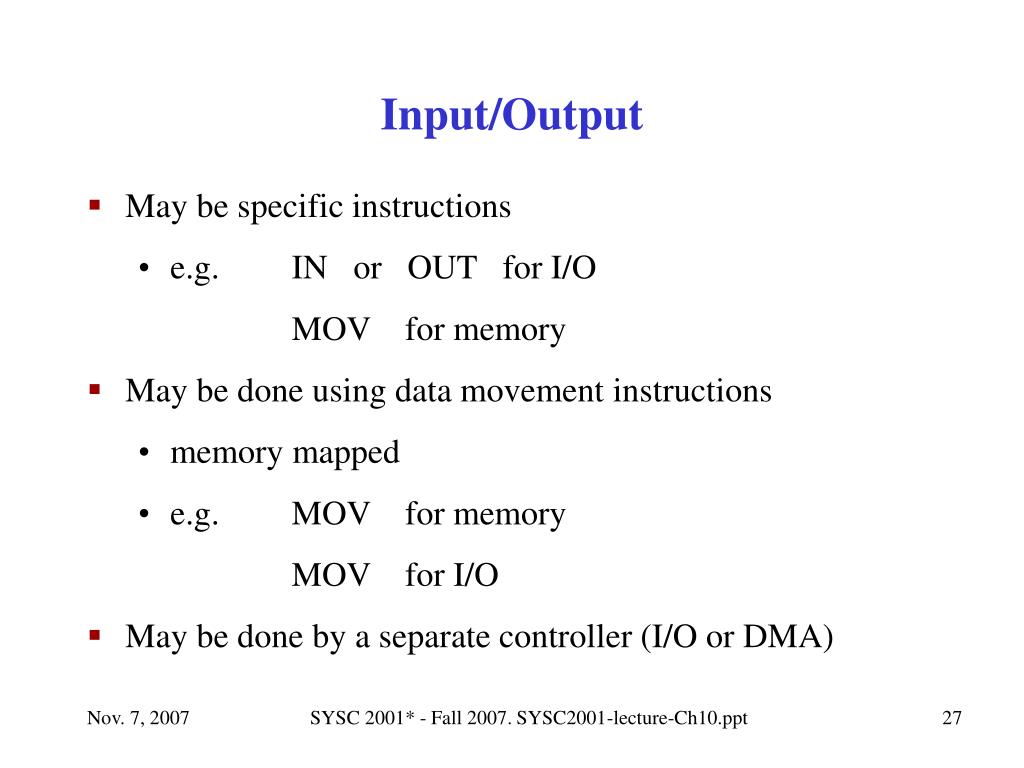

  27. Input/Output • May be specific instructions • e.g. IN or OUT for I/O MOV for memory • May be done using data movement instructions • memory mapped • e.g. MOV for memory MOV for I/O • May be done by a separate controller (I/O or DMA) SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  28. Systems Control • Privileged instructions • CPU needs to be in specific state • Ring 0 on 80386+ • Kernel mode • For operating systems use SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  29. Transfer of Control • Unconditional branch • e.g. branch to instruction at location xxxx • Conditional Branch • e.g. branch to instruction at location xxxx if result of last operation was zero • Skip • e.g. increment and skip next instruction if result is zero ISZ Register1  increment & skip if zero Branch xxxx  skip this if result was zero ADD A • Subroutine (function) call SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

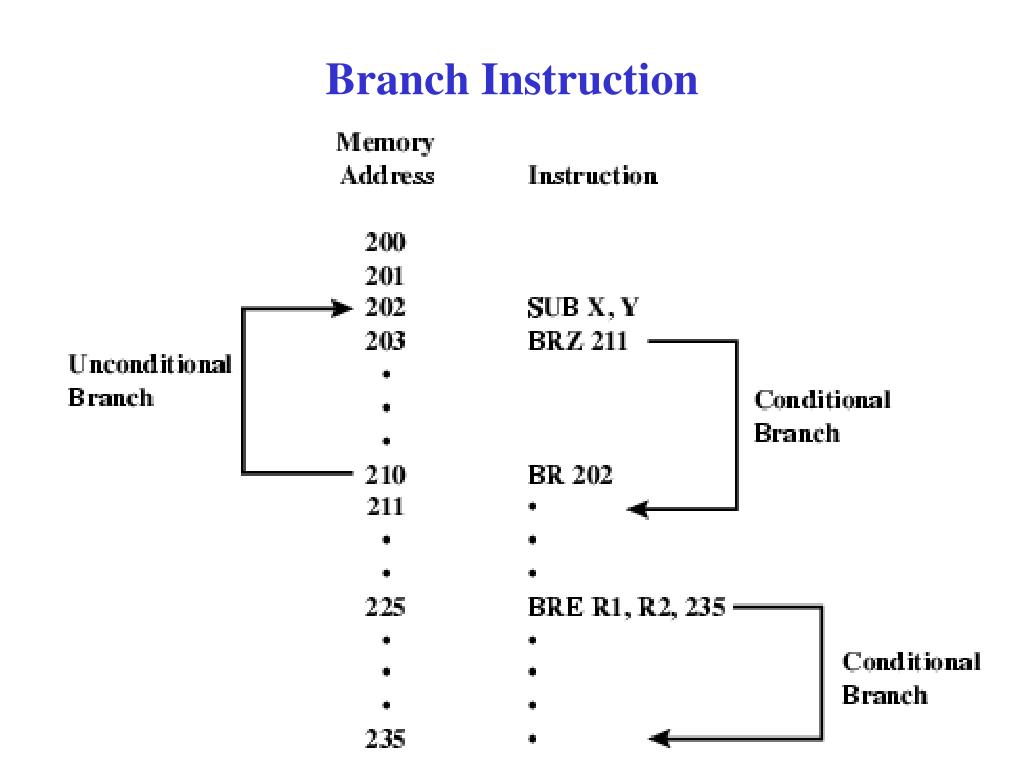

  30. Branch Instruction SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  31. Nested Procedure Calls start address of Proc1 how does machine know where to go back to? start address of Proc2 STACK! SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  32. Hardware Stack • contiguous block of memory locations  to store values • have a pointer to value on “top” of stack • pointer is typically a register in processor, e.g. SP • PUSH • puts new value on top of stack • modifies memory and SP • POP • removes value from top of stack • modifies SP only LIFO storage Last In is the First Out SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

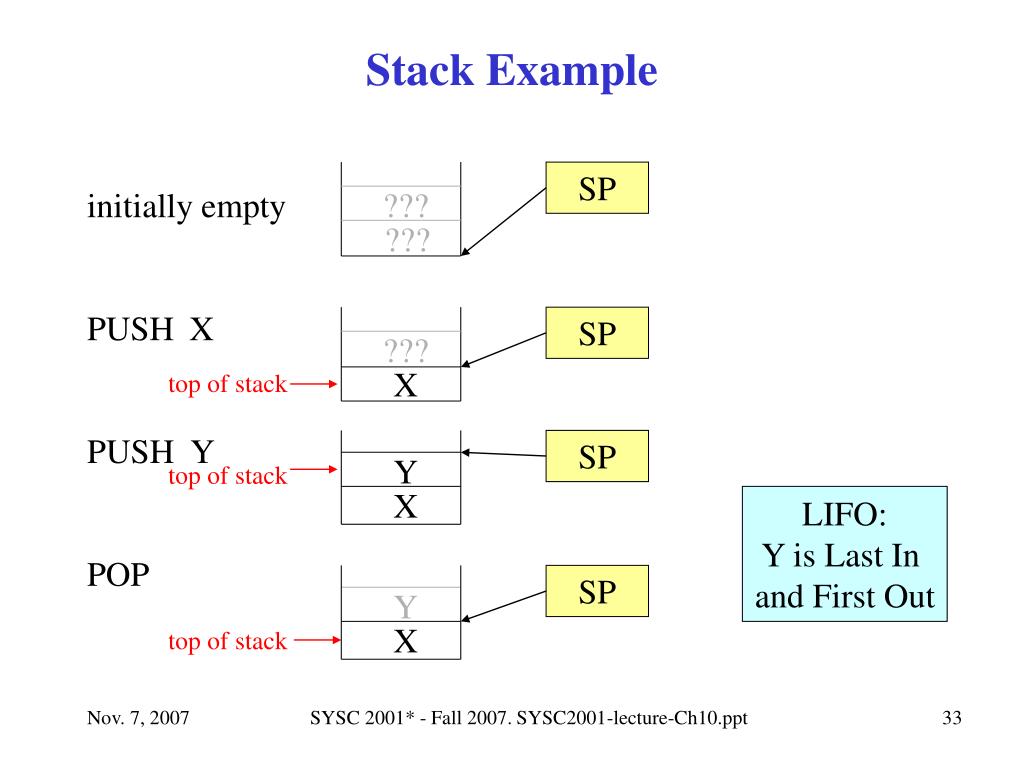

  33. Stack Example SP initially empty PUSH X PUSH Y POP ??? ??? SP ??? X top of stack SP Y top of stack X LIFO: Y is Last In and First Out SP Y X top of stack SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  34. PC Use of Stack to Save Return Addresses 4000 4500 4800 4601 4800 4651 4101 address of instruction AFTER “call” to Proc1 CALL push address of next instruction onto top of stack and then set PC = address of Proc RETURN pop return address off top of stack and put into PC ! SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

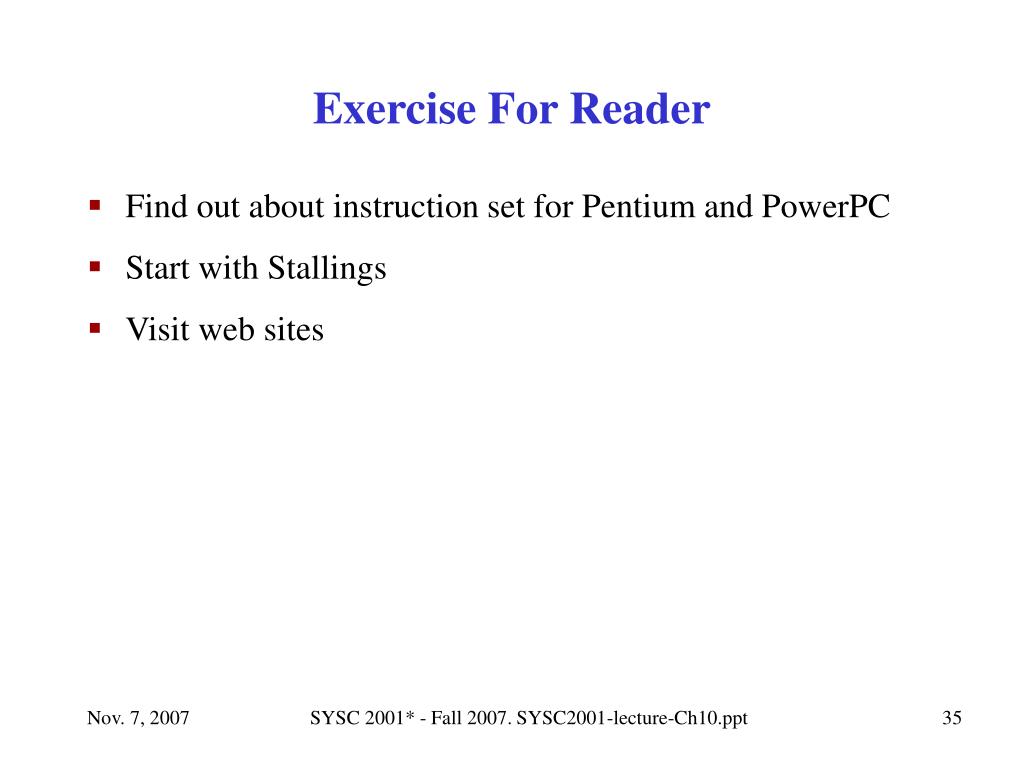

  35. Exercise For Reader • Find out about instruction set for Pentium and PowerPC • Start with Stallings • Visit web sites SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

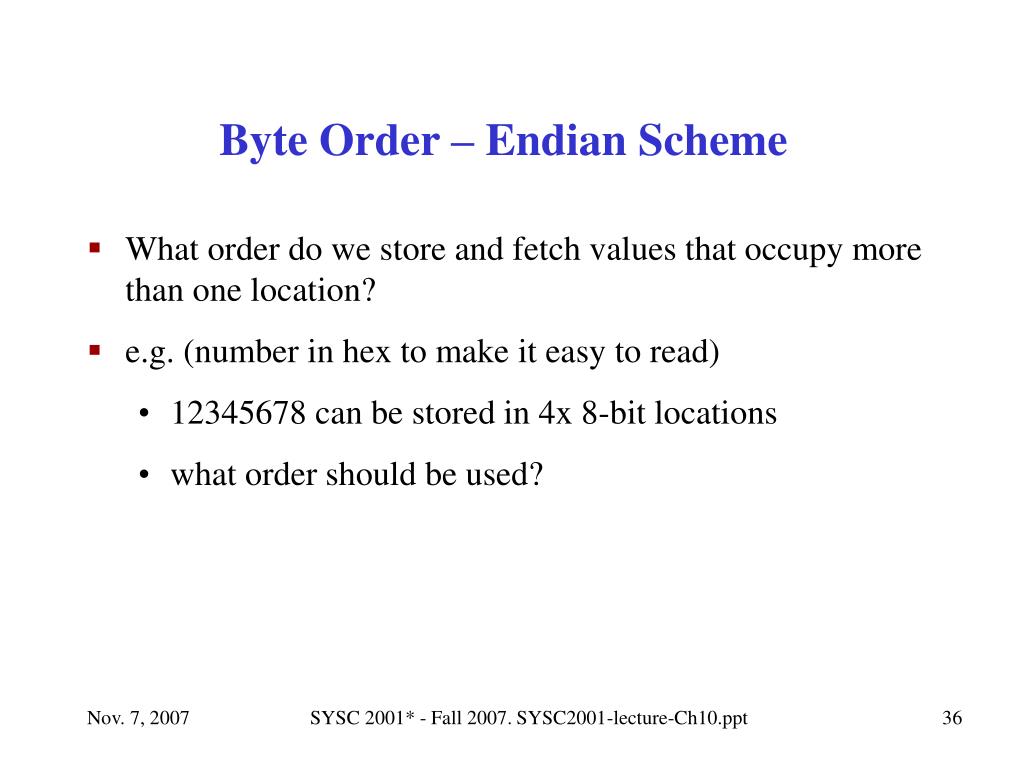

  36. Byte Order – Endian Scheme • What order do we store and fetch values that occupy more than one location? • e.g. (number in hex to make it easy to read) • 12345678 can be stored in 4x 8-bit locations • what order should be used? SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  37. Byte Order (example: 12345678) Address Value (1) Value (2) 184 12 78 185 34 56 186 56 34 187 78 12 • i.e. read top down or bottom up? each “part” is also stored according to the endian scheme low lsbyte high Little endian: “little end first” Big endian: “big end first” SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

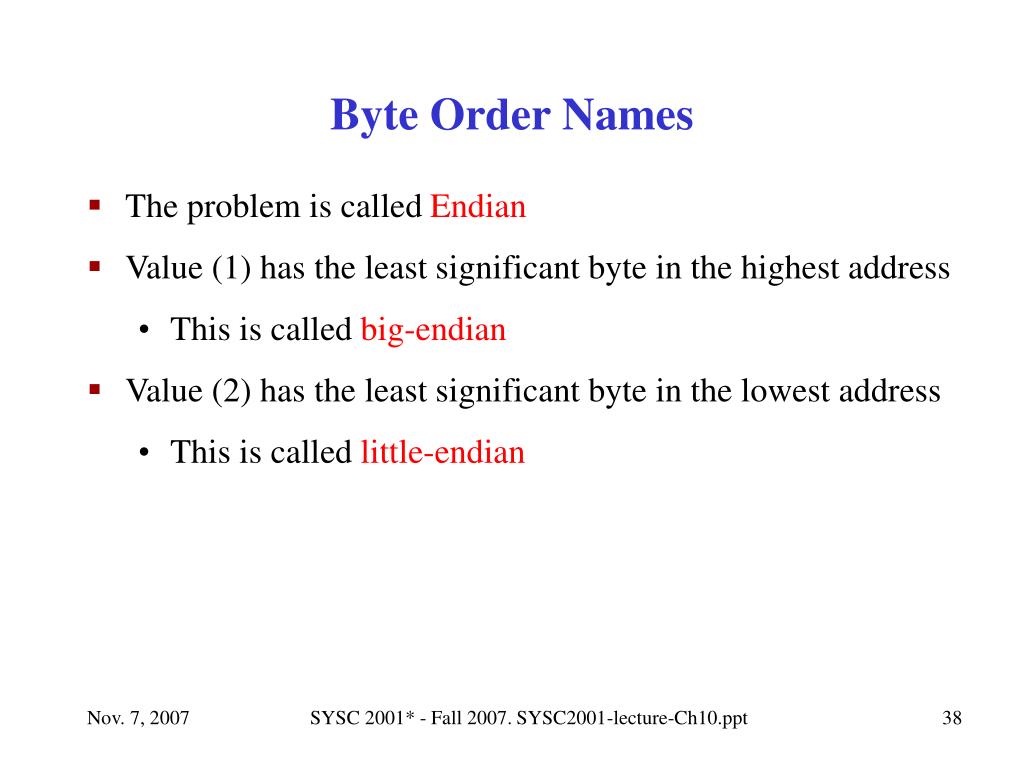

  38. Byte Order Names • The problem is called Endian • Value (1) has the least significant byte in the highest address • This is called big-endian • Value (2) has the least significant byte in the lowest address • This is called little-endian SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

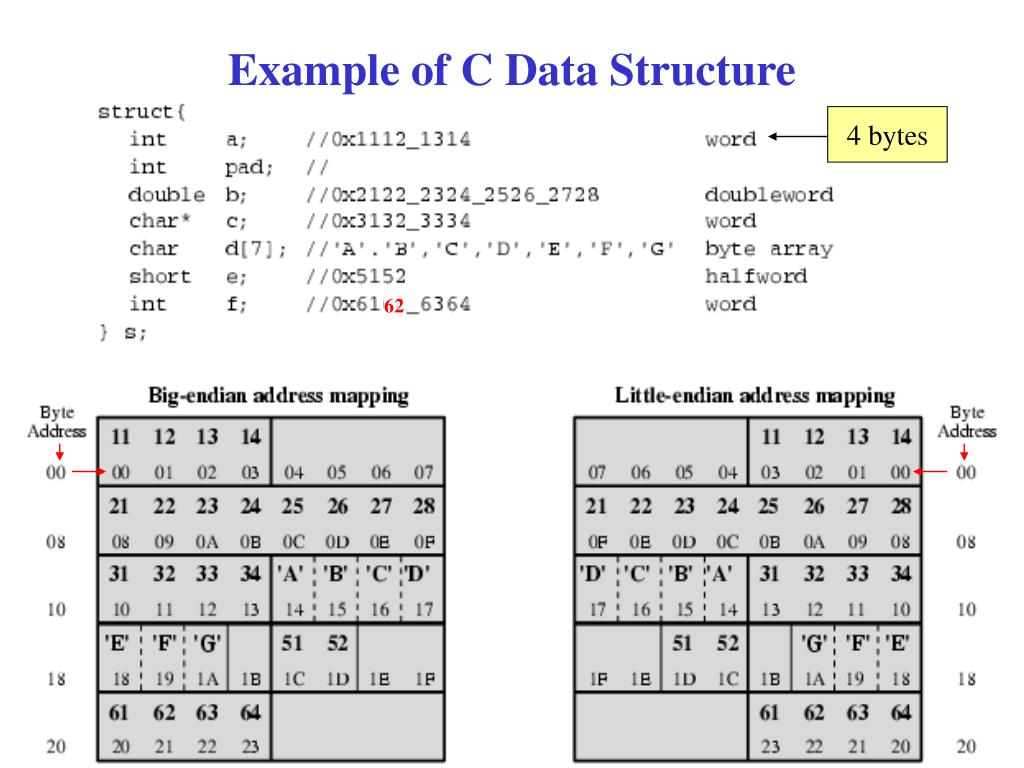

  39. Example of C Data Structure 4 bytes 62 SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

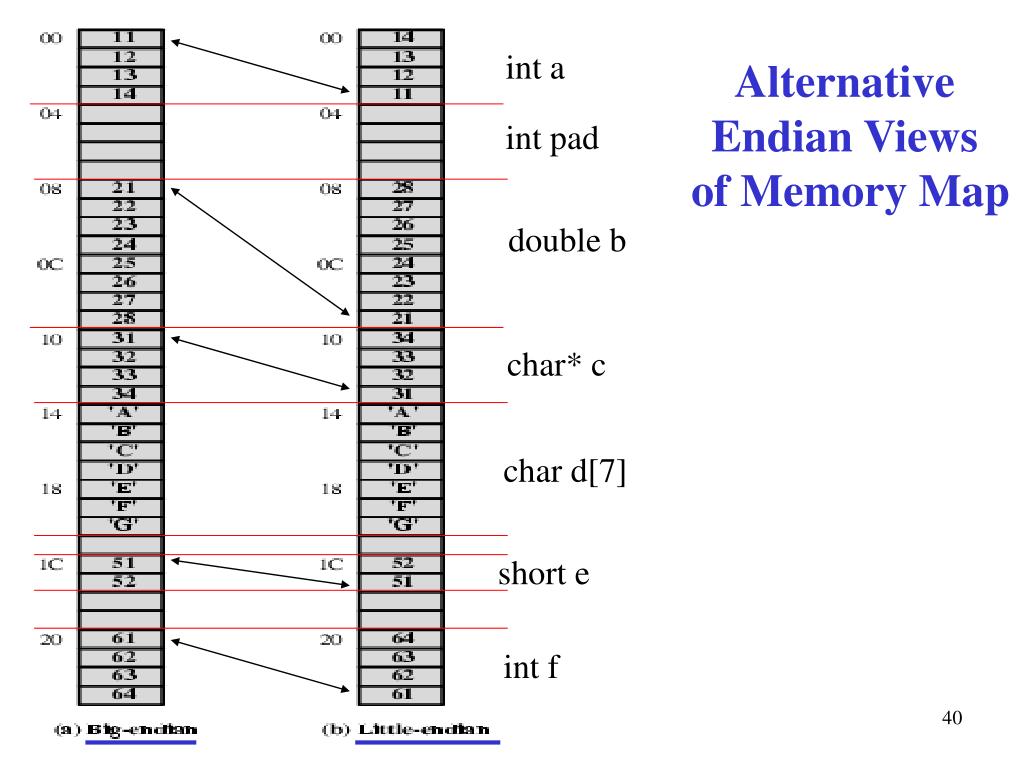

  40. int a Alternative Endian Views of Memory Map int pad double b char* c char d[7] short e int f SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt

  41. Standard Endian Scheme? • Pentium (80x86), VAX: little-endian • IBM 370, Motorola 680x0 (Mac), most RISC: big-endian • Internet is big-endian • Makes writing Internet programs on PC more awkward! • WinSock provides htoi and itoh (Host to Internet & Internet to Host) functions to convert SYSC 2001* - Fall 2007. SYSC2001-lecture-Ch10.ppt
