  1. Simple Dependent Sources Pspice Applications

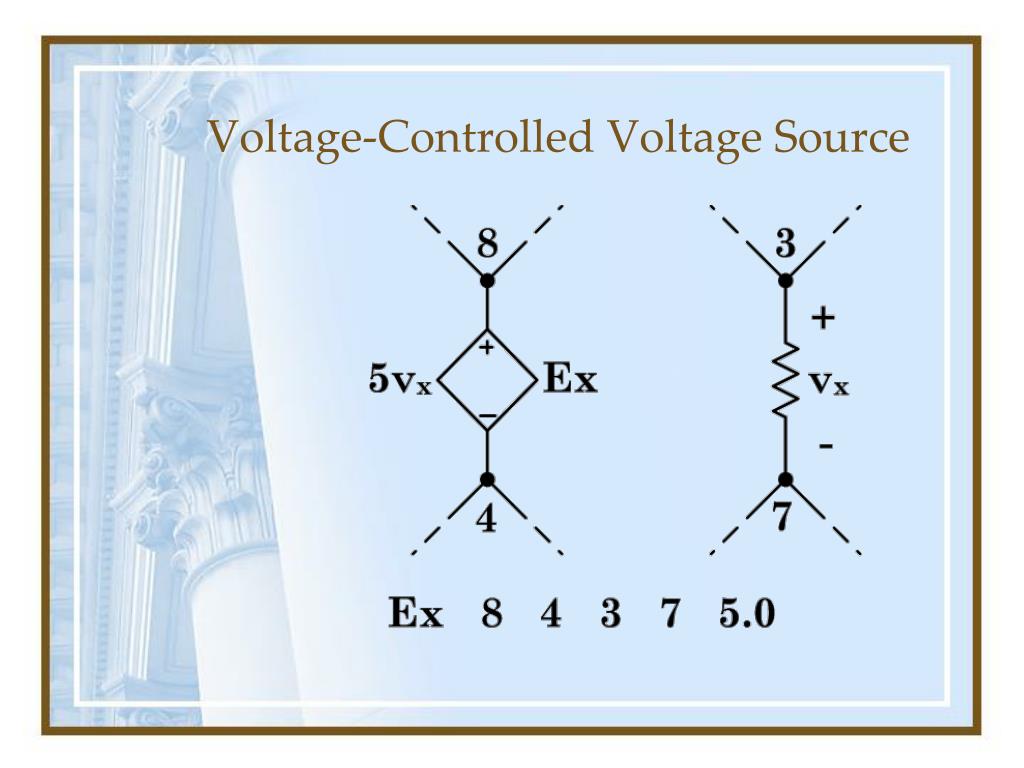

  2. Voltage-Controlled Voltage Source

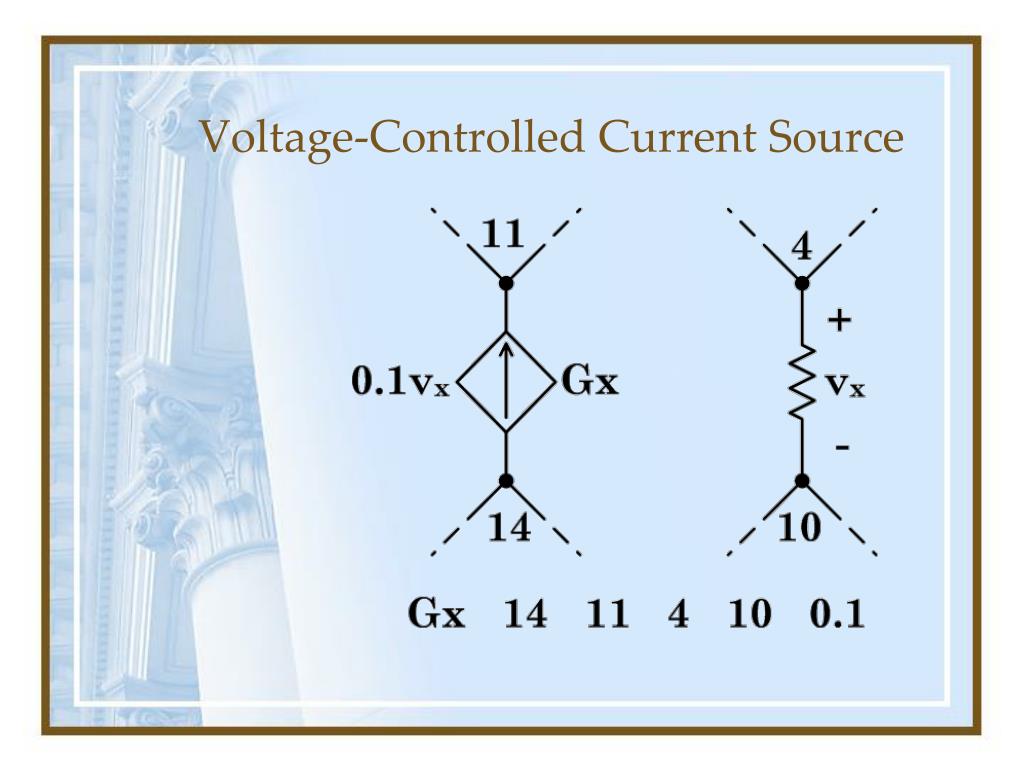

  3. Voltage-Controlled Current Source

  4. Current-Controlled Current Source

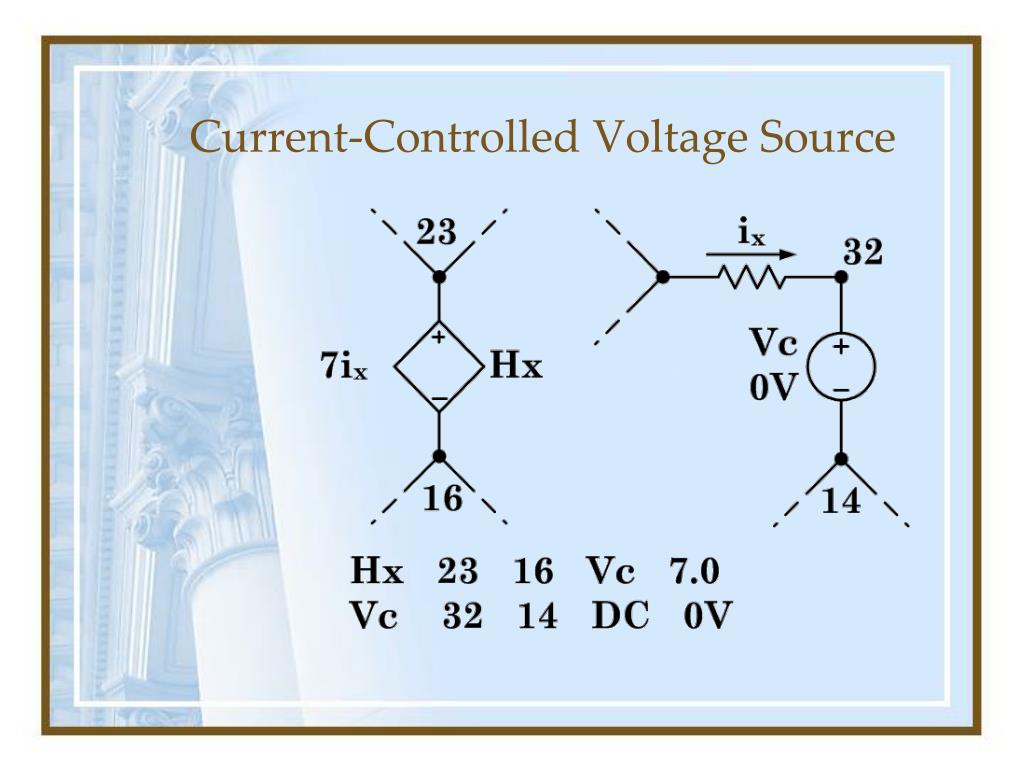

  5. Current-Controlled Voltage Source

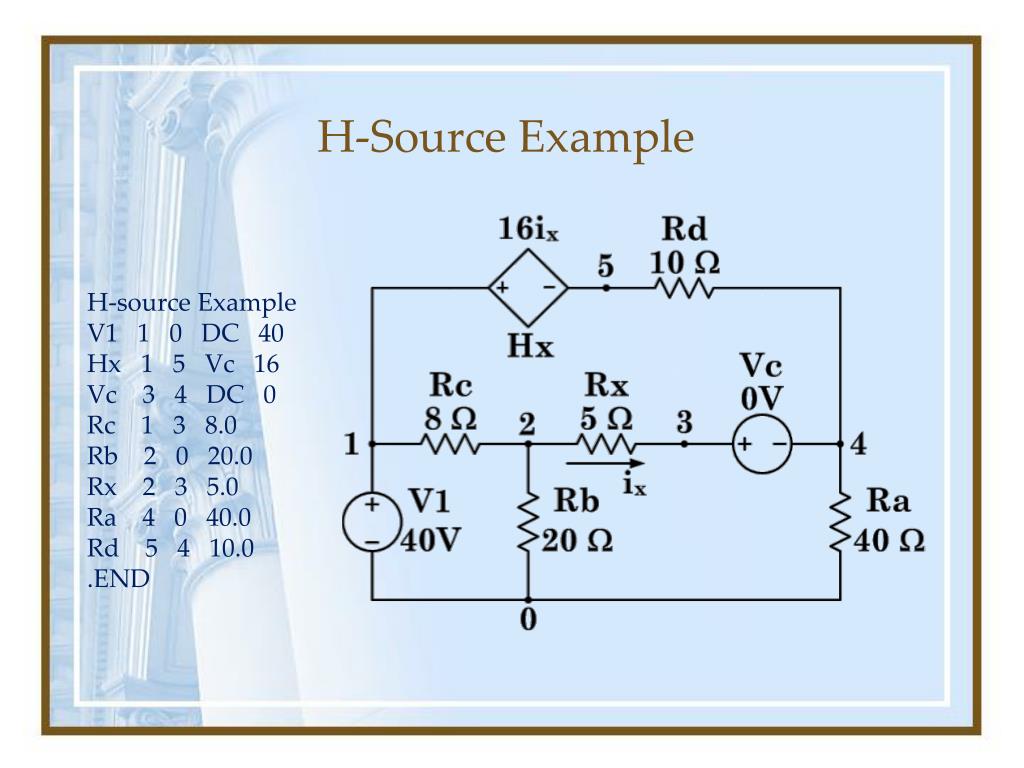

  6. H-Source Example H-source Example V1 1 0 DC 40 Hx 1 5 Vc 16 Vc 3 4 DC 0 Rc 1 3 8.0 Rb 2 0 20.0 Rx 2 3 5.0 Ra 4 0 40.0 Rd 5 4 10.0 .END
