  1. Order processing and order picking Chen Zhou April 24, 2004

  2. Objective • To understand the challenges in order picking • To understand the strategies in order picking • To link the strategies with our key measures: pick density and sku density

  3. Generate Availability Loca tion Order processing

  4. Another form of pick list: sequenced labels • Sequenced sticky labels

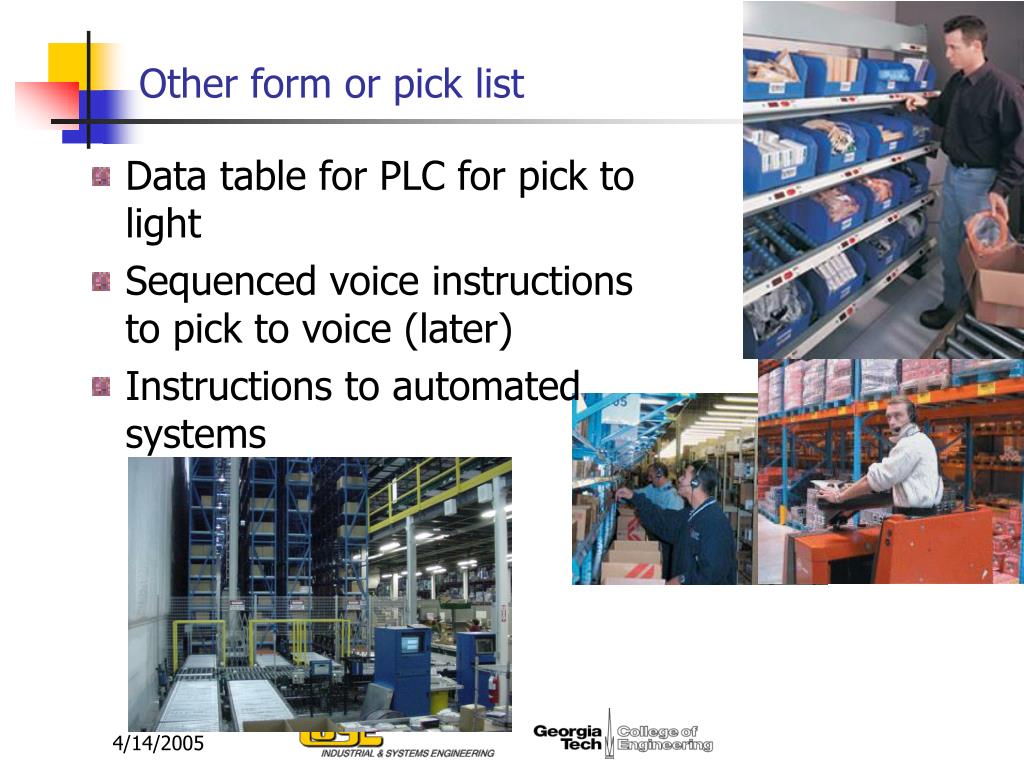

  5. Other form or pick list • Data table for PLC for pick to light • Sequenced voice instructions to pick to voice (later) • Instructions to automated systems

  6. Issues in order processing • Objectives • Minimize travel (or other handling) • Subject to • Time window, batch to waves • Day in a week • Departing time • Items to pass to other DCs • WMS normally support this function. • It requires customization and adaptation

  7. Order picking

  8. Order picking • Most demanding operation ~ 55% of operation cost • Amazon.com • Office depot • Big-box retailer DCs • Spare parts DC • Grocery DC • Why does picking cost more than put away?

  9. How does storage affect picking • Type of equipment affect sku density • Sku density affect pick density • Slotting affect travel

  10. Simple strategy: one-order-one-picker • Pick one-line at a time • Pick-pack-ship one customer order at a time • Straightforward • Small orders: low pick density (Amazon) • Large orders: Wal-Mart store order

  11. Order picking strategy: fast pick area • Fast pick or forward area: low volume + reserve + restocking • Higher pick density in forward • Infrequent replenishment from reserve with large volume • Double handling • Models in the book: which one should go to fast pick and how much to put there for a fixed fast pick area Reserve Forward/ Fast pick Restock

  12. Batch picking: multiple-order–one-picker • Batch picking • Combine small orders into the same trip • Higher pick density • Orders of small items (relative to the equipment) • If orders are mixed during picking, sorting is needed later

  13. Batch picking of large orders with truck

  14. Batching picking with push carts Pick to order specific containers, no sorting is required afterwards

  15. Time based batching: wave picking • Many DCs organize batches based on time window • Truck/ship/train departure times • Shifts • Cycle times • Delivery requirements • Designations • Beijing wave • 10 AM wave • Yellow wave

  16. Zone picking: one-order-multiple-picker • Zone can be for multiple order also (batching + zoning) • Can achieve extremely high pick density • Sorting is needed if not into order specific containers

  17. Schematic of a picking zone Pick module Forward Reserve Sort to shipping docks Receiving docks

  18. Restock Restock pick pick pick A graphical view of a pick module • A case picking zone

  19. No Sorting is required Sorting is required Zone picking

  20. Increase accuracy Reduce search time More zone picking, station lighting

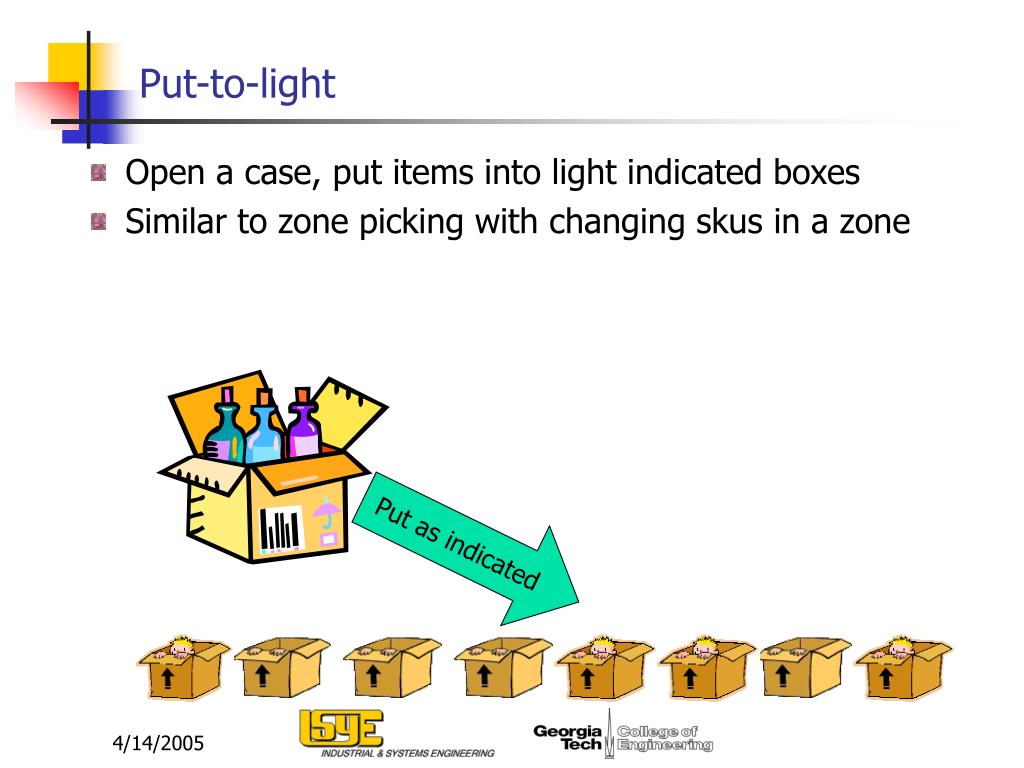

  21. Put-to-light • Open a case, put items into light indicated boxes • Similar to zone picking with changing skus in a zone Put as indicated

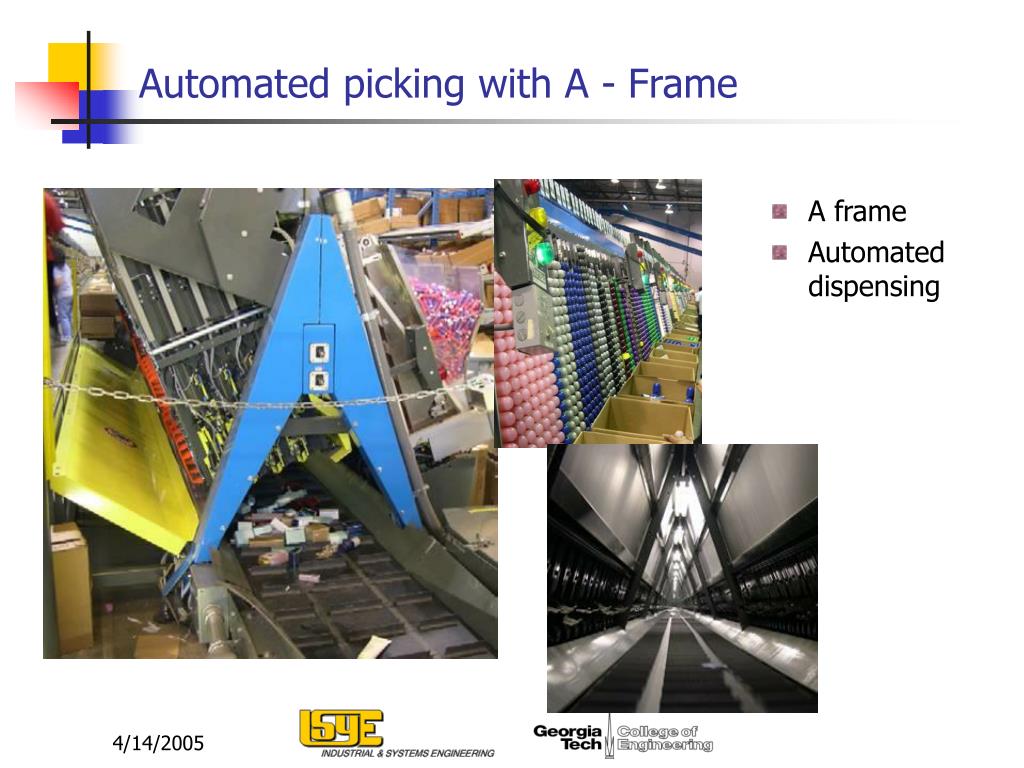

  22. A frame Automated dispensing Automated picking with A - Frame

  23. Sorting • Manual • Barcode directed • Vision directed • High speed sorters

  24. Sorting: High Rate Tilt Tray • 12,000 items/hr. • Unit sorter • Can sort to two sides

  25. Shoe sorter High speed conveyor sorters Roller sorter

  26. Checking, packing and packaging

  27. Shipping

  28. Pick to conveyor, sorting is required downstream. How would you characterize this?

  29. Automated order fulfillment initiation • Container types • Labels and tracking

  30. A frame Automated dispensing Automated picking with A - Frame

  31. Packing

  32. Shipping

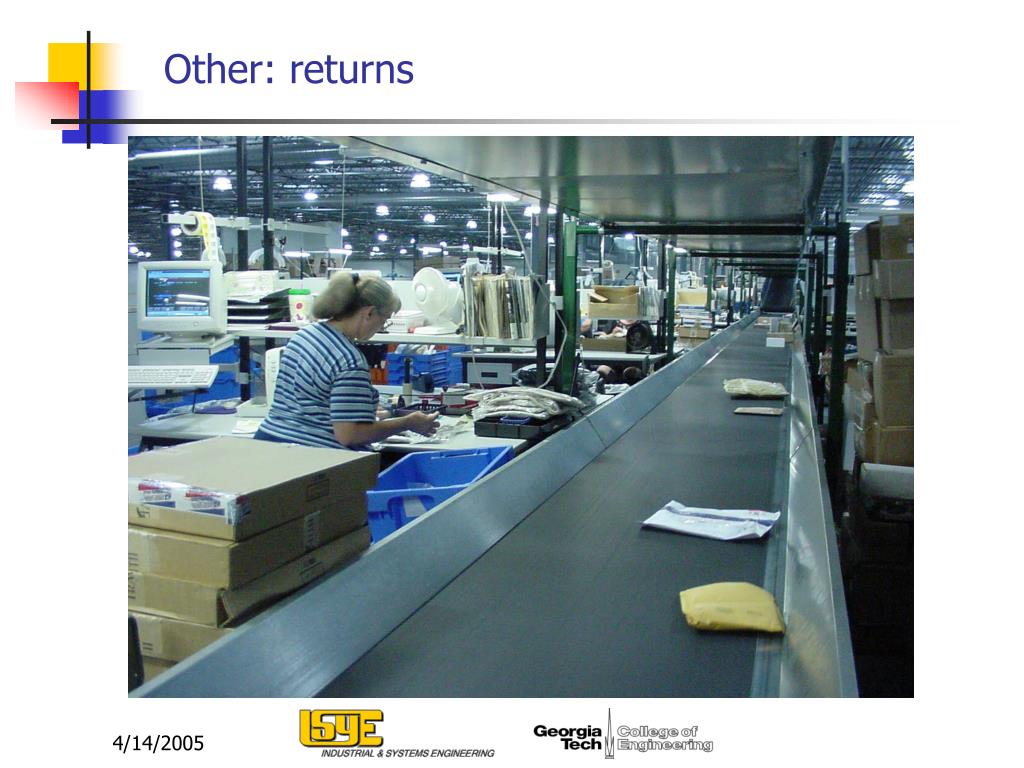

  33. Other: returns

  34. Expected piece sales for the top 500 items 366,756 400,000 350,000 300,000 250,000 Sales 200,000 150,000 100,000 4,582 50,000 0 500th sku by piece sales top sku by piece sales Pareto chart ($, cases, picks, …)

  35. Conveyors in DCs • Conveyors become more and more popular • In the states, a DC can have miles of conveyors

  36. What does conveyor do? Pick module Sort to shipping docks Receiving docks

  37. Cont. • Conveyors • Transport • Buffer • Extends the good locations throughout the facility • Can yield very high throughput • Important for high throughput systems • Design issues

  38. Order picking summary • Pick list generation • Order picking strategies • Batching • Zoning • Forward/reserve • Common pick area • Order picking technologies • Pick to light/put to light • Pick to voice • Automated order assembly systems • Pick modules

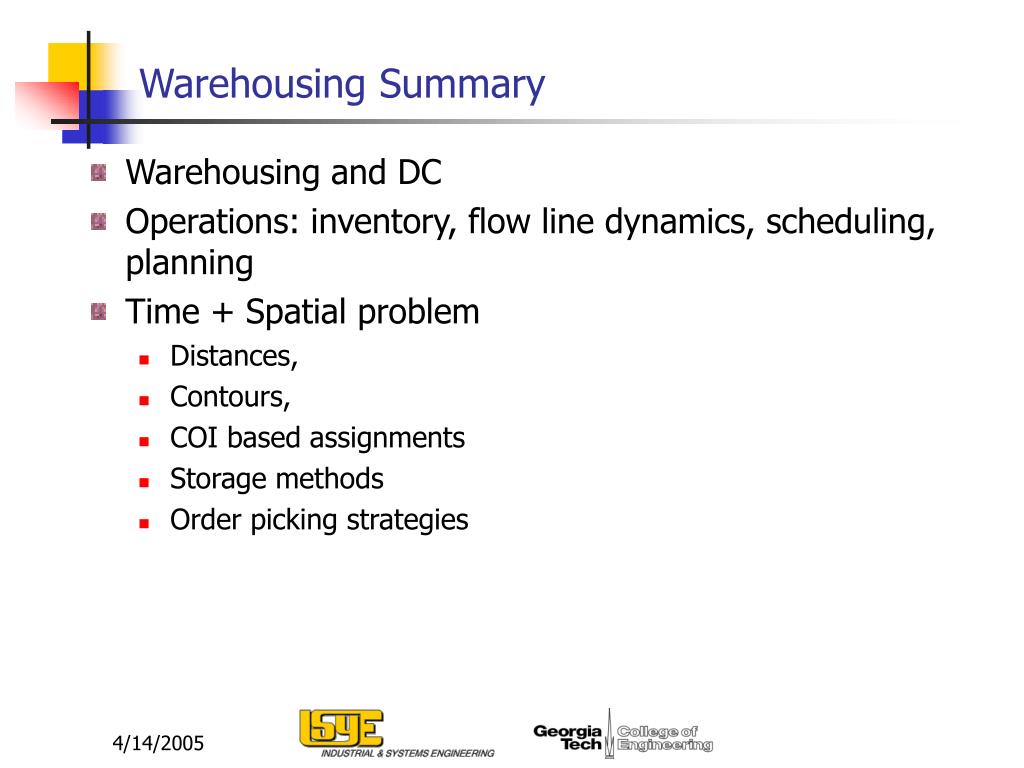

  39. Warehousing Summary • Warehousing and DC • Operations: inventory, flow line dynamics, scheduling, planning • Time + Spatial problem • Distances, • Contours, • COI based assignments • Storage methods • Order picking strategies

  40. Order picking • Forward/reserve • Which sku? • Space sharing for given sku and V • General problem • Common pick area • Batch picking • Batch size, lot sizing, worker and route schedule, • Zone picking • (Dynamic) line balancing problem • Readings and home works
