PC CMD V2 E nhancement and N ew Firmware

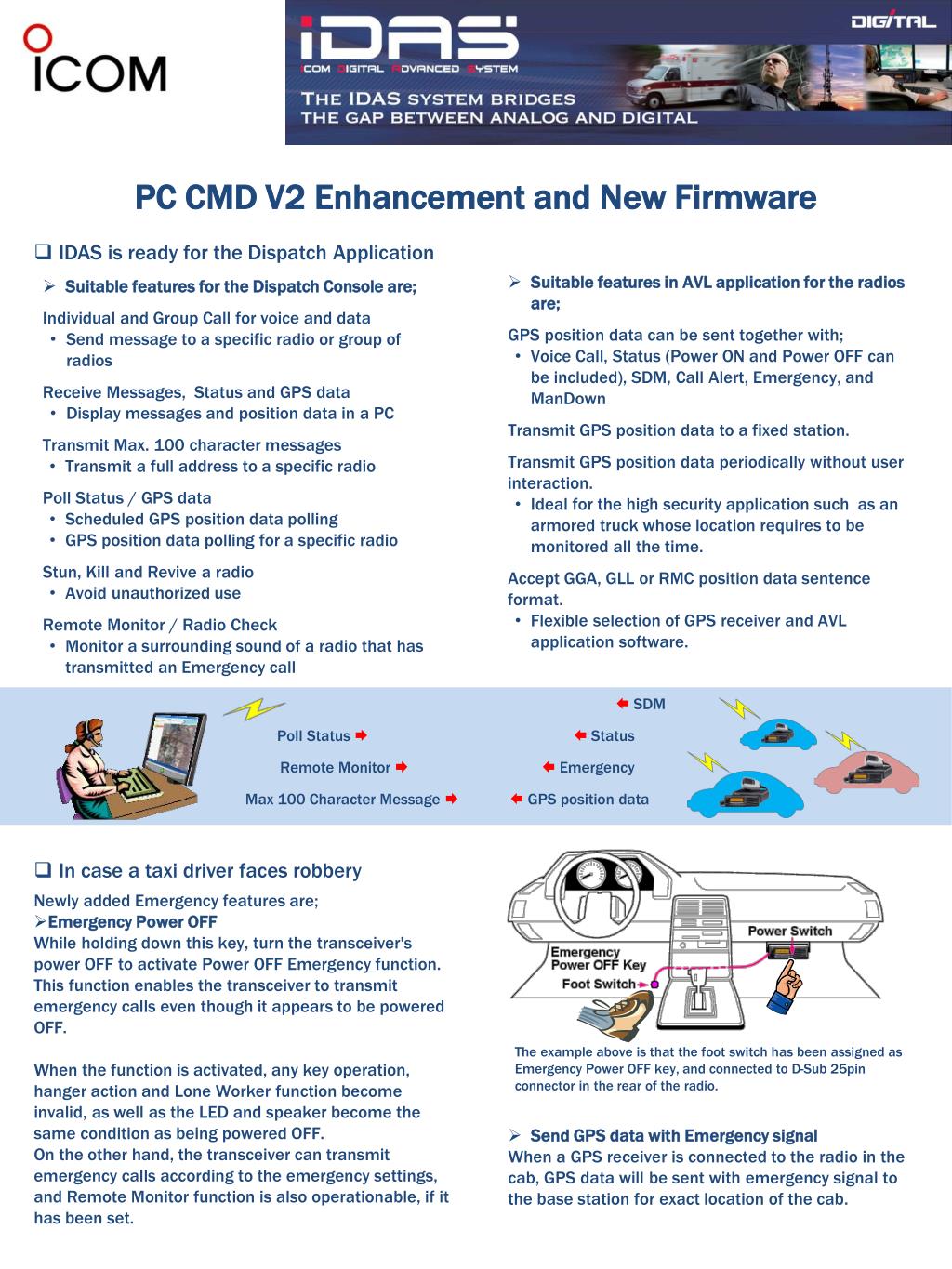

1. PC CMD V2 Enhancement and New Firmware • IDAS is ready for the Dispatch Application • Suitable features for the Dispatch Console are; • Individual and Group Call for voice and data • Send message to a specific radio or group of radios • Receive Messages, Status and GPS data • Display messages and position data in a PC • Transmit Max. 100 character messages • Transmit a full address to a specific radio • Poll Status / GPS data • Scheduled GPS position data polling • GPS position data polling for a specific radio • Stun, Kill and Revive a radio • Avoid unauthorized use • Remote Monitor / Radio Check • Monitor a surrounding sound of a radio that has transmitted an Emergency call • Suitable features in AVL application for the radios are; • GPS position data can be sent together with; • Voice Call, Status (Power ON and Power OFF can be included), SDM, Call Alert, Emergency, and ManDown • Transmit GPS position data to a fixed station. • Transmit GPS position data periodically without user interaction. • Ideal for the high security application such as an armored truck whose location requires to be monitored all the time. • Accept GGA, GLL or RMC position data sentence format. • Flexible selection of GPS receiver and AVL application software. SDM Poll Status  Status Remote Monitor   Emergency Max 100 Character Message  GPSposition data • In case a taxi driver faces robbery • Newly added Emergency features are; • Emergency Power OFF • While holding down this key, turn the transceiver's power OFF to activate Power OFF Emergency function. • This function enables the transceiver to transmit emergency calls even though it appears to be powered OFF. • When the function is activated, any key operation, hanger action and Lone Worker function become invalid, as well as the LED and speaker become the same condition as being powered OFF. • On the other hand, the transceiver can transmit emergency calls according to the emergency settings, and Remote Monitor function is also operationable, if it has been set. The example above is that the foot switch has been assigned as Emergency Power OFF key, and connected to D-Sub 25pin connector in the rear of the radio. • Send GPS data with Emergency signal • When a GPS receiver is connected to the radio in the cab, GPS data will be sent with emergency signal to the base station for exact location of the cab.

2. Automatic Unique ID Allocation allows to use one ICF file for many radios • Background: • IDAS Radio will not accept a call from the radio whose Unit ID is same as own Unit ID • IDAS radio prohibits to receive a call from the radio whose unit ID is same as own unit ID. • Before this Automatic Unique ID Allocation feature is available, the unit ID in an ICF file must be alter for each radio manually. • Single Hand Operation becomes • Possible from a DTMF Microphone • DTMF microphone features are; • DTMF microphone direct ID entry • The direct inputs of channel number, list number, and ID are available using the keypad depending on the setting. • The selection of direct inputs are; • The direct Individual/Talkgroup ID List number input. • The direct Individual/Talkgroup ID input. • The direct TX Status number input in the Digital-Status List screen. • The direct message number input in the Digital-SDM List screen. • P0 ~ P3 keys operation from microphone keys (Mobile only) • A / B/ C / D keys on the DTMF microphones can work as programmable keys (P0 ~ P3) • For example, if you assign “Digital Button” function to P0, “CH Up” function to P2, and “CH Down” function to P3, you can make individual call, Group call, send SDM, send status etc. by one hand. • For Global ID (Auto) – Conventional mode • When "Global(Auto)" is selected in Config-Unit ID, the automatically-generated unit ID is used as a transceiver-specific ID regardless of the selecting channel. • - Set the number to be used for automatic generation of the unit ID within the range of 0 to 5. • - Adding this dealer set ID number to the front of the last 4 digits of the transceiver's serial number. • - If the last 4 digits of the transceiver's serial number are 0000, the dealer set ID number is increased by "1," and then put in front of the last 4 numbers. • For Global ID (Auto) IDAS Trunking mode • When "Global(Auto)" is selected in IDAS-Trunk-Unit ID, the automatically-generated unit ID is used as a transceiver-specific ID regardless of the selecting channel. • - Set the number to be used for automatic generation of the unit ID from 0 or 1. • - Adding this dealer set ID number to the front of the last 3 digits of the transceiver's serial number. • - If the last 3 digits of the transceiver's serial number are 000, the dealer set ID number is increased by "1," and then put in front of the last 3 numbers. • Protect Radios from Unauthorized use • Auto Key Lock • Radios now can be automatically key-locked after the set time period has passed without operation during the normal mode. • You can assign "Lock" function to any key to use the automatic key lock function. • This is useful for preventing unintended operations and discouraging unauthorized use. • Clone Read / Write Password • You can set a password of 16 characters to protect the radio from unauthorized programming. • When a password is set, the radio cannot be read / written without the correct password. Icom, Icom Inc. and the Icom logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United Kingdom, Germany, France, Spain, Russia and/or other countries. 1-1-32, Kami-minami, Hirano-ku, Osaka 547-0003, Japan Phone: +81 (06) 6793 5302 Fax: +81 (06) 6793 0013 URL: http://www.icom.co.jp/world/index.html
