The Escher Problem

The Escher Problem. Frieze Groups. Frieze = embroidery from Friez, horizotal ornamented band (architecture). We are interested in symmetry groups of such bends. There are 7 frieze groups. We start with a rectangular stamp. Transformations. Translation Halfturn Vertical Reflection

oswald
Télécharger la présentation

The Escher Problem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. The Escher Problem

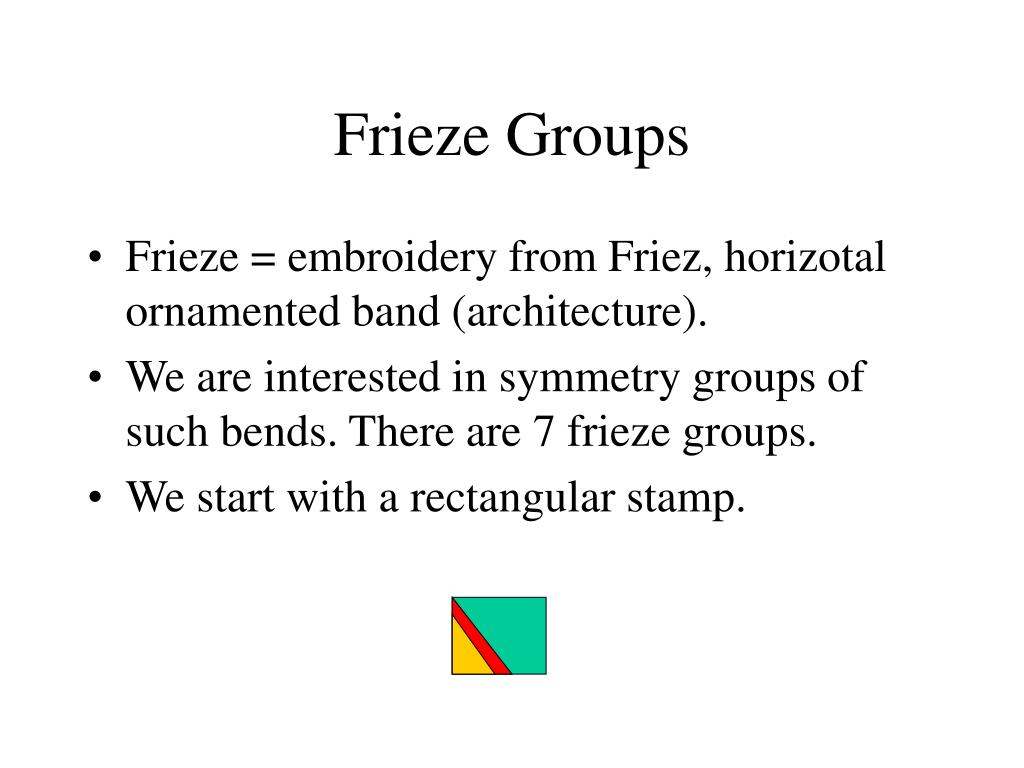

  2. Frieze Groups • Frieze = embroidery from Friez, horizotal ornamented band (architecture). • We are interested in symmetry groups of such bends. There are 7 frieze groups. • We start with a rectangular stamp.

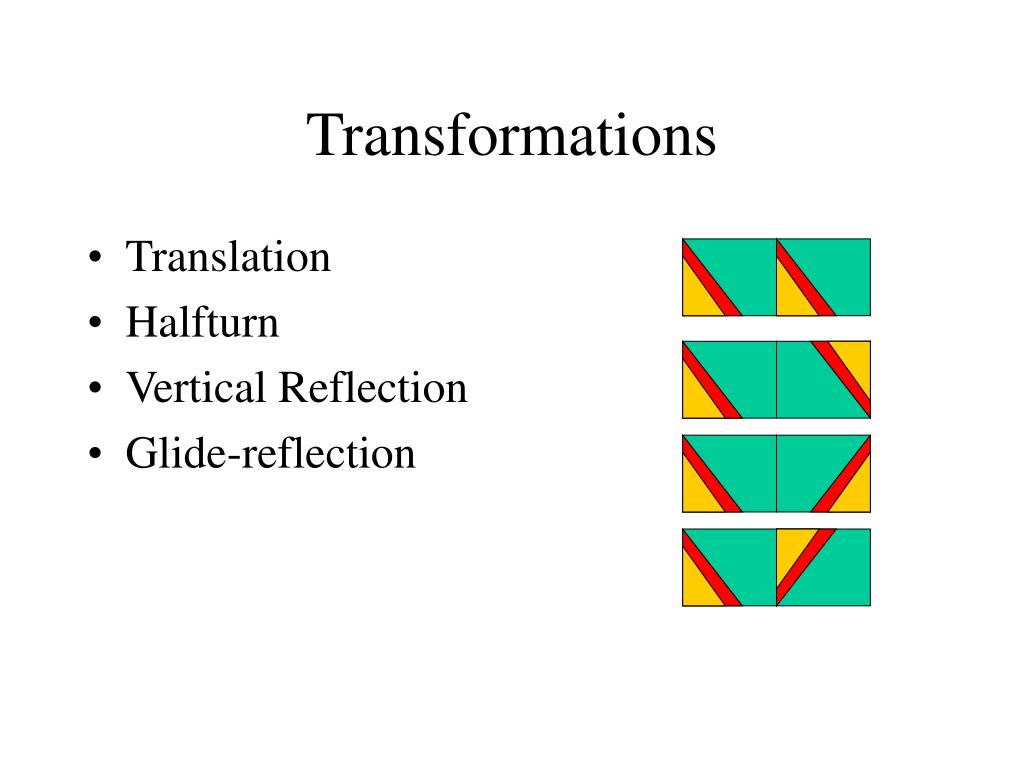

  3. Transformations • Translation • Halfturn • Vertical Reflection • Glide-reflection

  4. Seven Frieze Types • Groups (notation): • 11 (translations only) • 12 (translations and halfturns) • m1 (translations and vertical reflections) • 1g (translations and glidereflections) • mg (translations, halfturns, vertical reflections and glide reflections) • 1m (translations and horizontal reflections) • mm (translations, halfturns,vertical reflections, glide reflections, horizontal reflections)

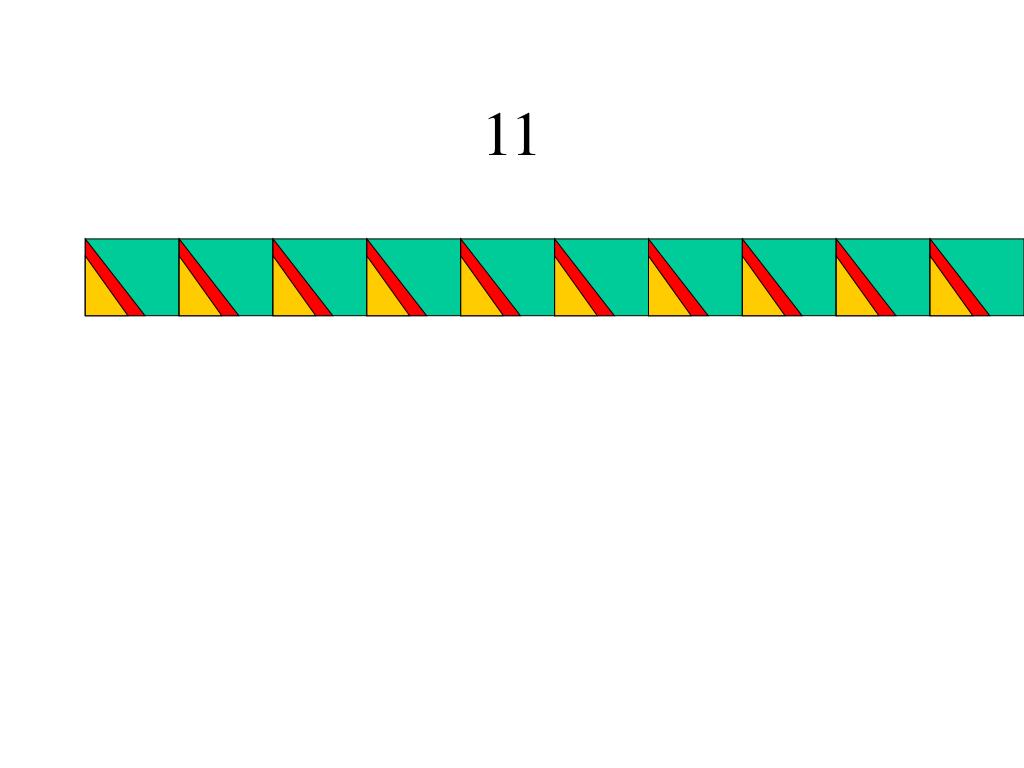

  5. 11

  6. 12

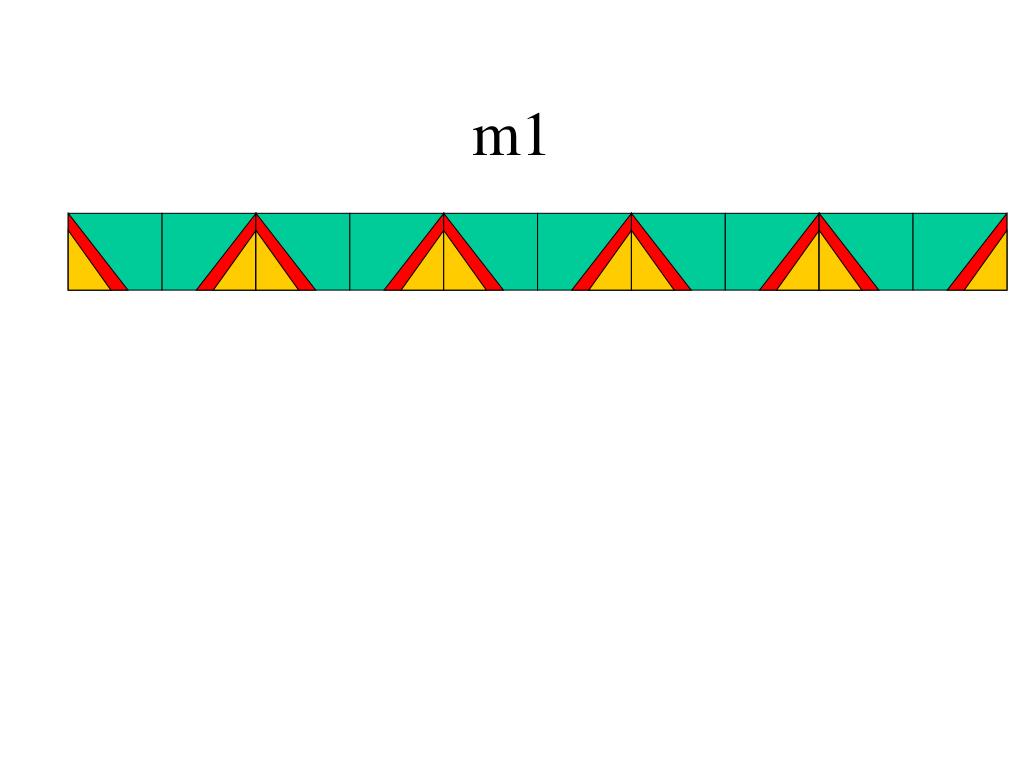

  7. m1

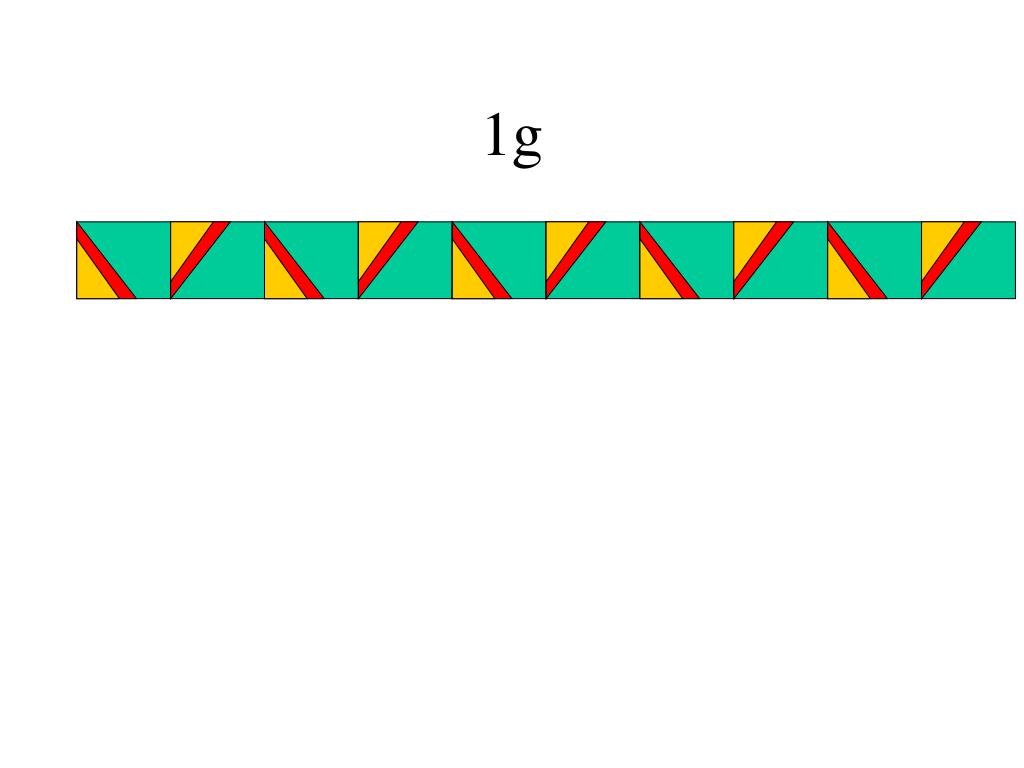

  8. 1g

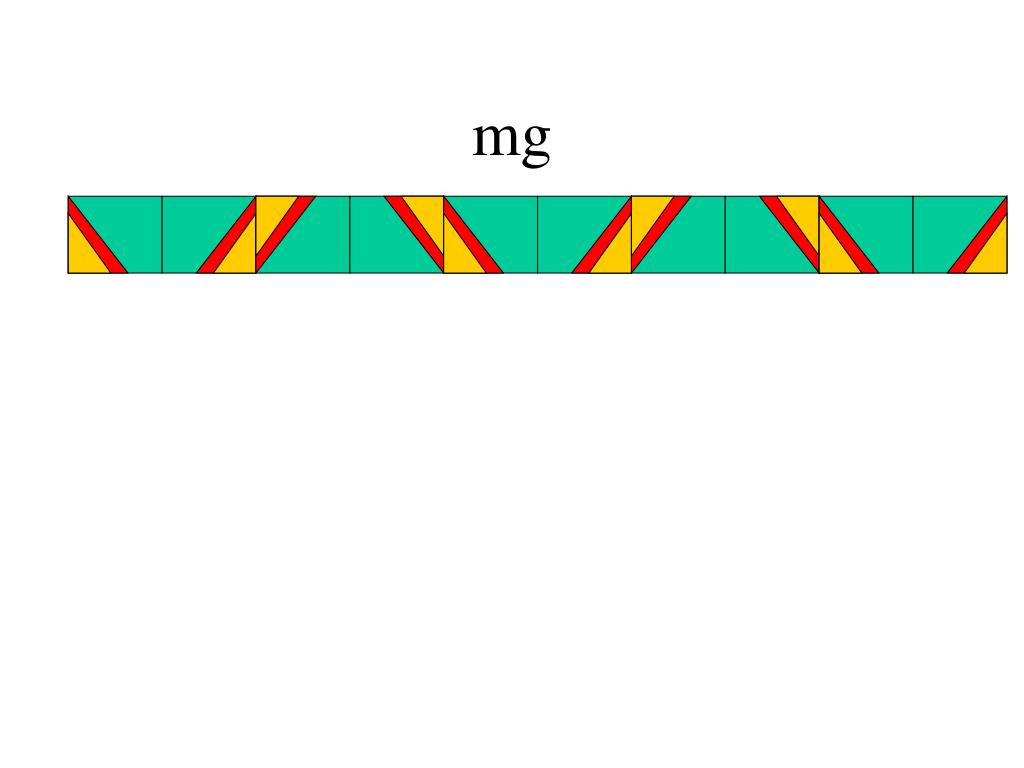

  9. mg

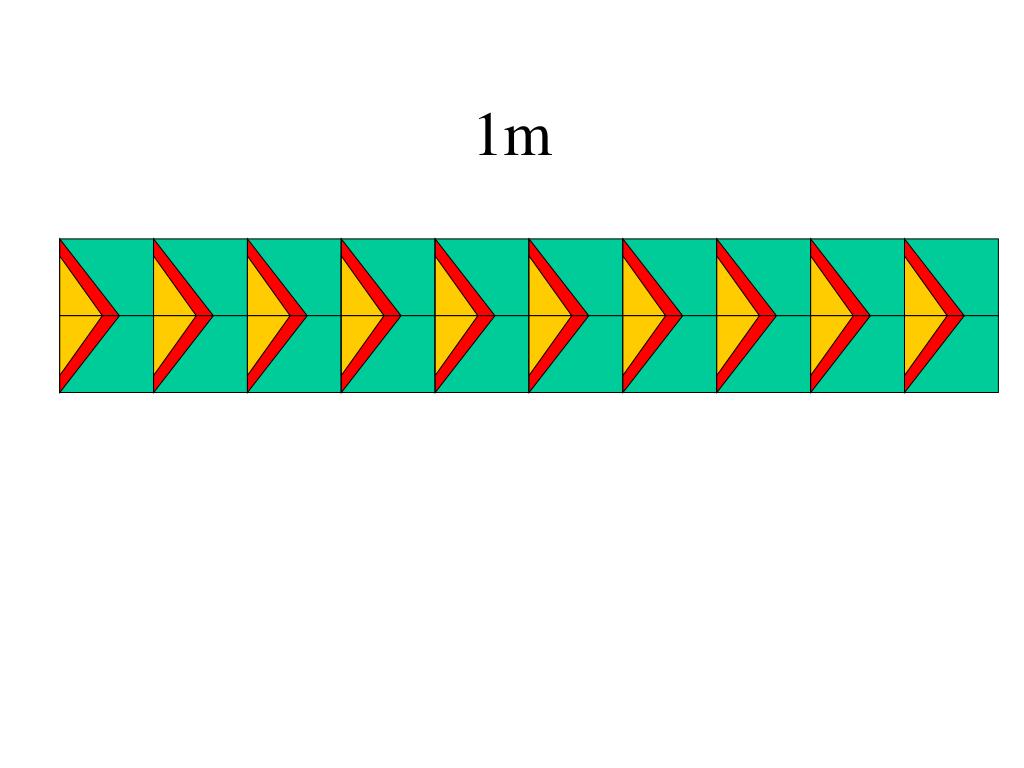

  10. 1m

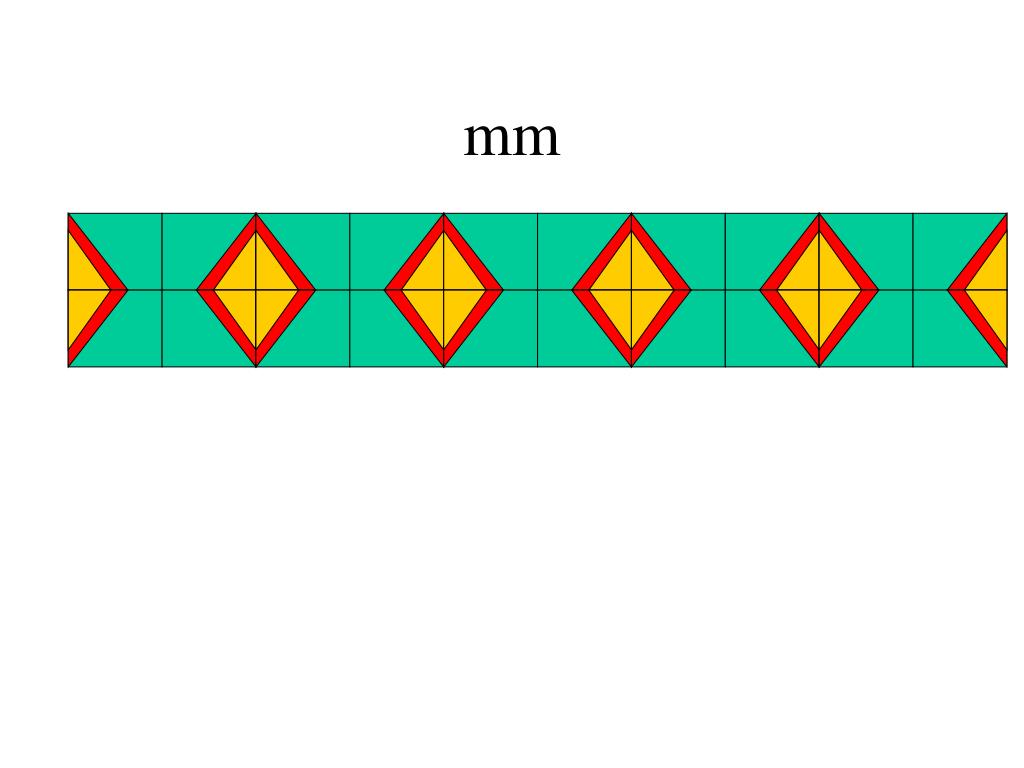

  11. mm

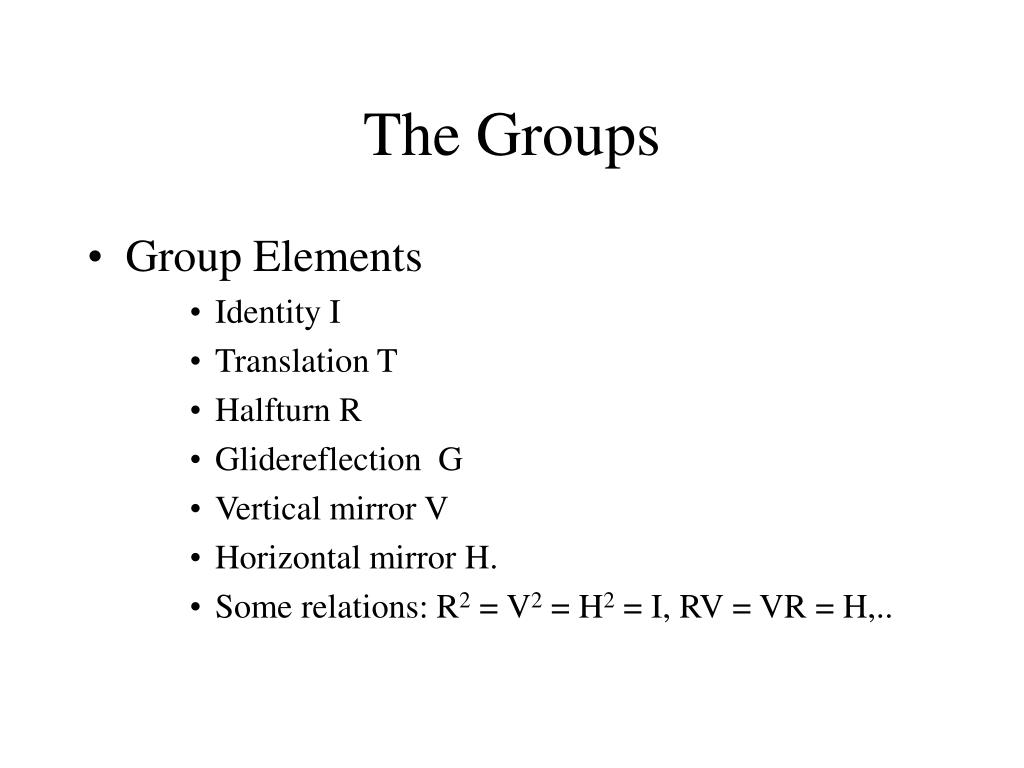

  12. The Groups • Group Elements • Identity I • Translation T • Halfturn R • Glidereflection G • Vertical mirror V • Horizontal mirror H. • Some relations: R2 = V2 = H2 = I, RV = VR = H,..

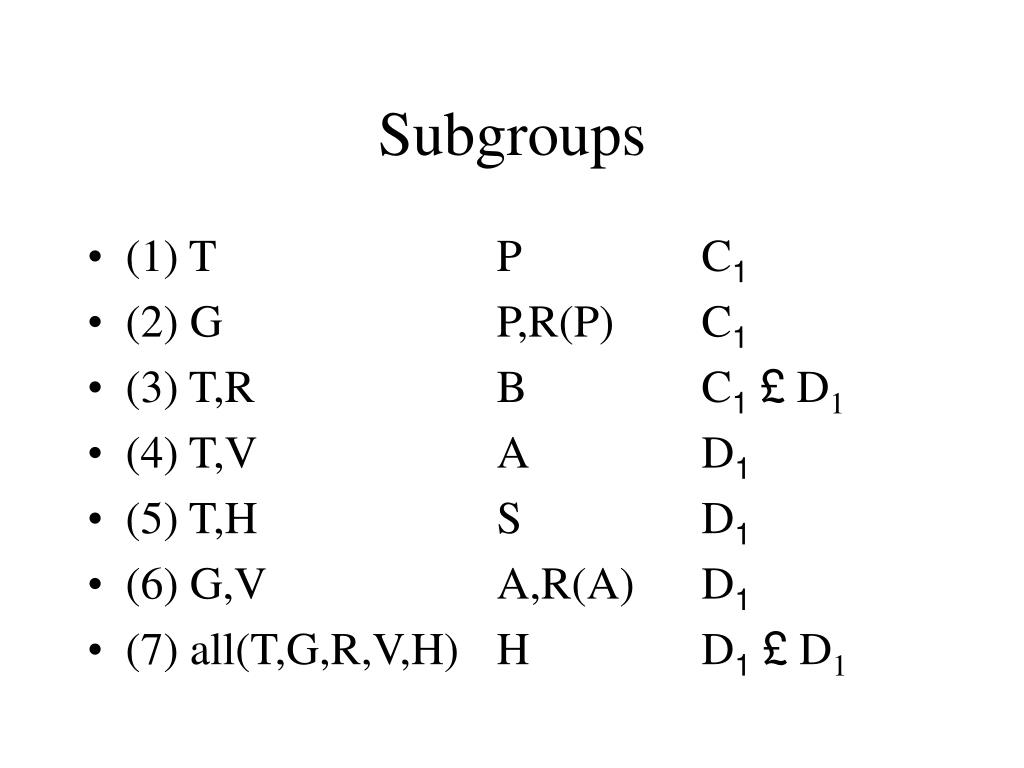

  13. Subgroups • (1) T P C1 • (2) G P,R(P) C1 • (3) T,R B C1£ D1 • (4) T,V A D1 • (5) T,H S D1 • (6) G,V A,R(A) D1 • (7) all(T,G,R,V,H) H D1£ D1

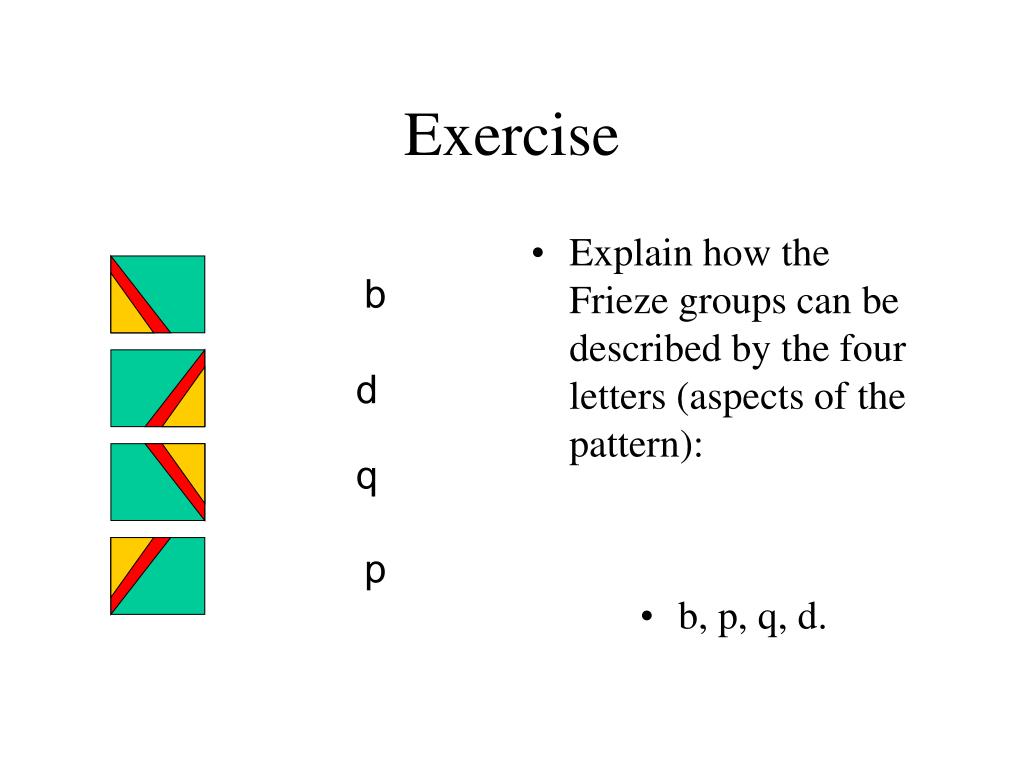

  14. Exercise • Explain how the Frieze groups can be described by the four letters (aspects of the pattern): • b, p, q, d. b d q p

  15. Discrete Isometries • Each metric space M determines the group of distance preserving maps, isometries Iso(M). • A subgroup of Iso(M) is discrete, if any isometry in it either fixes an element of M or moves is far enough. • Discrete subgroups of I(R2) fall into three classes: • 17 crystallographic groups • 7 frieze groups • finite groups (grups of rozettes).

  16. Theorem of Leonardo da Vinci • The only finite groups of isometries in the plane are the group of rosettes (cyclic groups Cn and dihedral groups Dn).

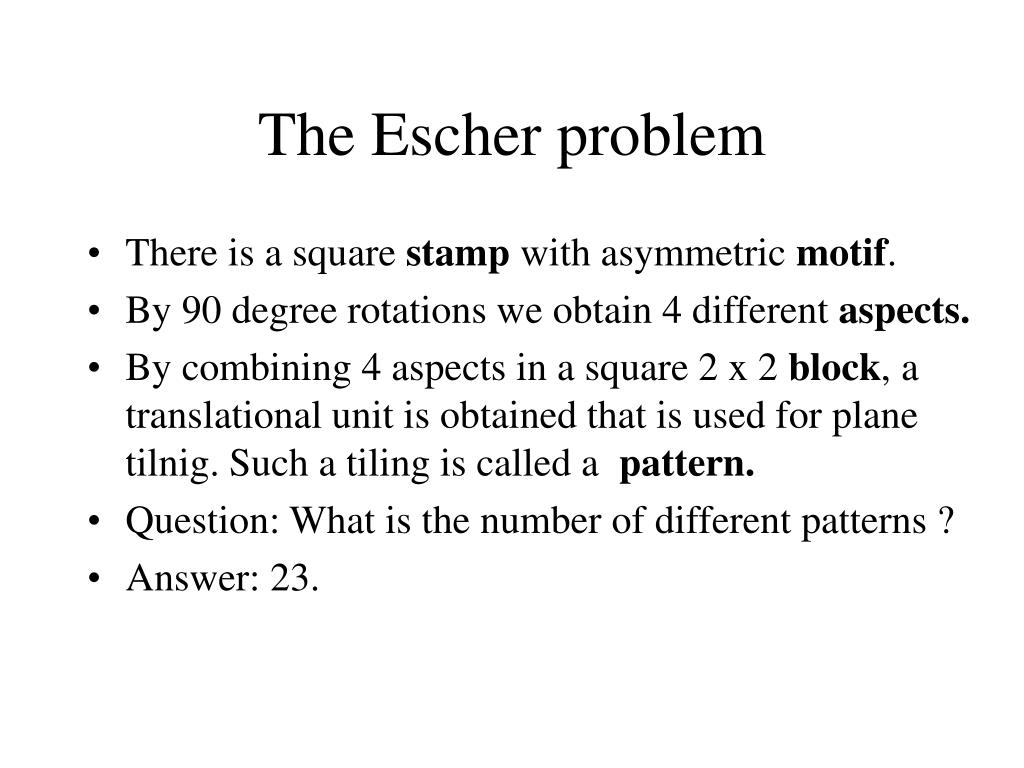

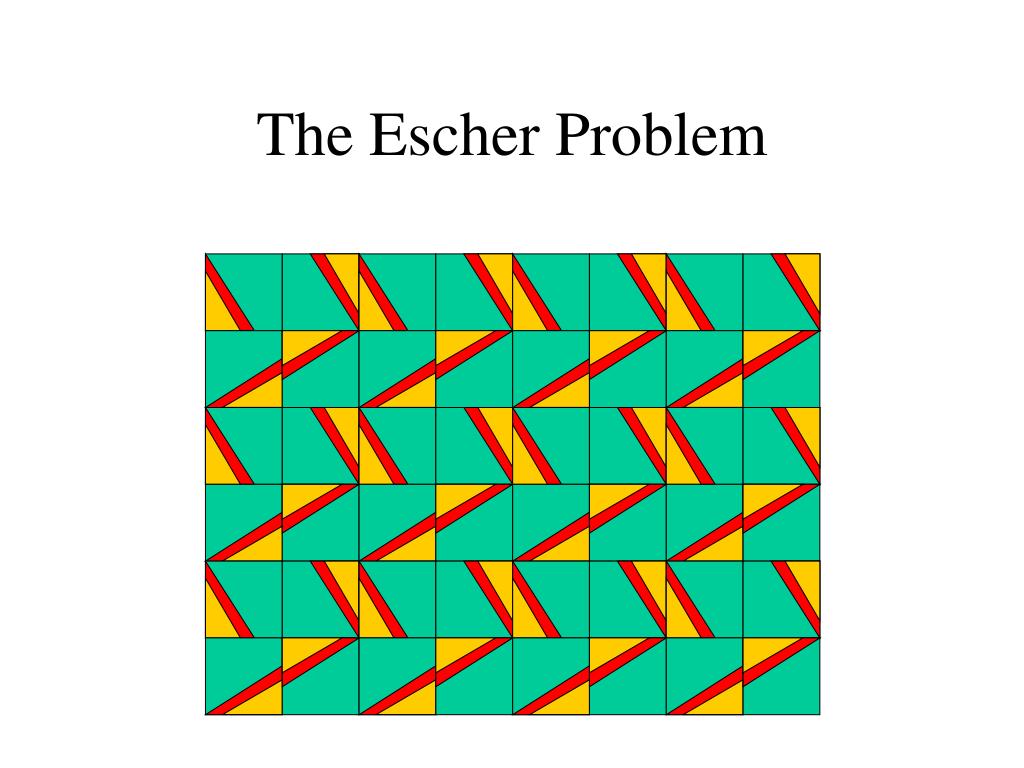

  17. The Escher problem • There is a square stamp with asymmetric motif. • By 90 degree rotations we obtain 4 different aspects. • By combining 4 aspects in a square 2 x 2 block, a translational unit is obtained that is used for plane tilnig. Such a tiling is called a pattern. • Question: What is the number of different patterns ? • Answer: 23.

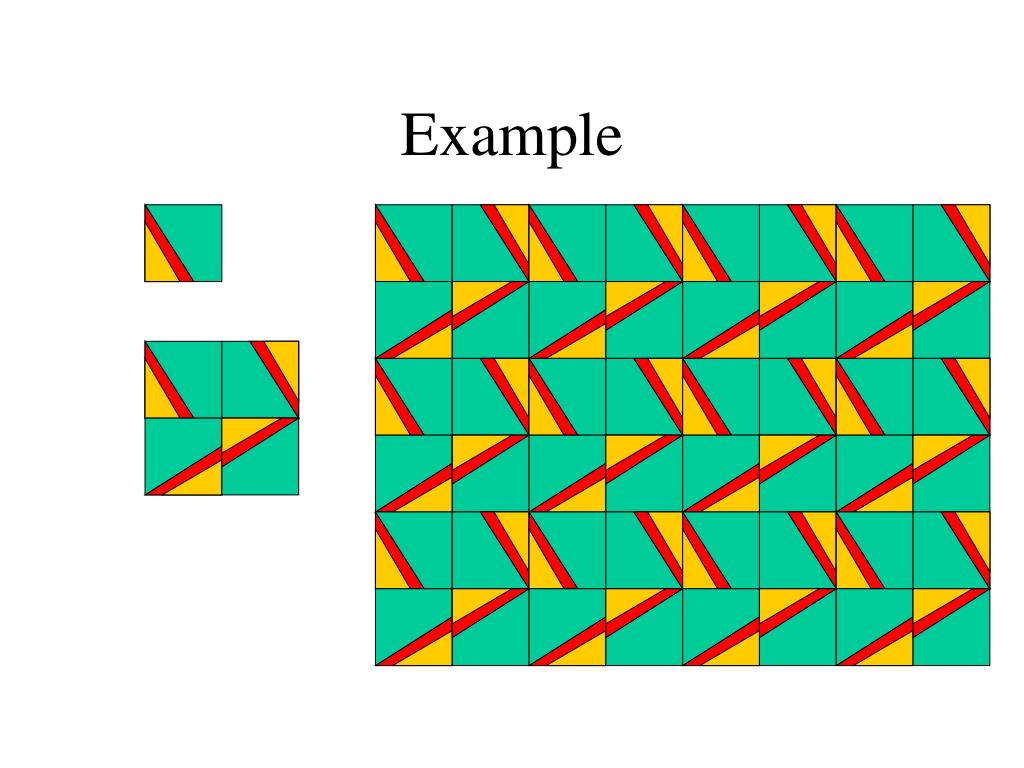

  18. Example

  19. Recall Burnside Lemma. • Let G be a group, acting on space S. • For g 2 G let fix(g) denote the number of points form S fixed by g. • Let N denote the number of orbits of G on S. • Then:

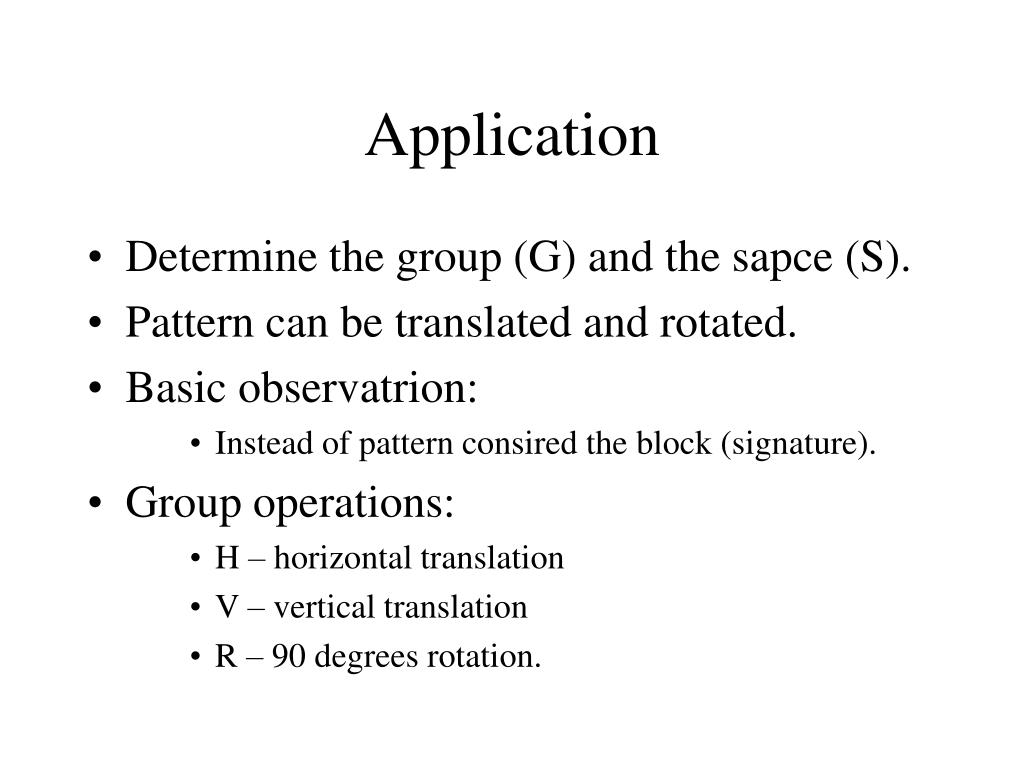

  20. Application • Determine the group (G) and the sapce (S). • Pattern can be translated and rotated. • Basic observatrion: • Instead of pattern consired the block (signature). • Group operations: • H – horizontal translation • V – vertical translation • R – 90 degrees rotation.

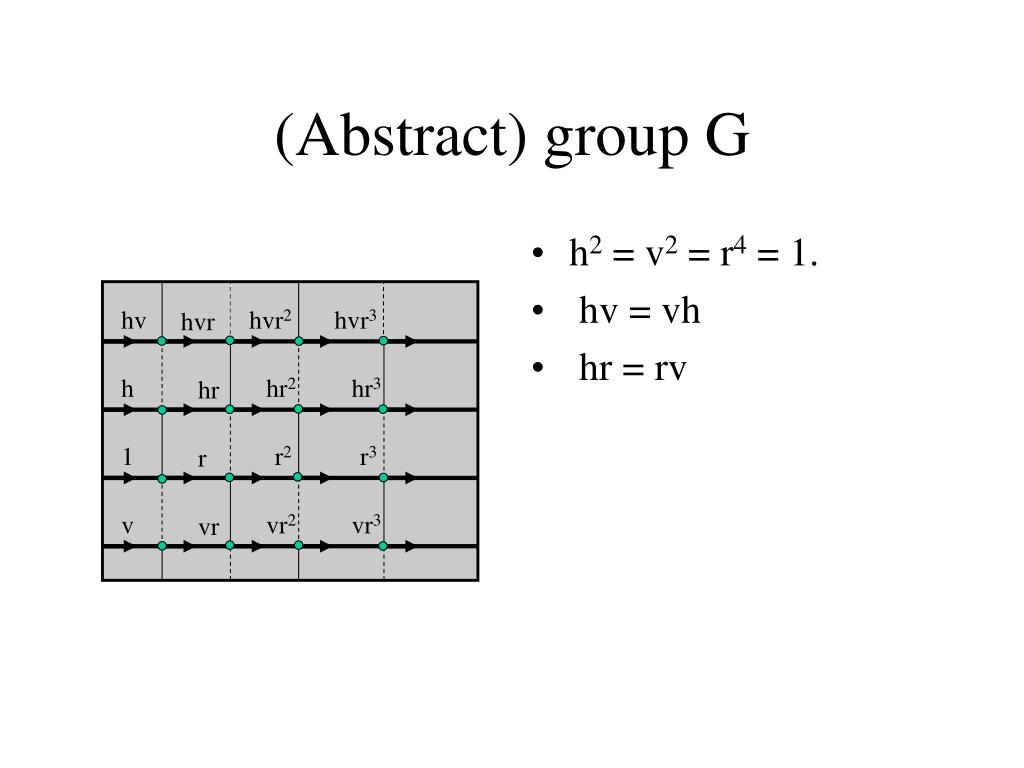

  21. (Abstract) group G • h2 = v2 = r4 = 1. • hv = vh • hr = rv hv hvr2 hvr3 hvr h hr2 hr3 hr 1 r2 r3 r v vr2 vr3 vr

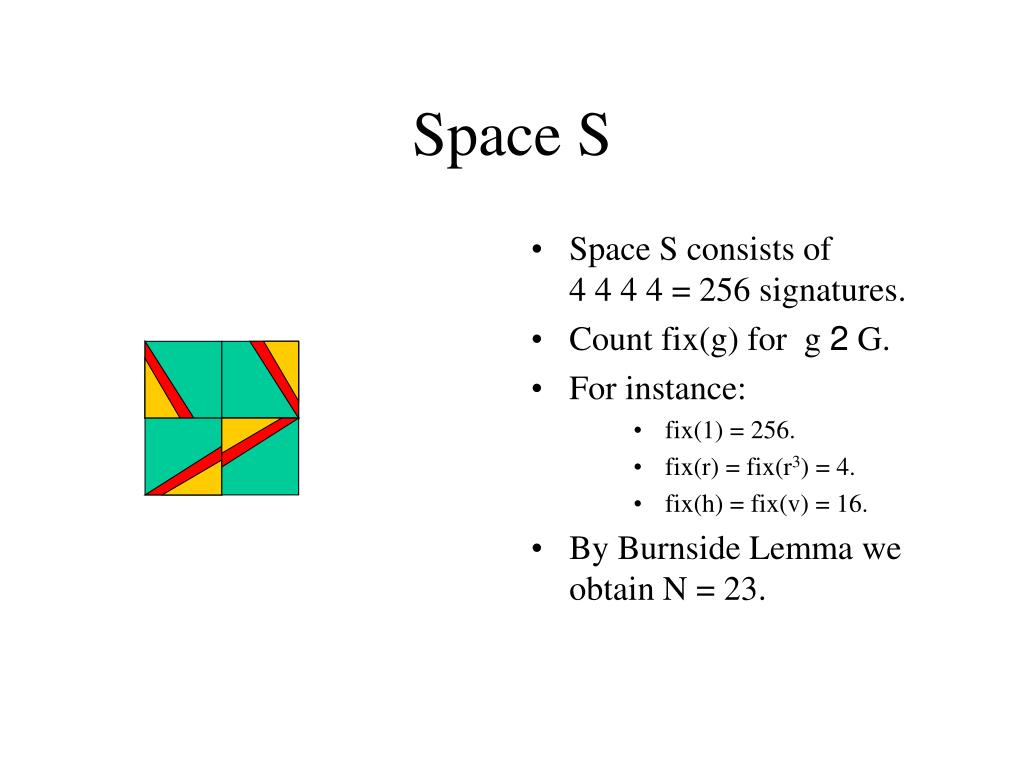

  22. Space S • Space S consists of 4 4 4 4 = 256 signatures. • Count fix(g) for g 2 G. • For instance: • fix(1) = 256. • fix(r) = fix(r3) = 4. • fix(h) = fix(v) = 16. • By Burnside Lemma we obtain N = 23.

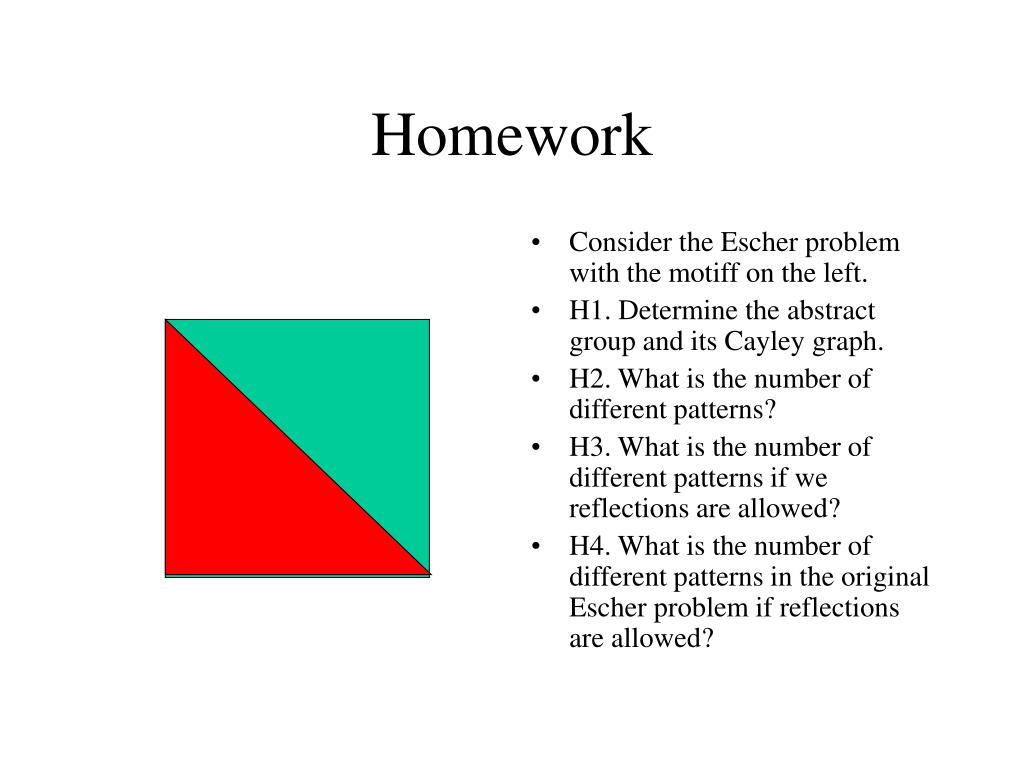

  23. Homework • Consider the Escher problem with the motiff on the left. • H1. Determine the abstract group and its Cayley graph. • H2. What is the number of different patterns? • H3. What is the number of different patterns if we reflections are allowed? • H4. What is the number of different patterns in the original Escher problem if reflections are allowed?

  24. 1-dimensional Escher problem • Rectangular Asymmetric Motiff • Only Two Aspects. • 1 x n block (signature) • Determine the number of patterns: • Two more variations: • II two motiffs(mirror images) • III reflections are allowed.

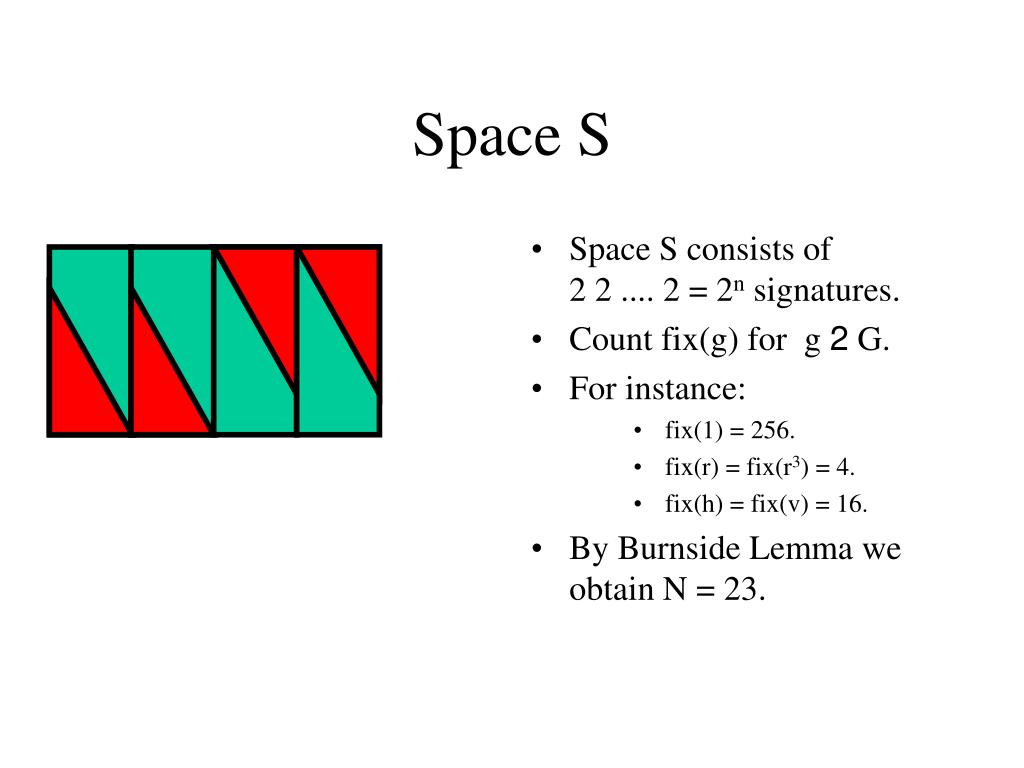

  25. Space S • Space S consists of 2 2 .... 2 = 2n signatures. • Count fix(g) for g 2 G. • For instance: • fix(1) = 256. • fix(r) = fix(r3) = 4. • fix(h) = fix(v) = 16. • By Burnside Lemma we obtain N = 23.

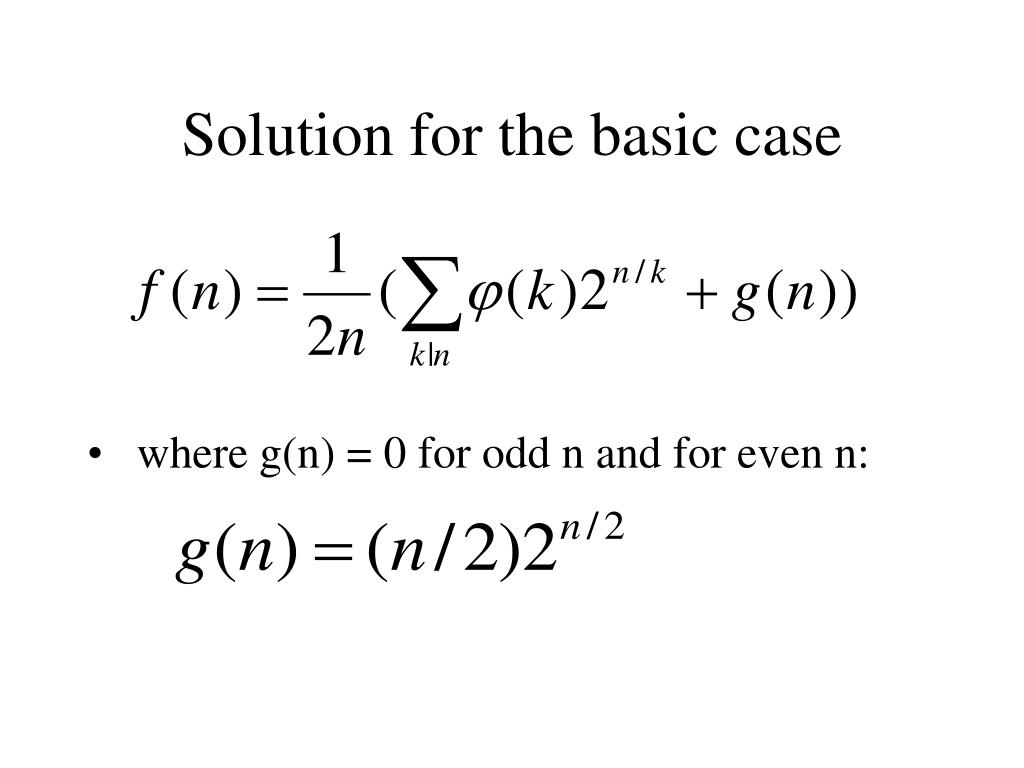

  26. Solution for the basic case • where g(n) = 0 for odd n and for even n:

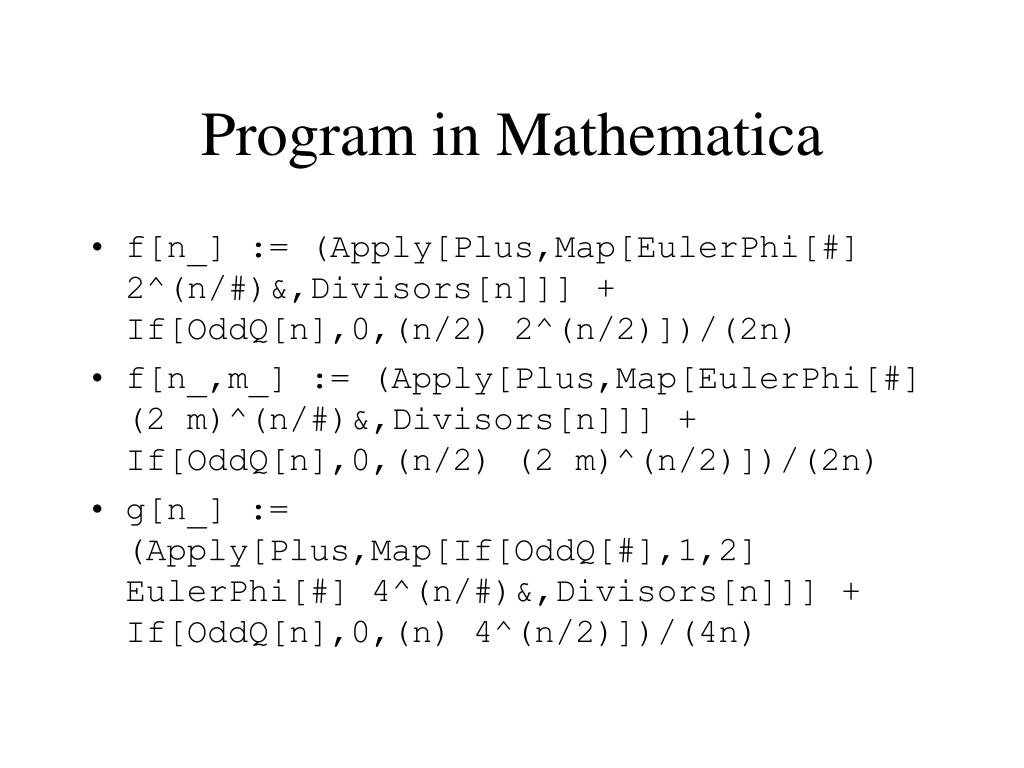

  27. Program in Mathematica • f[n_] := (Apply[Plus,Map[EulerPhi[#] 2^(n/#)&,Divisors[n]]] + If[OddQ[n],0,(n/2) 2^(n/2)])/(2n) • f[n_,m_] := (Apply[Plus,Map[EulerPhi[#] (2 m)^(n/#)&,Divisors[n]]] + If[OddQ[n],0,(n/2) (2 m)^(n/2)])/(2n) • g[n_] := (Apply[Plus,Map[If[OddQ[#],1,2] EulerPhi[#] 4^(n/#)&,Divisors[n]]] + If[OddQ[n],0,(n) 4^(n/2)])/(4n)

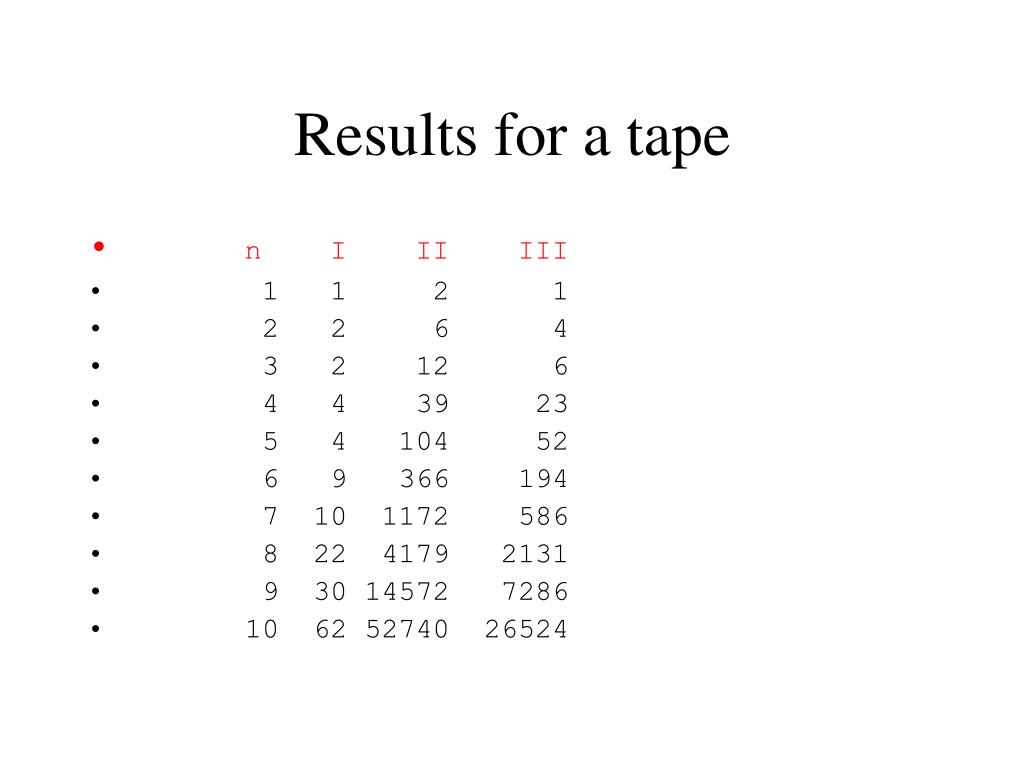

  28. Results for a tape • n III III • 1 12 1 • 2 26 4 • 3 212 6 • 4 439 23 • 5 4104 52 • 6 9366 194 • 7 10 1172 586 • 8 22 4179 2131 • 9 30 14572 7286 • 10 62 52740 26524

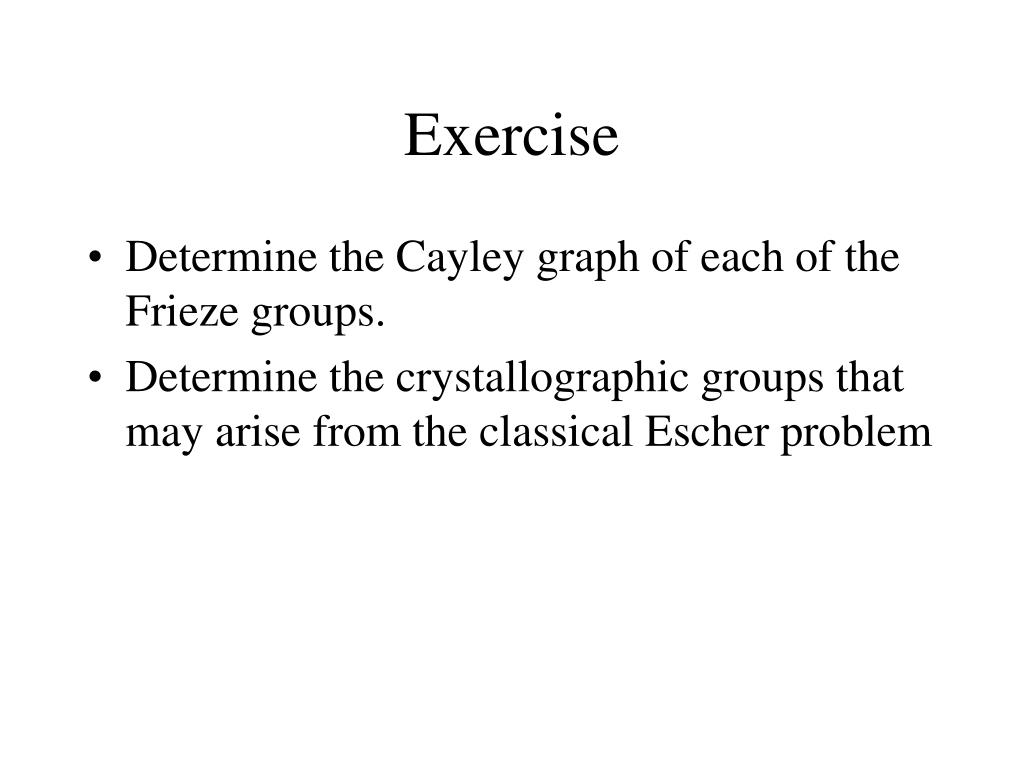

  29. Exercise • Determine the Cayley graph of each of the Frieze groups. • Determine the crystallographic groups that may arise from the classical Escher problem

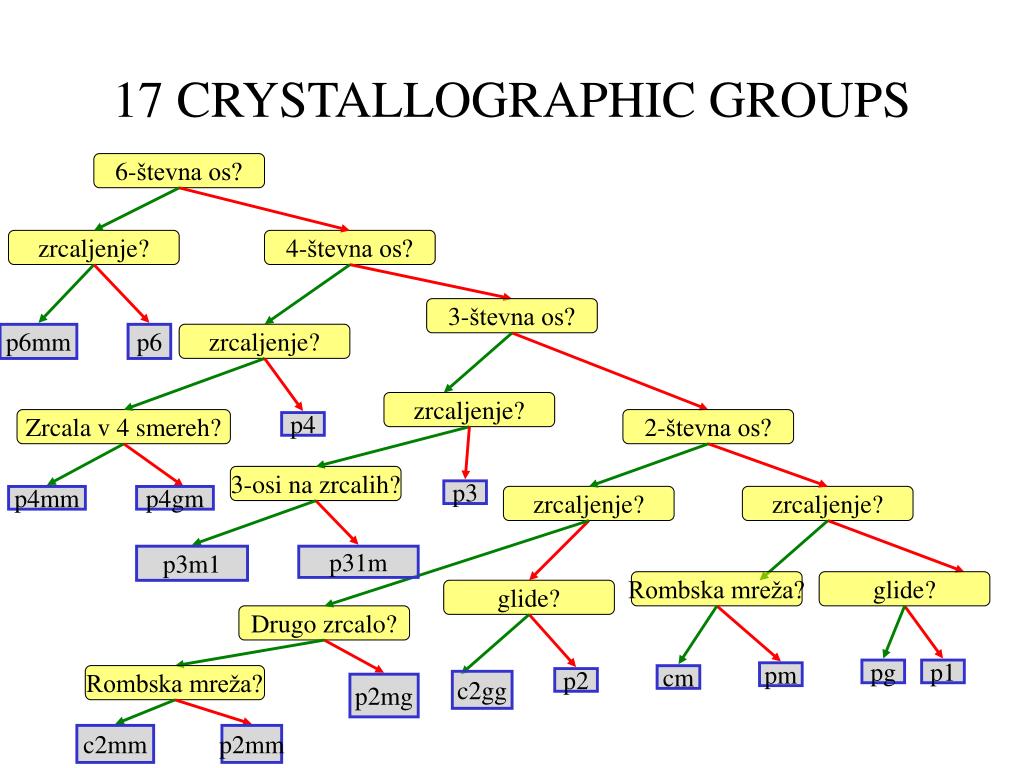

  30. 17 CRYSTALLOGRAPHIC GROUPS 6-števna os? zrcaljenje? 4-števna os? 3-števna os? p6mm p6 zrcaljenje? zrcaljenje? Zrcala v 4 smereh? 2-števna os? p4 3-osi na zrcalih? p3 p4mm p4gm zrcaljenje? zrcaljenje? p3m1 p31m Rombska mreža? glide? glide? Drugo zrcalo? pg p1 pm Rombska mreža? cm p2 c2gg p2mg c2mm p2mm

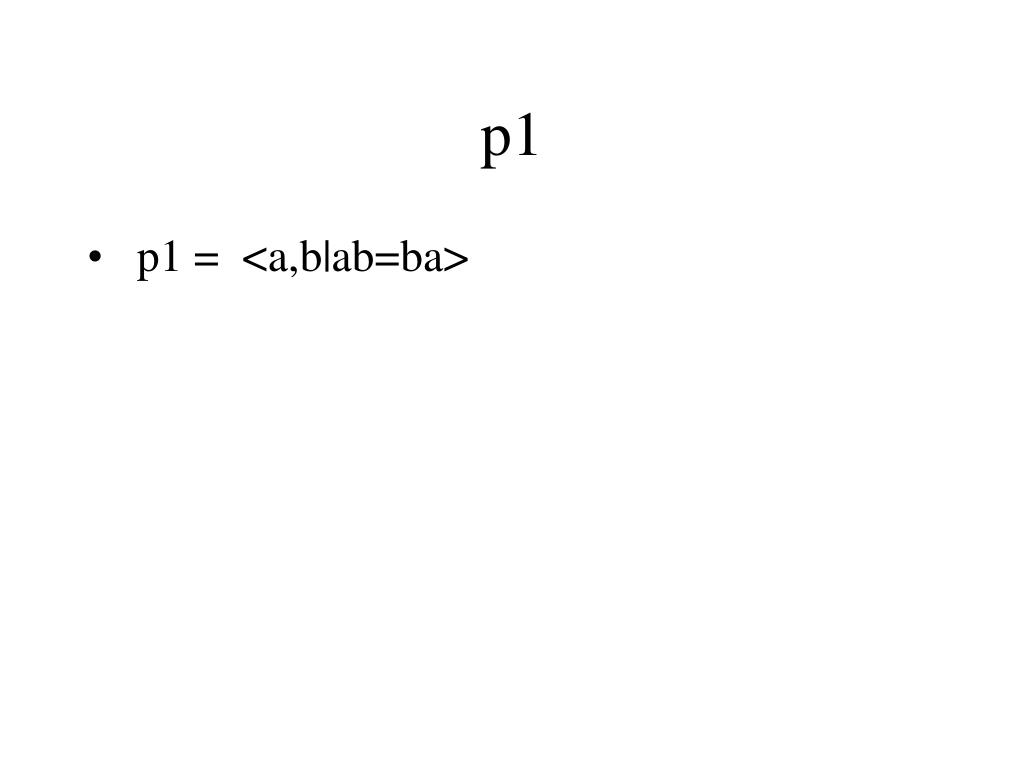

  31. p1 • p1 = <a,b|ab=ba>

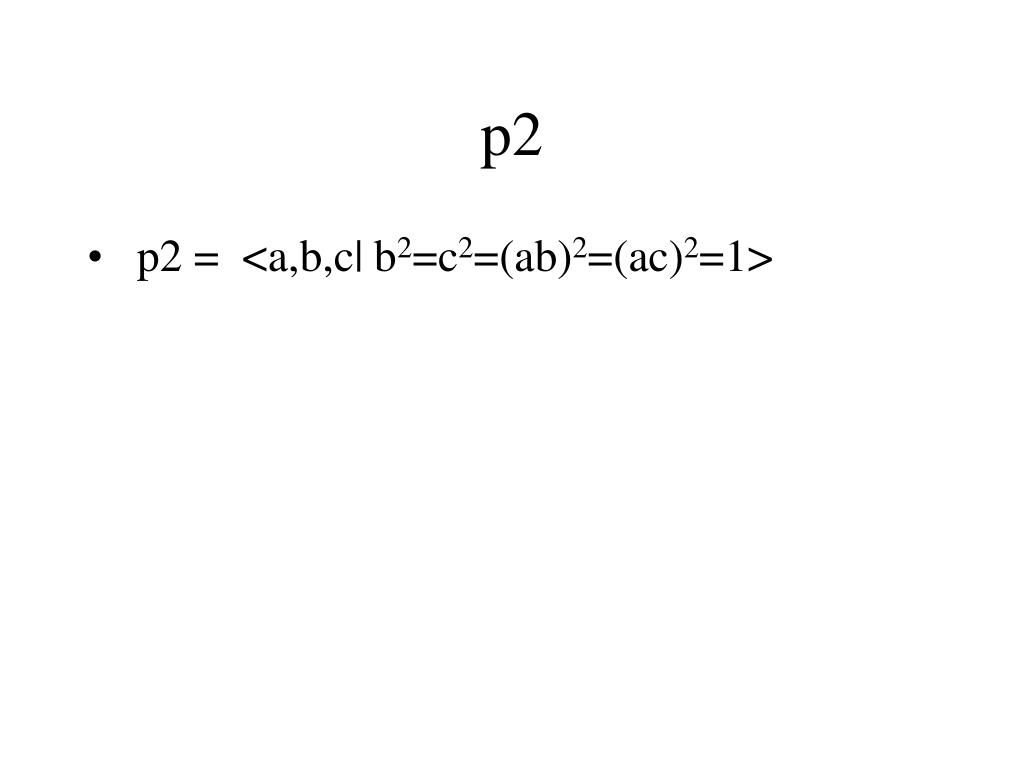

  32. p2 • p2 = <a,b,c| b2=c2=(ab)2=(ac)2=1>

  33. pm • pm = <a,b,c| b2=c2=1, ab=ba, ac=ca>

  34. pg • pg = <a,b|ab=ba-1>

  35. cm • cm = <a,b,c| b2=c2=1, ab=ca>

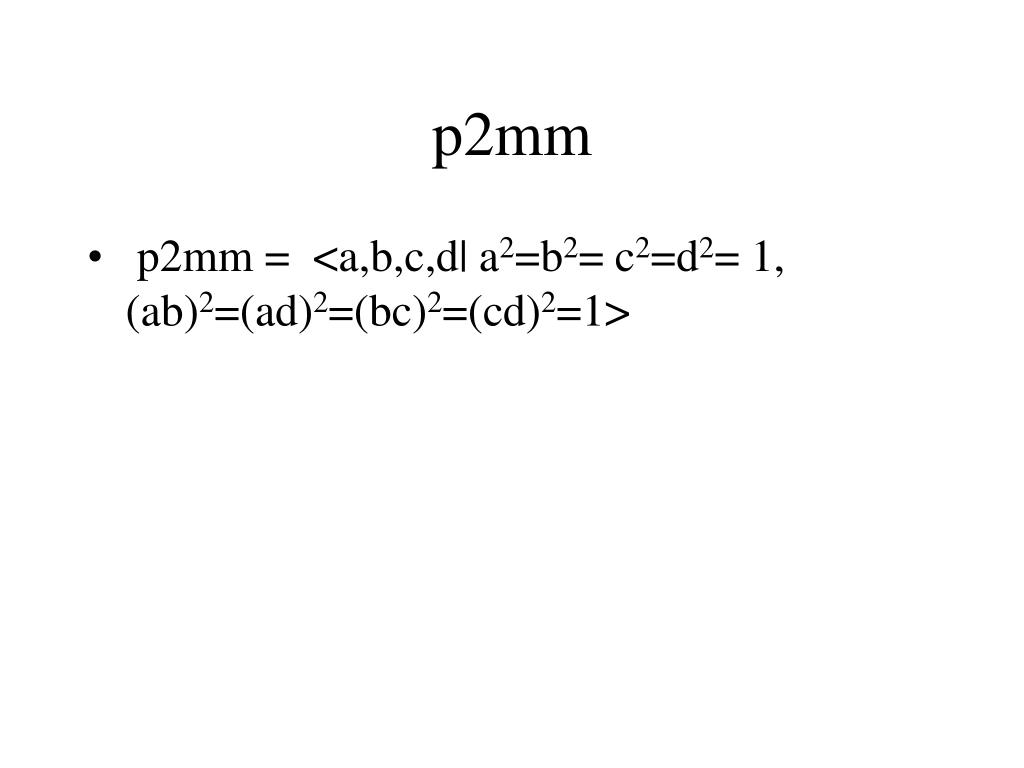

  36. p2mm • p2mm = <a,b,c,d| a2=b2= c2=d2= 1, (ab)2=(ad)2=(bc)2=(cd)2=1>

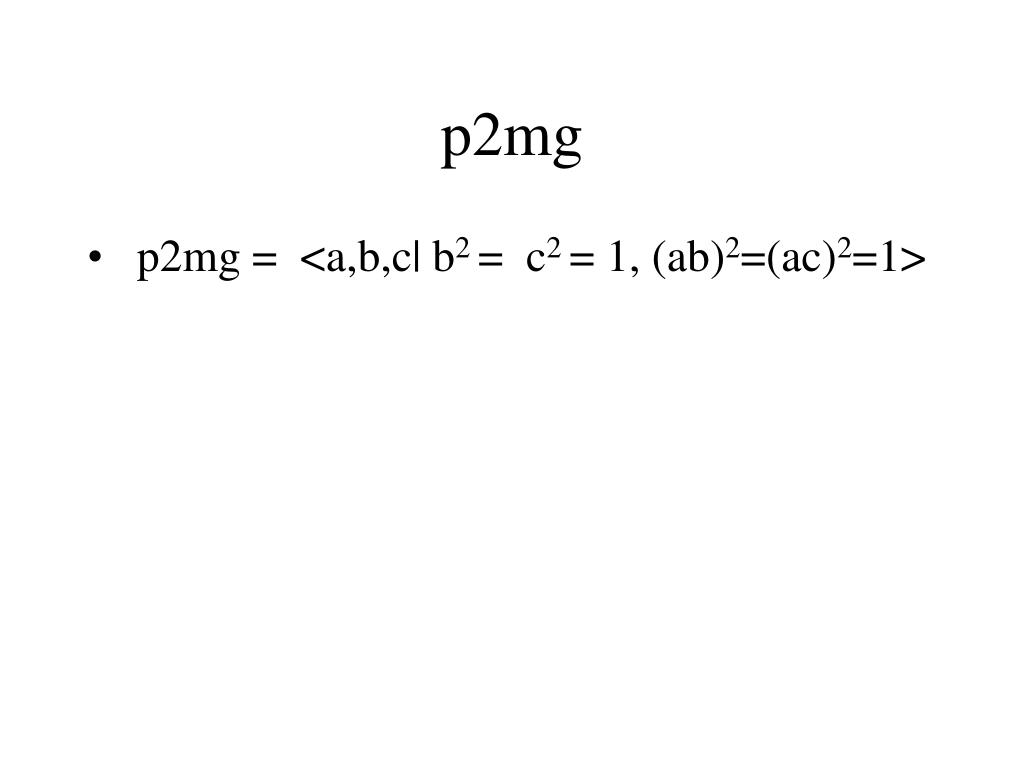

  37. p2mg • p2mg = <a,b,c| b2 = c2 = 1, (ab)2=(ac)2=1>

  38. p2gg • p2gg = <a,b| (ab)2=1>
