Presentation Transcript

  1. Biotechnolgy

  2. Basic Molecular Biology • Core of biotechnology

  3. Began in 1940’s • Scientists studying animal and plant viruses

  4. 1953 • James Watson and Francis Crick identified the structure of DNA

  5. 1960’s • The genetic code was worked out

  6. 1970’s • Restriction enzymes were discovered.

  7. Broad range of studies • DNA-RNA • genetic engineering • cloning • gene therapy • recombinant DNA • gene splicing

  8. Nucleotides • composed of three parts • a phosphate molecule • a sugar molecule • a nitrogen base molecule

  9. Sugar molecules • ribose as in RNA • deoxyribose as in DNA

  10. Nitrogen bases • five bases in RNA and DNA

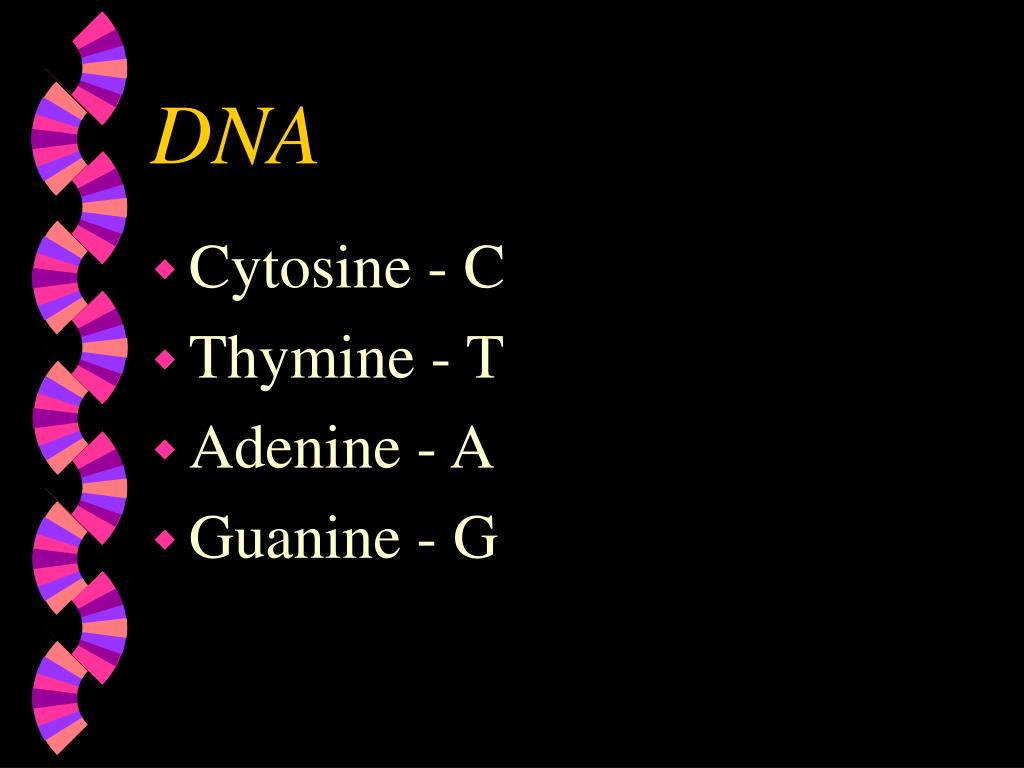

  11. DNA • Cytosine - C • Thymine - T • Adenine - A • Guanine - G

  12. RNA • A, C, G & • Uracil - U • found only in RNA • Substitutes for Thymine

  13. Structure of DNA • genetic material of the cell - makes up the genes • genes are organized in chromosomes

  14. Chromosomes • make up the genetic info of the cell or genome

  15. The nucleotides….. • ACT&G form two long strands • The strands are complimentary • Bases on one strand are paired with those on the other strand

  16. Base Pairing • A with T • C with G • ALWAYS this way!

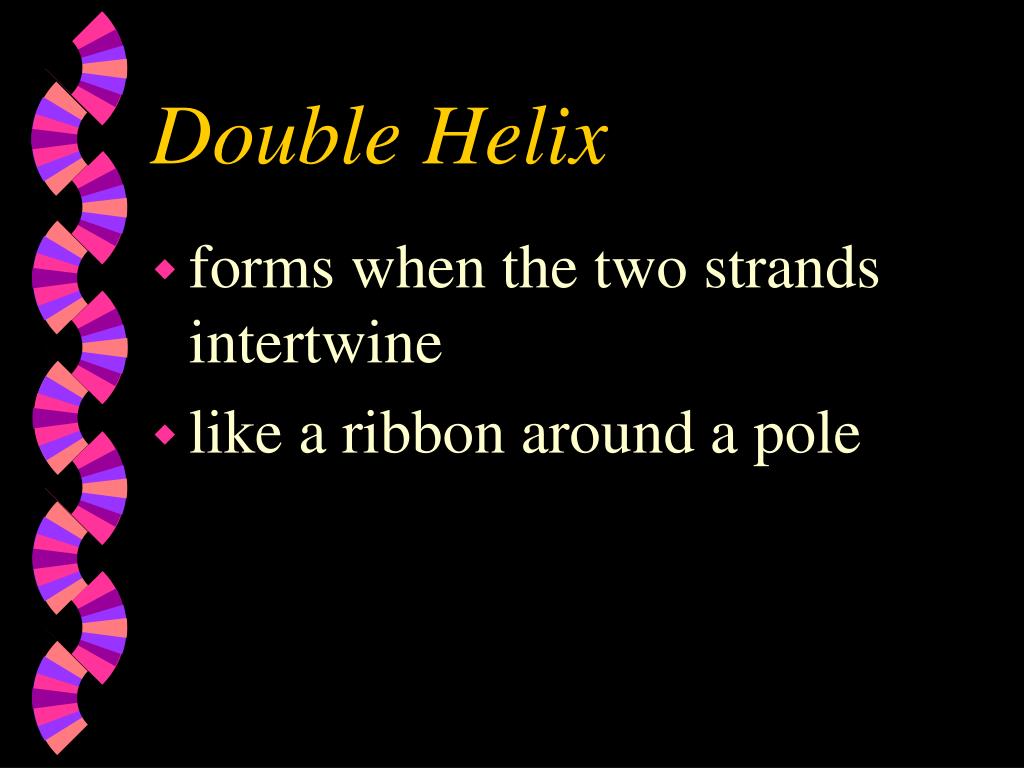

  17. Double Helix • forms when the two strands intertwine • like a ribbon around a pole

  18. Antiparallel • The two strands run antiparallel • They face each other and run in opposite directions

  19. Strands run in different directions • one strand runs from 5’ to 3’ • the other strand runs 3’to 5’

  20. Prime ends • 3’ & 5’ are differentiated by the arrangement of the sugar on each nucleotide • 5’ ends in a Phosphate (P) • 3’ ends in a Hydroxide (OH)

  21. DNA Structure • unique for three reasons • complimentarity of the two strands - base pairing • variability of base sequence along the two linear strands

  22. DNA Structure • independence of the two strands • their ability to separate and rejoin without destroying the molecule.

  23. DNA in Humans • 6 billion base pairs in a human cell • 100 trillion cells in human body. • DNA in a human would reach to the moon and back 250,000 times

  24. Turns of the helix • There are ten base pairs per complete turn of the helix • Distance of one complete turn of the helix is 10 A ( Angstrums)

  25. Functions of DNA • carry genetic information • express genetic information

  26. Express genetic info • directs the synthesis of proteins • proteins determine the traits of an organism

  27. Eukaryotic Cells • having a true membrane bound nucleus • DNA of nucleus is stored by wrapping it around five proteins to form a nucleosome.

  28. Nucleosome • forms the chromosome • the genes are located along the DNA molecule • chromosomes occur in pairs

  29. Prokaryotic Cells • chromosome is not associated with proteins • exists as a single, circular chromosome of double stranded DNA. • Also contain smaller circular DNA called a plasmid

  30. Plasmids • can pass between bacteria • are vehicles for introducing new genes into bacteria in nature and in the lab

  31. Transcription • Replication • goes from the 5’ to the 3’ end of DNA

  32. Reading DNA • DNA is read from 3’ to 5”

  33. Synthesis of DNA • synthesized only in the 5’ to 3’ direction • Cannot initiate synthesis of a new strand - requires a 3’OH as a primer

  34. Types of RNA • messenger - mRNA carries the code for a protein

  35. Codon • sequence of three bases • each three bases represents an amino acid

  36. Transfer RNA • tRNA • carries appropriate Amino Acid with it • anticodon - pairs with the codon

  37. Ribosomal RNA • rRNA • required for bonding to occur by Amino Acids • Ribosome has two parts • big • small
