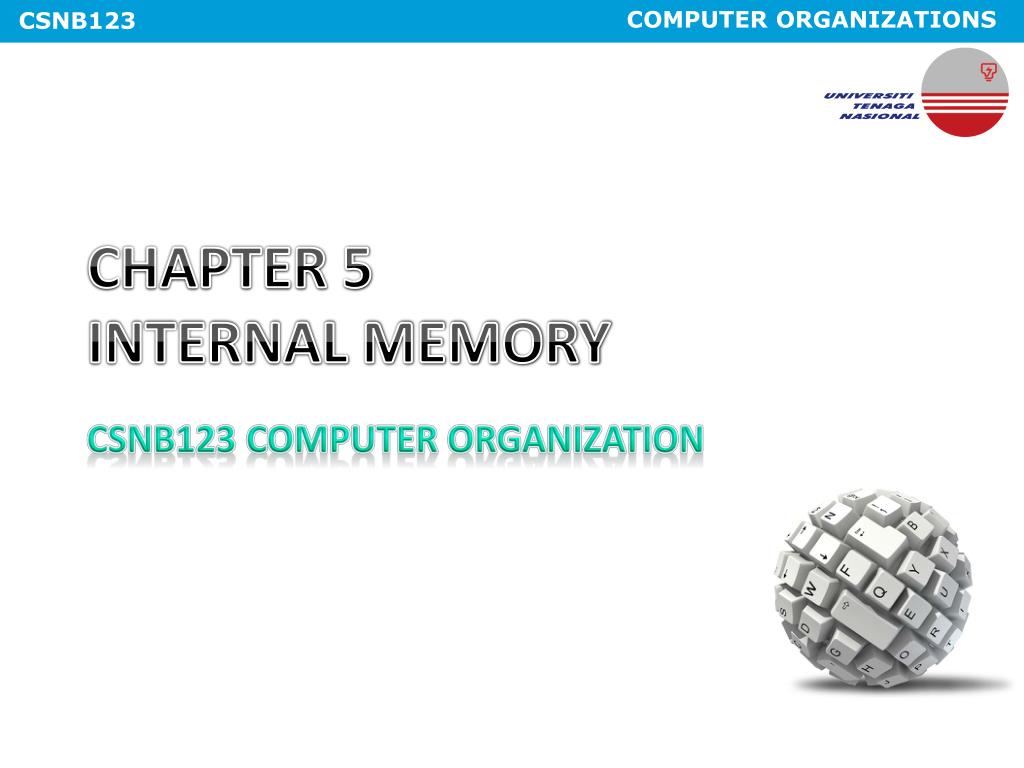

  1. CHAPTER 5INTERNAL MEMORY CSNB123 coMPUTERoRGANIZATION

  2. Expected Course Outcome Systems and Networking

  3. Objectives • To study the types of semiconductor main memory subsystems • RAM • DRAM • SRAM • ROM • Error correction Systems and Networking

  4. Recall: Chapter 4 – Common Memory Parameters Systems and Networking

  5. Semiconductor Main Memory • Basic element of semiconductor main memory (smm) – memory cell • Cell properties; • 2 stable states – 0 and 1  binary • Capable of being written to set the state • Capable of being read to sense the state Systems and Networking

  6. Memory Cell Operation Write Functional Terminal - Capable of carrying an electrical signal Read Control Control Sense Select Select Cell Data in Cell Systems and Networking

  7. Three Functional Terminals • Select terminal – select memory cell for read or write operation • Control terminal – indicates read or write • Write – other terminal provides an electrical signal  sets the state of the cell to 1 or 0 • Read – that terminal is used for output of the cell’s state Systems and Networking

  8. All memory types in this chapter are random access Individual words of memory are directly accessed through wired-in addressing logic Systems and Networking

  9. Semiconductor Memory Types Systems and Networking

  10. Semiconductor Memory All semiconductor memory is random access DRAM SRAM Systems and Networking

  11. Random Access Memory (RAM) • Characteristic • Read/Write – read data from the memory and to write new data into the memory • Use electrical signals • Volatile – must have constant power supply else data lost. • Temporary storage • 2 traditional forms of RAM • DRAM • SRAM Systems and Networking

  12. Dynamic RAM (DRAM) • Made with cells that store data as charge on capacitors • The presence or absence of charge in a capacitor is interpreted as a binary 1 or 0 • Capacitors have tendency of discharging - needs to periodically charge to maintain data storage • The term dynamic refers to this tendency of the stored charge to leak away Systems and Networking

  13. DRAM Structure • Figure 5.2 show a typical DRAM structure for an individual cell that stores 1 bit • The address line is activated when the bit value from this cell is to be read or written • The transistor acts as a switch that is closed (allowing the current to flow) if a voltage is applied to the address line • If no current flows, the switch is open means no voltage is present on the address line. Systems and Networking

  14. DRAM Operation Write Read Select address line. The transistor turns on and the charge stored on the capacitor is fed out onto a bit line and to a sense amplifier The sense amplifier compares the capacitor voltage to a reference value and determines if the cell contains a logic 1 or logic 0 The readout from the cell discharges the capacitor which must be restored to complete the operation • A voltage signal is applied to the bit line • A high voltage represent 1, a low voltage represent 0 • A signal is then applied to the address line allowing a charge to be transferred to the capacitor Systems and Networking

  15. DRAM (Cont.) • Analog device • Capacitor stores any charge value within a range • Threshold value – determine whether the charge is interpreted as 0 or1 Systems and Networking

  16. Static RAM (SRAM) • A digital device • Use the same logic elements as in the processor • The binary values are stored using traditional flip-flop logic gate configuration • Data remains as long as power is supplied to it Systems and Networking

  17. SRAM Structure SRAM structure for an individual cell • Four transistors (T1,T2,T3,T4) are cross connected in an arrangement that produces a stable logic state • Logic state 1: • C1 is high , C2 is low • T1 ,T4 are off, T2,T3 are open • Logic state 0: • C1 is low, C2 is high • T1,T4 are open, T2,T3 are off • The SRAM address line is used to open/close a switch • Controls two transistors (T5,T6) • Apply signal to this line, T5,T6 are switched on, allowing read/write operation Systems and Networking

  18. SRAM Operation Read Write The desired bit value is applied to line B Its complement is applied at line B • The bit value is read from line B Systems and Networking

  19. DRAM versus SRAM DRAM SRAM Faster Use as cache memory Volatile – need power to preserve data • Simpler to build, smaller • More dense • Less expensive • Needs refresh • Larger memory units • Use as main memory Systems and Networking

  20. Read Only Memory (ROM) • Permanent storage • Nonvolatile • Use in • Microprogramming • Library subroutines • Systems programs (BIOS) • Function tables Systems and Networking

  21. Types of ROM • ROM • PROM • EPROM • EEPROM • Flash memory Systems and Networking

  22. ROM • Data is written during manufacture Systems and Networking

  23. PROM – Programmable ROM • Nonvolatile • Written once • Electrically – supplier or user • Perform after fabrication • Need special equipment to program Systems and Networking

  24. EPROM – Erasable PROM • Read/write electrically • Before a write operation, empty the cells by ultraviolet radiation • The erase procedure can be performed repeatedly • Expensive than PROM Systems and Networking

  25. Flash Memory • Intermediate between EPROM and EEPROM; cost and functionality • Use an electrical erasing tech; much faster than EEPROM • Possible to erase just blocks of memory Systems and Networking

  26. EEPROM – Electrical EPROM • Can be written into at any time without erasing prior contents - updates bytes address • Write operation is longer than read operation • Nonvolatile and flexible in update using ordinary bus control Systems and Networking

  27. Chip Logic • Each chip contains an array of memory cells • The array is organized into W words of B bits each. • Example : a 16 –Mbit chip could be organized as 1 M 16 words. ( word- is a fixed sized group of bits that are handled as a unit by the instruction set and/or hardware of the processor) Systems and Networking

  28. Chip Packaging • An IC is mounted on a package • There are pins used to connect to the outside word Systems and Networking

  29. Chip Packaging (Cont.) • 8 –Mbit chip organization (1M x 8) • The organization is treated as a one –word-per chip package. (word -16 bits=2 bytes) • There are 32 pins , one of standard chip package Systems and Networking

  30. Chip Packaging - Pins • Support the following signal lines • Address of word being accessed • For 1M words, a total of 1M (220) pins are needed , address A0-A19 • The data to be read out-have 8 lines (D0-D7) • The power supply to the chip (Vcc) • A ground pin (Vss) • A chip enable (CE) pin - indicate whether or not the address is valid for this chip • A program voltage (Vpp) - supplied during programming (write op) Systems and Networking

  31. Interleaved Memory • Advance technique used by high-end motherboards/chipsets to improve memory performance • Increase bandwidth by allowing simultaneous access to more than one bank of memory • Improves performance since CPU/processor can transfer more information to/from memory in the same amount of time, and helps ease the CPU-memory bottleneck Systems and Networking

  32. Error Correction Systems and Networking

  33. Errors • A semiconductor memory is subject to errors. • Categories; • Hard failures • Soft errors • Example : power supply problem Systems and Networking

  34. Errors – Categories Hard Failures Soft Error A random, nondestructive event that alters the contents of one or more memory cells without damaging the memory • A permanent physical defect so that the memory cells affected cannot reliably store data but become stuck at 0 or 1 Systems and Networking

  35. Process of Detecting and Correcting Errors • When data are to be read into memory, a calculation, function f is performed on the data to produce a code • Both the code and the data are stored • If M –bit word of data is to be stored and the code is of length K bits, then the actual size of the stored word is M + K bits Systems and Networking

  36. Process of Detecting and Correcting Errors (Cont.) • When the previous stored word is read out, the code is used to detect and possibly correct errors • A new set of K code bits is generated from the M data bits and compared with the fetched code bits Systems and Networking

  37. Process of Detecting and Correcting Errors (Cont.) • Three results of the comparisons; • No errors-the fetched data bits are sent out • An error is detected-possible to correct, the data bits +error correction bits are fed out into a corrector, which produces a corrected set of M bits to be sent out • An error is detected and connect be corrected, this condition is reported Systems and Networking

  38. Process of Detecting and Correcting Errors (Cont.) • The codes are referred as error-correcting codes • A code is characterized by the number of bit errors in a word that it can correct and detect • The simplest error-correcting codes is the Hamming code Systems and Networking

  39. Hamming Code • Use to detect and correct one-bit change in an encoded code word • Consider the table which has 15 positions. Data is represented (stored) in every position except 1, 2, 4 and 8. These positions are used to store parity (error correction) bits Systems and Networking

  40. Hamming Code (Cont.) • Using the four parity (error correction bits) positions we can represent 15 values (1- 15) Systems and Networking

  41. Hamming Code (Cont.) • Data is represented by the 11 non-parity bit • Example: Systems and Networking

  42. Hamming Code (Cont.) • After placing the data in the table, it is in positions 3, 6, 9, 10, 12, 14 and 15 we have a ‘1’ • Using the previous conversion table we obtain the binary representation for each of these values Systems and Networking

  43. Hamming Code (Cont.) • We then exclusive OR the resulting values (essentially setting the parity bit to 1 if an odd # of 1’s else setting it to 0 Systems and Networking

  44. Hamming Code (Cont.) • The parity bits are then put in the proper locations in the table providing the following end result: • This is the encoded code word that would be sent. • The receiving side would re-compute the parity bits and compare them to the ones received. • If they were the same no error occurred • if they were different the location of the flipped bit is determined. Systems and Networking

  45. Hamming Code (Cont.) • Assumed now bit at location 14 is flipped, 1 to 0, the calculation for parity is as below: Systems and Networking

  46. Hamming Code (Cont.) • The re-calculated parity information is then compared to the parity information sent/received • If they are both the same the result (again using an XOR – even parity) will be all 0’s Systems and Networking

  47. Hamming Code (Cont.) • If a single bit was flipped the resulting number will the position of the errant bit (check back into table). For example: Systems and Networking

  48. Additional Reference • William Stallings, Computer Organization and Architecture: Designing for Performance, 8th. Edition, Prentice-Hall Inc., 2010 Systems and Networking

  49. This teaching material is belongs to Systems and Networking Department College of Information Technology UniversitiTenagaNasional (UNITEN) Malaysia 2014 Systems and Networking
