  1. DP-8020E/8020P/8016P Introduction Aug 2006 Panasonic Communications Company Global Marketing Group EU Digest Version

  2. Introduction • Product Concept • What’s New • Product Line-up • Enhanced Features • Technical Improvement • System Configuration • Cross Reference (Options & Consumables) • Competitor’s Comparison • Introduction Schedule • Sales Promotion Materials

  3. Product Concept • What’s New Scan Print Standard Scan/I-Fax DP-8020E / DP-8020P Increased Print Speed Enhanced Print Driver Fax Copy Job Build Completion Notice Completion Notice Document Handling Security Document Handling Software (QNavi) User Authentication

  4. Product Concept • Product Lineup DP-8020E : 20 ppm Digital Printer / Copier / Scanner (Automatic Duplex Unit Standard) DP-8020P : 20 ppm Digital Printer / Copier / Scanner DP-8016P : 16 ppm Digital Printer / Copier Targeted Figures MCBSCAve.Monthly CVMax CV DP-8020E : 25 K 3 K 10 K DP-8020P : 25 K 3 K 10 K DP-8016P : 20 K 3 K 10 K

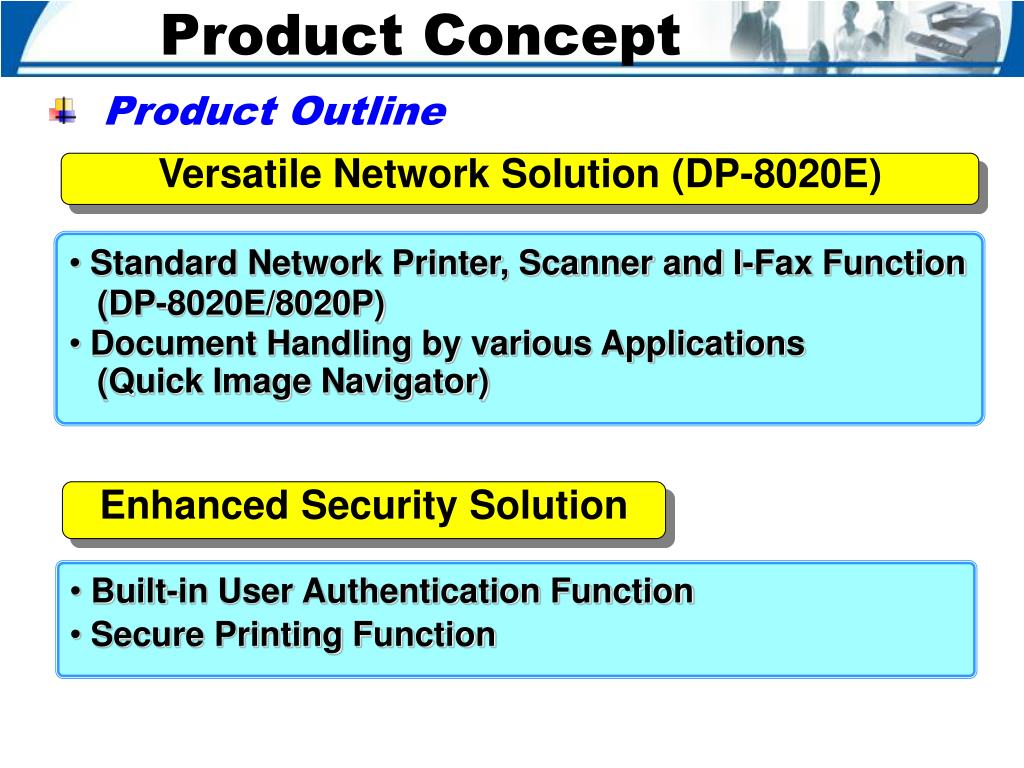

  5. Product Concept • Product Outline Versatile Network Solution (DP-8020E) • Standard Network Printer, Scanner and I-Fax Function • (DP-8020E/8020P) • Document Handling by various Applications • (Quick Image Navigator) Enhanced Security Solution • Built-in User Authentication Function • Secure Printing Function

  6. Product Concept Printer Driver - Similar to the Printer Driver for C3 Series - More Functionality for GDI and PCL More tabs, more functions DP-1820E/1820P/1520P DP-8020E/8020P/8016P

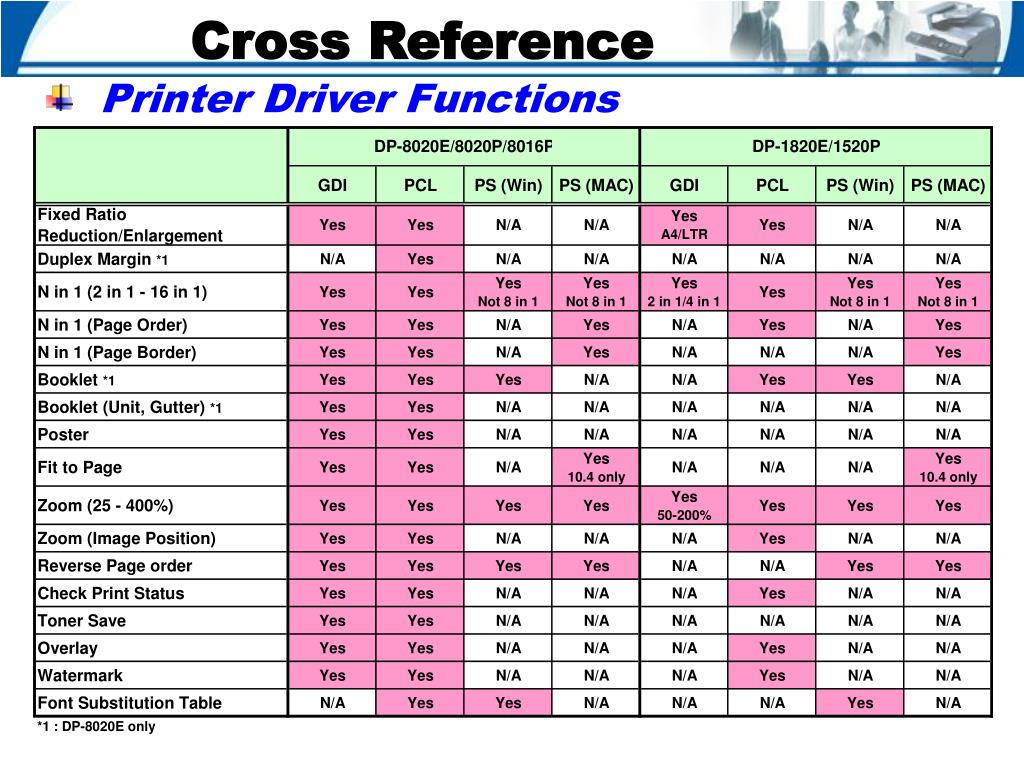

  7. Cross Reference • Printer Driver Functions

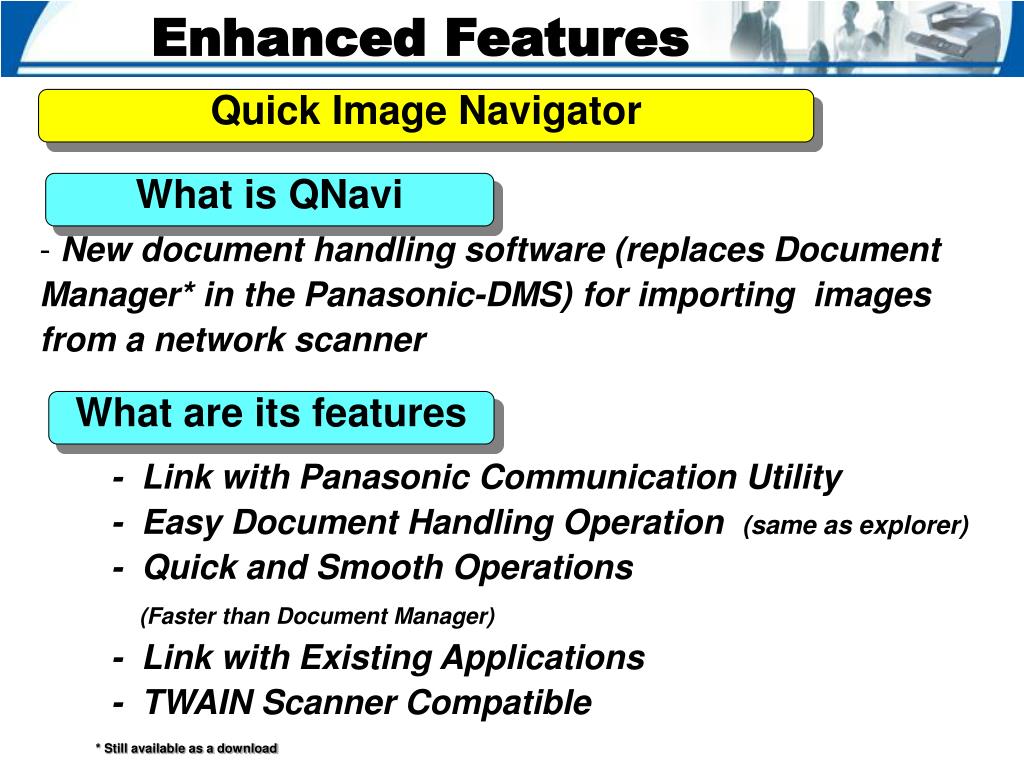

  8. Enhanced Features Quick Image Navigator What is QNavi • New document handling software (replaces Document Manager* in the Panasonic-DMS) for importing images from a network scanner What are its features - Link with Panasonic Communication Utility - Easy Document Handling Operation (same as explorer) - Quick and Smooth Operations (Faster than Document Manager) - Link with Existing Applications - TWAIN Scanner Compatible * Still available as a download

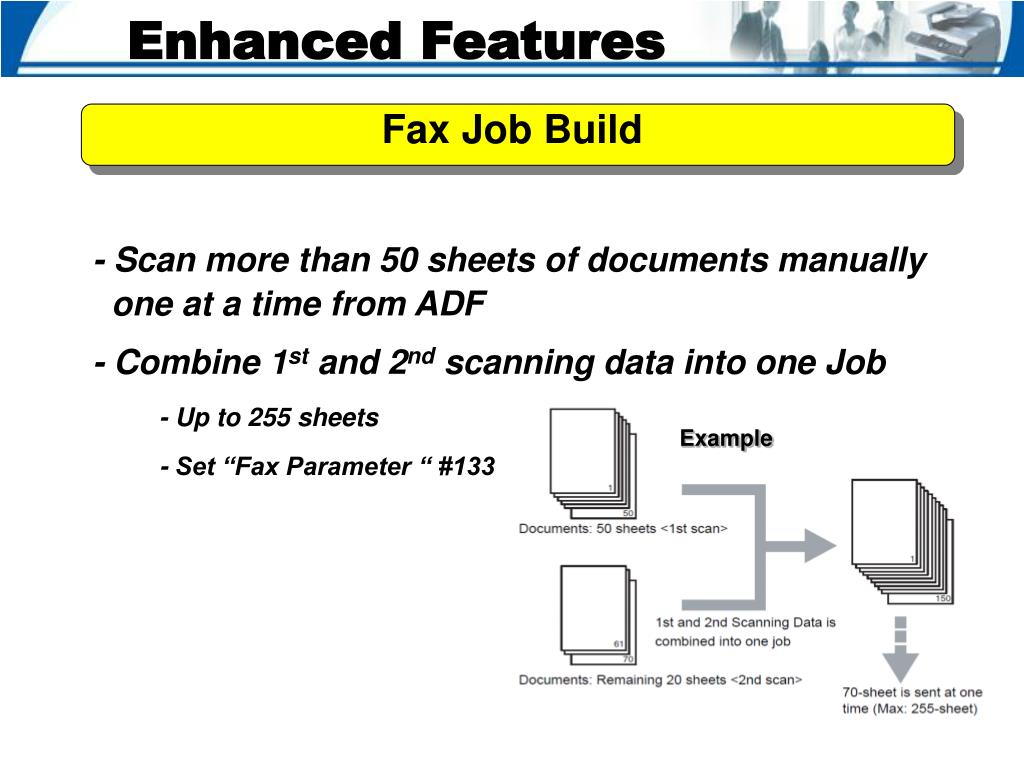

  9. Enhanced Features Fax Job Build • - Scan more than 50 sheets of documents manually • one at a time from ADF • - Combine 1st and 2nd scanning data into one Job • - Up to 255 sheets • - Set “Fax Parameter “ #133 Example

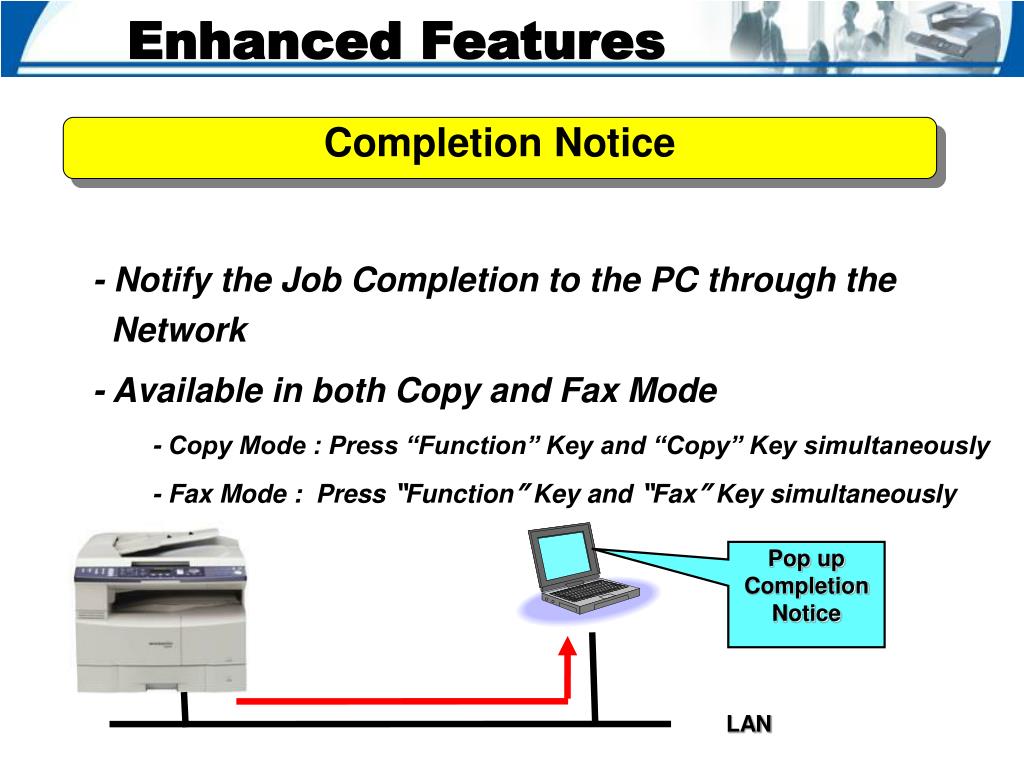

  10. Enhanced Features Completion Notice - Notify the Job Completion to the PC through the Network - Available in both Copy and Fax Mode - Copy Mode : Press “Function” Key and “Copy” Key simultaneously - Fax Mode : Press “Function” Key and “Fax” Key simultaneously Pop up Completion Notice LAN

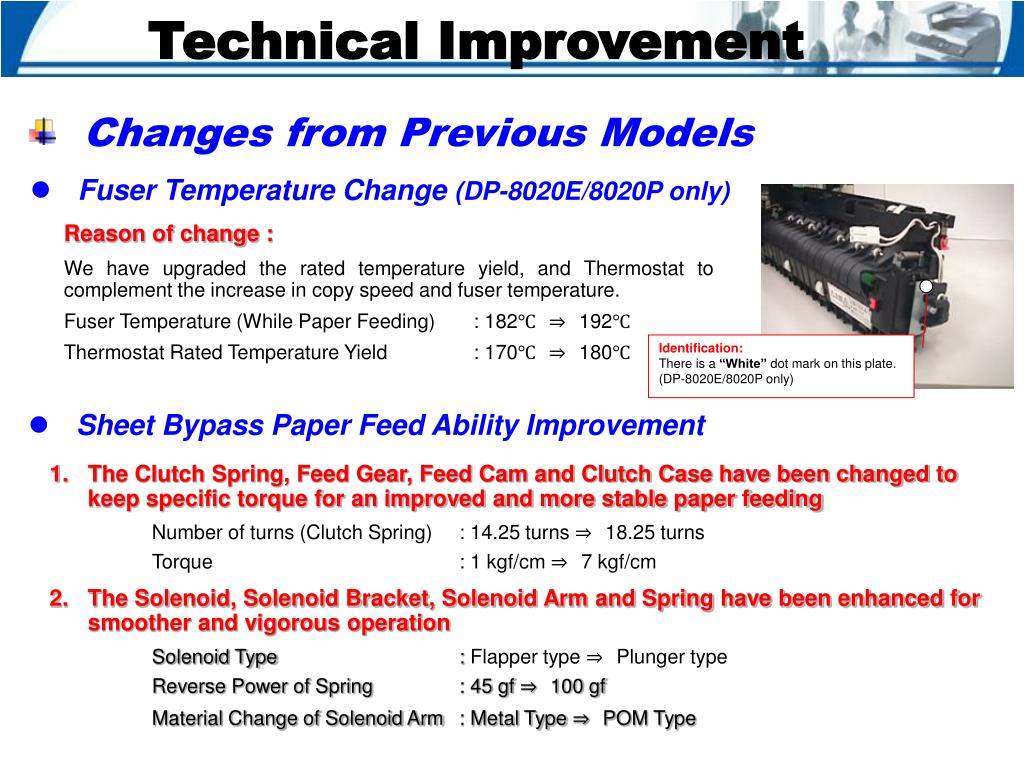

  11. Technical Improvement • Changes from Previous Models • Fuser Temperature Change (DP-8020E/8020P only) Reason of change : We have upgraded the rated temperature yield, and Thermostat to complement the increase in copy speed and fuser temperature. Fuser Temperature (While Paper Feeding) : 182℃　⇒　192℃ Thermostat Rated Temperature Yield : 170℃　⇒　180℃ Identification: There is a “White” dot mark on this plate. (DP-8020E/8020P only) • Sheet Bypass Paper Feed Ability Improvement • The Clutch Spring, Feed Gear, Feed Cam and Clutch Case have been changed to keep specific torque for an improved and more stable paper feeding • Number of turns (Clutch Spring) : 14.25 turns ⇒18.25 turns • Torque : 1 kgf/cm ⇒7 kgf/cm • 2. The Solenoid, Solenoid Bracket, Solenoid Arm and Spring have been enhanced for smoother and vigorous operation • Solenoid Type : Flapper type ⇒Plunger type • Reverse Power of Spring : 45 gf ⇒100 gf • Material Change of Solenoid Arm : Metal Type ⇒POM Type

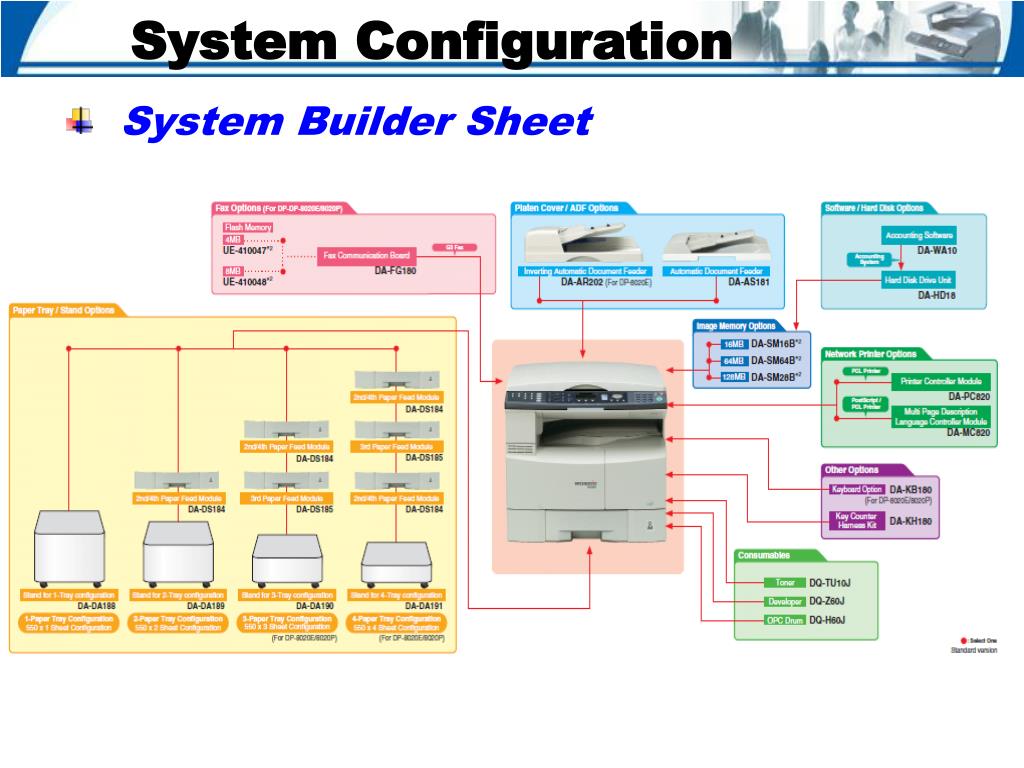

  12. System Configuration • System Builder Sheet

  13. Options & Consumables • Model Number for New Options & Consumables

  14. Cross Reference • Interchangeability of Options / Consumables

  15. Panasonic Canon Konica Minolta Kyocera Mita Ricoh Sharp Toshiba DP-8016P IR-2016 bizhub 160 KM1650 Aficio 2016 AR-5316 e-Studio165 Copy Standard Standard Standard Standard Standard Standard Standard Fax No Option No Option Option No Option Function Network Printer Standard Option No (Local) Standard Option Option Option Network Scanner No Option No (Local) Option Option No Standard 250 x 1 + 100 550 x 1 + 50 (By-pass) 250 x 2 + 80 (Bypass) 250 x 1 + 10 (Bypass) 250 x 1 + 50 (Bypass) 250 x 1 + 100 (Bypass) Paper Capacity (Bypass) Option: Option: Option: Option: Option: 250 x 1 + 100 (Bypass) (Sheets x Source) Option: 550 x 1 250 x 2 500 x 1 300 x 1 500 x 2 Info not Available Max Paper Sources 3 5 3 5 4 2 5 Paper Capacity (Max.) 1,150 Sheets 1,080 Sheets 760 Sheets 1,250 Sheets 1,350 Sheets 350 Sheets 1,700 Sheets Duplex Not Applicable Option Not Applicable Option Not Applicable Not Applicable Option ADF Capacity 50 Sheets 50 Sheets 50 Sheets 50 Sheets 30 Sheets 40 Sheets 100 Sheets Basic ADF Option Option Option Option Option Option Option Specs Copy Speed 16 cpm 16 cpm 16 cpm 16 cpm 16 cpm 16 cpm 16 cpm Warm-up Time Less than 30 sec. 13 sec. 25 sec. 20 sec. 15 sec. 45 sec. 25 sec. 1st Copy Time 6.9 sec. 7.9 sec. 13.0 sec. 5.9 sec. 6.5 sec. 7.2 sec. 7.6 sec. Resolution for Copy 600 x 600 dpi 1,200 x 1,200 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi Operating Noise Level Less than 63 db 66db Info Not Available Info Not Available 67db 40db 55db Drum Yield 60,000 Sheets 55,000 Sheets 16,000 Sheets 150,000 Sheets 60,000 Sheets 30,000 Sheets 72,000 Sheets Toner Yield 10,000 Sheets 8,300 Sheets 5,000 Sheets 15,000 Sheets 9,000 Sheets 9,000 Sheets 24,000 Sheets Printer Not Applicable Not Applicable Enhanced Resolution 1,200 x 600 dpi 1,200 x 1,200 dpi 600 x 600 dpi 2,400 x 600 dpi 2,400 x 600 dpi Specs (600 x 600 dpi) (600 x 600 dpi) Max Resolution Not Applicable Not Applicable 600 x 600 dpi 600 x 600 dpi 600 x 600 dpi Not Applicable 600 x 600 dpi Scanner Scan/Image Software Not Applicable Not Applicable Info Not Available Standard Standard Not Applicable Standard Specs File Mgmt Software Not Applicable Not Applicable Info Not Available Standard Standard Not Applicable Option Max TX Resolution Not Applicable 400 x 400 dpi Not Applicable 406 x 392 dpi 200 x 400 dpi Not Applicable 406 x 391 dpi Fax Specs Gray Scale / Halftones Not Applicable 256 levels Not Applicable 128 levels 256 levels Not Applicable 256 levels Panasonic Advantage Competitor's Disadvantage Spec Comparison (DP-8016P)

  16. Spec Comparison (DP-8020E)

  17. Promotion Materials • Brochure DP-8020E: 6 Pages DP-8016P : 4 Pages • Poster 8/E(Complete) • Flash movie 8/E(Complete)
