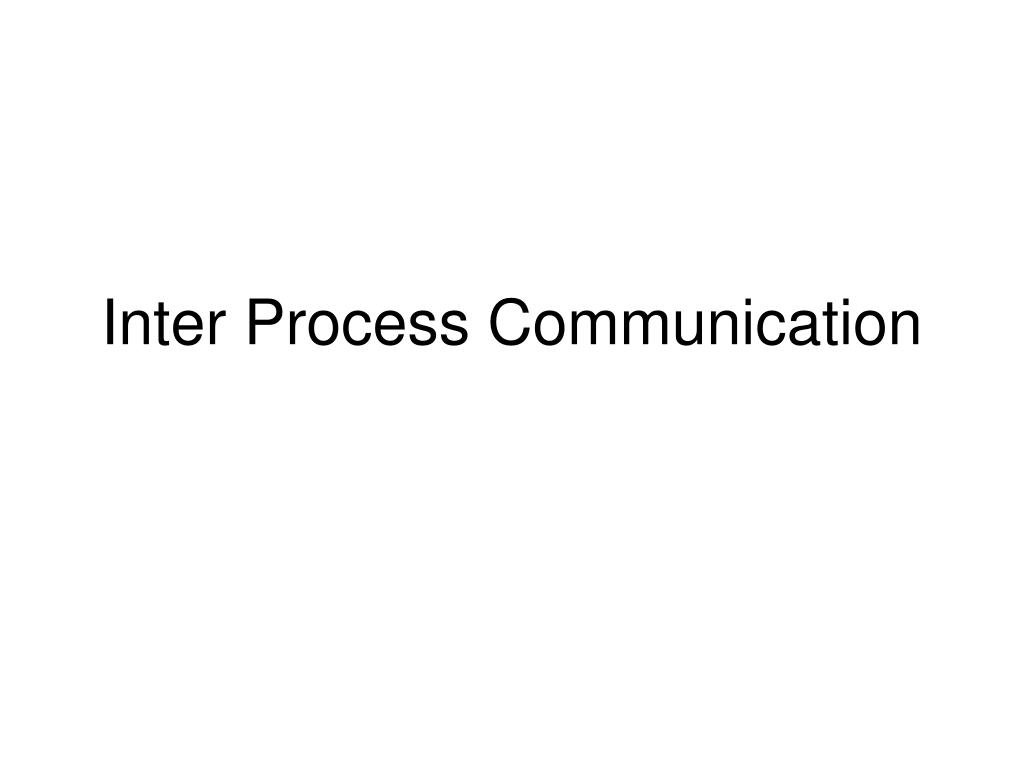

  1. Inter Process Communication

  2. Introduction • Traditionally describe mechanism for message passing between different processes that are running on some operating system.

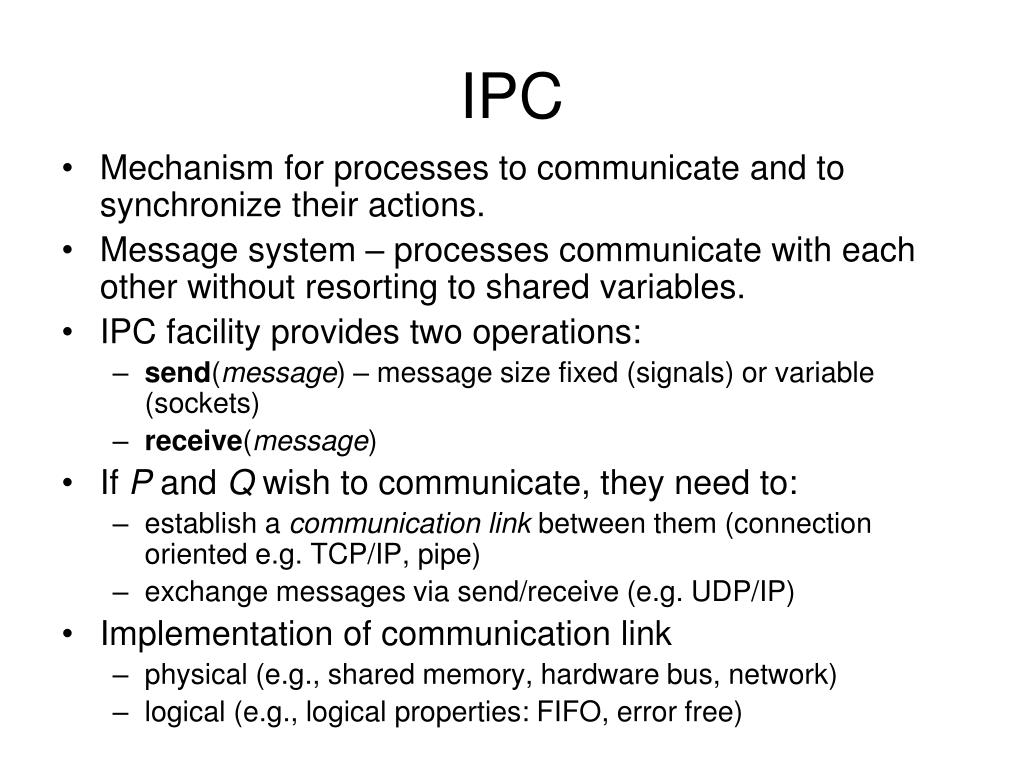

  3. IPC • Mechanism for processes to communicate and to synchronize their actions. • Message system – processes communicate with each other without resorting to shared variables. • IPC facility provides two operations: • send(message) – message size fixed (signals) or variable (sockets) • receive(message) • If P and Q wish to communicate, they need to: • establish a communicationlink between them (connection oriented e.g. TCP/IP, pipe) • exchange messages via send/receive (e.g. UDP/IP) • Implementation of communication link • physical (e.g., shared memory, hardware bus, network) • logical (e.g., logical properties: FIFO, error free)

  4. Direct Communication • Processes must name each other explicitly: • send (P, message) – send a message to process P • receive(Q, message) – receive a message from process Q • Properties of communication link • Links are established automatically. • A link is associated with exactly one pair of communicating processes. • The link may be unidirectional (e.g. signaling), but is usually bi-directional (e.g. sockets).

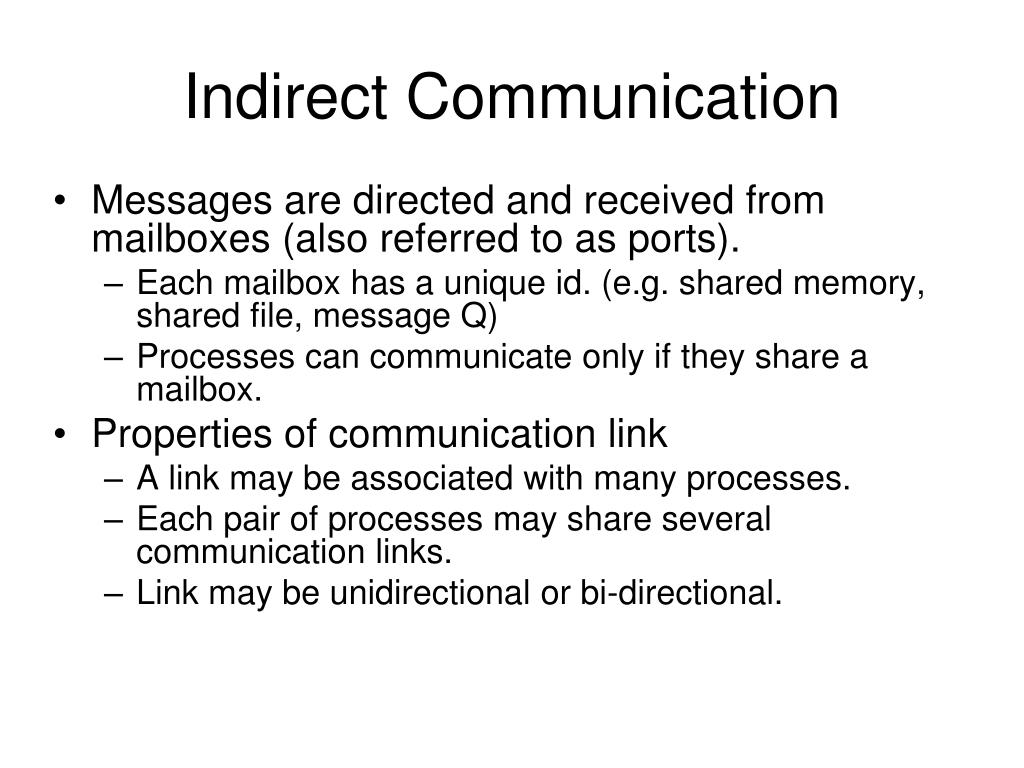

  5. Indirect Communication • Messages are directed and received from mailboxes (also referred to as ports). • Each mailbox has a unique id. (e.g. shared memory, shared file, message Q) • Processes can communicate only if they share a mailbox. • Properties of communication link • A link may be associated with many processes. • Each pair of processes may share several communication links. • Link may be unidirectional or bi-directional.

  6. Indirect Communication • Operations • create a new mailbox • send and receive messages through mailbox • destroy a mailbox • Primitives are defined as: send(A, message) – send a message to mailbox A receive(A, message) – receive a message from mailbox A

  7. Synchronization • Message passing may be either blocking or non-blocking. • Blocking is considered synchronous • Non-blocking is considered asynchronous • send and receive primitives may be either blocking or non-blocking. • Buffering: Queue of messages attached to the link; implemented usually with bounded capacity. finite length of n messages. Sender must wait if link full.

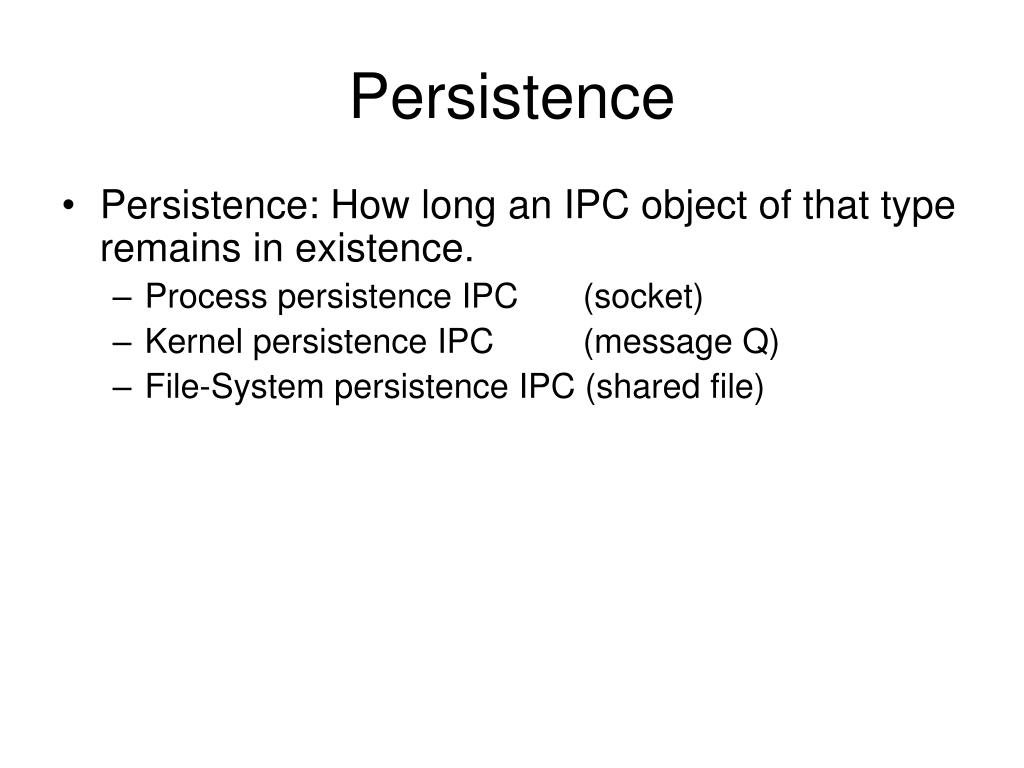

  8. Persistence • Persistence: How long an IPC object of that type remains in existence. • Process persistence IPC (socket) • Kernel persistence IPC (message Q) • File-System persistence IPC (shared file)

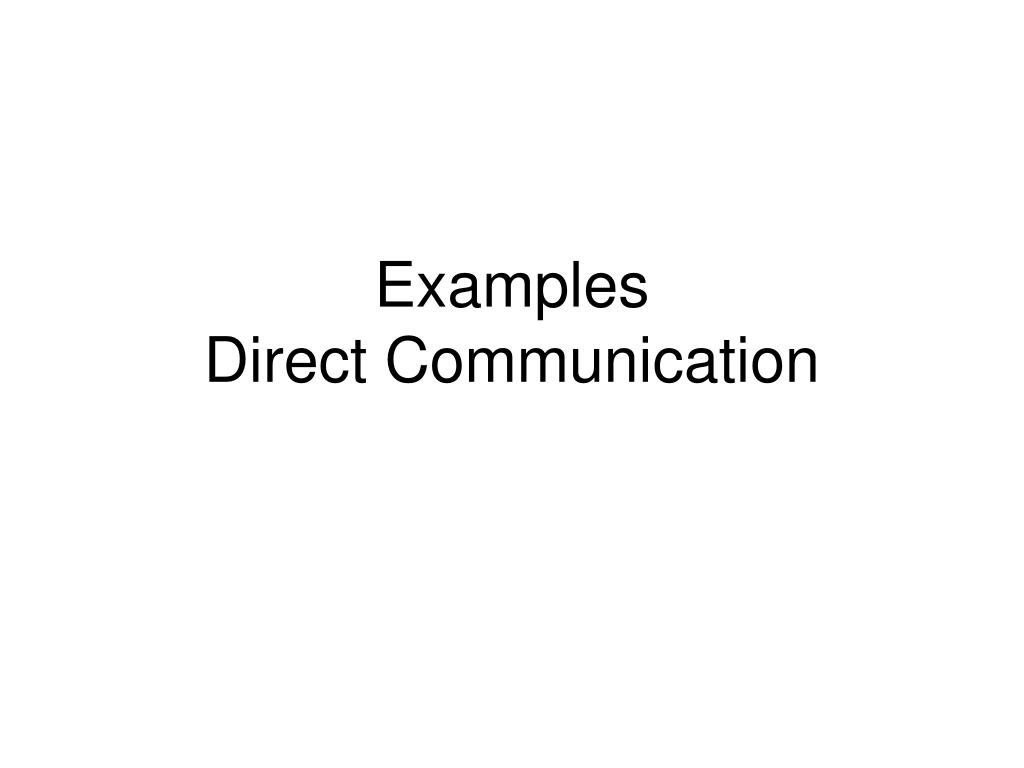

  9. ExamplesDirect Communication

  10. Signals • The source process can "raise" a signal and have it delivered to destination process. The destination process' signal handler is invoked and the process can handle it. • A direct communication • Unidirectional channel is established automatically. • Processes must name each other explicitly using the process ID in order to send messages of fixed size. • Asynchronous. • Kernel persistence (e.g. SIGCHILD).

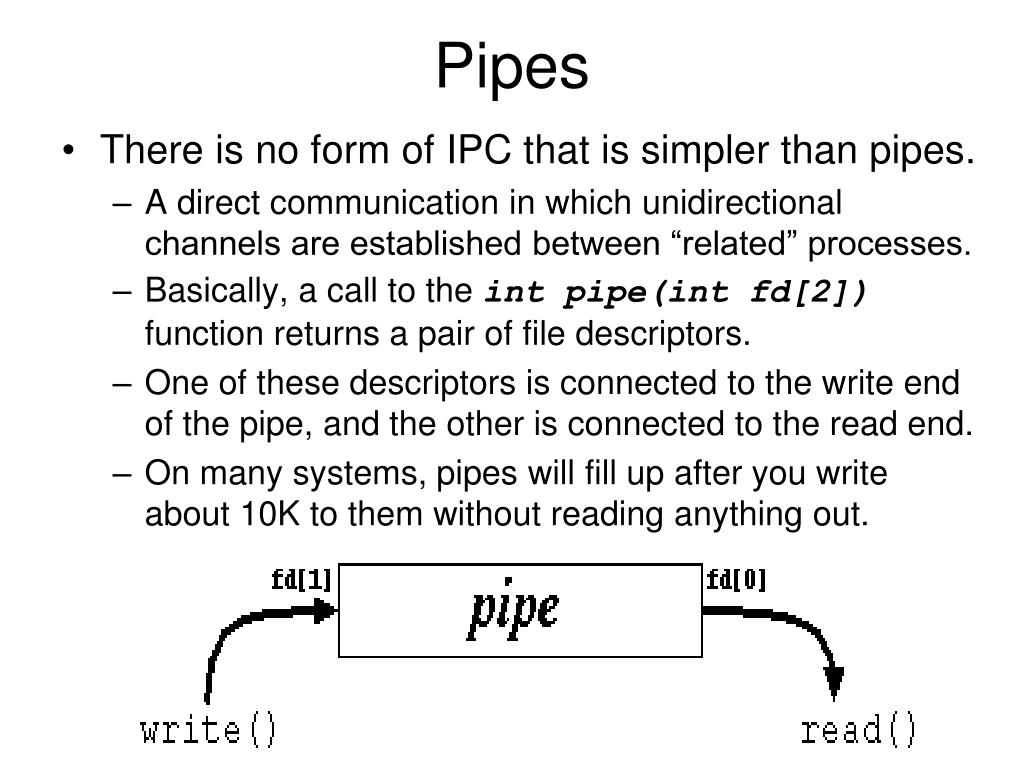

  11. Pipes • There is no form of IPC that is simpler than pipes. • A direct communication in which unidirectional channels are established between “related” processes. • Basically, a call to the int pipe(int fd[2]) function returns a pair of file descriptors. • One of these descriptors is connected to the write end of the pipe, and the other is connected to the read end. • On many systems, pipes will fill up after you write about 10K to them without reading anything out.

  12. Example #include <stdio.h> #include <stdlib.h> #include <sys/types.h> #include <unistd.h> int main() { int pfds[2]; char buf[30]; pipe(pfds); if (fork()==0) { printf(" CHILD: writing to the pipe\n"); write(pfds[1], "test", 5); //close pfds[0] printf(" CHILD: exiting\n"); exit(0); } else { printf("PARENT: reading from pipe\n"); read(pfds[0], buf, 5); //close pfds[1] printf("PARENT: read \"%s\"\n", buf); wait(NULL); } }

  13. "ls | wc –l” #include <stdio.h> #include <stdlib.h> #include <unistd.h> int main(void) { int pfds[2]; pipe(pfds); if (!fork()) { close(1); /* close normal stdout */ dup(pfds[1]); /* make stdout same as pfds[1] */ close(pfds[0]); /* we don't need this */ execlp("ls", "ls", NULL); } else { close(0); /* close normal stdin */ dup(pfds[0]); /* make stdin same as pfds[0] */ close(pfds[1]); /* we don't need this */ execlp("wc", "wc", "-l", NULL); } return 0; }

  14. FIFO • A FIFO is sometimes known as a named pipe. That is, it's like a pipe, except that it has a name! • In this case, the name is that of a file that multiple processes can open andread and write to. • Has to be open at both ends simultaneously before you can proceed to do any input or output operations on it . • Would you like to know more? • int mkfifo(const char *path, mode_t mode); • mkfifo("/tmp/namedpipe" , 0666); • SIGPIPE

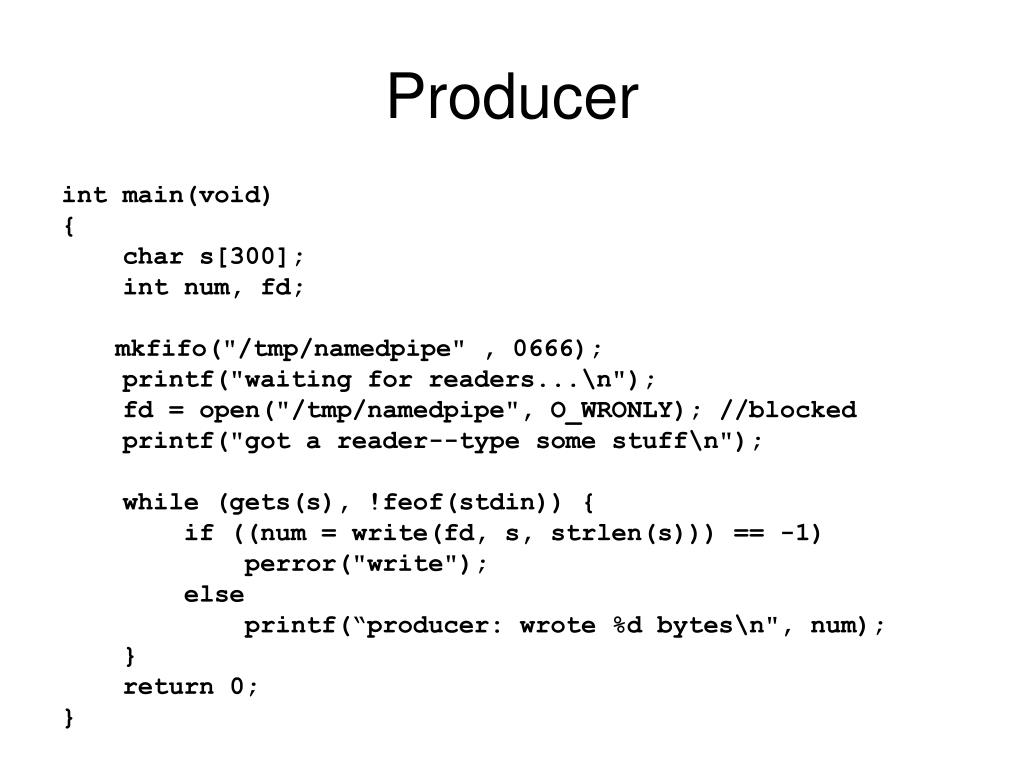

  15. Producer int main(void) { char s[300]; int num, fd; mkfifo("/tmp/namedpipe" , 0666); printf("waiting for readers...\n"); fd = open("/tmp/namedpipe", O_WRONLY); //blocked printf("got a reader--type some stuff\n"); while (gets(s), !feof(stdin)) { if ((num = write(fd, s, strlen(s))) == -1) perror("write"); else printf(“producer: wrote %d bytes\n", num); } return 0; }

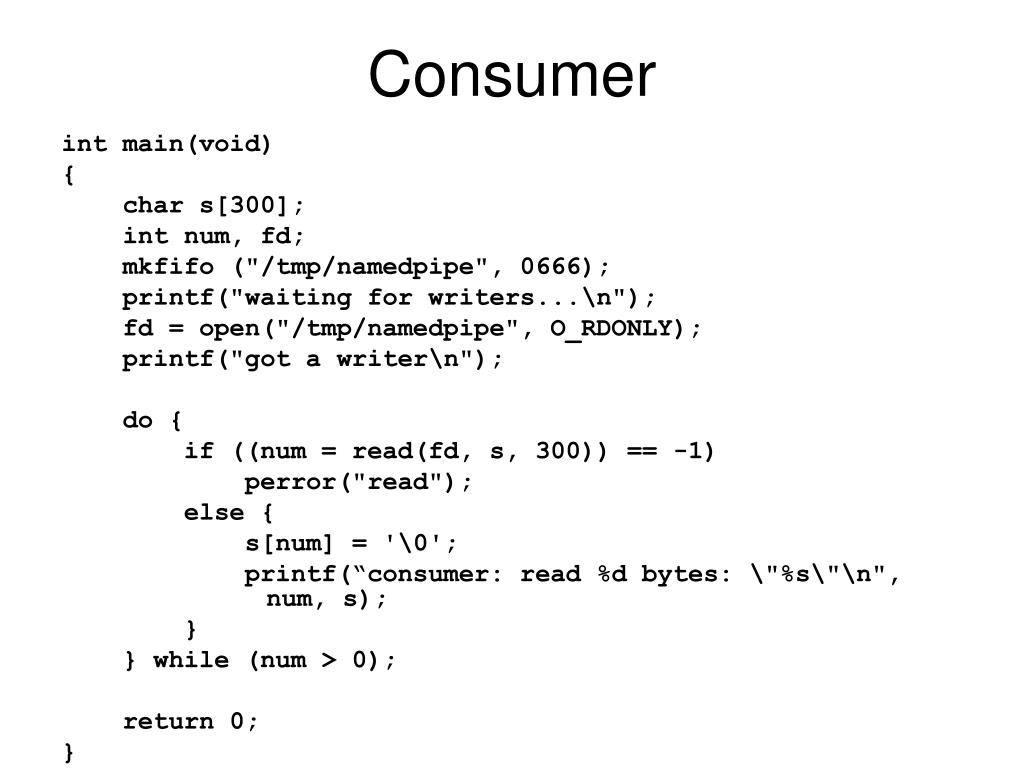

  16. Consumer int main(void) { char s[300]; int num, fd; mkfifo ("/tmp/namedpipe", 0666); printf("waiting for writers...\n"); fd = open("/tmp/namedpipe", O_RDONLY); printf("got a writer\n"); do { if ((num = read(fd, s, 300)) == -1) perror("read"); else { s[num] = '\0'; printf(“consumer: read %d bytes: \"%s\"\n", num, s); } } while (num > 0); return 0; }

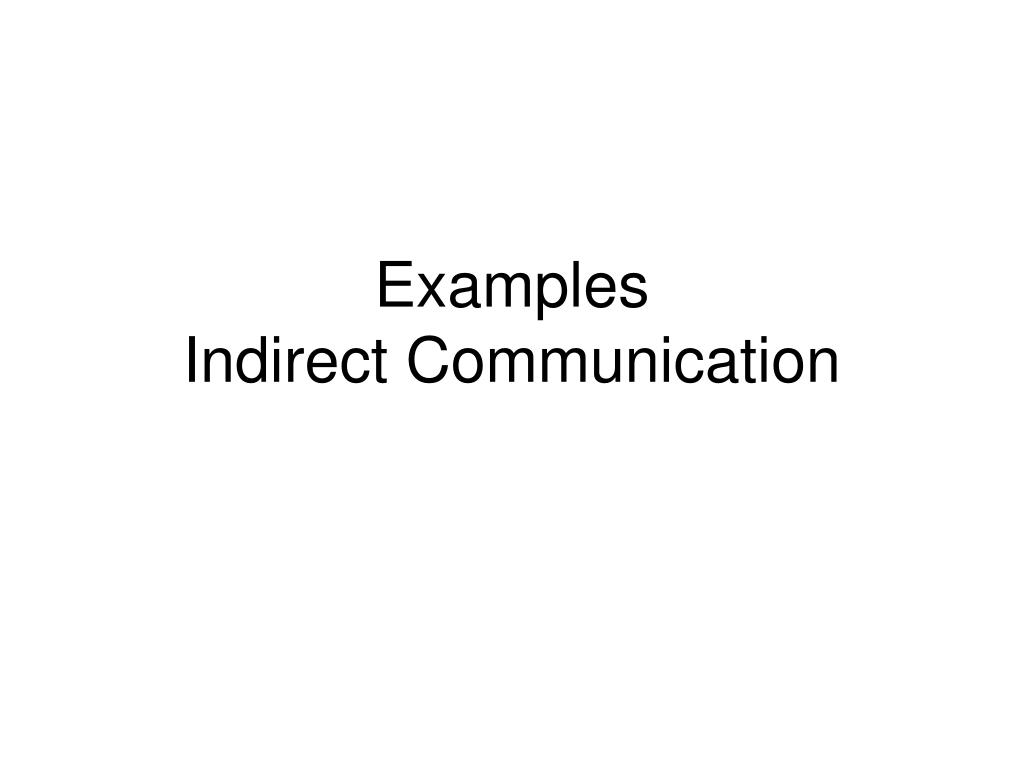

  17. ExamplesIndirect Communication

  18. Message Queues • Create: int msgget(key_t key, int msgflg); key_t ftok(const char *path, int id); key = ftok(“somefile", 'b'); msqid = msgget(key, 0666 | IPC_CREAT); • Send int msgsnd(int msqid, const void *msgp, size_t msgsz, int msgflg =0); • Receive: int msgrcv(int msqid, void *msgp, size_t msgsz, long msgtyp, int msgflg); • Destroy: int msgctl(int msqid, int cmd, struct msqid_ds *buf); msgctl(msqid, IPC_RMID, NULL);

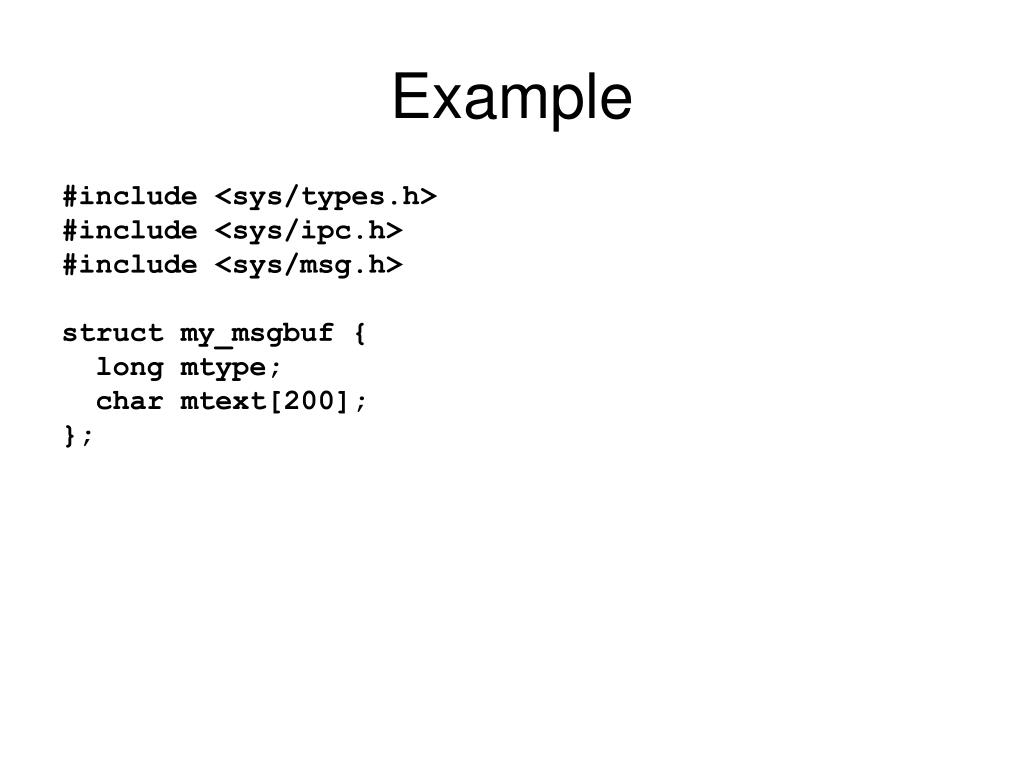

  19. Example #include <sys/types.h> #include <sys/ipc.h> #include <sys/msg.h> struct my_msgbuf { long mtype; char mtext[200]; };

  20. Producer int main(void) { struct my_msgbuf buf; int msqid; key_t key; key = ftok("ipc_example.c", 'B'); msqid = msgget(key, 0644 | IPC_CREAT); printf("Enter lines of text, ^D to quit:\n"); buf.mtype = 1; while(gets(buf.mtext), !feof(stdin)) { msgsnd(msqid, (struct msgbuf *)&buf, strlen(buf.mtext)+1, 0); } msgctl(msqid, IPC_RMID, NULL); return 0; }

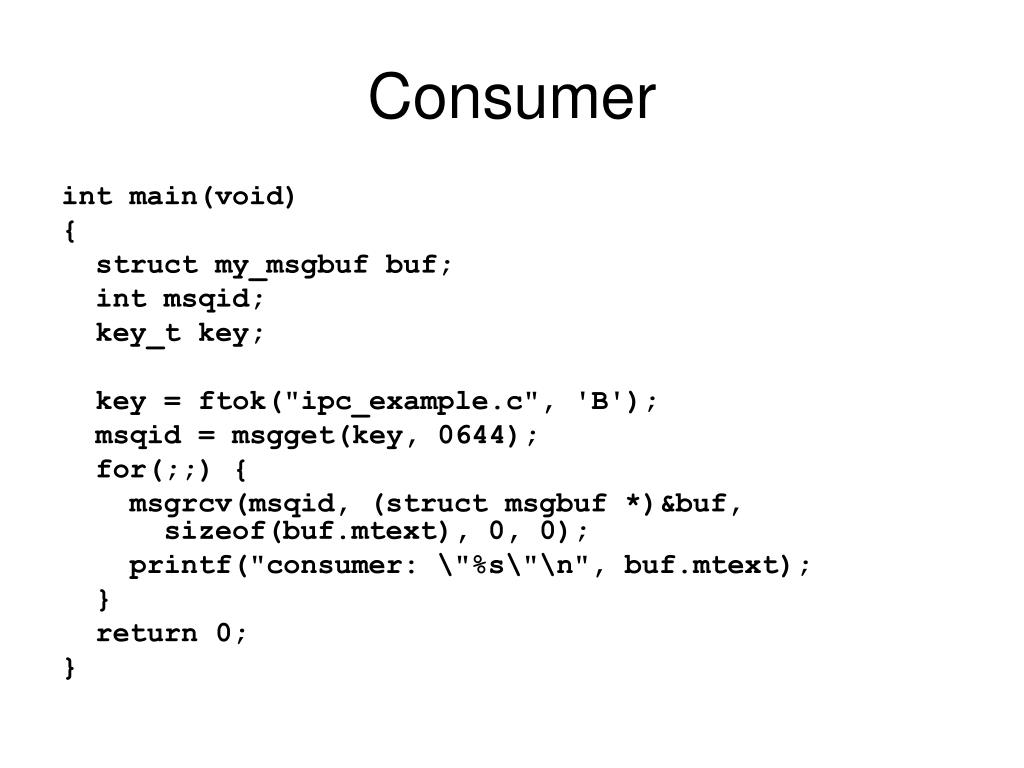

  21. Consumer int main(void) { struct my_msgbuf buf; int msqid; key_t key; key = ftok("ipc_example.c", 'B'); msqid = msgget(key, 0644); for(;;) { msgrcv(msqid, (struct msgbuf *)&buf, sizeof(buf.mtext), 0, 0); printf("consumer: \"%s\"\n", buf.mtext); } return 0; }

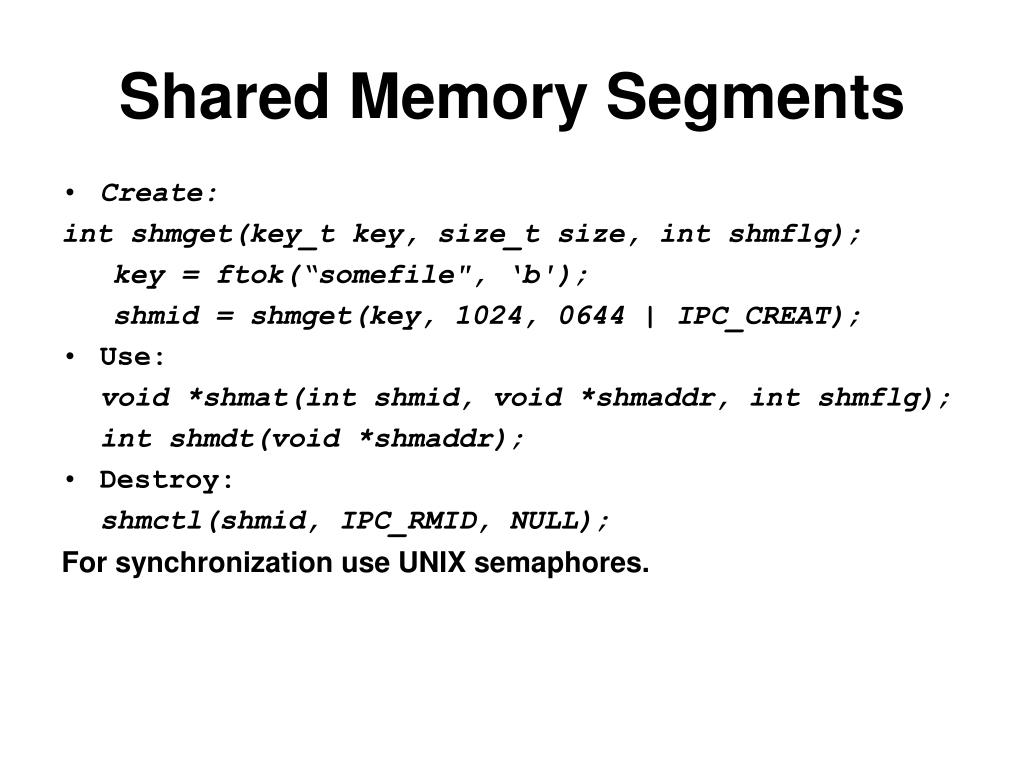

  22. Shared Memory Segments • Create: intshmget(key_t key, size_t size, intshmflg); key = ftok(“somefile", ‘b'); shmid = shmget(key, 1024, 0644 | IPC_CREAT); • Use: void *shmat(intshmid, void *shmaddr, intshmflg); intshmdt(void *shmaddr); • Destroy: shmctl(shmid, IPC_RMID, NULL); For synchronization use UNIX semaphores.
