Design and Testing of Turbomachinery Components

Project 09454:. Sponsor:. Design and Testing of Turbomachinery Components. Project Background: The project will build off of a centrifugal pump system test stand developed under MSD project P08453. The test stand is used for Particle Imaging Velocimetry (PIV) research at RIT. Team Members:.

paco
Télécharger la présentation

Design and Testing of Turbomachinery Components

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

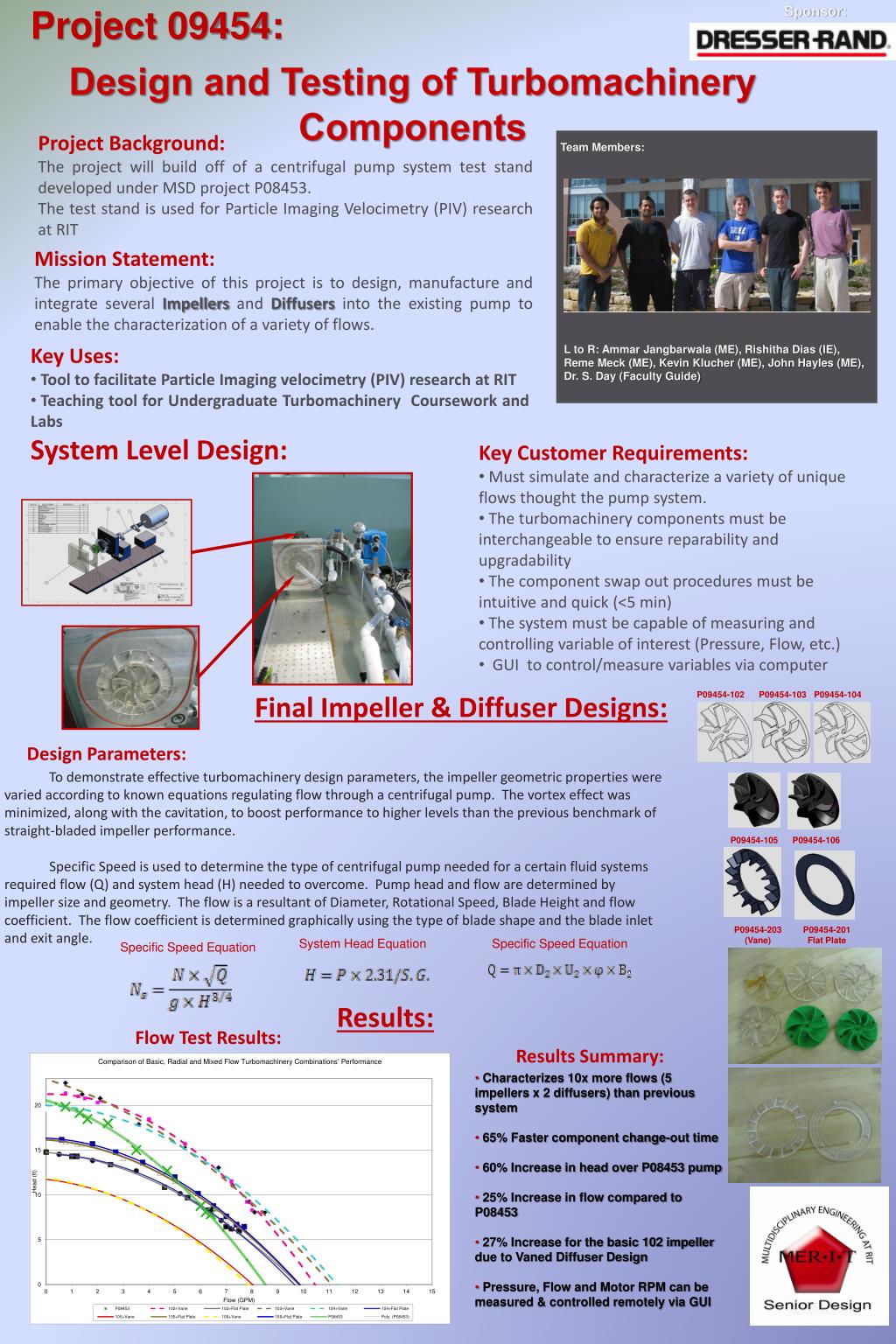

  1. Project 09454: Sponsor: Design and Testing of Turbomachinery Components Project Background: The project will build off of a centrifugal pump system test stand developed under MSD project P08453. The test stand is used for Particle Imaging Velocimetry (PIV) research at RIT Team Members: Mission Statement: The primary objective of this project is to design, manufacture and integrate several Impellers and Diffusersinto the existing pump to enable the characterization of a variety of flows. • Key Uses: • Tool to facilitate Particle Imaging velocimetry (PIV) research at RIT • Teaching tool for Undergraduate Turbomachinery Coursework and Labs L to R: Ammar Jangbarwala (ME), Rishitha Dias (IE), Reme Meck (ME), Kevin Klucher (ME), John Hayles (ME), Dr. S. Day (Faculty Guide) System Level Design: • Key Customer Requirements: • Must simulate and characterize a variety of unique flows thought the pump system. • The turbomachinery components must be interchangeable to ensure reparability and upgradability • The component swap out procedures must be intuitive and quick (<5 min) • The system must be capable of measuring and controlling variable of interest (Pressure, Flow, etc.) • GUI to control/measure variables via computer Final Impeller & Diffuser Designs: P09454-102 P09454-103 P09454-104 Design Parameters: To demonstrate effective turbomachinery design parameters, the impeller geometric properties were varied according to known equations regulating flow through a centrifugal pump.  The vortex effect was minimized, along with the cavitation, to boost performance to higher levels than the previous benchmark of straight-bladed impeller performance.  Specific Speed is used to determine the type of centrifugal pump needed for a certain fluid systems required flow (Q) and system head (H) needed to overcome. Pump head and flow are determined by impeller size and geometry. The flow is a resultant of Diameter, Rotational Speed, Blade Height and flow coefficient. The flow coefficient is determined graphically using the type of blade shape and the blade inlet and exit angle. P09454-105 P09454-106 P09454-203 (Vane) P09454-201 Flat Plate System Head Equation Specific Speed Equation Specific Speed Equation Results: Flow Test Results: Results Summary: • Characterizes 10x more flows (5 impellers x 2 diffusers) than previous system • 65% Faster component change-out time • 60% Increase in head over P08453 pump • 25% Increase in flow compared to P08453 • 27% Increase for the basic 102 impeller due to Vaned Diffuser Design • Pressure, Flow and Motor RPM can be measured & controlled remotely via GUI
