Bc Meson Physics

Bc Meson Physics. Chao-Hsi Chang ( 张肇西 ) I.T.P., Chinese Academy of Sciences. 1. The meson Bc 2. Mass, lifetime & decays 3. Production (theoretical estimates) a. Production at Z 0 (at LEP-I) b. Hadronic Production (at Tevatron & LHC) 4. Experimental status

paley
Télécharger la présentation

Bc Meson Physics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Bc Meson Physics Chao-Hsi Chang (张肇西) I.T.P., Chinese Academy of Sciences 1. The meson Bc 2. Mass, lifetime & decays 3. Production (theoretical estimates) a. Production at Z0 (at LEP-I) b. Hadronic Production (at Tevatron & LHC) 4. Experimental status 5. Prospect for LHC 6. Comment on Ji’s paper Bc meson physics

  2. 1. The meson Bc Of the six quarks u c t d s b - u, d, s, light - c, b, t , heavy (top lifetime τ too short to form hadrons) Bc: double heavy explicit-flavored meson (unique) Experimental studies are at the stage: 1998-discovery, 2005 new results, …… Bc meson physics

  3. 2. Mass, lifetime & decays Bc mass: according to PM & Lattice QCD Bc lifetime: Weak decay only (no strong &EM decay) According to spectator model and B & D mesons’ lifetime: we may obtain (the earliest 1994: PRD 49 3399) More careful estimate invertex detectorability Bc meson physics

  4. 2. Mass, lifetime & decays Phys. Rev. D. 64, 014003, 2001 : : : : Bc meson physics

  5. 2. Mass, lifetime & decays Bc decays: weak decays (Mandelstam formulation & instantaneous BS equation) Bc meson physics

  6. 2. Mass, lifetime & decays Mandelstam formulation (Composite quantum field theory) Transitions (decays with great momentum recoil) Bc meson physics

  7. 2. Mass, lifetime & decays Bc meson physics

  8. 2. Mass, lifetime & decays Bc meson physics

  9. 2. Mass, lifetime & decays Bc meson physics

  10. 2. Mass, lifetime & decays The results for various decays • Pure leptonic (radiative) decays : The radiative decays escaped from chiral suppression ! Bc meson physics

  11. 2. Mass, lifetime & decays • Semileptonic decays (S-wave product): One I-W function Bc meson physics

  12. 2. Mass, lifetime & decays • Semileptonic decays (P-wave product or ): Two I-W functions Spectrum of charged lepton in the decays: Recoil one Normal one Bc meson physics

  13. 2. Mass, lifetime & decays • Nonleptonic decays (S-wave product): Bc meson physics

  14. 2. Mass, lifetime & decays • Nonleptonic decays (P-wave product or ): Bc meson physics

  15. 2. Mass, lifetime & decays • The lifetime is quite long that the vertices of • production and decay can be detected by vertex • detector experimentally (in the window). • Sizable decay channels are rich. • The branch ratio of the decay to is • quite great. • The branch ratio of decay to or is large. • Radiative pure leptonic decays escape from chiral • suppression. • ……. Bc meson physics

  16. 3. Production (theoretical estimates) • It had not expected the difficulty of Bc production • before our prediction for such `light meson’ Bc • (LUND model is not applicable): • The reliable theoretical prediction (most favorable • mechanism): • At Z0 (LEP-I) Bc can be produced marginally. • Only at very high energy hadronic colliders • (Tevatron and LHC) numerous Bc mesons can be • produced for experimental studies. Bc meson physics

  17. 3a. Production at Z0 (at LEP-I) 微扰因子 We explicitly pointed out LUND model is not applicable and the mechanism should be as the left figure. The key point is the hard gluon & it can be QCD factorized as indicated by the figure. PRD46, (1992) 3845; PLB284,(1992) 127;…… + … Z0 硬胶子 The result is that at Z0 peak for LEP-I several thousands of Bc may be produced per year ! Considering the detecting efficiency, to observe Bc at LEP-I is on the margin. Bc meson physics

  18. 3b. Hadronic Production at Tevatron & LHC 微扰因子 Gluon-gluon fusion mechanism dominant Subprocess: 硬胶子 36 Feynman diagrams for complete calculations The information about the accompany quark-jets interests experimentalists QCD factorization: Bc meson physics

  19. 3b. Hadronic Production at Tevatron & LHC • The lowest order calculations: • uncertainties from Bc meson physics

  20. 3b. Hadronic Production at Tevatron & LHC Tevatron LHC Bc meson physics

  21. 3b. Hadronic Production at Tevatron & LHC and Bc meson physics

  22. 3b. Hadronic Production at Tevatron & LHC Uncertainties:quite great; sensitive to Q2, mc high order calculation can suppress them but too complicated. Bc meson physics

  23. 3b. Hadronic Production at Tevatron & LHC P-wave excited state production To match the wave functions correctly (special attention on the spin structure), we start with the Mandelstam formulation on BS solution: Bc meson physics

  24. LHC TEVATRON 3P2 1P1 1P1 3P1 3P1 3P0 3P2 3P0 3b. Hadronic Production at Tevatron & LHC Bc meson physics

  25. 3b. Hadronic Production at Tevatron & LHC Color octet may be comparable with that of color singlet Color-singlet (P-wave): Color-octet (S-wave): Bc meson physics

  26. 3b. Hadronic Production at Tevatron & LHC LHC Tevatron Bc meson physics

  27. 3b. Hadronic Production at Tevatron & LHC Color octet may be comparable with that of color singlet Color-singlet (P-wave): Color-octet (S-wave): Bc meson physics

  28. 3b. Hadronic Production at Tevatron & LHC Intrinsic charm & bottom mechanisms: Intrinsic charm mechanism (general-mass variable-flavor-number GM-VFN scheme): Gluon-gluon fusion mechanism (in fixed flavor number FFN scheme and in GM-VFN scheme): There is a ‘double counting’ (in GM-VFN scheme) due to structure functions, so one must deduct it when summing up the contributions from the two mechanisms. Bc meson physics

  29. 3b. Hadronic Production at Tevatron & LHC Bc meson physics

  30. 3b. Hadronic Production at Tevatron & LHC LHC: Tevatron: Bc meson physics

  31. 3b. Hadronic Production at Tevatron & LHC GM-VFN intrinsic + gg-fusion LHC: FFN gg-fusion Tevatron: Intrinsic charm and bottom in GM-VFN scheme makes difference from general FFN scheme only at very small Pt region. Bc meson physics

  32. 3b. Hadronic Production at Tevatron & LHC • The cross section of Bc at LHC is greater than that • at Tevatron by one or two order of magnitude • The uncertainties are quite big at LO QCD • The cross section is at the order 10-3 of B meson • production Experimental needs of the M.C. generator: Difficulties of the experiments in Hadronic Collider High efficiency for the generator Signals for feasibility studies Generator: BCVEGPY1.0 (S-wave, helicity techniques ) BCVEGPY2.0 (S,P-wave, Color-octet,…) CPC Lib. & hppt://www.itp.ac.cn/~zhangzx/ Bc meson physics

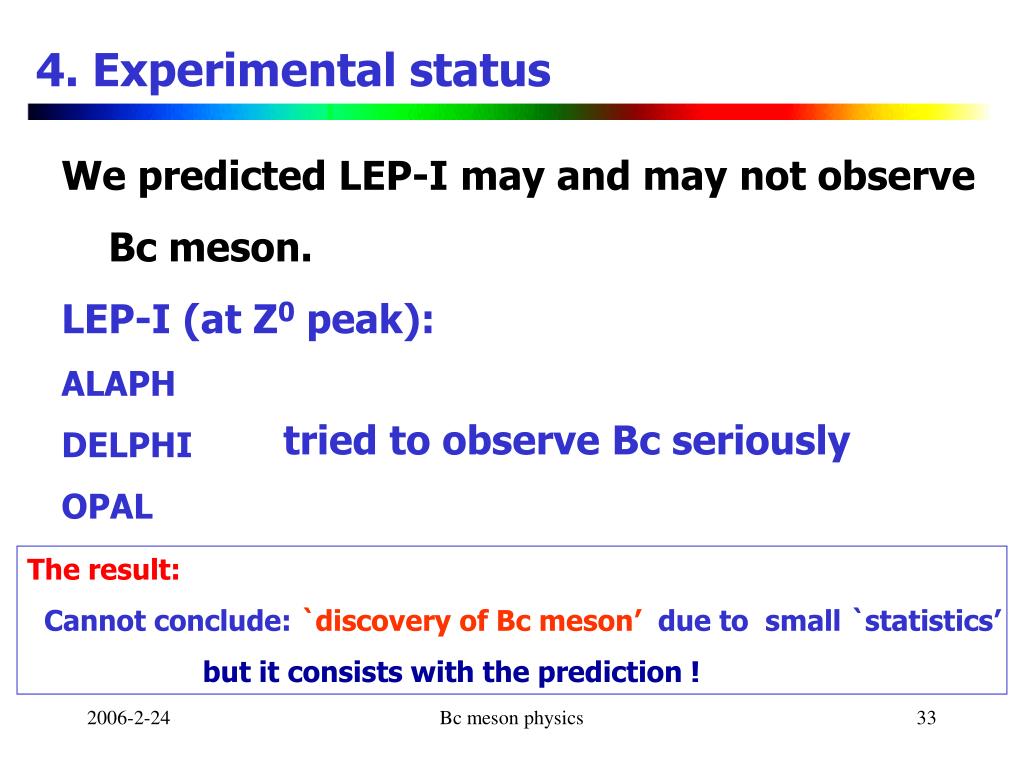

  33. 4. Experimental status We predicted LEP-I may and may not observe Bc meson. LEP-I (at Z0 peak): ALAPH DELPHI OPAL tried to observe Bc seriously The result: Cannot conclude:`discovery of Bc meson’ due tosmall `statistics’ but itconsists with the prediction ! Bc meson physics

  34. Chicago  Booster CDF DØ Tevatron p source Main Injector (new) Discovery of Bc meson (CDF at Tevatron) Bc meson physics

  35. - The only previous evidence by CDF RunI CDF discovery (1998 Observation) - 110 Pb-1 data PRD 58 (1998) 112004 Bc±  J/y(m+m-) m± n -- Br~2.4% + trilepton final state + easy to trigger Bc meson physics

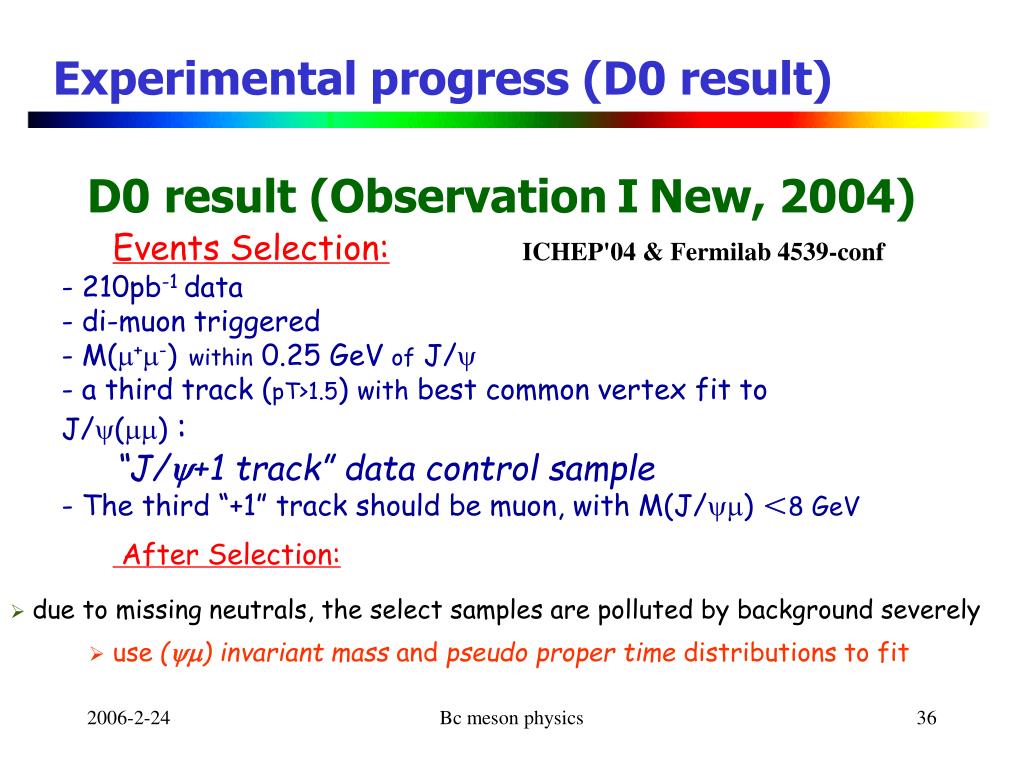

  36. Experimental progress (D0 result) D0 result (ObservationINew, 2004) Events Selection: ICHEP'04 & Fermilab 4539-conf - 210pb-1 data - di-muon triggered - M(m+m-)within 0.25 GeV of J/y - a third track (pT>1.5) with best common vertex fit to J/y(mm) : “J/y+1 track” data control sample - The third “+1” track should be muon, with M(J/ym) ＜8 GeV After Selection: • due to missing neutrals, the select samples are polluted by background severely • use (ym) invariant mass and pseudo proper time distributions to fit Bc meson physics

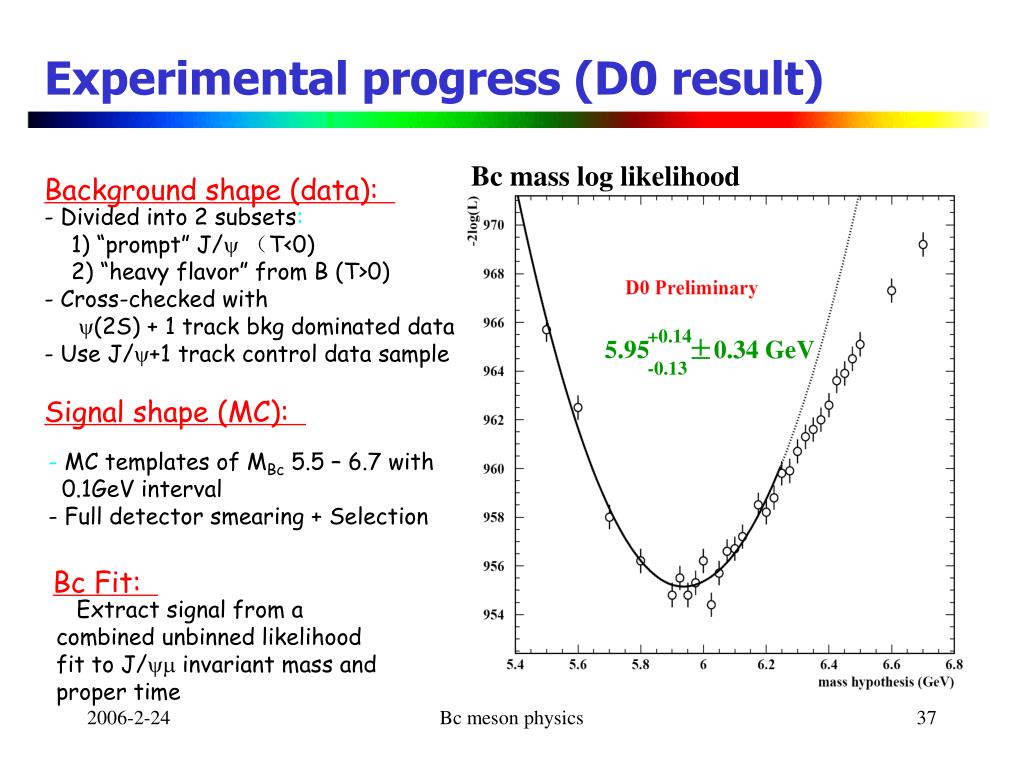

  37. Bc mass log likelihood Background shape (data): • Divided into 2 subsets: • 1) “prompt” J/y（T<0) • 2) “heavy flavor” from B (T>0) • Cross-checked with • y(2S) + 1 track bkg dominated data • Use J/y+1 track control data sample Signal shape (MC): Bc Fit: - MC templates of MBc 5.5 – 6.7 with 0.1GeV interval - Full detector smearing + Selection Extract signal from a combined unbinned likelihood fit to J/ym invariant mass and proper time 5.95 ±0.34 GeV +0.14 -0.13 Experimental progress (D0 result) Bc meson physics

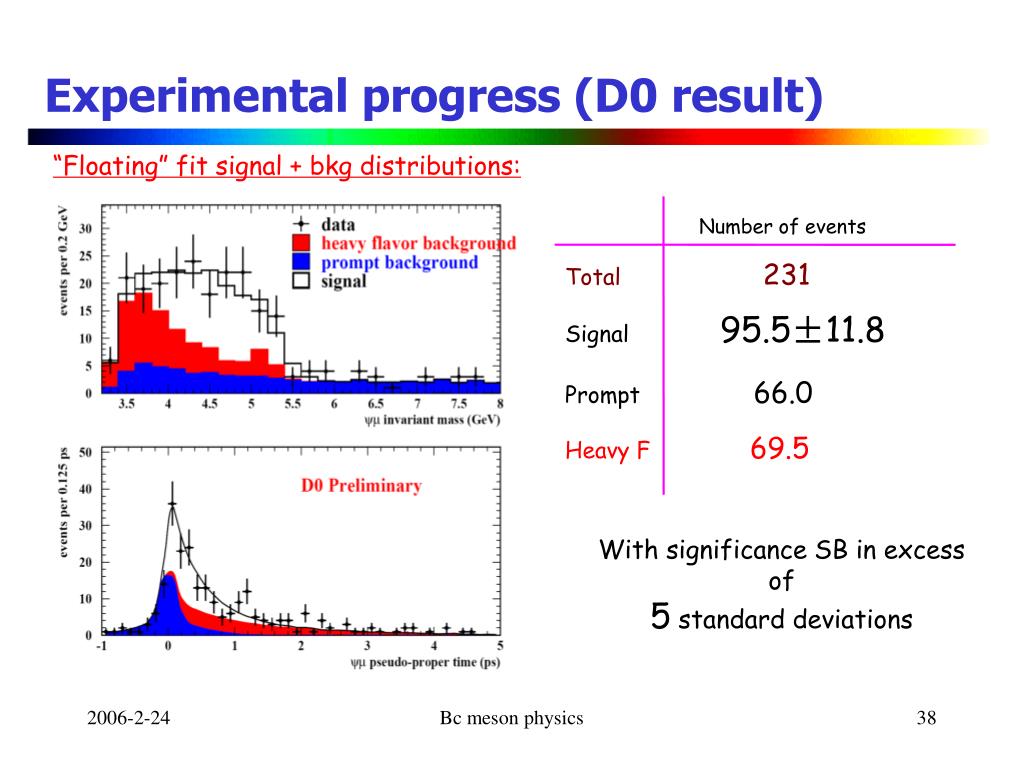

  38. Number of events Total 231 Signal 95.5±11.8 Prompt 66.0 Heavy F69.5 Experimental progress (D0 result) “Floating” fit signal + bkg distributions: With significance SB in excess of 5 standard deviations Bc meson physics

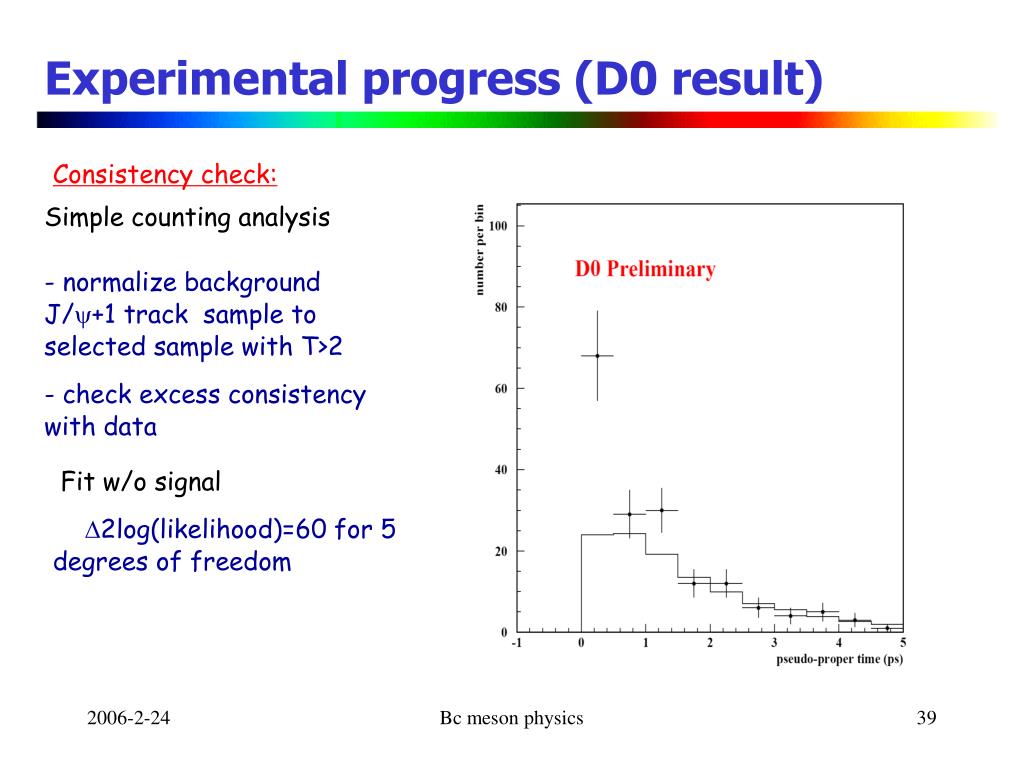

  39. Simple counting analysis - normalize background J/y+1 track sample to selected sample with T>2 - check excess consistency with data Experimental progress (D0 result) Consistency check: Fit w/o signal D2log(likelihood)=60 for 5 degrees of freedom Bc meson physics

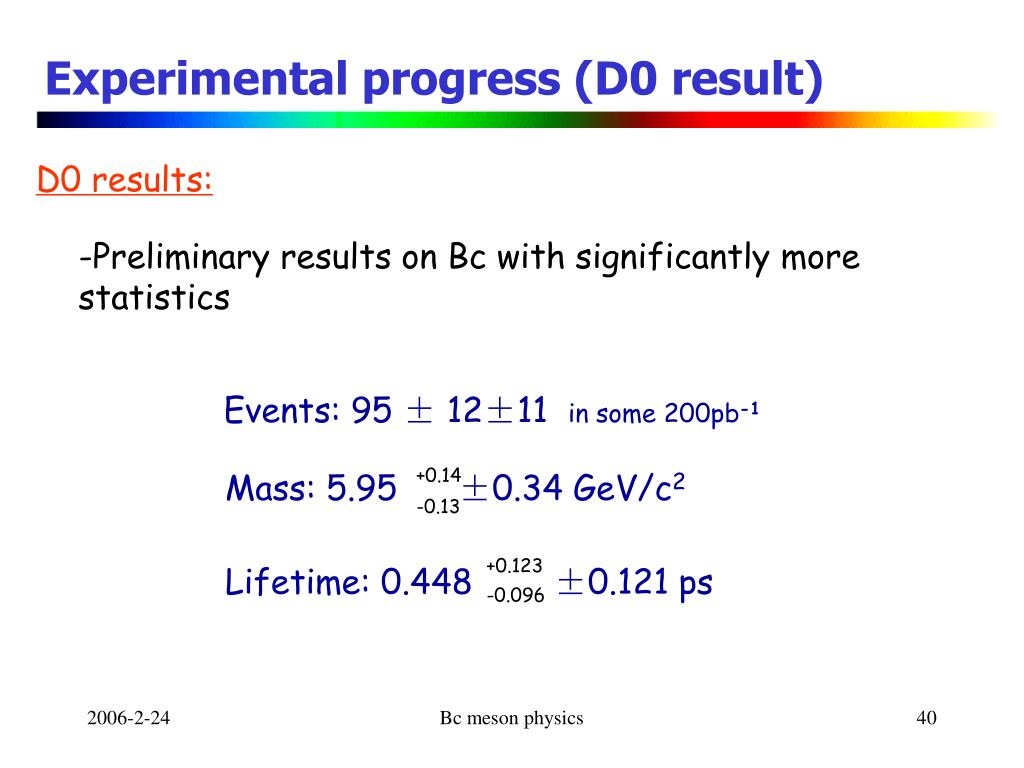

  40. Mass: 5.95 ±0.34 GeV/c2 +0.14 -0.13 Lifetime: 0.448 ±0.121 ps +0.123 -0.096 Experimental progress (D0 result) D0 results: • Preliminary results on Bc with significantly more statistics Events: 95 ± 12±11 in some 200pb-1 Bc meson physics

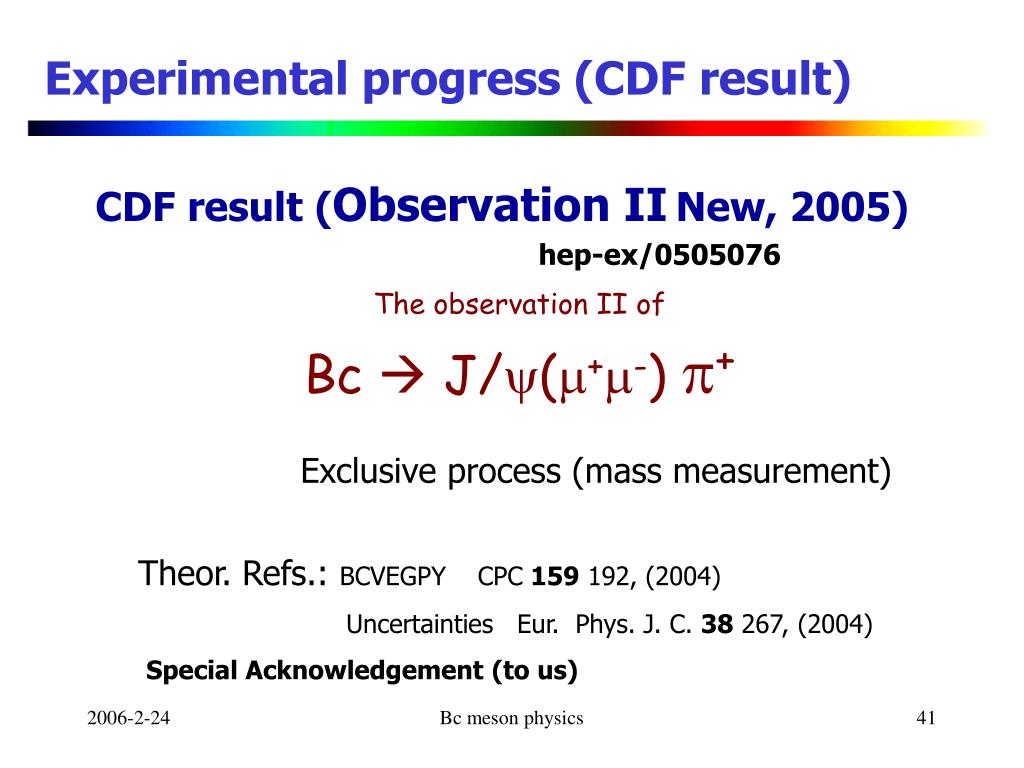

  41. Experimental progress (CDF result) CDF result (Observation IINew, 2005) hep-ex/0505076 The observation II ofBc  J/y(m+m-) p+ Exclusive process (mass measurement) Theor. Refs.: BCVEGPY CPC 159 192, (2004) Uncertainties Eur. Phys. J. C. 38 267, (2004) Special Acknowledgement (to us) Bc meson physics

  42. Experimental progress (CDF result) 360 pb from the `` '' -trigger stream The significance function (score function ) S = Monte Carlo signal B = measured background The control sample (important): Bc meson physics

  43. Experimental progress (CDF result) Bc meson physics

  44. Experimental progress (CDF result) Bc meson physics

  45. Experimental progress (CDF result) vs (m-100MeV~m+200MeV) Bc meson physics

  46. Experimental progress (CDF result) The mass of Bc (mBc) Bc meson physics

  47. Experimental progress (CDF result) Summary(CDF RUN-II, ECM=1.96 TeV, 360pb-1) 18.9±5.7 events New Result (version 2) mBc=6285.7±5.3(stat)±1.2(syst) MeV/c2 Bc meson physics

  48. 5. Prospect for LHCb i).Repeat Tevatron results (mass, lifetime etc) P+P→ Bc+… Bc → J/ψ+ l++ν J/ψ+ π (ρ) ii). New decay chennals (relative branching ratios) P+P→ Bc+… Bc → χC (hC) + l++ν χC (hC) + π(ρ) Bs (Bs *)+ l++ν Bs (Bs *) + π(ρ) etc Bc meson physics

  49. 5. Prospect for LHC iii). Deeper studies (with profound understanding the beam and your detector) Precise measurements of the production: The mechanisms (NRQCD) Excited Bc (P-wave) production etc. (potential model) Form factor measurements in semileptonic decays etc Study of the ‘self-tag’ of Bs ( for mixing) Bc → Bs (Bs *)+ l++ν Bs (Bs *) + π(ρ, a1) etc Something else Bc → light hadrons+ l++ν (color octet in Bc) Bc meson physics

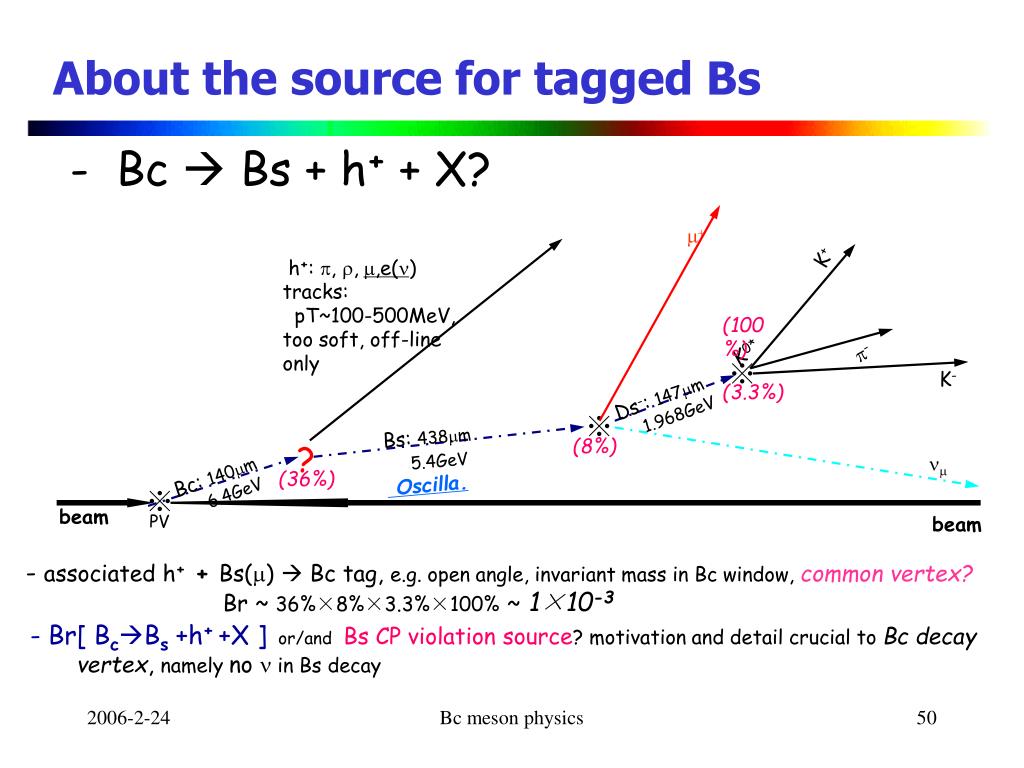

  50. K+ m+ h+: p, r,m,e(n) tracks: pT~100-500MeV, too soft, off-line only p- (100%) K0* ※ K- (3.3%) Ds-: 147mm 1.968GeV ※ Bs: 438mm 5.4GeV Oscilla. (8%) ? nm Bc: 140mm 6.4GeV (36%) ※ beam PV beam About the source for tagged Bs - Bc  Bs + h+ + X? - associated h+ + Bs(m)  Bc tag, e.g. open angle, invariant mass in Bc window,common vertex? Br ~ 36%×8%×3.3%×100%~1×10-3 - Br[ BcBs +h++X ]or/andBs CP violation source? motivation and detail crucial to Bc decay vertex, namely no n in Bs decay Bc meson physics
