Lec 24 Game Applications

Lec 24 Game Applications. Chapter 29. Nash Equilibrium. In any Nash equilibrium (NE) each player chooses a “best” response to the choices made by all of the other players. A game may have more than one NE. How can we locate every one of a game’s Nash equilibria?

paley
Télécharger la présentation

Lec 24 Game Applications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Lec 24 Game Applications Chapter 29

  2. Nash Equilibrium In any Nash equilibrium (NE) each player chooses a “best” response to the choices made by all of the other players. A game may have more than one NE. How can we locate every one of a game’s Nash equilibria? If there is more than one NE, can we argue that one is more likely to occur than another?

  3. Best Responses Think of a 2×2 game; i.e., a game with two players, A and B, each with two actions. A can choose between actions aA1 and aA2. B can choose between actions aB1 and aB2. There are 4 possible action pairs;(aA1, aB1), (aA1, aB2), (aA2, aB1), (aA2, aB2). Each action pair will usually cause different payoffs for the players.

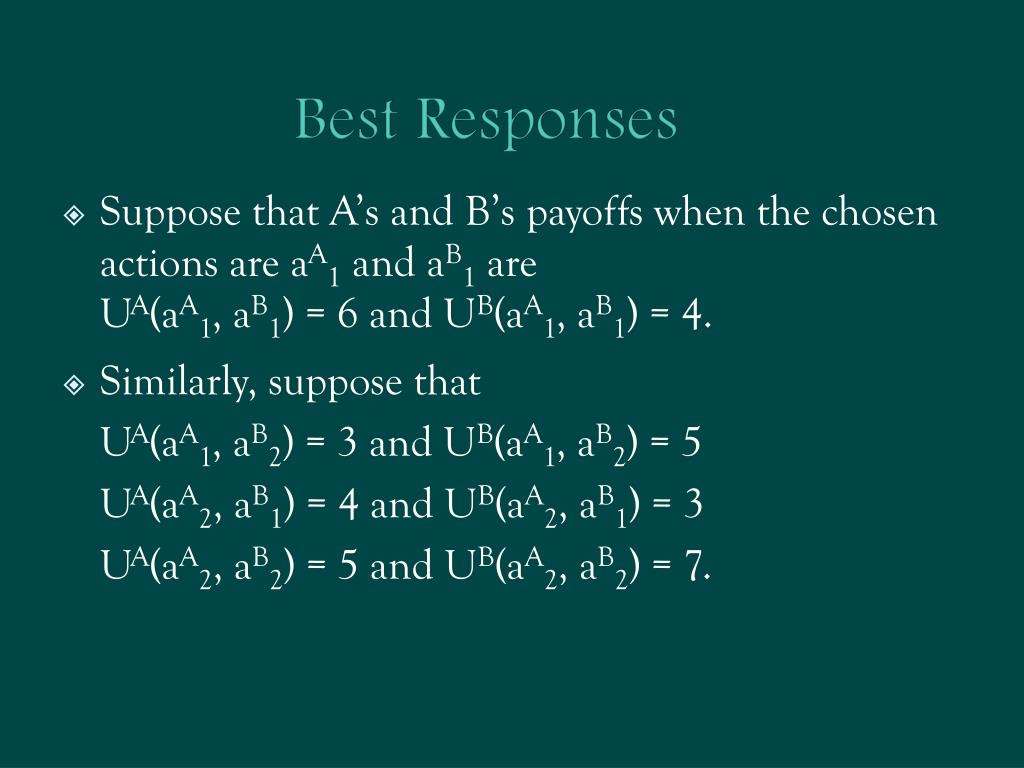

  4. Best Responses Suppose that A’s and B’s payoffs when the chosen actions are aA1 and aB1 areUA(aA1, aB1) = 6 and UB(aA1, aB1) = 4. Similarly, suppose thatUA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7.

  5. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7.

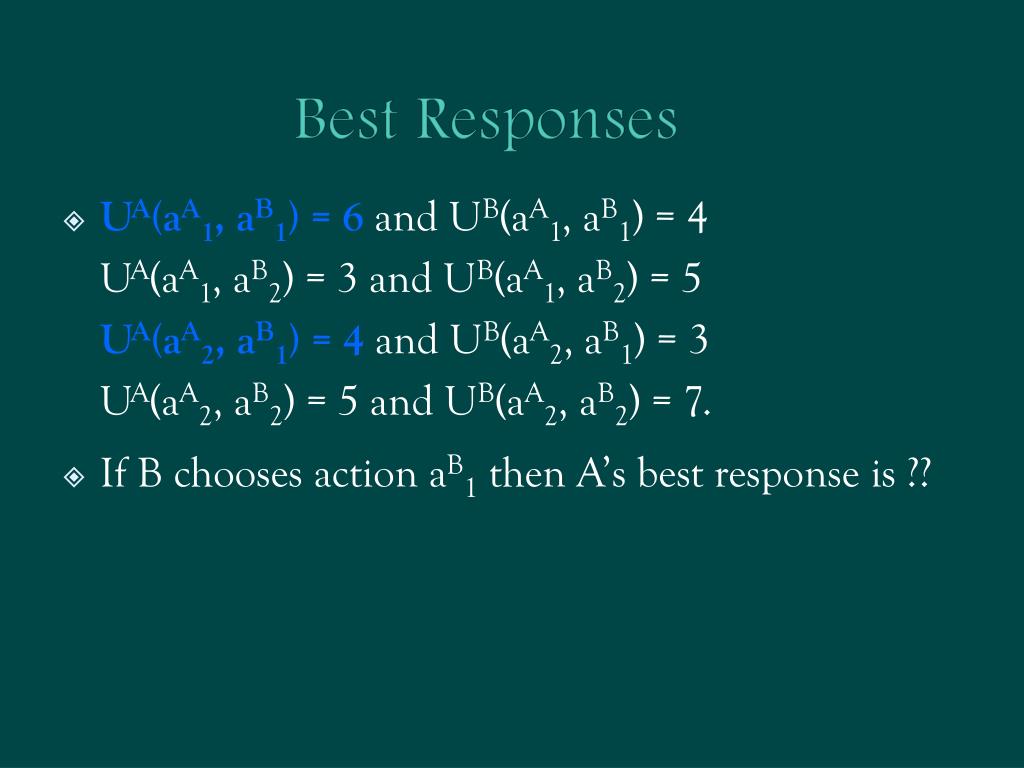

  6. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If B chooses action aB1 then A’s best response is ??

  7. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If B chooses action aB1 then A’s best response is action aA1 (because 6 > 4).

  8. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If B chooses action aB1 then A’s best response is action aA1 (because 6 > 4). If B chooses action aB2 then A’s best response is ??

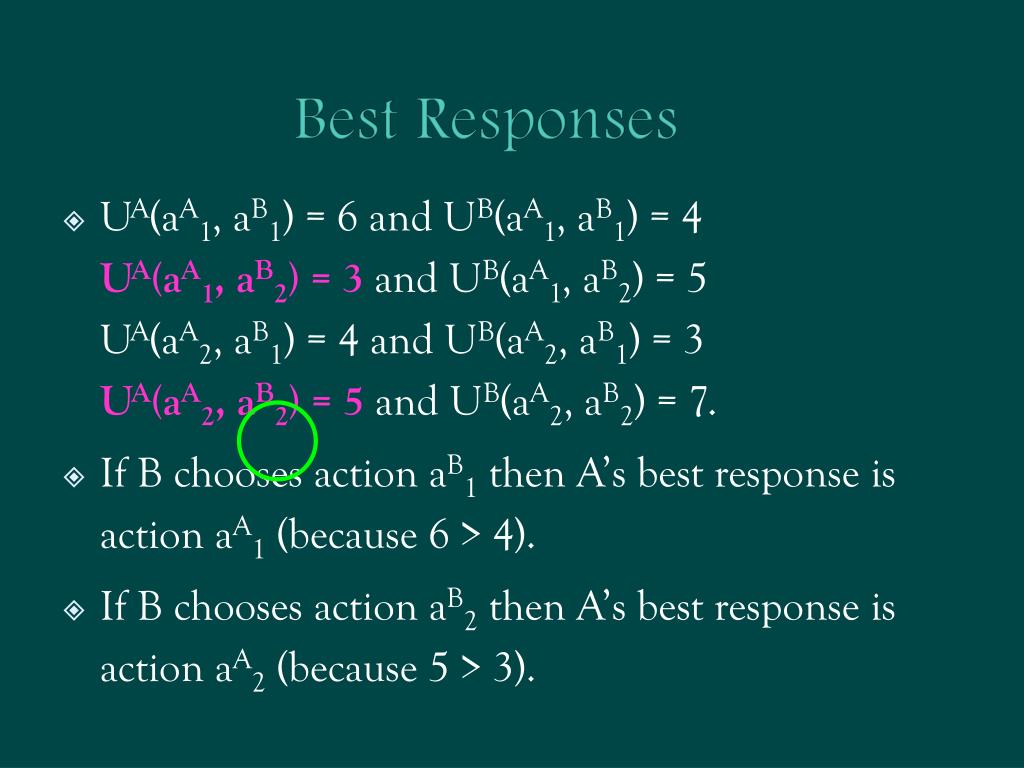

  9. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If B chooses action aB1 then A’s best response is action aA1 (because 6 > 4). If B chooses action aB2 then A’s best response is action aA2 (because 5 > 3).

  10. Best Responses If B chooses aB1 then A chooses aA1. If B chooses aB2 then A chooses aA2. A’s best-response “curve” is therefore + aA2 A’s bestresponse + aA1 B’s action aB1 aB2

  11. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7.

  12. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If A chooses action aA1 then B’s best response is ??

  13. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If A chooses action aA1 then B’s best response is action aB2 (because 5 > 4).

  14. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If A chooses action aA1 then B’s best response is action aB2 (because 5 > 4). If A chooses action aA2 then B’s best response is ??.

  15. Best Responses UA(aA1, aB1) = 6 and UB(aA1, aB1) = 4UA(aA1, aB2) = 3 and UB(aA1, aB2) = 5UA(aA2, aB1) = 4 and UB(aA2, aB1) = 3UA(aA2, aB2) = 5 and UB(aA2, aB2) = 7. If A chooses action aA1 then B’s best response is action aB2 (because 5 > 4). If A chooses action aA2 then B’s best response is action aB2 (because 7 > 3).

  16. Best Responses If A chooses aA1 then B chooses aB2. If A chooses aA2 then B chooses aB2. B’s best-response “curve” is therefore aA2 A’s action aA1 B’s best response aB1 aB2

  17. Best Responses If A chooses aA1 then B chooses aB2. If A chooses aA2 then B chooses aB2. B’s best-response “curve” is therefore Notice that aB2 is astrictly dominantaction for B. aA2 A’s action aA1 B’s best response aB1 aB2

  18. Best Responses & Nash Equilibria + aA2 + aA1 aB1 aB2 How can the players’ best-response curves beused to locate the game’s Nash equilibria? A’s response A’s choice B A aA2 aA1 aB1 aB2 B’s choice B’s response

  19. Best Responses & Nash Equilibria + aA2 + aA1 aB1 aB2 How can the players’ best-response curves beused to locate the game’s Nash equilibria? Put one curve on top of the other. A’s response A’s choice B A aA2 aA1 aB1 aB2 B’s choice B’s response

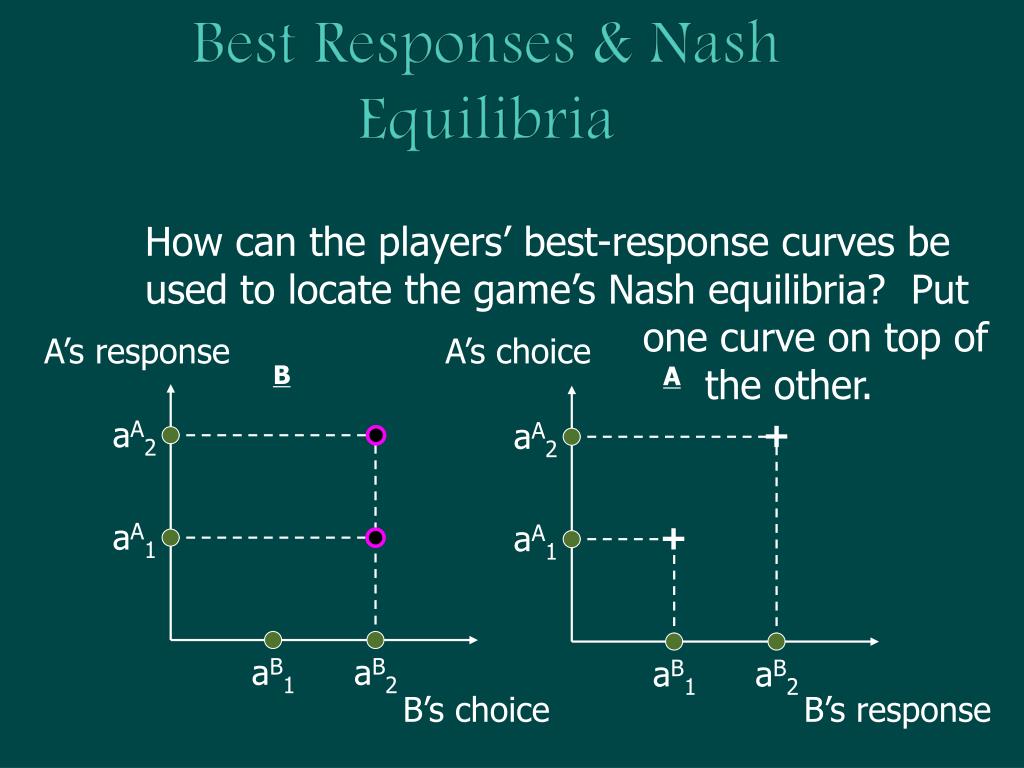

  20. Best Responses & Nash Equilibria + aA2 + aA1 aB1 aB2 How can the players’ best-response curves beused to locate the game’s Nash equilibria? Put one curve on top of the other. A’s response A’s choice B A aA2 aA1 aB1 aB2 B’s choice B’s response

  21. Best Responses & Nash Equilibria How can the players’ best-response curves beused to locate the game’s Nash equilibria? Put one curve on top of the other. A’s response + aA2 Is there a Nash equilibrium? + aA1 aB1 aB2 B’s response

  22. Best Responses & Nash Equilibria How can the players’ best-response curves beused to locate the game’s Nash equilibria? Put one curve on top of the other. A’s response + aA2 Is there a Nash equilibrium?Yes, (aA2, aB2). Why? + aA1 aB1 aB2 B’s response

  23. Best Responses & Nash Equilibria How can the players’ best-response curves beused to locate the game’s Nash equilibria? Put one curve on top of the other. A’s response + aA2 Is there a Nash equilibrium?Yes, (aA2, aB2). Why? aA2 is a best response to aB2.aB2 is a best response to aA2. + aA1 aB1 aB2 B’s response

  24. Best Responses & Nash Equilibria Player B Here is the strategicform of the game. aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 aA2 is the only best response to aB2.aB2 is the only best response to aA2.

  25. Best Responses & Nash Equilibria Player B Here is the strategicform of the game. aB1 aB2 Is there a 2nd Nasheqm.? 6,4 3,5 aA1 Player A 4,3 5,7 aA2 aA2 is the only best response to aB2.aB2 is the only best response to aA2.

  26. Best Responses & Nash Equilibria Player B Here is the strategicform of the game. aB1 aB2 Is there a 2nd Nasheqm.? No, becauseaB2 is a strictlydominant actionfor Player B. 6,4 3,5 aA1 Player A 4,3 5,7 aA2 aA2 is the only best response to aB2. aB2 is the only best response to aA2.

  27. Best Responses & Nash Equilibria Player B aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 Now allow both players to randomize (i.e., mix)over their actions.

  28. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 Now allow both players to randomize (i.e., mix)over their actions.

  29. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given B1, whatvalue of A1 is bestfor A? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2

  30. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given B1, whatvalue of A1 is bestfor A? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 EVA(aA1) = 6B1 + 3(1 - B1) = 3 + 3B1.

  31. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given B1, whatvalue of A1 is bestfor A? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 EVA(aA1) = 6B1 + 3(1 - B1) = 3 + 3B1.EVA(aA2) = 4B1 + 5(1 - B1) = 5 - B1.

  32. Best Responses & Nash Equilibria EVA(aA1) = 3 + 3B1.EVA(aA2) = 5 - B1.3 + 3B1 5 - B1 as B1 ?? >=< >=< A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given B1, what value of A1 is best for A?

  33. Best Responses & Nash Equilibria EVA(aA1) = 3 + 3B1.EVA(aA2) = 5 - B1.3 + 3B1 5 - B1 as B1 ½. >=< >=< A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given B1, what value of A1 is best for A?

  34. Best Responses & Nash Equilibria EVA(aA1) = 3 + 3B1.EVA(aA2) = 5 - B1.3 + 3B1 5 - B1 as B1 ½. A’s best response is: aA1 if B1 > ½ aA2 if B1 < ½ aA1 or aA2 if B1 = ½ >=< >=< A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given B1, what value of A1 is best for A?

  35. Best Responses & Nash Equilibria EVA(aA1) = 3 + 3B1.EVA(aA2) = 5 - B1.3 + 3B1 5 - B1 as B1 ½. A’s best response is: aA1 (i.e. A1 = 1) if B1 > ½ aA2 (i.e. A1 = 0) if B1 < ½ aA1 or aA2 (i.e. 0  A1 1) if B1 = ½ >=< >=< A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given B1, what value of A1 is best for A?

  36. Best Responses & Nash Equilibria A’s best response is: aA1 (i.e. A1 = 1) if B1 > ½ aA2 (i.e. A1 = 0) if B1 < ½ aA1 or aA2 (i.e. 0  A1 1) if B1 = ½ A’s best response A1 1 0 B1 0 ½ 1

  37. Best Responses & Nash Equilibria A’s best response is: aA1 (i.e. A1 = 1) if B1 > ½ aA2 (i.e. A1 = 0) if B1 < ½ aA1 or aA2 (i.e. 0  A1 1) if B1 = ½ A’s best response A1 1 0 B1 0 ½ 1

  38. Best Responses & Nash Equilibria A’s best response is: aA1 (i.e. A1 = 1) if B1 > ½ aA2 (i.e. A1 = 0) if B1 < ½ aA1 or aA2 (i.e. 0  A1 1) if B1 = ½ A’s best response A1 1 0 B1 0 ½ 1

  39. Best Responses & Nash Equilibria A’s best response is: aA1 (i.e. A1 = 1) if B1 > ½ aA2 (i.e. A1 = 0) if B1 < ½ aA1 or aA2 (i.e. 0  A1  1) if B1 = ½ A’s best response A1 1 This is A’s best responsecurve when players areallowed to mix over theiractions. 0 B1 0 ½ 1

  40. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given A1, whatvalue of B1 is bestfor B? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2

  41. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given A1, whatvalue of B1 is bestfor B? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 EVB(aB1) = 4A1 + 3(1 - A1) = 3 + A1.

  42. Best Responses & Nash Equilibria Player B A1 is the prob. Achooses action aA1. B1 is the prob. Bchooses action aB1. Given A1, whatvalue of B1 is bestfor B? aB1 aB2 6,4 3,5 aA1 Player A 4,3 5,7 aA2 EVB(aB1) = 4A1 + 3(1 - A1) = 3 + A1.EVB(aB2) = 5A1 + 7(1 - A1) = 7 - 2A1.

  43. Best Responses & Nash Equilibria EVB(aB1) = 3 + A1.EVB(aB2) = 7 - 2A1.3 + A1 7 - 2A1 as A1 ?? >=< A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given A1, what value of B1 is best for B? >=<

  44. Best Responses & Nash Equilibria A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given A1, what value of B1 is best for B? EVB(aB1) = 3 + A1.EVB(aB2) = 7 - 2A1.3 + A1 < 7 - 2A1 for all 0  A1 1.

  45. Best Responses & Nash Equilibria A1 is the prob. A chooses action aA1. B1 is the prob. B chooses action aB1. Given B1, what value of A1 is best for A? EVB(aB1) = 3 + A1.EVB(aB2) = 7 - 2A1.3 + A1 < 7 - 2A1 for all 0  A1 1.B’s best response is: aB2 always (i.e. B1 = 0 always).

  46. Best Responses & Nash Equilibria B’s best response is aB2 always (i.e. B1 = 0 always). A1 1 This is B’s best responsecurve when players areallowed to mix over theiractions. 0 B1 0 ½ 1 B’s best response

  47. Best Responses & Nash Equilibria B A A’s best response A1 A1 1 1 0 0 B1 B1 0 ½ 1 0 ½ 1 B’s best response

  48. Best Responses & Nash Equilibria Is there a Nash equilibrium? B A A’s best response A1 A1 1 1 0 0 B1 B1 0 ½ 1 0 ½ 1 B’s best response

  49. Best Responses & Nash Equilibria A’s best response A1 A1 1 1 0 0 B1 B1 0 ½ 1 0 ½ 1 B’s best response Is there a Nash equilibrium? B A

  50. Best Responses & Nash Equilibria A1 1 0 B1 0 ½ 1 B’s best response Is there a Nash equilibrium? A’s best response
