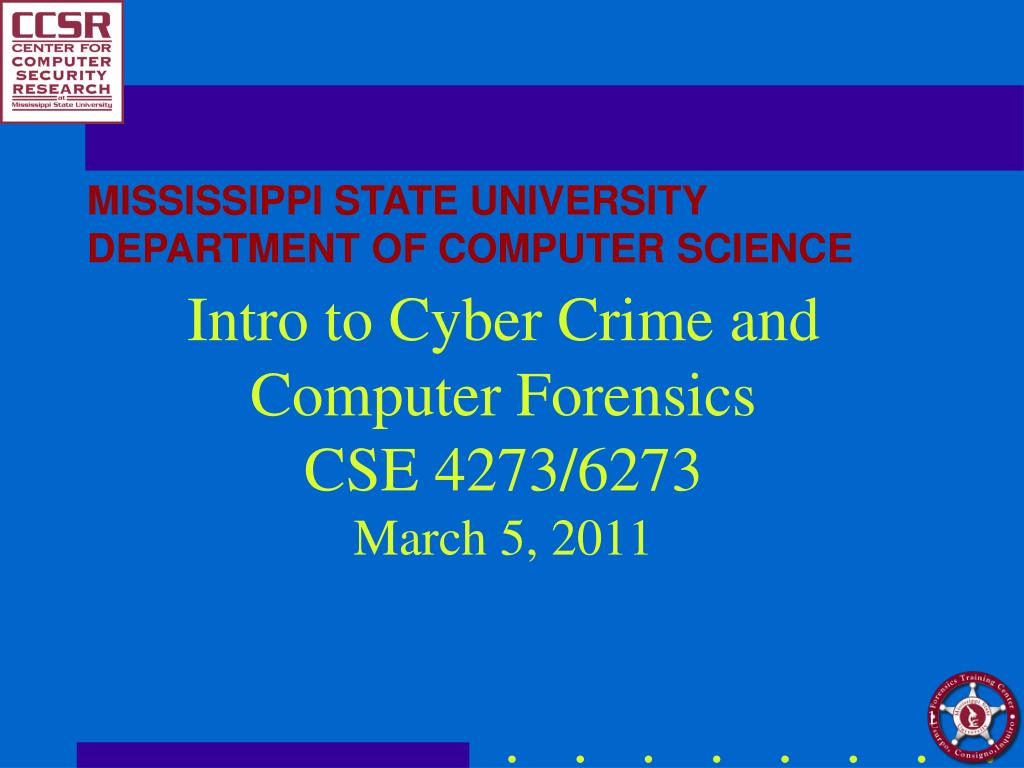

  1. Intro to Cyber Crime and Computer Forensics CSE 4273/6273 March 5, 2011 MISSISSIPPI STATE UNIVERSITY DEPARTMENT OF COMPUTER SCIENCE

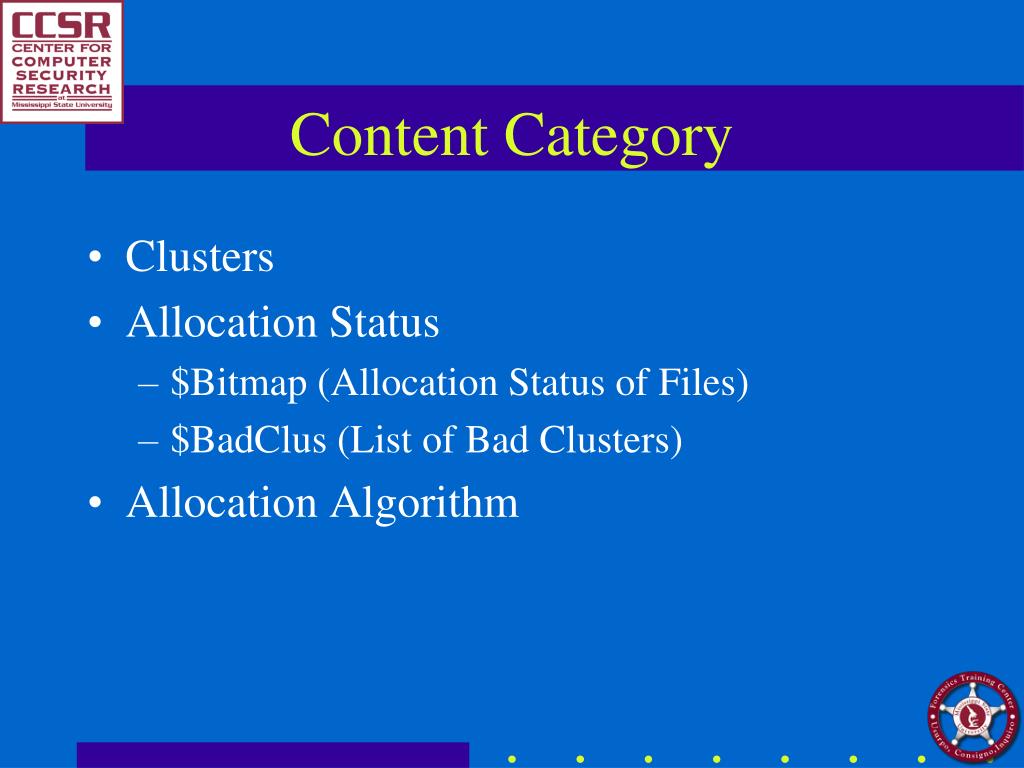

  2. Content Category • Clusters • Allocation Status • $Bitmap (Allocation Status of Files) • $BadClus (List of Bad Clusters) • Allocation Algorithm

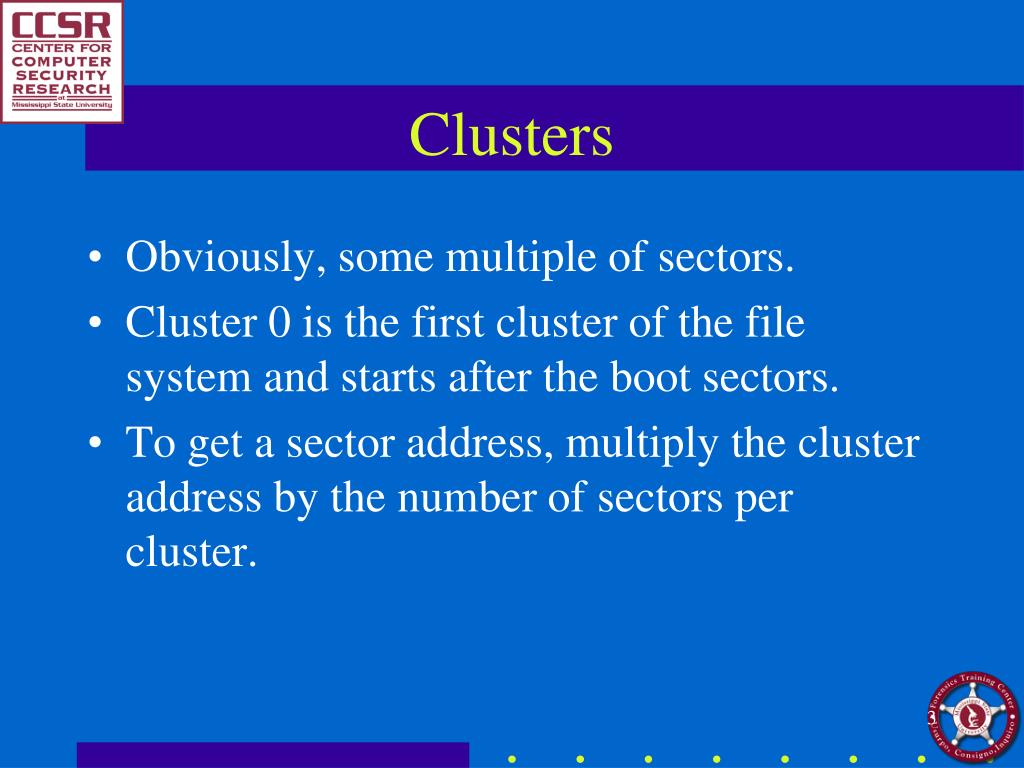

  3. Clusters • Obviously, some multiple of sectors. • Cluster 0 is the first cluster of the file system and starts after the boot sectors. • To get a sector address, multiply the cluster address by the number of sectors per cluster.

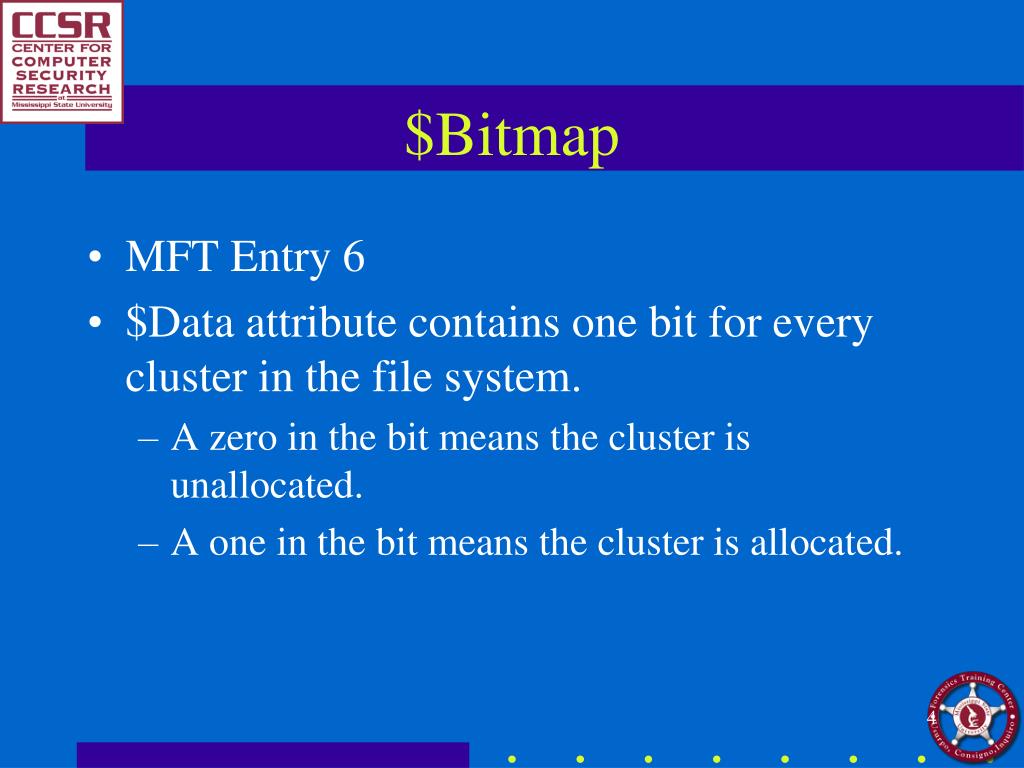

  4. $Bitmap • MFT Entry 6 • $Data attribute contains one bit for every cluster in the file system. • A zero in the bit means the cluster is unallocated. • A one in the bit means the cluster is allocated.

  5. $BadClus • MFT Entry 8 • Keeps track of damaged clusters in a sparse file. • $Data attribute named $Data is a non-resident attribute equal to the entire file system. • $Data attribute named $Bad is a resident attribute that contains the address of the bad clusters.

  6. Allocation Algorithms • Allocation algorithm is implementation dependent, but the author observes that Windows XP always uses Best Fit Strategy.

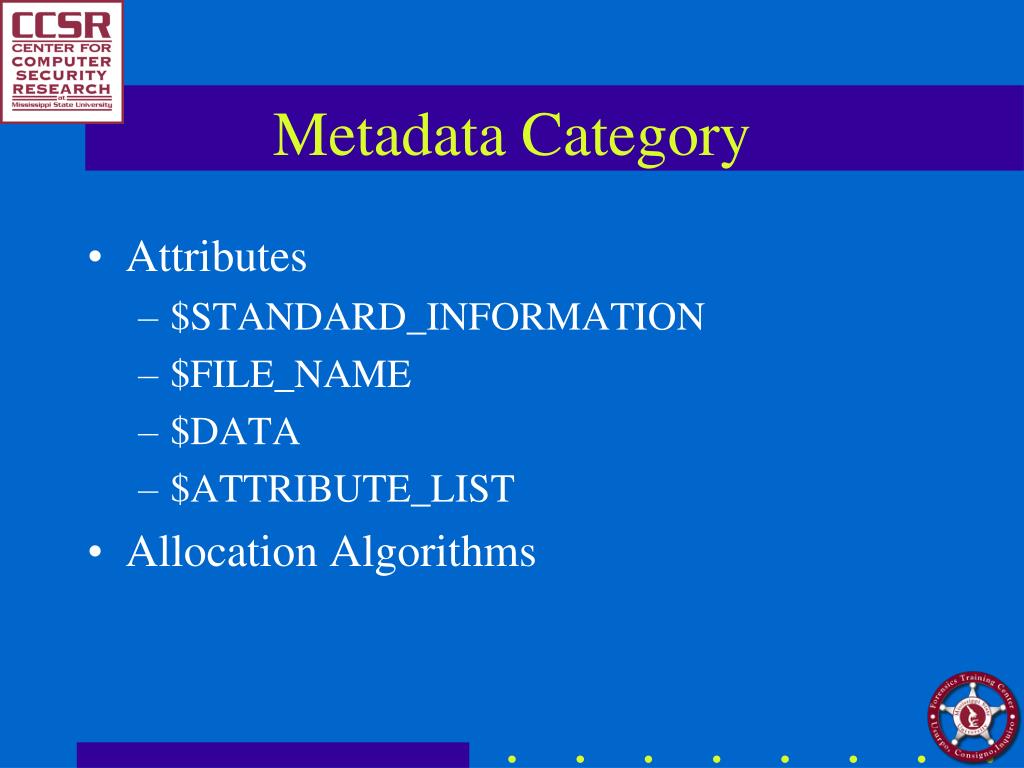

  7. Metadata Category • Attributes • $STANDARD_INFORMATION • $FILE_NAME • $DATA • $ATTRIBUTE_LIST • Allocation Algorithms

  8. $STANDARD_INFORMATION • Standard for all files and directories. • Contains time and date stamps, ownership, security, and quota information. • Four date and time stamps: • Creation time: When file created. • Modified Time: When $Data or $Index attribute modified. • MFT Modified Time: When metadata last modified. • Accessed Time: When last accessed.

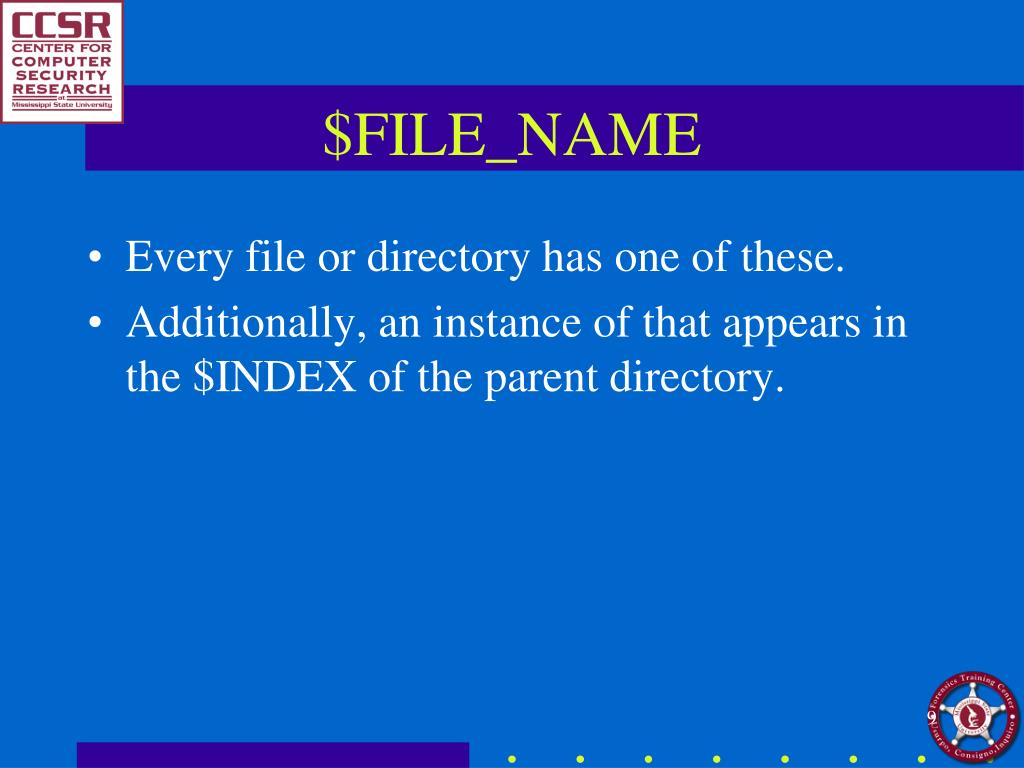

  9. $FILE_NAME • Every file or directory has one of these. • Additionally, an instance of that appears in the $INDEX of the parent directory.

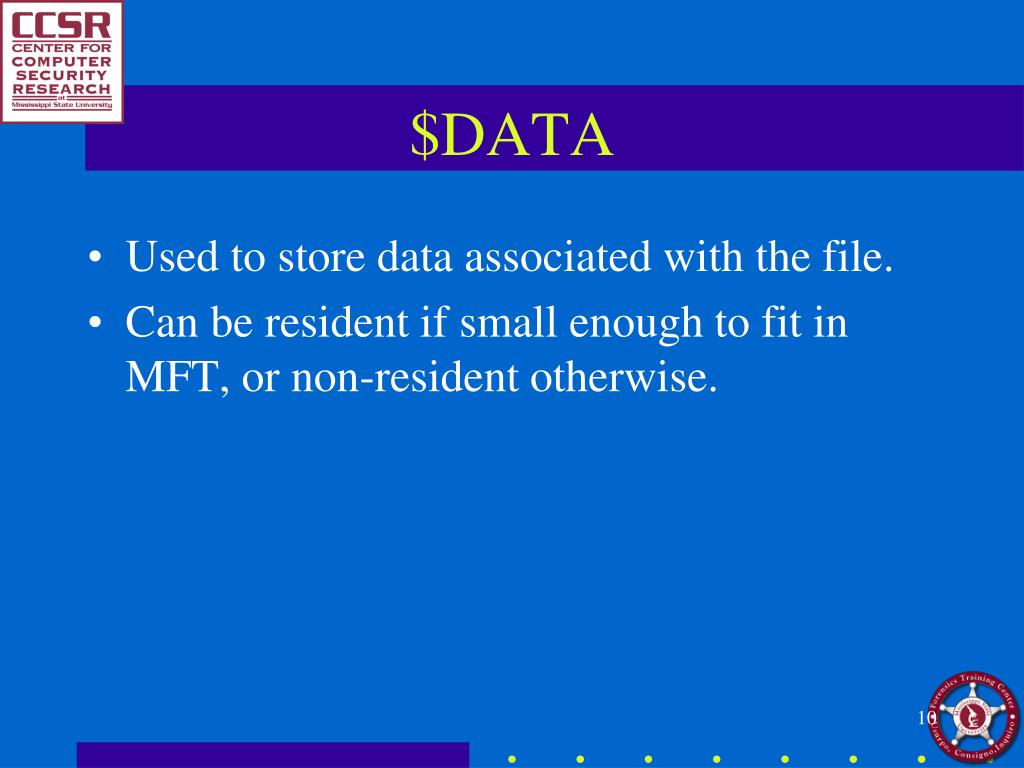

  10. $DATA • Used to store data associated with the file. • Can be resident if small enough to fit in MFT, or non-resident otherwise.

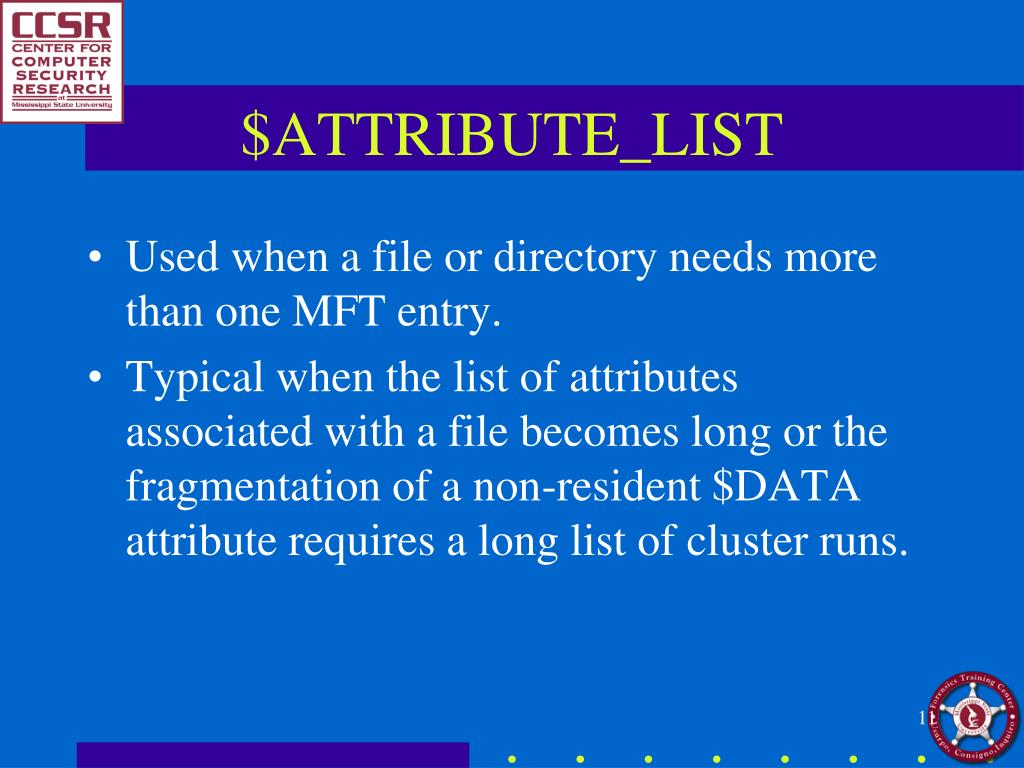

  11. $ATTRIBUTE_LIST • Used when a file or directory needs more than one MFT entry. • Typical when the list of attributes associated with a file becomes long or the fragmentation of a non-resident $DATA attribute requires a long list of cluster runs.

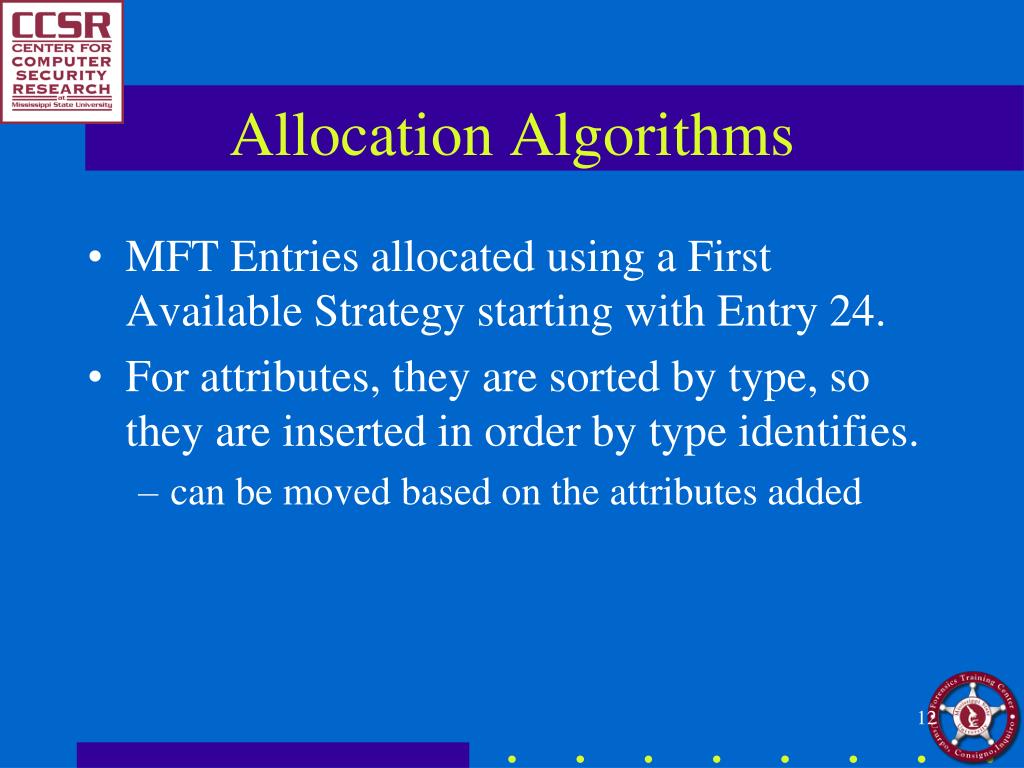

  12. Allocation Algorithms • MFT Entries allocated using a First Available Strategy starting with Entry 24. • For attributes, they are sorted by type, so they are inserted in order by type identifies. • can be moved based on the attributes added

  13. NTFS Analysis • Five Categories of Data • File System • Content • Metadata • File Name • Application

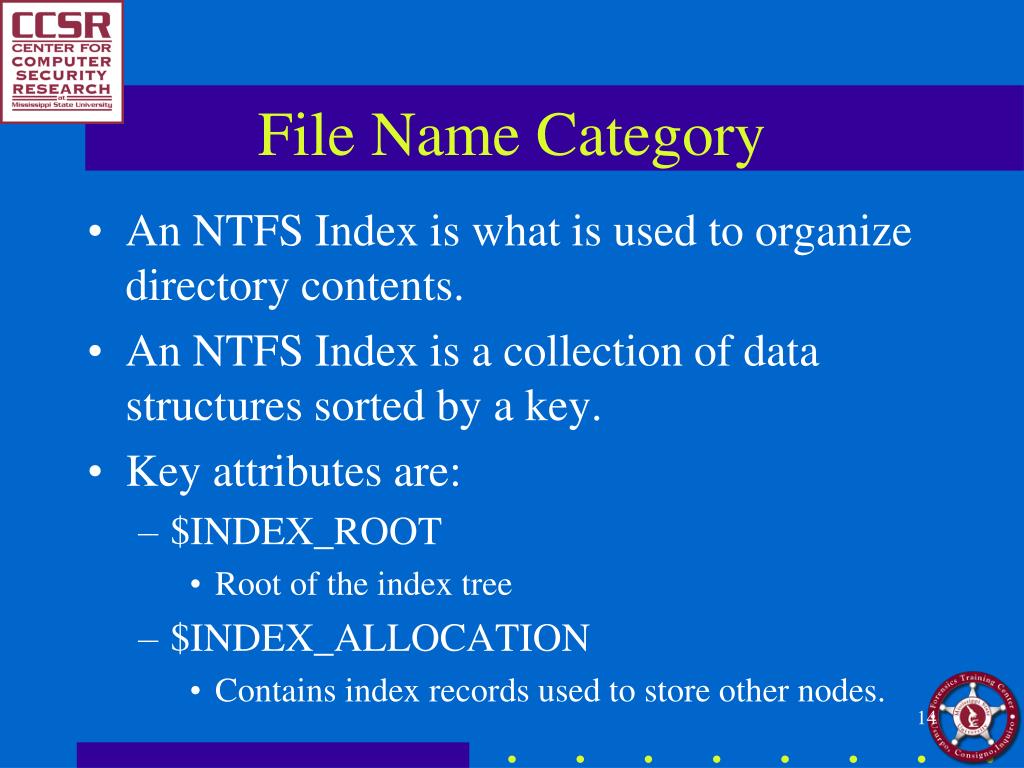

  14. File Name Category • An NTFS Index is what is used to organize directory contents. • An NTFS Index is a collection of data structures sorted by a key. • Key attributes are: • $INDEX_ROOT • Root of the index tree • $INDEX_ALLOCATION • Contains index records used to store other nodes.

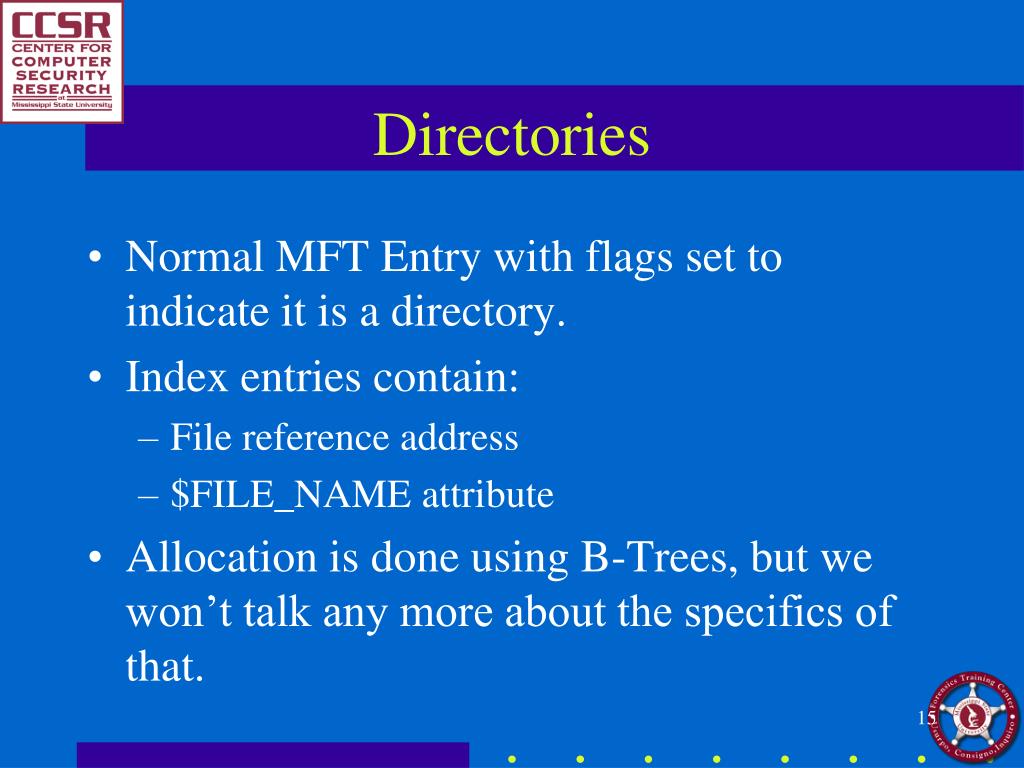

  15. Directories • Normal MFT Entry with flags set to indicate it is a directory. • Index entries contain: • File reference address • $FILE_NAME attribute • Allocation is done using B-Trees, but we won’t talk any more about the specifics of that.

  16. Basic Directory Tree $INDEX_ROOT hhh.txt Entry:51 X ccc.txt Entry:58 $INDEX_ALLOCATION Index Record 1 iii.txt Entry:60 kkk.txt Entry:73 X qqq.txt Entry:29 Index Record 0 aaa.txt Entry:45 ccc.txt Entry:58 eeeeee.Txt Entry: 48 eeee~1.txt Entry:48 X Carrier, Fig. 12.9

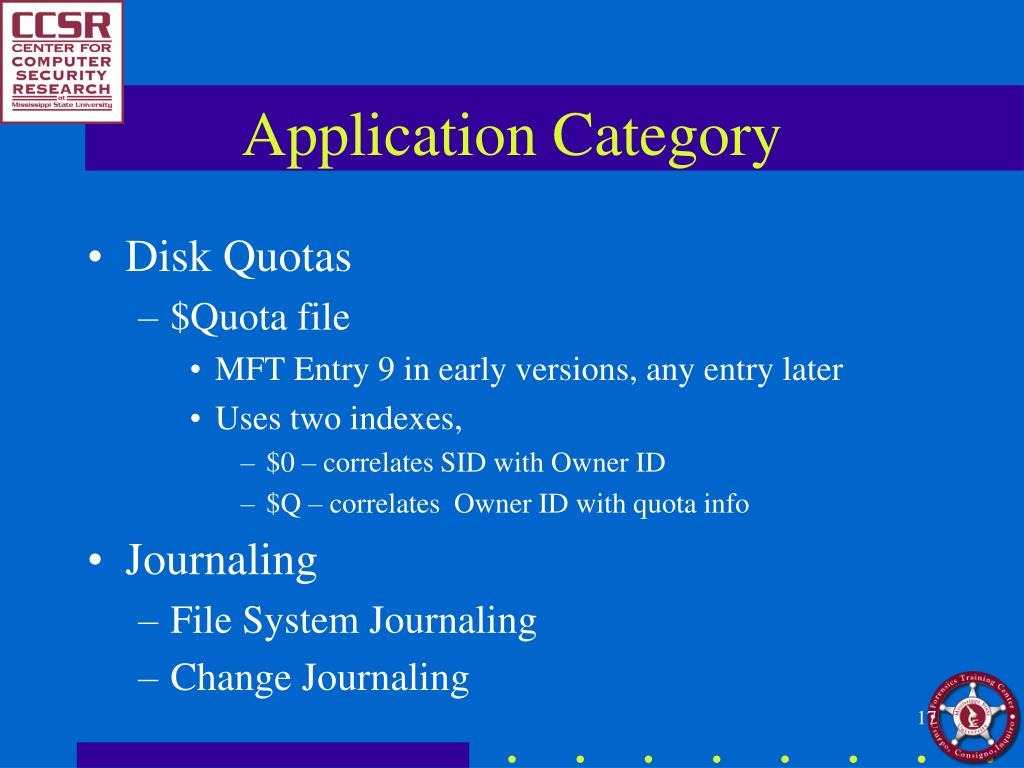

  17. Application Category • Disk Quotas • $Quota file • MFT Entry 9 in early versions, any entry later • Uses two indexes, • $0 – correlates SID with Owner ID • $Q – correlates Owner ID with quota info • Journaling • File System Journaling • Change Journaling

  18. File System Journaling • $LogFile – MFT Entry 2 • Log info stored in $Data attribute. • Details omitted, but you can read about them.

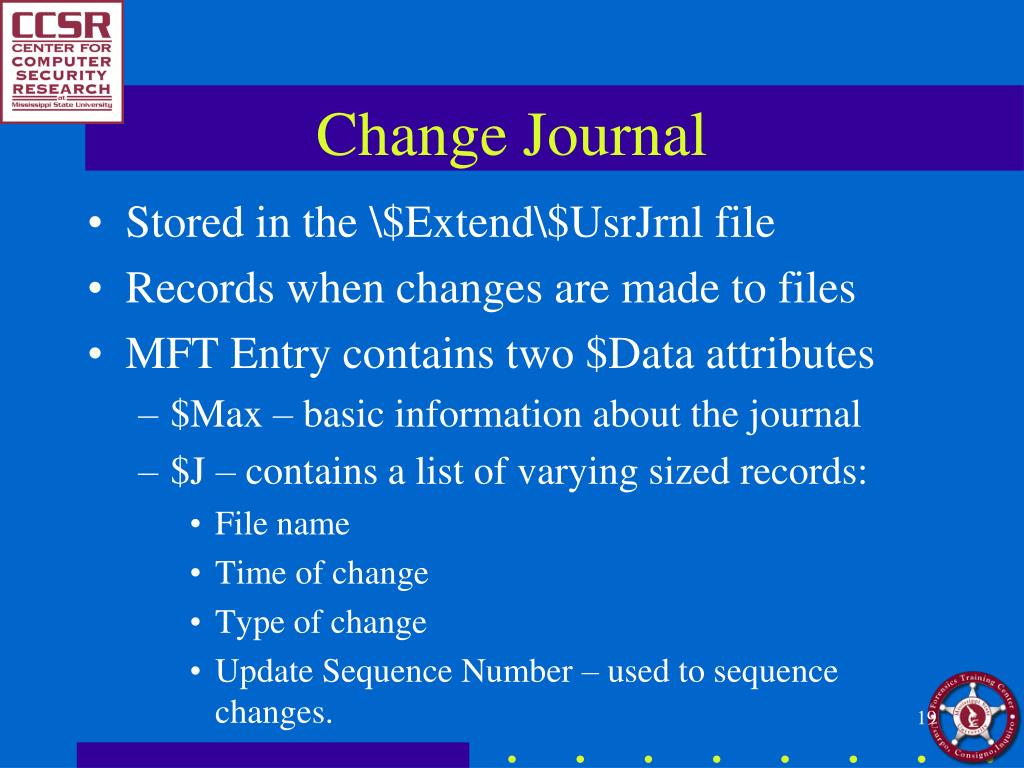

  19. Change Journal • Stored in the \$Extend\$UsrJrnl file • Records when changes are made to files • MFT Entry contains two $Data attributes • $Max – basic information about the journal • $J – contains a list of varying sized records: • File name • Time of change • Type of change • Update Sequence Number – used to sequence changes.

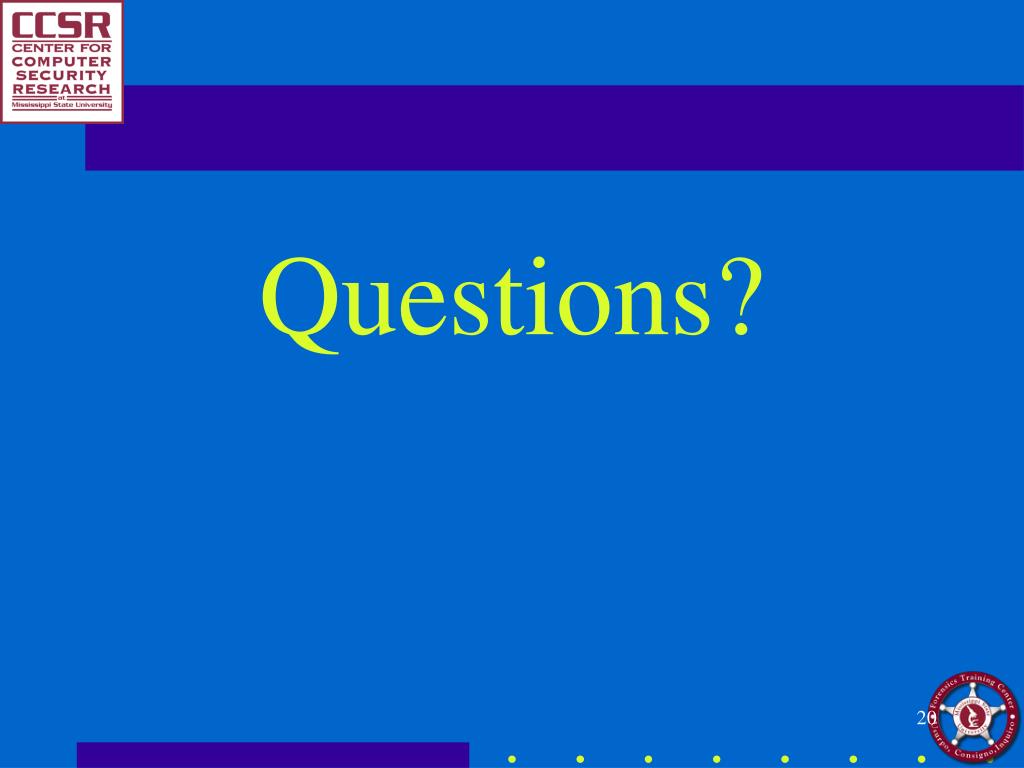

  20. Questions?
