  1. All-Path Bridging Update Jun Tanaka (Fujitsu Labs. Ld.) Guillermo Ibanez (UAH) Vinod Kumar (Tejas Networks) IEEE Plenary meeting San Francisco 17-21 July

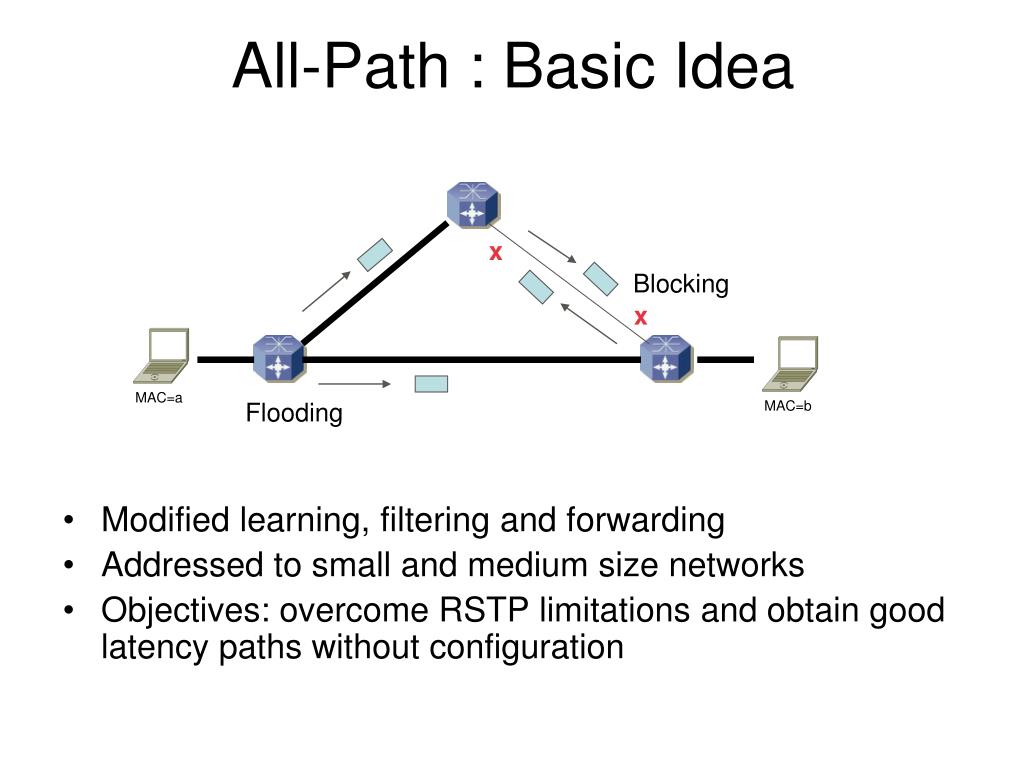

  2. All-Path : Basic Idea • Modified learning, filtering and forwarding • Addressed to small and medium size networks • Objectives: overcome RSTP limitations and obtain good latency paths without configuration x Blocking x MAC=a Flooding MAC=b

  3. Scope of All-Path Both support, loop free, shortest path SPB, ECMP TRILL Enterprise, Campus, Small datacenter etc. Manageability LAN ALL-PATH Large area, provider network Large datacenter etc. • Simple • Less operation • Natural load balance MAN/WAN Scalability

  4. Issue1. Path Recovery • Mechanism: When unknown unicast frame arriving at bridge with failed link, path fail message is generated per MAC entry towards source bridge, that generates corresponding ARP to re-establish tree. • Question: If 10K MAC entries are existed in FDB, 10K path fail frames should be generated, is it feasible processing for local CPU, especially in high-speed link (ex. 10GE)? • It can be applicable for small or medium networks if we are targeting the enterprise, campus and small datacenter etc. • Moreover, a solutionis proposed that minimize the frame generation.

  5. Path recovery (cont’d) flush “b” flush “b” a a 2 1 1 2 SW3 SW5 flush message is terminated because “b” is not binded to port1 3 3 a a b a b a b b 1 2 1 2 1 2 1 2 SW1 SW2 SW4 SW6 flush “b” MAC=a MAC=b Delete entry “b” from FDB and re-sends the flush message to SW1. May includes two or more…ex. 100s of MAC addresses to be flushed as a list. • When link failure is detected, MAC flush lists (187 MAC / 1500B frame) are flooded. 54 frames by a day for 10K MAC entry. • Avoid unnecessary flooding, MAC list is deleted to shorten. • Issues: How to prevent flush frame loss. May require CPU processing power. • Experience: 15ms to flush 10K MACs in a node (1GHz MIPS Core)

  6. Issue2. Server Edge VEB VEB • Question: If a server has two or more NICs, how to find which port is first? • vswitch: only vswitch to support All-Path • VEB: both VEB and vswitch to support All-Path • VEPA: only external switch to support All-Path Vswitch Vswitch VEPA NIC NIC NIC NIC NIC Ext. switch

  7. Issue3. Load Balance • Load balance is available in natural way because high load link tend not to be selected with queuing delay. • Pros: zero-configuration load balance, no extra processing effort • Cons: you cannot control load balance like SPB/ECMP

  8. Report on Proposal for AVB TG • May 12, Thu, morning session @ AVB • Dr. Ibanez presented the materials as used in IW session (Singapore and Santa Fe) • Questions and comments • Any other metric than latency e.g. bandwidth? • Path recovery time comparing with RSTP? • Any broadcast storm occurred when link failed? • What’s the status in IW session, any PAR created? • AVB status • They try to solve by their own way, using SRP. • Not only latency but also bandwidth can be used as metric • Also redundant path can be calculated
